Selecting the right butterfly valve for your system is a crucial decision that can affect the performance and longevity of your piping network. With various types available, it is important to understand the differences between them to make an informed choice. This article explores the most common types of butterfly valves, such as wafer, lug, and flanged variants, to help you determine which one is best suited for your needs. Whether you’re working with a water treatment system, HVAC, or industrial piping, understanding the different valve types will allow you to make a smart, cost-effective decision for your pipeline.
Choosing the right type of valve is essential for any piping system. The type of valve you select will impact installation, serviceability, and overall cost. Each type of butterfly valve is designed for specific operational needs, and understanding these differences can help optimize performance.
Installation: The connection type and design of the butterfly valve play a major role in how easily it can be installed. For example, wafer butterfly valves are ideal for installation between flanges, making them easier and faster to install, while flanged butterfly valves require bolting to flanges and may require more effort.
Serviceability: Valves like lug butterfly valves allow for easy removal without disconnecting the entire pipe, making them more convenient for maintenance. On the other hand, wafer and flanged butterfly valves may require additional steps for servicing, depending on the application.
Cost: Different valve types come with varying price points. Wafer butterfly valves tend to be more affordable due to their simple design and reduced material requirements, while flanged valves are typically more expensive because of their complexity and installation requirements.
By understanding the impact of valve type on these factors, you can make the best decision for your specific application, balancing performance with cost-effectiveness.
Butterfly valves come in different types, each designed to meet specific requirements in a piping system. Below are explanations of the most commonly used types: wafer, lug, flanged, and more specialized variants.

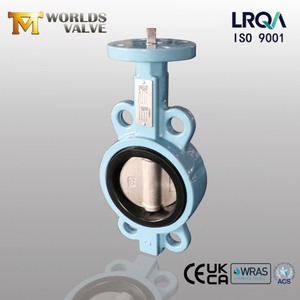

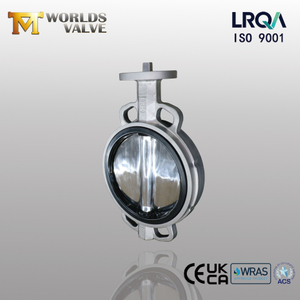

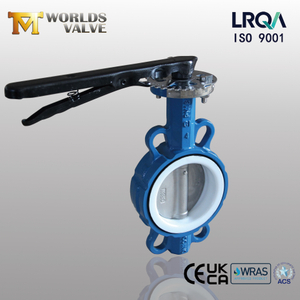

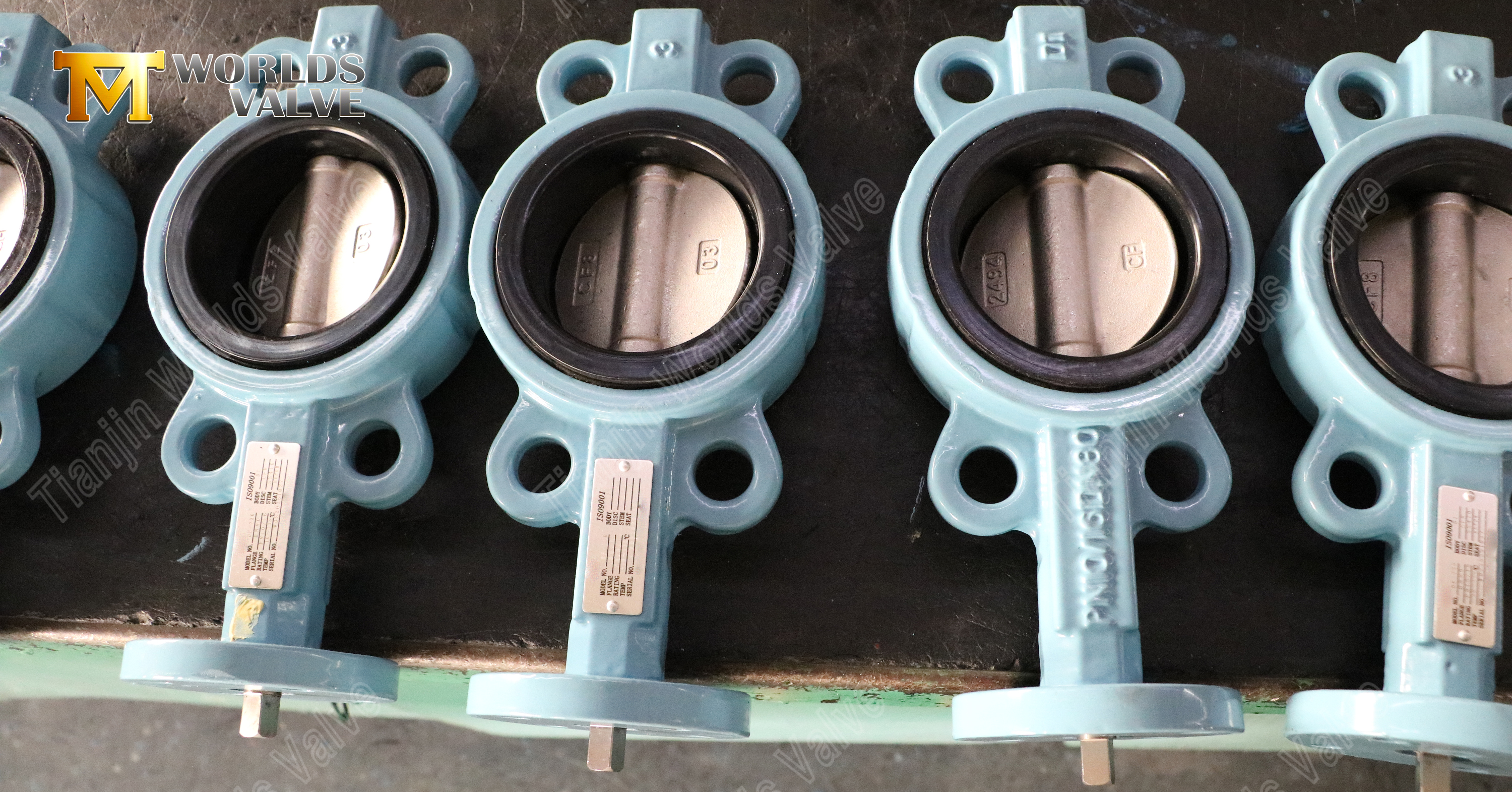

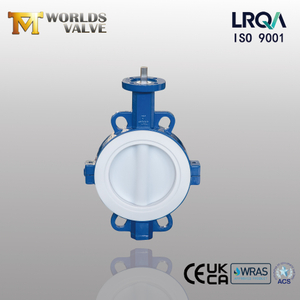

A wafer butterfly valve is a compact, lightweight valve that is inserted between two flanges and bolted directly to the pipe. Its simplicity makes it an excellent choice for systems where space and cost are key considerations.
Advantages: The wafer design provides a cost-effective, space-saving solution. It is easier to install and requires fewer components, which makes it suitable for standard flow control applications.
Use cases: Wafer butterfly valves are ideal for water supply systems, HVAC applications, and other low-pressure pipelines where space constraints and cost are critical.

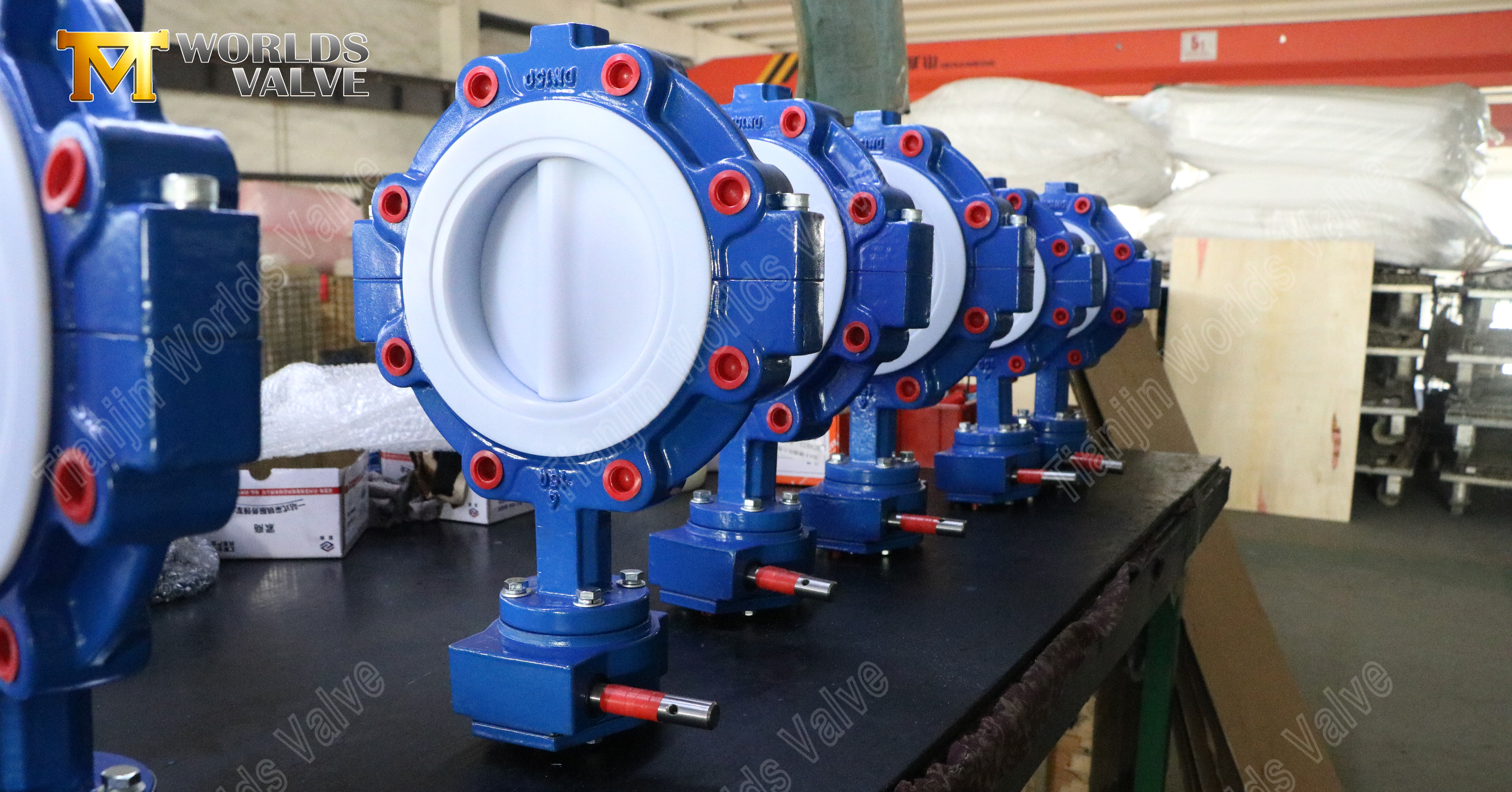

A lug butterfly valve is similar to the wafer valve but features threaded lugs that allow for removal without disassembling the pipe. This makes it more flexible in applications requiring dead-end service or where maintenance and replacement need to be performed without disturbing the rest of the system.
Advantages: Lug butterfly valves are ideal for dead-end service and can be used in systems where removal or replacement is necessary without taking the entire piping system offline.
Use cases: These valves are commonly used in water treatment plants, fire protection systems, and in industrial systems that require more flexibility during installation or maintenance.

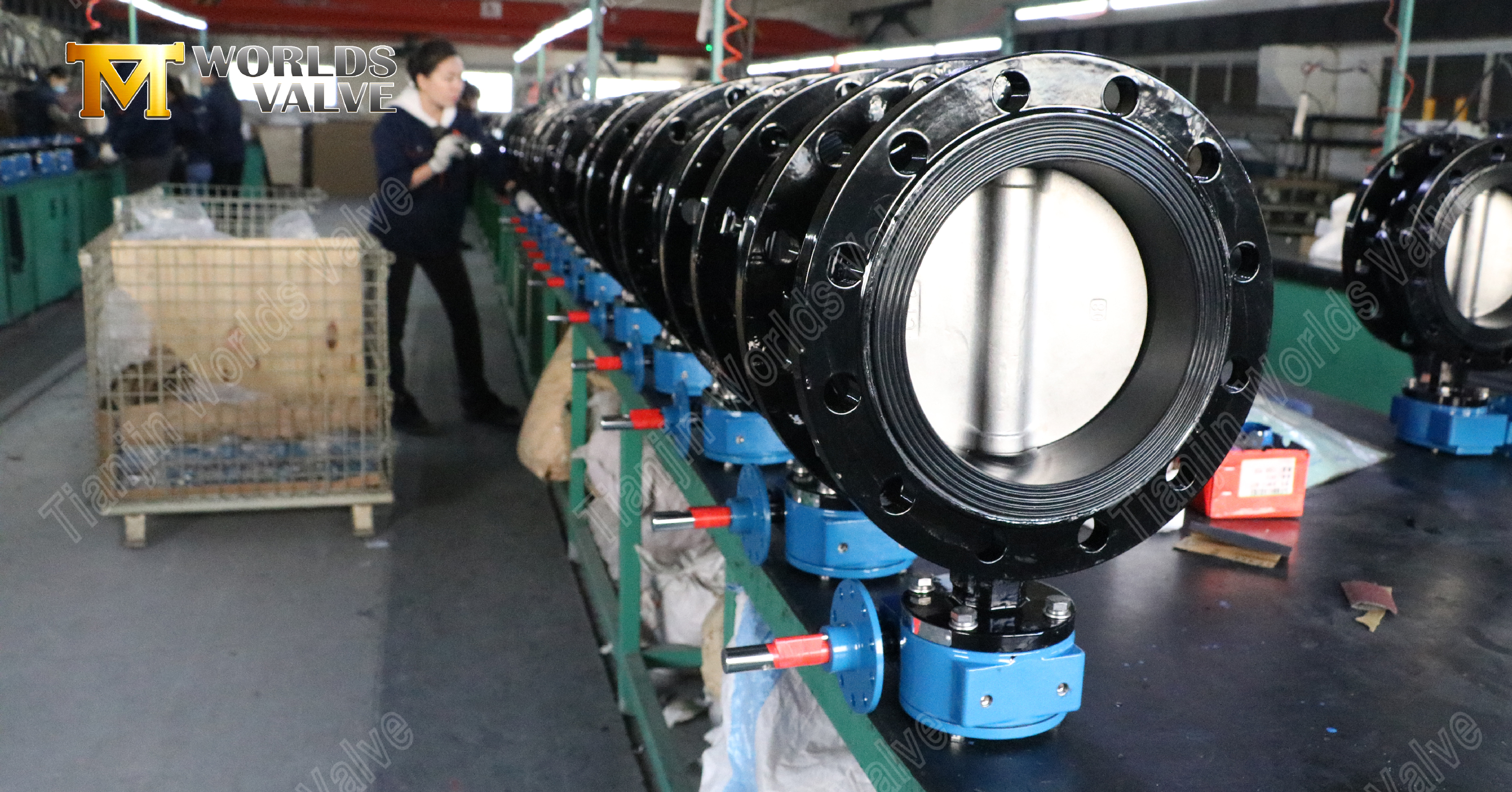

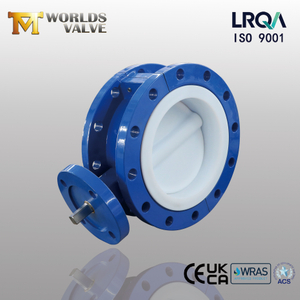

A flanged butterfly valve is designed with flanges at both ends, which allows it to be bolted directly to the pipeline. This type is typically used in larger, more complex systems where secure connections are necessary to handle higher pressures or temperatures.
Advantages: The flanged design offers a strong, secure connection, making it suitable for applications involving higher pressures and large flow rates.
Use cases: Flanged butterfly valves are often used in chemical processing, power plants, and large industrial piping systems.
In addition to the wafer, lug, and flanged designs, there are also specialized types like u-section and grooved butterfly valves. These variants are designed for specific applications requiring more unique installation methods or performance features.

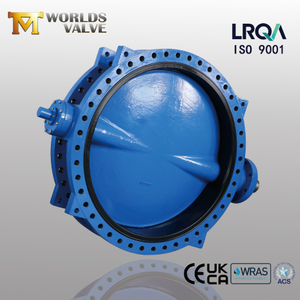

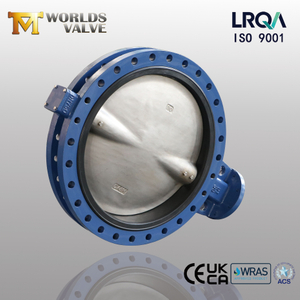

U-section butterfly valves are commonly used in applications where a U-shaped groove in the pipe is necessary for a secure, leak-proof connection. These valves are often used in irrigation and fluid control systems.
Grooved butterfly valves use a grooved pipe connection, which makes them easy to install and maintain. They are often found in fire protection systems, water distribution networks, and other industrial applications.
Tianjin Worlds Valve offers a range of these types, allowing you to select the best option based on your system's requirements.
When selecting a butterfly valve for your piping system, there are several factors to consider. The choice between wafer, lug, and flanged butterfly valves depends on the specifics of your application, such as the need for dead-end service, installation requirements, and cost.
Wafer butterfly valves are typically the most affordable option, but they require the pipeline to be taken offline for maintenance, and they can’t be used for dead-end service. They are, however, compact and ideal for space-limited installations.
Lug butterfly valves offer more flexibility, allowing for removal and replacement without disturbing the entire pipeline. They are more expensive than wafer valves but offer additional benefits, such as ease of maintenance and the ability to handle dead-end service.
Flanged butterfly valves are the most secure option for high-pressure systems, but they tend to be larger and more costly. They are well-suited for industrial applications where robust connections are needed.
By considering these factors, you can determine which type of butterfly valve is the best fit for your system.
When choosing a butterfly valve, it's important to ask the right questions to ensure you select the correct type for your application. Here are some key considerations:
Pipe size: Different valve types are available for different pipe sizes, and selecting the correct size is crucial for maintaining flow efficiency.
Pressure rating: Ensure that the valve can handle the pressure requirements of your system. Flanged valves are typically better suited for high-pressure applications.
Service end: If your system requires dead-end service, a lug butterfly valve might be the best option.
Maintenance: Consider how often the valve will need maintenance and whether you require a valve that can be easily removed without disturbing the entire system.
Tianjin Worlds Valve offers a wide range of butterfly valves, including wafer, lug, and flanged models, giving you the flexibility to select the best option for your specific needs.
Selecting the right butterfly valve is essential for ensuring the efficiency and reliability of your piping system. Whether you choose a wafer butterfly valve for space-saving installation, a lug butterfly valve for ease of maintenance, or a flanged butterfly valve for robust performance in high-pressure applications, understanding the differences between these types will allow you to make an informed decision.
Tianjin Worlds Valve provides a diverse range of butterfly valves to meet the unique needs of your system. Our products are designed for durability, efficiency, and reliability, and we offer a variety of types to suit different applications. If you’re unsure which valve is right for you, contact us today to discuss your needs and explore our full range of butterfly valves.
Q1: What is the difference between wafer and lug butterfly valves?
A1: Wafer butterfly valves are installed between flanges and are typically used in systems where space is limited. Lug butterfly valves have threaded lugs that allow for removal without disconnecting the entire system, making them ideal for dead-end service.
Q2: Which butterfly valve type is best for high-pressure systems?
A2: Flanged butterfly valves are the most suitable for high-pressure systems due to their secure bolted connection and ability to handle larger flow rates.
Q3: Can I use a wafer butterfly valve in outdoor applications?
A3: Yes, wafer butterfly valves can be used outdoors, but it’s essential to select one with a corrosion-resistant material, such as stainless steel, to withstand environmental conditions.
Q4: What maintenance is required for butterfly valves?
A4: Butterfly valves generally require minimal maintenance, but it’s essential to inspect the seal and disc for wear and tear regularly. Lug and flanged types offer easier maintenance due to their removable design.
