CBF02-TA04
OEM| ODM | WDS
| Quantity: | |
|---|---|

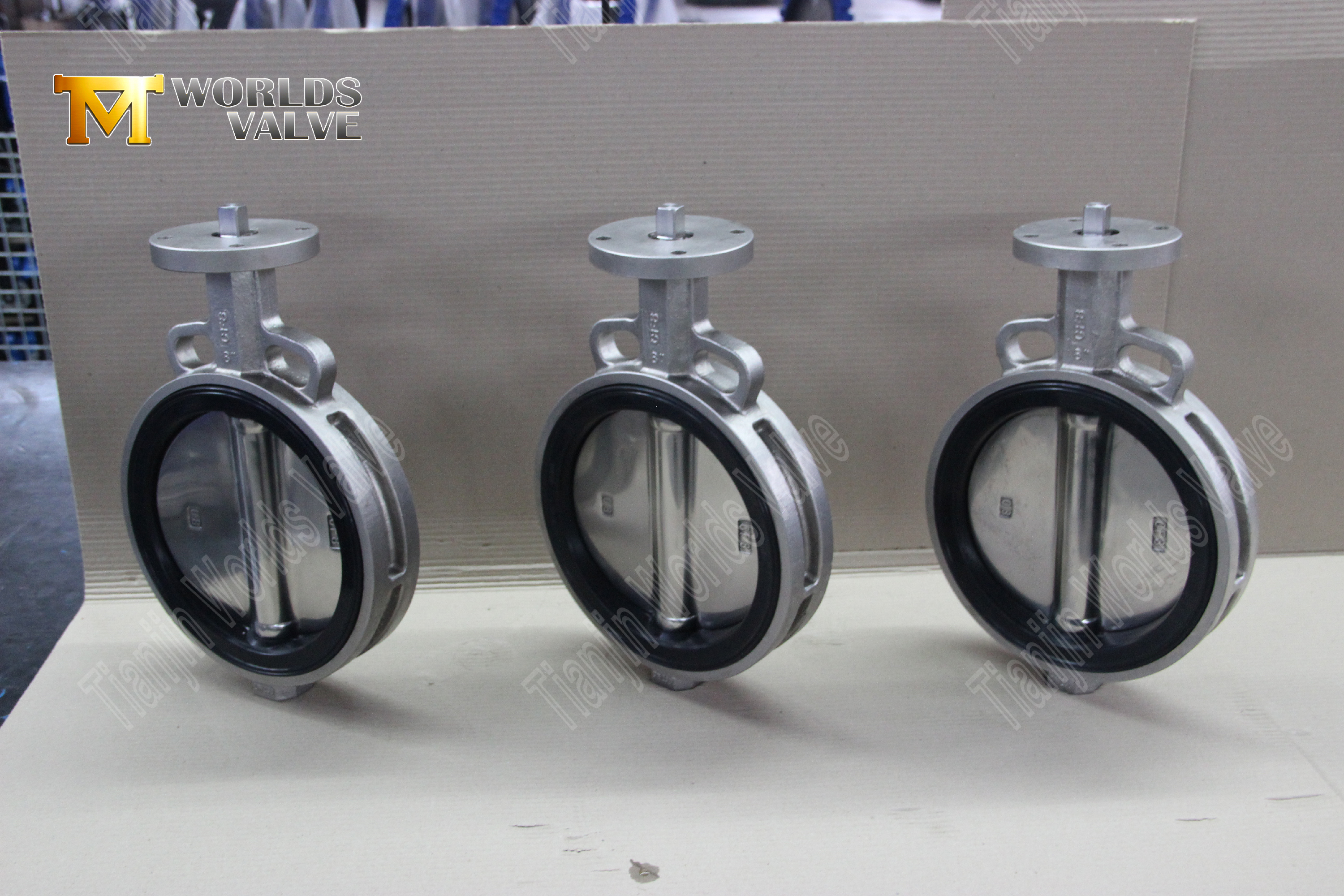

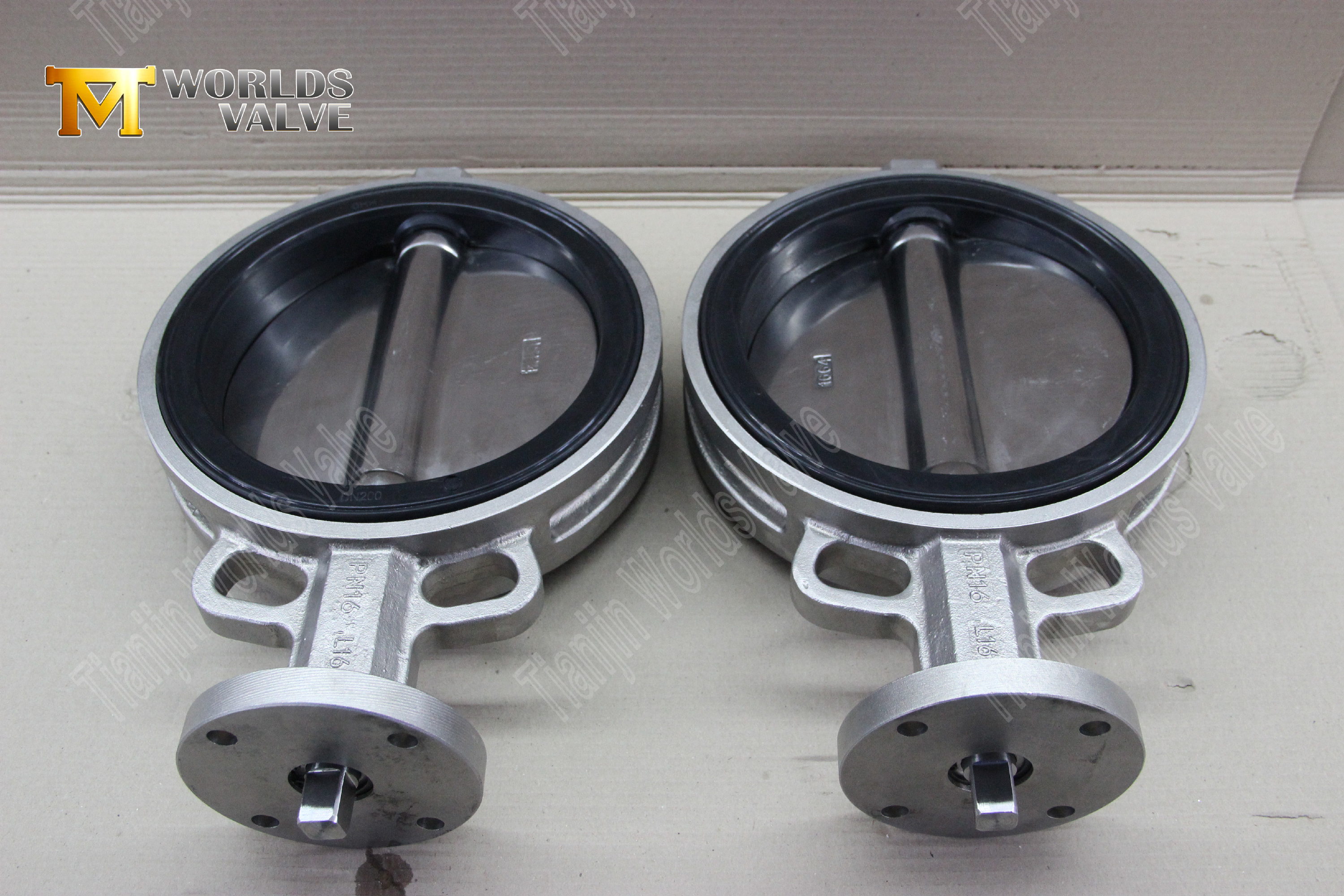

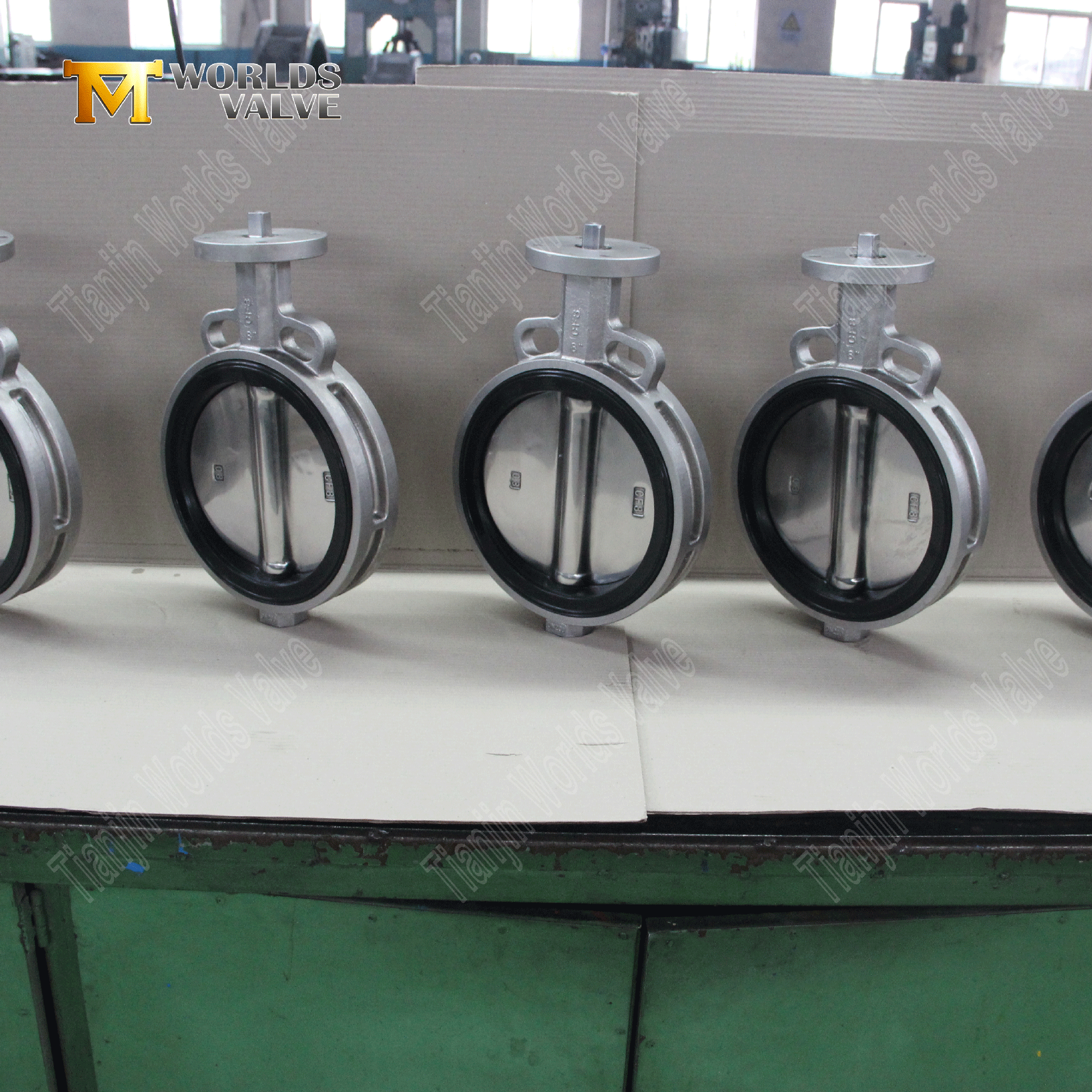

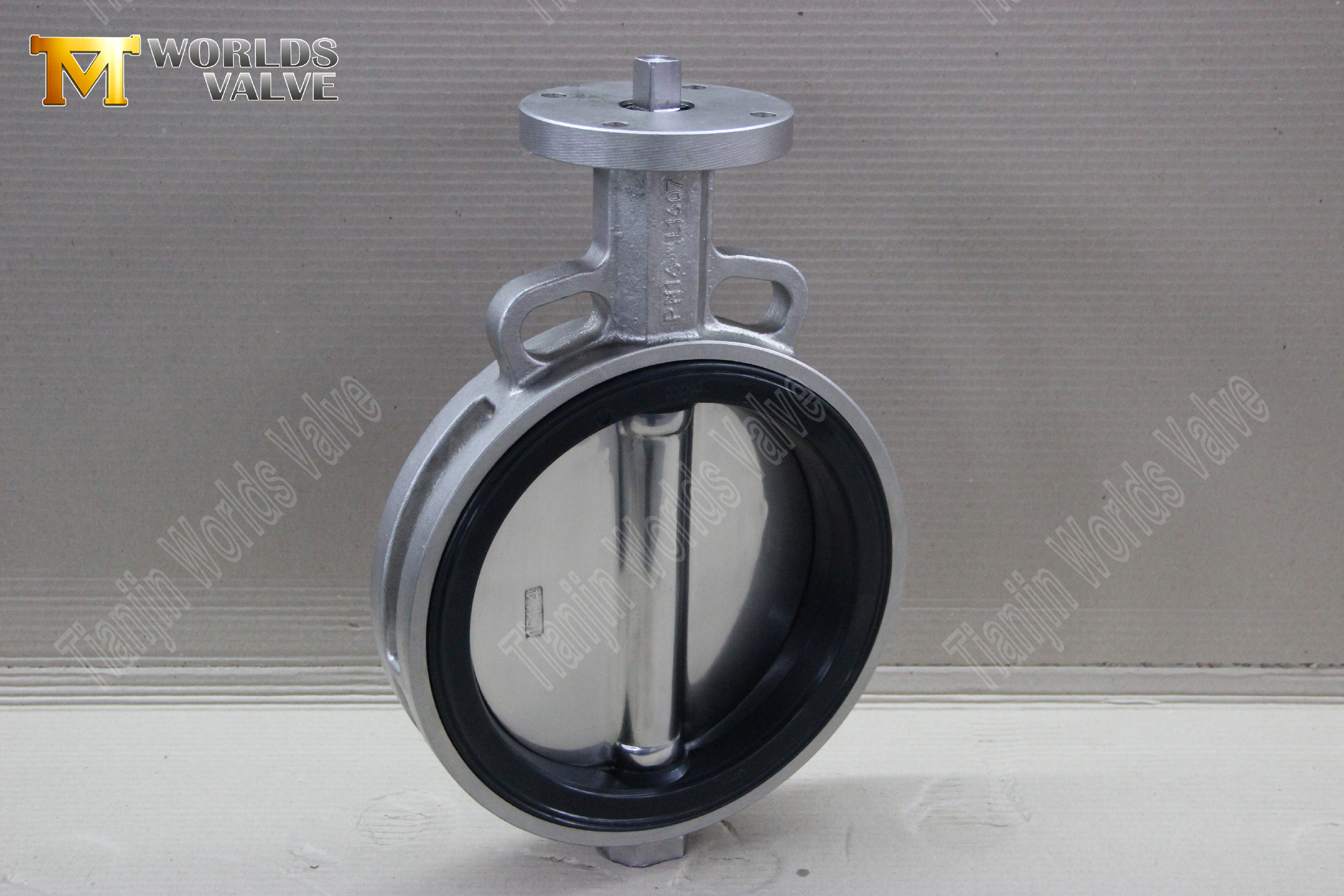

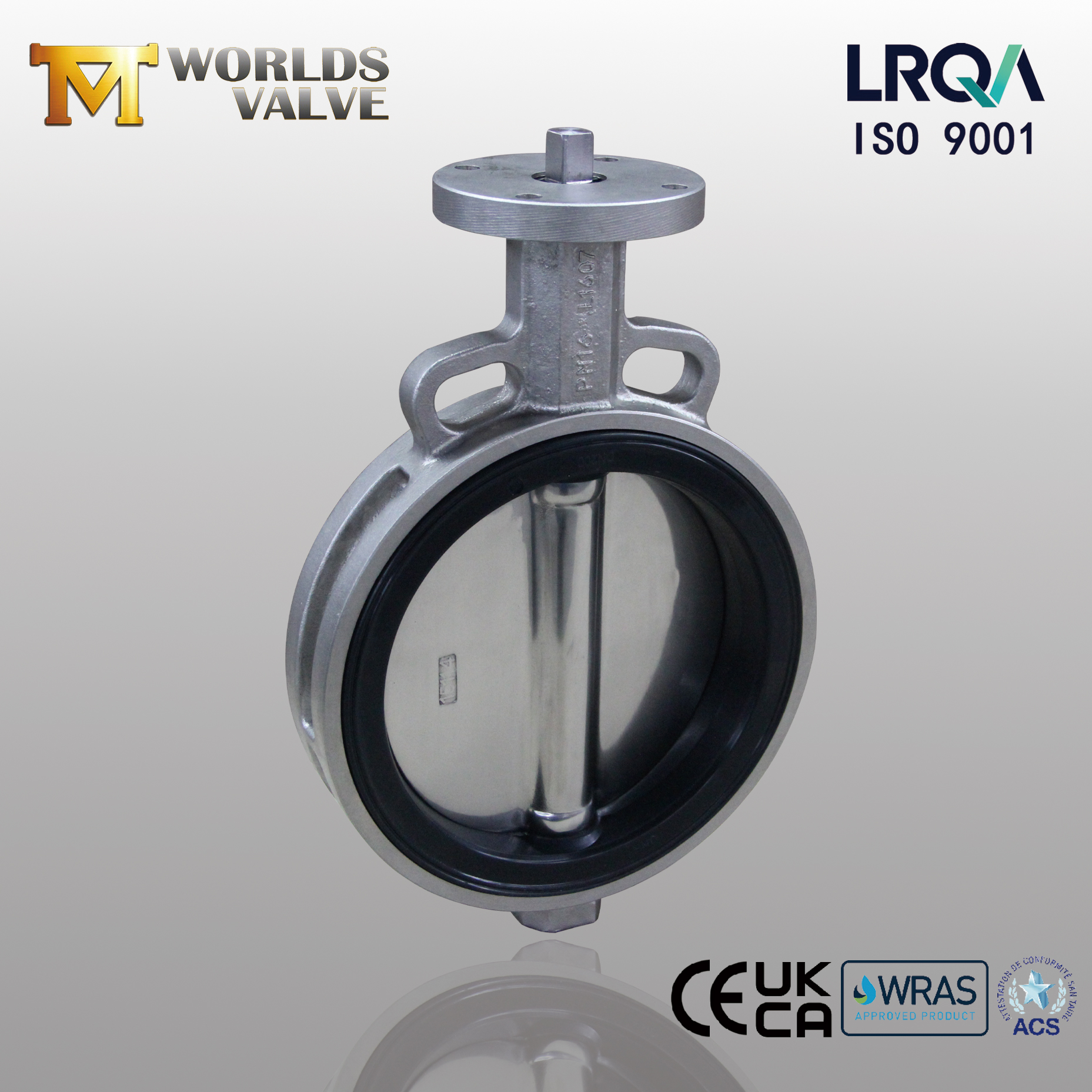

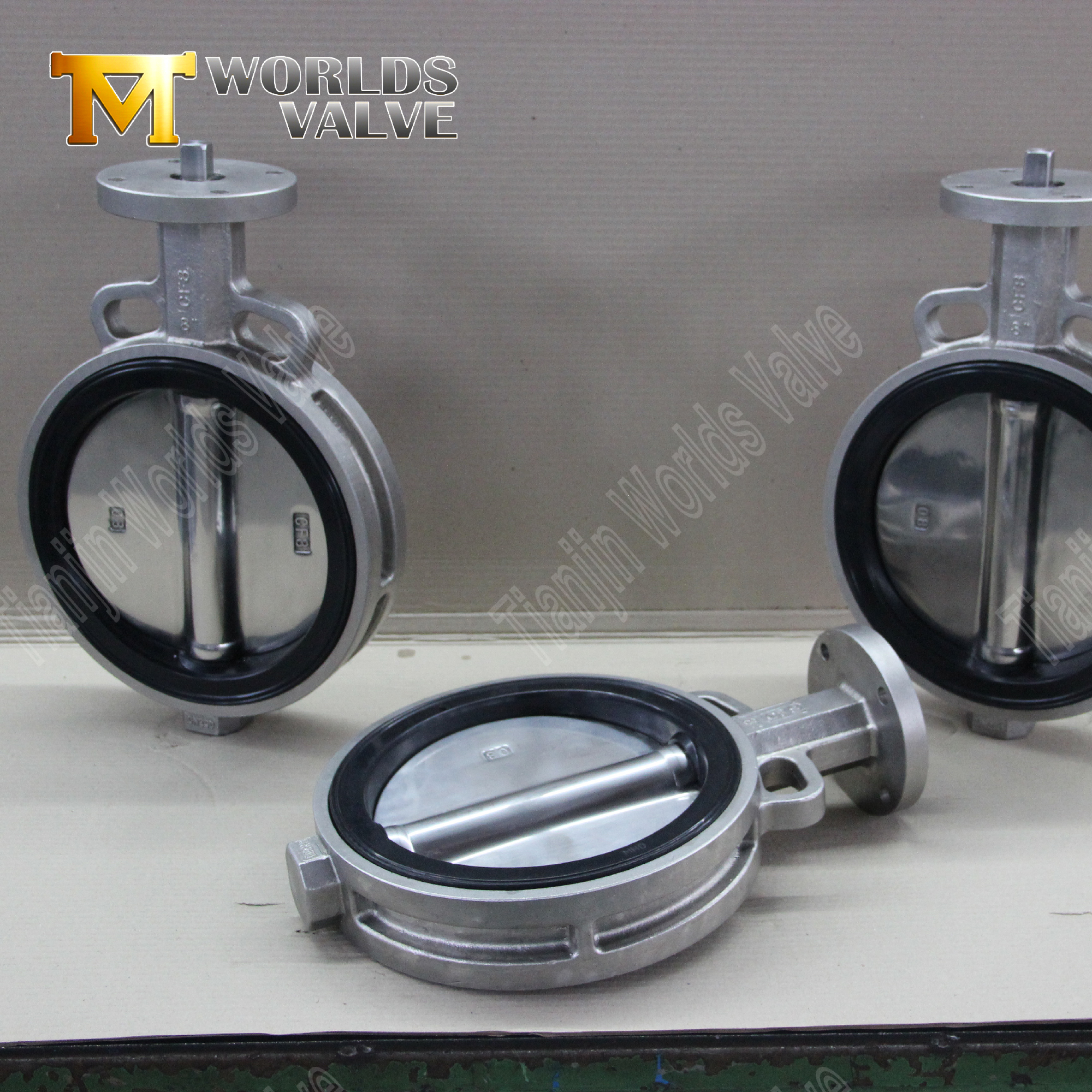

Wafer Type Butterfly Valve with Stainless Steel Body & Disc | Corrosion-Proof Flow Control
Tianjin Worlds Valve Co., Ltd.–ISO 9001 & CE-Certified Manufacturer
CBF02-TA04-Operation and Maintenance Manual DOWNLOAD
1. 100% CF8M Stainless Steel Construction
Body & Disc: ASTM A351 CF8M with electrolytic polishing.
Zero rust/contamination–ideal for CIP/SIP cleaning and acidic media.
2. Wafer-Space Optimization
40% lighter than ductile iron valves
Fits between ANSI/DIN flanges without nuts–installation in 1/3 the time
3. Zero-Leakage Hybrid Sealing
EPDM/FKM/PTFE Options:
EPDM: -20°C to 120°C (NSF 61)
PTFE: Cryogenic to 200°C (FDA compliant)
EN 12266-1 Class A shut off at 1.5×PN16
4. Maintenance-Free Actuation
ISO 5211 top pad for direct actuator mounting
PTFE-impregnated 17-4PH stem

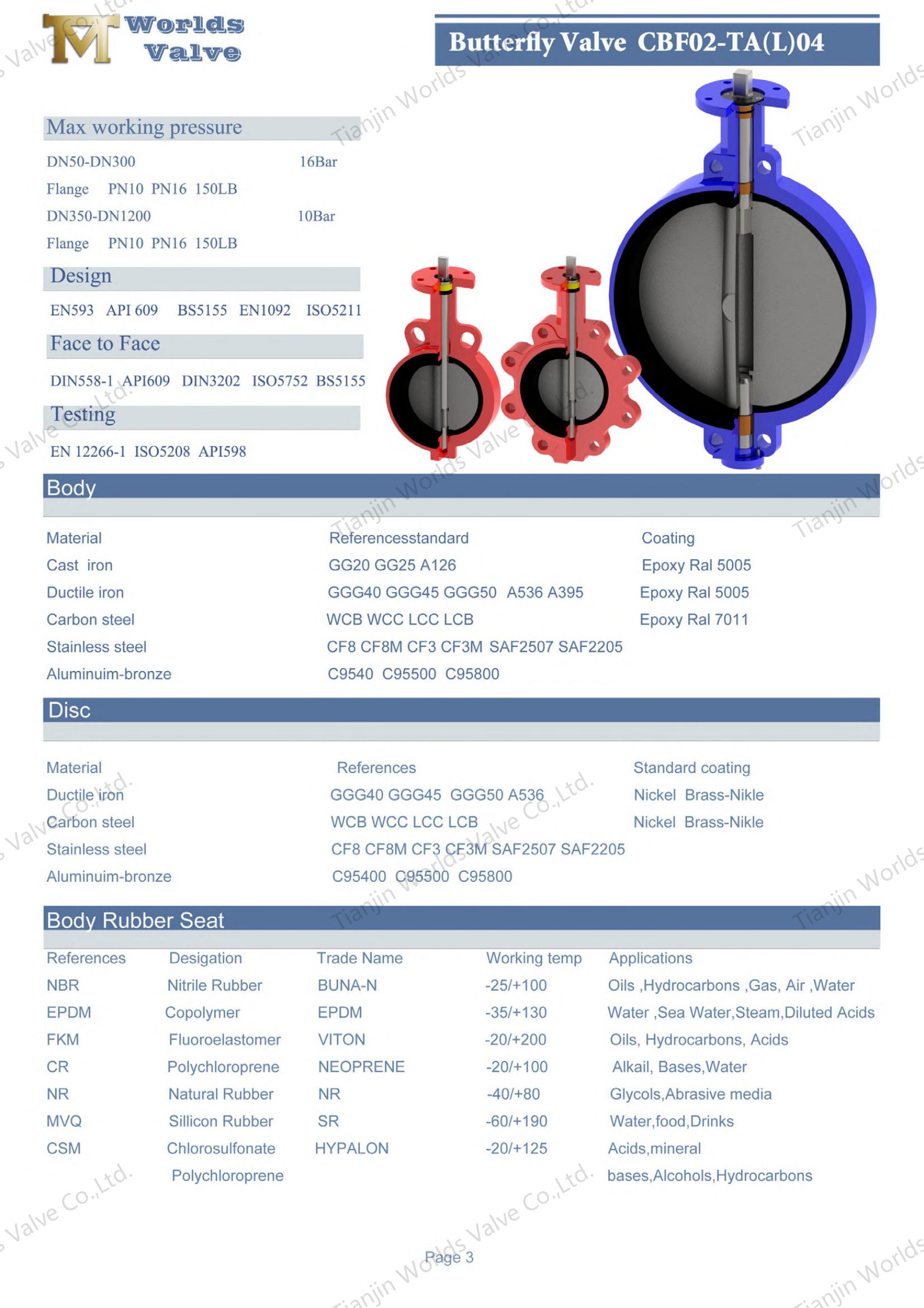

Design | API 609\BS5155\EN593\GB/T12238\DIN3354 |
Face to Face | API609\ DIN3202 K1\BS5155\EN558\ISO5752\ASME B16.10 |
Flange End | ASME B16.1 CLASS 125\ASME B16.5 CLASS 150\ASME B16.47\BS EN 1092 PN6/PN10/PN16\JIS B 2220 5K/10K/16K\BS 10 Table D/Table E |
Top Flange | ISO5211(According to customer's needs) |
Inspection | API598\EN12266-1 |
Size: DN40-DN3000
Top flange: ISO 5211
Normal pressure: DN40-DN600(1.5"-24") PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28"-48") PN1.0MPa(150PSI)
Suitable temperature: Normal Temperature -45 ~150
Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Food & Beverage: Dairy processing, brewing CIP lines.
Pharma: WFI distribution, sterile API transfer.
Chemical: HCl/NaOH dosing.
Marine: Seawater cooling systems (DNV-GL certified).
Source CE, and ISO 9001 certified Wafer Type Butterfly Valve with Stainless Steel Body & Disc from a leading China butterfly valve manufacturer - Tianjin Worlds Valve Co.,Ltd.. Competitive pricing, fast delivery—request a quote today!
