PTFE Lined Flanged Butterfly Valves | Superior Wear Protection Solution

Tianjin Worlds Valve Co., Ltd. introduces PTFE Lined Flanged Butterfly Valves specifically designed to withstand the most challenging abrasive and corrosive applications in mining, chemical processing, and industrial wastewater systems. Featuring full PTFE lining with reinforced thickness in critical wear areas, these valves provide exceptional protection against particle erosion and chemical attack while maintaining bubble-tight sealing. The flanged construction ensures secure installation and easy maintenance, making them the ideal choice for slurry handling, abrasive media transfer, and other demanding applications where both corrosion and wear resistance are essential.

Model:
CBF04-TF01
Brand:
OEM | ODM | WDS

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction:

PTFE Lined Flanged Butterfly Valves Abrasion Resistant | Superior Wear Protection Solution

Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer

CBF04-TF01--Operation and Maintenance Manual DOWMLOAD

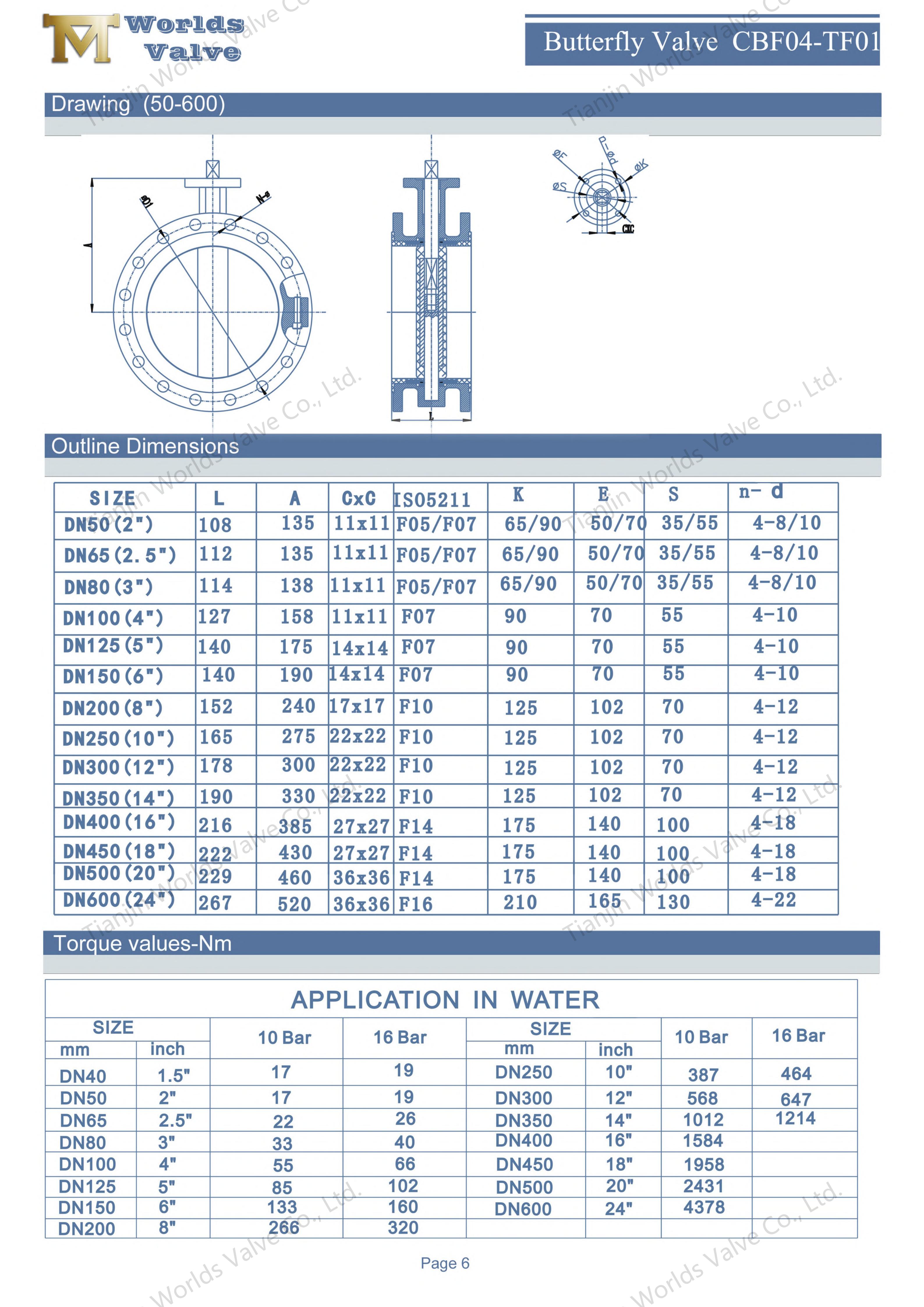

PTFE Lined Flanged Butterfly Valves-2

Key Features:

1. Reinforced PTFE Lining System

Enhanced Thickness Design: 3-4mm PTFE lining in high-wear zones provides superior abrasion resistance against solid particles up to 40% concentration
Complete Media Isolation: Full-body PTFE encapsulation prevents metal contact with abrasive and corrosive media
Temperature Resilience: Maintains lining integrity from **-35℃to 200℃** in continuous abrasive service

2. Flanged Connection Reliability

Robust Flange Design: ANSI B16.5 Class 150# or DIN EN 1092-1 PN16 flanges with reinforced neck construction
Secure Mounting: Serrated flange faces prevent gasket blowout under pressure fluctuations and vibration
Maintenance Access: Bolted flange connection enables easy internal inspection and component replacement

3.Abrasion-Resistant Construction

Wear Zone Reinforcement: Additional PTFE thickness at disc edges and seat contact areas extends service life by 200% compared to standard lined valves
Particle Deflection Design: Optimized disc geometry redirects abrasive particles away from critical sealing surfaces
Surface Hardness: PTFE lining with filler reinforcement achieves Shore D 65 hardness for enhanced wear resistance

4. Advanced Sealing Technology

Zero Leakage Performance: PTFE-to-PTFE seating system achieves EN 12266-1 Class A bubble-tight shutoff
Abrasion-Compensating Design: Resilient PTFE seating maintains seal integrity as wear occurs
Fire-Safe Option: Available with API 607 compliant secondary metal seals for emergency shutdown

PTFE Lined Flanged Butterfly Valves-1 (4)

Technical Parameters：

Size	DN50-DN250	DN300-DN600
Max Working pressure	16Bar	10Bar
Operating Temperature	-35℃~+200℃(depending on pressure, medium and material)
Suitable Medium	Flesh Water, Waste Water, sewage, seawater, air, vapor, food, oils, medicine, alkailis, salt, ect
Top Flange	ISO5211(according to the customer need)
Design Standard	EN593 BS5155
Face to Face	DIN558-1 API609 DIN3202 F16 ISO5752 BS5155
Testing Inspection	EN12266-1 ISO5208 API598
Flange Accommodation	ASME B16.1 125LB ASME B16.5 150LB BS4504 DIN2501 ISO7005 EN1092

PTFE Lined Flanged Butterfly Valves-1 (3)

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Shaft	Stainless Steel Monel K500
Seat	BUNA NBR EPDM VITON PTFE TEFLON HEPDM Neoprene Hypalon Natural rubber

PTFE Lined Flanged Butterfly Valves-1 (2)

Industry Applications

Mining & Mineral Processing: Tailings slurry, ore processing, and concentrate handling
Chemical Processing: Abrasive chemical slurries, catalyst handling, and pigment production
Wastewater Treatment: Grit removal, sludge handling, and abrasive effluent control
Power Generation: FGD slurry systems, ash handling, and bottom ash transport
Pulp & Paper: Stock preparation, coating slurries, and recycled fiber processing
Steel & Metals: Scale slurry, descaling lines, and abrasive waste streams

PTFE Lined Flanged Butterfly Valves-1 (1)

Competitive Advantages

Extended Service Life: Reinforced PTFE lining in critical wear areas provides 2-3 times longer lifespan in abrasive service
Dual Protection: Combined abrasion and corrosion resistance for the most challenging applications
Reduced Maintenance: Robust construction and wear-resistant design minimize downtime and replacement costs
Global Compliance: CE, UKCA, and WRAS certifications ensure acceptance in international markets
Custom Engineering: Available with special lining formulations, thickness profiles, and wear-resistant enhancements
Technical Expertise: Engineering support for abrasive application analysis and wear protection solutions

Conclusion:

Specifically engineered for extreme abrasive and corrosive services, these PTFE lined flanged butterfly valves deliver unmatched wear protection and reliability in mining, chemical processing, and industrial applications where both abrasion and corrosion resistance are critical.
