U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat | High-Efficiency Flow Control Solution

Replaceable EPDM Rubber Seat Butterfly Valve with U Type Design offered by China Valve Supplier-Tianjin Worlds Valve Co., Ltd.

Hydrodynamic butterfly valve water treatment U-Section Butterfly Valve from China OEM ODM Valve Manufacturer

U-Shape Butterfly valve with CF8M Disc & Soft Rubber Seat provided by OEM Valve Supplier-Tianjin Worlds Valve Co., Ltd.

Energy Efficient U-Section Butterfly Valve with WRAS Approved offered by China Valve Manufacturer-Tianjin Worldsa Valve

Corrosion Resistant AWWA butterfly valve C504 ensuring reliable performance and durability

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat | High-Efficiency Flow Control Solution

Tianjin Worlds Valve Co., Ltd. presents the U-Shape Butterfly Valve with CF8M Disc and Replaceable EPDM Seat, designed to deliver superior flow performance and maintenance convenience in water treatment, HVAC, and chemical applications. The innovative U-shaped disc design reduces turbulence and pressure drop, while the replaceable EPDM seat ensures long-term sealing reliability and easy maintenance. Manufactured in compliance with **ISO 9001**, **CE**, **UKCA**, and **WRAS** standards, this valve offers exceptional value for OEM and ODM projects requiring efficient and durable flow control solutions.

Model:
CBF01-TU03
Brand:
OEM | ODM | WDS

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction：

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat | High-Efficiency Flow Control Solution

Tianjin Worlds Valve Co., Ltd. – WRAS Certified Manufacturer & Supplier

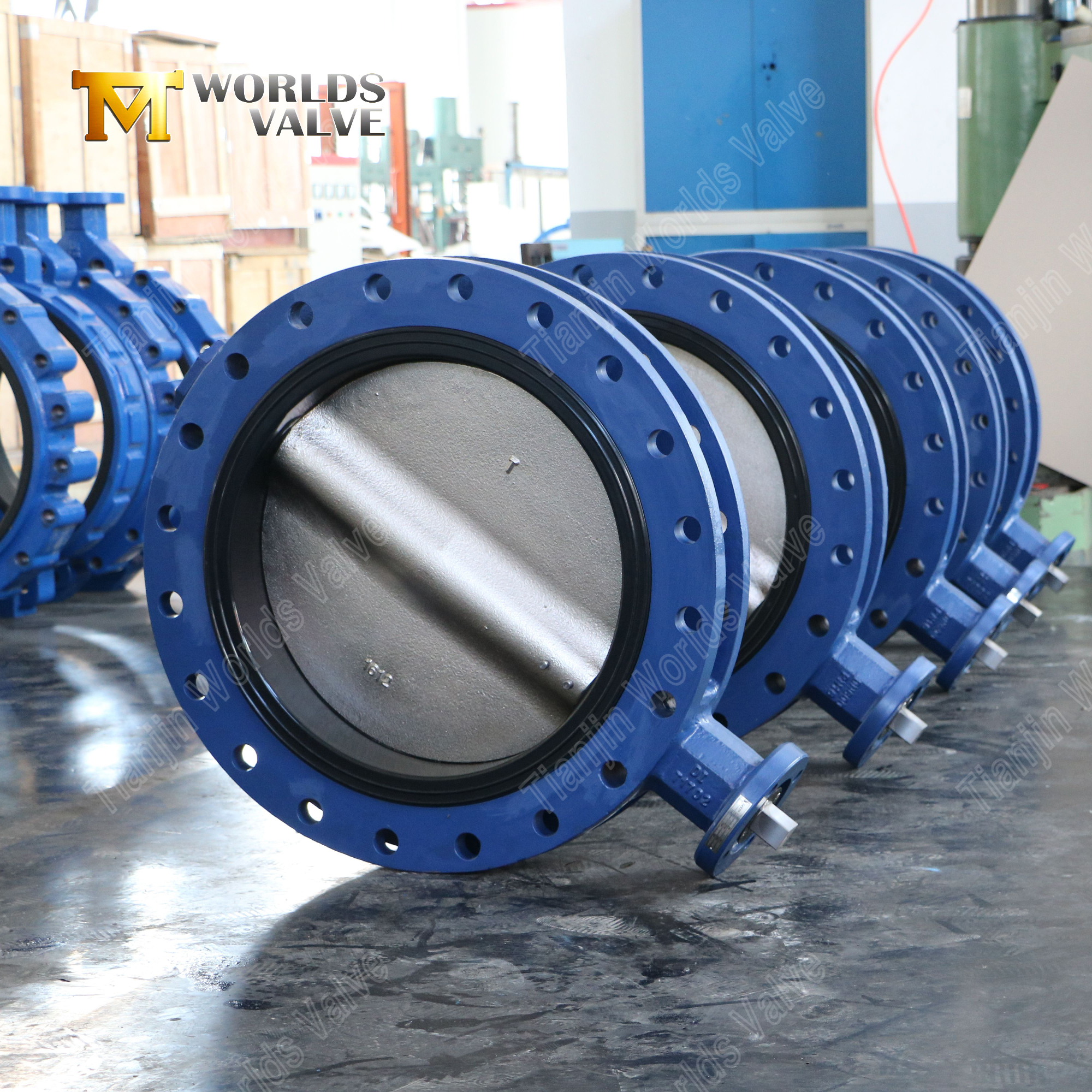

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat High-Efficiency Flow Control Solution--0

Key Technical Advantages:

1. U-Shape Disc for Enhanced Hydrodynamics

Optimized Flow Path: The unique U-profile design reduces flow resistance by 25% compared to conventional discs, minimizing energy consumption in pumping systems.
Reduced Turbulence: Creates laminar flow conditions, preventing cavitation and water hammer in high-velocity applications.

2. CF8M (316 Stainless Steel) Disc Durability

Corrosion Resistance: Excellent performance in water, mild chemicals, and saline environments with superior pitting resistance.
Mechanical Strength: Maintains structural integrity under pressures up to PN16 and temperatures from -15°C to 120°C.

3. Replaceable EPDM Seat System

Quick Replacement: Seat can be replaced without valve disassembly, reducing maintenance downtime.
Bubble-Tight Sealing: Achieves EN 12266-1 Class A zero-leakage performance with excellent resilience.

4. Versatile Operation Options

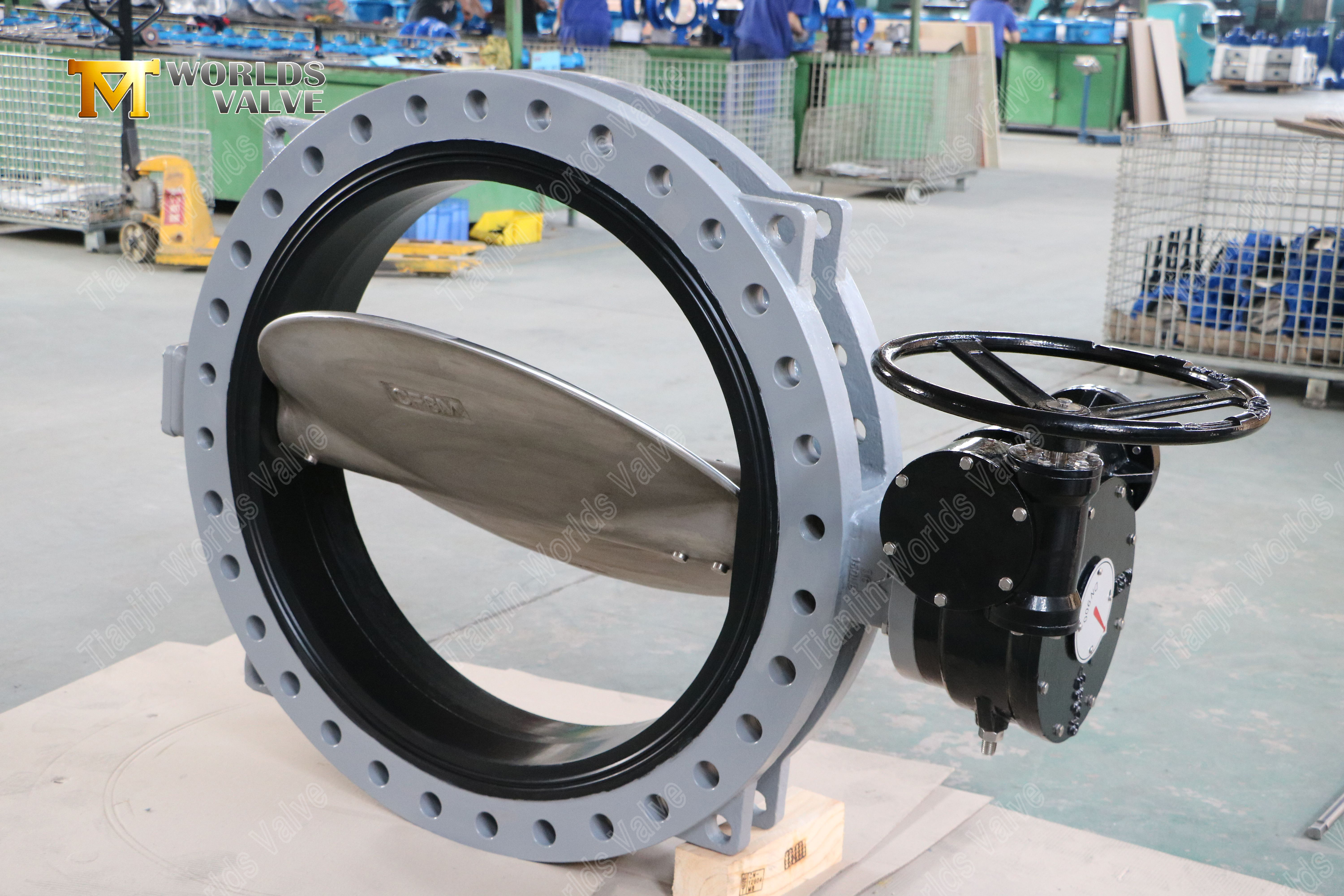

Multiple Actuation Choices: Compatible with manual lever, gear operator, or ISO 5211-mounted pneumatic/electric actuators.
Visual Position Indicator: Clear open/close status for easy operation monitoring.

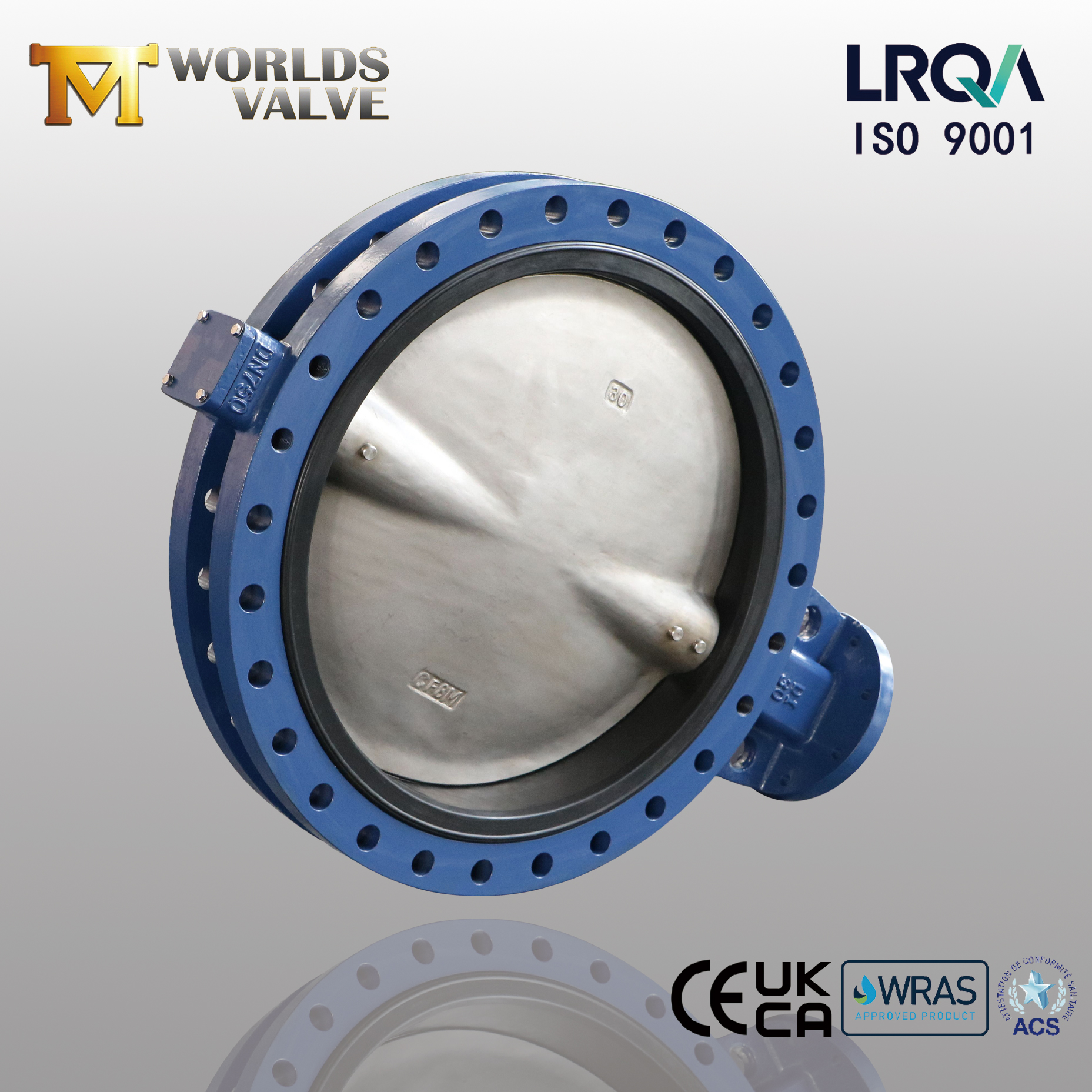

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat High-Efficiency Flow Control Solution-1 (2)

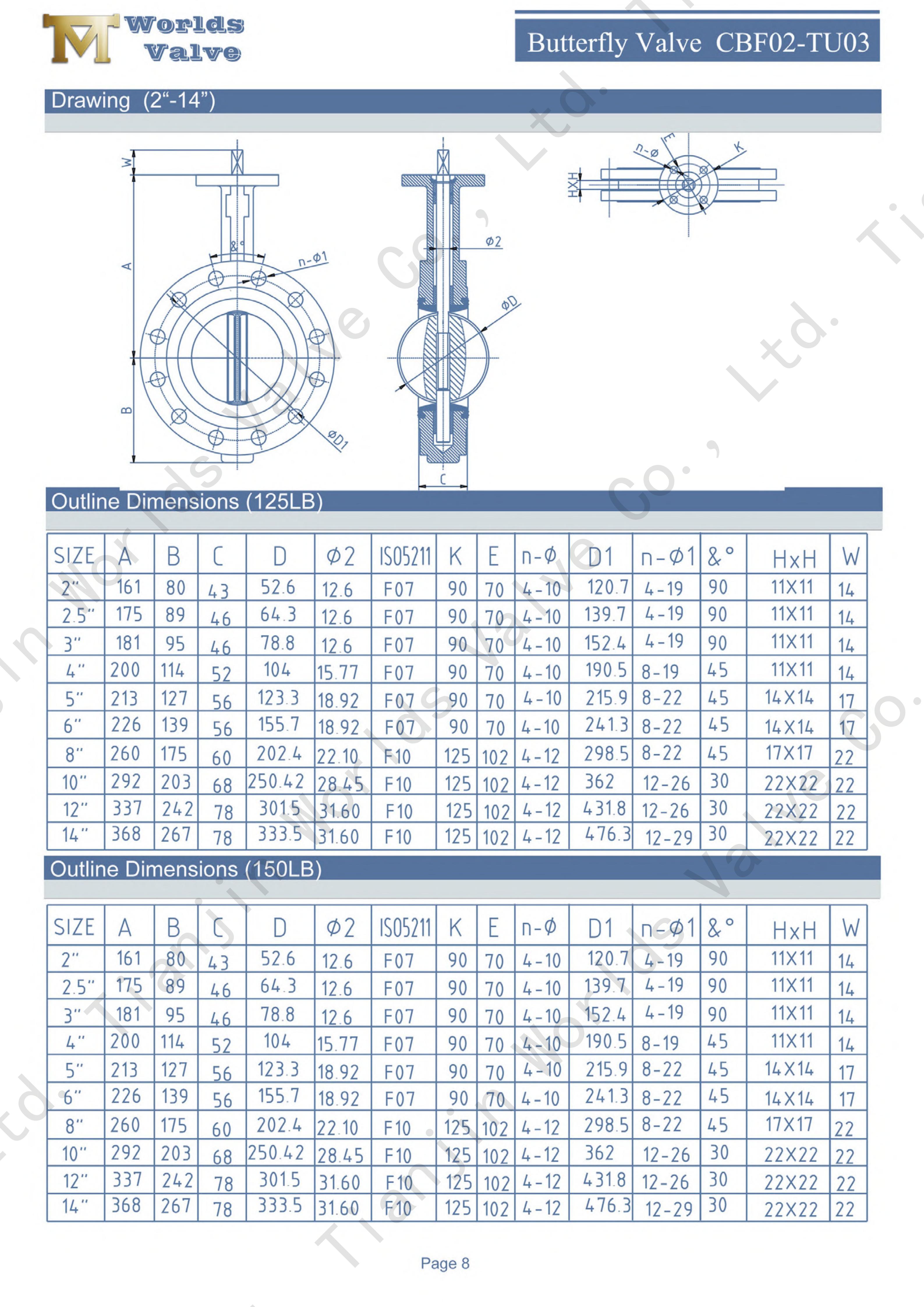

Standard:

Model	CBF01-TU03
Sizes	DN50-DN2000
Pressure Class	PN10 (10bar) PN16 (16bar) 150LB 125LB
Design	API 609 ASME B 16.1/16.5/16.47 ISO5211
Testing	API598
Flange Connection	DIN2501 PN10/16, ISO7005-2 PN10/16, EN1092-2 PN10/16, ANSI B16.5 Class 150LB, ANSI B16.47 Series A Class 150LB, ANSI B 16.1 MSS SP44 Class 150LB, AWWA C207
TOP Flange	ISO5211 (according to customer’s needs)
Face to Face	EN558-1 API609 DIN3202 ISO5752 BS5155

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat High-Efficiency Flow Control Solution-1 (3)

Industry Applications

Water Treatment: Pump discharge lines, filtration systems, and potable water networks.

HVAC Systems: Chilled water circuits, cooling towers, and air handling units.

Chemical Processing: Mild chemical transfer and dosing applications.

Industrial Cooling: Heat exchanger and process cooling systems.

Irrigation Systems: Mainline and zone control in agricultural applications.

U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat High-Efficiency Flow Control Solution-1 (1)

Competitive Differentiation

Energy Saving Design: U-shape disc reduces pumping costs through lower pressure drop.
Maintenance Efficiency: Replaceable seat extends valve life and simplifies repairs.
Material Quality: CF8M disc ensures corrosion resistance in demanding environments.
Global Compliance: CE, UKCA, and WRAS certifications for international market access.
Customization Ready: Modify disc thickness, seat material, or coating for OEM projects.

Conclusion:

Source CE, UKCA, ACS, WRAS and ISO 9001 certified U-Shape Butterfly Valve with CF8M Disc & Replaceable EPDM Seat from a leading butterfly valve manufacturer - Tianjin Worlds Valve Co.,Ltd.. Competitive pricing, fast delivery—request a quote today!

U shape butterfly valve CF8M disc Replaceable EPDM seat butterfly valve Hydrodynamic butterfly valve water treatment WRAS approved butterfly valve energy efficient butterfly valve Zero leakage U type butterfly valve OEM industrial butterfly valve manufacturer ISO 5211 actuated U type valve ISO 9001 certified valve manufacturer CE UKCA certified industrial valve
