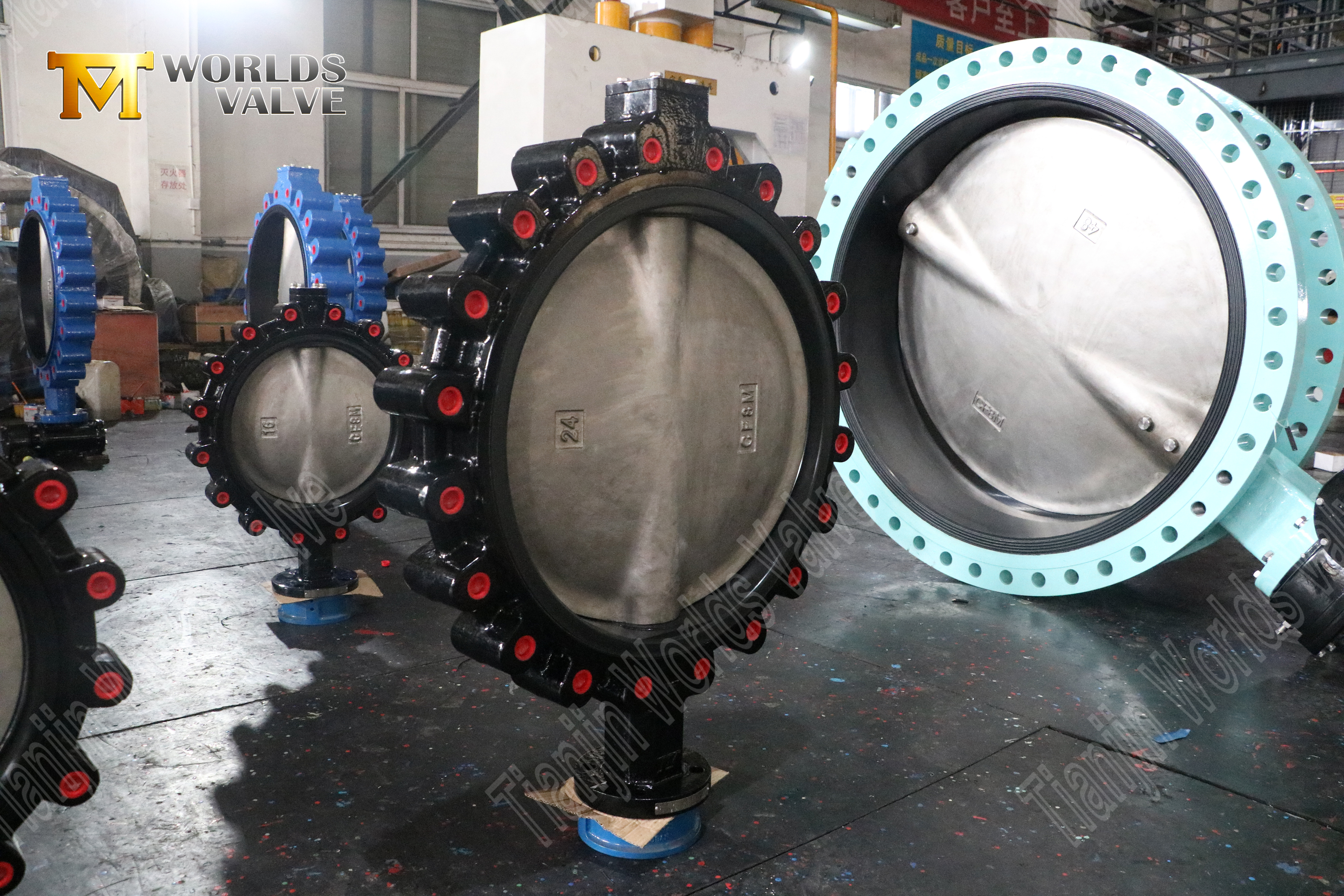

Lug Type Butterfly Valve with EPDM Seat & CF8M Disc offered by Lug Butterfly Valve Supplier-Tianjin Worlds Valve Co., Ltd.

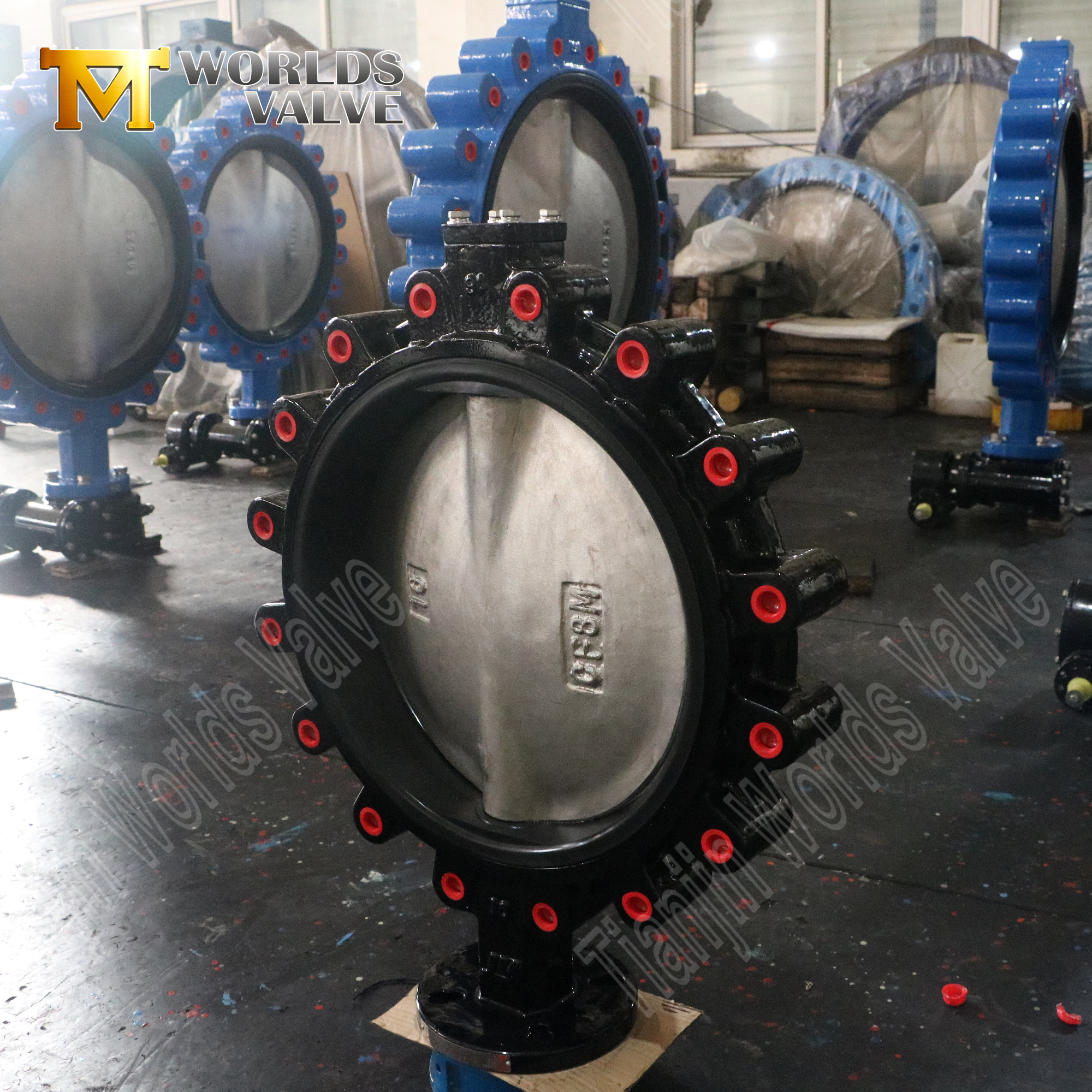

EPDM Seat Butterfly Valve with SS Disc and Lug Type Design produced by China OEM Valve Supplier-Tianjin Worlds Valve Co., Ltd

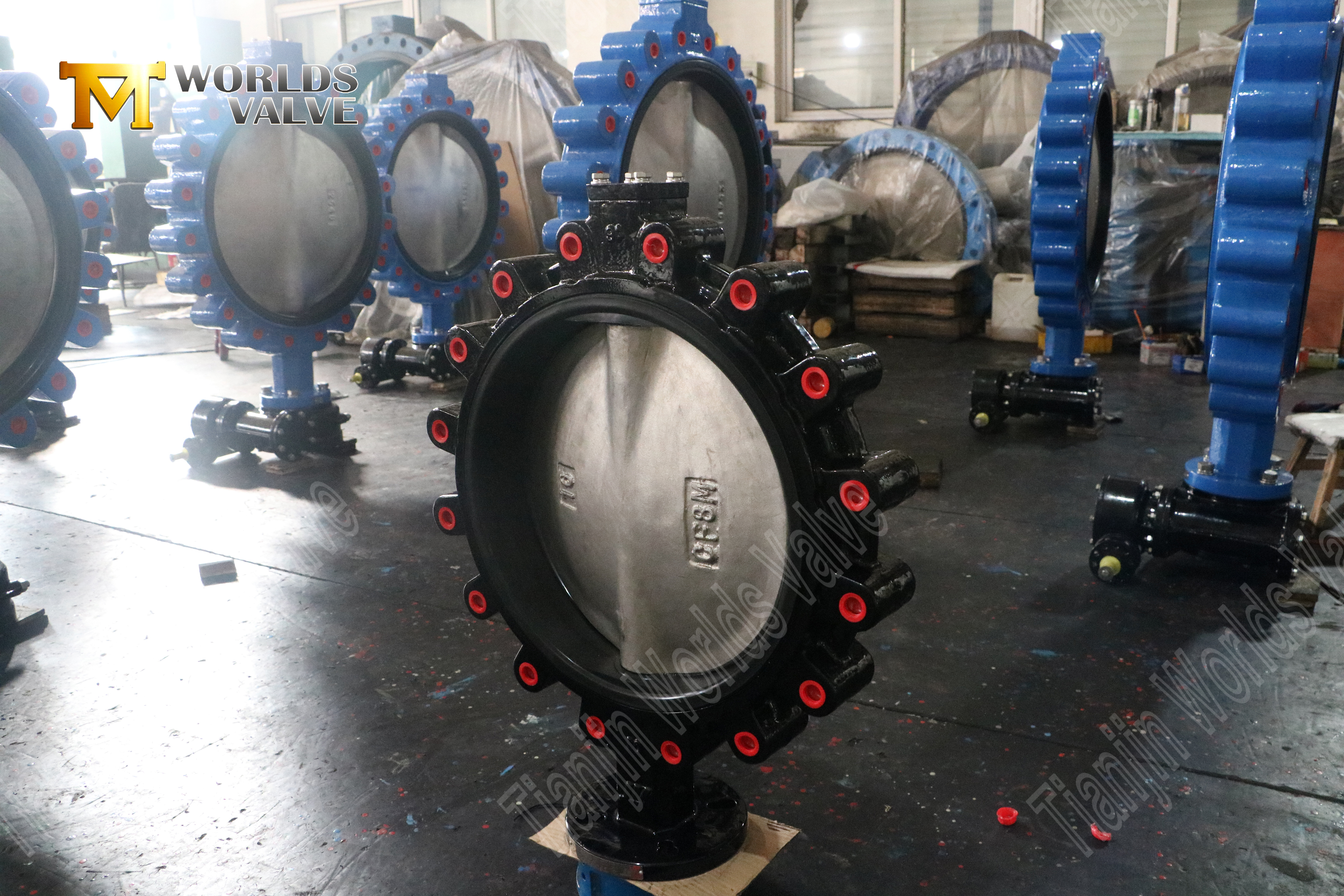

SS Disc (CF8M) EPDM Seat butterfly valves with Lug Type Design provided by China Butterfly Valve Supplier-Tianjin Worlds Valve

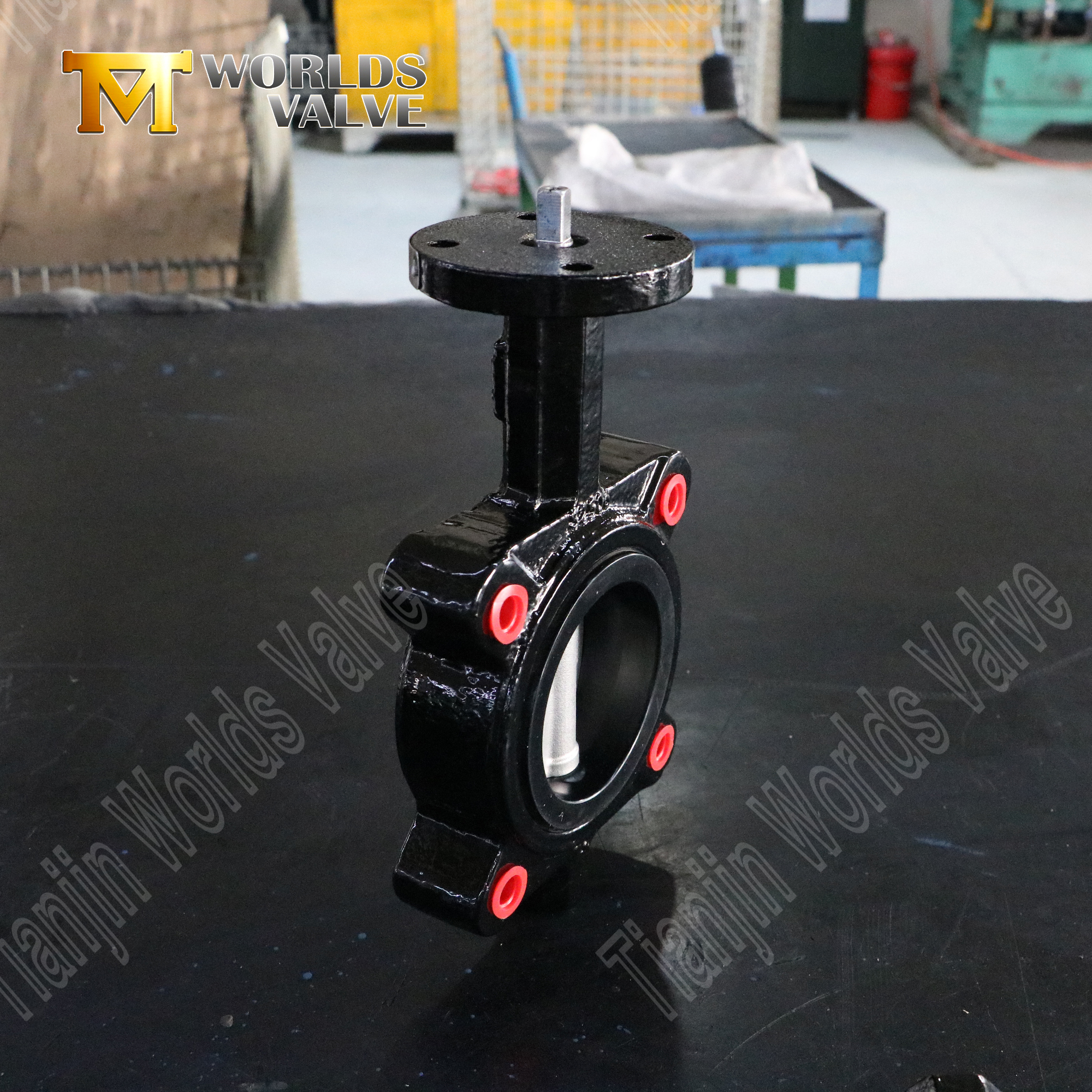

Lug EPDM Seat & CF8M disc butterfly valves produced by Leading China Valve Factory-Tianjin Worlds Valve Co., Ltd

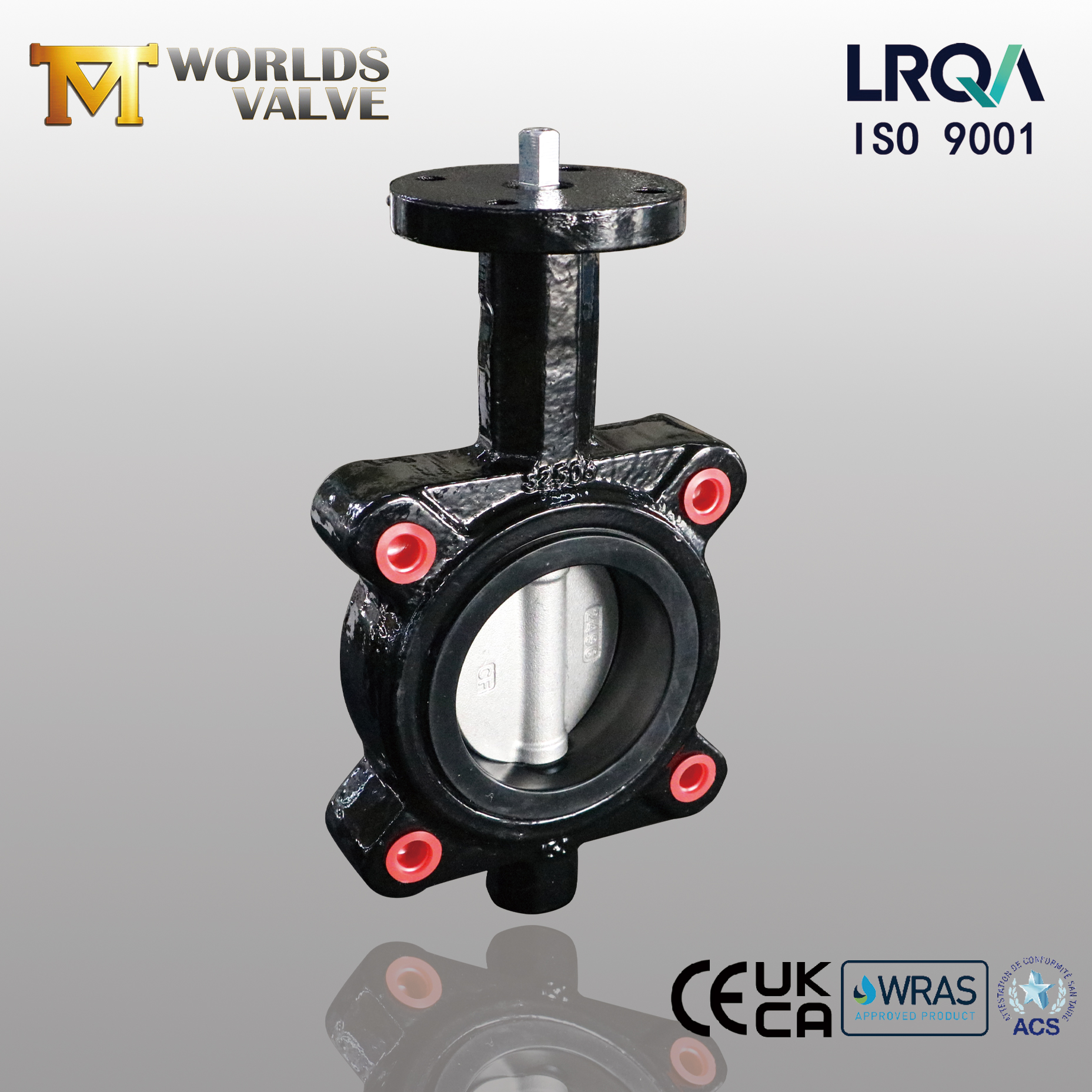

Lug Type Industrial-Grade Solution-EPDM seat butterfly valve with SS Disc offered by Butterfly Valve Supplier

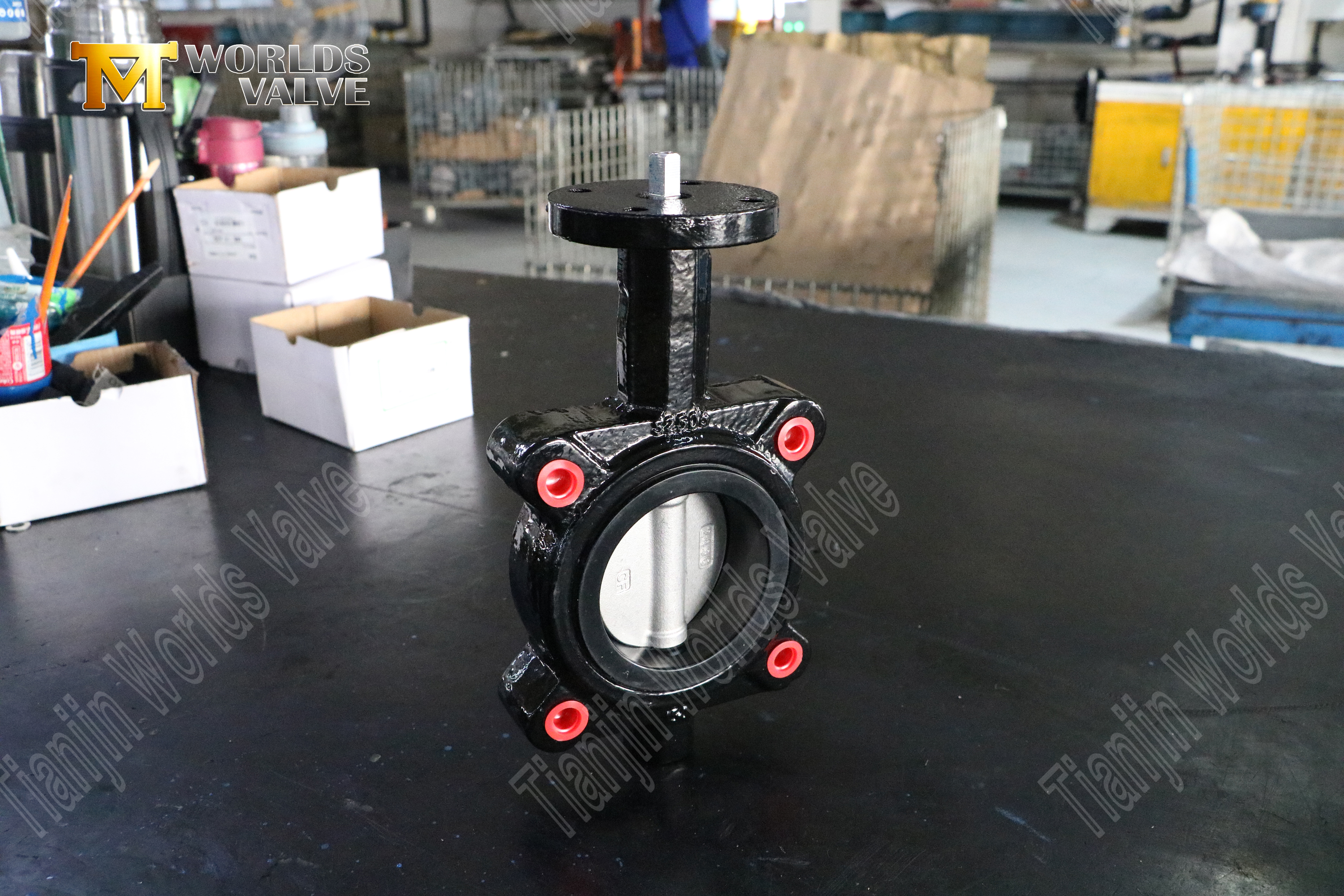

Lug Type Butterfly Valve Suppier-China Butterfly Valve Manufacturer-Tianjin Wolrds Valve Co., Ltd.

EPDM Seat Butterfly Valve with CF8M Disc | Lug Type Industrial-Grade Solution

Tianjin Worlds Valve Co., Ltd. specializes in lug-type butterfly valves integrating EPDM seats and CF8M (316L stainless steel) discs, delivering unmatched durability in corrosive and high-temperature environments. This valve excels in chemical, marine, and energy applications where metal integrity and leak-proof performance are non-negotiable.

Model:
CBF02-TL01
Brand:
OEM|ODM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction：

EPDM Seat Butterfly Valve with CF8M Disc | Lug Type Industrial-Grade Solution

Tianjin Worlds Valve Co., Ltd. – ISO 9001 Certified OEM Manufacturer

CBF02-TL01-Operation and Maintenance Manual DOWNLOAD

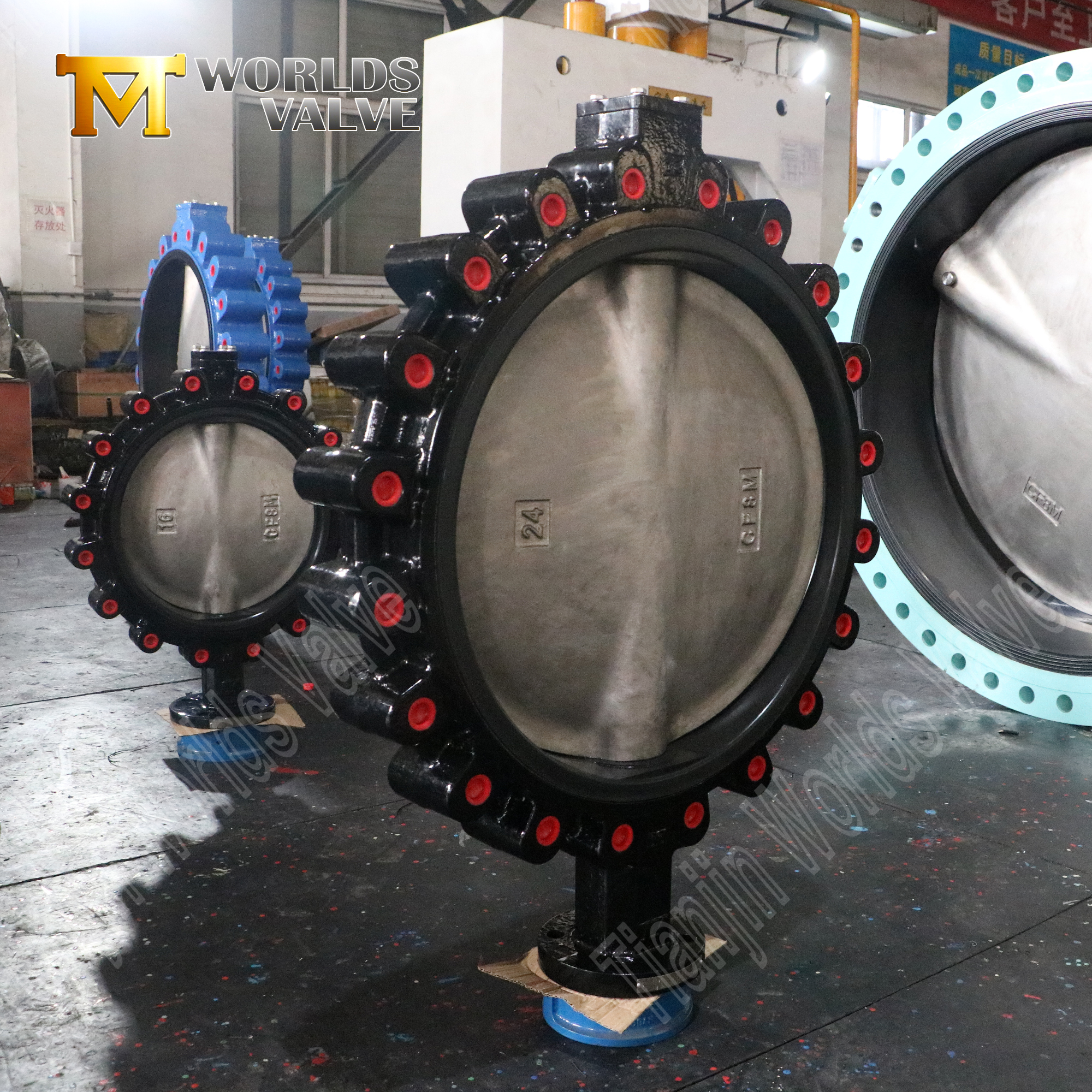

EPDM seat butterfly valve with CF8M disc-lug type butterfly valve manufacturer-1

Key Features:

1. CF8M Disc Durability

316L SS Disc: Offering excellent corrosion resistance, ideal for handling aggressive fluids and harsh environments.

20% Higher Cavitation Resistance vs. standard ductile iron discs.

2. EPDM Seating Performance

EPDM Seat: Maintains bubble-tight shutoff from -20°C to 120°C.

Zero Compression Set: 50,000+ cycles at PN16 pressure.

3. Lug-Type Structural Advantage

Direct Bolt-to-Body Mounting: Eliminates nuts for 30% faster installation.

4. Zero-Maintenance Engineering

17-4PH SS Stem: PTFE-packed gland prevents grit ingress.

RPTFE Bushings: Self-lubricating for lifetime operation.

5. Corrosion Defense System

Body: Ductile iron with 250µm epoxy coating.

Disc:You can choose 316L stainless steel with a surface that has undergone electropolishing, which has strong corrosion resistance.

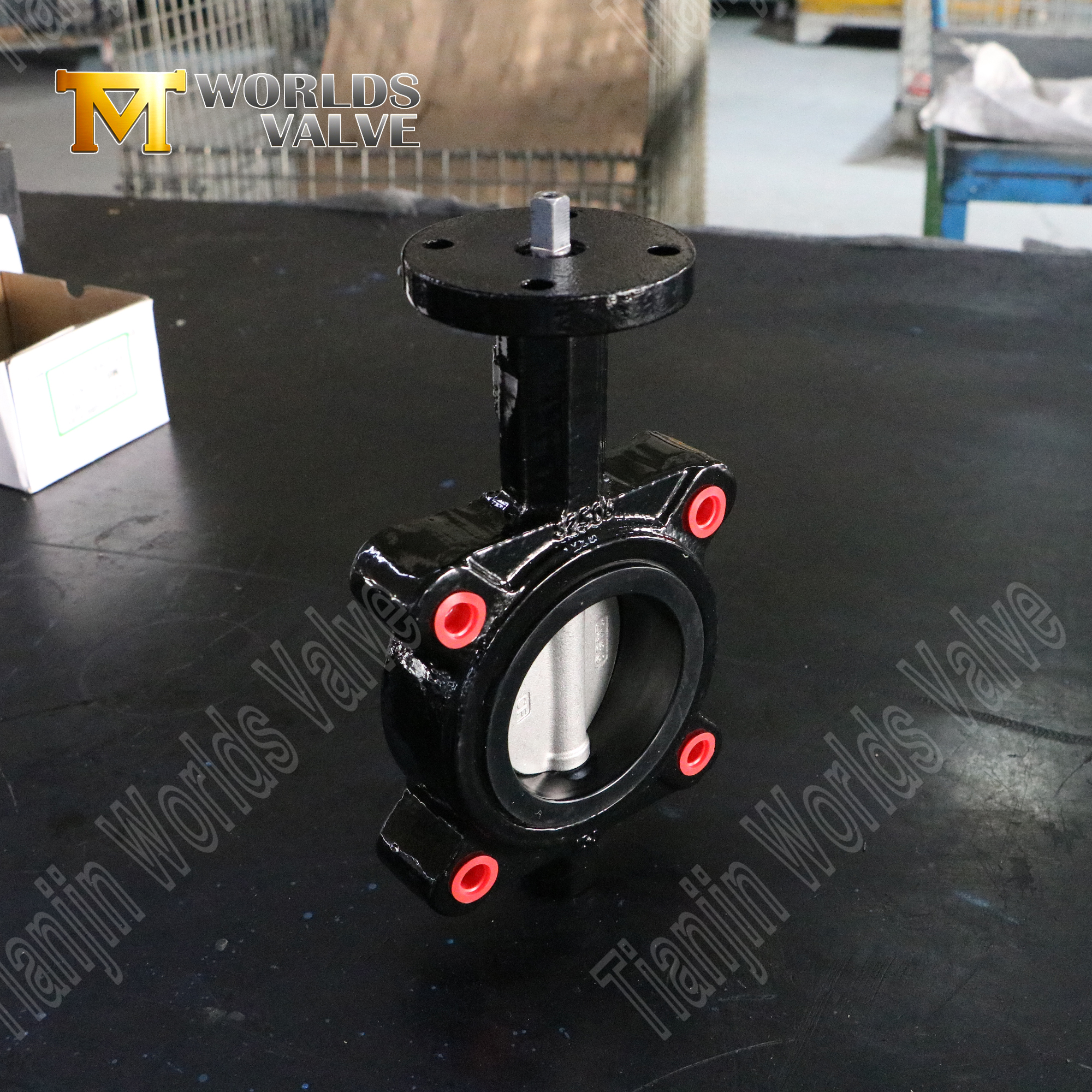

EPDM seat butterfly valve with CF8M disc-lug type butterfly valve manufacturer-1 (1)

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Shaft	Stainless Steel Monel K500
Seat	BUNA NBR EPDM VITON PTFE TEFLON HEPDM Neoprene Hypalon Natural rubber

EPDM seat butterfly valve with CF8M disc-lug type butterfly valve manufacturer-1 (2)

Industry-Specific Applications

Chemical Processing: Sulfuric acid transfer (≤80% concentration).

Marine & Offshore: Ballast water control with DNV-GL anti-corrosion approval.

Power Generation: Cooling water circuits in coastal plants.

Water Treatment: Chlorine dosing skids.

Oil & Gas: Produced water handling with H₂S resistance.

EPDM seat butterfly valve with CF8M disc-lug type butterfly valve manufacturer-1 (3)

Why Choose with Us?

1. Expertise in OEM/ODM Services

As a trusted Double flanged Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.

2. Global Reach with Local Support

We provide timely delivery and dedicated customer support worldwide.

3. Competitive Pricing

Our efficient manufacturing processes and economies of scale enable us to offer high-quality valves at competitive prices.

4. Comprehensive After-Sales Service

We have a professional technical team that provides technical support, installation guidance, and maintenance services.

Conclusion:

Source CE, and ISO 9001 certified Lug Type Butterfly Valves with EPDM seat and CF8M disc from a leading China butterfly valve manufacturer - Tianjin Worlds Valve Co.,Ltd.. Competitive pricing, fast delivery—request a quote today!
