CF8M Disc & PTFE Seat Wafer Butterfly Valve with Hand Lever Operation | Premium Corrosion-Resistant Manual Control

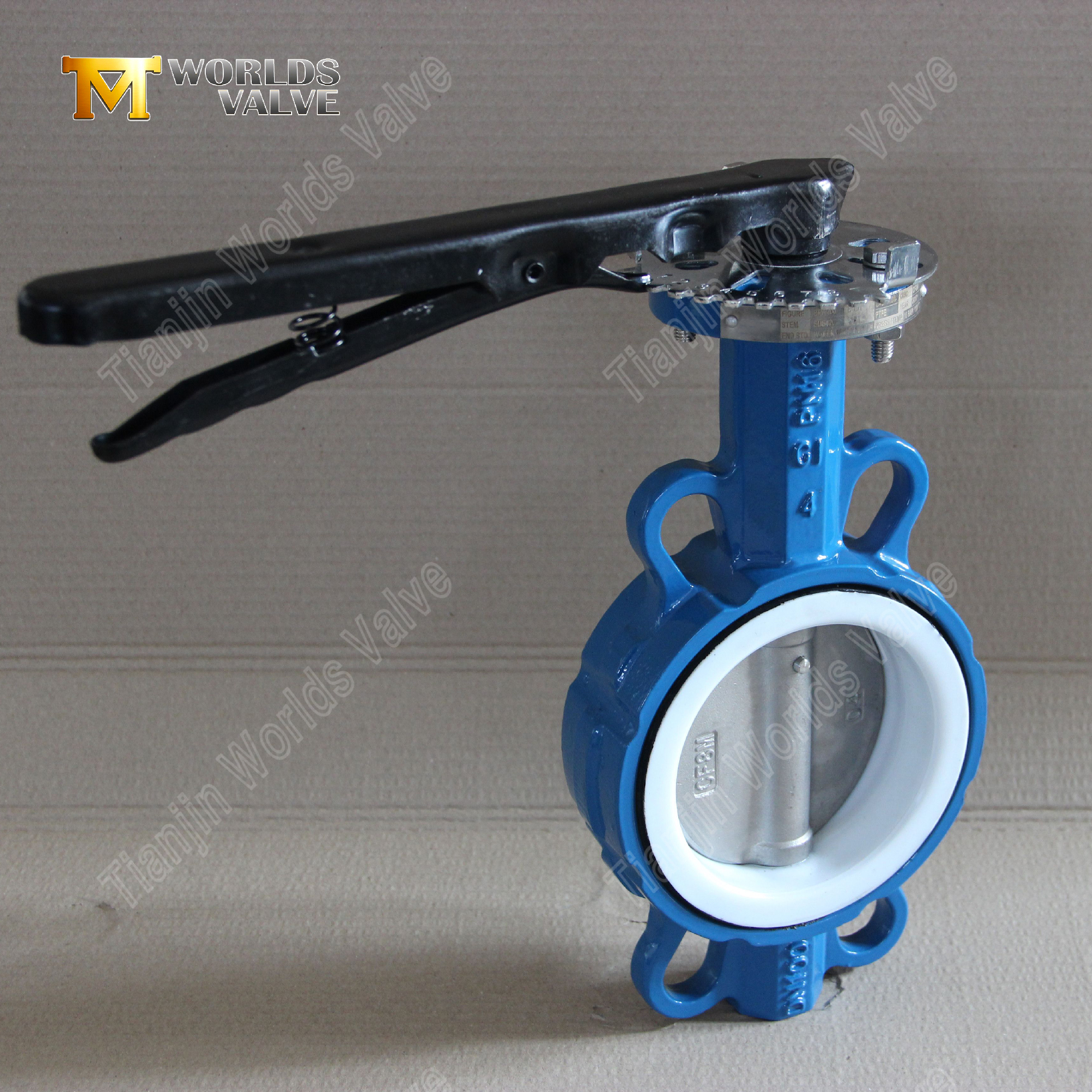

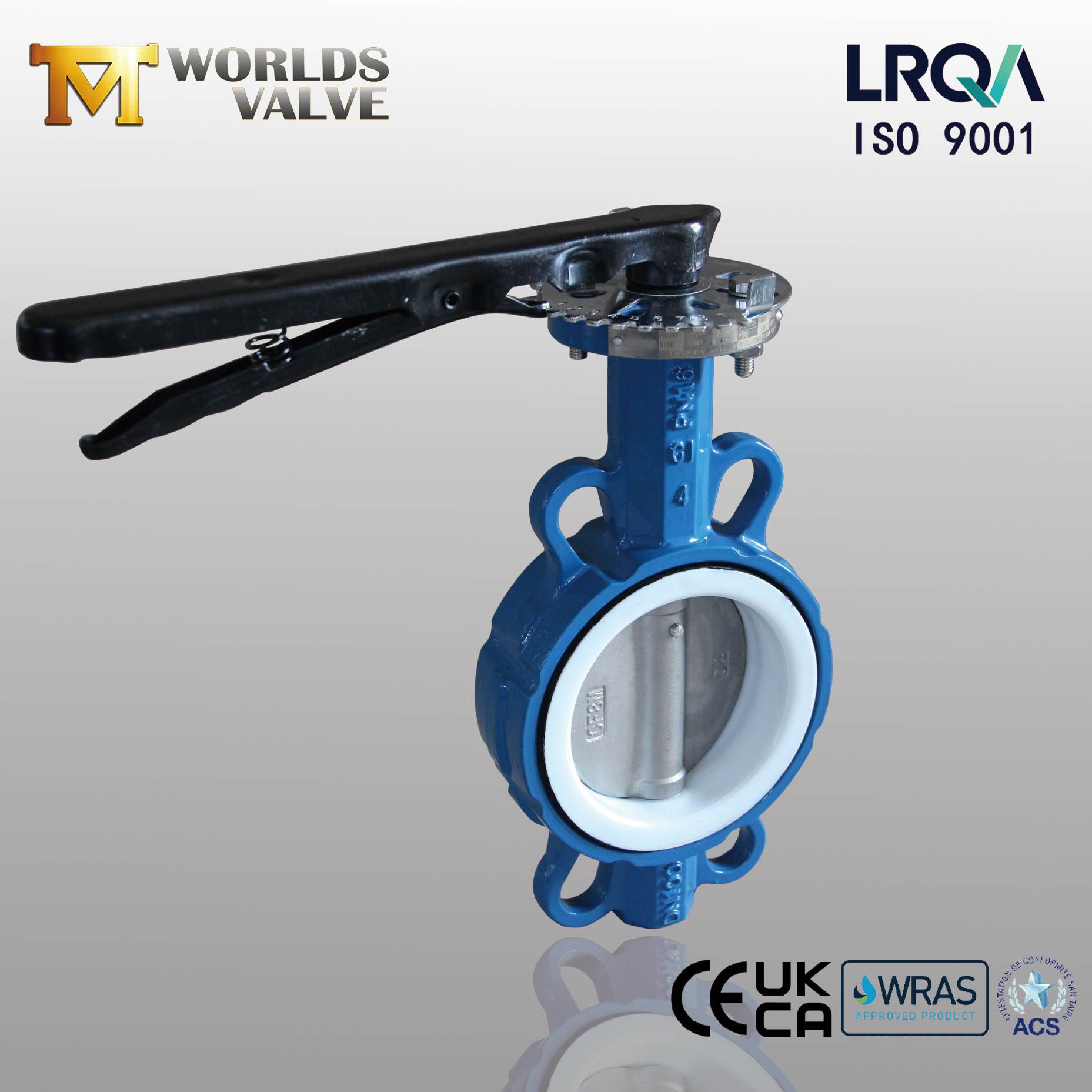

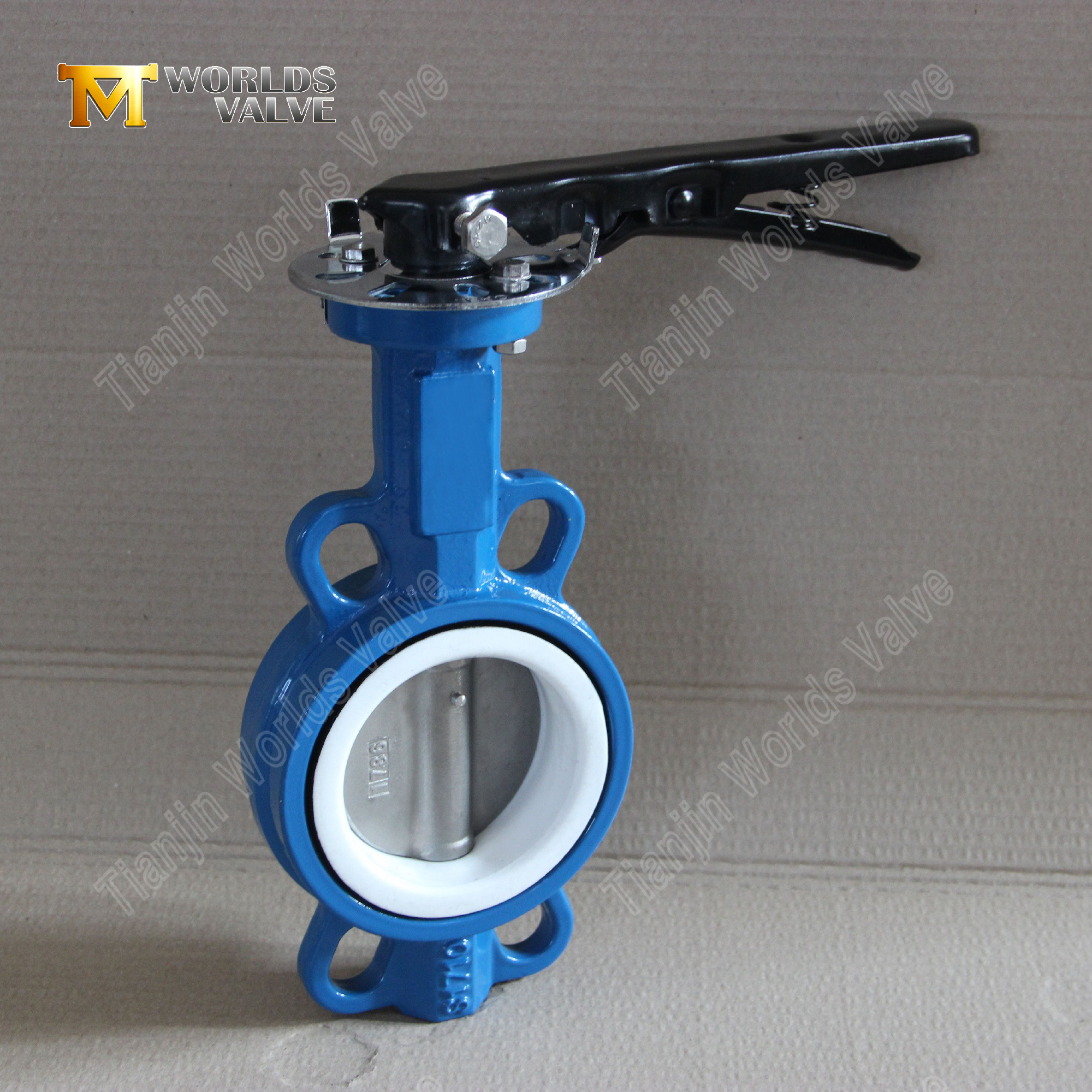

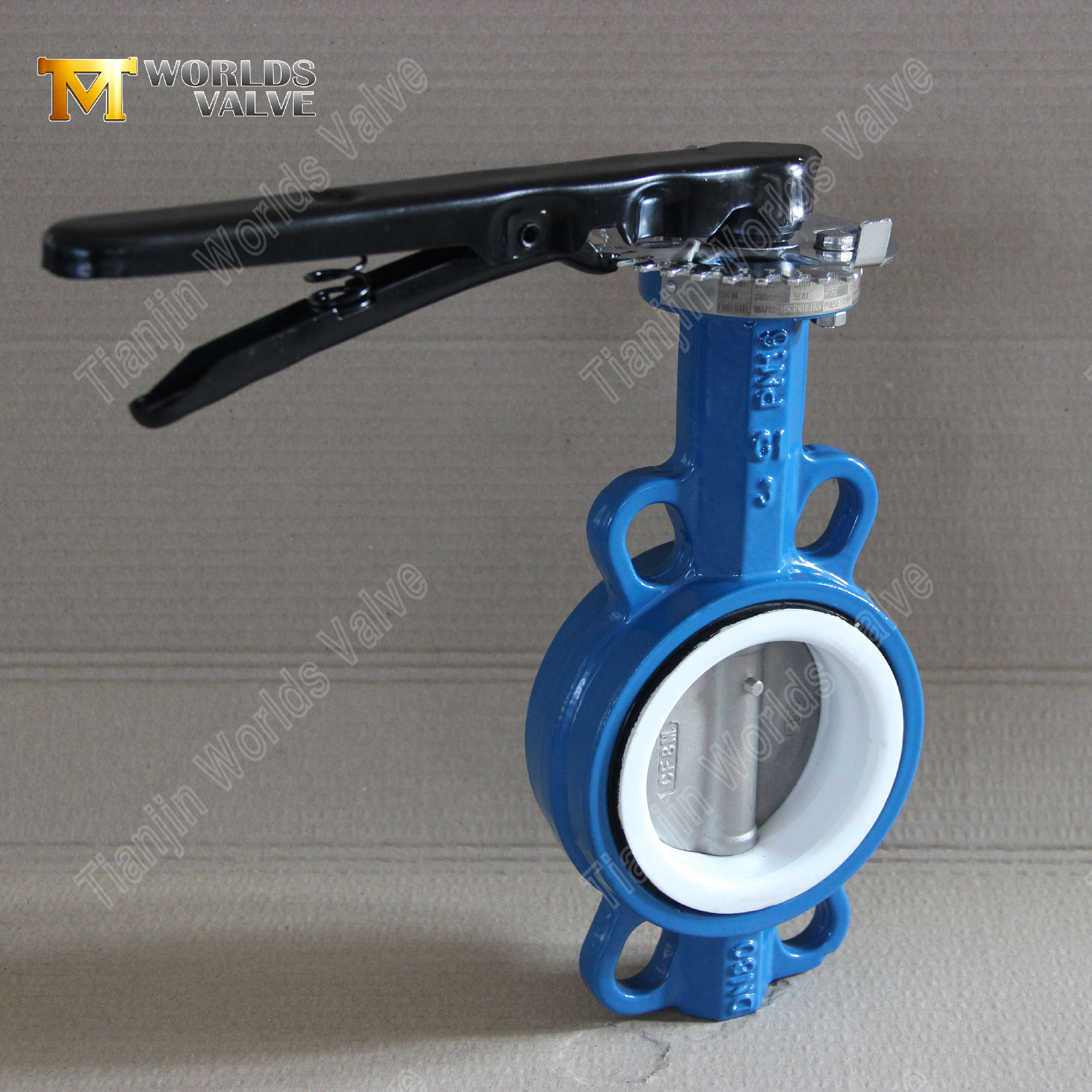

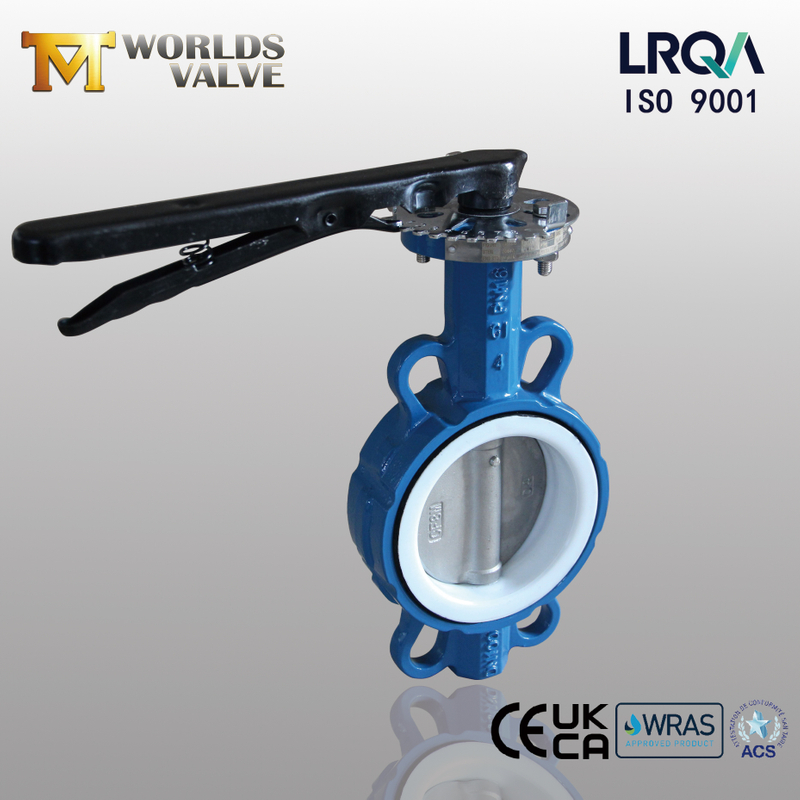

Tianjin Worlds Valve Co., Ltd. presents the CF8M Disc & PTFE Seat Wafer Butterfly Valve with Hand Lever Operation, engineered for precise manual flow control in chemical, pharmaceutical, and high-purity applications. Combining a CF8M (316 stainless steel) disc with virgin PTFE seat in a compact wafer design, this valve delivers exceptional corrosion resistance and bubble-tight sealing at PN16 pressures. The ergonomic hand lever provides quick 90° operation with visual position indication, making it ideal for applications requiring frequent manual adjustment and reliable shutoff in corrosive environments.

Model:
CBF01-TA01
Brand:
OEM|ODM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction：

CF8M Disc & PTFE Seat Wafer Butterfly Valve with Hand Lever Operation | Premium Corrosion-Resistant Manual Control

Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer

CBF01-TA01-Operation and Maintenance Manual DOWNLOAD

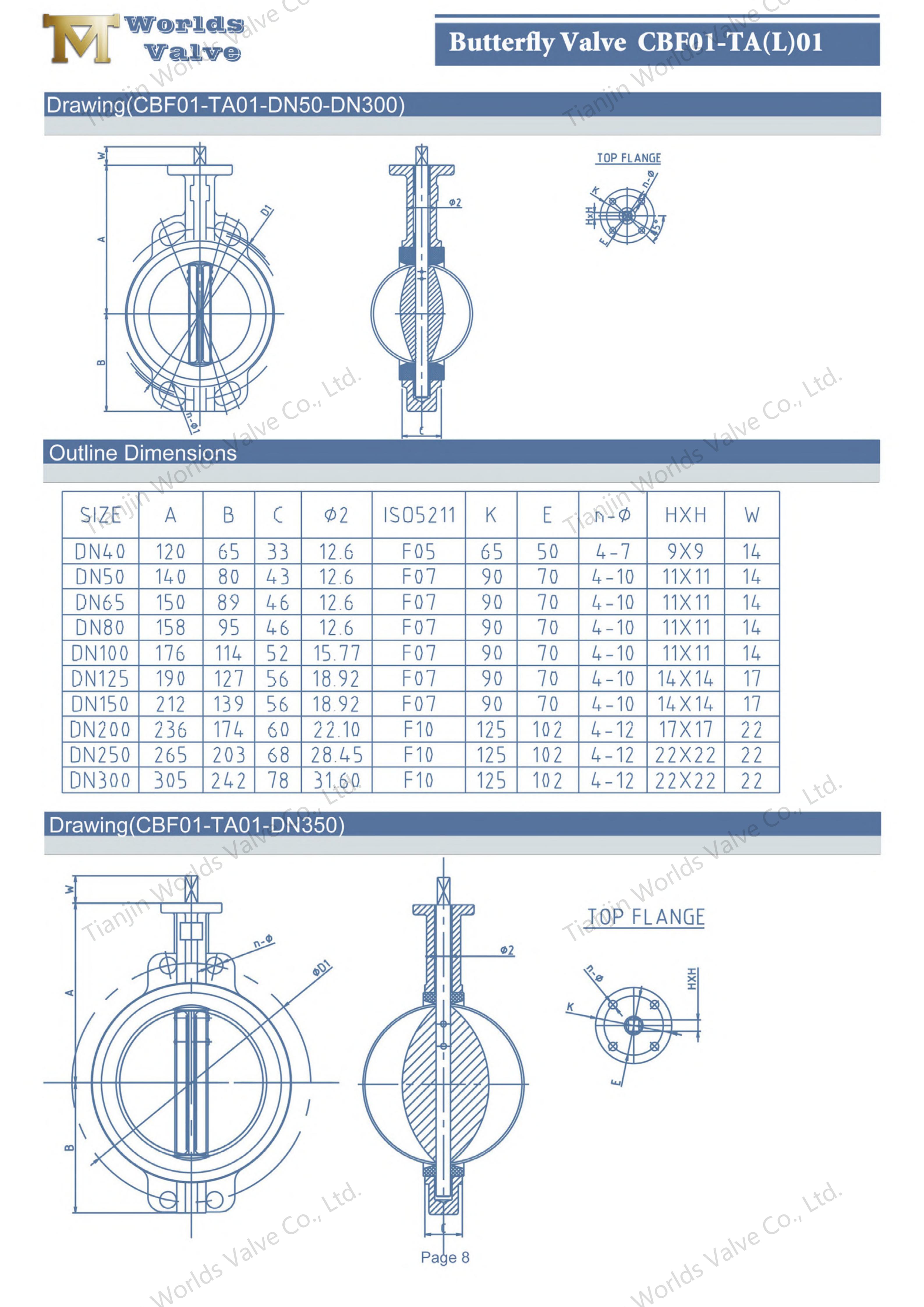

对夹蝶阀（凸耳蝶阀）CBF01-TA(L)01_08

Technical Features & Performance Advantages:

1. CF8M Stainless Steel Disc Excellence

Superior Corrosion Resistance: 316 stainless steel composition provides excellent protection against chemicals, chlorides, and corrosive media
Mechanical Durability: High-strength disc maintains structural integrity under pressure and thermal cycling conditions
Precision Machining: Optimized disc profile ensures smooth operation and perfect seating alignment

2. PTFE Seat Sealing Performance

Chemical Inertness: Virgin PTFE seat resists virtually all chemicals across the full pH spectrum (0-14)
Zero Leakage Assurance: PTFE-to-disc contact achieves bubble-tight shutoff per EN 12266-1 Class A standards
Temperature Resilience: Maintains sealing integrity from -35℃ to 200℃ without degradation

3. Hand Lever Operational Efficiency

Quick 90°Operation: Lever mechanism enables rapid open/close control with minimal effort
Visual Position Indication: Clear open/closed/setting positions for operational safety
Torque Optimization: Low-friction design reduces operating force by 35% compared to standard valves

4. Wafer Space-Saving Design

Compact & Lightweight: 40% reduction in weight and space requirements versus lug-type valves
Easy Installation: Simple insertion between ANSI B16.5 or DIN EN 1092-1 flanges
Cost Efficiency: Lower material and installation costs without performance compromise

5. Operational Efficiency

Multiple Actuation：Compatible with manual lever, gear operator, or ISO 5211 standard actuators
Maintenance-Free：Self-lubricating bearings and corrosion-resistant components minimize service requirements

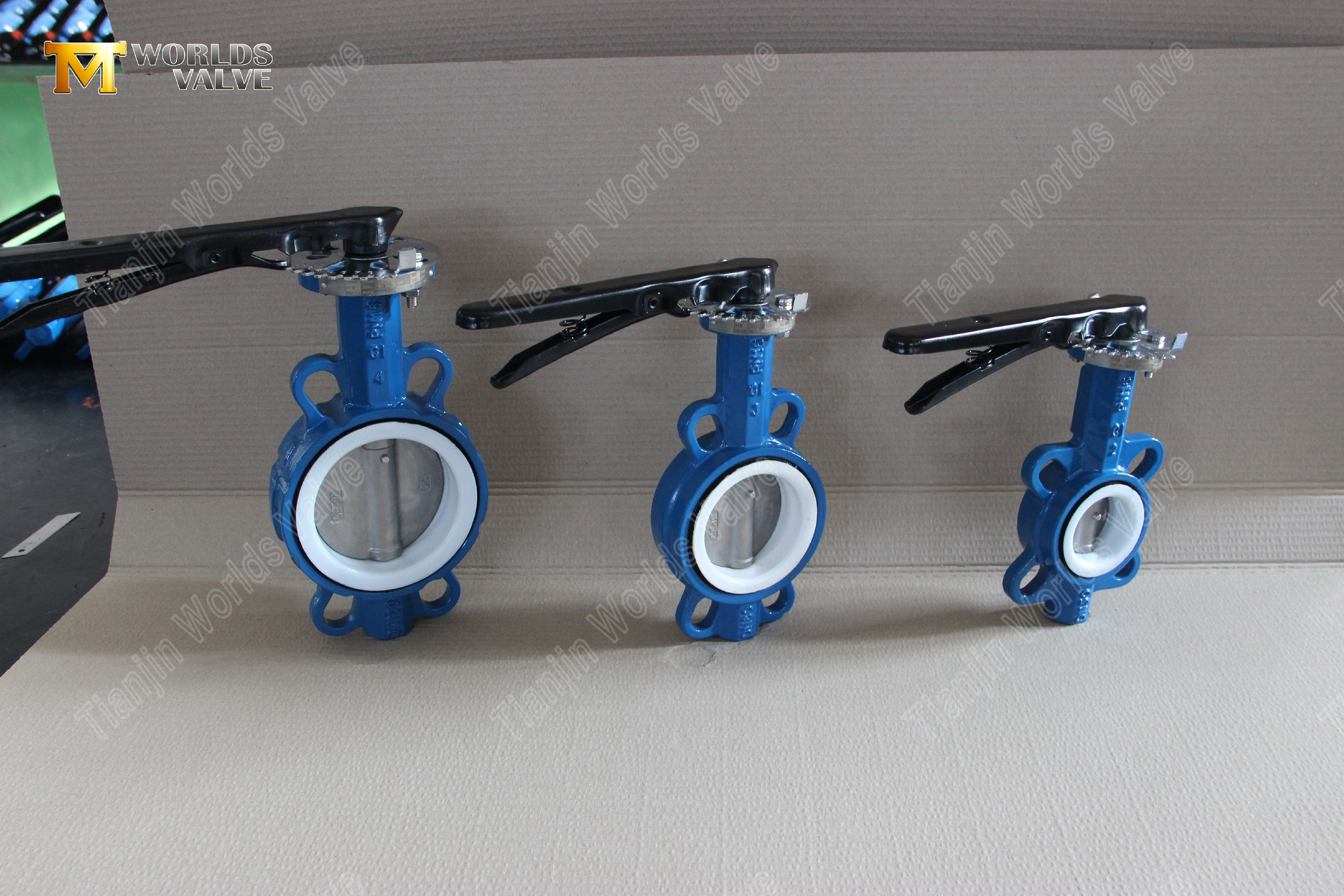

CF8M-Disc-&-PTFE-Seat-Wafer-Butterfly-Valve-with-Hand-Lever-Operation-8

Standard:

Parameter	Specification
Model	CBF01-TA01
Sizes	DN50-DN1200
Pressure Class	PN6/10/16/150LB/5K/10K/AS “D”/ “E”
Design	EN593 API 609 BS5155 EN1092 ISO5211
Testing	API598 ISO5208 EN12266-1
TOP Flange	ISO5211 (according to customer’s needs)
Face to Face	EN558-1 API609 DIN3202 ISO5752 BS5155
Body	CI
Disc	CF8M
Seat	PTFE
Stem	SS431

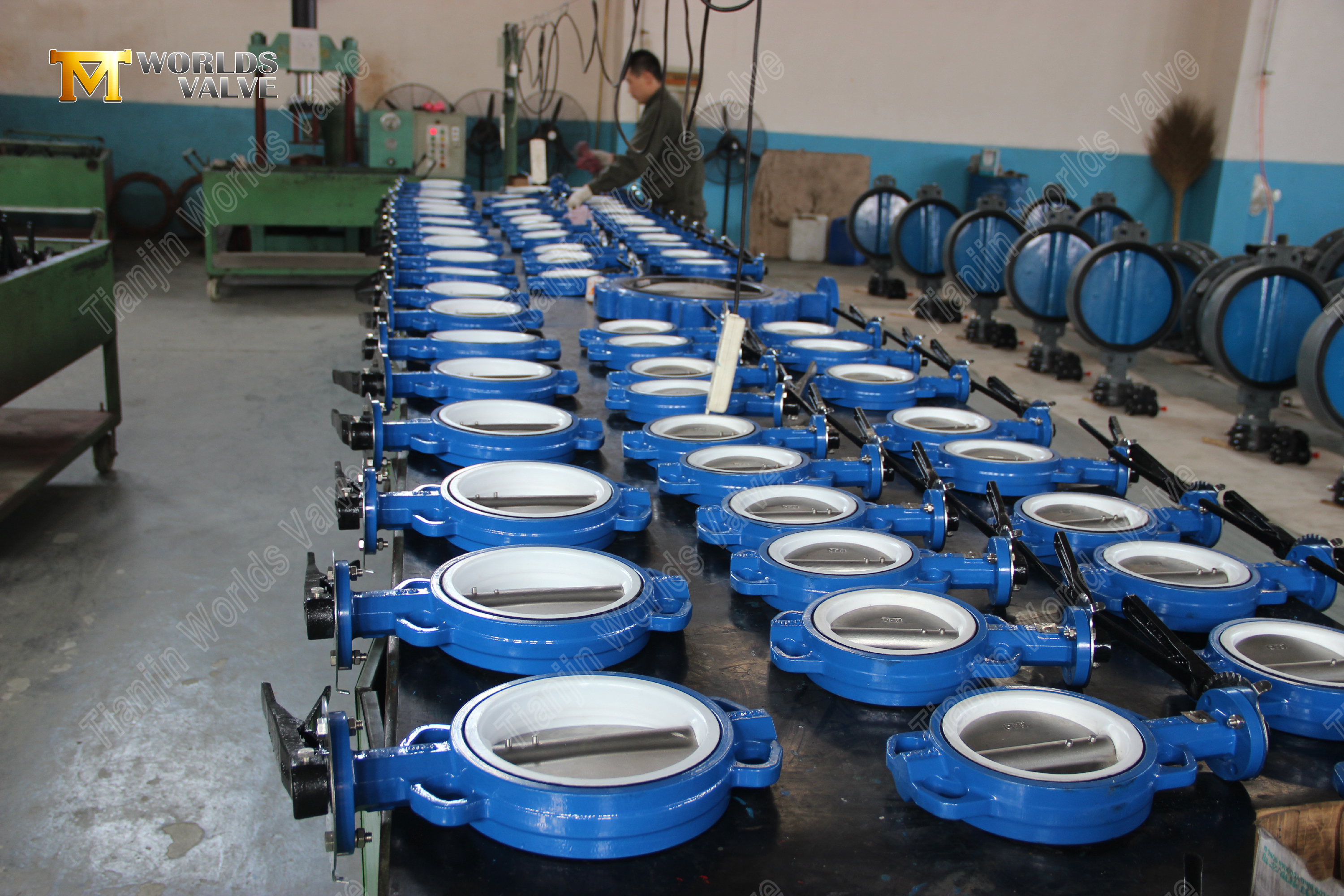

CF8M-Disc-&-PTFE-Seat-Wafer-Butterfly-Valve-with-Hand-Lever-Operation-7

Industry Applications

Chemical Processing: Acid/alkali transfer, solvent handling, and chemical dosing systems
Pharmaceutical: CIP/SIP processes, purified water distribution, and API manufacturing
Water Treatment: Chemical feeding, filtration control, and effluent management
Food & Beverage: Sanitary processing, ingredient transfer, and cleaning systems
Industrial Manufacturing: Process chemical control, utility services, and plant maintenance

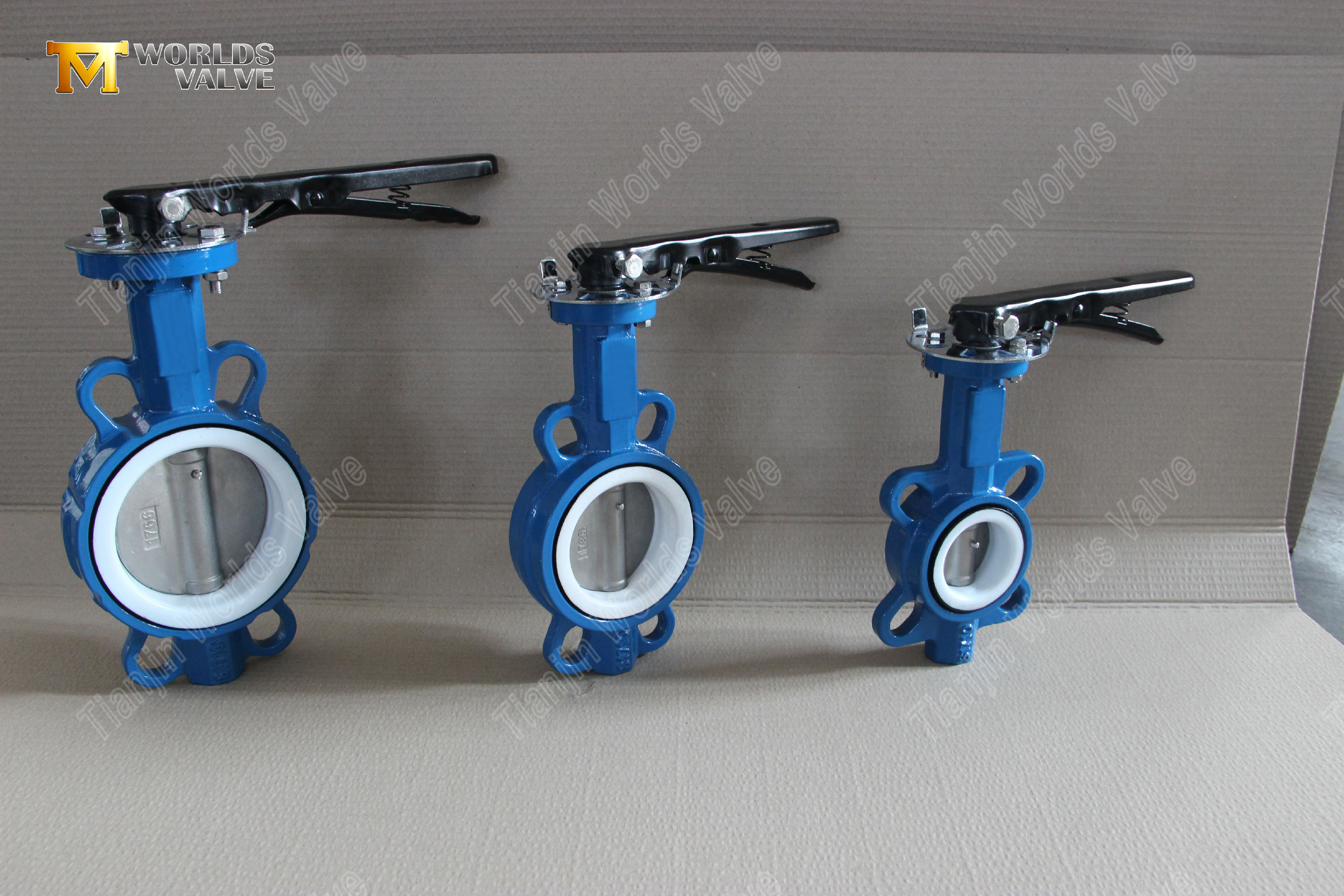

CF8M-Disc-&-PTFE-Seat-Wafer-Butterfly-Valve-with-Hand-Lever-Operation-6

Competitive Advantages

Chemical Immunity: CF8M disc and PTFE seat combination provides complete corrosion protection
Instant Manual Control: Hand lever enables quick response and visual position verification
Space Optimization: Wafer design saves installation space and reduces total cost
Zero Maintenance:Corrosion-resistant materials and PTFE seating eliminate service requirements
Global Compliance: CE, UKCA, and WRAS certifications ensure international acceptance
Quality Assurance: ISO 9001 certified manufacturing with full material traceability

Conclusion:

Combining CF8M stainless steel durability with PTFE seating reliability and hand lever convenience, this wafer butterfly valve delivers exceptional performance for chemical, pharmaceutical, and industrial applications requiring manual flow control.
