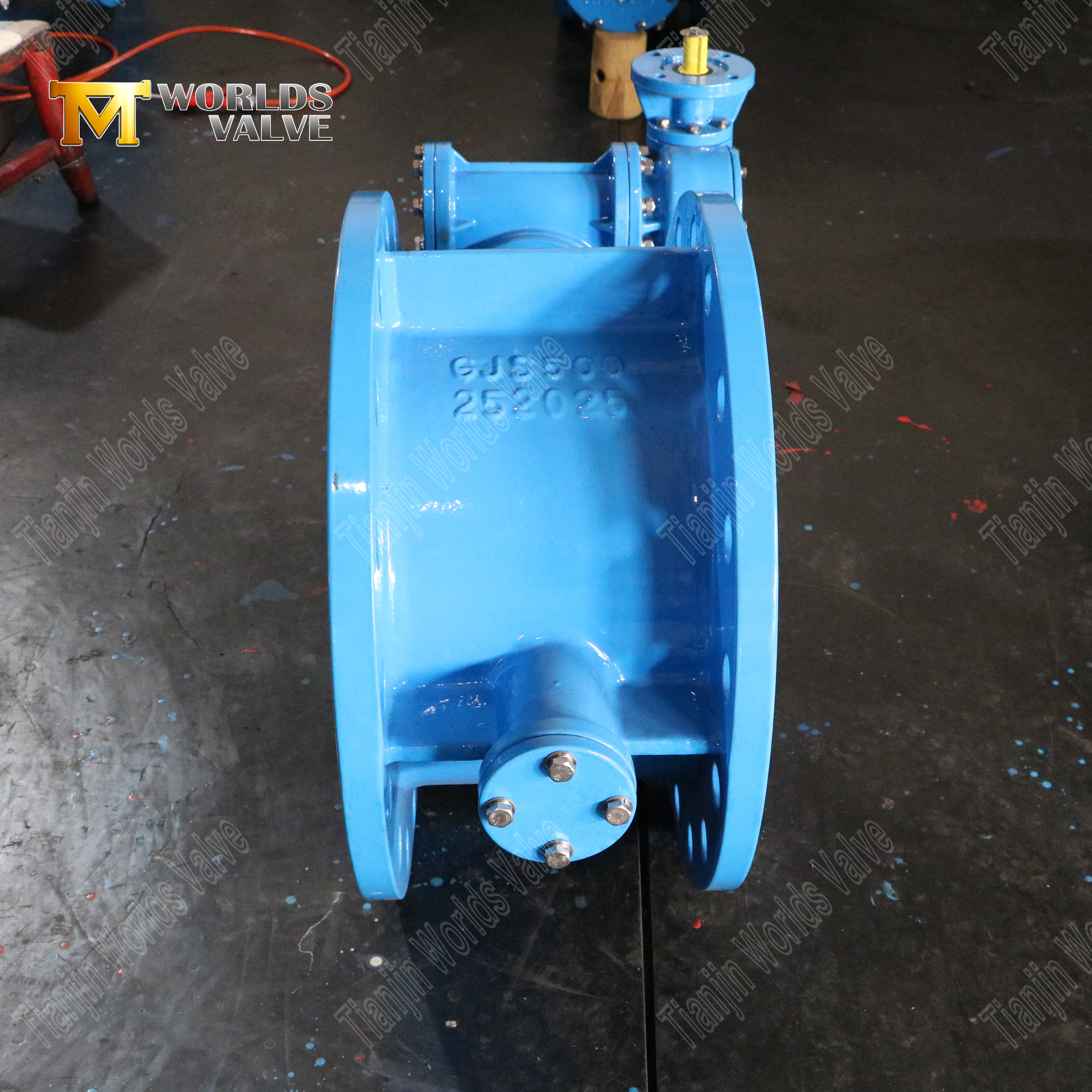

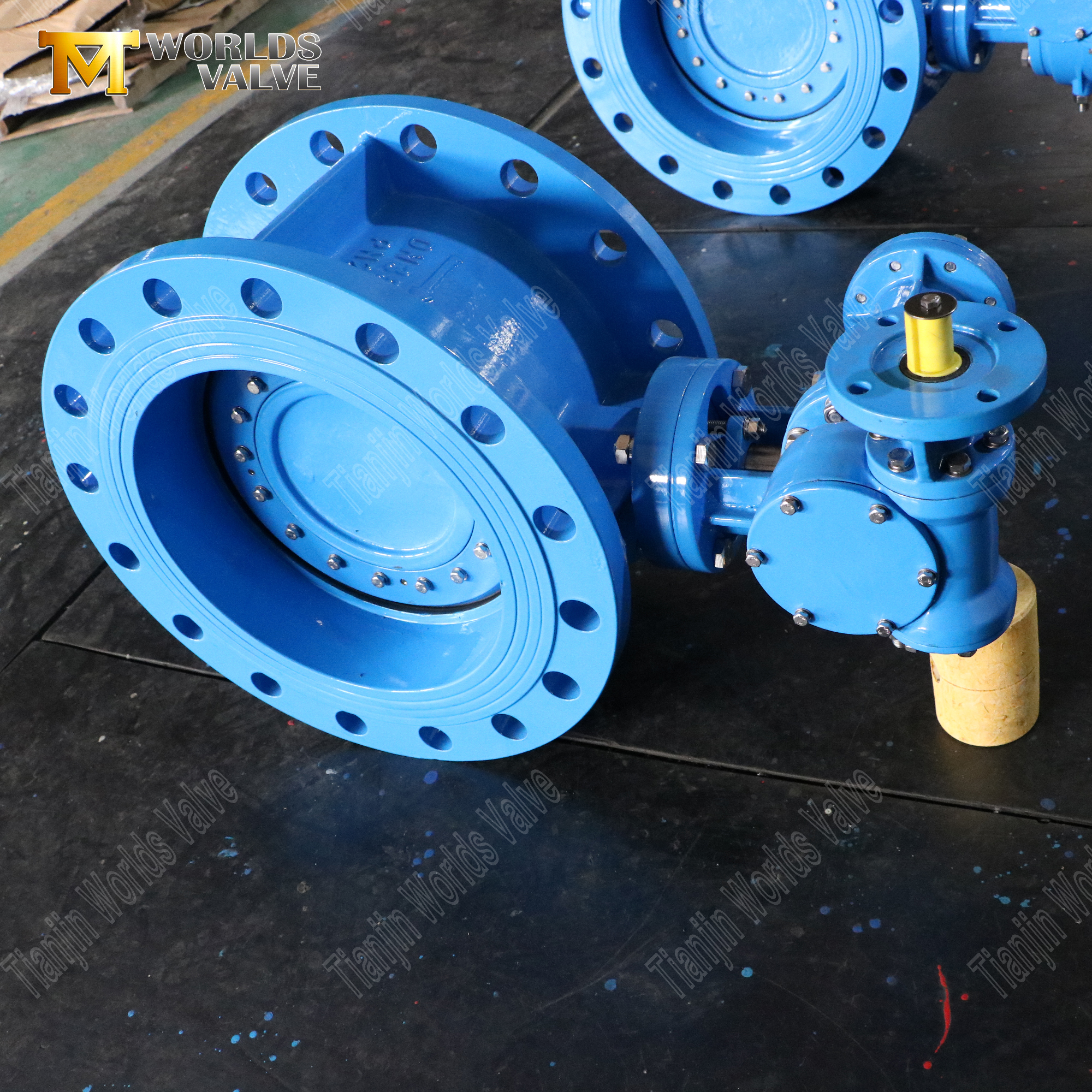

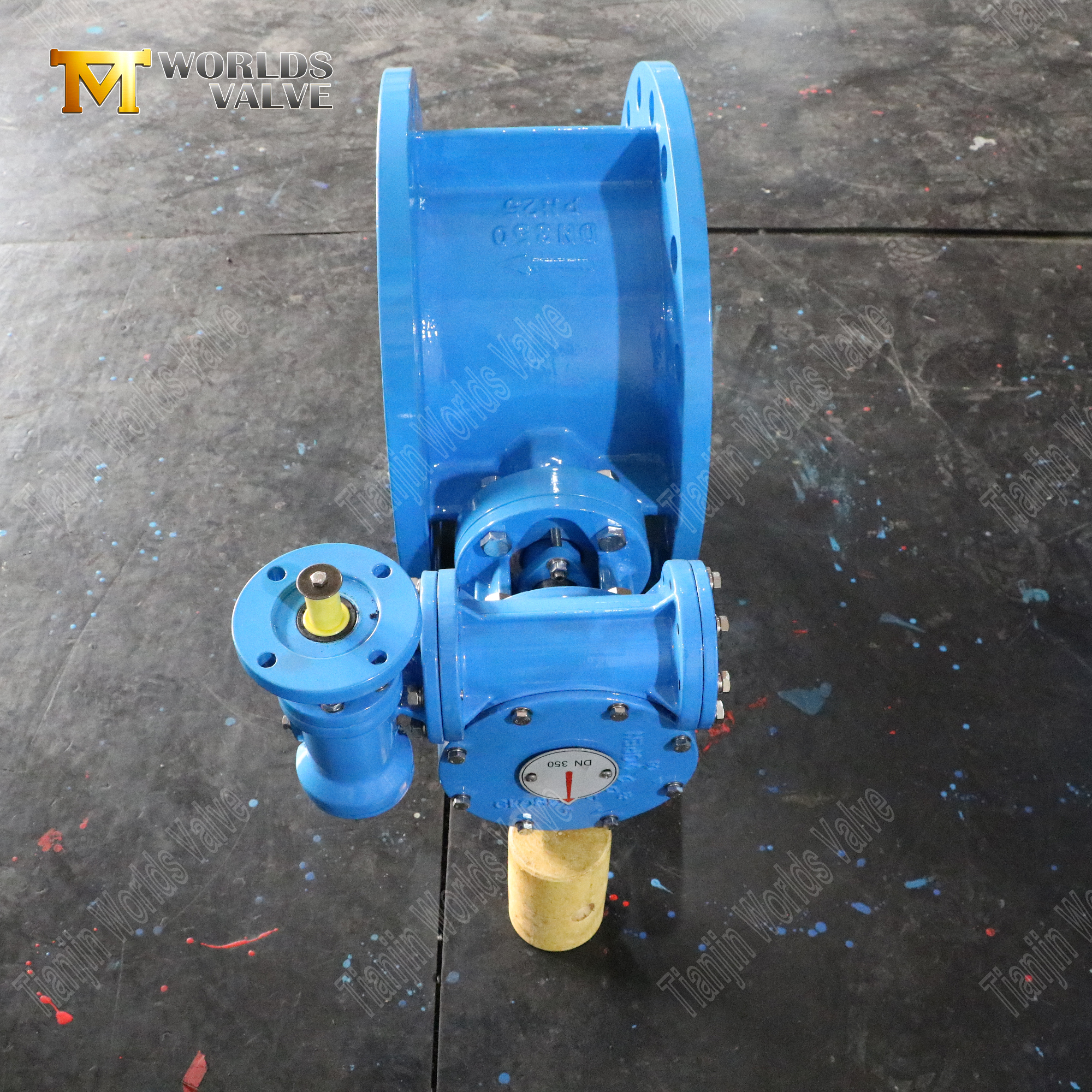

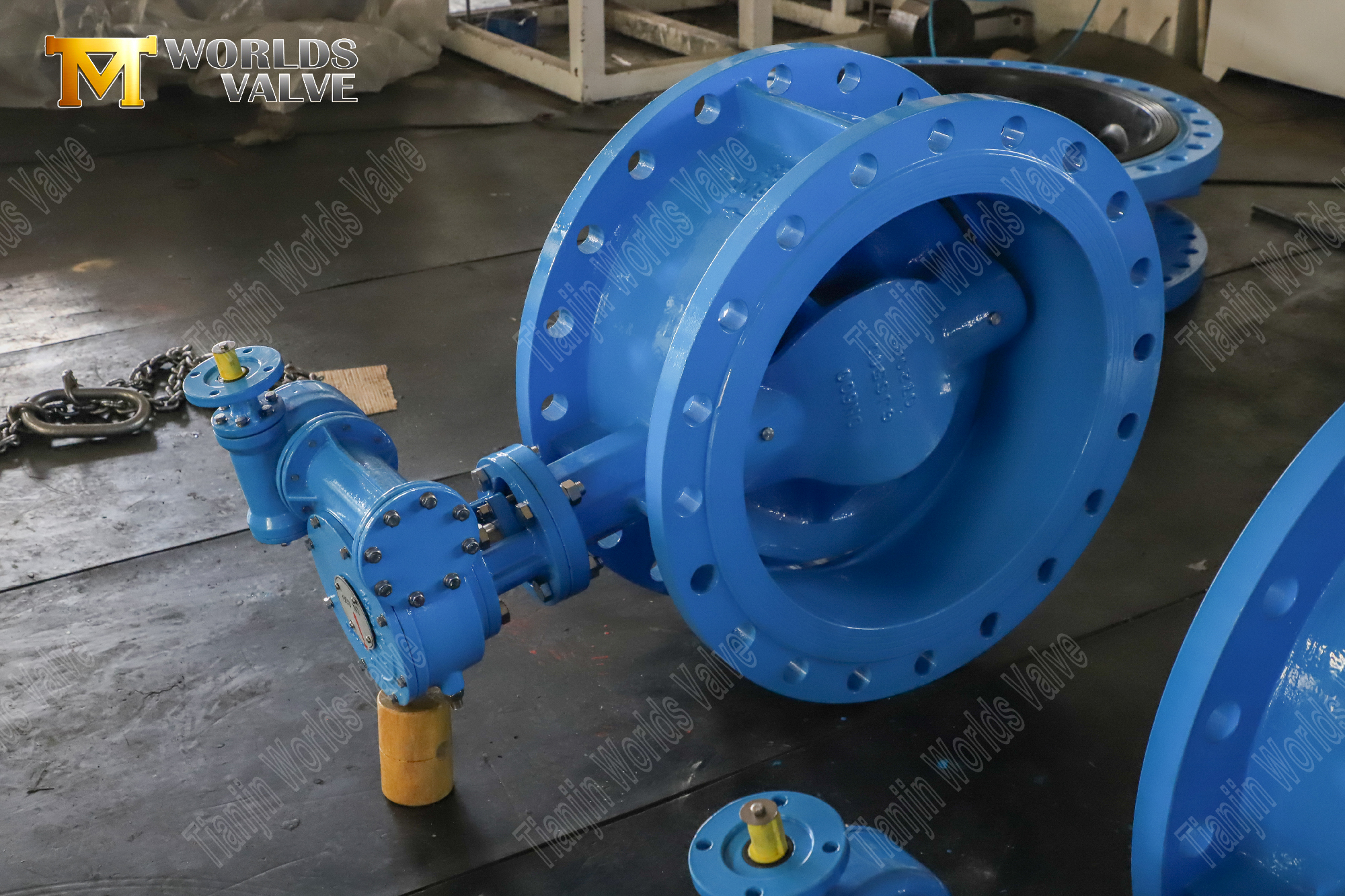

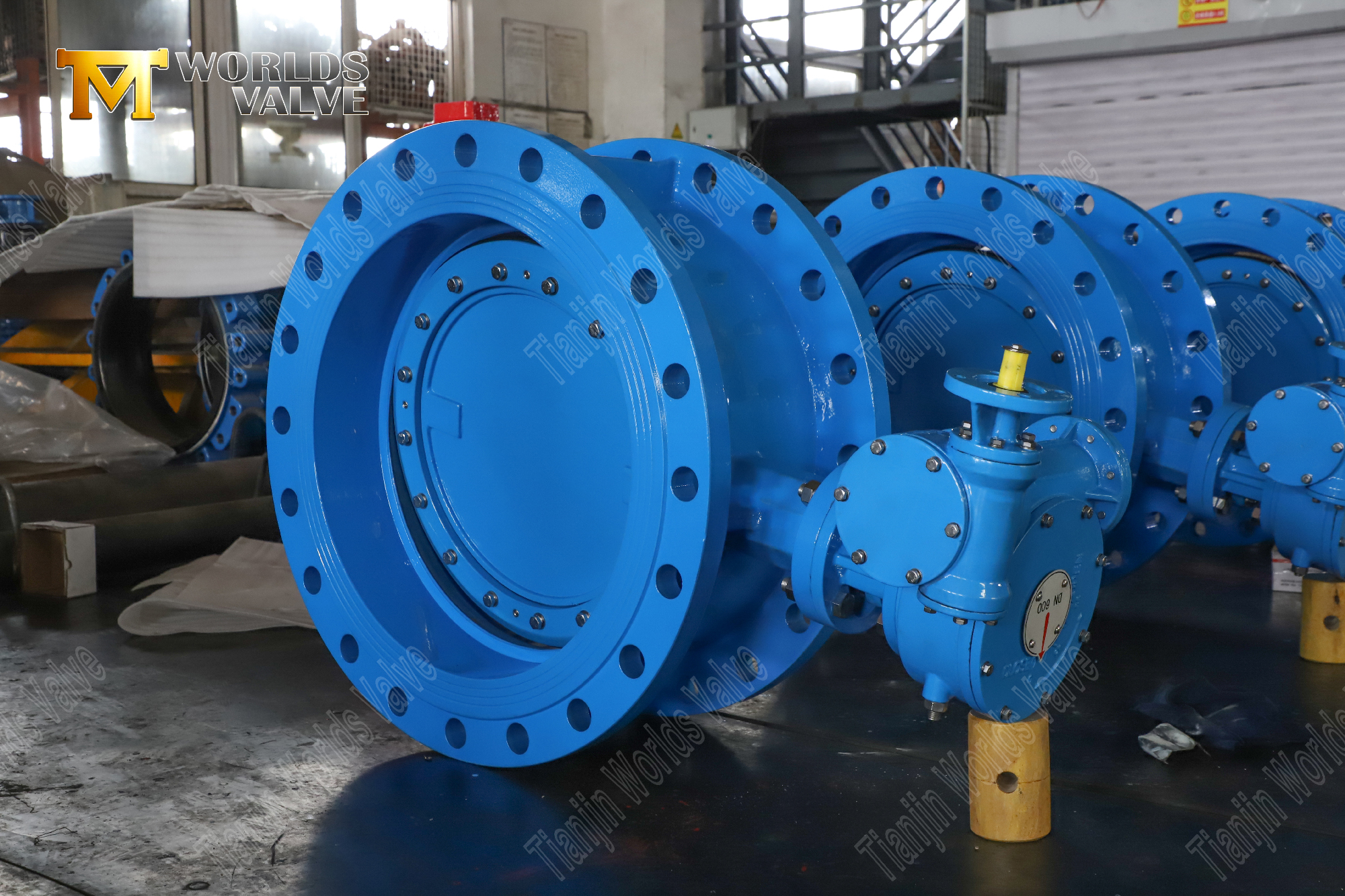

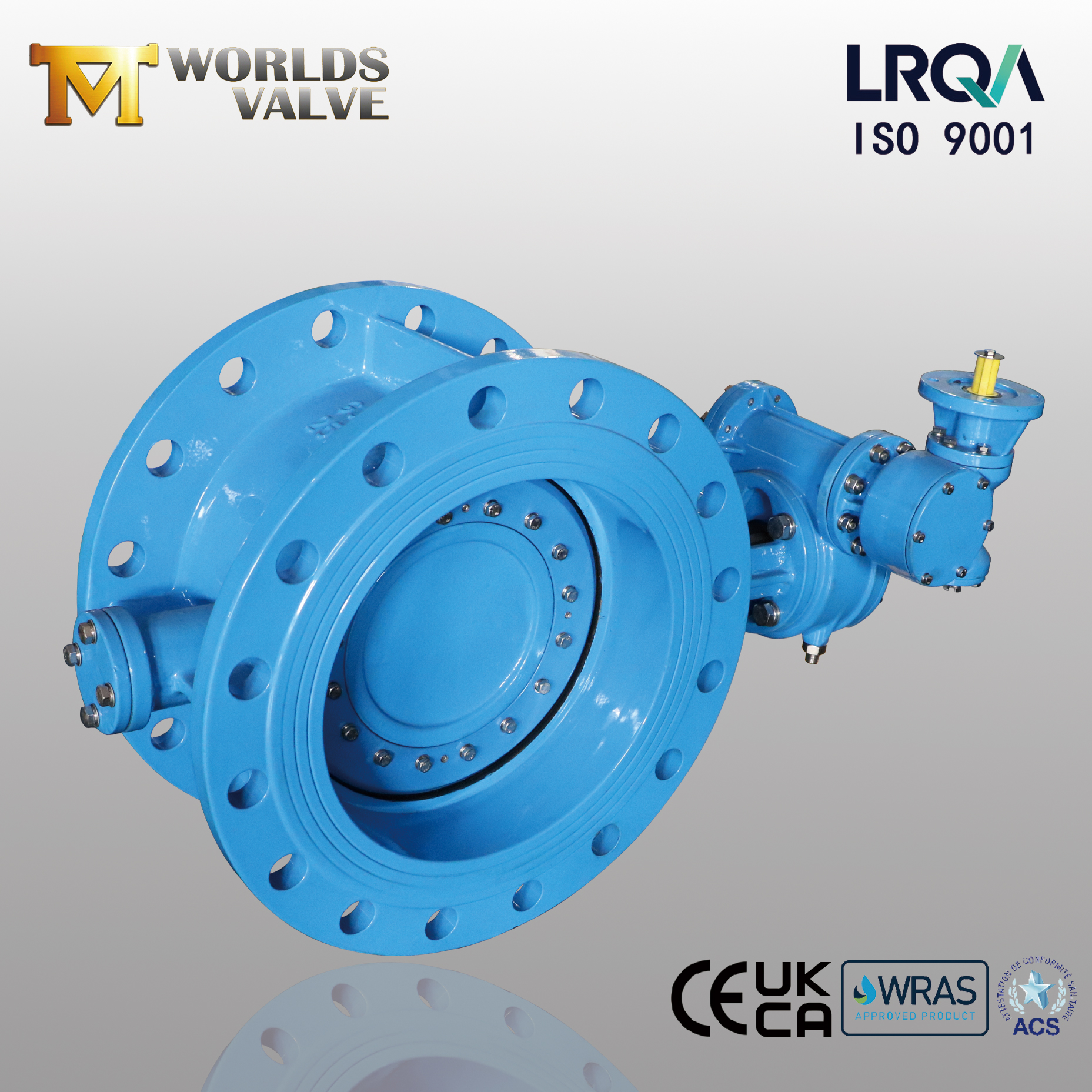

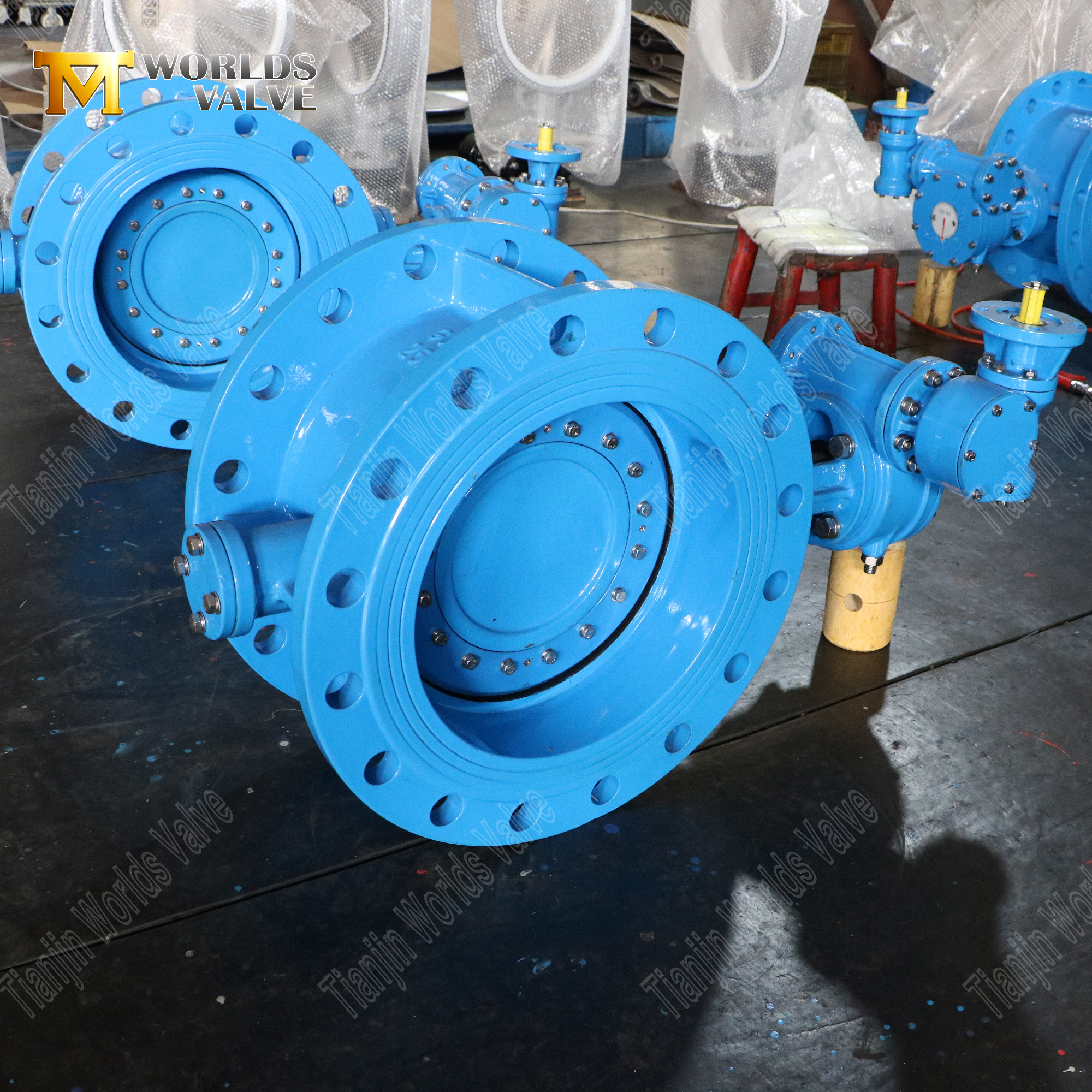

Double Offset PN25 Butterfly Valve with Double Flanges and Gear Operator | Heavy-Duty Industrial Flow Control
Tianjin Worlds Valve Co., Ltd. – API 609 & ISO 5211 Certified Manufacturer
EBF01-TF02-Operation and Maintenance Manual DOWNLOAD
1. Double Offset Eccentricity
offset disc design reduces seat friction by 60%, extending service life.
Anti-cavitation performance minimizes turbulence in high-velocity flows.

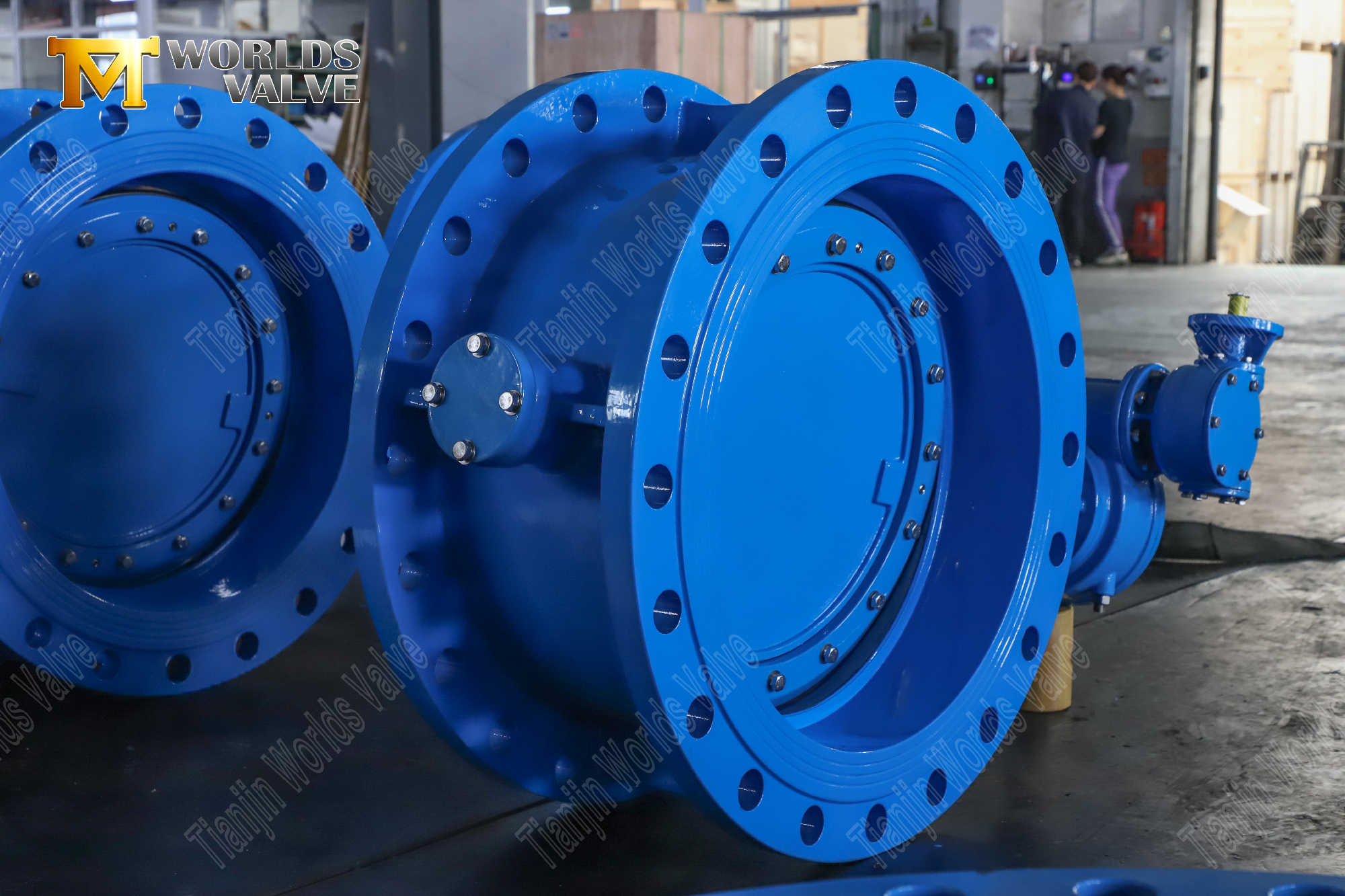

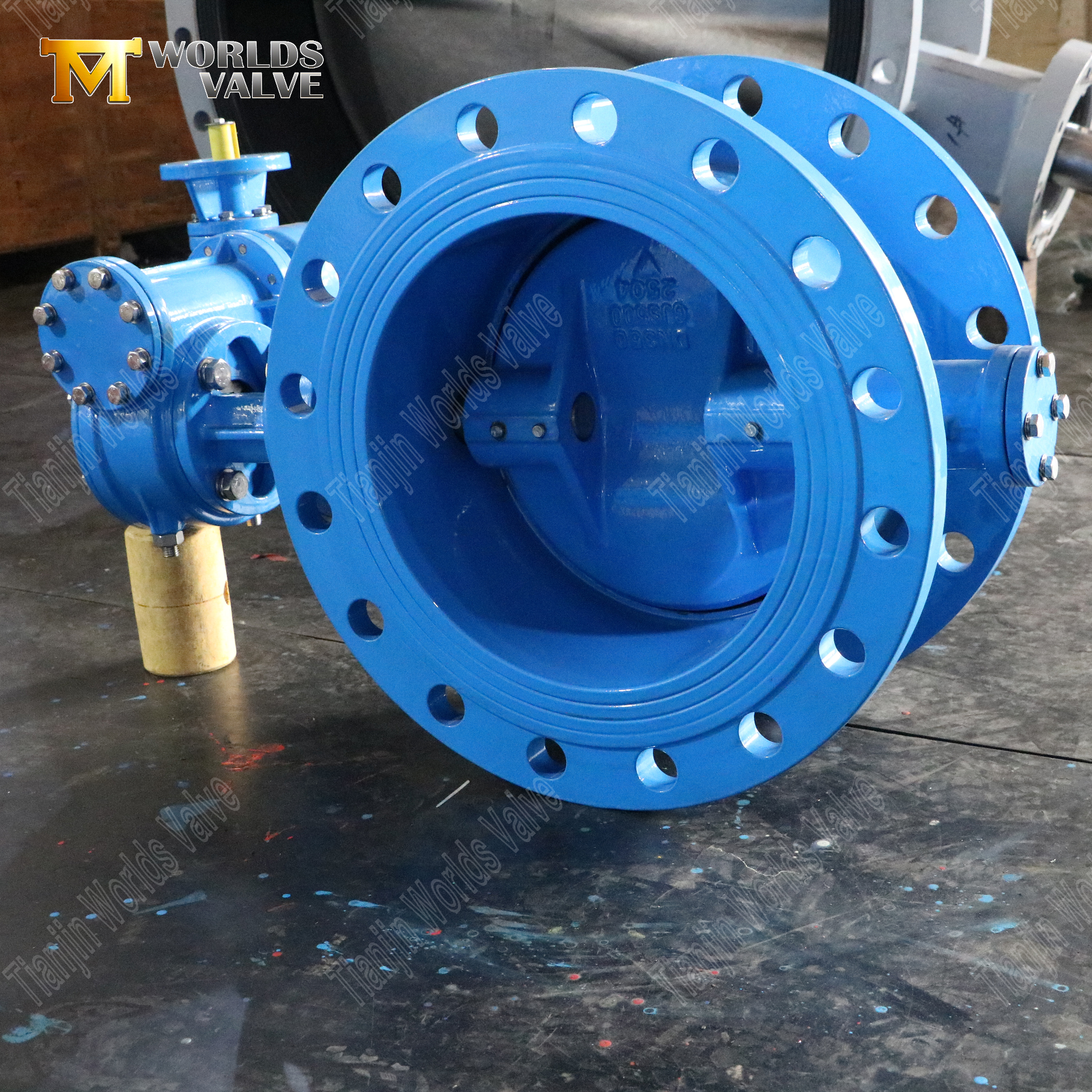

2. Double Flanged Robustness
Double flange butterfly valves offer a compact and robust design for easy installation and long service life.
They provide excellent sealing capabilities and bidirectional flow control, making them ideal for various industrial applications.
3. High-Pressure Sealing
A PN25 rated high-pressure butterfly valve is engineered to handle demanding applications with a nominal pressure of 25 bar.
It typically features a robust design with a double-flanged connection, a resilient seated or high-performance metal-seated disc, and a sturdy shaft to ensure reliable shut-off and control in high-pressure systems for water, oil, gas, and other industrial services.

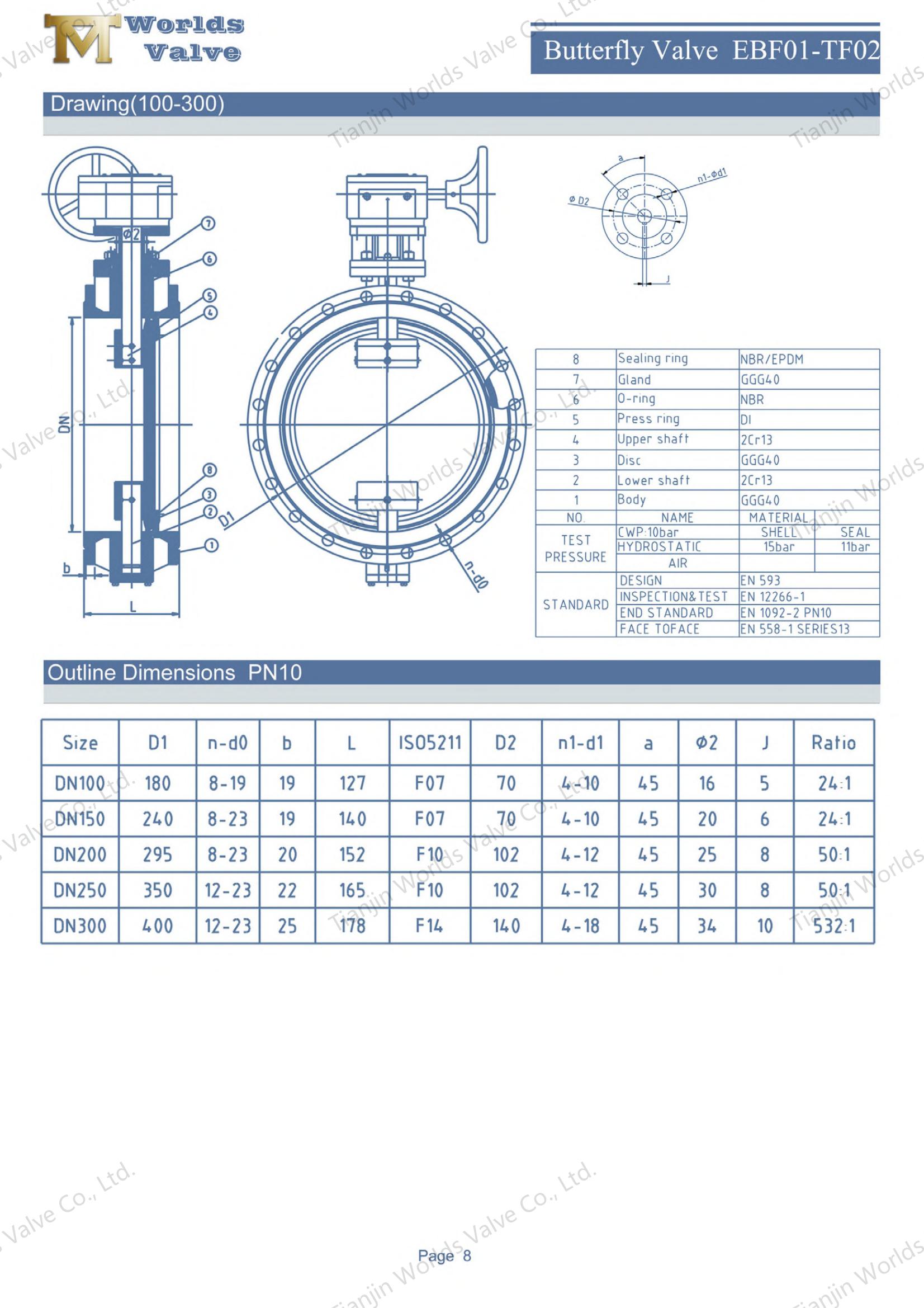

Model | EBF01-TF02 |
Sizes | DN100-DN1800 |
Pressure Class | PN10 (10bar) PN16 (16bar) PN25(25bar) |
Design | API 609 BSEN593 BS5155 |
Test | API598 ISO5208 EN12266-1 |
Flange Connection | DIN2501 PN10/16, ISO7005-2 PN10/16, EN1092-2 PN10/16, ANSI B16.5 Class 150LB, ANSI B16.47 Series A Class 150LB, ANSI B 16.1 MSS SP44 Class 150LB, AWWA C207 |
TOP Flange | ISO5211 |
Face to Face | EN558-1 Series 13, ISO 5752 Series 13 |
Oil & Gas: High-pressure crude pipelines and refinery isolation.
Chemical Processing: Sulfuric acid (≤80%) and chlorine gas control.
Power Generation: Main steam bypass and cooling water systems.
Marine: Seawater cooling with DNV-GL anti-corrosion approval.
Water Treatment: High-pressure pump discharge and filtration units.
