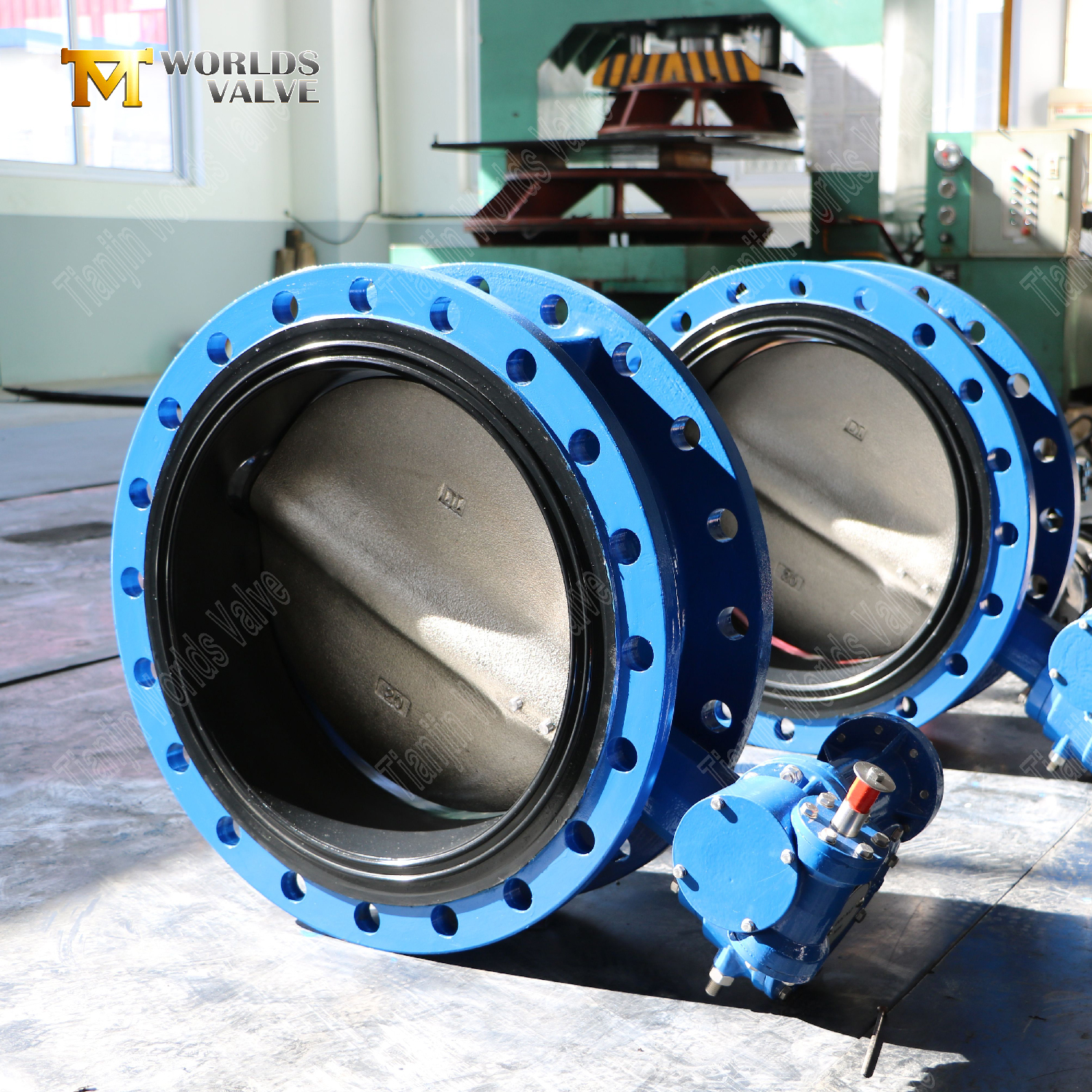

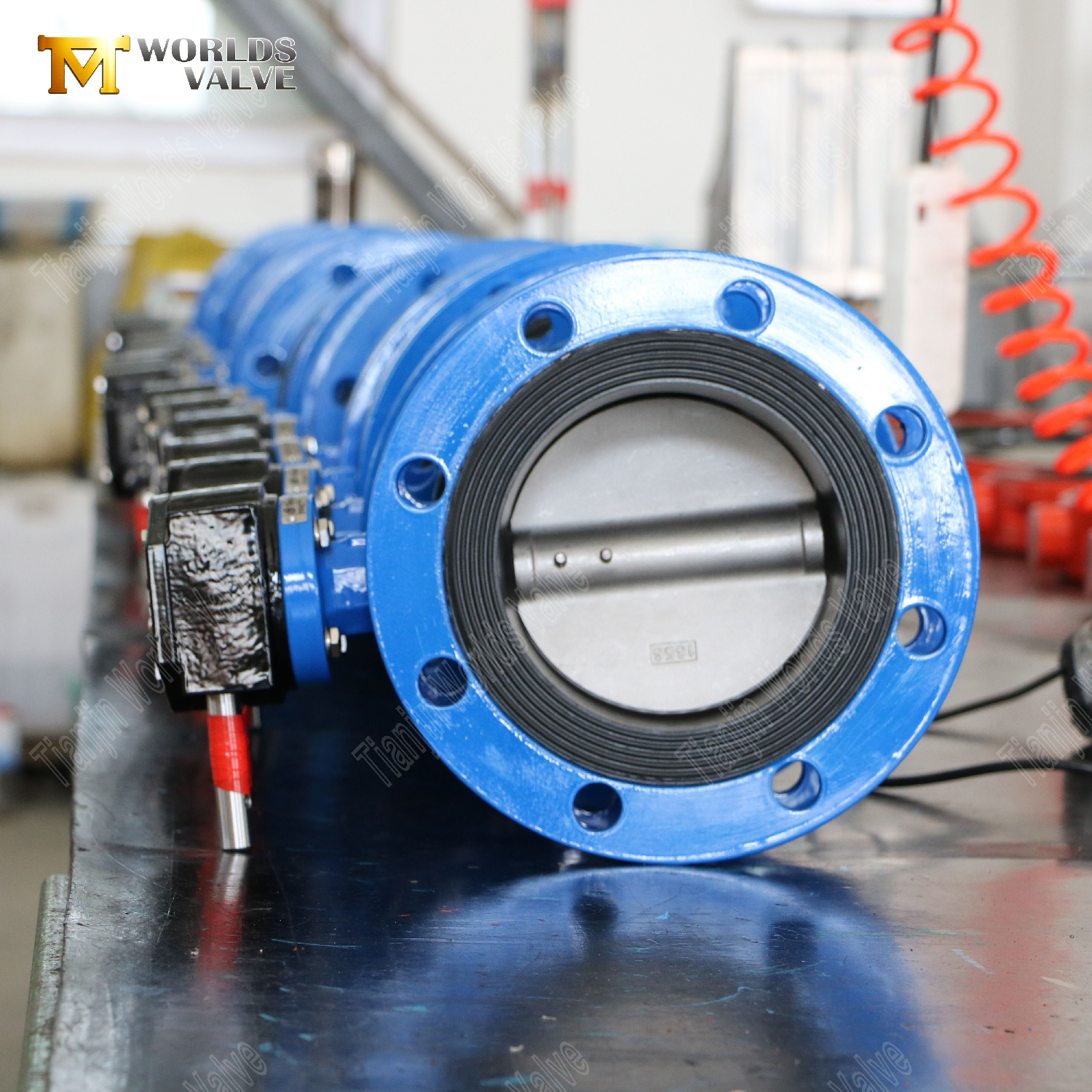

double flanged butterfly valve with gearbox offered by China OEM valve manufacturer-Tianjin Worlda Valve Co., Ltd.

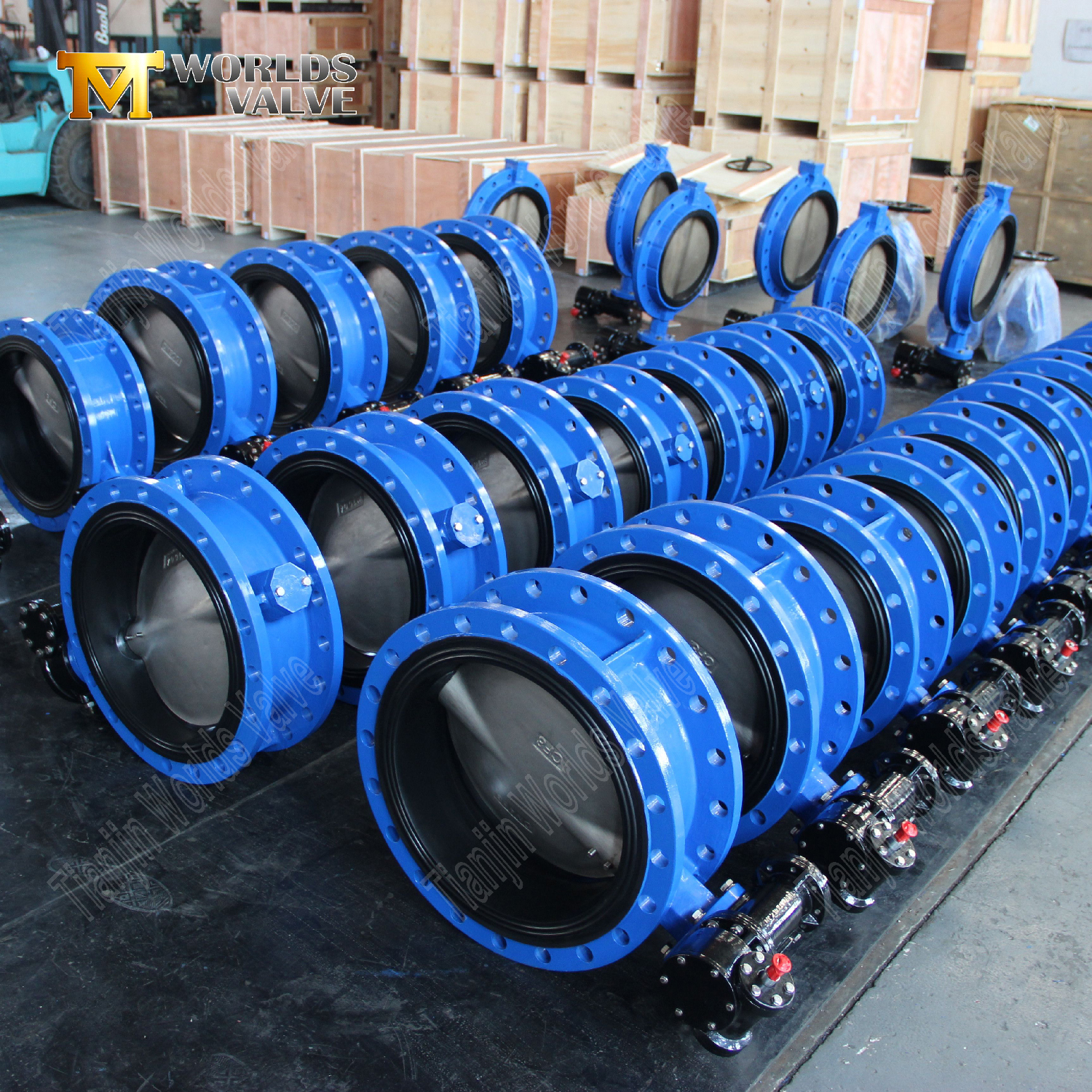

double flanged butterfly valve manufacturer and supplier-Tianjin Worlds Valve Co., Ltd.

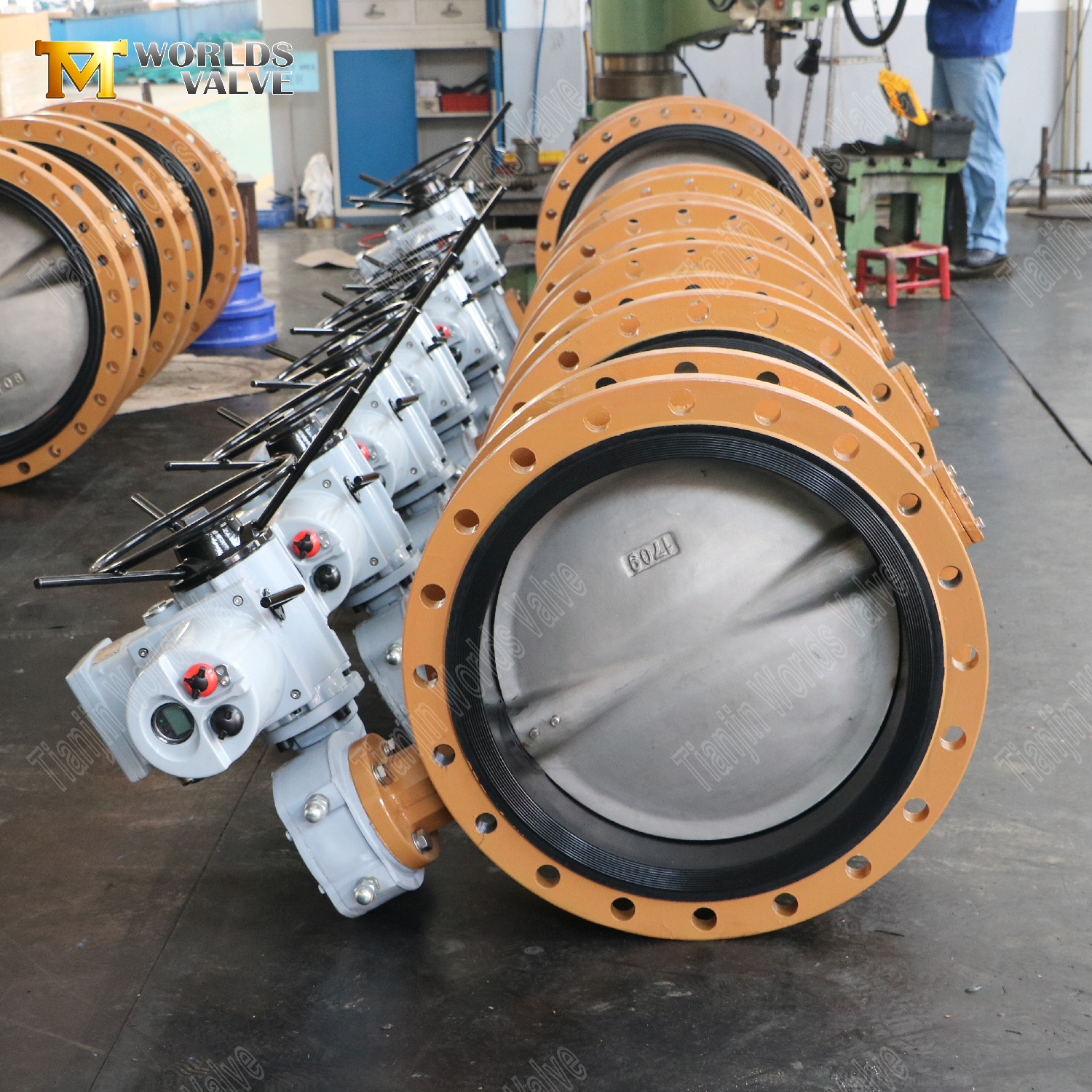

Electric Actuator double flanged butterfly valve with DI disc and vulcanized rubber seat produced by Tianjin Worlds Valve

Electric Actuator Resilient Seated Butterfly Valve with DI Disc from China Butterfly Valve Factory-Tianjin Worlds Valve Co.,Ltd.

ISO 5211 actuated double flanged Butterfly Valves from Butterfly Valve Factory-Tianjin Worlds Valve Co., Ltd.

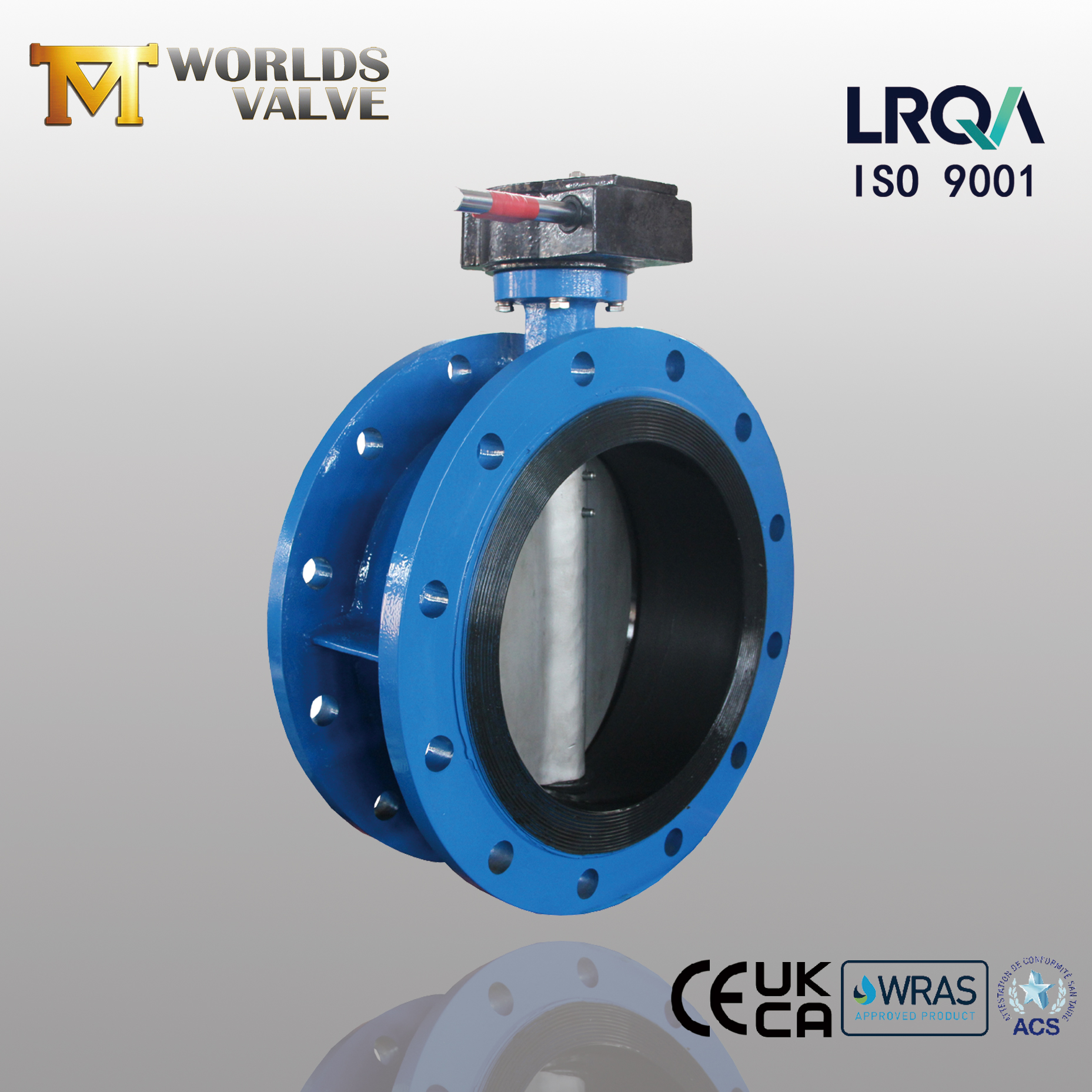

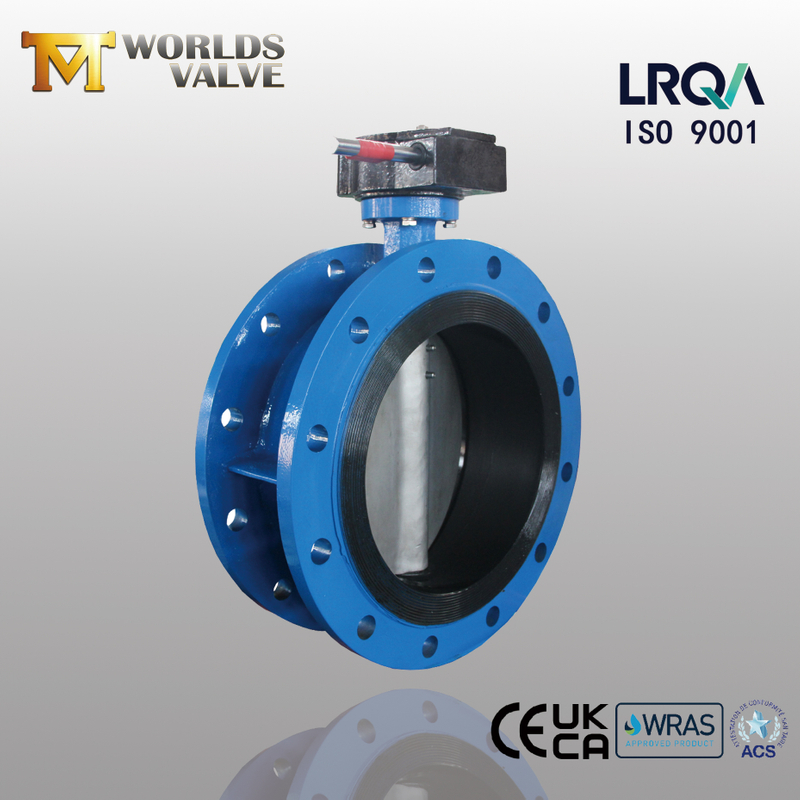

Ductile Iron Valve Disc Vulcanized Rubber Seat Butterfly Valve | Corrosion-Resistant Flow Control

Engineered for demanding water and industrial systems, the Ductile Iron Valve Disc Vulcanized Rubber Seat Butterfly Valve combines robust construction with advanced sealing technology. Featuring a ductile iron disc chemically bonded to an EPDM/NBR rubber seat through vulcanization, this valve delivers zero-leakage shutoff under pressures up to PN16. Compliant with AWWA C504, and WRAS standards, it excels in potable water, wastewater, and HVAC applications where corrosion resistance and longevity are critical.

Model:
CBF01-TF01
Brand:
OEM|ODM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction:

Ductile Iron Valve Disc Vulcanized Rubber Seat Butterfly Valve | Corrosion-Resistant Flow Control

Tianjin Worlds Valve Co., Ltd. – ISO 9001 & WRAS-Certified Industrial Valve Solutions

CBF01-TF01---Operation and Maintenance ManualDOWNLOAD

Main Spare Part Material Quality of Butterfly Valve-CBF01-TF01

Product Features:

1. Vulcanized Rubber-to-Disc Bonding

Permanent chemical fusion between EPDM/NBR elastomer and ductile iron disc prevents seat detachment during thermal cycling (-20°C to 120°C).

Eliminates compression-set failure common in press-fit seats, extending service life to 50,000+ cycles.

2. Optimal Flow Efficiency

Aerodynamic ductile iron disc design reduces pressure drop by 25% vs. traditional valves.

Full port opening minimizes turbulence in high-flow systems.

3. Triple-Layer Corrosion Defense

Body: 300µm fusion-bonded epoxy coating for chlorine/UV resistance.

Disc: Zinc-nickel plating + epoxy topcoat prevents pitting in pH 5-12 environments.

Stem: 316L SS with PTFE bushings.

4. Zero-Maintenance Design

Self-lubricating RPTFE bearings and triple-sealed stem eliminate greasing needs.

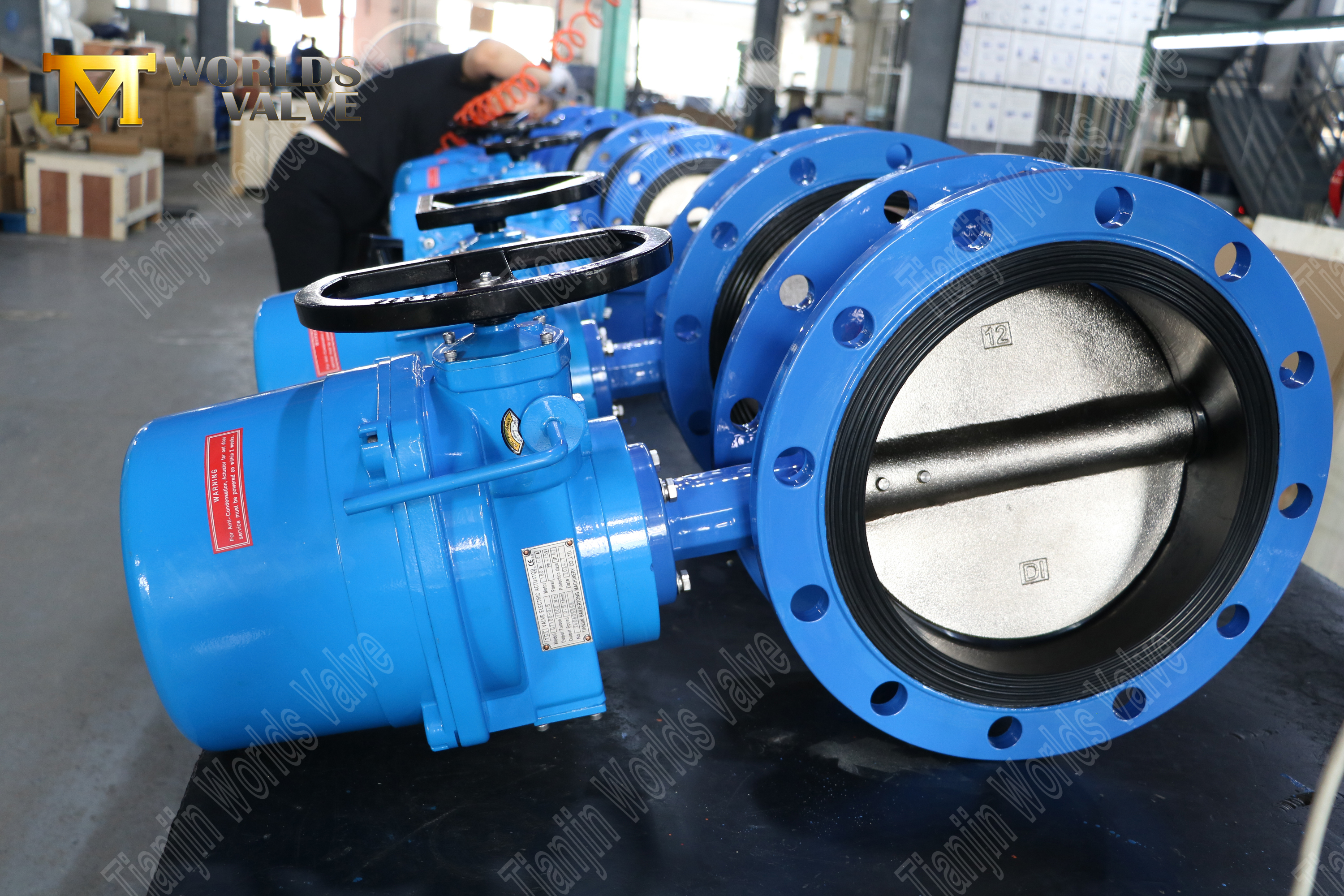

Ductile Iron Valve Disc Vulcanized Rubber Seat Butterfly Valve Corrosion-Resistant Flow Control-2 (1)

Why Partner with Tianjin Worlds Valve?

1. Expertise in OEM/ODM Services

As a trusted ISO 9001-certified manufacturer, we specialize in custom OEM/ODM designs, ensuring valves meet your exact specifications while adhering to global certifications.

2. High Performance

Vulcanized valve seat has very high corrosion resistance and is generally used to control some corrosive fluids with strong acidity and alkalinity.

3. Global Compliance

Pre-certified for EU, UK, and Asian markets.

4. Customization

Optional gearbox position indicators, locking devices, or extended stems.

Butterfly Valve with Electric Actuator Design

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Shaft	Stainless Steel Monel K500
Seat	BUNA NBR EPDM VITON PTFE TEFLON HEPDM Neoprene Hypalon Natural rubber

Industry-Specific Performance

Water Treatment: NSF 61-certified EPDM seats for chlorine dosing systems.

HVAC: Low-torque operation in chilled water circuits (-20°C service).

Marine: Saltwater-resistant coating for ballast water control (DNV-GL option).

Fire Protection: FM-approved resilience in sprinkler supply lines.

Conclusion:

Elevate your industrial systems with Tianjin Worlds Valve’s advanced Ductile Iron Valve Disc Vulcanized Rubber Seat Butterfly Valves. Source CE,UKCA,WRAS,ACS and ISO 9001 certified，Competitive pricing, fast delivery—request a quote today!

Vulcanized rubber seat butterfly valve Ductile iron disc PN16 butterfly valve AWWA C504 compliant butterfly valve EPDM bonded seat industrial valve WRAS approved water butterfly valve Low torque double flanged butterfly valve Corrosion proof ductile iron valve CE certified butterfly valve Zero maintenance vulcanized seat valve OEM HVAC butterfly valve manufacturer
