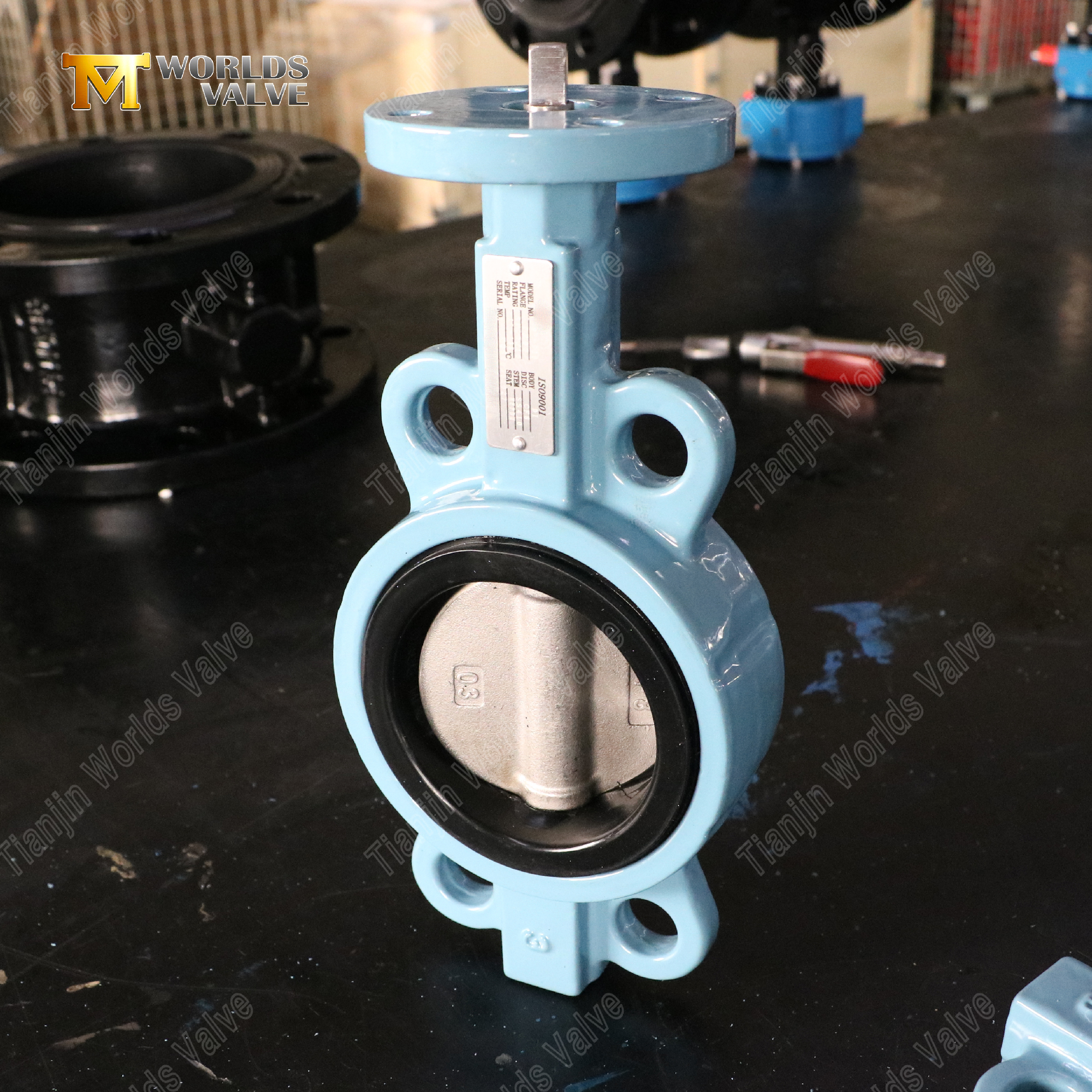

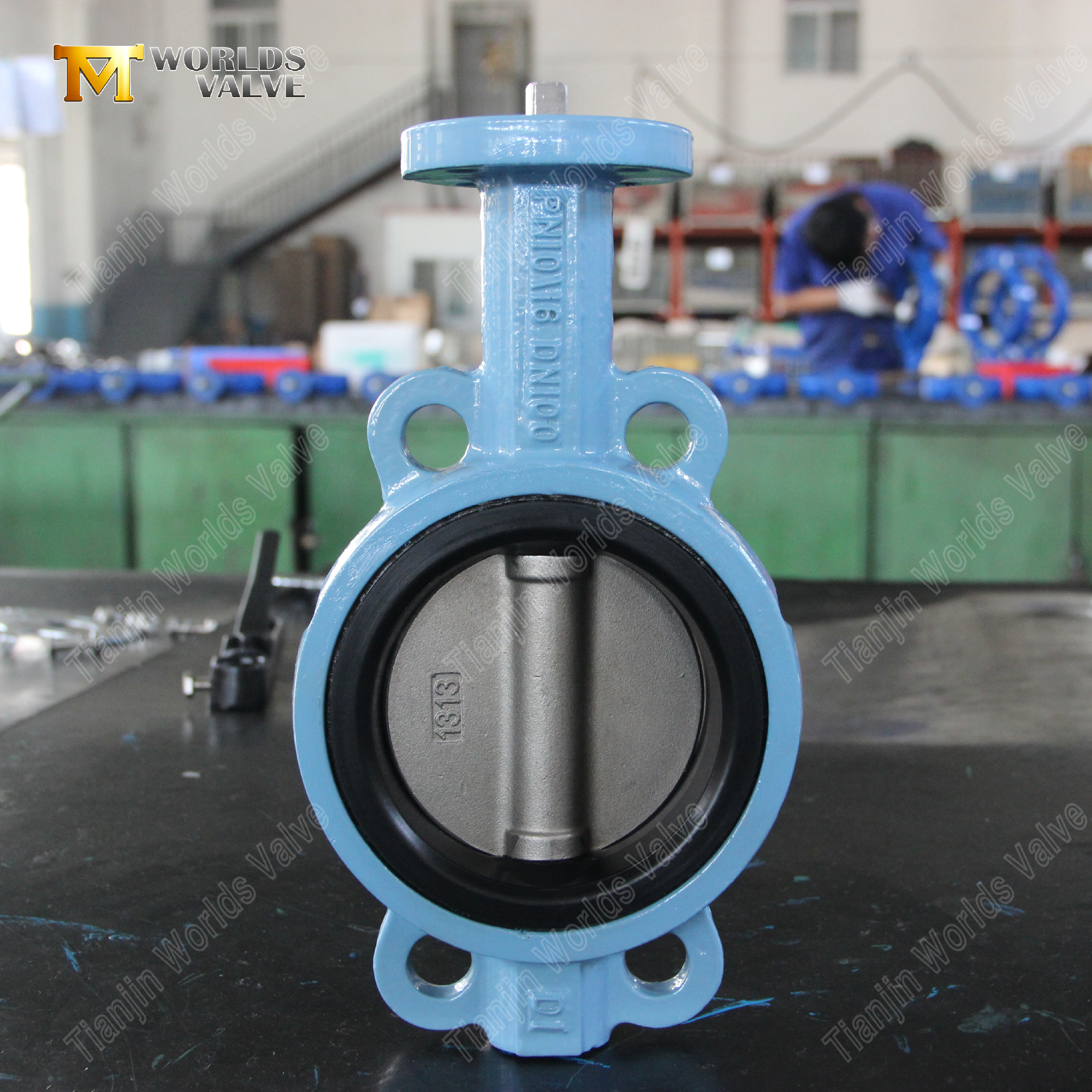

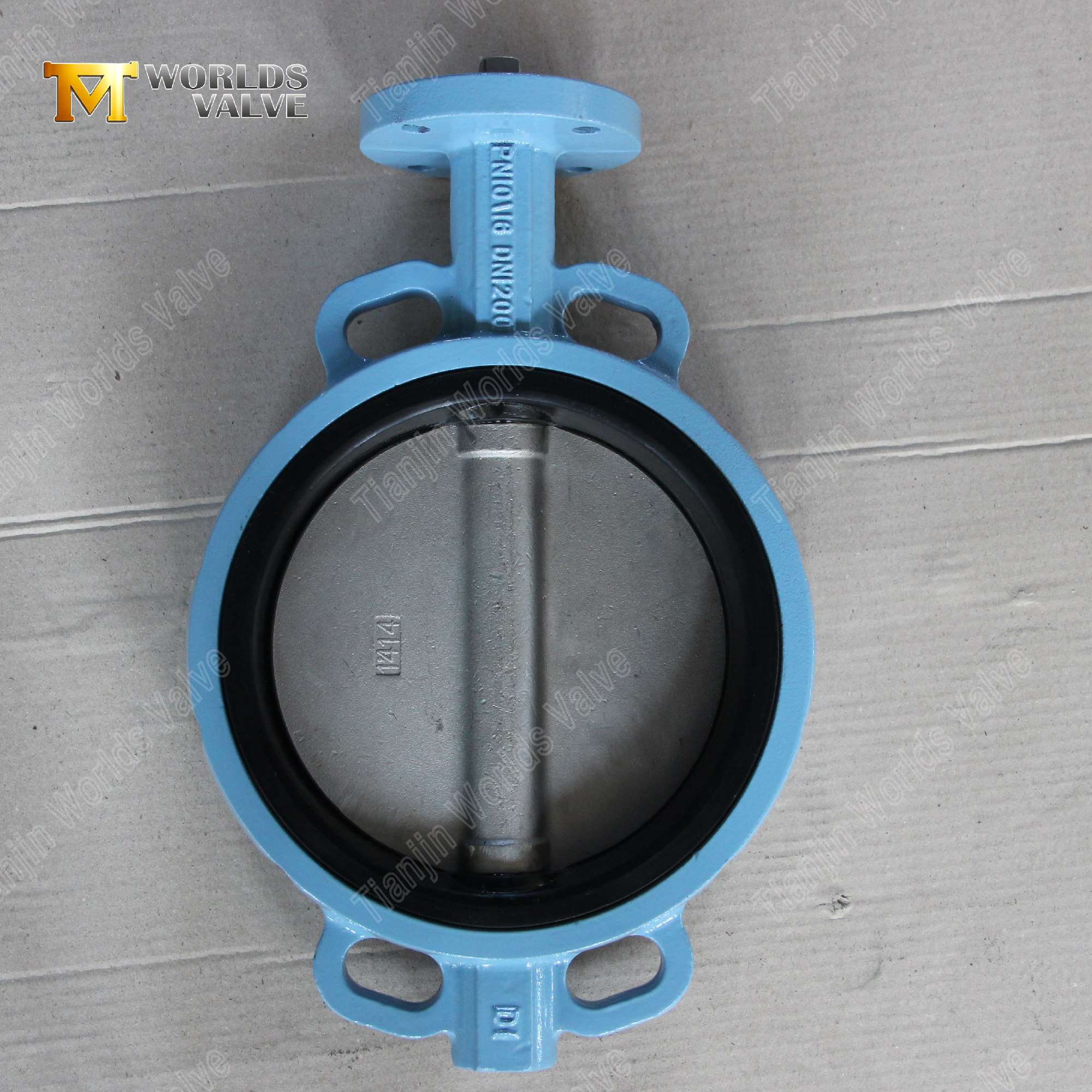

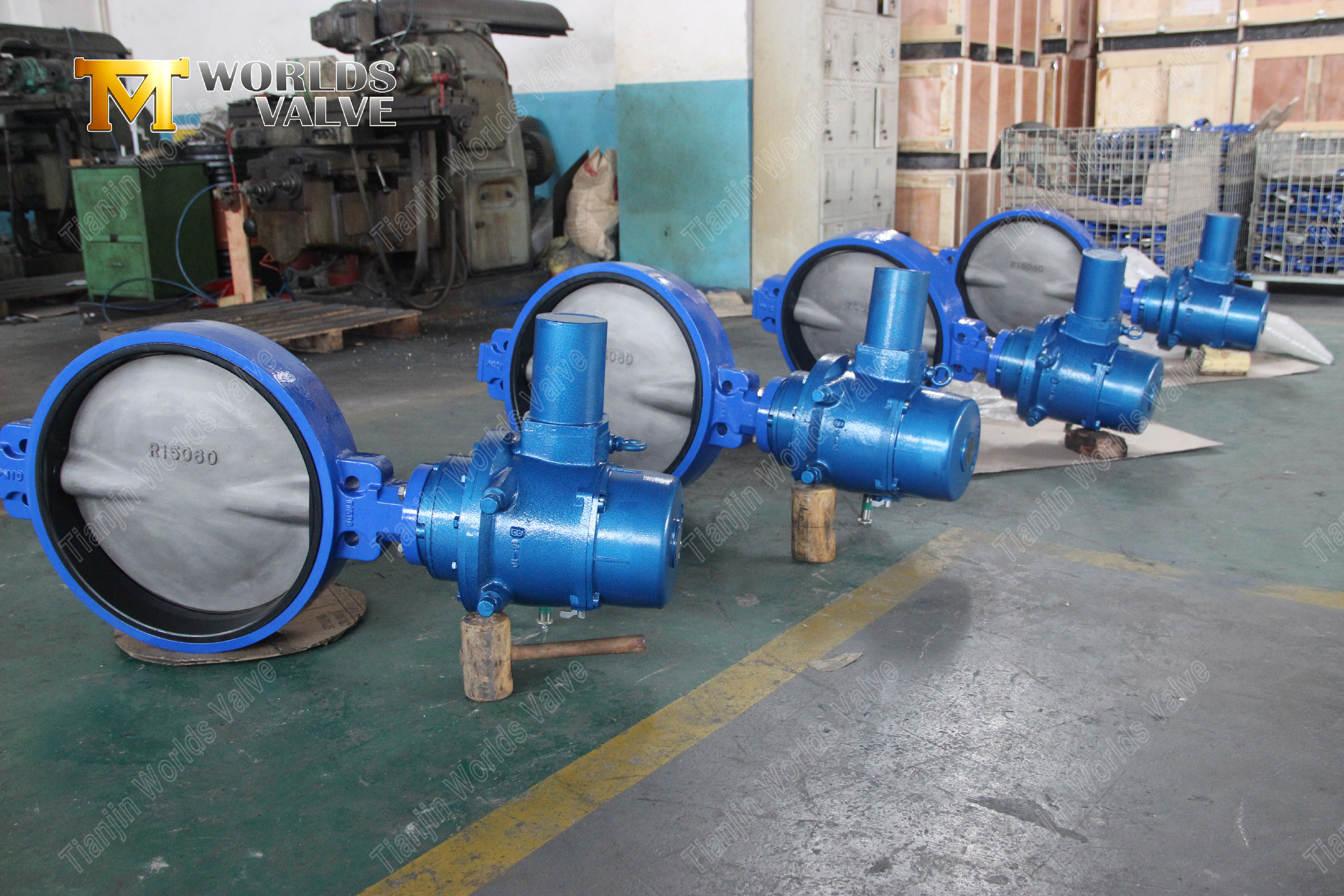

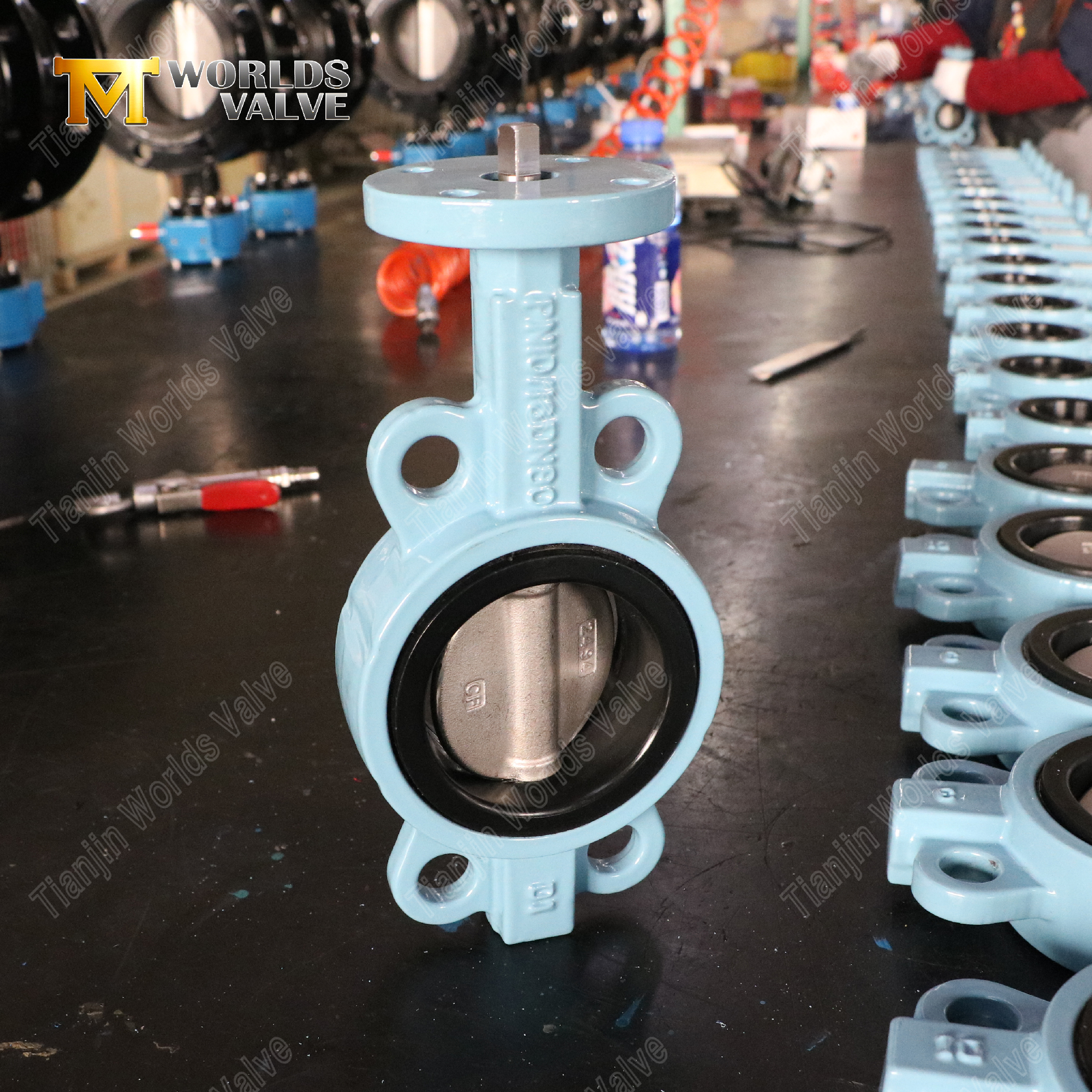

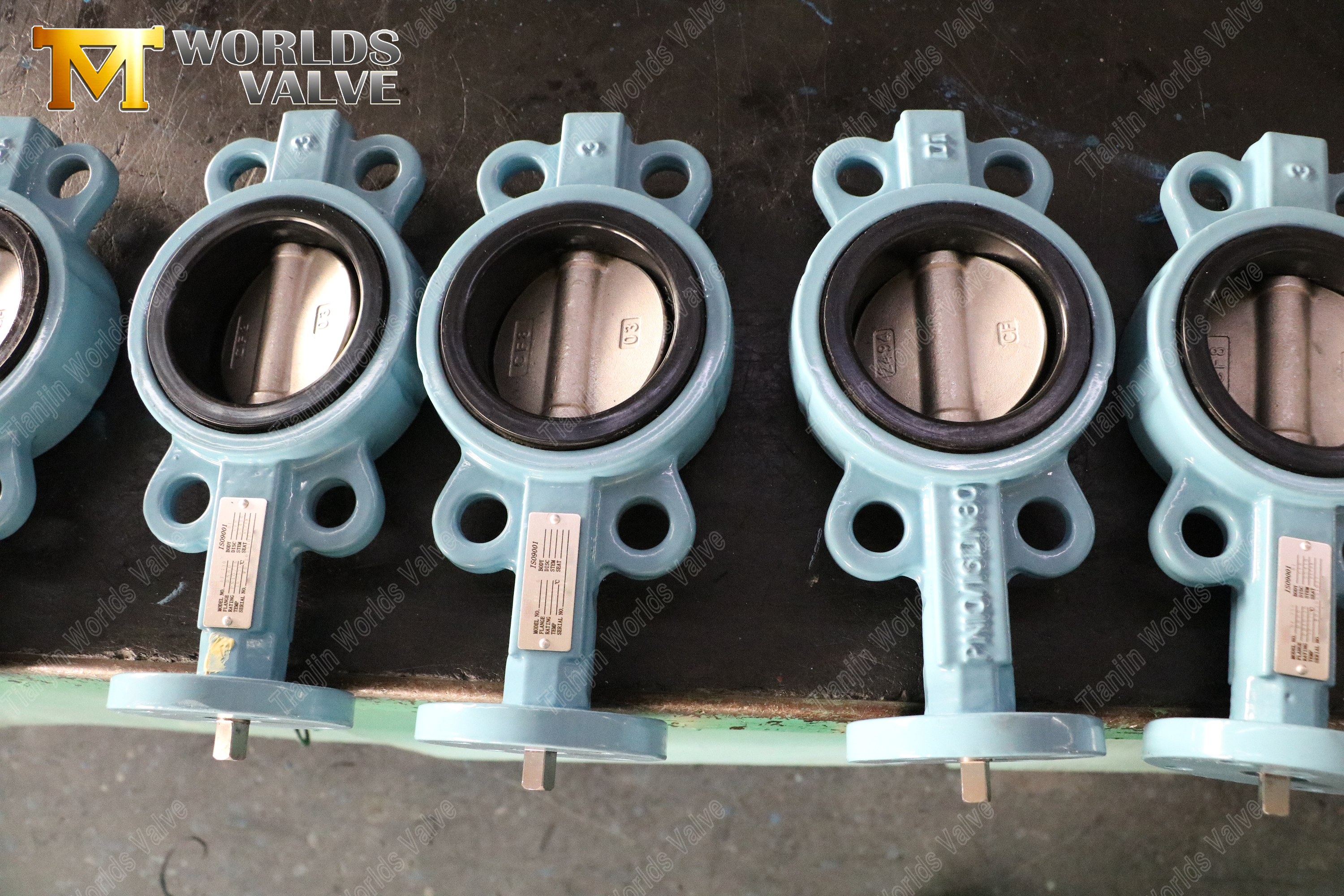

Ductile Iron Wafer Type Butterfly Valves | OEM Butterfly Valve Supplier
Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
CBF02-TA01-Operation and Maintenance Manual DOWNLOAD
1. Premium Ductile Iron Construction
Material Excellence:The Material of Ductile iron provides superior tensile strength and impact resistance compared to cast iron
Corrosion Protection: Standard 250μm epoxy coating with optional 300-400μm thickness for enhanced durability
Long Service Life: Robust construction ensures reliable performance through 50,000+ operating cycles
2. Wafer Type Space Optimization
Compact Design: 40% lighter and more space-efficient than lug-type valves, ideal for crowded piping systems
Easy Installation: Simple insertion between ANSI/DIN flanges without additional nuts or bolts
Cost Savings: Reduced material and installation expenses without compromising performance
3. Reliable Sealing Performance
Bubble-Tight Shutoff: EPDM, NBR, or Viton seats ensure zero leakage per EN 12266-1 Class A standards
Temperature Flexibility: Suitable for applications from -20°C to 120°C depending on seat material
Chemical Compatibility: Multiple seat options available for different media requirements
4. Operational Efficiency

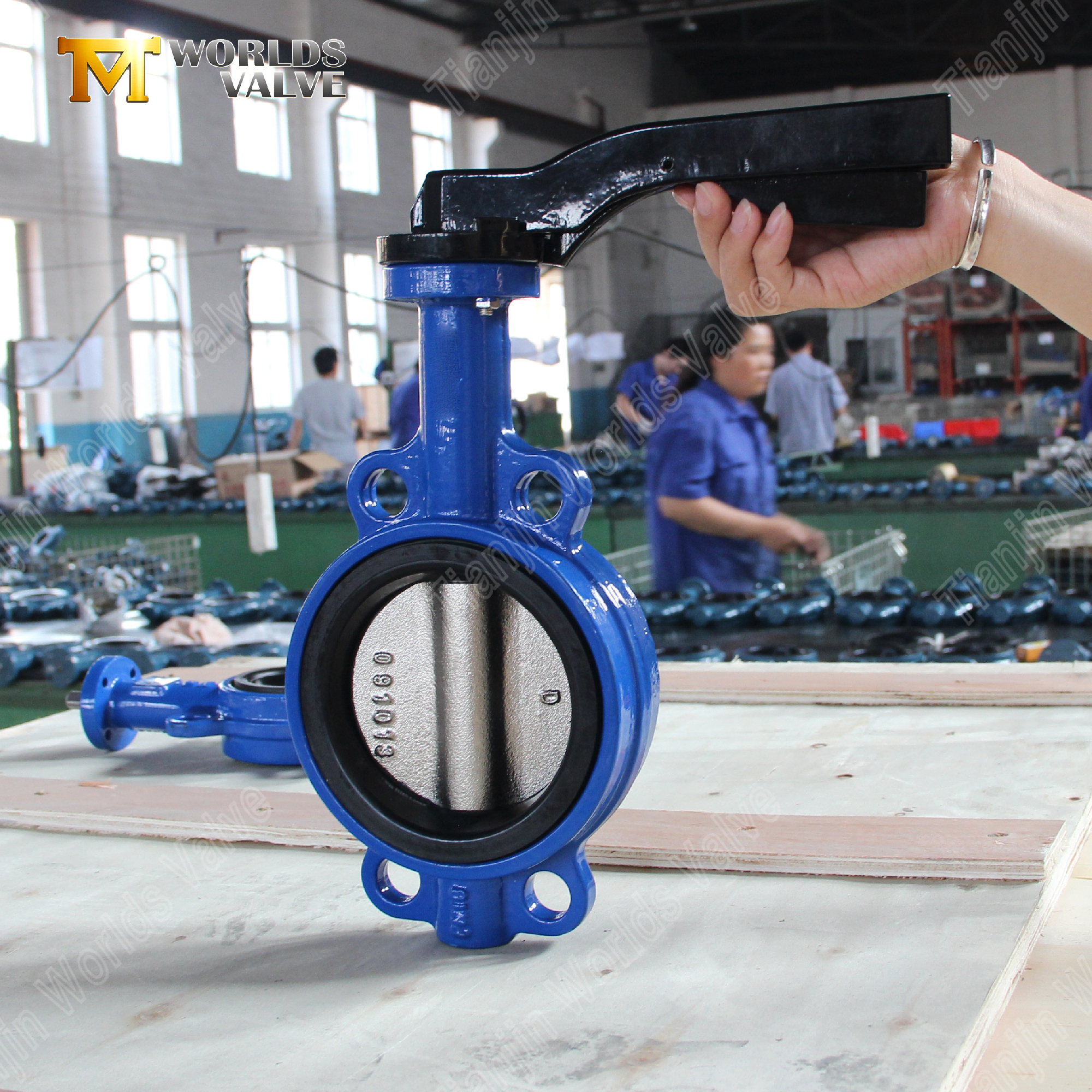

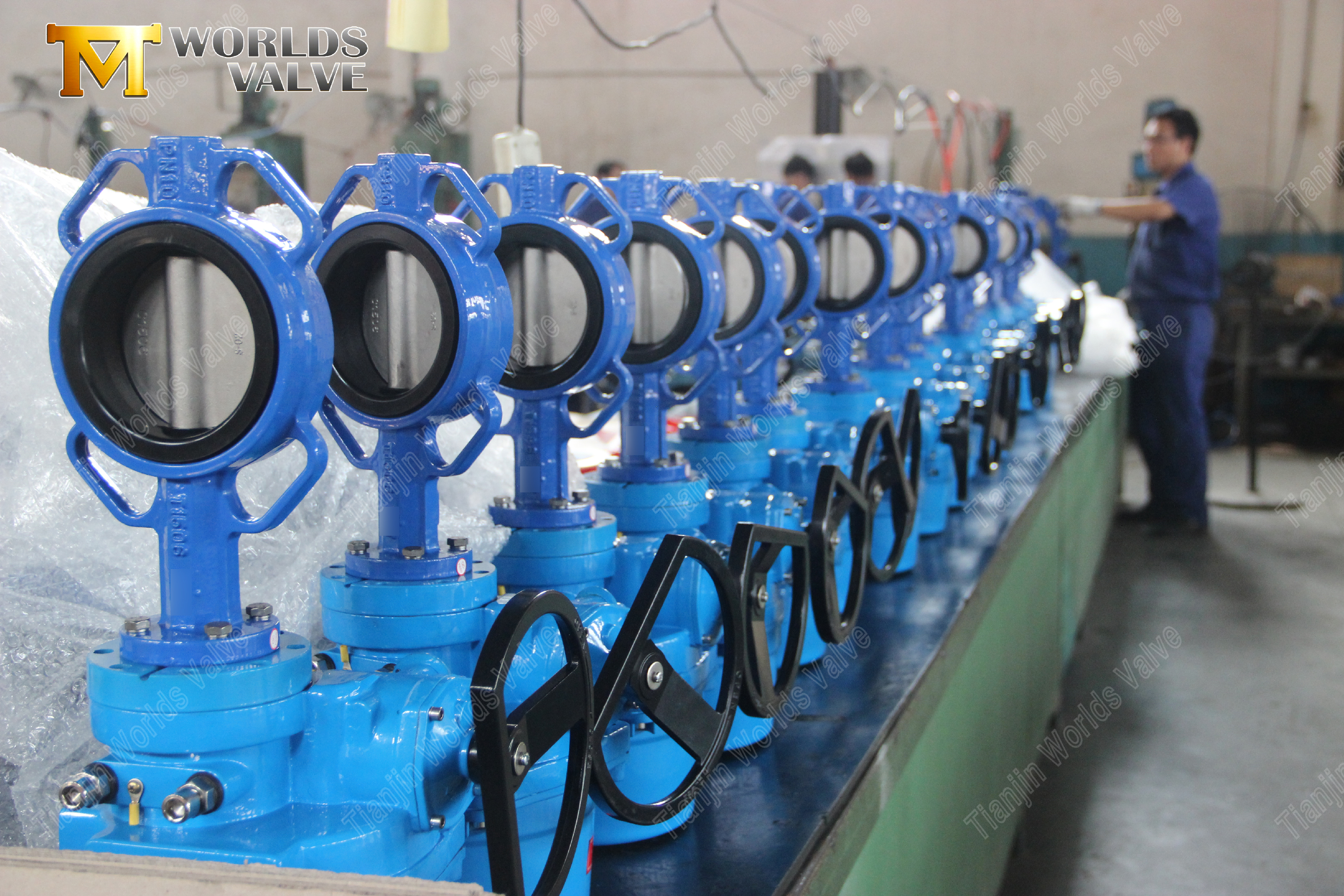

Multiple Actuation：Compatible with manual lever, gear operator, or ISO 5211 standard actuators
Maintenance-Free：Self-lubricating bearings and corrosion-resistant components minimize service requirements
5. Quality Assurance & Compliance
ISO 9001 Certified Manufacturing: Ensures consistent quality control throughout production process

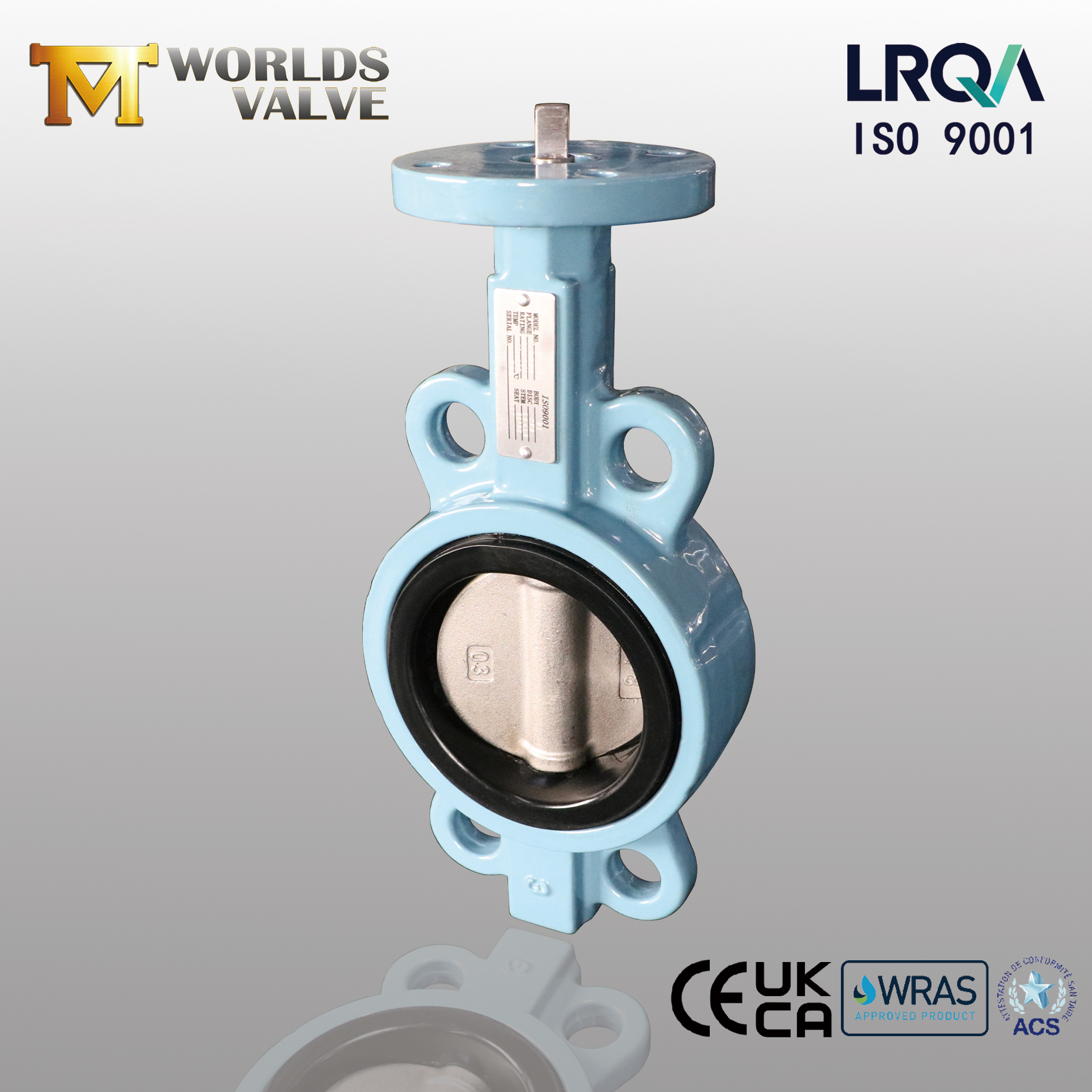

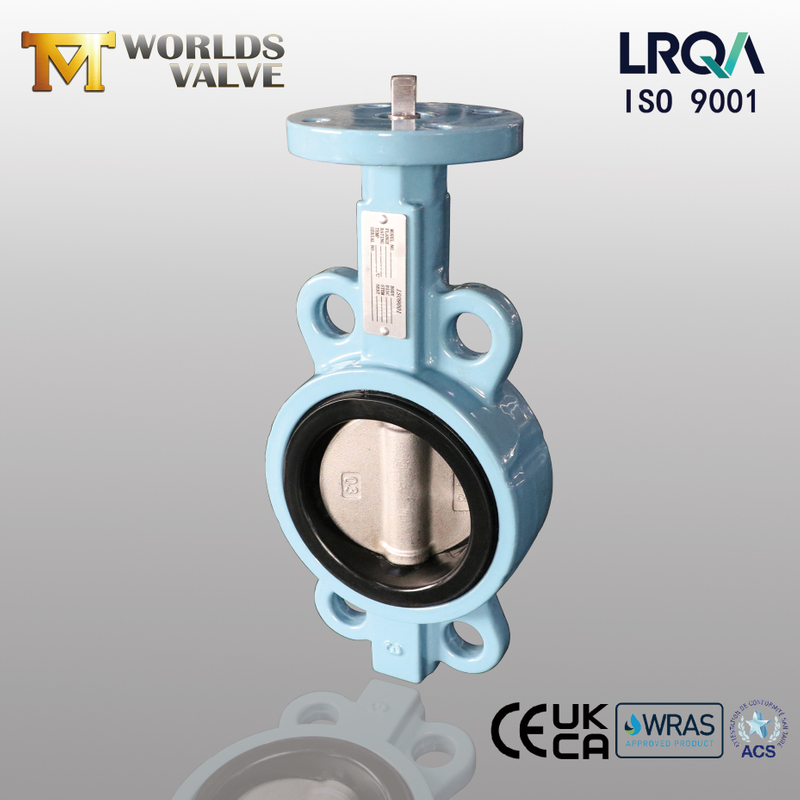

International Certifications: CE, UKCA, and WRAS approvals guarantee compliance with global market requirements
Material Traceability: Full documentation and material certifications available for quality verification

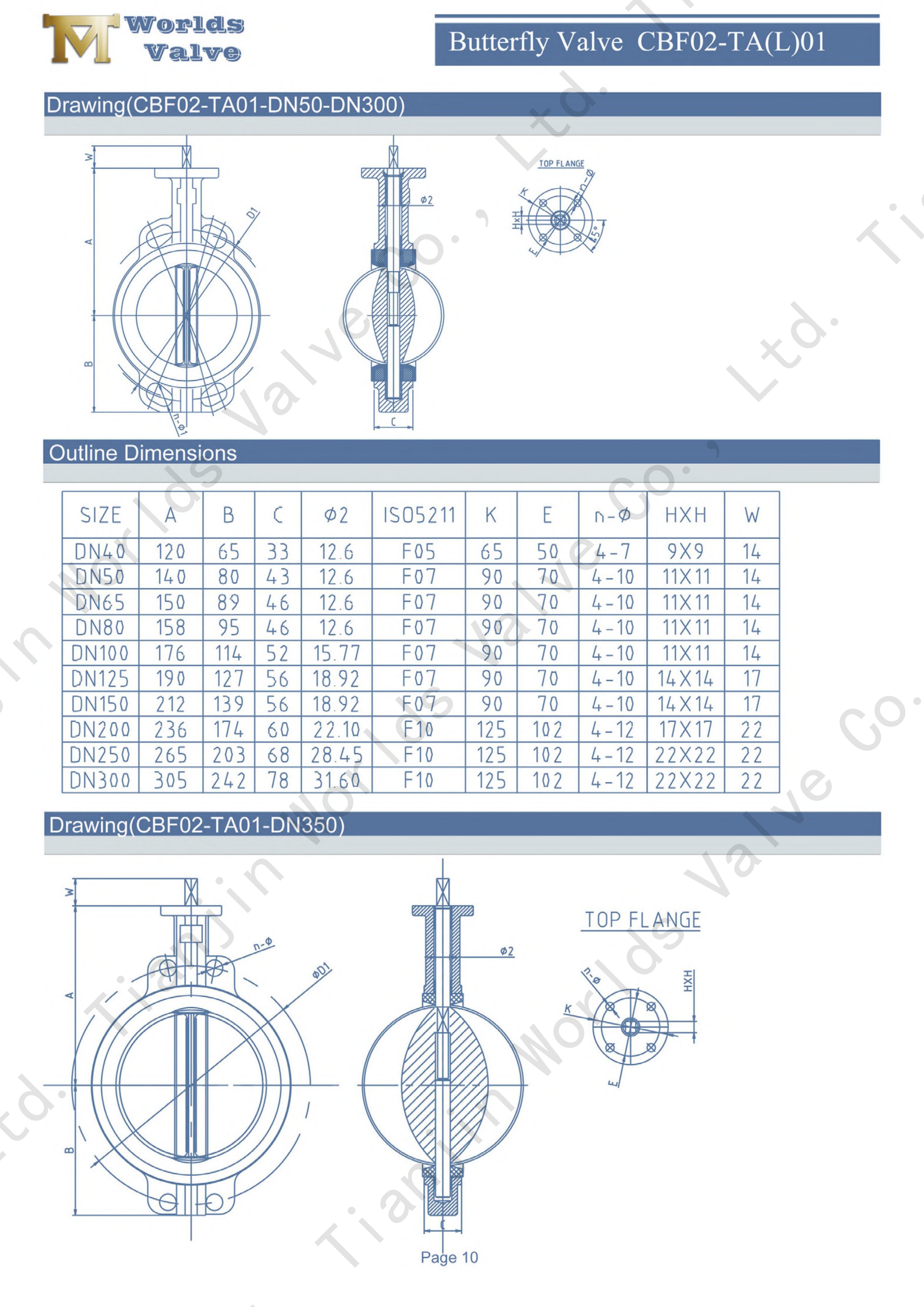

Parameter | Specification |
Model | CBF02-TA01 |
Sizes | DN50-DN1200 |
Pressure Class | PN6/10/16/150LB/5K/10K/AS “D”/ “E” |
Design | EN593 API 609 BS5155 EN1092 ISO5211 |
Testing | API598 ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 API609 DIN3202 ISO5752 BS5155 |
Water Treatment: Distribution networks, filtration systems, and pumping stations
HVAC Systems: Chilled water circuits, cooling towers, and air handling units
Fire Protection: Sprinkler systems and hydrant supply lines
Industrial Processing: Cooling water, process lines, and utility services
Building Services: Plumbing systems, mechanical rooms, and facility maintenance
Irrigation: Agricultural and landscape watering systems
Customization Flexibility: Modified dimensions, materials, coatings, and branding options
Quality Assurance: ISO 9001 certified manufacturing with complete material traceability
Competitive Pricing: Direct factory pricing with no middleman markup
Global Compliance: CE, UKCA, and WRAS certifications for international market access
Technical Support: Engineering assistance for product selection and application guidance
Reliable Delivery: Efficient production scheduling and logistics for on-time delivery
As an experienced OEM butterfly valve supplier, we provide high-quality ductile iron wafer type butterfly valves that combine reliable performance with competitive pricing for water treatment, HVAC, industrial, and building service applications worldwide.
