Are all butterfly valves the same? Not quite. Lug butterfly valves differ in installation, pressure handling, and maintenance. In this article, you will learn the key differences between lugged and non-lugged valves, helping you choose the right valve for your system.
A butterfly valve is a quarter-turn valve with a disc that rotates around a shaft to regulate or block flow. When the disc is parallel to the flow, it allows liquid or gas to pass with minimal resistance. When rotated 90 degrees, the disc becomes perpendicular, fully blocking flow. This mechanism makes butterfly valves efficient for fast shutoff operations compared to multi-turn valves like gate or globe valves.
Butterfly valves are widely used because they combine lightweight construction with effective sealing. They require less installation space than ball valves, consume less material, and can be automated using pneumatic or electric actuators. This versatility allows butterfly valves to handle fluids ranging from water and air to chemicals and slurries.

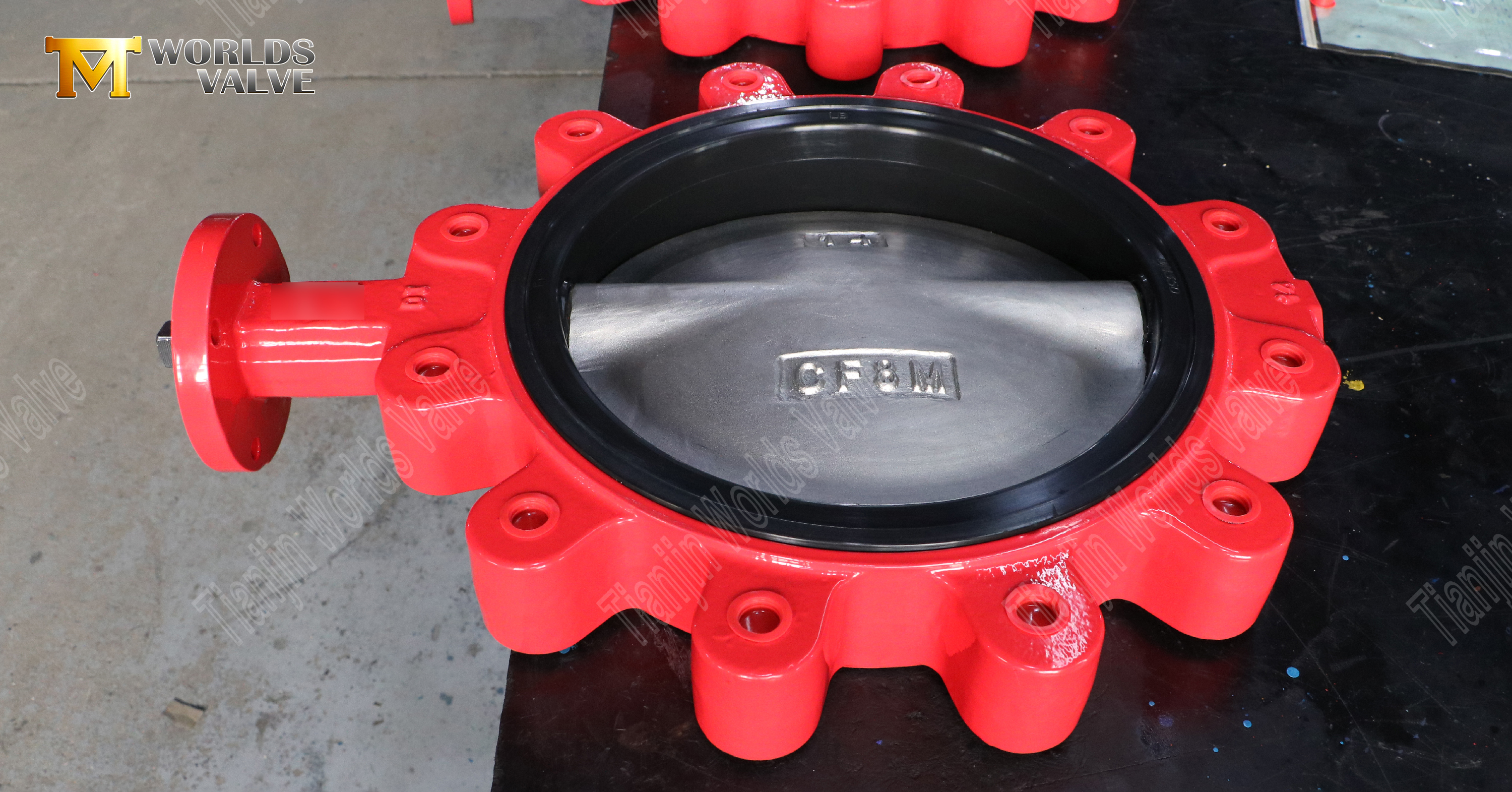

The lug butterfly valve distinguishes itself through its threaded lugs, which allow independent bolting to flanges. This makes it structurally stronger than wafer valves and suitable for end-of-line service. In practical terms, this means operators can remove one side of the pipeline for maintenance without disturbing the other side, as long as a blind flange is in place.
This flexibility makes lugged butterfly valves indispensable in critical industries such as oil and gas, marine, and water treatment. For example, in a refinery, downtime costs can reach thousands of dollars per hour. By using a lug valve, only the affected pipeline section is shut down, minimizing disruption.
Butterfly valves are used across industries for both on/off and throttling services:
● HVAC systems rely on wafer butterfly valves for chilled or hot water control.
● Marine engineering employs lugged valves for ballast and fuel transfer, where safety is essential.
● Water treatment facilities use both types, depending on whether isolation flexibility or cost savings is the priority.
● Chemical processing plants prefer lug valves because they withstand high pressure and aggressive fluids.
Tip: Choose wafer valves when space and budget are limited, but select lug butterfly valves when reliability and pressure performance are critical.

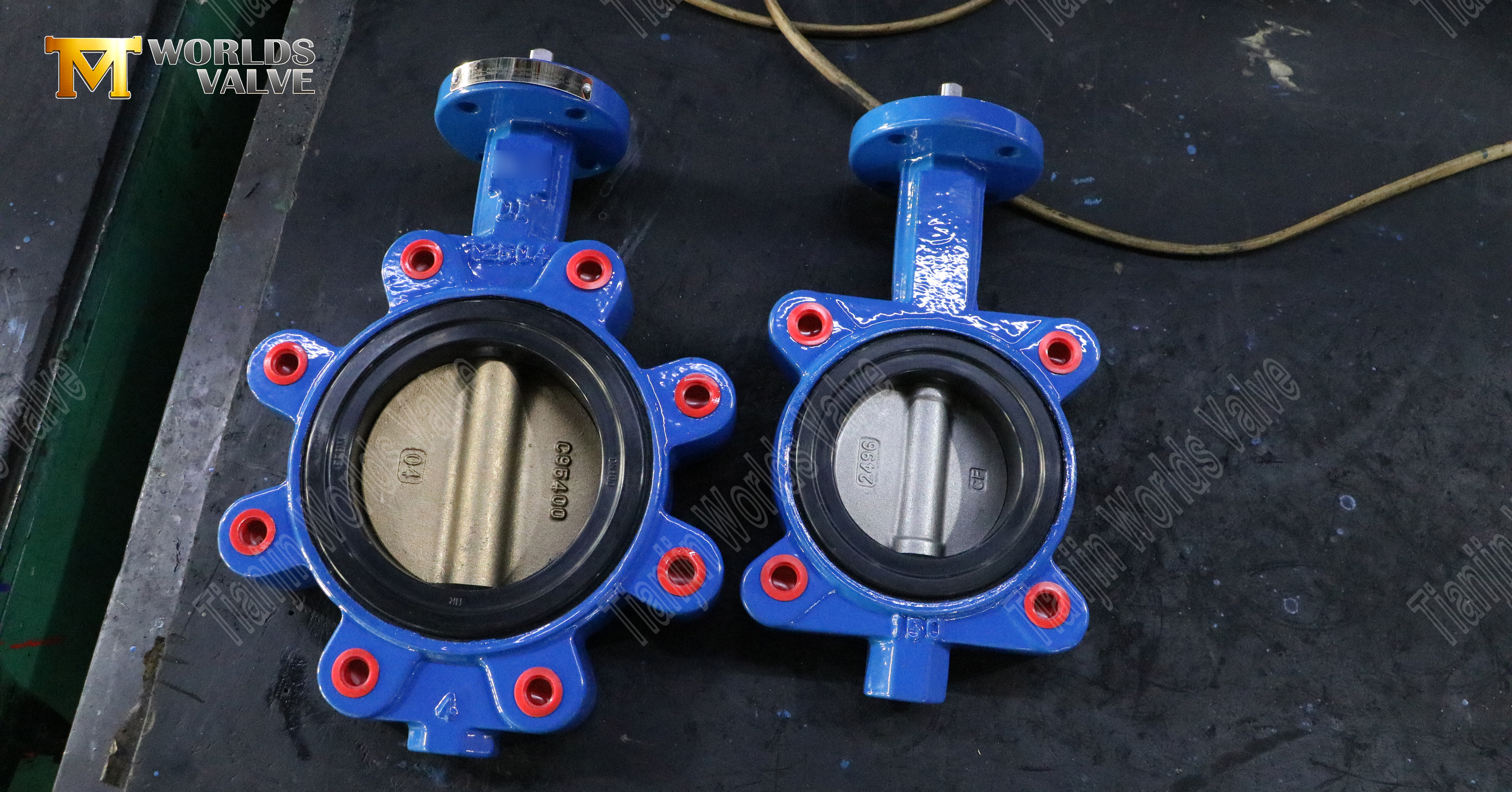

The connection method defines much of the performance difference. Lugged butterfly valves feature metal lugs around the body, enabling direct bolting to each flange. This allows either side of the valve to be removed independently.
Non-lugged butterfly valves (wafer valves), however, rely on long bolts that pass through both flanges and the valve body. Without lugs, they cannot support one-sided disassembly. This design is lighter but less versatile in demanding systems.
Installation is another point of divergence. A lug style valve can serve as an end-of-line valve. When capped with a blind flange, it isolates sections for repair or inspection. This makes it valuable in systems that cannot afford full shutdowns.
A wafer butterfly valve must always be sandwiched between two flanges. If either side needs maintenance, the entire system must be shut down. For industries like municipal HVAC, where downtime has limited cost impact, this is acceptable. In high-stakes environments like oil and gas, it is a liability.
Lug butterfly valves are engineered to handle higher pressures and temperatures. Many designs withstand ANSI Class 150–300 ratings, making them suitable for critical pipelines. Their threaded connection ensures reliable sealing even under vibration.
By contrast, wafer butterfly valves are suited for moderate pressure applications, often up to PN16. They typically operate between -10°C and 120°C. Their lighter build and rubber seats work well for clean water or HVAC systems but struggle with abrasive or high-temperature media.
Maintenance strategy drives valve selection. Lugged butterfly valves enable partial isolation: operators can shut down only the downstream or upstream side, reducing downtime. For facilities like power plants, this translates to major cost savings.
Wafer butterfly valves demand full system shutdown for maintenance. While this may not matter in small systems, in continuous-process plants it can lead to extended downtime and production losses.
Wafer valves are cheaper to purchase and install. Their slim design means fewer materials, lower shipping weight, and easier handling. However, their lifecycle costs can rise if misaligned or overused in high-pressure systems.
Lugged valves cost more upfront due to robust materials and more complex construction. Yet, in critical industries, they pay off through reduced downtime, longer service life, and safer operation.
Criteria | Wafer Butterfly Valve | Lugged Butterfly Valve |
Connection | Clamped between flanges | Bolted with threaded lugs |
End-of-line service | No | Yes, with blind flange |
Pressure rating | Low–medium | Medium–high |
Maintenance | Full shutdown | Partial isolation |
Cost | Low upfront | Higher upfront, lower lifecycle |
Applications | HVAC, light-duty water | Oil, gas, chemical, marine |
Note: For high-pressure systems or critical industries, lugged butterfly valves are the safer long-term choice.
Lug valves are often built from ductile iron or stainless steel, with options for EPDM, rubber, or metal seats. This material strength allows them to endure extreme pressure variations and temperature swings. They also support abrasive fluids like slurries.
Wafer butterfly valves are lightweight and compact, often made from stainless steel, cast iron, or PVC. Their smaller footprint makes them ideal for space-constrained systems such as HVAC units, where weight reduction lowers installation stress on pipelines.
The threaded lugs in lug valves help distribute pipeline loads evenly, reducing stress on flanges and gaskets. This feature also prevents misalignment, improving sealing reliability under vibration.
While both designs come in a range of diameters, lug butterfly valves are generally recommended for large-diameter, high-pressure pipelines where safety and durability are top priorities.
Tip: For pipe diameters above DN300, lugged butterfly valves offer better stability and safety margins.
Lug butterfly valves excel in pipelines with fluctuating or high pressures. Their threaded structure keeps the seal intact, preventing leaks in systems carrying chemicals, steam, or pressurized gases.
Wafer butterfly valves are better suited for low-pressure environments, such as chilled water distribution or ventilation systems. Using them in high-pressure contexts risks premature wear or leakage.
● Wafer valves: operate up to ~120°C.
● Lug valves: withstand up to ~250°C, depending on seat material.
This makes lug valves suitable for power generation, oil, and petrochemical industries, while wafer valves are adequate for municipal water systems.
Wafer butterfly valves usually offer lower pressure drop, which saves pumping energy in low-pressure systems. Lug valves may introduce slightly higher pressure drop due to their heavier construction, but they compensate with superior sealing under stress.
Lug style valves handle frequent opening and closing cycles without losing performance. Their rugged design resists wear, making them ideal for continuous-process plants. Wafer valves, while reliable in moderate cycles, may need earlier replacement in demanding conditions.
Note: Always match valve materials to the fluid type to maximize service life.
Wafer butterfly valves are light, compact, and quick to install, making them popular in retrofits and small projects. They require fewer bolts and less torque, which cuts labor costs.
Lug valves are heavier and demand more bolts, but their design provides stronger, more stable attachment. This pays off in demanding environments where vibration or pressure changes are frequent.
With a lug butterfly valve, operators can isolate one side of the pipeline, replace parts, and resume operations quickly. In wafer valves, any replacement requires full system shutdown, extending downtime.
In high-risk industries, safety is paramount. Lugged butterfly valves can safely cap pipelines when paired with a blind flange, preventing leaks or accidental discharge. Wafer valves cannot offer this function.
While lug valves require more labor to install, they reduce long-term maintenance downtime. Wafer valves are faster to install but may cause more frequent full-line shutdowns over their service life.
Tip: For plants where downtime costs are measured in thousands per hour, lugged butterfly valves are the smarter investment.
Wafer butterfly valves are cheaper to buy, often costing 20–30% less than lugged valves of the same size (data varies by manufacturer, needs verification).
Lug valves offset their higher upfront cost by minimizing downtime and lasting longer under stress. In industries like petrochemicals, this often justifies the initial expense.
● Wafer valves: Lower initial cost, higher hidden maintenance.
● Lug valves: Higher initial cost, lower lifecycle cost in critical systems.
If your system is low pressure and non-critical, wafer valves provide excellent savings. If your pipeline is high pressure or safety-critical, lug valves deliver greater lifetime value.
In oil and gas and petrochemical industries, pipelines often transport highly pressurized and chemically aggressive fluids. These environments demand valves that can withstand extreme operational conditions while ensuring system reliability and safety. Lug butterfly valves are the preferred choice because their threaded lugs allow secure bolting directly to flanges, providing a strong connection that maintains structural integrity under high pressures and fluctuating temperatures. Unlike wafer valves, lugged valves allow one side of the pipeline to be disconnected for maintenance or replacement without shutting down the entire system. This partial isolation capability is crucial in petrochemical plants and refineries, where downtime can cost thousands of dollars per hour. Additionally, lug butterfly valves can handle corrosive or abrasive fluids with appropriate seat and body materials, ensuring long-term performance. Their robust construction also reduces the risk of leaks or catastrophic failures in critical pipelines. For engineers and maintenance teams, this combination of durability, reliability, and operational flexibility makes lug butterfly valves the go-to choice in high-stakes industrial applications, ensuring both safety and cost-efficiency over the valve’s service life.
In HVAC systems and municipal water treatment plants, pressure and temperature requirements are generally moderate, making wafer butterfly valves an ideal solution. These valves are lightweight and compact, which simplifies installation in both new systems and retrofit projects where space is constrained. Their simpler construction means they are less expensive upfront compared to lugged valves, making them attractive for projects with tight budget constraints. Wafer valves are also suitable for low-pressure water distribution, chilled water lines, and light industrial applications, where frequent high-pressure cycling or extreme environmental conditions are not a concern. The compact design minimizes stress on pipelines, reducing labor costs and installation time. While they cannot be used for end-of-line isolation, wafer valves provide reliable performance in systems where full-line shutdowns for maintenance are acceptable. This balance between cost, ease of installation, and adequate performance under moderate conditions makes wafer butterfly valves the preferred choice for many municipal, commercial, and light industrial applications, especially where operational downtime is less critical.
Marine and offshore applications face unique challenges, including constant vibration from engines and waves, motion from the vessel’s movement, and exposure to corrosive saltwater environments. In these conditions, lug butterfly valves are essential because their threaded lugs allow secure bolting to flanges, providing superior stability and vibration resistance compared to wafer valves. This ensures the valve remains tightly sealed under constant motion, reducing the risk of leaks or accidental discharge. Moreover, lugged valves can function as end-of-line valves when paired with blind flanges, allowing maintenance crews to isolate sections of piping without shutting down the entire system. This capability is particularly important in offshore platforms and marine vessels, where system downtime can have significant operational and safety implications. The robust design of lug butterfly valves also withstands repeated cycles of opening and closing, which is common in ballast, fuel, and water transfer systems. Their corrosion-resistant materials, such as stainless steel or coated ductile iron, further enhance durability, making them indispensable for reliable long-term performance in demanding marine environments.
Power generation facilities, especially those involving high-pressure steam, thermal processes, or chemical feed lines, require valves that can endure extreme temperatures and pressures while maintaining reliable sealing. Lug butterfly valves are widely used in these applications due to their robust construction and ability to handle high-pressure fluids without leaking. Their threaded lugs allow the valves to be securely bolted to flanges, which reduces mechanical stress on the pipeline and prevents misalignment that could compromise sealing. This strength is critical in high-pressure steam pipelines, where even minor leaks can be dangerous and costly. Additionally, lugged valves facilitate partial isolation of pipeline sections during maintenance, allowing power plants to continue operation in other parts of the system. This capability significantly reduces downtime and operational disruption, which is crucial for facilities that must maintain continuous energy production. With proper material selection for the valve body and seats, lug butterfly valves can withstand abrasive or corrosive media, high temperatures, and frequent cycling, ensuring long-term durability. Their combination of safety, reliability, and operational flexibility makes them the preferred choice for engineers designing or maintaining critical power generation infrastructure.
When selecting a butterfly valve, it is essential to consider the system’s pressure and temperature ranges, as these directly impact the valve’s performance and safety. One must also evaluate whether the valve needs to serve as an end-of-line isolation device, which influences whether a lug or wafer valve is appropriate. Another key consideration is how frequently the system requires maintenance or partial shutdowns, as this affects whether partial isolation capabilities, like those offered by lugged valves, are necessary. Understanding these operational requirements ensures that the selected valve can handle the system’s demands without risking leaks, downtime, or premature failure. Engineers should also consider the fluid type—whether it is clean water, steam, chemicals, or slurries—because material compatibility impacts both durability and sealing reliability. Asking these questions upfront allows decision-makers to match the right valve type to the specific needs of their system, avoiding costly mistakes or operational inefficiencies.
The final step in valve selection is aligning the valve type with the specific operational needs of the system. For municipal water projects, low-pressure distribution lines, or HVAC systems, wafer butterfly valves often provide sufficient performance while keeping costs low. For refineries, chemical plants, power stations, or offshore marine installations, lugged butterfly valves are worth the higher investment due to their enhanced pressure handling, durability, and maintenance flexibility. Decision-makers should consider factors such as pipeline diameter, expected flow rates, operational temperature ranges, and maintenance frequency. By carefully assessing these system parameters and evaluating both upfront and lifecycle costs, engineers can select a valve that balances performance, reliability, and cost-efficiency. Prioritizing total cost of ownership and operational safety ensures long-term value, reduces downtime, and maintains consistent system performance in demanding industrial environments.
This article explains the difference between Y Type Strainer, Butterfly Valve, Wafer Butterfly Valve and wafer valves. Lug valves offer stronger construction, end-of-line service, and higher pressure handling, while wafer valves are lighter and cost-effective for low-pressure systems. Choosing the right valve ensures safety, efficiency, and reduced downtime. At Tianjin Worlds Valve Co., Ltd., we provide durable valves designed for reliable performance and long-term operational value.
A: A lug butterfly valve is a valve with threaded lugs for bolting to flanges, allowing end-of-line service and partial pipeline isolation.
A: Lugged butterfly valves support higher pressure and maintenance flexibility, while non-lugged valves rely on wafer connections and full shutdowns.
A: They are ideal for oil, gas, marine, and chemical industries due to durability, pressure handling, and maintenance efficiency.
A: Wafer butterfly valves are lightweight, cost-effective, and suitable for low-pressure systems like HVAC and municipal water.
A: Lug butterfly valves are favored for their space-saving compact design and cost-effectiveness compared to gate or globe valves. A key advantage is that their lug-style ends allow independent installation on each side of the pipeline, enabling easy removal or maintenance without disconnecting the entire line—like a "detachable link" that keeps the pipe system intact.
A: Butterfly valve installation impacts system downtime. Lug valves allow partial isolation, wafer valves require full shutdown.
A: Lug valves have higher upfront costs but lower lifecycle expenses. Wafer valves are cheaper initially but may increase maintenance costs.
