CBF01-TL01
OEM|ODM
| Quantity: | |
|---|---|

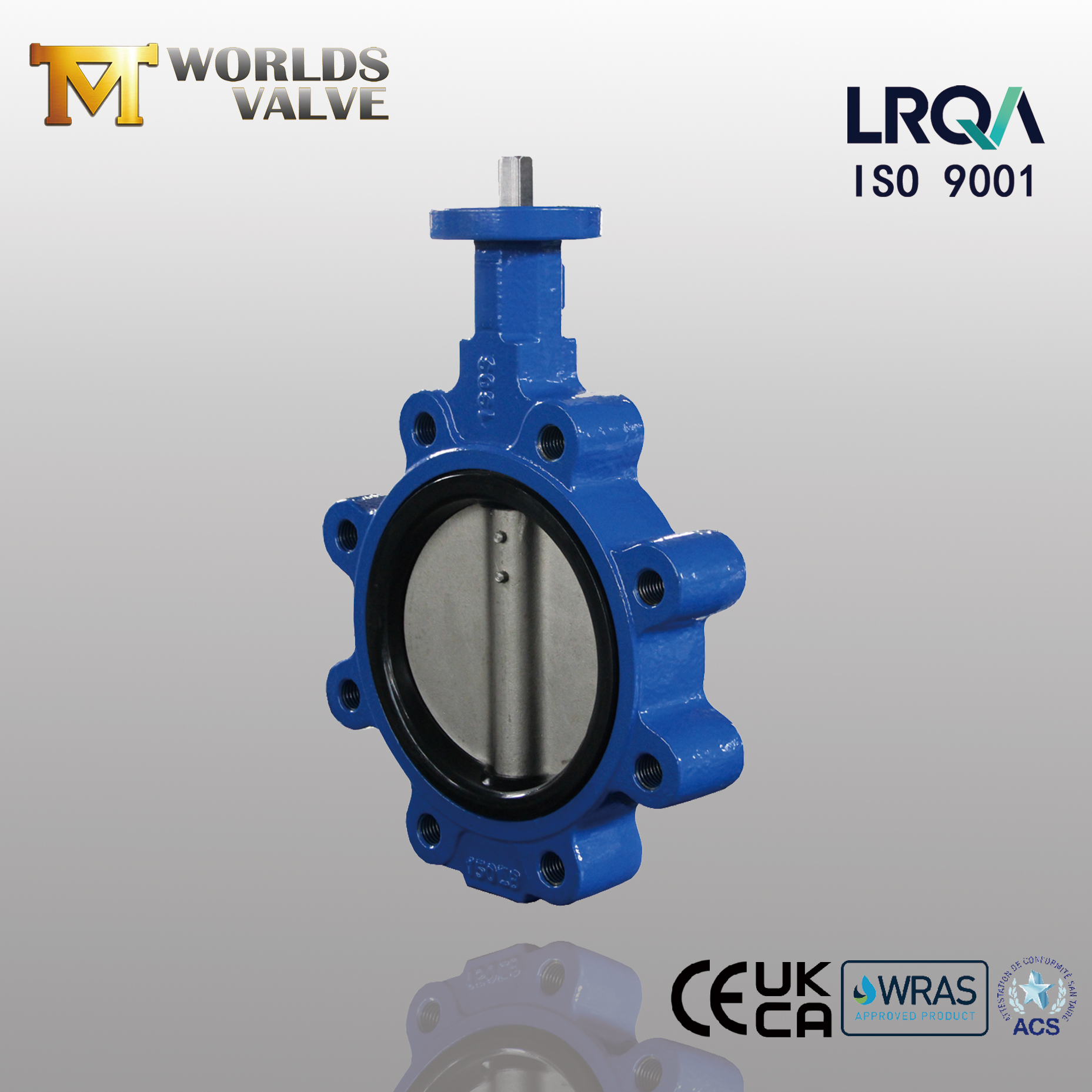

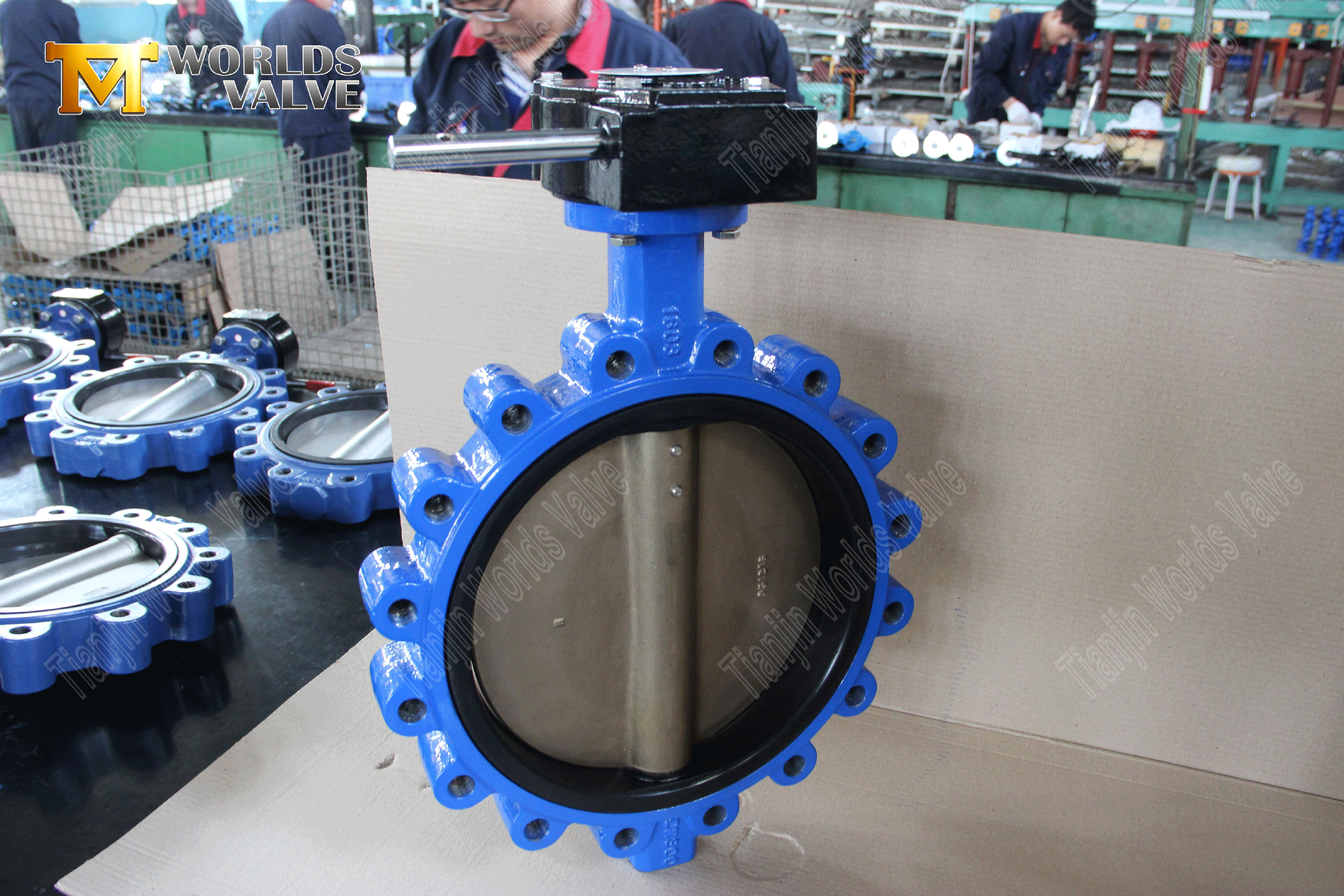

1. Lug-Type Body Construction
Lug Type Butterfly Valves, Threaded inserts on valve body enable direct pipeline mounting without nuts, simplifying installation/maintenance .
Suitable for end-of-line service or system isolation.
2. High-Pressure EPDM Sealing
EPDM seats rated for PN16 to PN40 with temperature resilience from -20°C to 120°C.
3. Custom OEM/ODM production
Specializing in custom OEM/ODM production, we tailor valve specifications—including coatings, lug types, and actuation—to meet your exact project requirements.
4. Reduced Lifecycle Costs
Duplex disc’s 45 HRC hardness minimizes wear from abrasive media, extending service life by 50% compared to 316SS discs.
1. Expertise in OEM/ODM Services
As a trusted Lug Type Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.
2. Maintenance Savings
Replaceable rubber linings extend service intervals by 3x vs. traditional designs.
3. Global Compliance
Pre-certified for EU, UK, and Asian markets.
4. Customization
Optional gearbox position indicators, locking devices, or extended stems.
Size | DN32-DN600 | DN650-DN2000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal | 18Bar | 11Bar |
Operating Temperature | -20℃~+120℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |

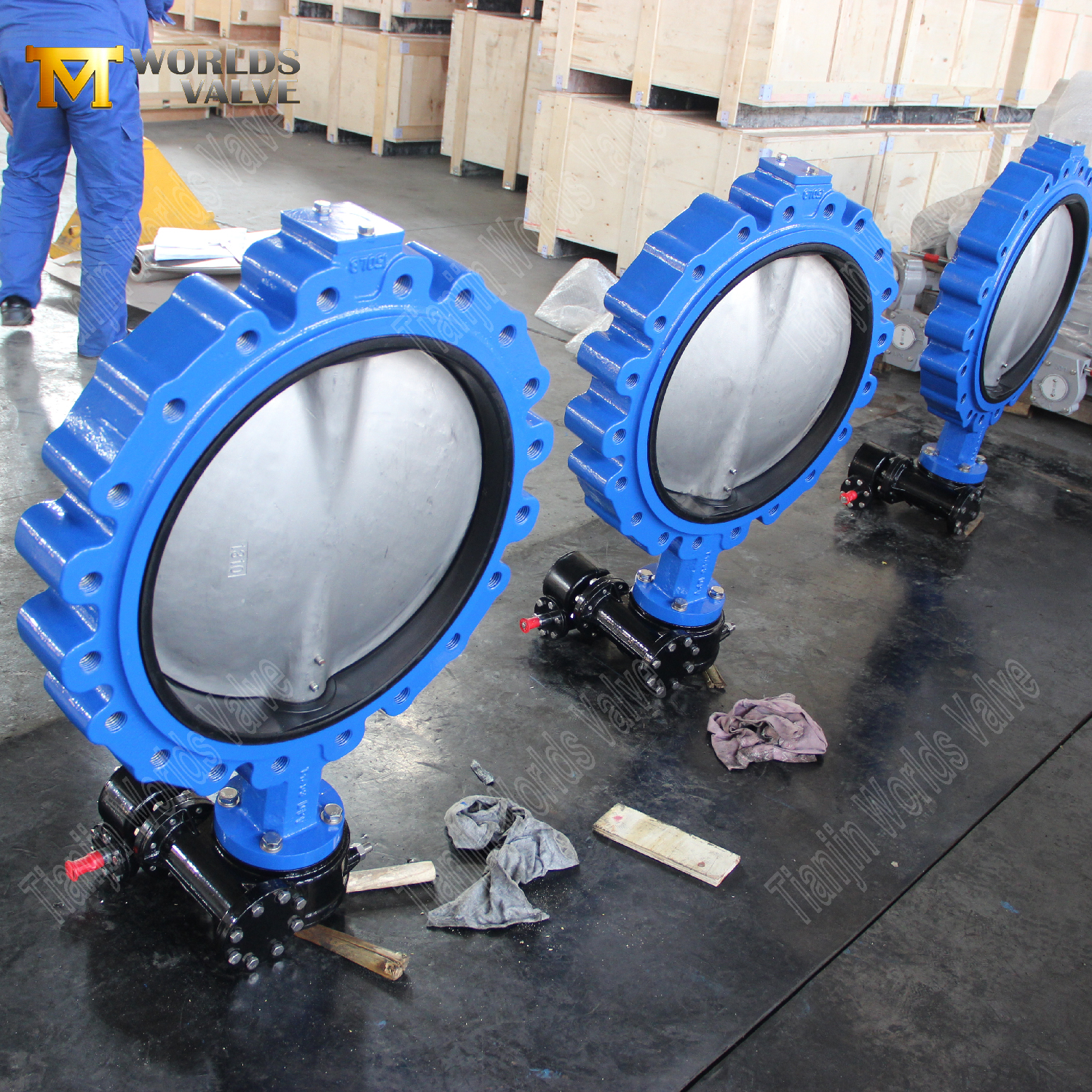

Driving method | Hand Lever Worm Gear Electric Pneumatic | |

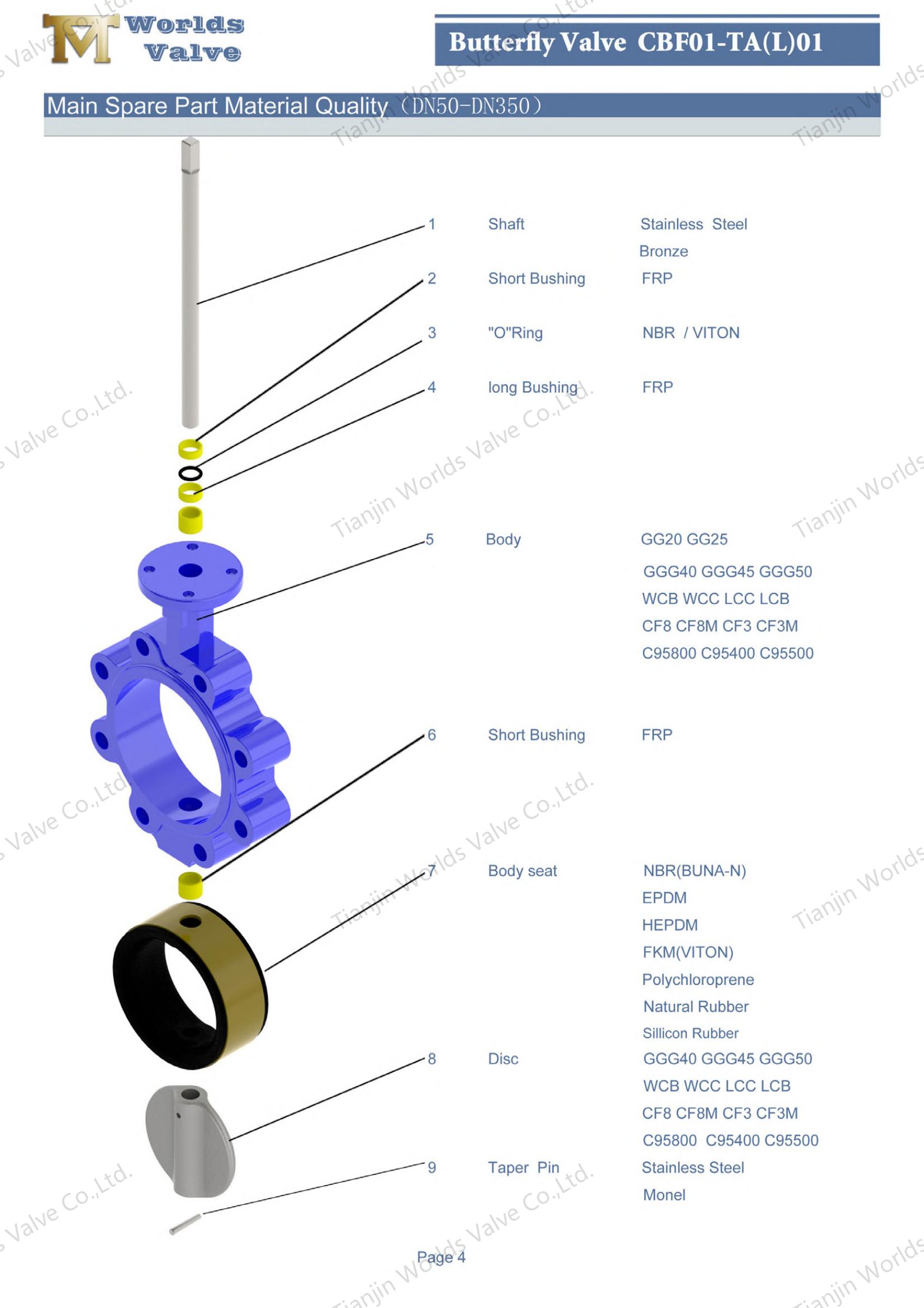

Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE TEFLON HEPDM Neoprene Hypalon Natural rubber |
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |

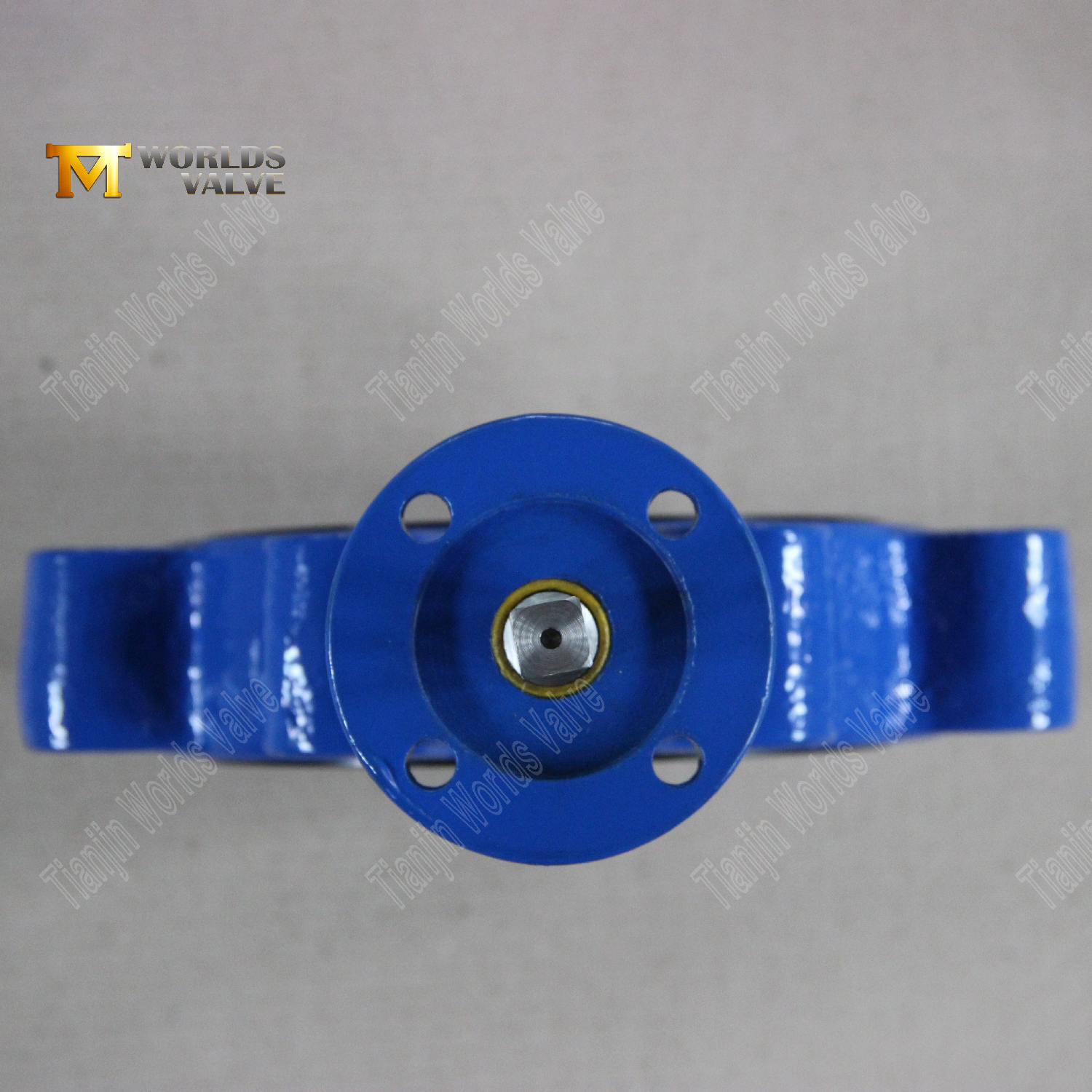

Top Flange | ISO 5211(according customer’s needs) |
Elevate your industrial systems with Tianjin Worlds Valve’s advanced EPDM seat High-pressure butterfly valve with Lug type. Source CE, and ISO 9001 certified，Competitive pricing, fast delivery—request a quote today!
