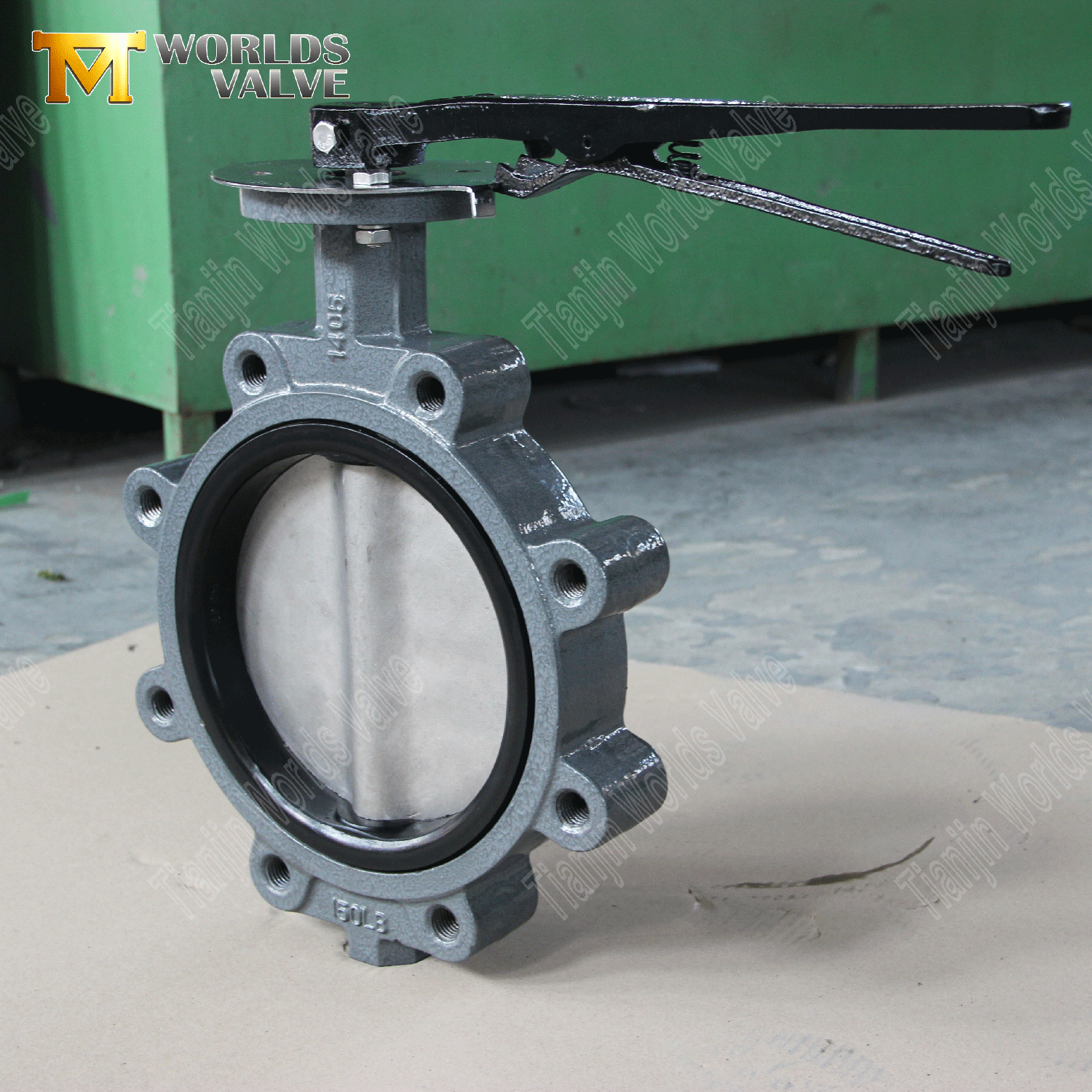

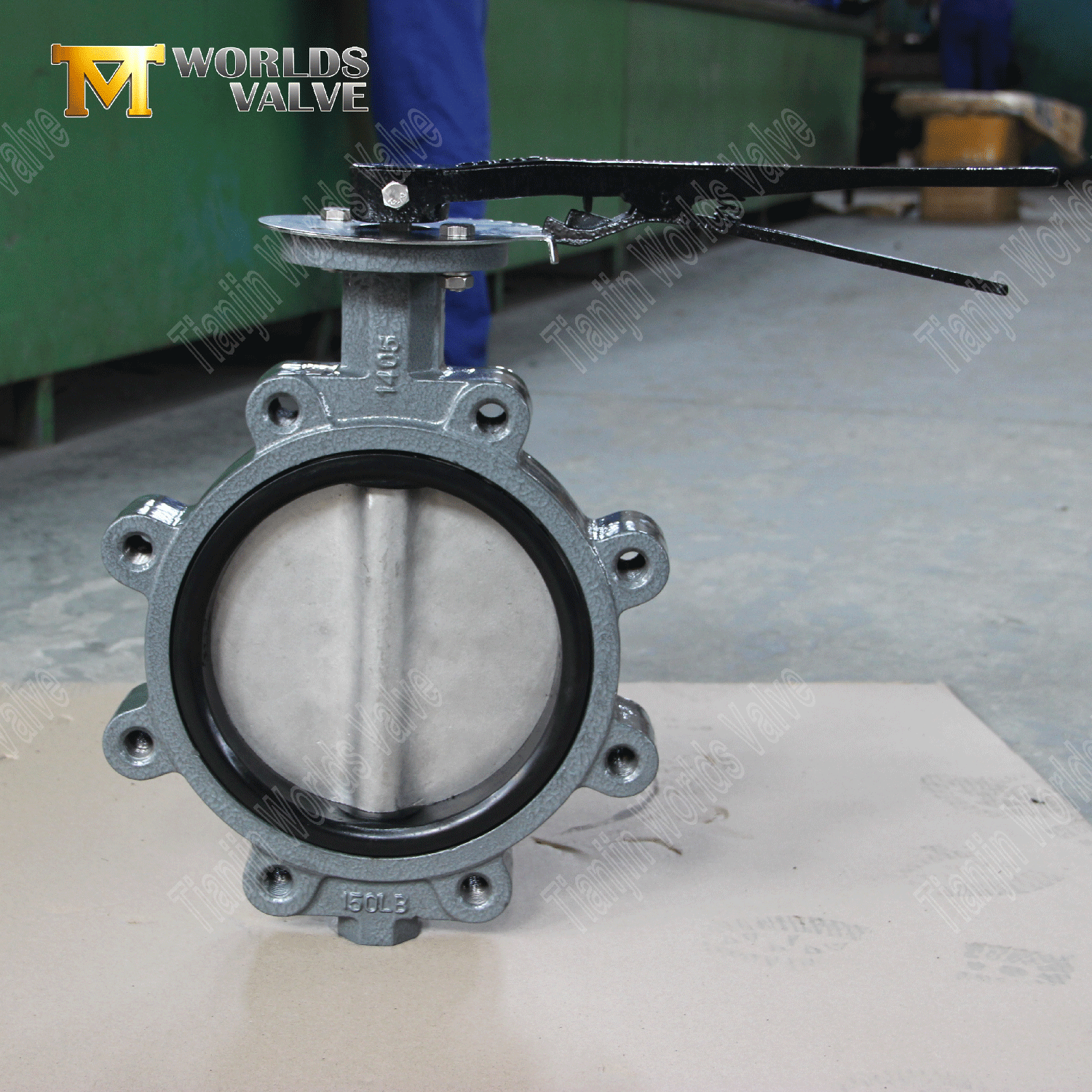

CBF02-TL01
OEM|ODM
| Quantity: | |
|---|---|
1. Full Customization (OEM/ODM)
- Material Flexibility: Choose from ductile iron, stainless steel (SS316/SS304), or specialty alloys.
- Branding Options: Add your logo, color codes, or unique packaging.
- Technical Adaptations: Modify disc thickness, stem diameter, or seat hardness for specific media.
2. Lug-Style Design for Versatile Installation
- Dual-Flange Compatibility: Threaded lugs allow direct mounting to ANSI/DIN/JIS flanges without full pipeline disassembly.
- Pressure Resilience: Rated for Class 150 to Class 300 (PN10 to PN40).
3. Resilient Seated Bubble-Tight Sealing
- EPDM/NBR Seats: Zero leakage (ISO 5208 Class VI) for water, oils, and mild chemicals.
- Quick Seat Replacement: Modular design enables in-line maintenance without valve removal.
4. Certified Performance
- Global Approvals: CE, ACS, WRAS, UKCA, and ISO 9001 certified.
- Fire-Safe Option: API 607-compliant models available for hydrocarbon services.
1. Expertise in OEM/ODM Services
As a trusted Lug Type Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.
2. Maintenance Savings
- Replaceable rubber linings extend service intervals by 3x vs. traditional designs.
3. Global Compliance
- Pre-certified for EU, UK, and Asian markets.
4. Customization
- Optional gearbox position indicators, locking devices, or extended stems.
Size | DN32-DN600 | DN650-DN2000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal | 18Bar | 11Bar |
Operating Temperature | -45℃~+150℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Main Material:Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
Executive Standard:Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211(according customer’s needs) |
Conclusion:Tianjin Worlds Valve offers OEM/ODM Lug Style Resilient Seated Butterfly Valves—CE, ACS, WRAS, and API 609 certified. Custom designs in 45 days. Request a quote!
