CBF05E-TL01
OEM|ODM
| Quantity: | |
|---|---|

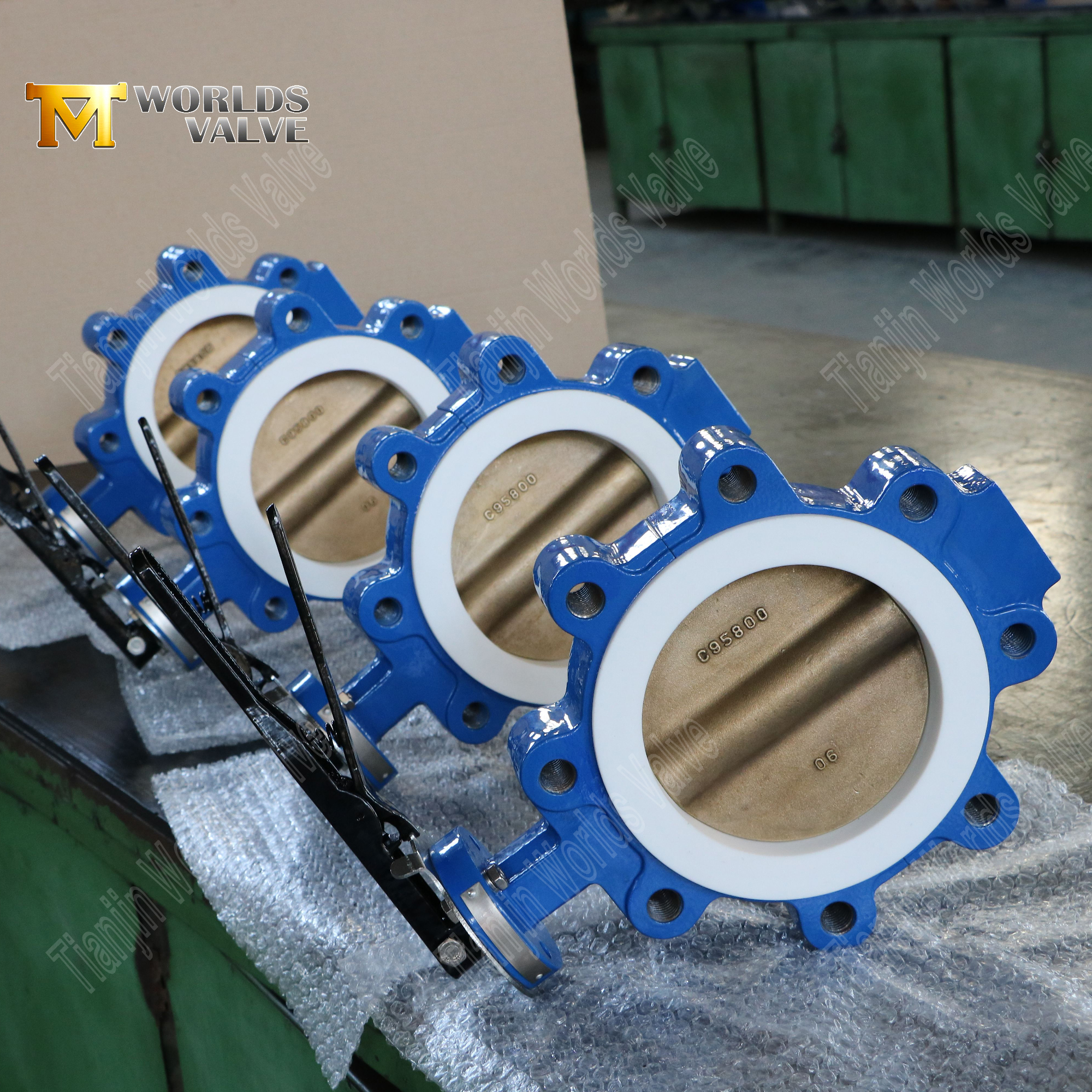

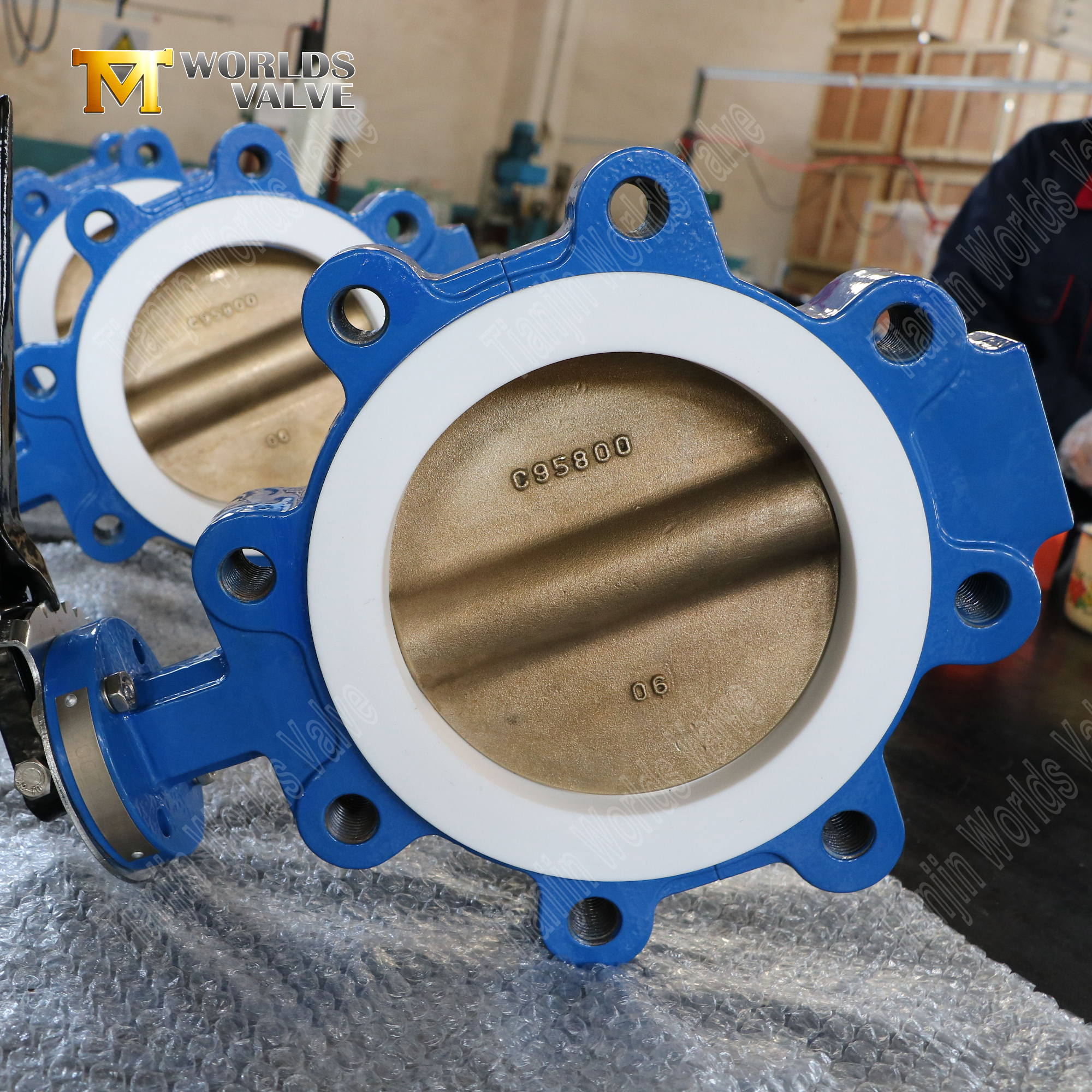

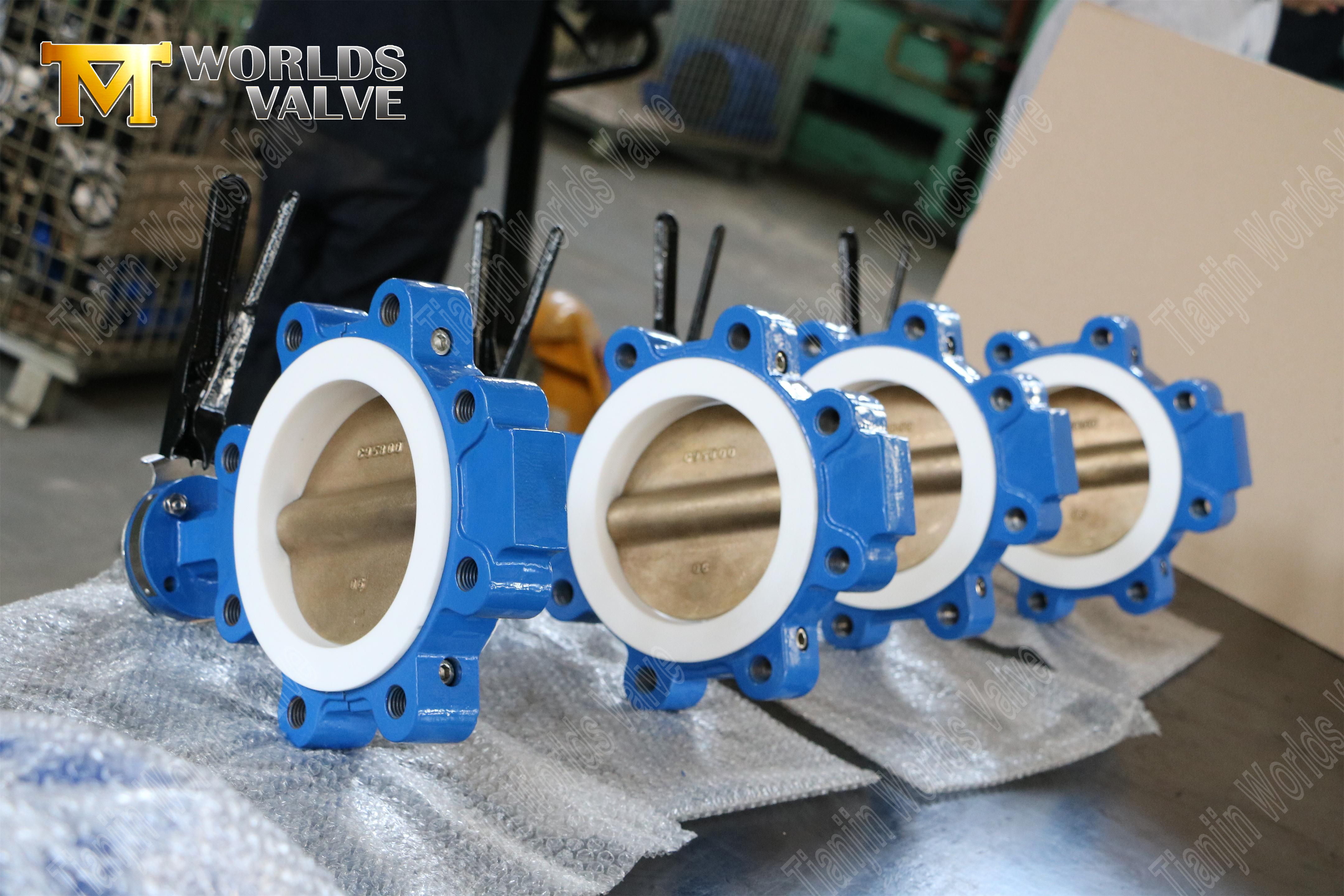

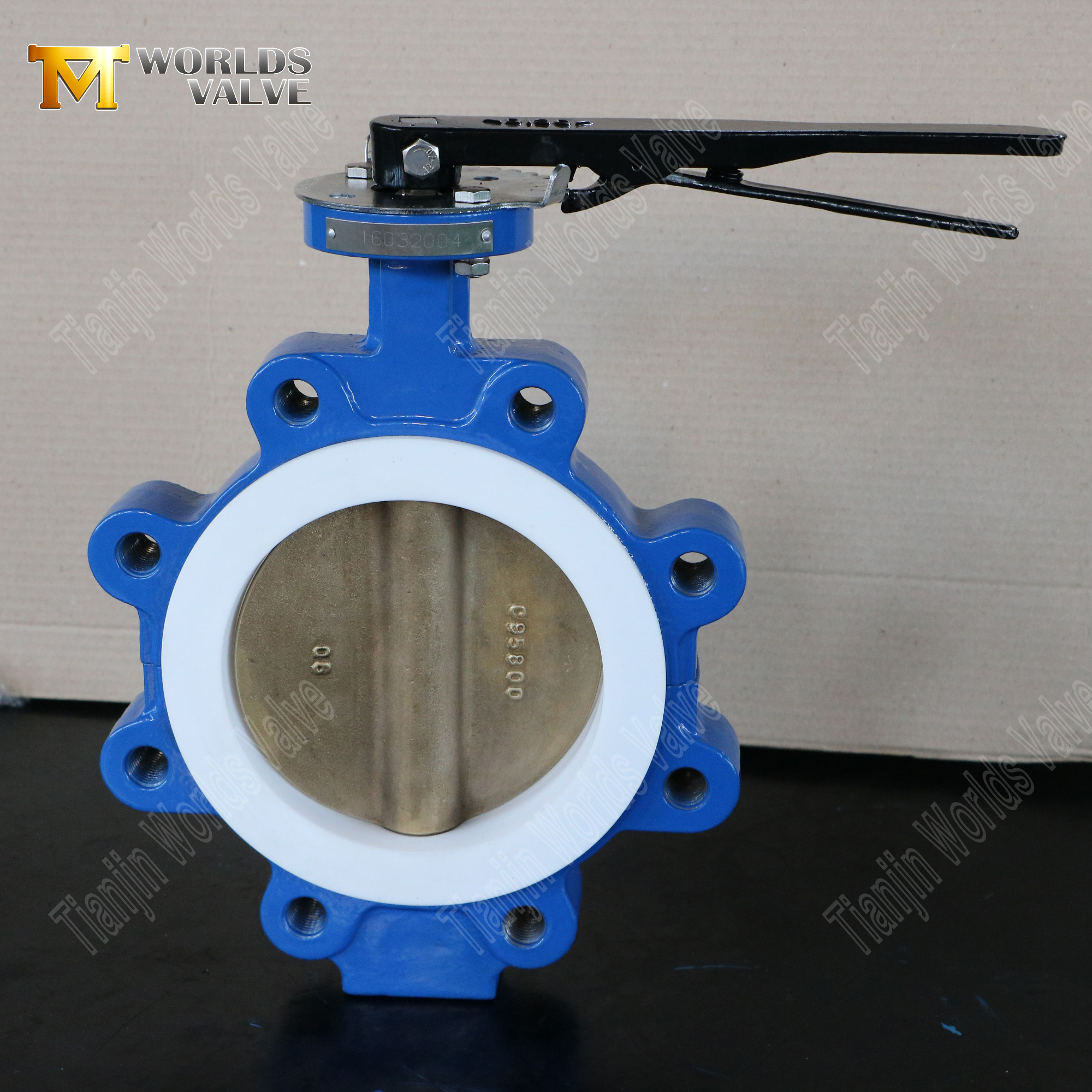

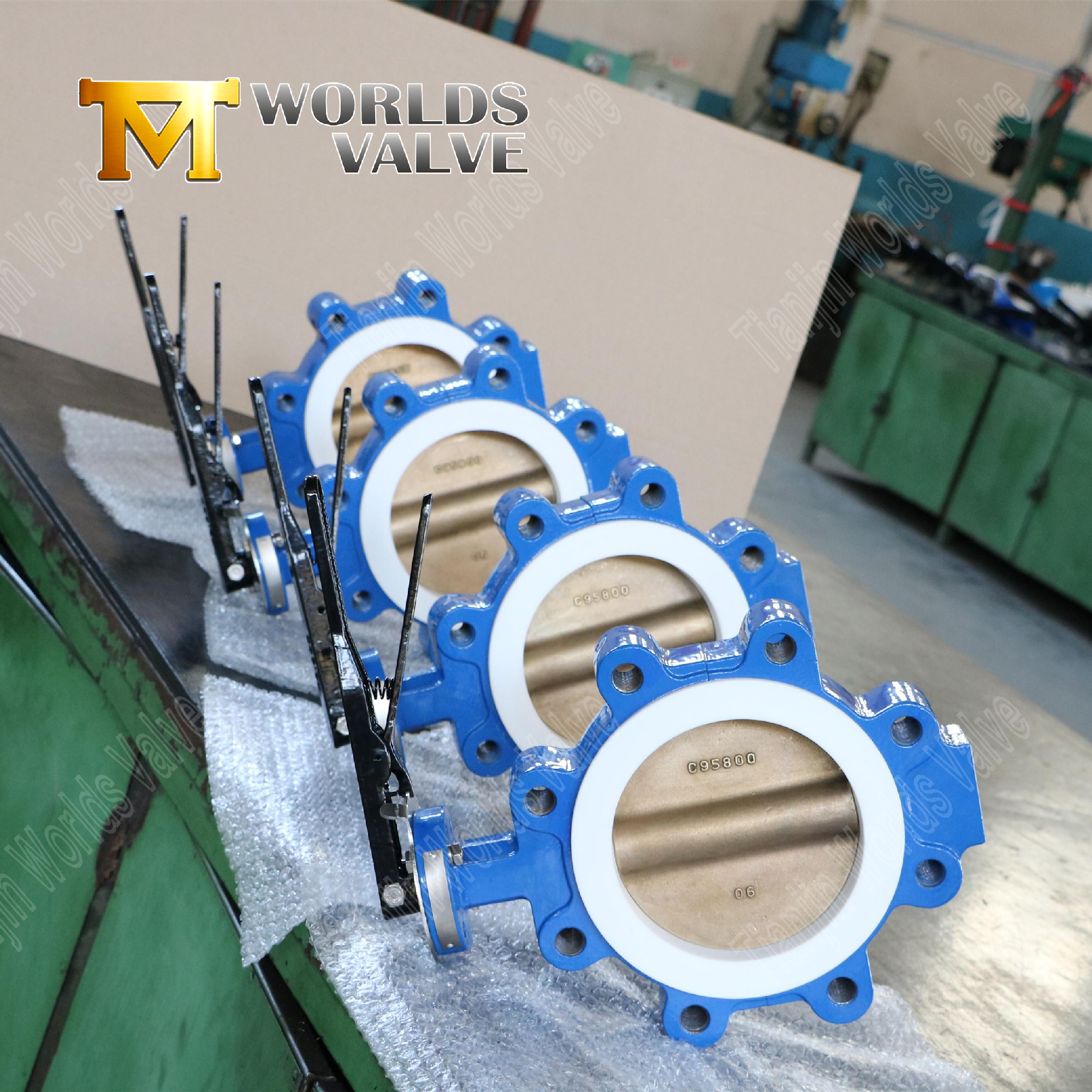

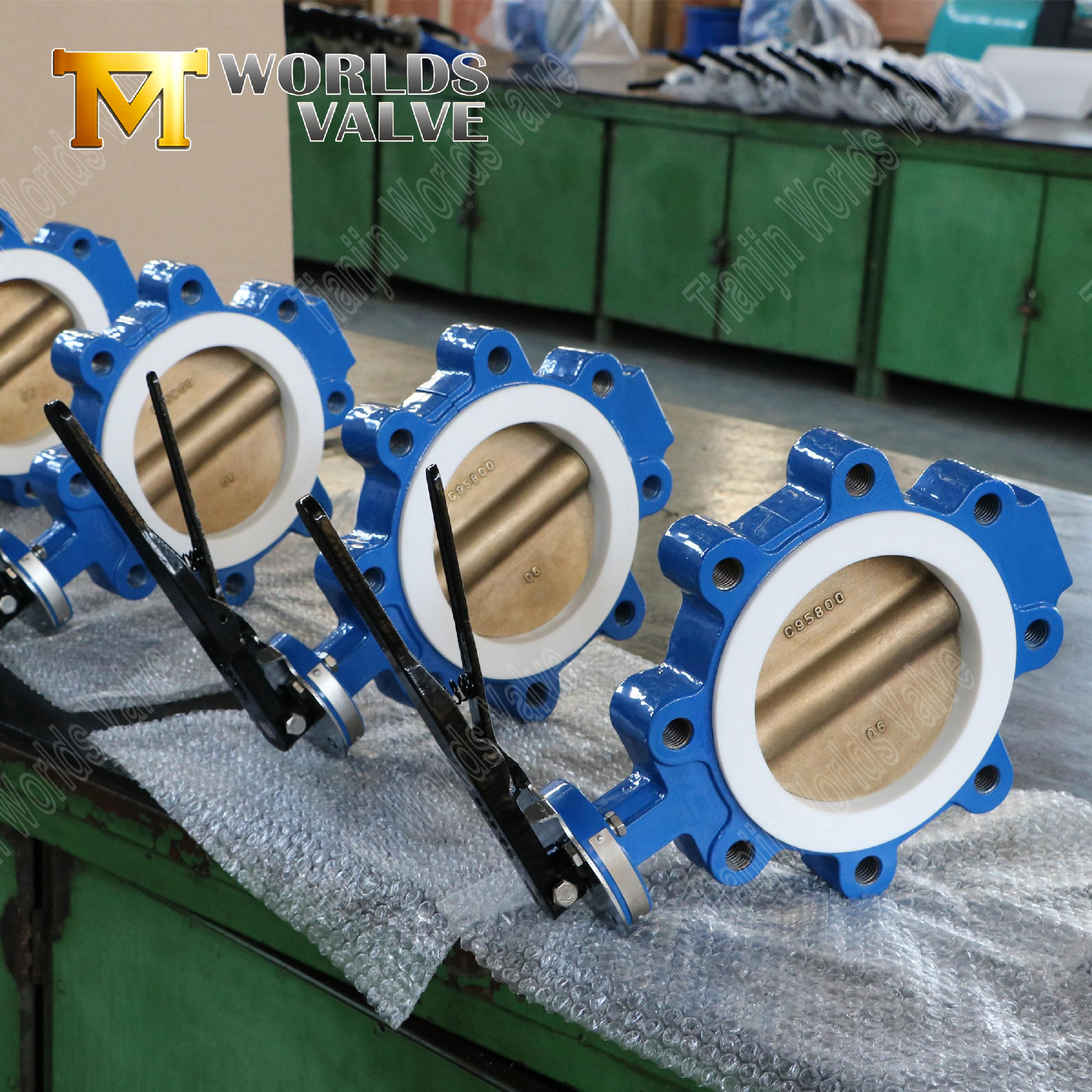

Dual-Purpose Lugged & Tapped End Connections
Lugged Design: Integrates threaded inserts for direct bolt-through piping attachment without full flanges – ideal for end-of-line service or frequent disassembly.
Tapped Holes: Permits secure bolting between ANSI/DIN/JIS flanges, eliminating the need for through-bolts across the valve body.
Zero-Pipeline-Distortion: Distributes stress evenly during installation, preventing misalignment in high-vibration systems.
Isolated 17-4PH Stainless Steel Shaft: Prevents media contact, eliminating galvanic corrosion.
Fire-Safe Design (API 607): Optional metal secondary seal contains media during PTFE failure.
Low-Torque Operation: PTFE-encapsulated disc reduces actuation force by 40% vs. metal-seated valves.

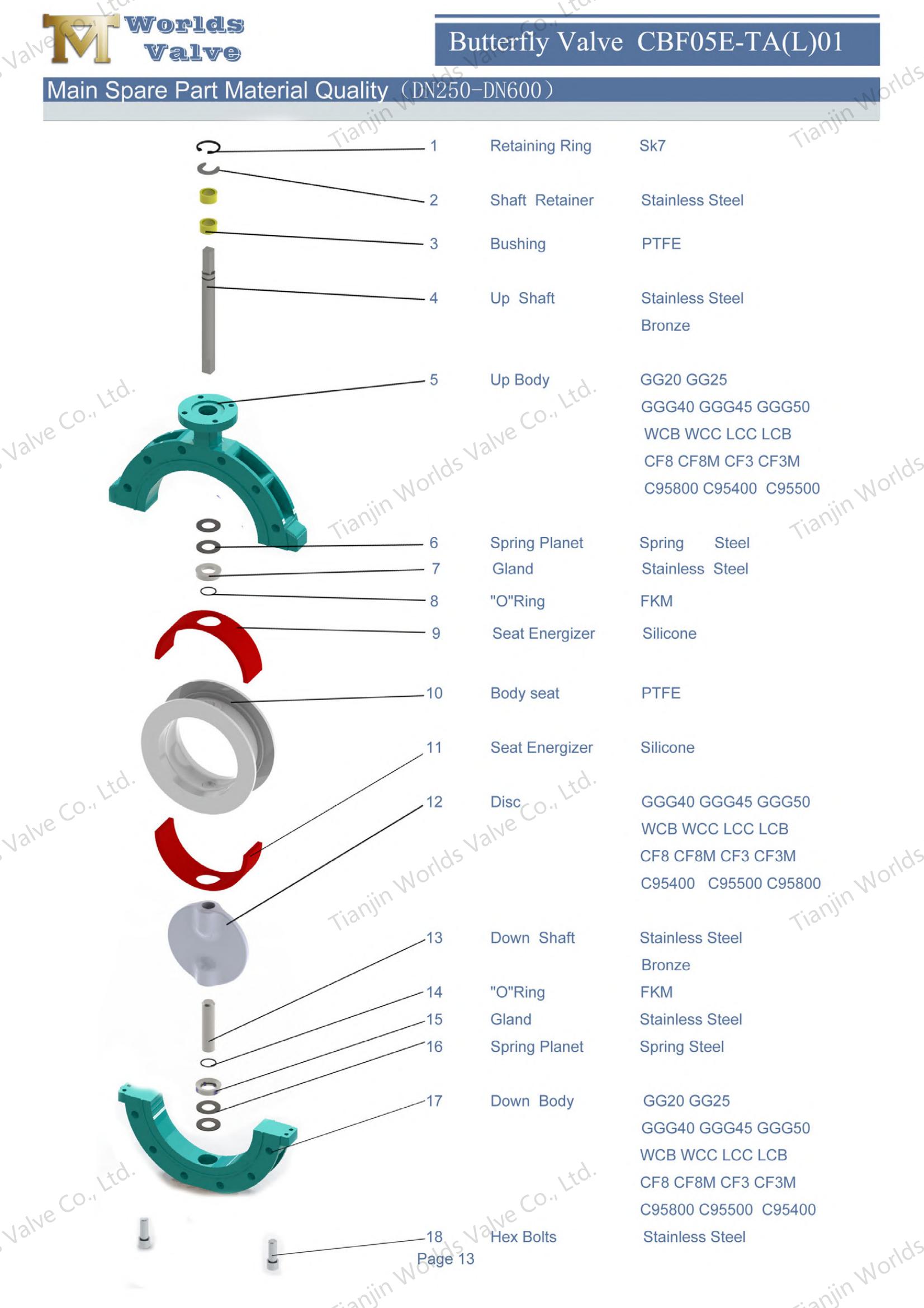

Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | PTFE Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Lining | PTFE(Teflon) |
Shaft | Stainless Steel Monel K500 |
Seat | Integral PTFE |
Pressure Rating | 10/16Bar ANSI 150# (Standard), Higher Ratings Available |
Temperature Range | -20°C to 180°C (-4°F to 356°F) - Consult for extremes |
Actuator | Hand Lever Worm Gear Electric Pneumatic |
End Connections | Lugged & Tapped (ANSI B16.5 / EN 1092-1) |
Certifications | ISO9001, WRAS, ACS, UKCA, CE, ABS |
Chemical Processing: Reactor feed lines, acid transfer, solvent recovery
Pulp & Paper: Bleach plants, black liquor handling
Mining & Metallurgy: Leachate control, slurry transport, pickling lines
Water Treatment: Chlorine dioxide injection, lime slurry, wastewater neutralization
Power Generation: FGD systems, chemical dosing
Customization-Ready: Modify disc thickness, shaft extensions, or lining thickness for extreme pressures/abrasives.
Retrofit Simplified: Direct replacement for failed metal valves – no pipeline modifications.
Global Compliance: Manufactured to ASME B16.34, PED 2014/68/EU, and CRN standards.
Lifecycle Cost Reduction: 3x longer service life vs. rubber-lined valves in pH <2 or >12 environments.
For valve manufacturers and system integrators: This valve is your scalable core for building corrosion-resistant assemblies. Add pneumatic/electric actuators, positioners, or limit switches via ISO 5211 mounting pad.
Request factory certification, hydro-test reports, or custom design consultation today – and build unbreakable flow systems.
