CBF02-TL03
OEM|ODM
| Quantity: | |
|---|---|

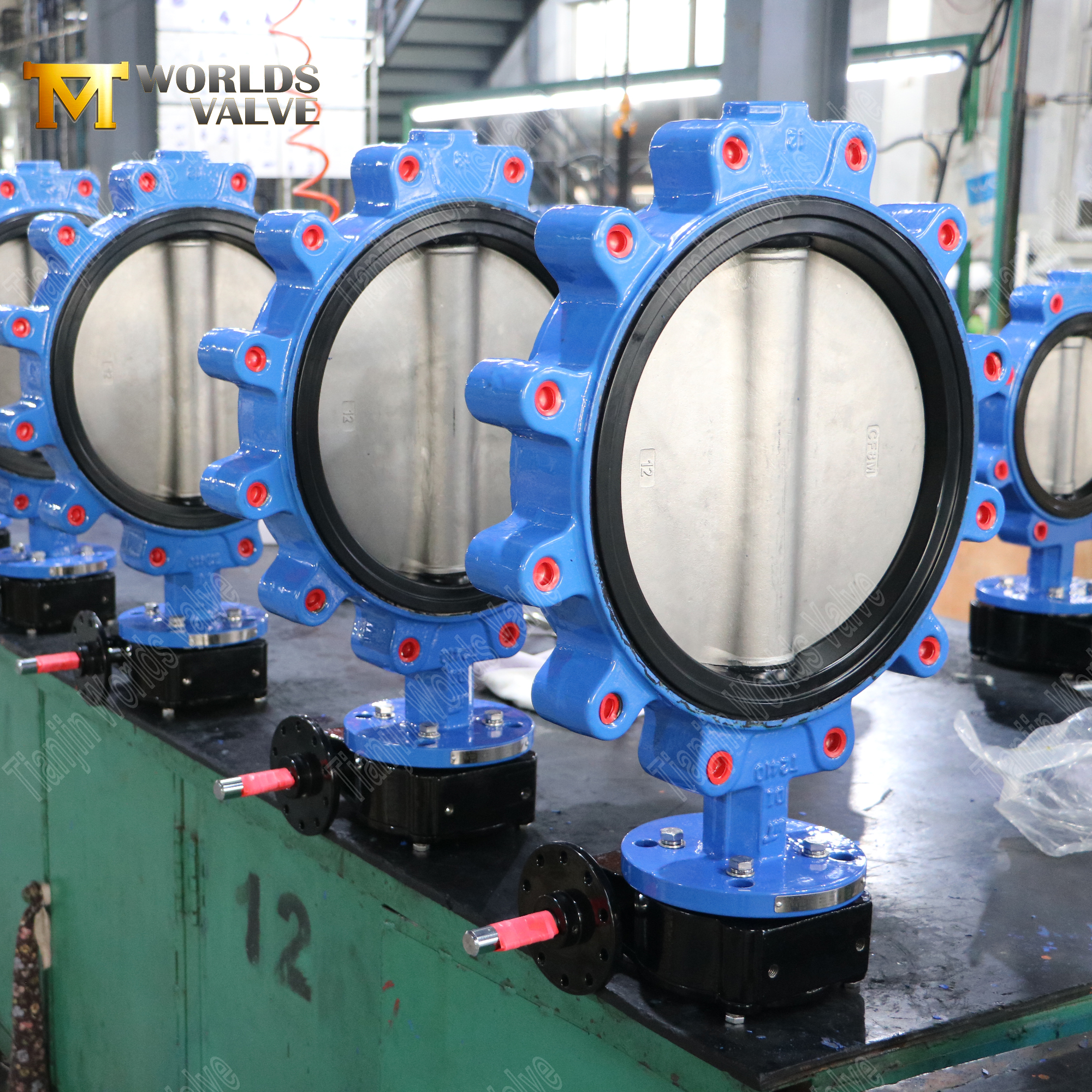

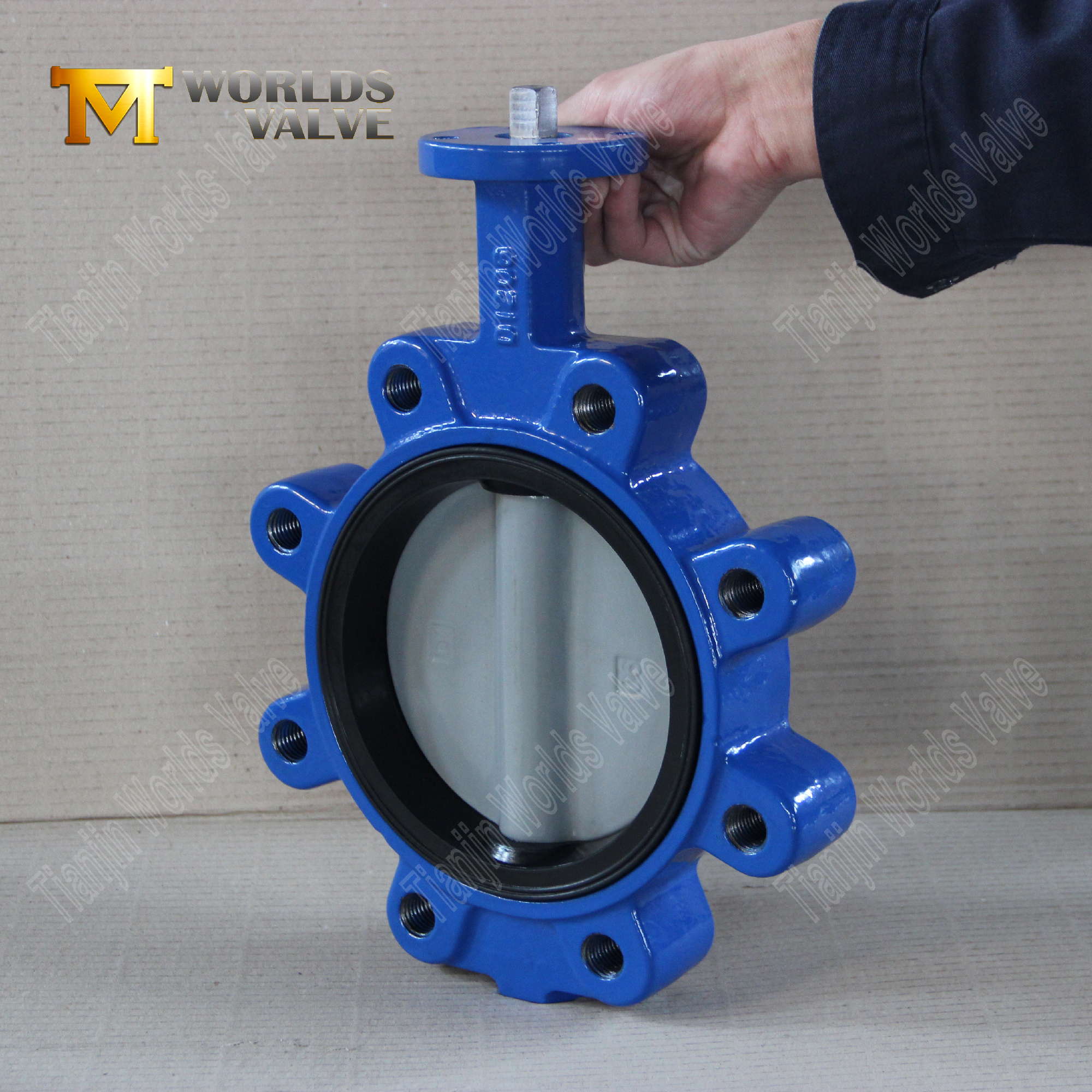

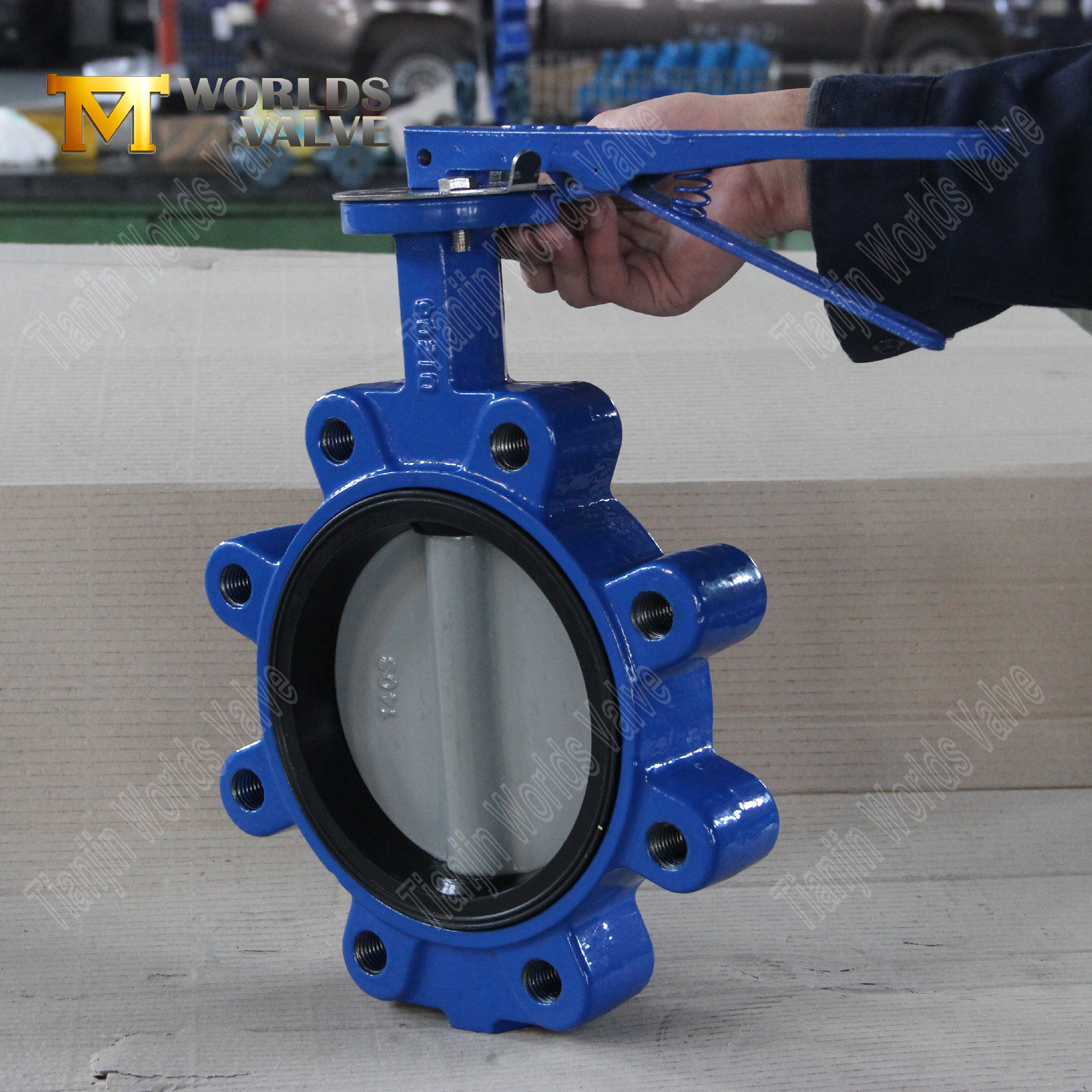

1. Rugged Lug Type Valve Body Design:
Pipe Stress Elimination: Threaded inserts allow direct bolting to pipeline flanges without through-bolts, preventing distortion in high-vibration or thermal expansion environments.
Dead-End Service Ready: Secures pipe ends without additional supports.
Zero-Pipeline-Damage: 304/316 stainless steel lugs distribute load evenly, protecting FRP or aging pipelines.
2. Triple-Sealed Resilient Rubber Seat
EPDM/NBR Compound: Resists ozone, chlorinated water (≤5 ppm), and temperature swings (-15°C to 120°C / 5°F to 250°F).
Zero-Leakage Guarantee:Meet or Exceeds AWWA C504 Class IV sealing.

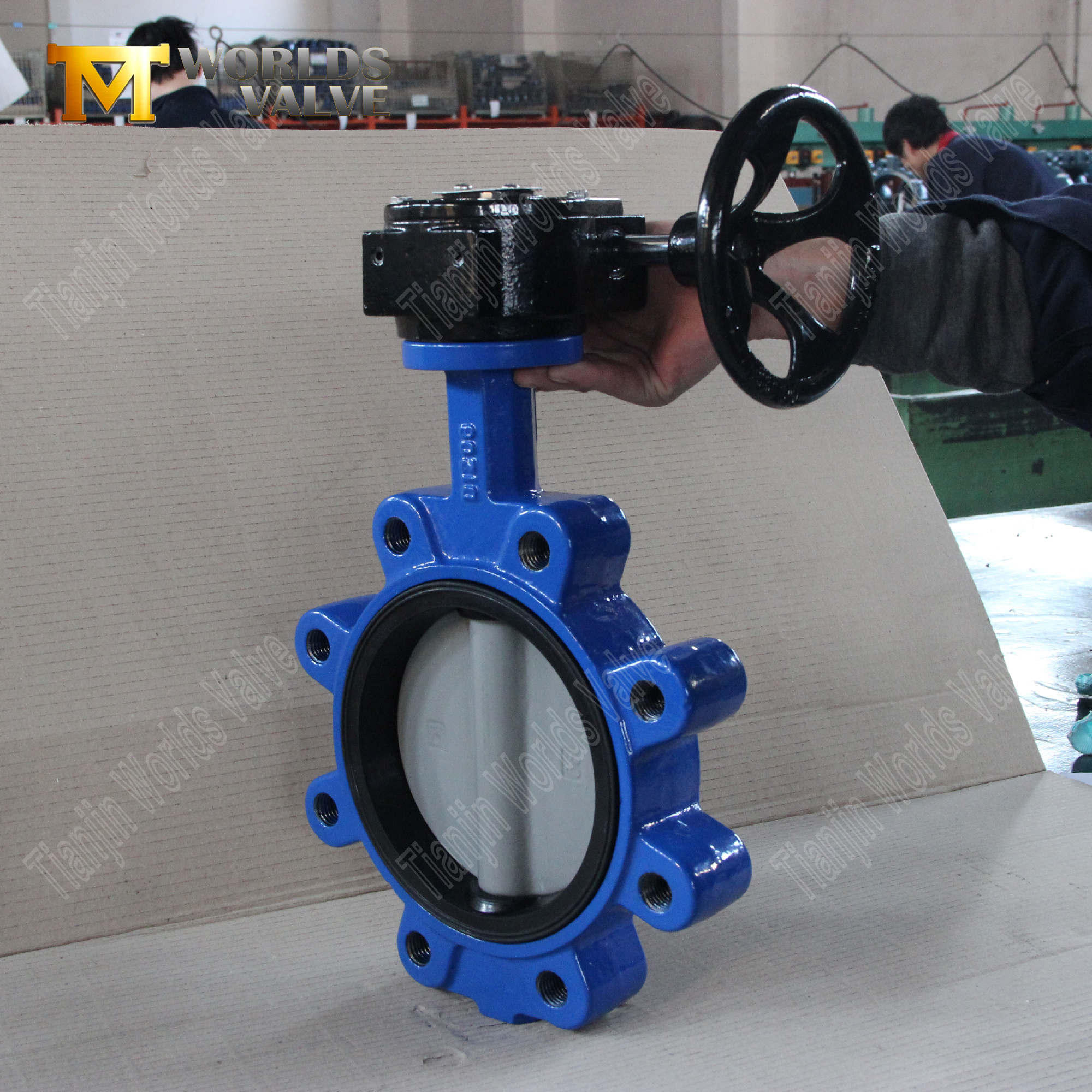

Self-Compensating Design: Automatically adjusts to disc wear and minor pipe misalignment. 3. High Torque Industrial Gearbox
15:1 to 100:1 Ratio Options, Weatherproof Housing, Position Indicators.
Component | Specification |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | PTFE Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Lining | EPDM NBR(BUNA-N) PTFE(Teflon) HEPDM FKM(VITON) Polychlorogrene Natural Rubber Silicone Rubber |
Shaft | Stainless Steel MONEL K500 C92200 C63000 2507 2205 |
Pressure Rating | 10/16Bar ANSI 150# (Standard), Higher Ratings Available |
Temperature Range | -15°C to 120°C (5°F to 250°F) - Consult for extremes |
Actuator | Hand Lever Worm Gear Electric Pneumatic |
End Connections | Lugged & Tapped (ANSI B16.5 / EN 1092-1) |

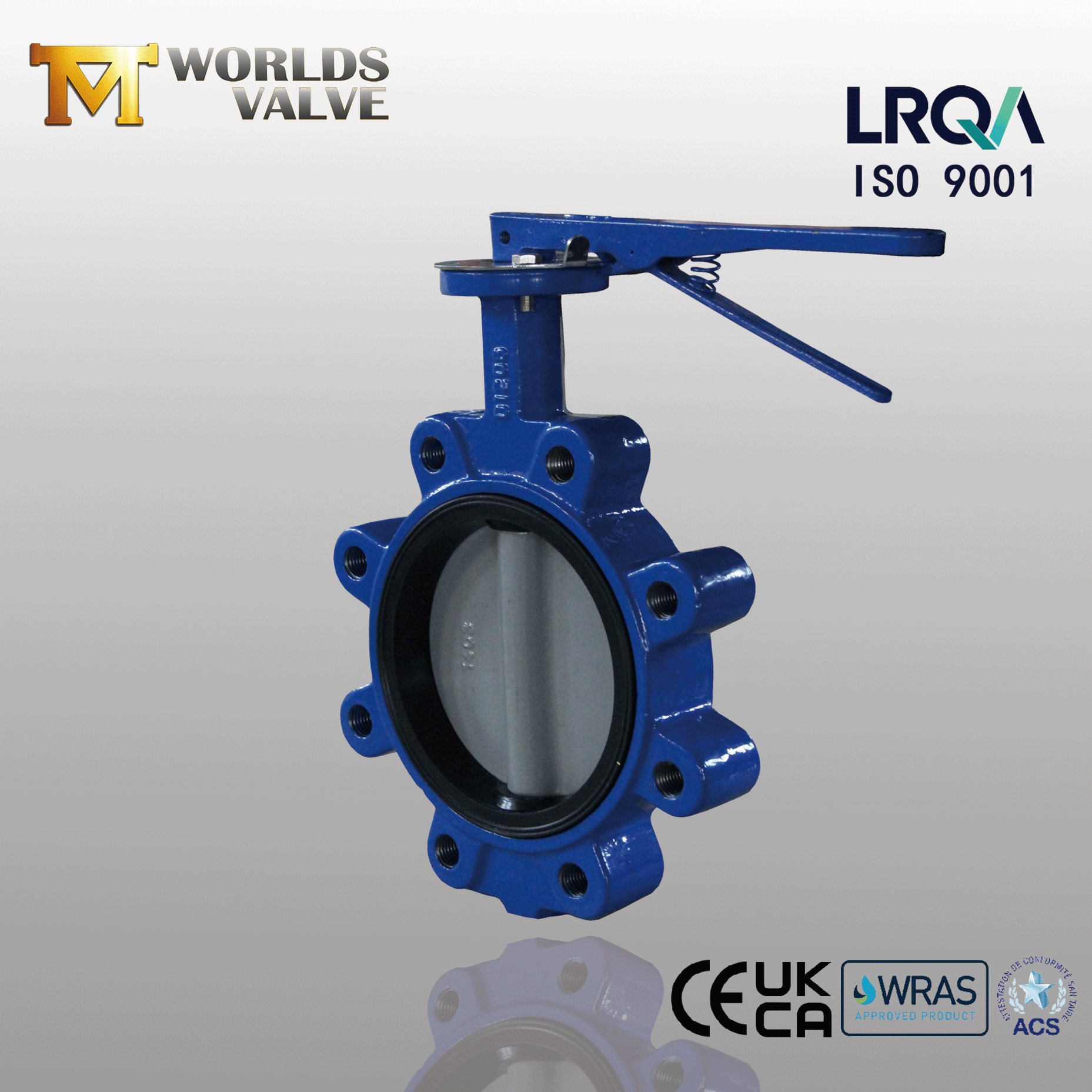

Certifications | ISO9001, WRAS, ACS, UKCA, CE, ABS |
Potable Water Treatment & Distribution
HVAC Chilled Water & Cooling Towers
Wastewater Pump Stations & Effluent Control
Power Plant Cooling Water Circuits
Industrial Process Water Isolation
Maintenance-Free Operation: PTFE-bushed shaft, encapsulated bearings, and corrosion-proof hardware.
Seismic Resilience: Lug design absorbs pipe movement (IBC & OSHPD compliant).
Retrofit Efficiency: Direct replacement for gate valves – 70% shorter installation time.
Lifetime Cost Advantage: 3x longer service life vs. wafer valves in water hammer scenarios.
Welcome to purchase our high-quality Lug Type Butterfly Valves. If you have any procurement needs, OEM/ODM or custom requirements, please contact our professional sales manager: dekai@worldsvalve.com
