Why do so many industrial systems use a wafer Butterfly Valve instead of heavier valve types? Its compact structure, quick operation, and low installation cost make it a popular choice in modern pipelines.A wafer butterfly valve controls flow through a simple 90-degree rotating disc. It works in water treatment, HVAC, wastewater, and chemical processing systems.
In this article, you will learn how a wafer butterfly valve works, its main components, advantages, applications, and how to choose the right valve for different operating conditions.

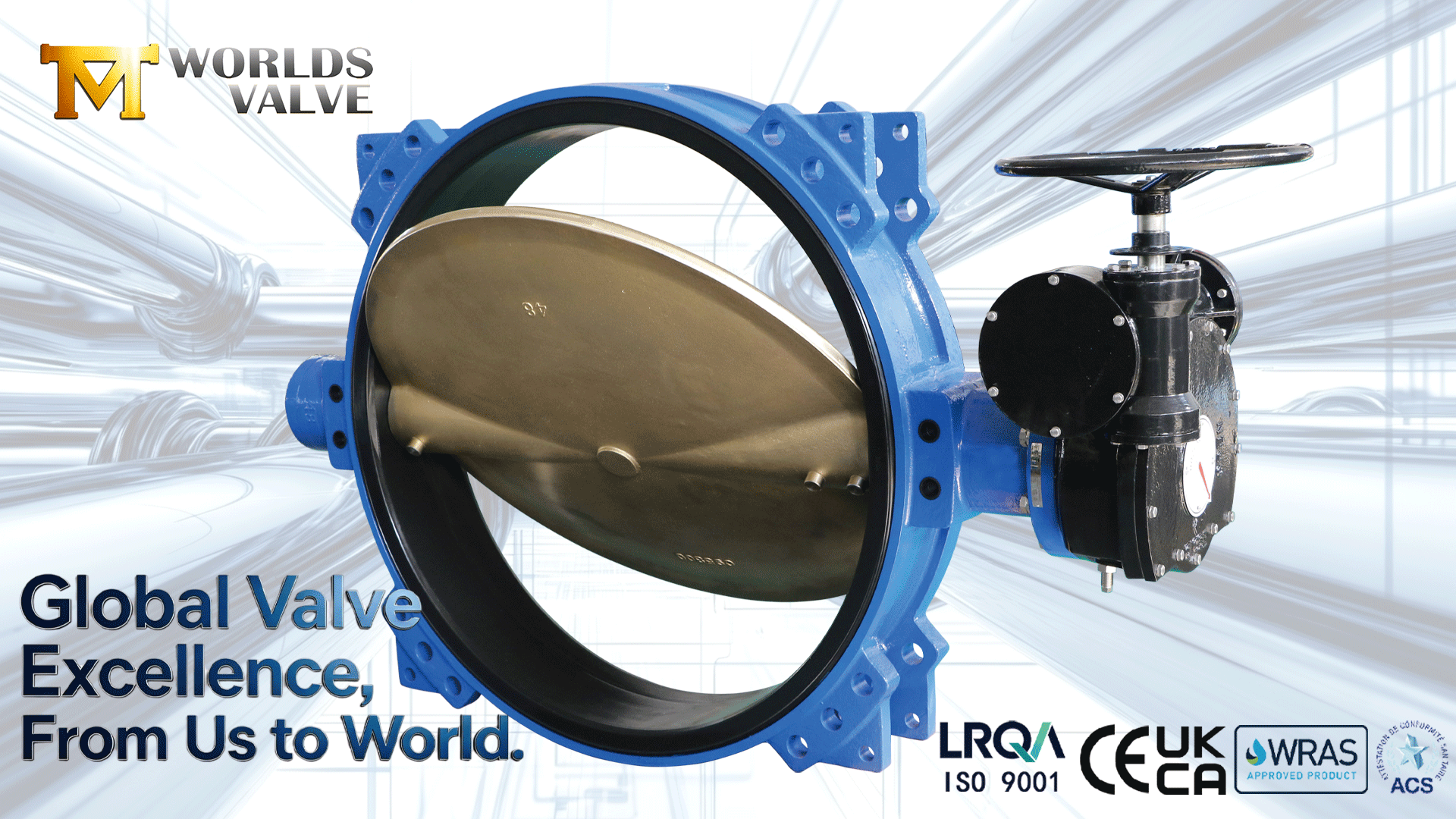

A wafer butterfly valve is a compact quarter-turn Butterfly Valve installed between two pipe flanges. It controls, regulates, or shuts off flow through a rotating disc inside the valve body. Many industrial systems use this valve because it supports quick operation and space-saving installation.
Unlike larger valve structures, a wafer type butterfly valve is secured by bolts or threaded studs running through the pipeline flanges. This design reduces overall weight and simplifies installation in compact piping systems. It also helps lower transportation and maintenance costs.
Tianjin Worlds Valve manufactures wafer-style butterfly valves for water treatment, HVAC, wastewater, and industrial flow control systems. Different body materials, seat materials, and actuator options allow customers to select suitable solutions for different working conditions.
The design of a wafer Butterfly Valve focuses on compact installation and efficient flow control. Compared with heavier valve types, it uses a lighter body structure and fewer internal components. This makes installation easier and reduces overall pipeline load in industrial systems.
Compact Structure
A wafer butterfly valve is installed directly between two pipe flanges. Its slim body design helps save installation space in tight piping layouts. Many facilities choose this structure because it reduces overall system weight and simplifies pipeline arrangement.
Quick Quarter-Turn Operation
The valve operates through a simple 90-degree rotation. Operators can open or close the valve quickly during daily operation or emergency shut-off situations. This design improves efficiency in water treatment, HVAC, and industrial pipeline systems.
Flexible Material Options
Tianjin Worlds Valve provides multiple body, disc, shaft, and seat material combinations. Common options include ductile iron, stainless steel, EPDM, NBR, and PTFE. These materials help improve corrosion resistance, sealing performance, and service life under different working conditions.
Reliable Flow Control Performance
Wafer butterfly valves are suitable for both shut-off and flow regulation applications. The rotating disc design allows smooth control of fluid movement inside the pipeline. Low pressure loss also helps maintain efficient system performance.
A wafer butterfly valve works through a simple quarter-turn mechanism. The disc inside the valve rotates only 90 degrees to control fluid flow. This quick movement makes the Butterfly Valve easy to operate in industrial piping systems. Many facilities use it because operators can open or close the valve rapidly during normal operation or emergency shut-off situations.
When the disc stays parallel to the flow direction, media passes through the pipeline freely. Once the disc rotates perpendicular to the flow, the valve closes and blocks the pipeline. Operators can also stop the disc at intermediate angles for throttling and flow regulation.
Fully Open Position
In the open position, the disc aligns with the pipeline flow. This allows liquid or gas to move through the system efficiently. Pressure loss remains relatively low compared with many traditional valve types.
Partially Open Position
The disc can stop at different angles during operation. This helps regulate flow rate inside the pipeline. Many HVAC and water treatment systems use this feature for flow balancing.
Fully Closed Position
The disc presses tightly against the valve seat. This creates a sealing barrier inside the valve body. Proper sealing helps reduce leakage and improves system reliability.
Disc Position | Valve Status | Flow Condition |
Parallel to flow | Fully Open | Maximum flow |
Angled position | Partially Open | Flow regulation |
Perpendicular to flow | Fully Closed | Flow stopped |
Several internal components help a wafer butterfly valve operate smoothly. Each part supports flow control, sealing performance, and long-term reliability inside the piping system. Tianjin Worlds Valve manufactures wafer butterfly valves using multiple material combinations for different industrial applications.
Valve Body
The valve body holds all internal components together. It fits directly between two pipe flanges and supports compact installation. Lightweight body structures also reduce overall pipeline load.
Disc
The disc is the main flow-control element inside the Butterfly Valve. It rotates during operation to open, close, or regulate fluid flow. Different disc materials improve corrosion resistance and durability.
Stem or Shaft
The shaft connects the actuator to the disc. Once the actuator moves, the shaft transfers rotational force to the disc. Strong shaft materials help maintain stable operation under pressure.
Seat
The seat forms the sealing surface between the disc and valve body. Soft seat materials improve sealing performance and reduce leakage risk. EPDM, NBR, VITON, and PTFE remain common options for different media types.
Actuator or Handle
Operators control the valve through manual handles, worm gears, pneumatic actuators, or electric actuators. Tianjin Worlds Valve supplies manual, electric, and pneumatic operation options for different automation requirements.
Sealing performance remains one of the most important parts of wafer butterfly valve operation. Once the valve closes, the rotating disc presses tightly against the seat surface. This contact helps block fluid movement through the pipeline.
Different seat materials improve sealing performance under different working conditions:
EPDM Seats
Suitable for water systems, HVAC pipelines, and general industrial service. They provide good flexibility and sealing stability.
NBR Seats
Often selected for oil-related applications and compressed air systems. They offer good resistance to certain petroleum-based media.
PTFE Seats
PTFE performs well in corrosive chemical environments. Many chemical processing systems use PTFE-lined Butterfly Valve designs for better corrosion resistance.
VITON Seats
These seats handle higher temperatures and aggressive media more effectively. They are commonly used in demanding industrial conditions.
Proper flange clamping also affects sealing stability. Uneven bolt tightening may reduce sealing performance or create leakage points. Many customers focus on leakage prevention, media compatibility, and long-term reliability during valve selection.
Even when fully open, the disc remains inside the flow path. However, wafer butterfly valves still maintain efficient flow performance because of their streamlined internal design. Many industrial systems prefer them because they combine compact structure and good flow capacity.
Several operating advantages improve system efficiency:
Low Pressure Loss
The valve design allows media to pass through smoothly. Reduced pressure drop helps improve pumping efficiency and lowers energy consumption.
Efficient Flow Regulation
Operators can control flow by adjusting the disc angle. This makes the Butterfly Valve suitable for throttling applications in water treatment and HVAC systems.
High Flow Capacity
Wafer butterfly valves support large flow volumes compared with their compact size. This helps reduce installation space while maintaining pipeline efficiency.
Improved System Performance
Stable flow control supports safer and more reliable industrial operation. Efficient valve performance may also reduce long-term maintenance costs.
Tianjin Worlds Valve wafer butterfly valves are designed for low pressure loss and high Kv/Cv values. These features help improve flow efficiency in water supply systems, wastewater treatment plants, HVAC pipelines, and chemical processing applications.
A wafer butterfly valve remains popular because it combines compact structure and efficient operation. Many industrial facilities choose this Butterfly Valve type for water systems, HVAC pipelines, and general process control. Its lightweight body also reduces installation difficulty in crowded piping layouts.
Compact and Space-Saving Design
The valve installs directly between two pipe flanges without large body extensions. This helps save installation space in mechanical rooms and industrial plants. Many engineers prefer it for compact pipeline systems.
Lightweight and Cost-Effective Structure
Compared with heavier valve designs, wafer butterfly valves reduce transportation weight and material usage. Lower installation weight may also decrease pipeline support requirements. This helps reduce overall project costs.
Fast Quarter-Turn Operation
The valve only needs a 90-degree rotation to open or close. Operators can react quickly during flow adjustments or emergency shut-off situations. This improves operating efficiency in many industrial systems.
Simple Maintenance and Reliable Sealing
The internal structure stays relatively simple compared with many traditional valves. Proper seat selection and flange installation help maintain stable bi-directional sealing performance. Tianjin Worlds Valve offers EPDM, NBR, PTFE, and VITON seat options for different media conditions.
Wafer butterfly valves work in many industrial environments because they support efficient flow control and compact installation. Their simple operation makes them suitable for both manual and automated systems. Many industries also prefer them because maintenance remains relatively straightforward.
Several common applications include:
Water Supply and Drainage Systems
Municipal and industrial water pipelines often use wafer butterfly valves for shut-off and flow regulation. Their compact design works well in underground or limited installation areas.
Wastewater Treatment Plants
Wastewater systems require durable and easy-to-maintain flow control equipment. Corrosion-resistant seat and disc materials improve long-term reliability in these environments.
HVAC and Fire Protection Systems
HVAC systems use Butterfly Valves to balance and isolate flow inside cooling and heating pipelines. Fire protection systems also benefit from fast valve operation and compact installation.
Chemical and Seawater Applications
PTFE-lined wafer butterfly valves perform well in corrosive environments. Tianjin Worlds Valve manufactures butterfly valve solutions for chemical processing, seawater systems, desalination plants, and wastewater treatment applications.
Many industrial facilities also use wafer butterfly valves in food processing, mining operations, paper mills, and general process pipelines. Different material combinations help customers match the valve to pressure, temperature, and media requirements.
Wafer butterfly valves and lug butterfly valves share similar operating principles, but their installation structures differ. A wafer butterfly valve stays clamped between two flanges using long bolts or threaded studs. A lug butterfly valve uses threaded inserts or lugs around the valve body.
Comparison Item | Wafer Butterfly Valve | Lug Butterfly Valve |
Installation Style | Clamped between flanges | Bolted through threaded lugs |
Weight | Usually lighter | Usually heavier |
Cost | More economical | Higher installation cost |
Space Requirement | More compact | Slightly larger body |
Maintenance Flexibility | Standard pipeline isolation | Easier section disassembly |
Wafer Type Advantages
Wafer butterfly valves usually cost less and require less installation space. Their lightweight structure simplifies transportation and pipeline assembly. Many facilities choose them for general industrial service and cost-sensitive projects.
Lug Type Advantages
Lug butterfly valves may support easier pipeline disassembly in certain systems. Some installations also use them for dead-end service conditions. They are often selected for applications requiring more maintenance flexibility.
A flanged butterfly valve includes integral flanges as part of the valve body. This structure creates a stronger and heavier installation connection. In contrast, a wafer butterfly valve fits between separate pipe flanges and uses a more compact body design.
Compactness and Weight
Wafer butterfly valves are generally smaller and lighter. This helps reduce installation difficulty and saves pipeline space. Many compact systems prefer wafer-style installation for this reason.
Installation and Cost Differences
Flanged butterfly valves may require more installation space and higher material costs. Wafer butterfly valves often reduce installation expenses in medium-pressure systems and standard industrial pipelines.
Application Considerations
Flanged butterfly valves may work better in larger pipelines or demanding installation conditions. Wafer butterfly valves remain popular for water treatment, HVAC systems, wastewater service, and general industrial flow control.
Customers usually select the right Butterfly Valve type according to pipeline pressure, pipe size, media compatibility, installation layout, and long-term maintenance requirements.
Choosing the correct wafer butterfly valve starts with understanding the working media inside the pipeline. Different fluids affect sealing materials and internal components in different ways. A proper material match helps improve sealing performance and extends valve service life.
Water, Air, and General Service
EPDM and NBR seats are commonly used in water systems, HVAC pipelines, and general industrial service. They provide stable sealing performance and good flexibility during operation. Many standard Butterfly Valve applications use these seat materials because they remain cost-effective and reliable.
Oil-Related Media
NBR seats may perform better in oil-related environments depending on media compatibility. They offer good resistance to certain petroleum-based fluids and compressed air systems. Proper compatibility checks remain important before final valve selection.
Corrosive Chemicals and High-Purity Media
PTFE seats and PTFE fully lined wafer butterfly valves provide stronger corrosion resistance in chemical processing systems. These designs help protect internal metal surfaces from aggressive media. Tianjin Worlds Valve manufactures PTFE fully lined Butterfly Valve solutions for demanding industrial environments such as chemical plants, seawater systems, and wastewater treatment facilities.
Media Type | Recommended Seat Material | Typical Application |
Water and air | EPDM | HVAC, water treatment |
Oil-related media | NBR | Industrial pipelines |
Corrosive chemicals | PTFE | Chemical processing |
High-temperature media | VITON | Demanding industrial systems |
Working pressure, operating temperature, and pipe size directly affect valve performance and safety. Before selecting a wafer butterfly valve, engineers should confirm pipeline conditions carefully. Incorrect sizing or pressure ratings may reduce sealing performance and shorten valve lifespan.
Several important selection factors should always be reviewed:
Pipeline Pressure
The valve pressure rating must match the operating pressure of the pipeline system. Higher pressure applications may require stronger body materials and reinforced sealing structures.
Media Temperature
Seat materials react differently under changing temperatures. EPDM, NBR, PTFE, and VITON each support different operating ranges. High temperatures may damage unsuitable seat materials over time.
Flow Rate and Pipe Size
Valve size affects flow capacity and pressure loss inside the system. Oversized or undersized Butterfly Valves may reduce operating efficiency.
Flange Standard and Installation Environment
Flange dimensions must match the pipeline connection standard. Installation space, vibration, humidity, and surrounding environmental conditions should also be considered during selection.
Tianjin Worlds Valve manufactures wafer butterfly valves in different pressure ratings and size ranges depending on the product model. This helps customers select suitable valves for water treatment systems, HVAC networks, wastewater pipelines, and industrial process applications.
Material selection plays an important role in wafer butterfly valve performance. Different materials affect corrosion resistance, sealing reliability, pressure tolerance, and maintenance requirements. Matching materials correctly helps improve long-term operational stability.
Valve Body Materials
Ductile iron and cast iron remain common choices for general industrial service. Stainless steel improves corrosion resistance in aggressive environments. Carbon steel and aluminum bronze may also be selected for specific pressure or seawater applications.
Disc Materials
Disc materials should resist wear, pressure, and corrosion during operation. Stainless steel discs perform well in corrosive systems, while ductile iron discs remain cost-effective for general service conditions.
Shaft Materials
The shaft transfers operating force to the disc during valve rotation. Stainless steel shafts provide good corrosion resistance and mechanical strength. Strong shaft materials improve operational stability under repeated use.
Seat Materials
Seat materials directly affect sealing performance. EPDM, NBR, PTFE, and VITON each support different media and temperature ranges. Correct seat selection helps reduce leakage risk and improves valve durability.
A wafer butterfly valve offers compact installation, fast operation, and reliable flow control for many industrial systems. Proper material and seat selection improve sealing performance and service life. Tianjin Worlds Valve provides wafer Butterfly Valve solutions for water treatment, HVAC, wastewater, chemical processing, and corrosive media applications through flexible material options and dependable manufacturing support.
