CBF02-TA03
OEM | ODM | WDS
| Quantity: | |
|---|---|
Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
CBF02-TA03-Operation and Maintenance Manual DOWNLOAD

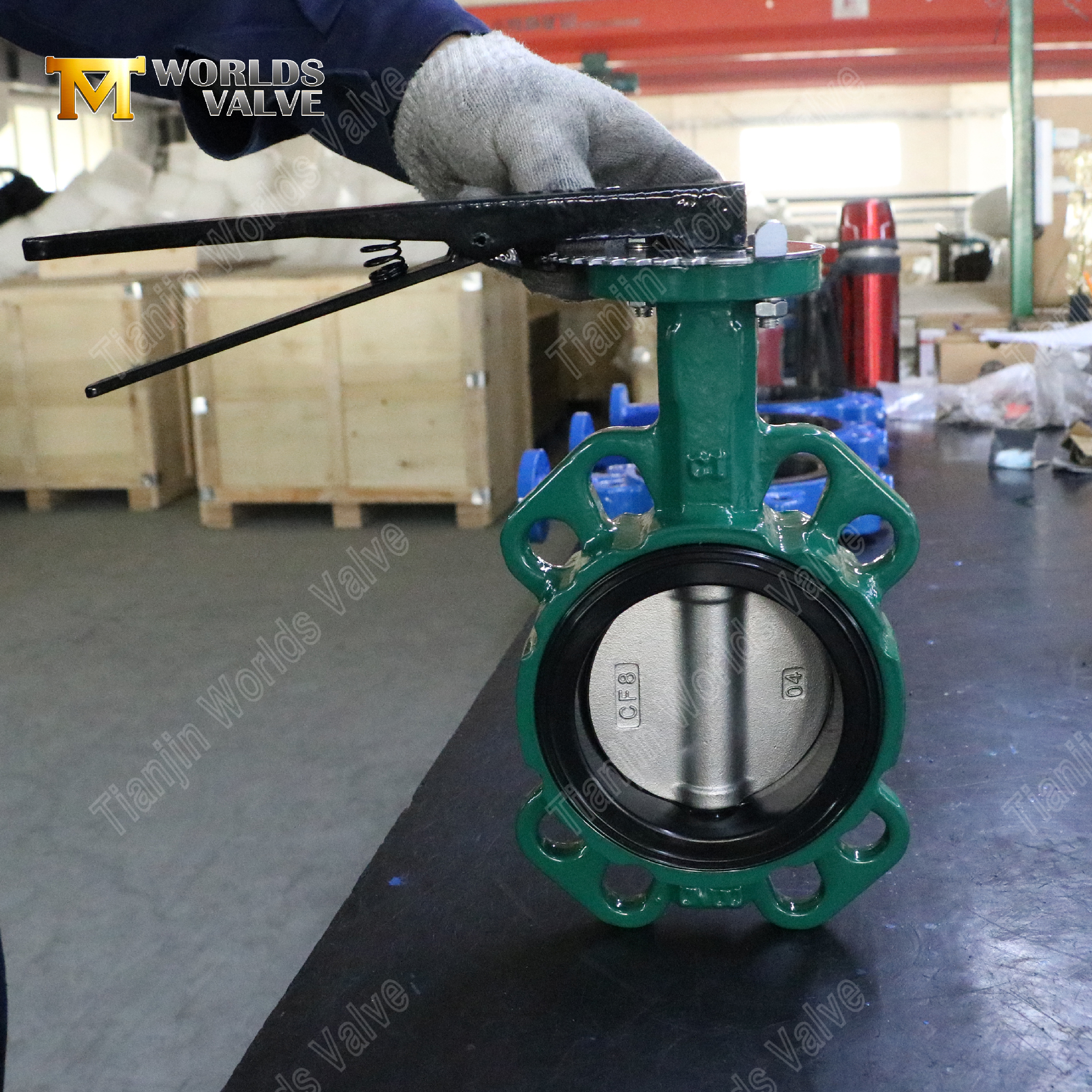

1. Removable Seat for Easy Field Maintenance
Designed with serviceability as a core principle.
Quick Replacement: The seat can be removed and replaced without taking the valve out of the pipeline, minimizing system downtime.
Cost-Effective: Replace only the worn seat rather than the entire valve, significantly reducing long-term ownership costs.
Simple Tool-Free Access: Requires only basic tools for disassembly, allowing maintenance personnel to perform service quickly and efficiently.
2. Lever Operation for Direct Manual Control
Simple, intuitive operation for on/off applications.
Visual Position Indication: The lever serves as a clear position indicator—parallel to the pipe indicates open, perpendicular indicates closed.
Ergonomic Design: Lightweight lever requires minimal operating torque, suitable for frequent cycling applications.
3. Replaceable Rubber Seat for Cost-Effective Maintenance
Designed with serviceability as a core principle.
Easy Replacement: The EPDM rubber seat is designed for straightforward field replacement without special tools or factory service, allowing quick restoration of bubble-tight sealing performance .
Bubble-Tight Shut-Off: The resilient seat conforms to the disc surface, providing reliable Class VI shut-off and preventing leakage in critical applications .
Media Compatibility: EPDM offers excellent resistance to water, steam, weathering, and a wide range of chemicals within its temperature range (-20°C to +120°C) .
4. Versatile Material Options for Media Compatibility
Customizable to match your specific application requirements.
Seat Materials: EPDM (standard) for water and mild chemicals; NBR for oil-bearing media; Viton for aggressive chemicals; Silicone for high-temperature applications.
Disc Materials: Stainless steel (CF8/CF8M) standard; ductile iron with nylon or epoxy coating; aluminum bronze for seawater service.
Body Materials: Ductile iron with epoxy coating standard; cast iron, carbon steel, or stainless steel available upon request.
Parameter | Specification |
Model | Wafer Butterfly Valve with Replaceable Rubber Seat(CBF02-TL03) |
Sizes | DN50-DN3000 |
Pressure Rating | PN10/16/150LB/JIS10K |
Design | EN593 BS5155 EN1092 ISO5211 |
Testing | ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 DIN3202 ISO5752 BS5155 |
Body | Ductile Iron |
Disc | CF8 |
Seat | EPDM,NBR,FKM,PTFE... |
Stem | SS410/420/431... |
Service-Friendly Design: Our removable seat feature reflects our commitment to reducing customer maintenance costs and system downtime.
OEM/ODM Expertise: We offer extensive customization including alternative seat materials, disc options, and special coatings to match your specific applications.
Certified Quality: ISO 9001 certified facility with CE, UKCA, and WRAS certification options available.
Global Experience: Supplying valves to over 50 countries with reliable logistics and professional documentation.
Water Treatment Plants
HVAC Systems
Irrigation Networks
Industrial Process Lines
Pump Suction and Discharge
Cooling Water Circuits
The Wafer Butterfly Valve with Removable Seat from Tianjin Worlds Valve Co., Ltd. offers the perfect balance of simplicity, serviceability, and reliability. Its lever operation provides intuitive control, while the removable seat design enables cost-effective maintenance without pipeline disruption. Choose Tianjin Worlds Valve for your next project—where easy maintenance meets dependable performance. Contact us today for technical specifications or a customized quotation.
