24 DN600 GGG40 Body CF8M Disc Dual Plate Wafer Check Valve PN10 Reliable Valve Supplier

As a reliable valve supplier, we deliver the high-performance **24-Inch (DN600) Dual Plate Wafer Check Valve**. Engineered for large-diameter pipeline systems, it combines a robust **GGG40 Ductile Iron Body** with corrosion-resistant **CF8M (AISI 316 Stainless Steel) Discs**, ensuring dependable flow control and backflow prevention under **PN10** pressure rating. Its compact wafer design allows for easy installation between flanges, making it an ideal solution for water treatment, supply networks, and industrial cooling applications. Supported by mature manufacturing expertise, we offer a complete size range from **DN50 to DN600** to meet the diverse needs of your projects.

Model:
BFHV01-TA01
Brand:
OEM | ODM | WDS

Quantity:
Availability:





Inquire Add to Basket

Product Description

24" DN600 GGG40 Body CF8M Disc Dual Plate Wafer Check Valve PN10 | Reliable Valve Supplier

Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer

BFHV01-TA01-Operation and Maintenance Manual DOWNLOAD

BFHV01-TA01_05

Key Features & Advantages:

1. Robust Body Material

The valve body is made of **GGG40/500-7 Ductile Iron**, offering excellent strength, toughness, and impact resistance, guaranteeing long-term, stable performance within the pipeline system.

2. Superior Corrosion-Resistant Discs

The dual discs are manufactured from **CF8M (AISI 316 Stainless Steel)**, which provides superior corrosion resistance against chlorides and a wide range of chemicals compared to 304 stainless steel, significantly extending service life in demanding conditions.

3. Compact & Efficient Wafer Design

The wafer-style construction saves space and weight. It installs directly between pipeline flanges using through-bolts, eliminating the need for extra flange nuts and significantly reducing installation time and cost.

4. Reliable Backflow Prevention

The spring-assisted dual-plate design ensures quick response and tight closure, effectively preventing water hammer, reducing system shock and noise, and protecting upstream equipment.

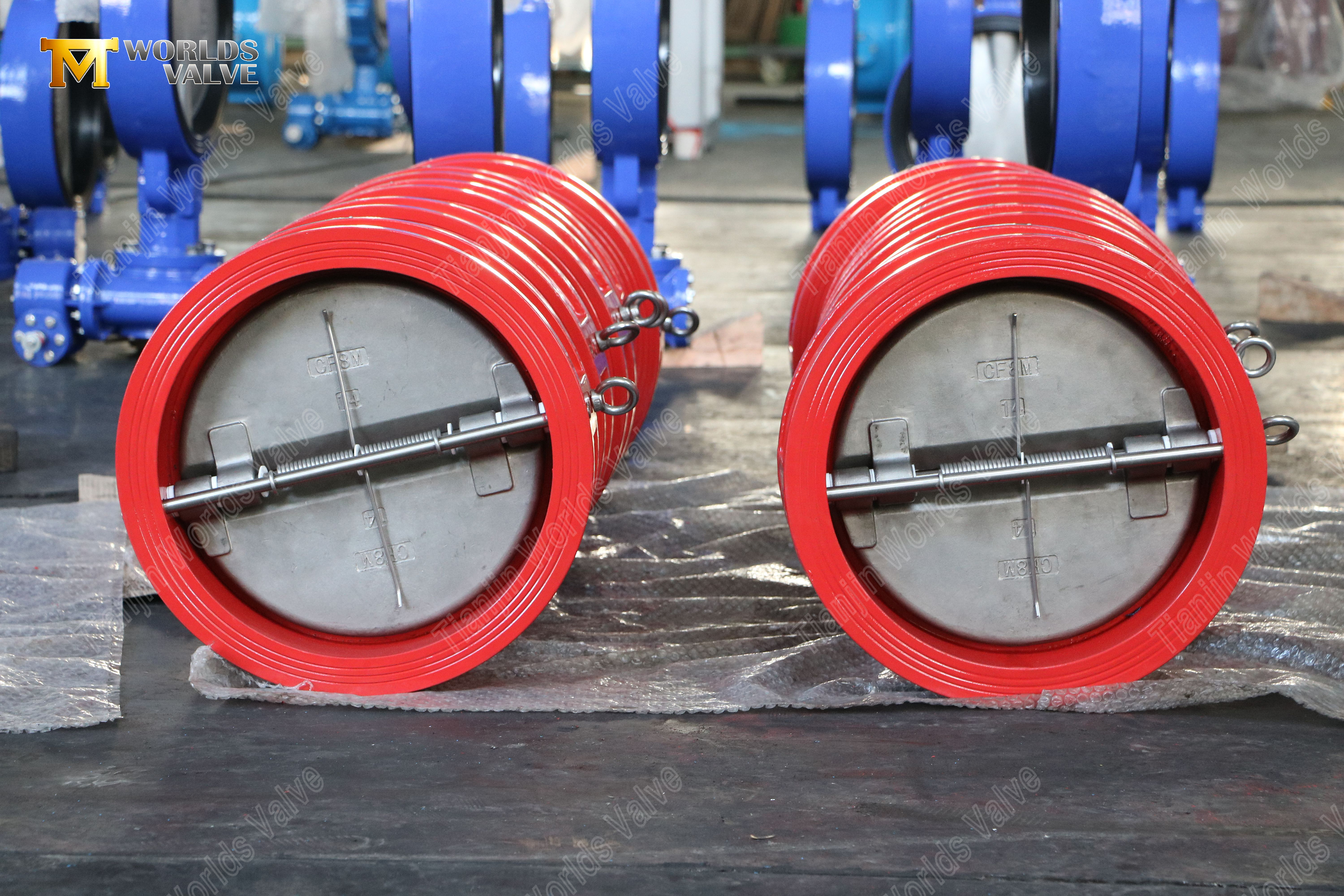

24-DN600-GGG40-Body-CF8M-Disc-Dual-Plate-Wafer-Check-Valve-PN10--Reliable-Valve-Supplier-4

Standard:

Parameter	Specification
Model	BFHV01-TA01
Sizes	DN50-DN600
Flange Pressure	PN10 PN16 150LB JIS10K AS “D” “E”
Design	DIN3356 GB/T12236
Testing	ISO5208
Face to Face	DIN3202 ISO5752
Body material	CI DI WCB SS
Disc	DI WCB SS AL-B
Seat	NBR EPDM FKM CR NR CSM

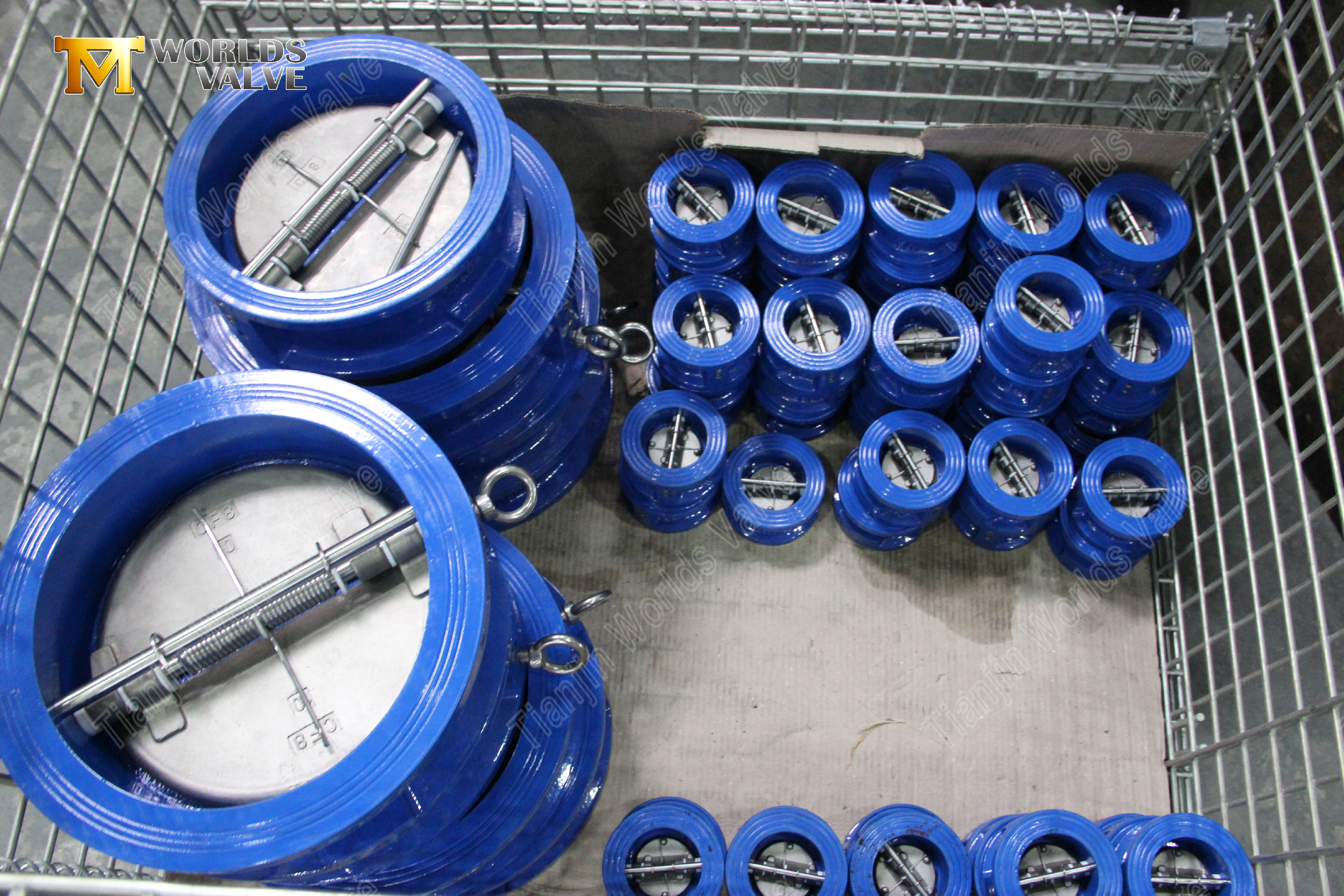

24-DN600-GGG40-Body-CF8M-Disc-Dual-Plate-Wafer-Check-Valve-PN10--Reliable-Valve-Supplier-5

Why Choose Us

1. Professional Manufacturing & Quality Control: We specialize in industrial valve manufacturing with extensive expertise in processing materials like GGG40 and CF8M. Our stringent quality control system ensures every valve meets design specifications throughout the entire process, from raw materials to finished product.

2. Flexible Production & Customization: We offer not only standard products but also flexible customized solutions based on specific client requirements regarding dimensions, materials, pressure ratings, and more.

3. Reliable Compliance: Our manufacturing processes and products can be aligned with relevant international and industry standards as required by our customers.

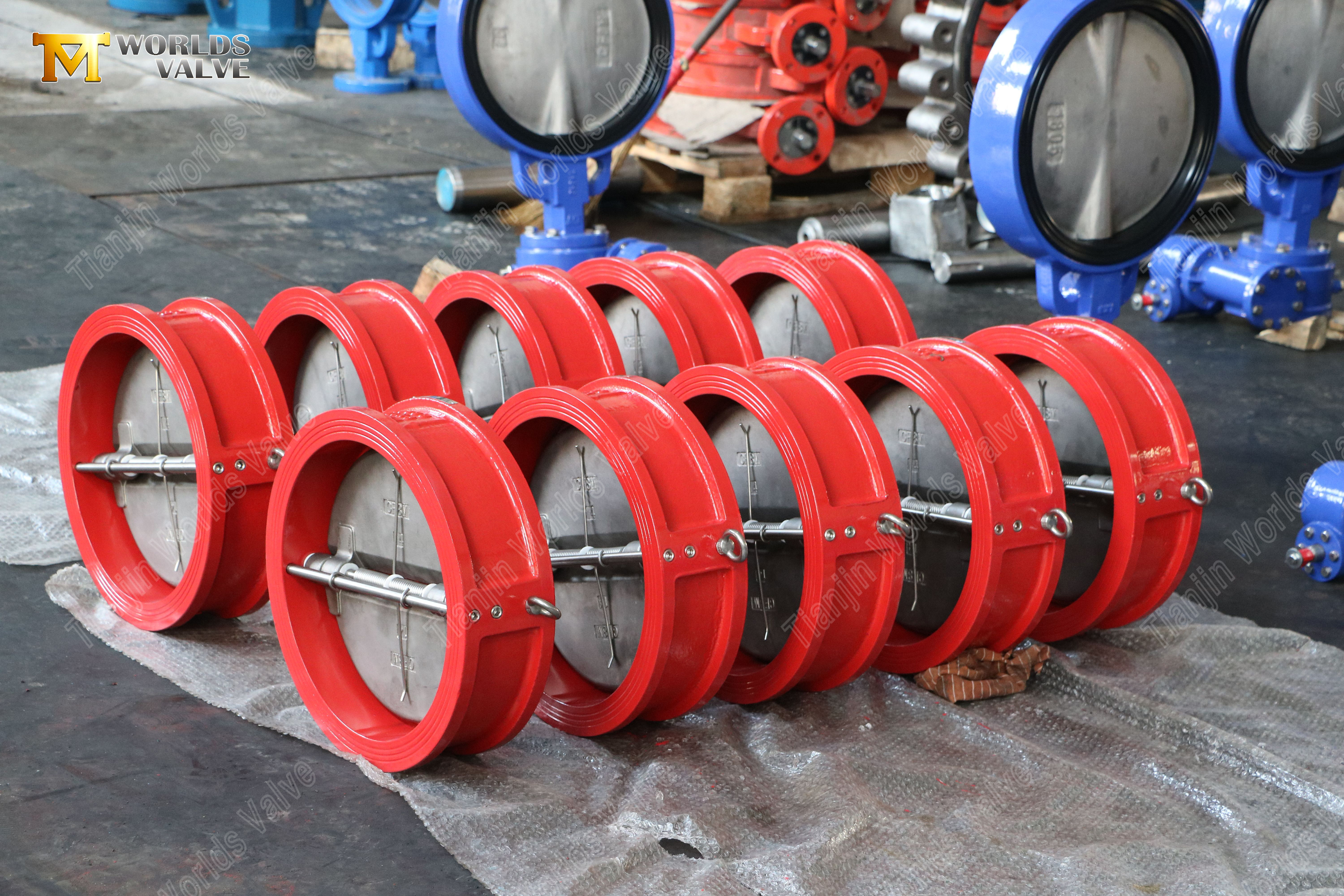

24-DN600-GGG40-Body-CF8M-Disc-Dual-Plate-Wafer-Check-Valve-PN10--Reliable-Valve-Supplier-3

Typical Applications

Municipal & Industrial Water Supply Networks
Water & Wastewater Treatment Plants
Building HVAC Systems
Industrial Cooling Water Circuits
Fire Protection Systems

Conclusion:

We are committed to providing reliable and cost-effective valve solutions. Pleasecontact us for detailed technical data, drawings, or consultation for your specific project.

Dual plate wafer check valve 24 inch check valve DN600 check valve GGG40 body check valve CF8M disc check valve pn10 check valve water check valve supplier silent check valve wafer type non return valve OEM check valve supplier
