Wafer Butterfly Valve Vs. Traditional Valve: Which One Delivers Better Efficiency, Cost, And Reliability?

Introduction

Have you ever wondered why some pipelines use wafer butterfly valves while others still rely on traditional gate or globe valves? Choosing the right valve directly impacts system efficiency, installation cost, and long-term maintenance. In this guide, we compare wafer butterfly valves with conventional valve solutions, highlight their advantages and limitations, and explain how Tianjin Worlds Valve Co., Ltd. — a certified ISO 9001 manufacturer with CE, UKCA, WRAS, and ACS approvals — helps customers worldwide select the best flow control solution for water treatment, HVAC, chemical, marine, and industrial applications.



Understanding Wafer Butterfly Valves

What Is a Wafer Butterfly Valve?

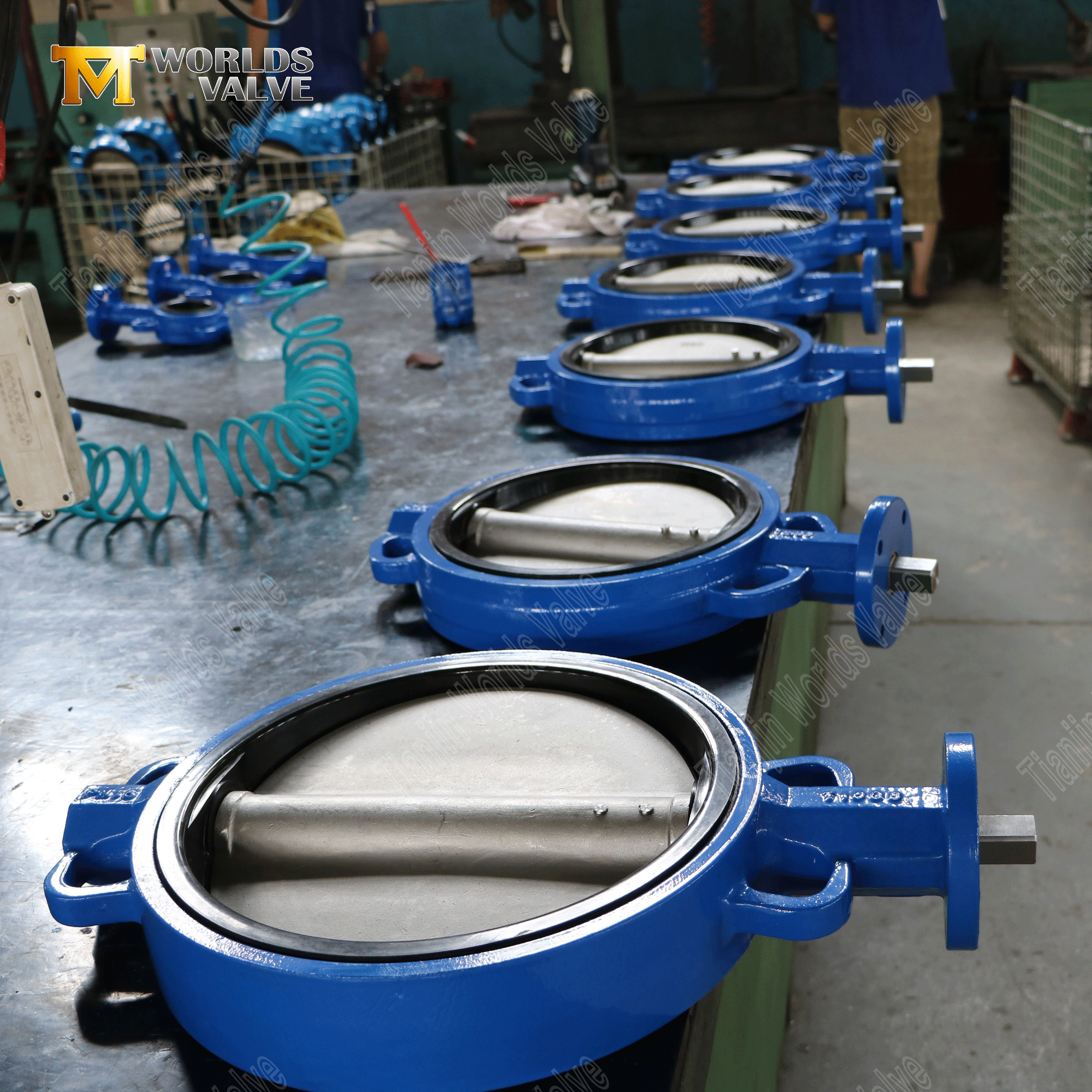

A wafer butterfly valve is a quarter-turn valve installed between two pipeline flanges. Its disc rotates 90°to start, stop, or modulate flow. This fast action makes it ideal for systems that require quick shut-off or frequent cycling. Unlike traditional multi-turn valves, a wafer butterfly valve is easier to operate, saves space, and reduces installation time. Common applications include water treatment plants, HVAC systems, industrial process lines, and fire protection networks.

Key Components and Material Flexibility

A wafer butterfly valve consists of the body, disc, stem, and seat. At Tianjin Worlds Valve, we manufacture all components with high-grade materials:

• Body: Ductile iron (GGG40), WCB carbon steel, CF8/CF8M stainless steel

• Disc: CF8, CF8M, duplex, super duplex, aluminum bronze, nylon-coated, PTFE‑lined

• Stem: SS416, SS304, SS316, Monel K500

• Seat: EPDM, NBR, Viton (FKM), PTFE–replaceable or vulcanized options

All materials are fully customizable (OEM/ODM) to match your exact media, temperature, and pressure requirements.

Advantages of Wafer Butterfly Valves

• Lightweight & compact: saves space and reduces pipeline weight

• Low pressure drop: improves energy efficiency

• Easy maintenance: fewer bolts, quick seat replacement (on most models)

• Cost-effective: lower upfront, installation, and lifecycle costs





Traditional Valve Solutions Overview

Common Types of Traditional Valves

Traditional valves include flanged butterfly valves, gate valves, and globe valves. They often use multi-turn mechanisms, offering precise flow regulation but requiring more time and effort to operate. They are preferred in high-pressure pipelines or systems that demand gradual flow adjustment.

• Flanged butterfly valves provide robust connections and handle high pressure effectively.

• Gate valves offer minimal pressure drop when fully open.

• Globe valves allow fine flow regulation.



Benefits of Traditional Valves

• Withstand extreme pressures and temperatures

• Allow end-of-line service and partial system isolation

• Compatible with a wide range of fluids (hot, cold, corrosive, abrasive)



Limitations Compared to Wafer Butterfly Valves

• Heavier and bulkier–requires more structural support

• Multi-turn operation slows emergency shut-off

• Higher maintenance and lifecycle costs

• Larger footprint–difficult for retrofits or compact pipelines



Wafer vs. Traditional Valve: Direct Comparison

Installation & Space Requirements

Wafer Butterfly Valve–Fits snugly between flanges, lightweight, easy alignment, minimal support needed.

Traditional Valve–Bulky, heavy, requires extra space and reinforcement.



Operational Efficiency

Wafer Butterfly Valve–90°quick operation, smooth flow, low pressure drop, automation-ready.

Traditional Valve–Slow multi-turn, higher pressure drop, less responsive.



Cost Considerations

Wafer Butterfly Valve–Lower material cost, reduced labor, lower lifecycle expense.

Traditional Valve–Higher material and installation cost, expensive maintenance.



Maintenance & Reliability



Wafer Butterfly Valve–Reliable sealing (EPDM, PTFE), simplified maintenance, accessible design.

Traditional Valve–Strong sealing but labor-intensive servicing.



How to Choose the Right Butterfly Valve

Assessing Application Requirements

• Medium compatibility–water, chemicals, oil, gas, seawater

• Temperature & pressure–match materials to operating conditions

• Operational frequency–frequent cycling favors wafer designs



Material and Seat Selection (Tianjin Worlds Valve Advantages)

As a leading OEM/ODM manufacturer, we offer complete customization:

• Seat options: EPDM (water/steam), NBR (oil/fuel), Viton (aggressive chemicals), PTFE (high-purity/wide temp)

• Body & disc materials: Ductile iron, WCB, CF8, CF8M, duplex, super duplex, aluminum bronze

• Coatings: Epoxy (any RAL color), nylon, PTFE lining

All materials are backed by mill test reports and full traceability.



Operation and Automation Options

• Manual: Hand lever or worm gear for simple on/off

• Automated: Electric or pneumatic actuators with ISO 5211 direct mounting

• Remote control: Limit switches, positioners, 4-20mA feedback for SCADA integration



Conclusion

Wafer butterfly valves offer a compact, fast, and cost-effective solution for most industrial applications, while traditional valves still hold advantages in certain high-pressure or specialized services. Tianjin Worlds Valve Co., Ltd. combines engineering expertise, flexible material selection, international certifications, and direct OEM/ODM support to deliver reliable butterfly valves that reduce installation time, lower energy loss, and minimize maintenance costs.

Contact us for a custom quote or to visit our factory. Whether you need a standard wafer butterfly valve or a fully customized solution with special materials and actuation, our team is ready to support your project.
