Product Overview

Tianjin Worlds Valve Co., Ltd. offers a wafer butterfly valve featuring a ductile iron (DI / GGG40) body, a C95400 aluminum bronze disc, a replaceable soft EPDM seat, and hand lever operation–available in sizes from DN50 to DN3000, with the model described here at 8 inches (DN200). This valve is engineered for reliable on/off control and basic throttling in seawater, marine, water treatment, HVAC, and general industrial applications where corrosion resistance, durability, and maintenance efficiency are critical.

Introduction:

Product Type: Wafer Butterfly Valve

Body Material: Ductile Iron

Disc Material: Aluminum Bronze (C954)

Seat Material: EPDM(Seat material options vary depending on the media or customer preference.)

Connection Type: Wafer

Size Range: DN50–DN3000

Pressure Rating:

PN10 / PN16 / PN25/ JIS 5K/10K / 150LB...

Top Flange: Available in ISO 5211 standard for direct actuator mounting

Operating Temperature Range: -20℃ to 120℃ (EPDM)

Customization: All materials, dimensions, and pressure ratings can be modified according to customer requirements.

Get More Info:

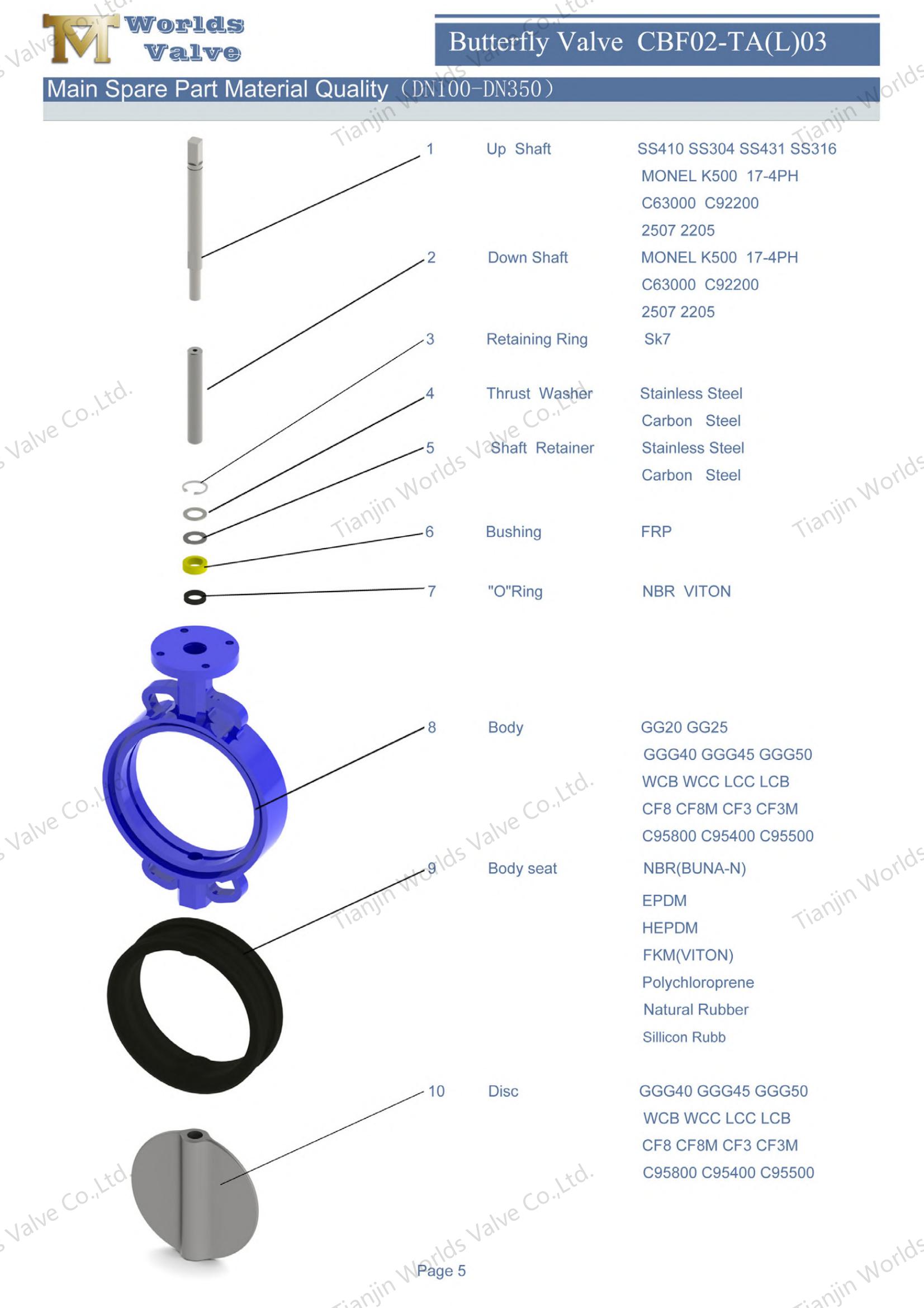

CBF02-TA03  The brochure/datasheet for this particular valve.

Key Features & Advantags：

1. C95400 Aluminum Bronze Disc – Superior Seawater & Corrosion Resistance

• C95400 offers outstanding resistance to corrosion, pitting, and erosion in seawater, brackish water, and aggressive environments.

• Provides high strength (minimum tensile strength 586 MPa) and impact resistance – reliable in frequent operation.

• Anti-dezincification and erosion-resistant properties extend service life in marine and corrosive conditions.

• Excellent resistance to wear, fatigue, and deformation under shock loading.



2. Ductile Iron Body – High Strength & Impact Resistance

• GGG40/500-7 ductile iron (conforming to ASTM A536 standards) delivers tensile strength exceeding 400 MPa (65 ksi) and excellent ductility.

• Provides high impact resistance and superior durability compared to gray cast iron.

• Epoxy coating (any RAL color) protects against external corrosion.



3. Replaceable EPDM Soft Seat–Easy Field Maintenance

• The EPDM seat can be replaced without removing the valve from the pipeline, significantly reducing downtime.

• No special tools required–simple disassembly allows quick restoration of bubble-tight sealing performance.

• EPDM offers excellent resistance to water, steam, ozone, and aging, with a temperature range of approximately -20°C to +120°C.



4. Hand Lever Operation–Simple & Intuitive Control

• 90° quarter-turn operation; lever position clearly indicates open (parallel to pipe) or closed (perpendicular).

• Locking plate allows basic flow regulation at intermediate positions.

• Ergonomic design requires low operating torque, suitable for frequent manual cycling.



5. Compact Wafer Design – Space-Saving Installation

• Installs directly between standard pipeline flanges using through-bolts.

• No companion flanges required – lightweight, compact footprint.

• Face-to-face dimensions conform to ISO 5752 / EN 558 Series 20.



6. Wide Size Range – DN50 to DN3000

• Covers everything from small branch lines (2″) to large-diameter water mains (120″).

• 8 inches (DN200) described; other sizes available upon request.

• Suitable for seawater, marine, water treatment, HVAC, and industrial applications.



7. Bubble-Tight Shut-Off in Both Directions

• Zero visible leakage sealing with no restriction in flow direction.

• Reliable performance even under low pressure conditions.

• Reduced pressure loss and energy costs.



8. Fully Customizable OEM/ODM Solution

• Body materials: Ductile iron (standard), WCB, CF8, CF8M.

• Disc materials: C95400 (standard), CF8, CF8M, duplex, super duplex.

• Seat materials: EPDM (standard), NBR, Viton, PTFE.

• Pressure ratings: PN10, PN16, Class 125, Class 150.

• Flange standards: EN 1092, ANSI B16.5, AS2129, JIS.

• Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.

Why Choose Tianjin Worlds Valve?

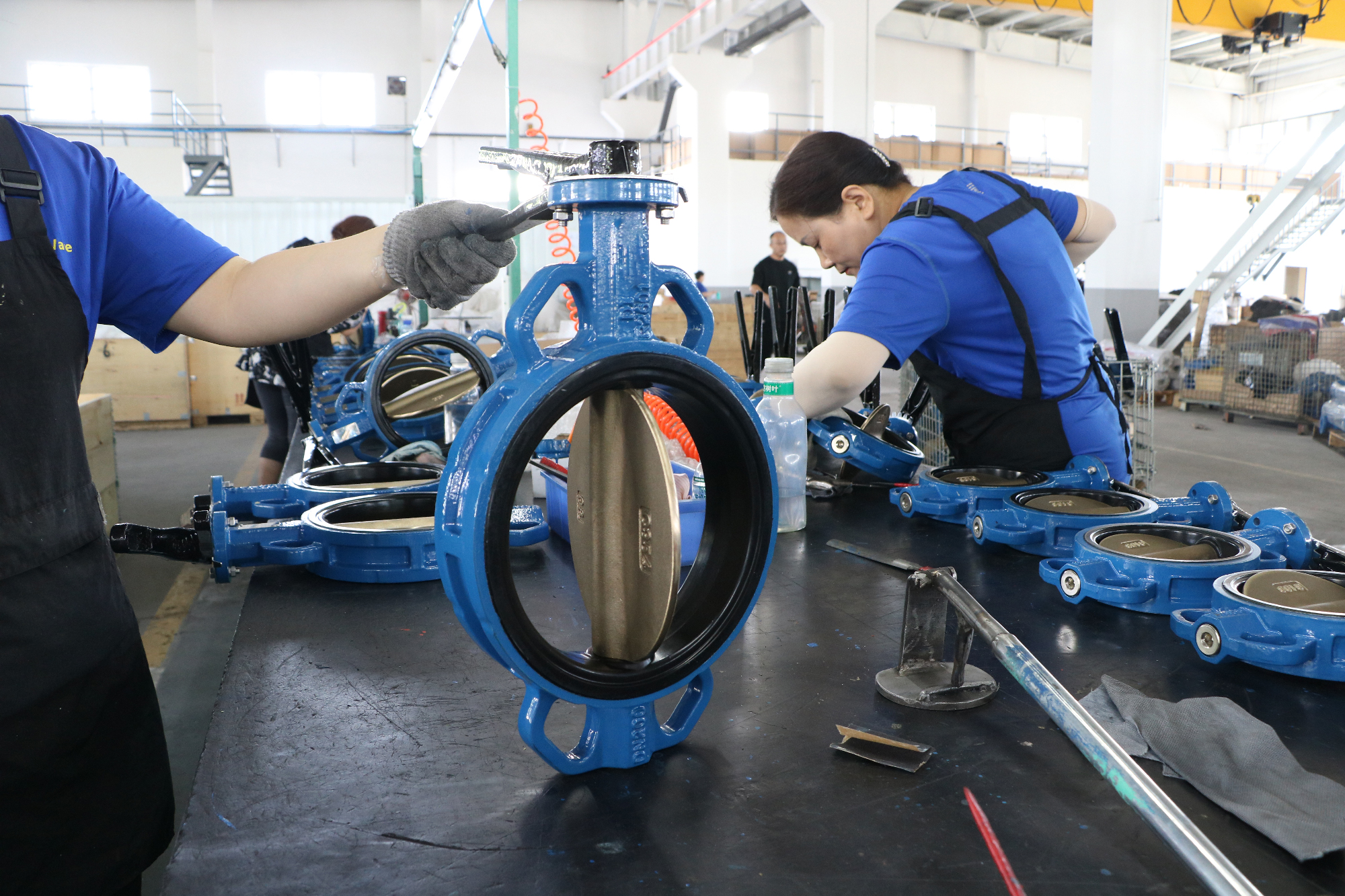

1. Direct OEM/ODM Manufacturer – We produce in our own ISO 9001 certified factory, not a trading company. Every wafer butterfly valve is manufactured to your exact specifications.

2. C95400 Aluminum Bronze Disc Advantage – Superior seawater and corrosion resistance, high strength (586 MPa tensile strength), and proven performance in marine applications.

3. Replaceable Seat Advantage – Field-serviceable EPDM seat reduces downtime and maintenance costs – only the seat needs replacement, not the whole valve.

4. Broadest Size Range – From DN50 to DN3000, covering small branch lines to large‑diameter water mains.

5. Certified Quality – ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request.

6. Full Documentation – Material certificates (mill test reports) and pressure test reports provided with every order.

7. Global Export Experience – Supplying valves to over 50 countries with reliable logistics and technical support.



Conclusion:

We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific size, material, and pressure requirements–whether you need a standard 8-inch wafer butterfly valve or a fully customized solution up to DN3000 with special materials or actuation.
