Are gaskets always needed for a lug butterfly valve? Choosing the right seal affects leaks and safety. In this article, we explore when gaskets are essential and you will learn installation tips, sealing methods, and best practices.

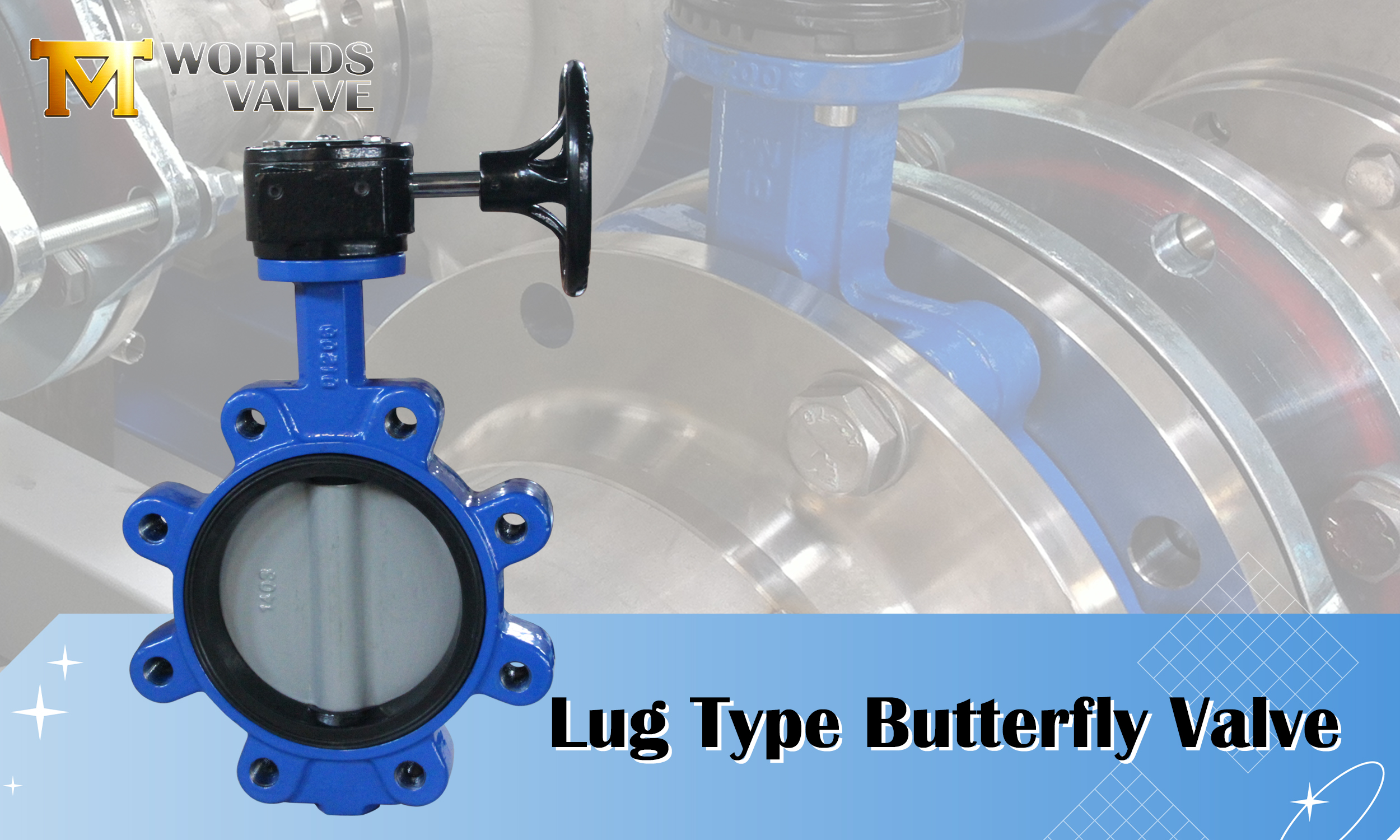

A lug butterfly valve is a quarter-turn valve featuring threaded lugs on both sides of the valve body. These lugs allow the valve to be bolted directly to pipeline flanges, providing a strong mechanical connection. The valve disc rotates 90 degrees to regulate flow, while the valve seat ensures proper sealing. Compared to wafer-style valves, lug valves are suitable for end-of-line applications in certain pressure ranges, although users must verify maximum allowable pressure ratings to ensure safety.
Lug valves often use soft seals such as EPDM, PTFE, or NBR. These materials rely on fluid pressure to maintain contact with the disc, providing effective sealing for low- to medium-pressure systems. High-pressure or high-temperature applications may require metal-to-metal seals or additional butterfly valve gaskets for reliable operation. Dual plate lug designs reduce water hammer, allow single-end maintenance, and provide excellent protection for sensitive pipelines.
Table 1: Key Differences Between Lug and Wafer Valves
Feature | Lug Butterfly Valve | Wafer Butterfly Valve |
Installation | Bolted via lugs | Clamped between flanges |
End-of-Line Use | Possible (check pressure rating) | Not recommended |
Maintenance | Single-end removal | Full line shutdown required |
Pressure Rating | Medium-high | Medium |
Thermal Expansion | Less sensitive | More sensitive |
Tip： Understanding valve construction and sealing compatibility is essential before deciding on gasket usage.
Lug butterfly valves are favored for their secure mounting, easy maintenance, and reliable sealing. Threaded lugs provide a strong mechanical connection that resists loosening caused by pressure fluctuations or thermal expansion. This makes them ideal for medium- to high-pressure pipelines where maintaining system integrity is critical.
A major advantage is single-end maintenance. Unlike wafer valves, which require full line disassembly, lug valves can be serviced from one side without affecting the other flange. This reduces downtime, lowers labor costs, and improves operational efficiency. Lug valves also exhibit higher thermal stability, making them suitable for pipelines experiencing temperature variations. Correct lug valve sealing, combined with proper gasket selection when necessary, ensures leak-free operation and protects downstream equipment.
Furthermore, lug valves improve safety in industrial systems. The evenly distributed threaded bolts prevent accidental loosening, while proper installation avoids uneven compression that could compromise sealing. In environments with high pressure, corrosive chemicals, or temperature fluctuations, lug butterfly valves with compatible gaskets offer a reliable and durable solution.
Tip： Select lug butterfly valves for systems where uptime, safety, and maintenance efficiency are priorities.
Sealing is critical to prevent leakage, maintain pressure, and ensure safe operation. Soft seals like EPDM, PTFE, and NBR work well in low- to medium-pressure systems, while metal-to-metal seals or gaskets are recommended for higher pressure or corrosive fluids. Proper lug valve sealing ensures system reliability, prevents fluid loss, and protects downstream equipment. Gaskets can fill minor gaps caused by flange imperfections or thermal expansion, maintaining consistent contact between the disc and valve seat. Regular inspection and maintenance of seals and gaskets help detect wear early, preventing unplanned downtime and ensuring longevity.
Tip： Schedule regular inspections of seals and gaskets to maintain leak-free operation.
Gaskets serve as an interface between the valve body and pipeline flange, filling gaps and enhancing sealing performance. Choosing the right butterfly valve gasket is crucial, considering fluid type, pressure, and temperature. Rubber gaskets are suitable for water or air systems, while PTFE or metal gaskets are recommended for chemical pipelines or high-temperature applications. Using the correct gasket prevents leakage, minimizes wear, and extends valve lifespan. Proper gasket placement also accommodates slight flange misalignments, ensuring uniform sealing and consistent performance.
Installation efficiency is a key advantage of lug butterfly valves. Threaded lugs allow direct bolting to flanges and support single-end removal. Correct butterfly valve installation involves proper flange alignment, recommended torque application, and careful gasket positioning. Misalignment or uneven torque can compromise valve performance and reduce the lifespan of seals and gaskets. Even in tight industrial setups, lug valves can be installed quickly without interfering with surrounding equipment, reducing labor and downtime.
Lug butterfly valves are designed to handle medium- to high-pressure applications. Threaded lugs ensure mechanical stability, even under fluctuating pressure. Temperature changes can impact sealing, and gaskets help accommodate thermal expansion to prevent leaks. Dual plate designs also reduce water hammer, protecting the pipeline and downstream equipment. Choosing proper valve gasket requirements guarantees reliable sealing under varying pressures and temperatures. Selecting materials capable of withstanding the system’s maximum pressure and thermal range is essential to prevent premature failure.
Lug butterfly valves are highly versatile and used across a wide range of industrial sectors. In water treatment, they prevent backflow and maintain pressure. Oil and gas pipelines benefit from high-pressure and temperature tolerance. In chemical processing, lug valves with suitable gaskets ensure safe handling of corrosive fluids. Power plants use lug valves in steam pipelines where pressure and thermal stability are critical. HVAC and industrial fluid systems use lug valves for low- to medium-pressure air and liquid control.
Selecting the correct gasket is vital for each application. PTFE is preferred for chemical pipelines, while EPDM or NBR works well for water systems. Proper installation and regular inspection ensure reliable valve and gasket performance. Matching valve type, gasket material, and operating conditions allows engineers to optimize system efficiency while minimizing maintenance costs.
When selecting a lug butterfly valve, the first step is to thoroughly evaluate the system’s pressure and temperature requirements. Low-pressure systems, such as water or HVAC pipelines, may only require soft seals like EPDM, NBR, or PTFE to maintain effective lug valve sealing. These soft seals offer elasticity, accommodate minor misalignments between the valve and flange, and provide adequate sealing without additional gaskets. However, as system pressures increase, especially in oil, gas, or chemical pipelines, soft seals alone may not provide sufficient protection against leakage. In these cases, supplemental butterfly valve gaskets or metal-to-metal seals are recommended to withstand high pressures and prevent fluid escape. Temperature variations also play a critical role. For systems operating at elevated temperatures, soft seals may degrade faster, compromising sealing efficiency. Metal or composite gaskets can maintain sealing integrity across a broader temperature range. Engineers should calculate maximum operating pressure, surge pressure, and expected thermal cycles to select a valve and seal combination that ensures reliable, leak-free operation, protecting downstream equipment from potential damage and minimizing unplanned downtime.
Tip： Always consult manufacturer pressure and temperature ratings and consider adding gaskets for high-stress conditions to prevent leaks.
End-of-line applications introduce unique challenges for lug butterfly valves. Unlike wafer-style valves, lug valves can be installed at the end of a pipeline, but the maximum allowable pressure must be verified. When installed as an end valve, the valve body is supported only on one side, which can reduce its effective pressure rating. In such configurations, a properly selected gasket becomes crucial to maintain a tight seal at the valve-flange interface. Ignoring these pressure limitations can result in gasket blowout, seal deformation, or valve failure, potentially causing leaks or system shutdowns. In addition, some high-pressure or high-temperature pipelines may require metal-reinforced gaskets to provide mechanical support and ensure sealing stability. Engineers should evaluate both operational pressures and valve material strength when considering end-of-line applications, ensuring that both the valve and the gasket can handle peak conditions safely. In practice, specifying gaskets that comply with standards such as ASME, API, or ISO ensures reliability, especially in critical systems where leakage could lead to safety hazards or environmental impact.
Tip： Verify manufacturer guidelines for end-of-line usage and always install gaskets designed for the system’s maximum pressure to avoid operational risks.
The type of fluid or gas transported through a pipeline significantly influences gasket selection and valve seat material for lug butterfly valves. Different media interact differently with valve seals and gaskets. For instance, water and non-corrosive liquids are compatible with standard EPDM or NBR gaskets. Oil and petroleum-based fluids may require FKM or PTFE gaskets due to chemical resistance. Corrosive chemicals, acids, and brines necessitate high-grade PTFE, metal, or composite gaskets that can withstand chemical attack without degradation. Steam pipelines, especially at high temperatures, require gaskets that maintain elasticity and compression under thermal expansion. Using incompatible gaskets can lead to chemical degradation, leaks, premature wear of the valve disc and seat, and potential system downtime. Engineers should consider not only the fluid’s chemical properties but also its pressure, temperature, and flow characteristics when selecting valve seats and gaskets. Proper media compatibility ensures reliable long-term operation, reduces maintenance frequency, and avoids costly emergency repairs.
Maintenance requirements play a significant role in gasket and valve selection. One of the key advantages of lug butterfly valves is their single-end removal capability, which allows maintenance personnel to access the valve without shutting down the entire pipeline. This design reduces downtime and simplifies gasket replacement. For systems with frequent operation or cyclical pressure changes, gaskets may experience higher wear and require regular inspection. Implementing a proactive maintenance schedule helps detect gasket or seal deterioration early, preventing leaks and minimizing unexpected maintenance costs. Additionally, valves in critical processes, such as chemical or power plant pipelines, benefit from gaskets that are easy to replace and resistant to repeated disassembly. Selecting gaskets with a longer service life or reinforced construction can further improve reliability, reduce labor costs, and ensure continuous operation without compromising safety or performance.
Proper installation is essential to ensure that a lug butterfly valve functions correctly and that gaskets maintain their sealing properties. Flange alignment, bolt torque, and gasket positioning are critical factors. Misaligned flanges can create uneven compression on the gasket, leading to leaks or premature failure. Similarly, applying excessive or insufficient torque on bolts can distort the valve body or the gasket, reducing its sealing capability. For pipelines with thermal expansion or vibration, selecting a gasket that accommodates movement while maintaining a tight seal is essential. Additionally, in compact installations or areas with limited space, the lug valve’s threaded lugs simplify installation, but careful attention must be paid to ensure proper alignment and uniform gasket compression. Following manufacturer-recommended installation procedures, including the sequence of bolt tightening and use of appropriate lubricants where applicable, ensures consistent gasket performance and long-term valve reliability.
Tip： Use proper torque specifications, alignment tools, and installation sequences to guarantee consistent gasket compression and reliable sealing.
Choosing the right lug butterfly valve is key for safe, leak-free operation. Gaskets play a vital role in maintaining tight seals under varying pressures and temperatures. Tianjin Worlds Valve Co., Ltd. provides durable, high-quality valves that make installation easier, reduce maintenance needs, and deliver reliable performance for long-term industrial use.
A: Not always. Gaskets depend on pressure, temperature, and sealing requirements for proper lug valve sealing.
A: It ensures a tight seal, prevents leaks, and supports reliable operation during butterfly valve installation.
A: Consider system pressure, media type, and maintenance needs. Proper gasket selection meets valve gasket requirements.
A: Yes, in low-pressure or non-critical applications, soft seals may suffice. High-pressure systems need a gasket.
A: Gaskets improve leak protection, enhance durability, and simplify maintenance during installation or replacement.
