Valve Type | Wafer Butterfly Valve (Concentric / Center-line) |
Body Material | Ductile Iron (GGG40 / 500-7) |
Disc Material | CF8 Stainless Steel(AISI 304) |
Seat Material | EPDM (Replaceable / Field-Serviceable) |
Pressure Rating | PN16 (16 bar / 232 psi) |
Operation | Turbo Gear Operator (self-locking with position indicator) |
Top Flange | ISO 5211 |
Coating | Epoxy Resin Black (any RAL color, standard 250μm thickness) |
Customization: All materials, dimensions, and pressure ratings can be modified according to customer requirements

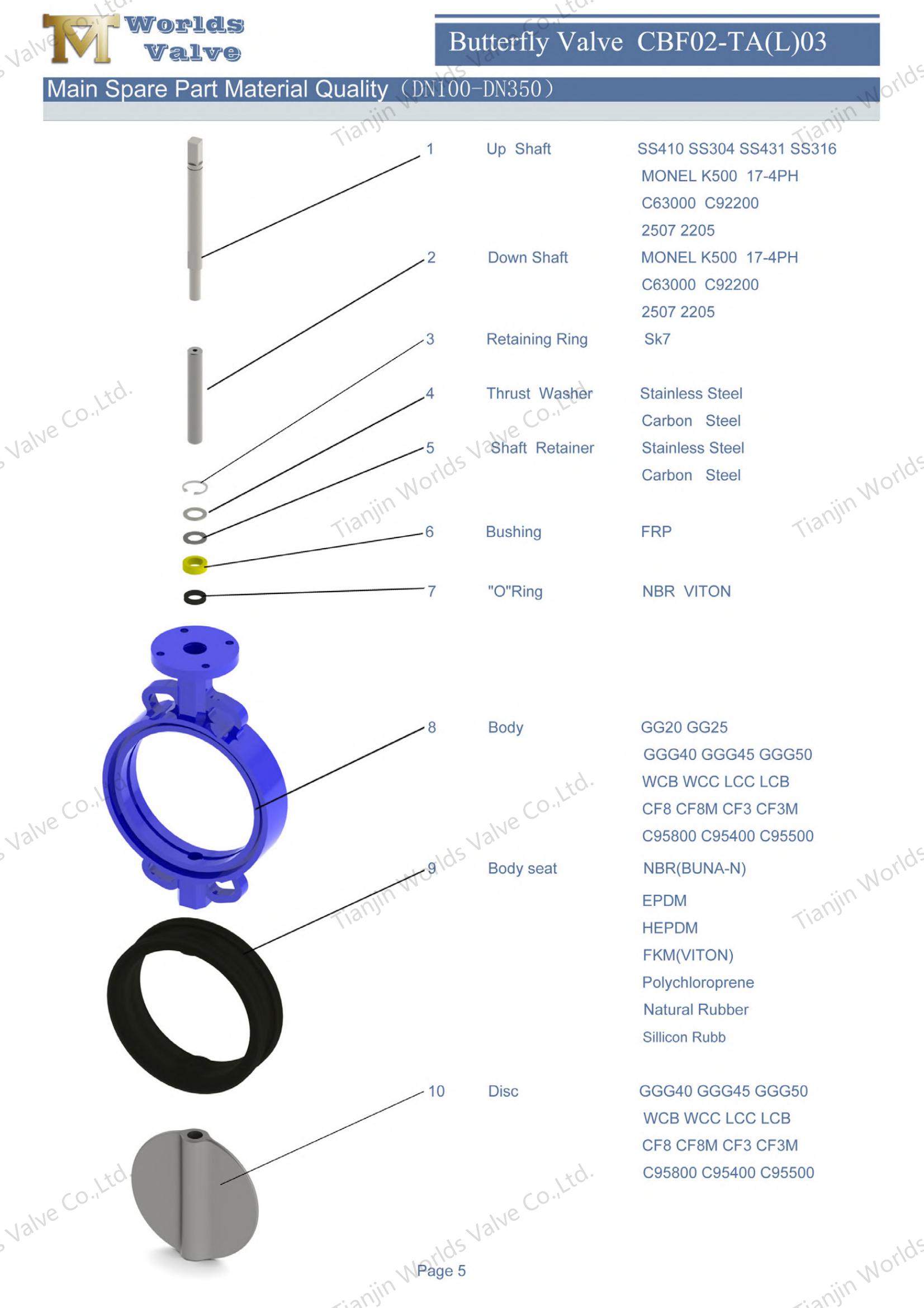

Type: CBF02-TA03--Product Catalog
Lightweight and Space-Saving–The wafer design eliminates integral flanges, reducing overall weight and allowing installation in tight piping layouts where space is limited.
Fast Installation–Simply center the valve between two standard pipe flanges and tighten the flange bolts. No special tools or complex procedures required.
Lower Cost–With less material and simpler machining than lug or flanged designs, wafer valves offer excellent value for general-purpose applications.
High Strength–Ductile iron offers approximately twice the tensile strength of gray iron, providing reliable performance under PN16 pressure surges.
Impact Resistance–The nodular graphite structure withstands mechanical shock and pipeline vibration.
Corrosion Protection–Combined with standard epoxy coating (250μm minimum), the body resists corrosion in water and wastewater service.
Replaceable Seat Design–The seat is not bonded to the body but mechanically retained, allowing replacement in the field without removing the valve from the pipeline–simply loosen the disc, swap the seat, and reassemble.
Excellent Water Resistance–EPDM offers outstanding resistance to water, steam, and outdoor weathering, making it ideal for water supply, wastewater, and HVAC applications.
Wide Temperature Range–Maintains sealing properties from -20℃ to +120℃, covering the full range of typical water system operating temperatures.
Good Corrosion Resistance–CF8 provides reliable resistance to oxidation and corrosion in water, mild chemicals, and atmospheric exposure.
Non-Toxic and Safe–Suitable for potable water and general service applications.
Durable and Lightweight–Offers good mechanical strength while keeping the disc weight manageable for smooth operation.
Self-Locking Design–The gear operator is self-locking, so the disc stays in position even under flow pressure–no need for additional locking devices.
Open-Close Position Indicator–Built-in indicator shows valve position at a glance, making it easy for operators to confirm open/closed status.
Reduced Operating Torque–The gear ratio multiplies manual input torque, making operation smooth and effortless–particularly important for 14-inch valves where hand lever torque is too high for comfortable operation.
