CBF02-TA03
OEM | ODM
| Quantity: | |
|---|---|
Tianjin Worlds Valve Co., Ltd. offers a wafer butterfly valve featuring a ductile iron (DI / GGG40) body, a CF8 (AISI 304) stainless steel disc, an EPDM seat, and an SS431 stainless steel stem–engineered for reliable on/off control and basic throttling in water treatment, HVAC, and general industrial applications.
Tianjin Worlds Valve Co., Ltd. operates under an ISO 9001 certified quality management system and can supply products with CE, UKCA, WRAS, and ACS certifications upon request. We are a direct China-based OEM/ODM manufacturer, producing valves strictly to customer specifications. All materials-body, disc, seat, stem, pressure rating, flange standard, coating color, and actuation–are fully customizable. Full documentation (material certificates with mill test reports and pressure test reports) is provided with every order.

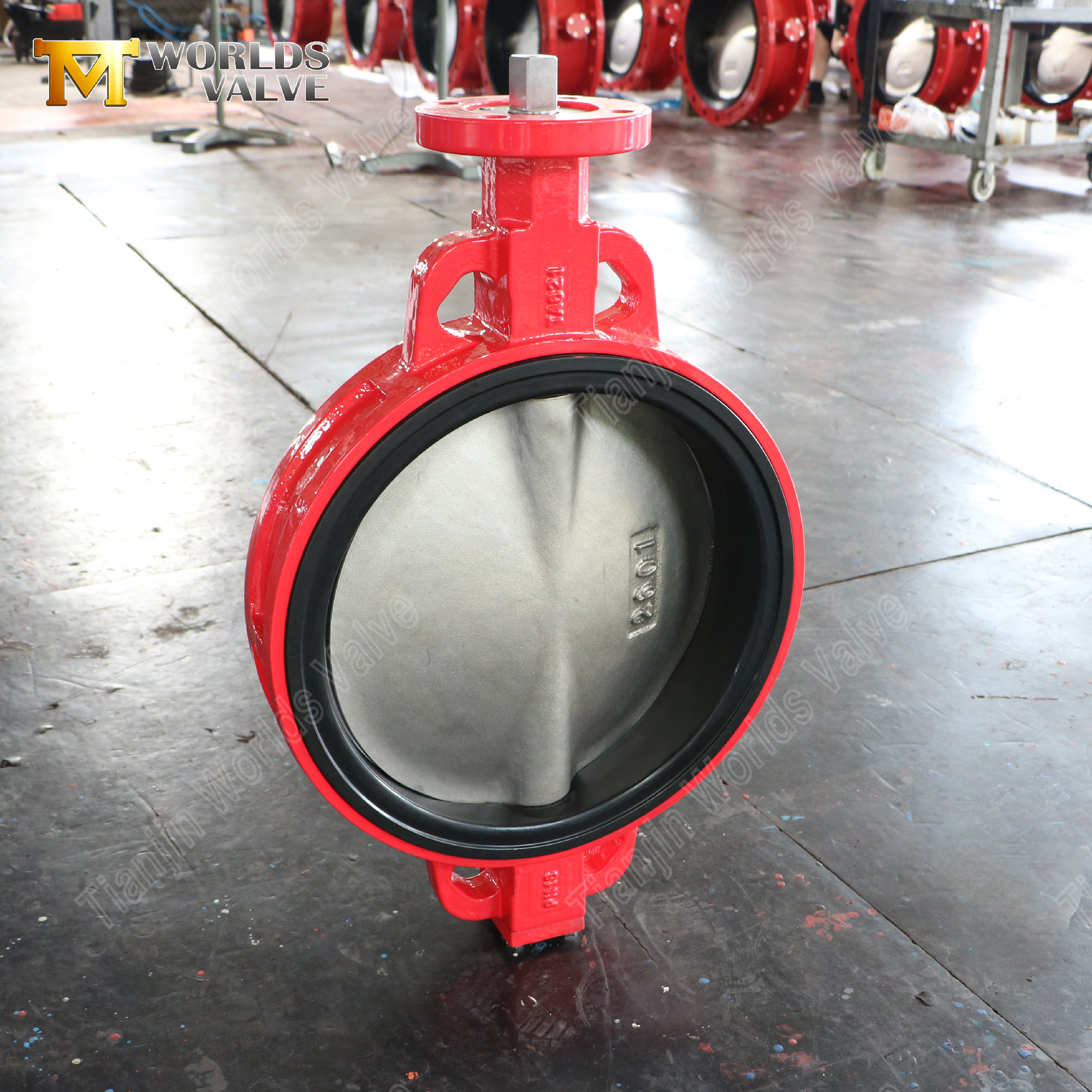

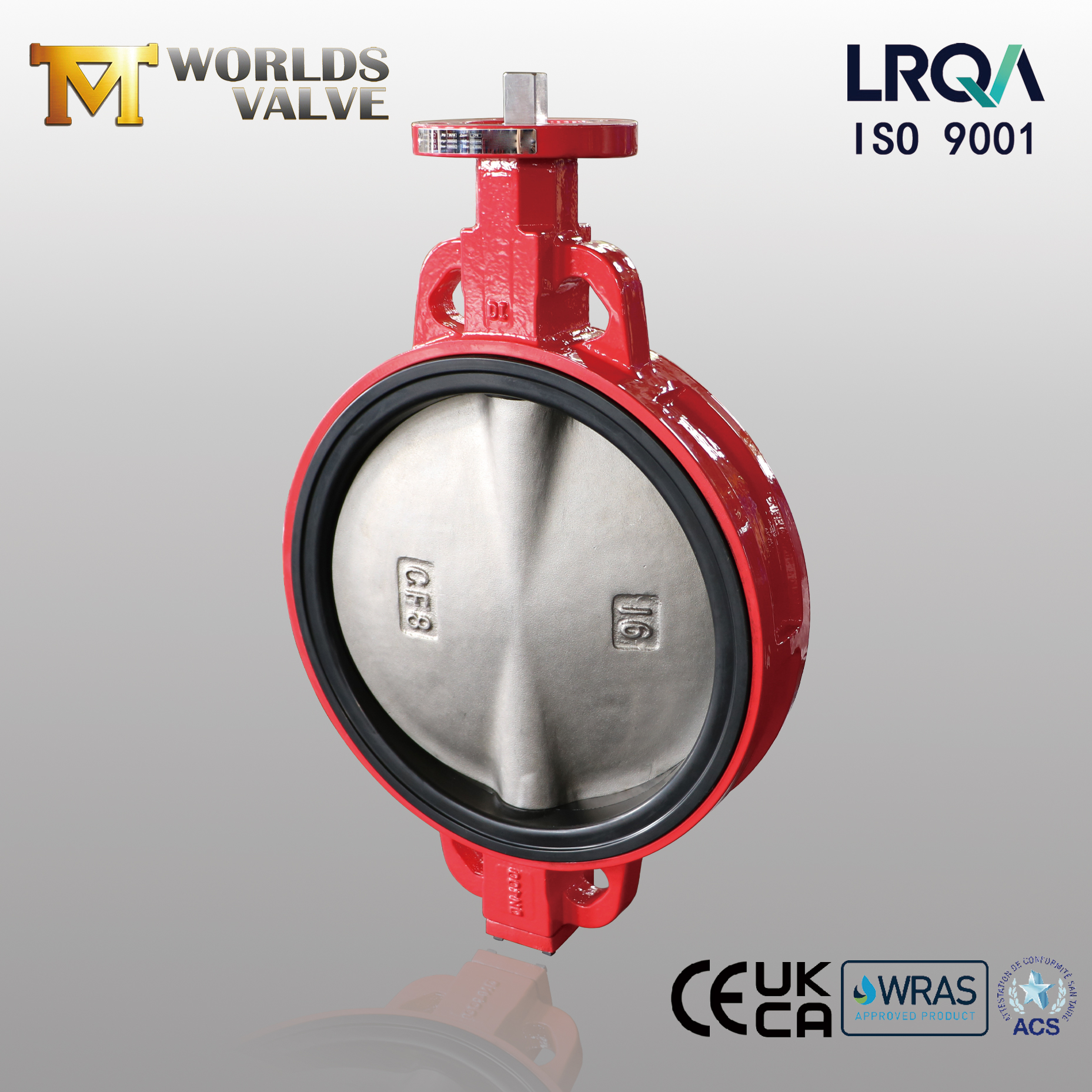

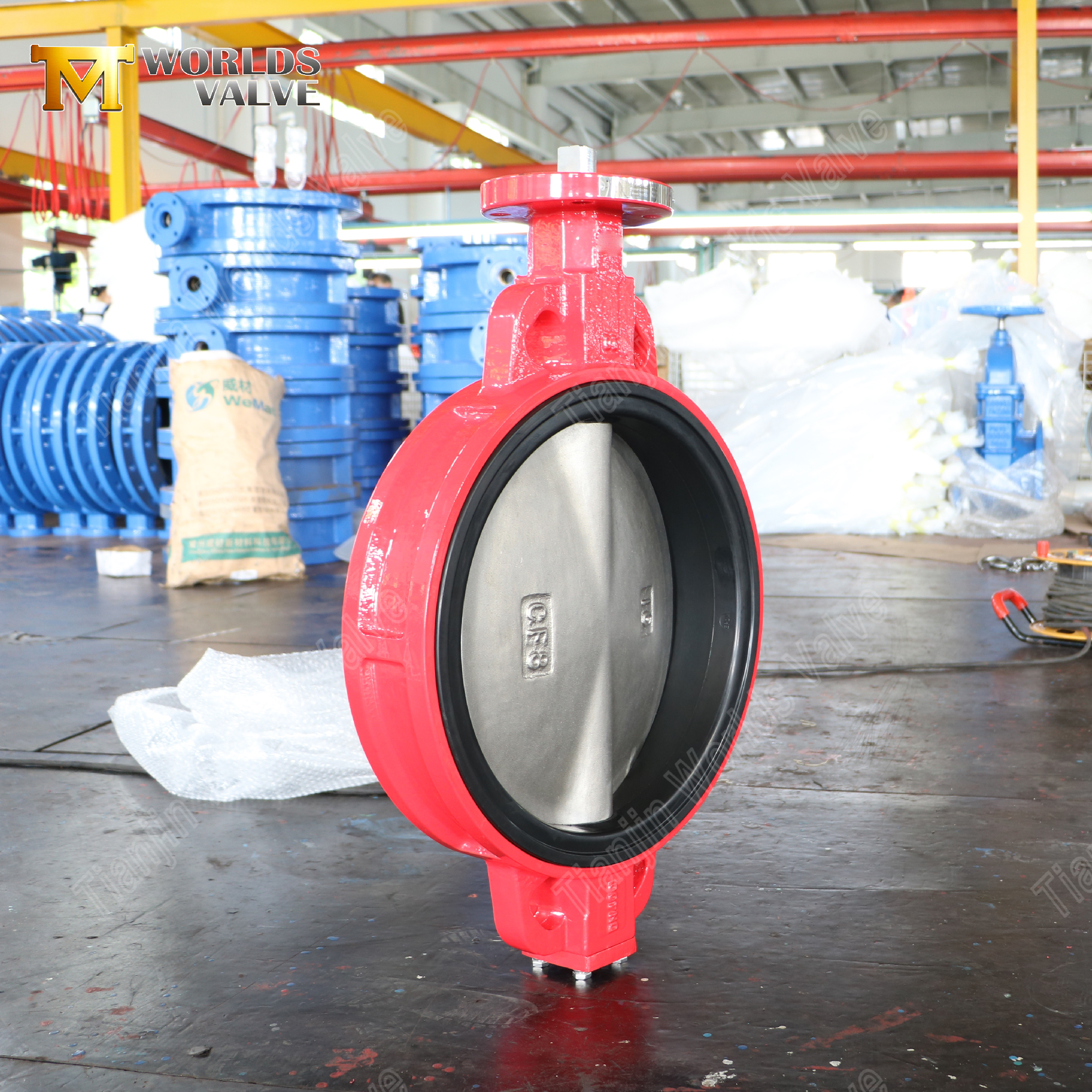

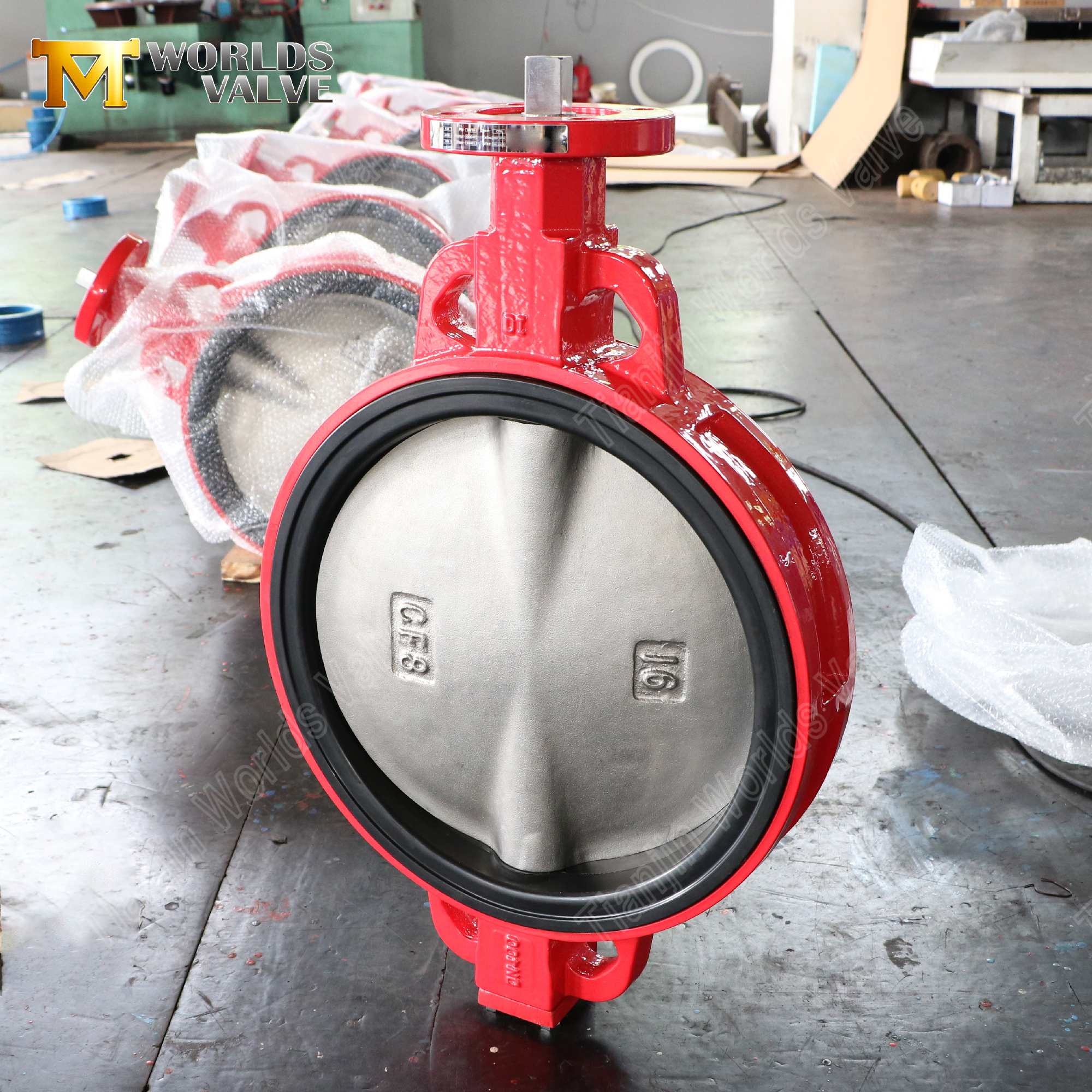

Wafer Butterfly Valve | Ductile Iron Body | CF8 Disc | EPDM Seat
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control
CBF02-TA03 - Detailed Product Info
1. Ductile Iron Body–High Strength & Impact Resistance
GGG40/500-7 ductile iron delivers tensile strength exceeding 400 MPa (65 ksi) and excellent elongation.
Provides high impact resistance and superior durability compared to gray cast iron.
Epoxy coating (any RAL color) protects against external corrosion.
2. CF8 Stainless Steel Disc–Corrosion Resistant & Cost-Effective
CF8 (ASTM A351 Grade CF8 / AISI 304) offers good corrosion resistance for water and mild chemicals.
Smooth surface finish minimizes flow resistance and prevents media buildup.
Suitable for acids, alkalis, and neutral salt solutions.
3. EPDM Seat–Bubble-Tight Sealing for Water & HVAC Service
Excellent resistance to water, steam, ozone, UV, and aging.
Suitable for weak acid and weak alkali media.
Temperature range: approximately -20℃to +120℃.
4. SS431 Stainless Steel Stem–High Strength & Corrosion Resistance
Martensitic stainless steel offering one of the best combinations of corrosion resistance, high strength, and impact toughness among stainless steels.
High tensile and torsional strength–ideal for valve stem applications.
Better corrosion resistance than 420 stainless steel and excellent wear resistance.
5. Compact Wafer Design–Space-Saving Installation
Installs directly between standard pipeline flanges using through-bolts.
No companion flanges required–lightweight, compact footprint.
Face-to-face dimensions conform to ISO 5752 / EN 558 Series 20.
6. 100% Bi-Directional Tight Shut-Off
Zero visible leakage sealing with no restriction in flow direction.
Reliable performance even under low pressure conditions.
Reduced pressure loss and energy costs.
7. Fully Customizable OEM/ODM Solution

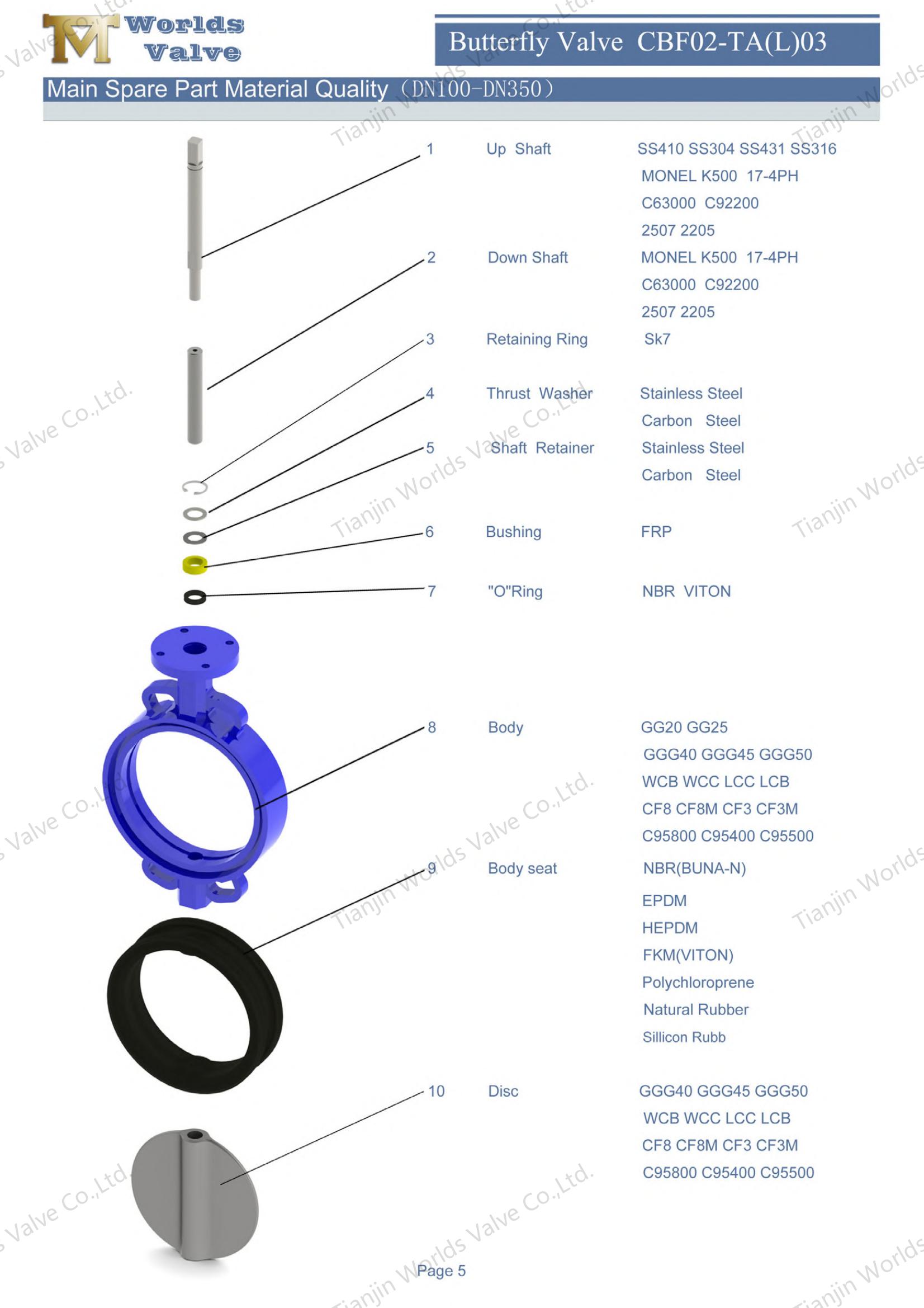

Body materials: Ductile iron (standard), WCB, CF8, CF8M.
Disc materials: CF8 (standard), CF8M, aluminum bronze, duplex.
Seat materials: EPDM (standard), NBR, Viton, PTFE.
Stem materials: SS431 (standard), SS304, SS316, SS420.
Pressure ratings: PN10, PN16, Class 125, Class 150.
Flange standards: EN 1092, ANSI B16.5, AS2129, JIS.
Operation: Hand lever, worm gear, electric actuator, pneumatic actuator.
Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.
Parameter | Available Options |
Valve type | Wafer Butterfly Valve（CBF02-TA03） |
Nominal size | Sizes Available(DN50-DN2000) |
Disc material | Stainless Steel (CF8) |
Seat material | EPDM |
Body material | Ductile iron (with epoxy coating); CF8, CF8M, AL-B,WCB, ... |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | PN10 / PN16 / Class 150LB/ JIS5K/10K (customizable) |

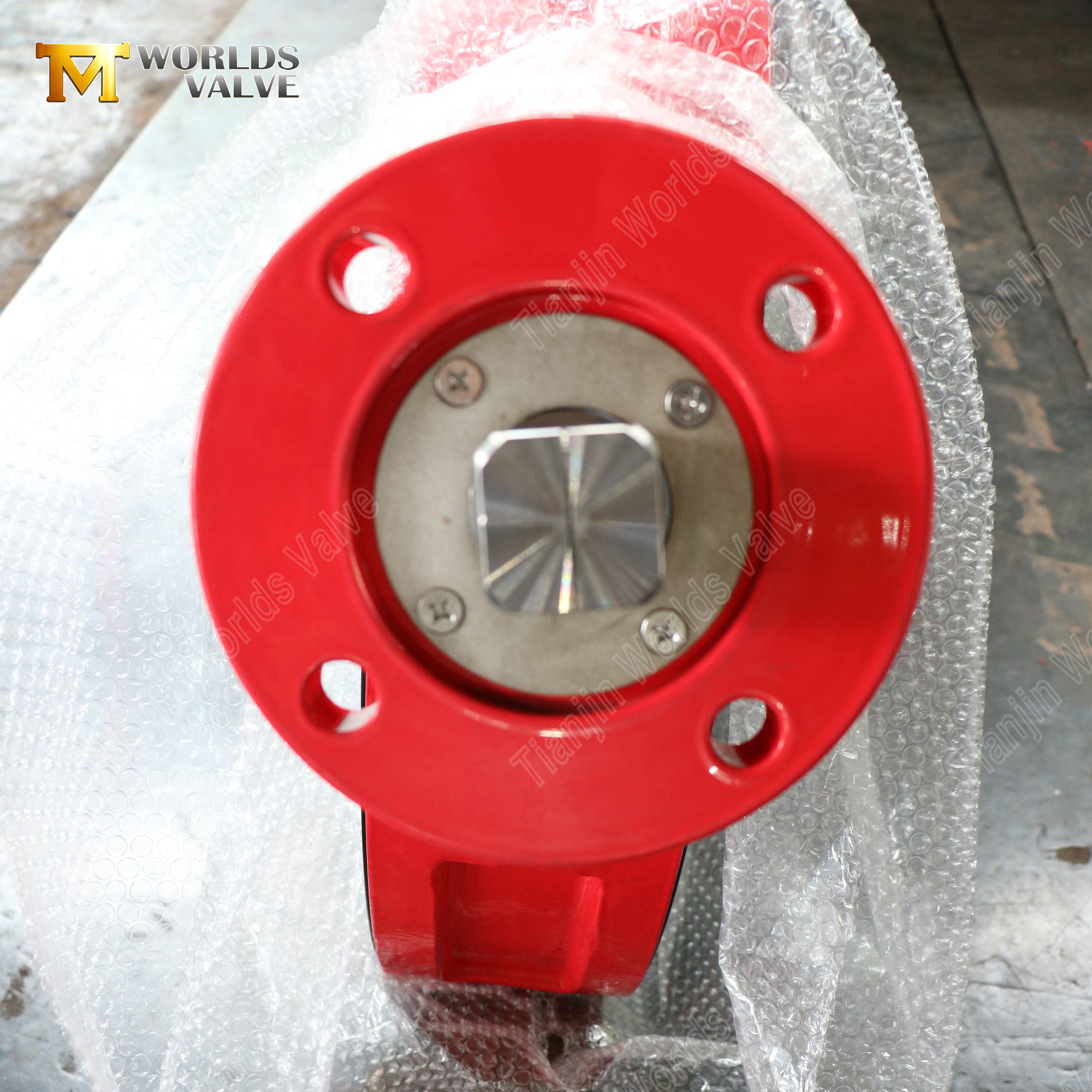

Top flange | ISO 5211 optional for actuator mounting |
Applicable Media | Acids, alkalis, solvents, seawater, brine, high-purity water, chemicals |
Direct OEM/ODM Manufacturer–We produce in our own ISO 9001 certified factory, not a trading company. Every wafer butterfly valve is manufactured to your exact specifications.
Material Flexibility–Body, disc, seat, stem, pressure rating, flange standard, and coating color are all customizable to match your specific media and temperature requirements.
SS431 Stem Advantage–High strength and corrosion resistance combination–superior to 420 stainless steel–ensures reliable torque transmission and long‑term durability.
EPDM Sealing Performance–Bubble-tight sealing for water, HVAC, and mild chemical services with excellent resistance to aging and weathering.
Certified Quality–ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request.
Full Documentation–Material certificates (mill test reports) and pressure test reports provided with every order.
Global Export Experience–Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific size, material, pressure, and actuation requirements–whether you need a standard wafer butterfly valve or a fully customized solution with special materials or actuation.
