CBF02-TA01
OEM | ODM | WDS
| Quantity: | |
|---|---|

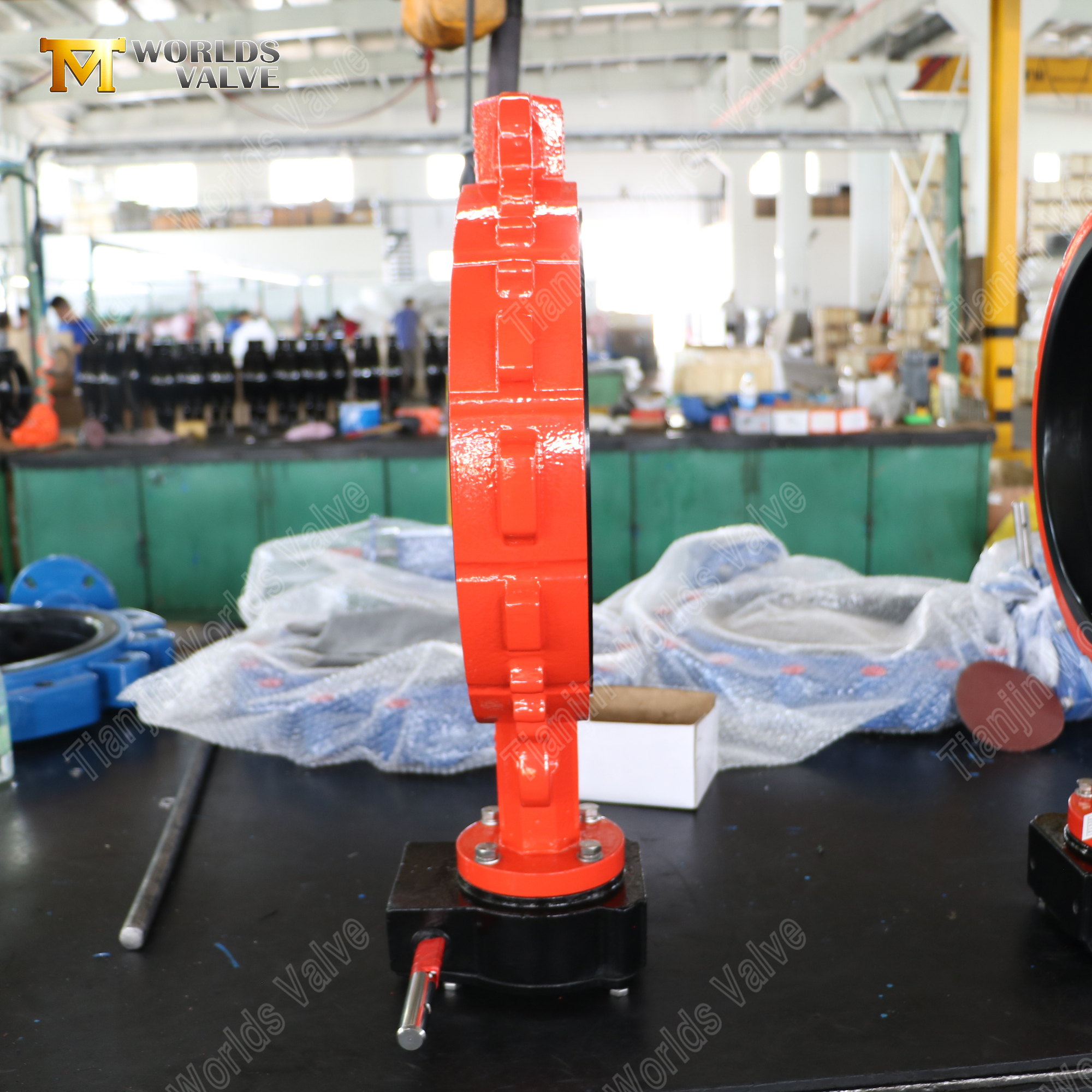

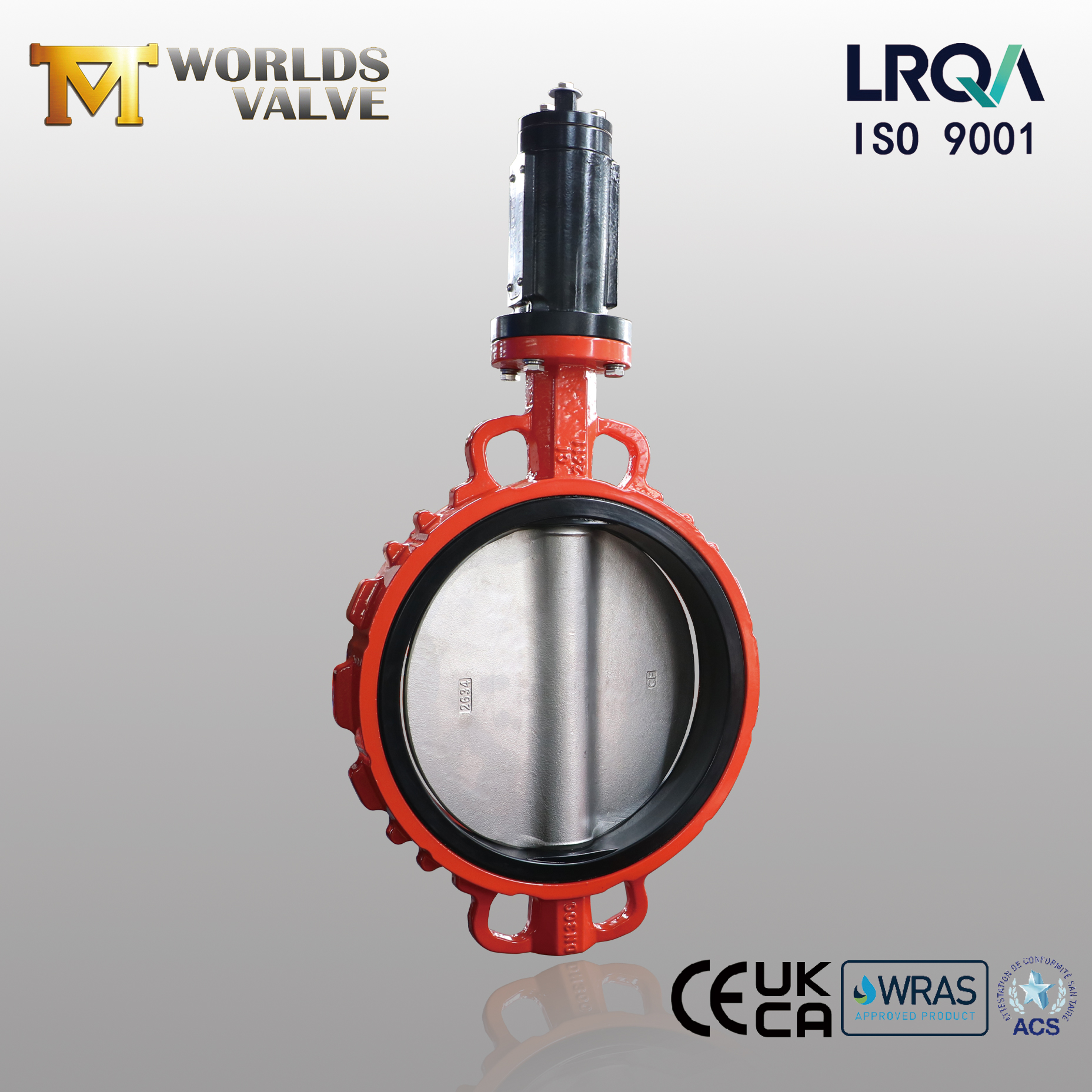

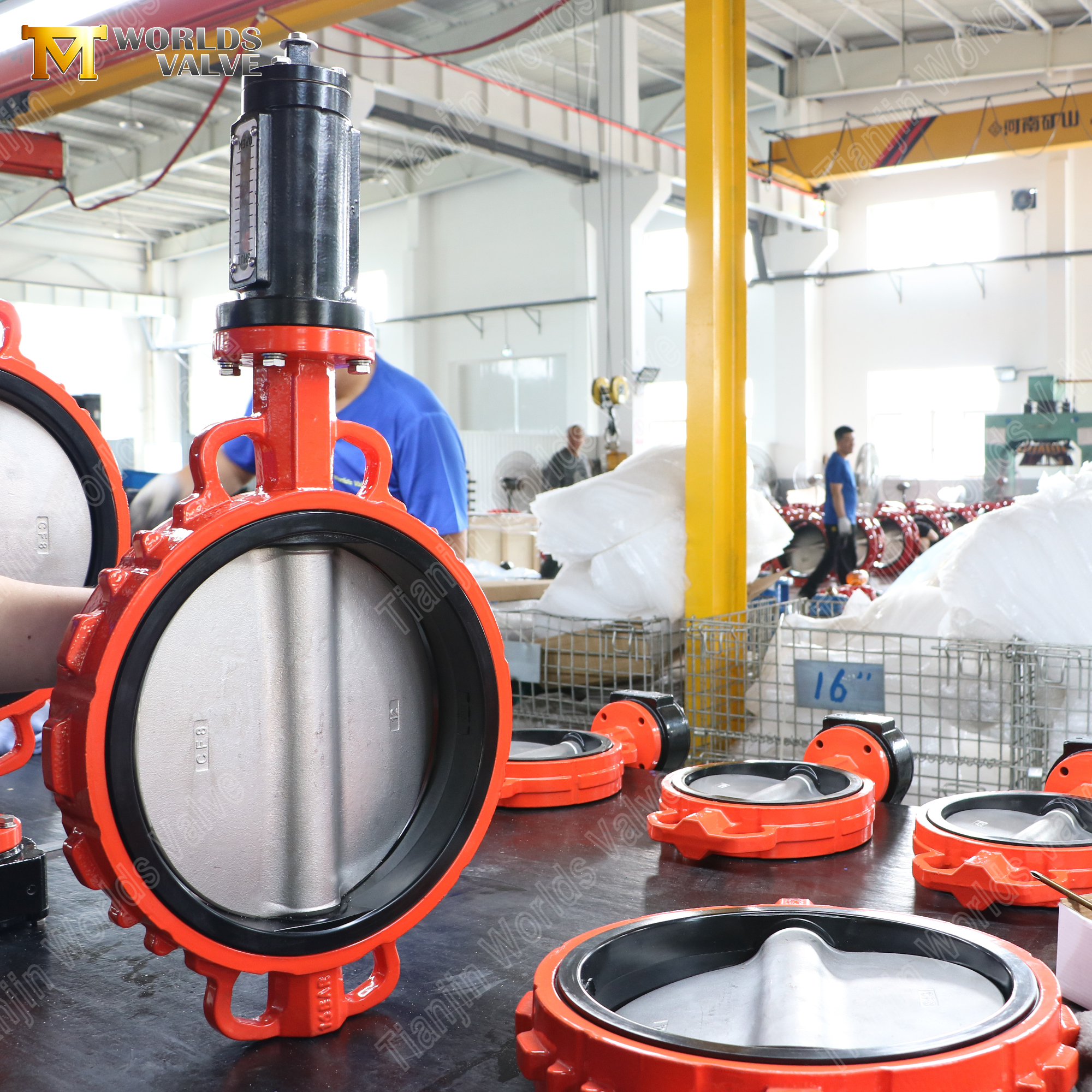

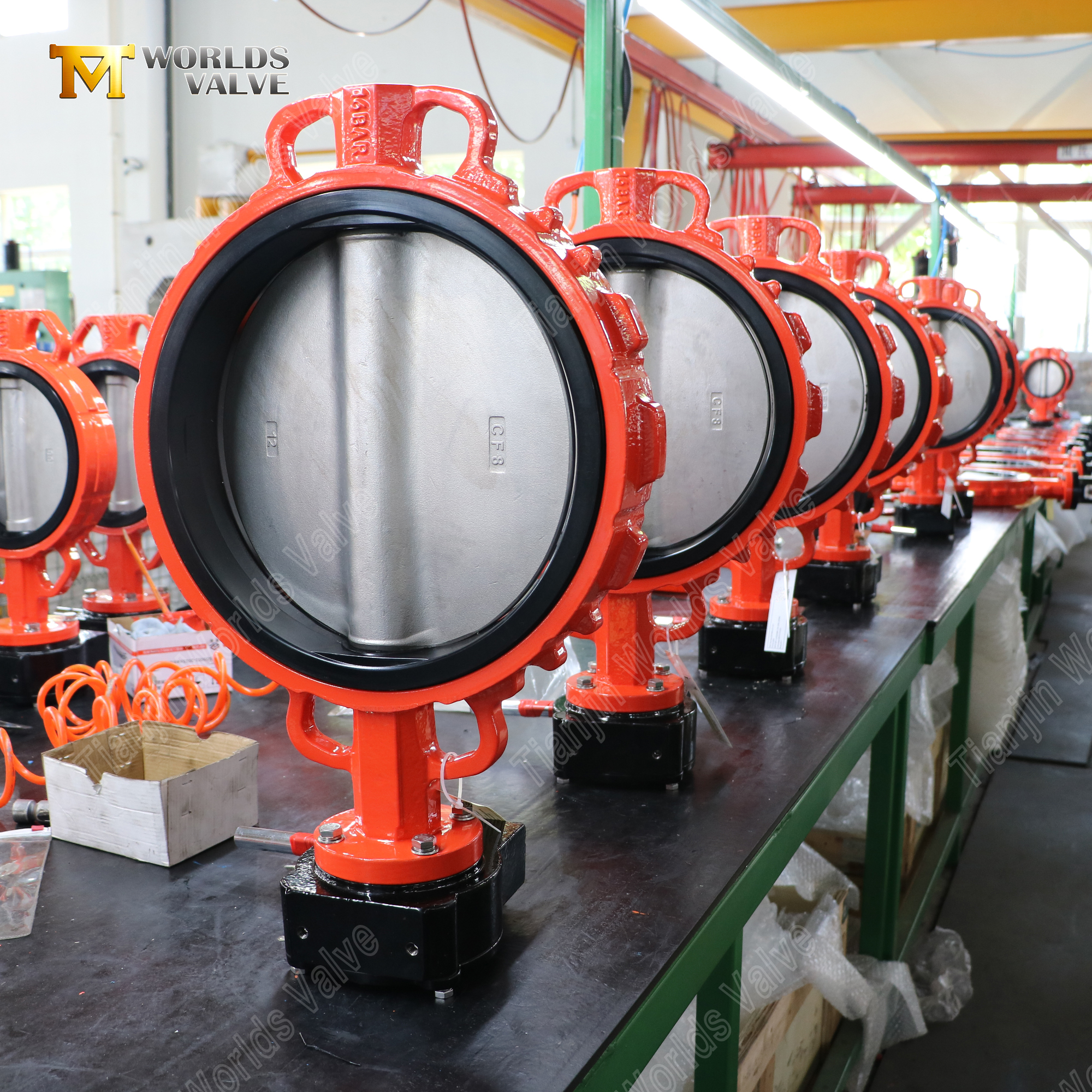

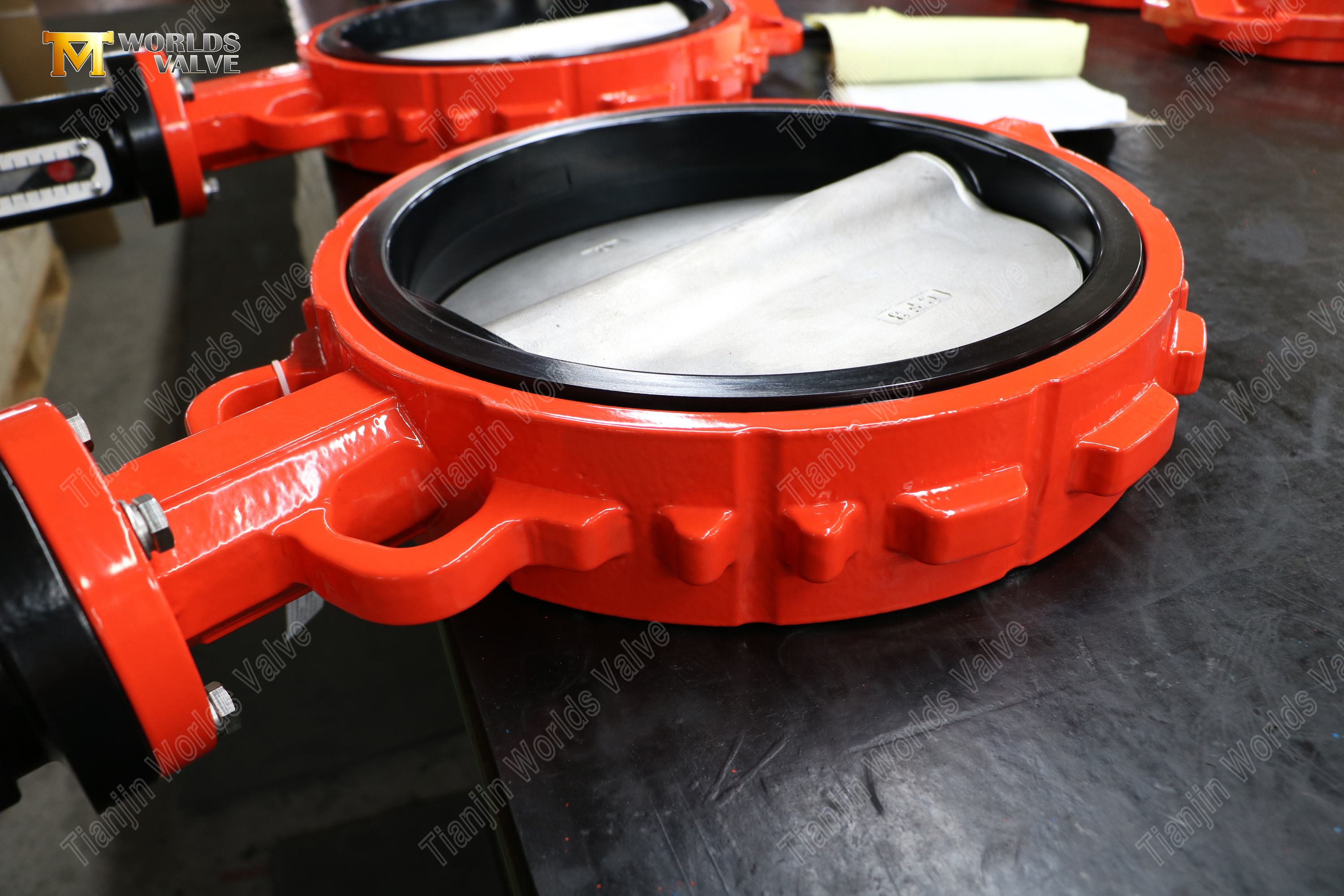

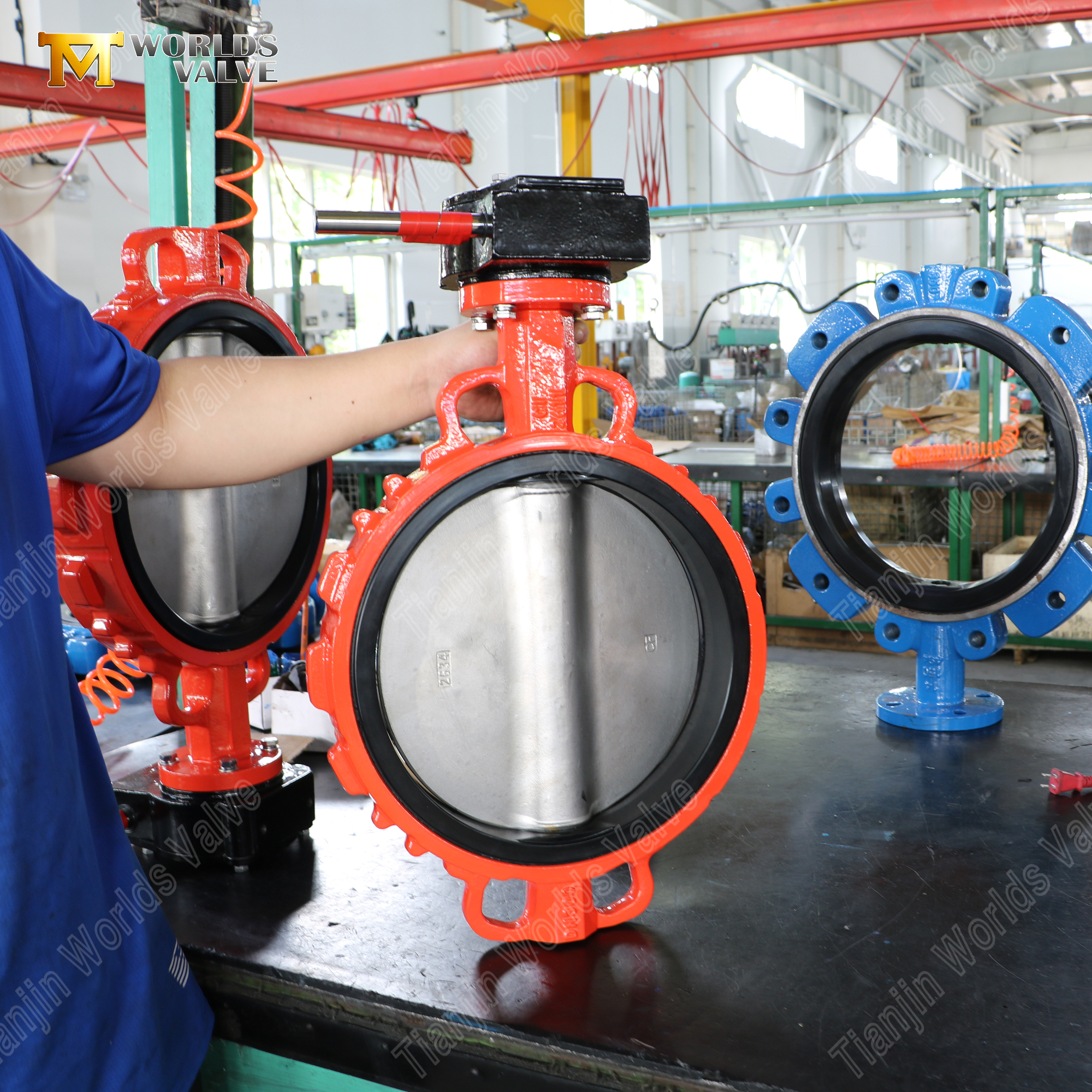

Tianjin Worlds Valve Co., Ltd. offers a wafer butterfly valve featuring an ASTM A126 Class B cast iron body, a CF8 (AISI 304) stainless steel disc, an NBR (nitrile rubber) seat, and an AISI 420 stainless steel stem–rated for 16 bar (PN16) service. This valve is engineered for reliable on/off control and basic throttling in water distribution, HVAC, and general industrial applications where cost-effectiveness and dependable sealing are priorities. The valve body is finished with a RAL 2002 (orange red) epoxy coating for enhanced corrosion protection and visibility in industrial environments.

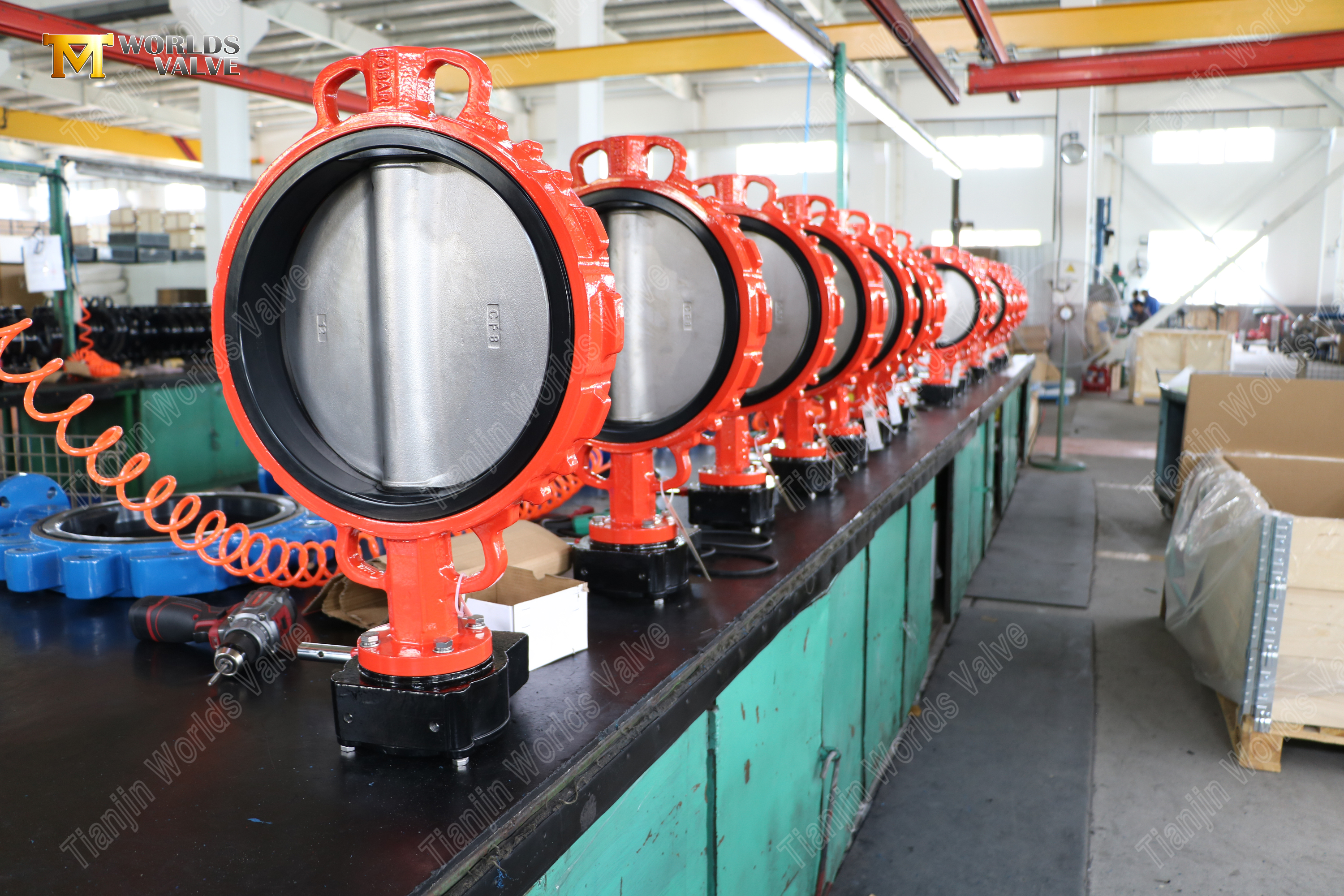

Wafer Butterfly Valve | ASTM A126 Class B Body | CF8 Disc | NBR Seat | 16 Bar
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control

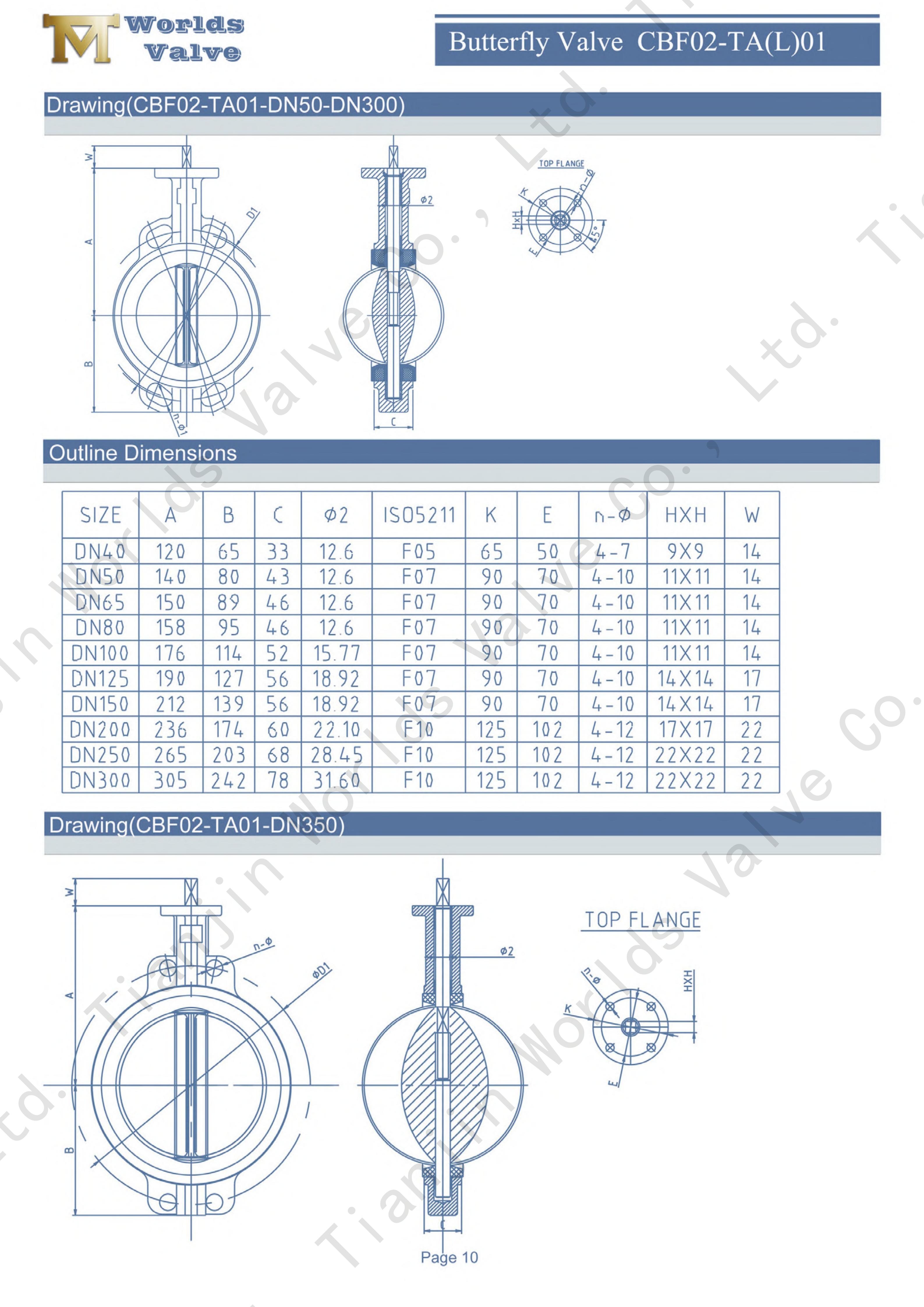

CBF02-TA01 - Detailed Product Info
This model is configured with the following parameters. Please note that every item listed below is customizable to your specific needs.
Parameter | Specification (This Model) | Customization Available |
Body Material | ASTM A126 Class B (Gray Iron) | Ductile Iron (GGG40/500-7), WCB, CF8, CF8M, Duplex, Super Duplex |
Disc Material | CF8 (AISI 304) | CF8M (316), Aluminum Bronze, Duplex, Coated Ductile Iron, PTFE-encapsulated |
Stem Material | SS420 (AISI 420) | SS304, SS316, Monel K500 |
Seat Material | NBR (Nitrile)–Temperature: -10℃to +80℃ | EPDM, Viton/FKM, PTFE, Hard Back-up Seat (Metal-backed) |
Pressure Rating | PN16 (16 Bar) | PN6, PN10, PN25; Class 150, Class 300; JIS 10K/16K |
Size Range | DN50–DN3000 (2″–120″) | Any intermediate size available upon request |
End Connection | Wafer Type | Lug Type, Double Flanged, Grooved End |
Coating | Epoxy Resin, RAL 2002, 250 μm thickness | Any RAL color, custom thickness, anti-corrosion coatings |
Top Flange | ISO 5211 | Customizable for various actuator interfaces |
Operation | / | Gear Operator, Electric, Pneumatic, Hydraulic, Chain Wheel |
1. Wafer Type Design
Compact Face-to-Face Dimensions–The wafer design reduces overall length and weight, saving installation space and reducing pipeline load.
Simple & Fast Installation–The valve is sandwiched between standard flanges with just a few bolts, cutting installation time and labor costs significantly.
Cost-Effective for High-Volume Applications–With simpler construction and lower material consumption, the wafer valve offers excellent performance-to-cost ratio for general service applications.
2. Body Material–ASTM A126 Class B (Gray Iron)
Reliable Strength for Standard Pressures–ASTM A126 Class B gray iron delivers sufficient mechanical strength for PN16 and Class 150 general service applications.
Excellent Machinability & Dimensional Stability–The material allows precise casting and tight tolerances, ensuring reliable flange sealing and smooth operation.
Cost-Effective with Upgrade Options–This economical choice can be readily upgraded to ductile iron, WCB, stainless steel, or duplex alloys for more demanding conditions.

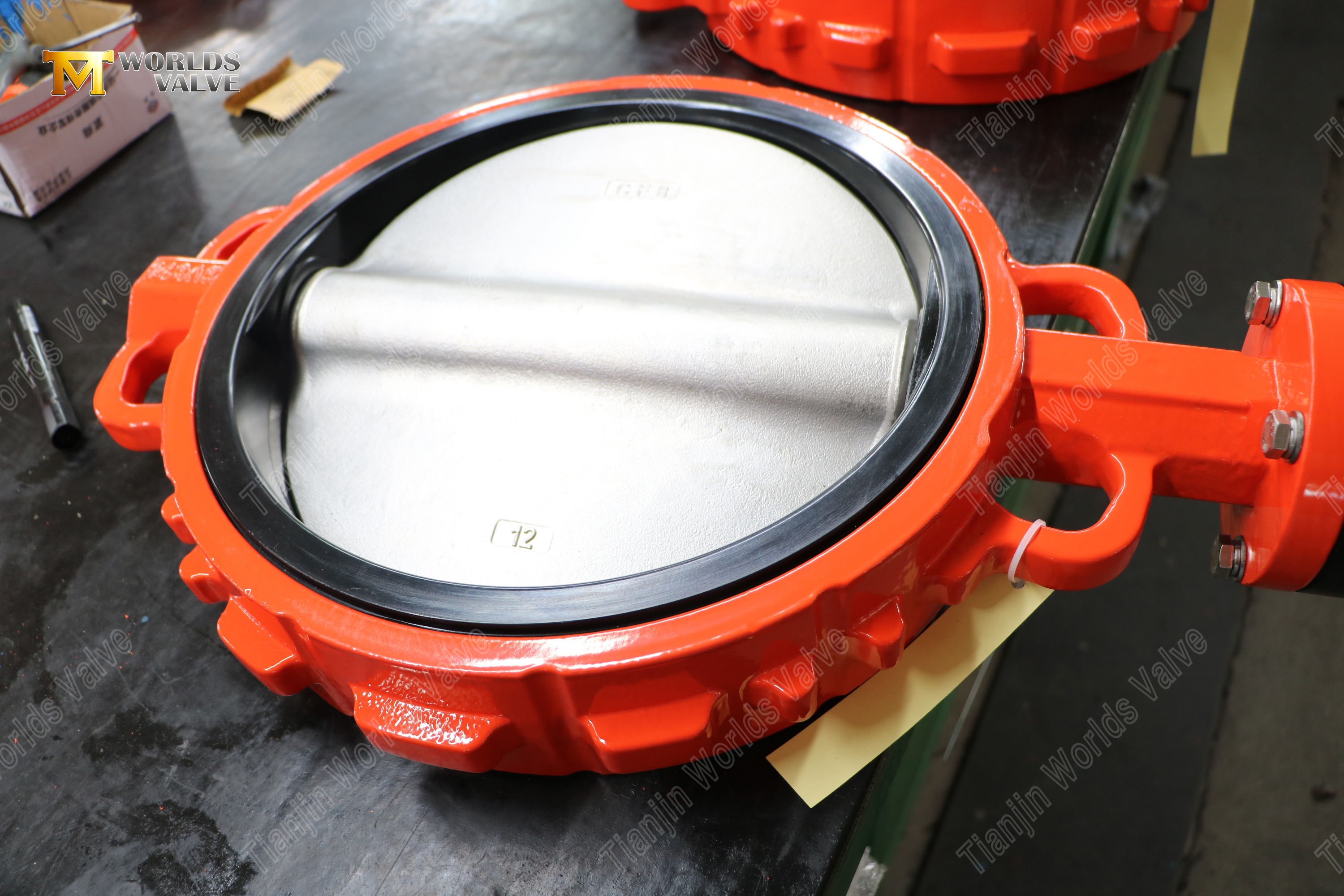

3. Disc Material–CF8 Stainless Steel (AISI 304)
Superior Corrosion Resistance for General Service–CF8 resists oxidation and corrosion in water, mild chemicals, and atmospheric exposure, ensuring a long service life.
Safe for Potable Water & Food Applications–The non-toxic material, combined with approved seats, meets WRAS and ACS standards for drinking water and food processing.
Strong Yet Lightweight–CF8 offers good mechanical strength while reducing overall valve weight, easing handling and installation.
4. Seat Material–NBR (Nitrile Rubber)
Excellent Oil & Fuel Resistance–NBR maintains elasticity and sealing integrity even after prolonged contact with mineral oils, greases, and hydrocarbons.
Good Abrasion & Tear Resistance–The seat withstands wear from small particles and frequent cycling, extending sealing life.
Broad Compatibility & Cost-Efficiency–With a -10℃ to +80℃ range, NBR delivers bubble-tight shut-off at a competitive cost, with EPDM, Viton, PTFE, or hard back-up seats available as alternatives.
5. Stem Material–SS420 (AISI 420)
High Tensile & Yield Strength–Hardened SS420 provides robust torque transmission, especially for large-diameter or high-pressure valves.
Excellent Wear & Galling Resistance–The hardened surface resists fretting wear, reducing maintenance needs over many cycles.
Blow-Out Proof with Corrosion Protection–The stem features a retention mechanism for safety, and can be supplied in SS304, SS316, or Monel K500 for harsher environments.

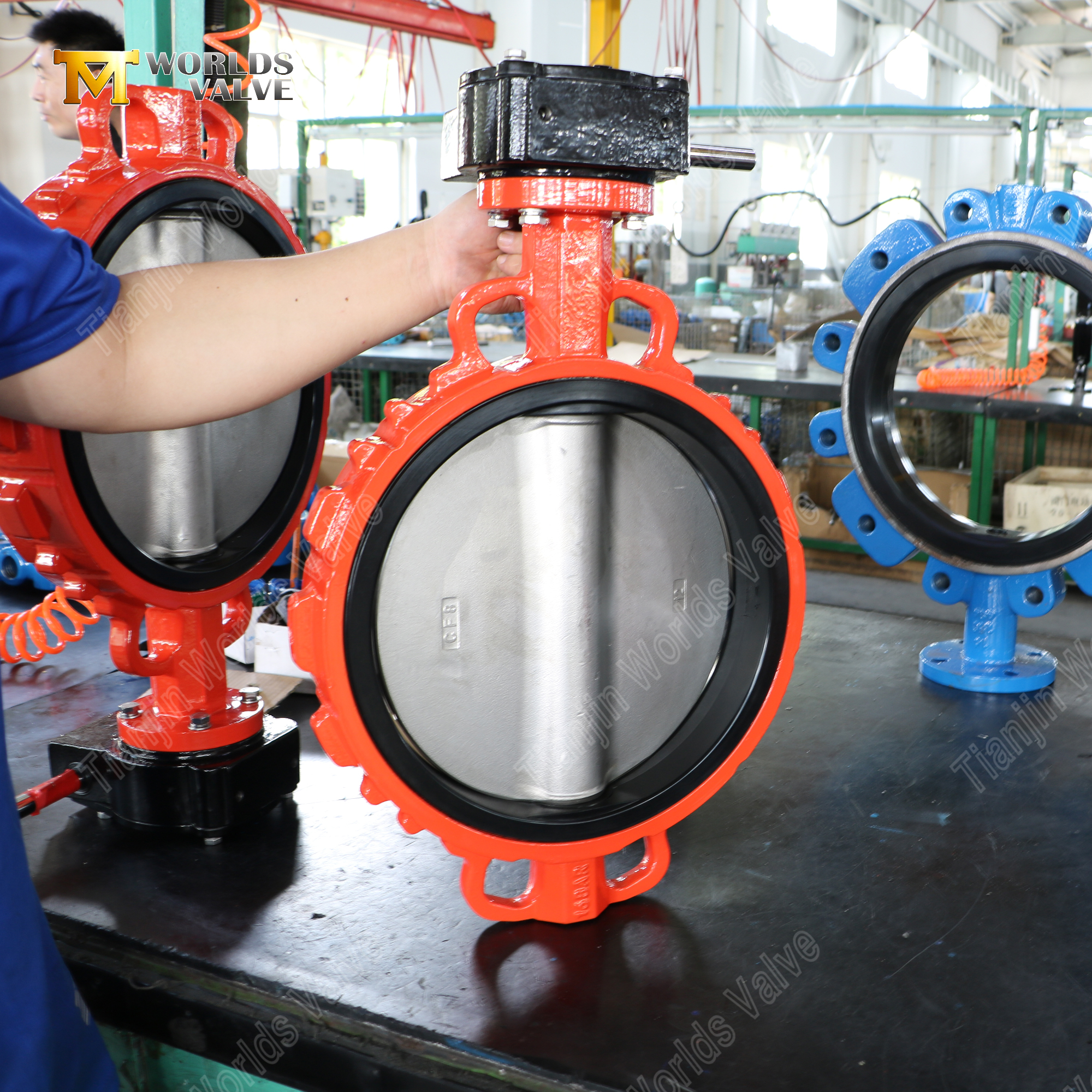

6. Actuator Options & ISO 5211 Mounting
Standardized Interface–The ISO 5211 top flange accepts actuators from any brand, enabling easy replacement without pipeline modifications.
Wide Range of Actuator Compatibility–Valves can be fitted with hand levers, gear operators, electric, pneumatic, hydraulic, or chain-wheel drives to suit any control requirement.
Custom Interface Available–Non-ISO mounting patterns and drive connections can be manufactured to match special actuator specifications.
Thanks to its robust construction and fully customizable material options, this wafer butterfly valve is widely utilized across diverse industries:
Municipal Water Supply & Wastewater Treatment–Reliable shut-off and flow regulation in pumping stations, treatment plants, and distribution networks.
Oil & Gas / Petrochemical–Handling crude oil, refined fuels, lubricants, and natural gas with NBR seats and robust bodies.
HVAC (Heating, Ventilation, & Air Conditioning)–Compact, lightweight valves for chilled water, hot water, and cooling tower systems.
Marine & Seawater Cooling–With duplex stainless steel or aluminum bronze discs, the valve withstands saline corrosion in shipbuilding and coastal power plants.
Chemical & Pharmaceutical–Stainless steel bodies with PTFE or Viton seats provide compatibility with aggressive acids, solvents, and high-purity media.
Food & Beverage/High-Purity Water–CF8/CF8M discs and EPDM/PTFE seats meet sanitary standards for brewing, dairy, and pharmaceutical processes.
Fire Protection Systems–Robust design ensures dependable on-off control in fire water lines and deluge systems (with available certifications upon request).
Power Generation & Metallurgy–Handling cooling water, ash slurries, and industrial gases in thermal and hydroelectric plants.
Agricultural Irrigation–Large-diameter valves for efficient water distribution in farmland and greenhouse projects.
1. Direct Factory, No Intermediaries–We own and operate our ISO 9001-certified production facility in Tianjin. By working directly with us, you eliminate middleman costs, gain transparent pricing, and maintain direct communication with our engineering and production teams throughout every stage of your order.
2. 19+ Years of Export Experience–Our sales and logistics teams are well-versed in international trade, including customs documentation, shipping regulations, and export packaging. We have successfully delivered valves to over 50 countries, ensuring smooth delivery every time.
3. Total Customization (OEM/ODM)–We do not limit you to our standard catalogue. You specify the material, pressure rating, size, coating, actuator, flange standard, and branding–and we manufacture it precisely to your drawings. We provide 2D/3D drawings for your approval prior to production.
4. Full International Certifications–Our products carry ISO 9001, CE, UKCA, WRAS (potable water), and ACS (France) certifications. DNV and ABS certification can be provided on a per-order basis, supporting your most demanding project requirements.
5. Complete Quality Documentation–We believe in full transparency. Every shipment includes material test certificates (MTC), hydrostatic and pneumatic test reports, dimensional inspection records, and, if required, NDT reports and third-party inspection certificates.
6. Rigorous In-House Quality Control–From raw material inspection and casting to machining, assembly, and final testing, every production step is monitored under our DNV-audited quality management system. We perform 100% pressure testing on every valve before it leaves our factory.
7. Competitive Lead Times–With an annual production capacity exceeding 8,000 tons and a dedicated project management team, we balance quality with efficiency, ensuring that your custom order is delivered on time, every time.
8. Post-Sales Technical Support–Our engineers are available to assist with installation guidance, troubleshooting, and maintenance recommendations, ensuring your valve performs reliably for its entire service life.
At Tianjin Worlds Valve Co., Ltd., we do not just sell valves–we engineer solutions tailored to your unique pipeline conditions. Whether you need a standard configuration like the one described above, or a fully custom design with specialized alloys, high-temperature seats, or automated actuation, we are ready to bring your specifications to life.
We warmly invite you to visit our factory in Tianjin, China. Tour our production lines, witness our quality control processes firsthand, and discuss your project requirements with our experienced engineers.
To get started, simply send us your enquiry with the following details:
Required size, pressure rating, and end connection
Media type, operating temperature, and flow conditions
Preferred material combination (or let us recommend one)
Actuator type and control requirements
Target quantity and destination port
Our sales team will respond within 24 hours with a competitive quotation and a preliminary engineering proposal.
Contact Us Now and Let's Build Your Valve Together.
