Have you ever struggled with selecting the perfect butterfly valve for your pipeline? Choosing the wrong valve can lead to leaks, inefficiency, or costly downtime. In this guide, we explain how to pick the right wafer butterfly valve for your specific needs. You will learn about valve sizes, materials, sealing options, installation best practices, and how Tianjin Worlds Valve Co., Ltd. — an ISO 9001 certified OEM/ODM manufacturer with CE, UKCA, WRAS, and ACS approvals — helps customers worldwide achieve reliable, long-lasting flow control.

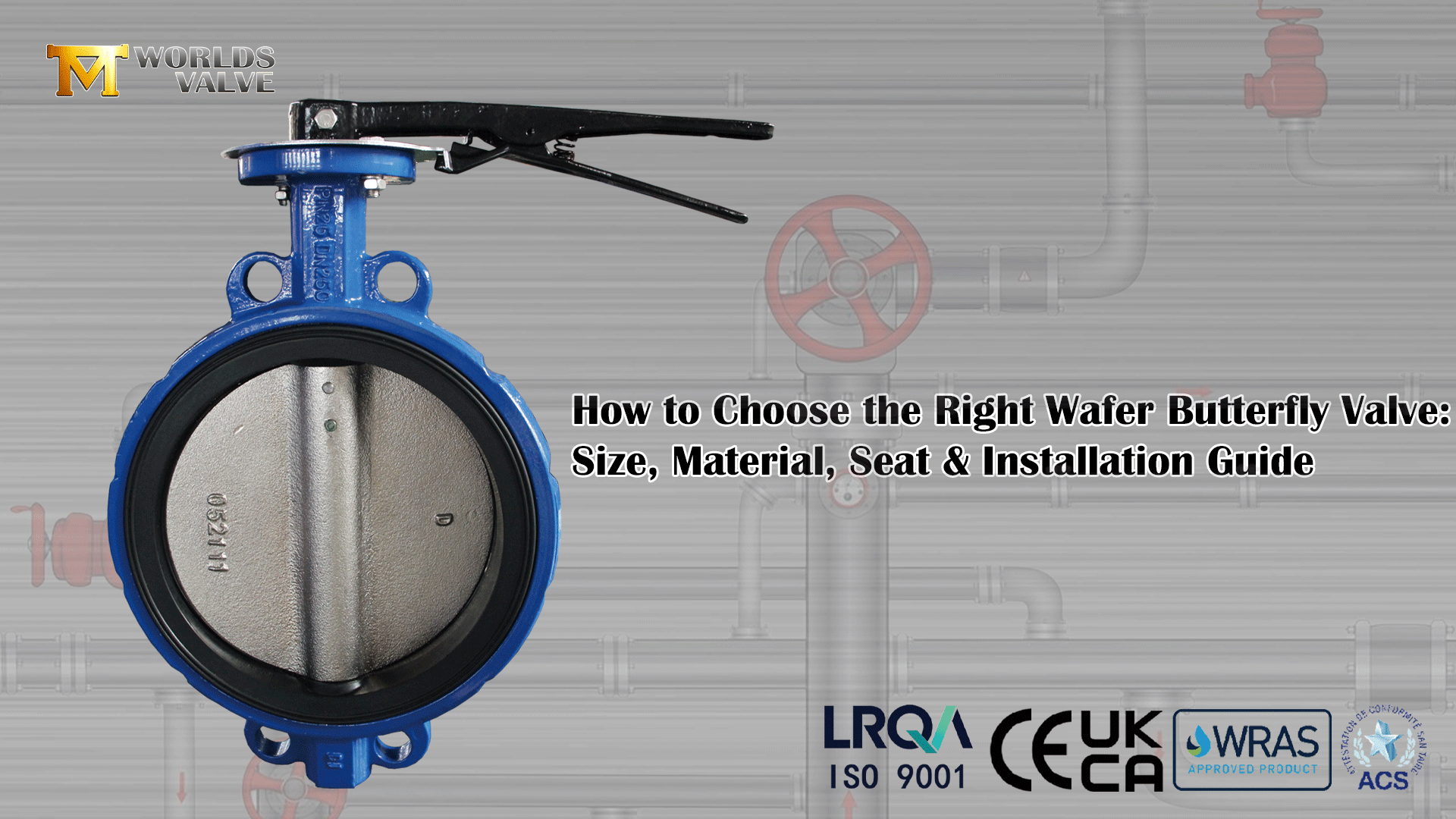

A wafer butterfly valve is designed to sit snugly between two pipe flanges, providing quick shut‑off or modulation in various flow systems. Unlike lug or flanged butterfly valves, it does not require extra bolts through the valve body, making installation simple and cost-effective. These valves are especially popular in pipelines where space is limited but reliable flow control is critical. Typical uses include:
Water treatment systems
HVAC circulation
Industrial cooling lines
Chemical processing pipelines
They are lightweight, easy to handle, and often preferred in retrofitting projects because they reduce flange stress while maintaining tight sealing.
Valve Type | Installation Style | Typical Application | Pros |
Wafer | Between flanges, clamped by bolts | Mid-line pipelines, water, HVAC | Compact, lightweight, cost-efficient |
Lug | Threaded or bolted through lugs | End-of-line or isolation | Can remove downstream piping independently |
Flanged | Bolted flange connections | Heavy-duty industrial pipelines | Strong support, high-pressure applications |
These valves operate using a disc that rotates 90 degrees to control flow. They handle a wide variety of fluids, including clean water, wastewater, and mild chemicals. For many industrial users, wafer butterfly valves offer a balance of efficiency, reliability, and affordability.
Wafer butterfly valves are popular because of their compact design and operational efficiency. They have a small footprint and lightweight body, making them easier to transport and install than full‑flanged or lugged alternatives. The disc rotates quickly, enabling rapid isolation or modulation — critical in process systems with frequent flow adjustments. The sealing system, often made from EPDM, NBR, or PTFE, ensures tight shut-off and zero leakage, even in pressurized pipelines.
Core features include:
Feature | Benefit | Typical Use Case |
Compact body | Saves space, lighter weight | Tight pipeline sections, retrofits |
Fast 90°rotation | Quick operation, reduces downtime | HVAC systems, water treatment lines |
Resilient or PTFE seat | Zero leakage, corrosion resistance | Chemical pipelines, wastewater systems |
Slim disc profile | Low pressure loss, smooth flow | Industrial fluid control, mid-line pipelines |
These valves are versatile. They can be manually operated or paired with electric, pneumatic, or gear actuators, making them flexible across applications — from small facilities to large industrial plants.
We manufacture wafer butterfly valves with full material customization: bodies in ductile iron, WCB, CF8, CF8M; discs in CF8, CF8M, duplex, super duplex, aluminum bronze, nylon-coated, or PTFE lined; seats in EPDM, NBR, Viton (FKM), PTFE, with replaceable or vulcanized options. Every valve is backed by mill test reports and pressure test certificates.
Choosing the right wafer butterfly valve starts with the pipeline size. If the valve diameter does not match the pipe, it can create turbulence, pressure loss, or even leaks. Valve diameters are labeled as DN (nominal diameter) and should align closely with your pipe size. Flow rate — measured in Kv or Cv — indicates how much fluid can pass through at a given pressure. Misjudging flow requirements may cause underperformance and increase energy consumption.
Tianjin Worlds Valve offers a wide size range from DN50 to DN3000 (2″ to 120″), covering small branch lines to large water transmission mains.
Wafer butterfly valves must withstand both the working pressure and temperature of the system. Each valve material has a specific pressure rating and temperature range. A standard wafer valve may handle pressures up to 16 bar (PN16) or Class 150, while higher-pressure systems require reinforced designs. Temperature also affects performance: rubber seats may soften under high heat, while PTFE resists higher temperatures and chemical exposure.
Material vs. Pressure/Temperature Guide
Material | Max Pressure (bar) | Temp Range (℃) | Notes |
Ductile Iron | 10–16 | -20 to 120 | Excellent for water, HVAC |
Stainless Steel (CF8/CF8M) | 16–25 | -40 to 200 | Corrosion resistant, chemicals |
PTFE Lined | 10–16 | -20 to 180 | Best for aggressive chemicals |
EPDM Seat | 10–16 | -20 to 120 | Economical, water & mild media |
Tips to remember:
Always check maximum operating pressure.
Match seat and body materials to the expected temperature.
Consider pressure surges or thermal expansion.
Properly sized valves:
Reduce pumping energy.
Prevent seat deformation or premature failure.
Improve maintenance intervals.
Oversized valves create turbulence and vibration; undersized valves increase pressure drop and wear components faster. Correct sizing ensures smooth flow, reduced leakage risk, and stable pipeline operation.
Tianjin Worlds Valve provides engineering support to help you select the exact size, pressure rating, and material combination for your specific application.
Selecting the right body and disc material is crucial for long-term reliability.
Material | Best For |
Ductile Iron (GGG40) | Water, non-corrosive media |
WCB Carbon Steel | High pressure, oil & gas |
CF8 / CF8M Stainless Steel | Chemical, seawater, corrosion‑prone environments |
Aluminum Bronze | Seawater, marine, abrasive media |
Duplex / Super Duplex | High-chloride, offshore, desalination |
Tianjin Worlds Valve offers all these materials with full traceability and customization.
The seat material defines sealing performance and chemical compatibility.
Seat Material | Best For |
EPDM | Water, mild chemicals, outdoor (UV/ozone resistant) |
NBR | Oils, fuels, aliphatic hydrocarbons |
Viton (FKM) | High temperature, aggressive chemicals |
PTFE | Acids, alkalis, solvents, high‑purity media |
Neoprene | Low‑demand, cost‑sensitive systems |
A proper choice reduces downtime and improves energy efficiency. Tianjin Worlds Valve supplies all seat types with replaceable or vulcanized options.
Corrosive environments demand more than standard materials. PTFE lined butterfly valves provide a chemical barrier and ensure tight sealing even under aggressive conditions. They handle acids, alkalis, and organic solvents better than rubber or standard seats.
Advantages of PTFE lined valves:
l Chemical resistance across pH 0–14
l Low friction operation reduces wear
l Long-term durability for harsh industrial applications
l Minimal maintenance, less downtime
These valves are preferred for chemical processing, pharmaceutical lines, wastewater treatment, and other aggressive media pipelines. Tianjin Worlds Valve offers full PTFE/PFA lining on both seat and disc, with 30KV spark testing and primary PTFE micropowder (never recycled).
Installing a wafer butterfly valve requires careful alignment between two pipe flanges. Because it sits snugly in the middle, the valve relies on flange compression to maintain sealing. Mid-line placement is preferred for even support; end-of-line setups may need extra reinforcement.
Installation Tip | Benefit |
Center valve carefully between flanges | Ensures tight seal, avoids leakage |
Prefer mid-line placement | Reduces stress, improves reliability |
Use wafer design in tight spaces | Compact, easy retrofit |
Tianjin Worlds Valve provides detailed installation drawings and technical support for every order.
Operation | Best For |
Hand Lever | Small valves, simple on/off |
Worm Gear | Medium to large valves, smooth manual control |
Electric Actuator | Remote control, precise automation, SCADA integration |
Pneumatic Actuator | Fast operation, industrial processes, fail-safe options |
All Tianjin Worlds Valve butterfly valves feature an ISO 5211 top flange for direct actuator mounting — no custom brackets needed.
Lightweight wafer butterfly valves are easier to remove, inspect, and service. Regular checks of the disc, seat, and stem reduce unplanned downtime.
Maintenance tips:
Design installation for easy access
Inspect seats and discs periodically
Choose valves from certified suppliers (ISO 9001, WRAS, ACS)
Tianjin Worlds Valve valves are designed for low lifecycle cost. Replaceable seats (on most models) allow quick field service without removing the valve from the pipeline, significantly reducing downtime.
Wafer butterfly valves provide bi-directional tight shut-off, preventing backflow and leakage. Proper installation, material selection, and regular maintenance avoid energy waste, corrosion, or environmental hazards.
Sealing and safety checklist:
Verify valve seat integrity before commissioning
Ensure actuator or lever operates smoothly without binding
Confirm bi-directional sealing under expected pressure
Maintain records of inspection and certification compliance
Tianjin Worlds Valve products are tested to API 598, ISO 5208, and EN 12266-1 standards, ensuring zero leakage and reliable performance.
Choosing the right wafer butterfly valve involves matching size, pressure, and material to your pipeline needs. A properly selected valve delivers:
Tight shut-off with zero leakage
Low pressure drop for energy efficiency
Quick 90-degree operation for fast response
Tianjin Worlds Valve Co., Ltd. offers a complete range of wafer butterfly valves with:
1. Full material customization (body, disc, seat, stem, coating)
2. International certifications: ISO 9001, CE, UKCA, WRAS, ACS
3. OEM/ODM flexibility: we manufacture to your exact specifications
4. Global export experience: serving customers in over 50 countries
5. Factory-direct pricing: no trading markups
Whether you need a standard EPDM seated valve for water service or a PTFE lined, super duplex disc valve for aggressive chemicals, our engineering team is ready to support your project.
Contact us today for a competitive quote or to arrange a factory visit. We deliver valves that perform--exactly as you specify.
