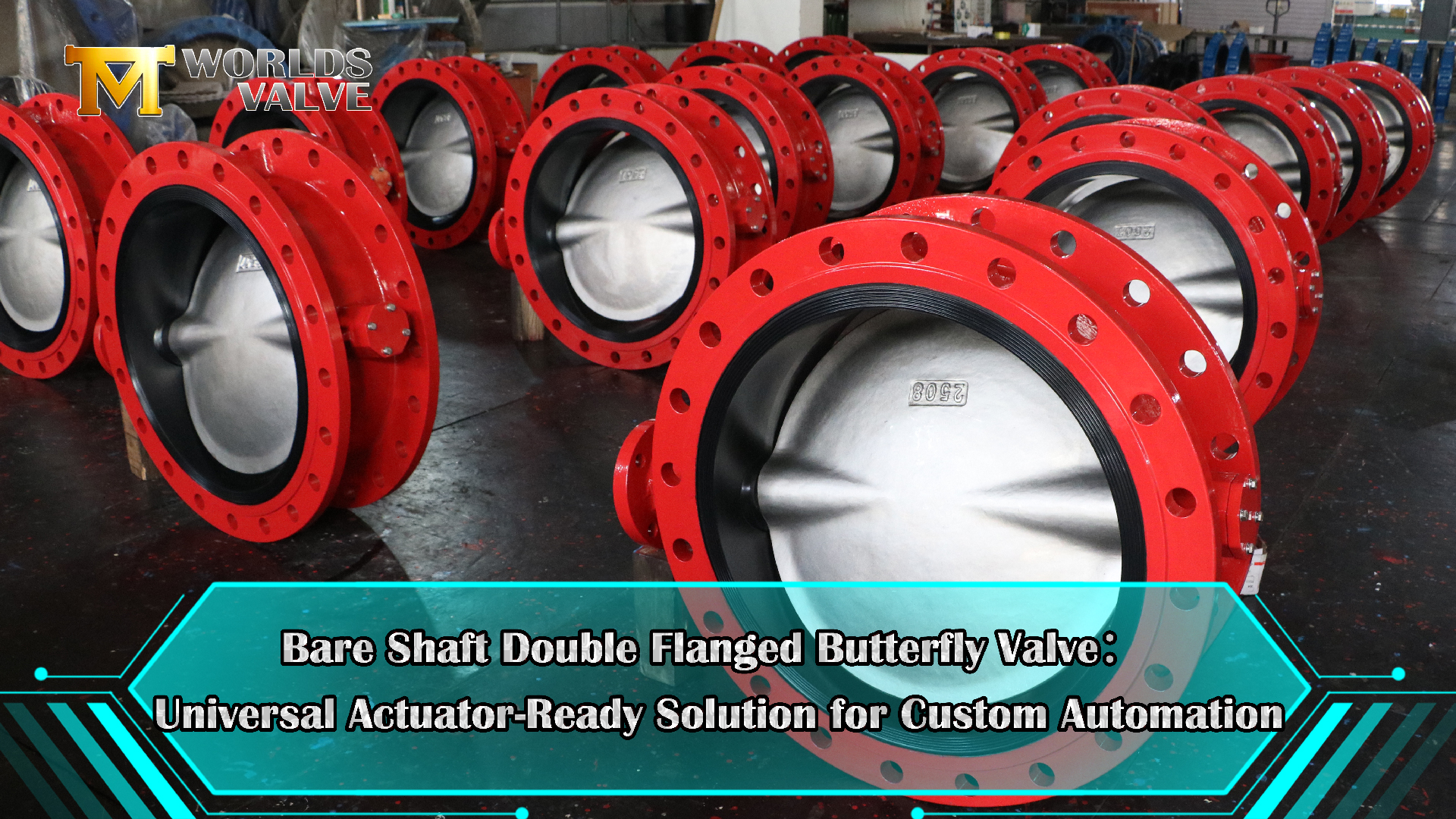

Design: Bare Shaft Double Flanged Butterfly Valve

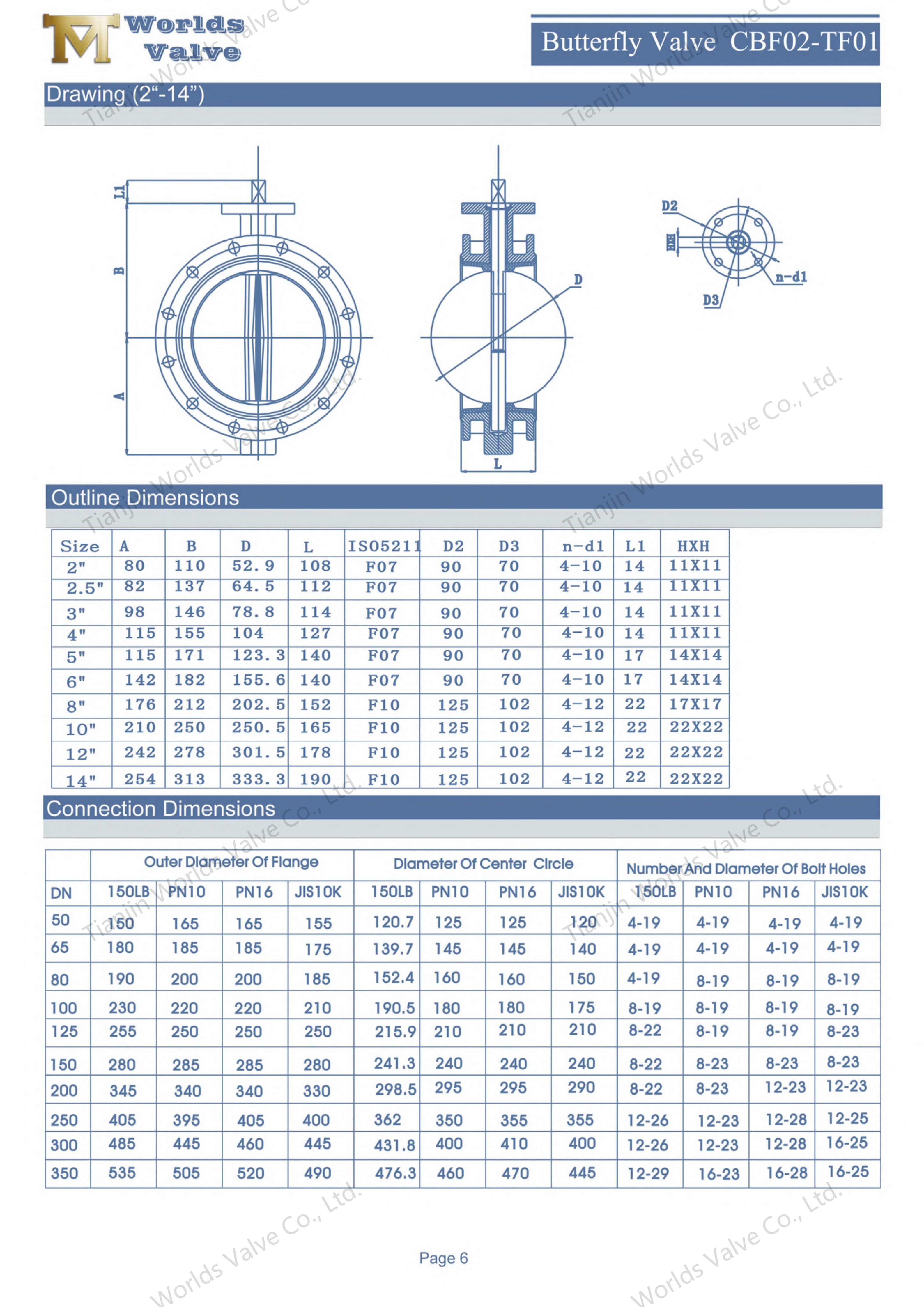

Type: CBF02-TF01 OPERATION AND MAINTENANCE DOWNLOAD
Size: DN800
Body material: Ductile Iron (ASTM A536)
Seat: EPDM
Disc: CF8
Stem: SS416
Pressure: PN16/16Bar
Operating temperatures: -25℃—120℃(depending on pressure, medium and material)
Structure: Double Flanged Butterfly Valve
Painting Color: RAL3001
Operated: Manual, Electric, Pneumatic, or Hydraulic actuator ...
The Bare Shaft Double Flanged Butterfly Valve provides a fundamental and versatile flow control solution designed for seamless integration with any actuation system. Featuring an unfinished shaft extension and robust double-flanged construction, this valve serves as the ideal core component for customized automation across water, HVAC, and industrial processing applications.
1. Universal Actuator Compatibility
- Unmachined shaft end readily adapts to any electric, pneumatic, or hydraulic actuator
- Simplifies system integration and offers maximum configuration flexibility
- Ideal for OEM applications and custom automated solutions
2. Robust Double Flanged Design
- Provides secure bolting to pipeline flanges at both ends
- Ensures leak-free performance in pressurized systems
- Withstands higher mechanical stress compared to wafer-style valves
3. Durable Construction
- High-strength ductile iron body with corrosion-resistant coating
- Precision-machined disc and stem for smooth operation
- Suitable for demanding industrial environments
4. Cost-Effective Foundation
- Eliminates unnecessary actuator costs when existing actuators are available
- Reduces inventory requirements through standardized valve platform
- Offers excellent value for custom system integration
5. Easy Integration & Maintenance
- Standard ISO 5211 mounting pad ensures quick actuator installation
- Accessible internal components simplify maintenance
- Compatible with multiple seat materials for various media
- Custom Automated Water Treatment Systems
- HVAC and Building Management Integration
- Industrial Process Automation Lines
- OEM Equipment Manufacturing
- Municipal Water and Wastewater Infrastructure
Customizable seat and lining materials
Full compliance with international standards
OEM/ODM support with third-party certification support
Global supply capability with after-sales technical service
This bare shaft double flanged butterfly valve provides a universal, actuator-ready foundation for customized automation across water, HVAC, and industrial processing systems.
