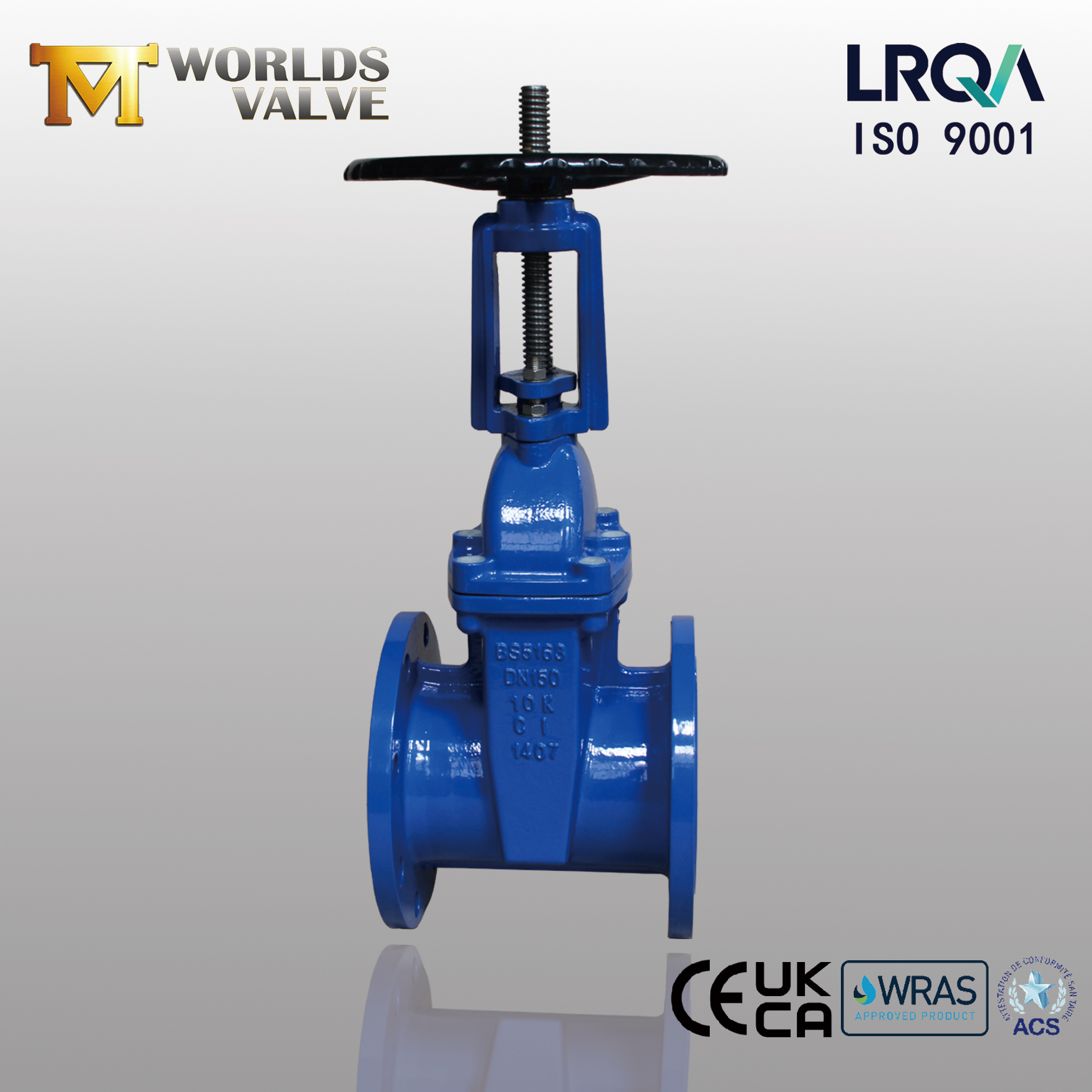

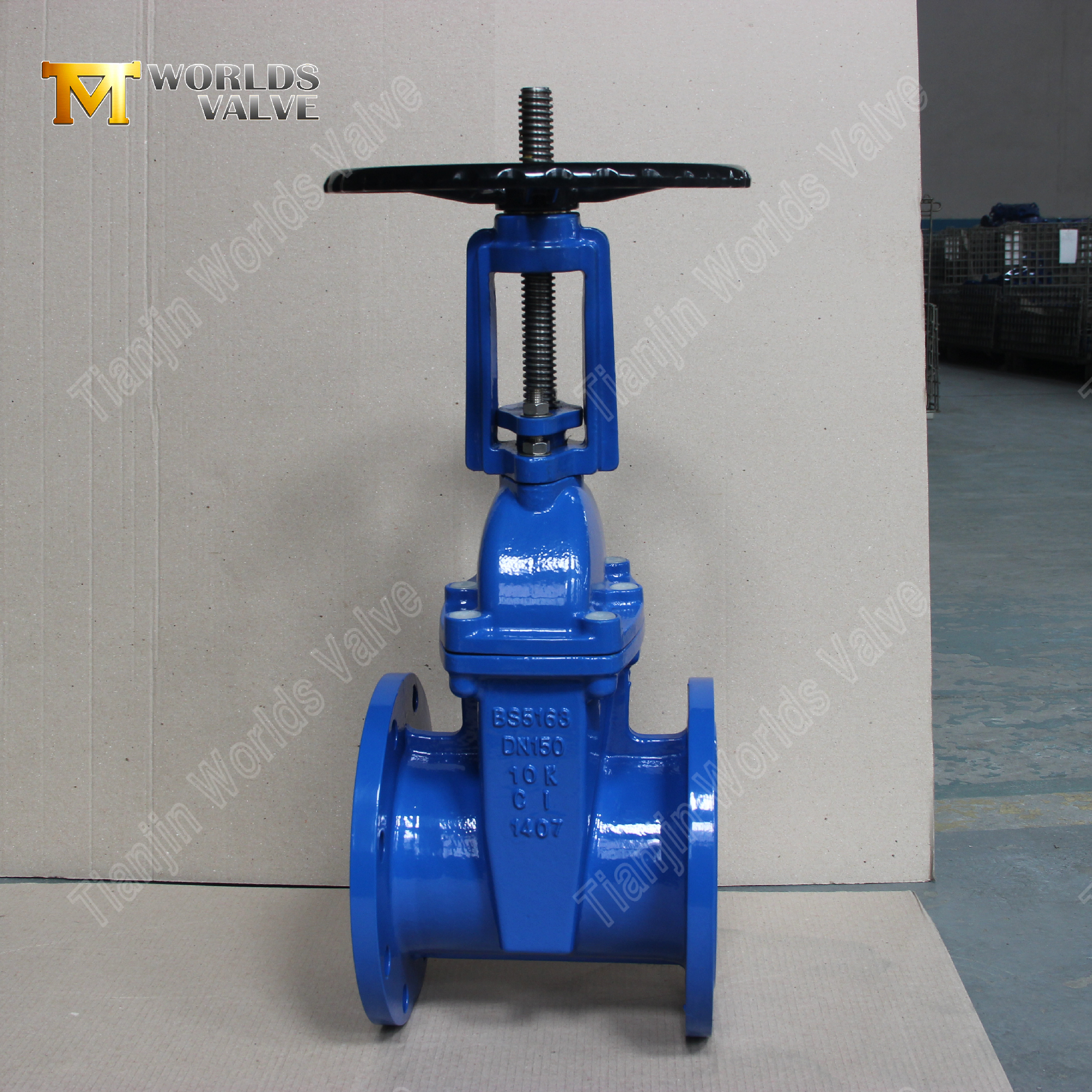

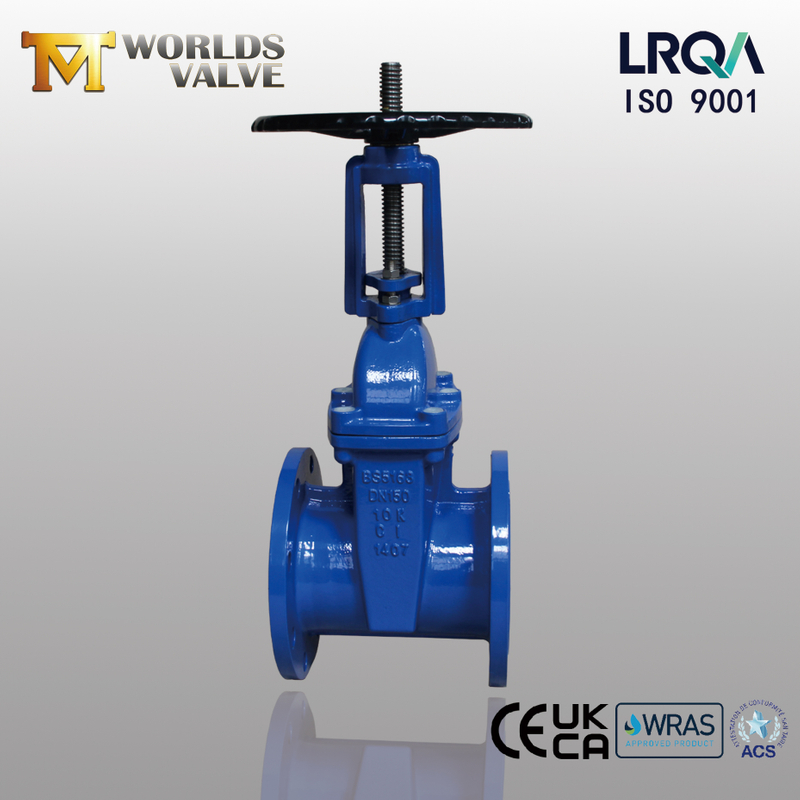

BS5163 Flanged Resilient-Seated Gate Valve with Rising Stem | Reliable Water Control Solution
Tianjin Worlds Valve Co., Ltd. – WRAS Certified Manufacturer & Supplier
RGV02-TF010203--Operation and Maintenance Manual DOWNLOAD
1. BS5163 Compliance & Reliability
Standard Compliance: Manufactured to BS5163 standards for dimensions, materials, and performance in water services.
Pressure Rating: Suitable for PN10/PN16 applications. Can be designed for 150LB JIS 10K.
2. Resilient-Seated Bubble-Tight Shutoff
Full Rubber Encapsulation: EPDM or NBR rubber wedge ensures zero leakage (tested to EN 12266-1 Class A).
Corrosion-Resistant: Rubber lining prevents metal-to-metal contact, extending valve service life.
3. Rising Stem for Visual Position Indication
Easy Operation: Stem height indicates valve position (open/closed), reducing operational errors.
Low Torque Design: Precision trapezoidal threads enable smooth operation even after prolonged use.
4. Flanged End Connections for Secure Installation
ANSI/DIN Flanges: Compatible with EN 1092-2 PN16 or ANSI B16.5 Class 125# flanges.
Robust Construction: Ductile iron body with fusion-bonded epoxy coating (300µm) for external corrosion protection.
5. Low Maintenance & Long Service Life
Self-Lubricating Stem Bushings: Reduce friction and wear during operation.
Replaceable Seal Kits: Simplify maintenance without replacing the entire valve.

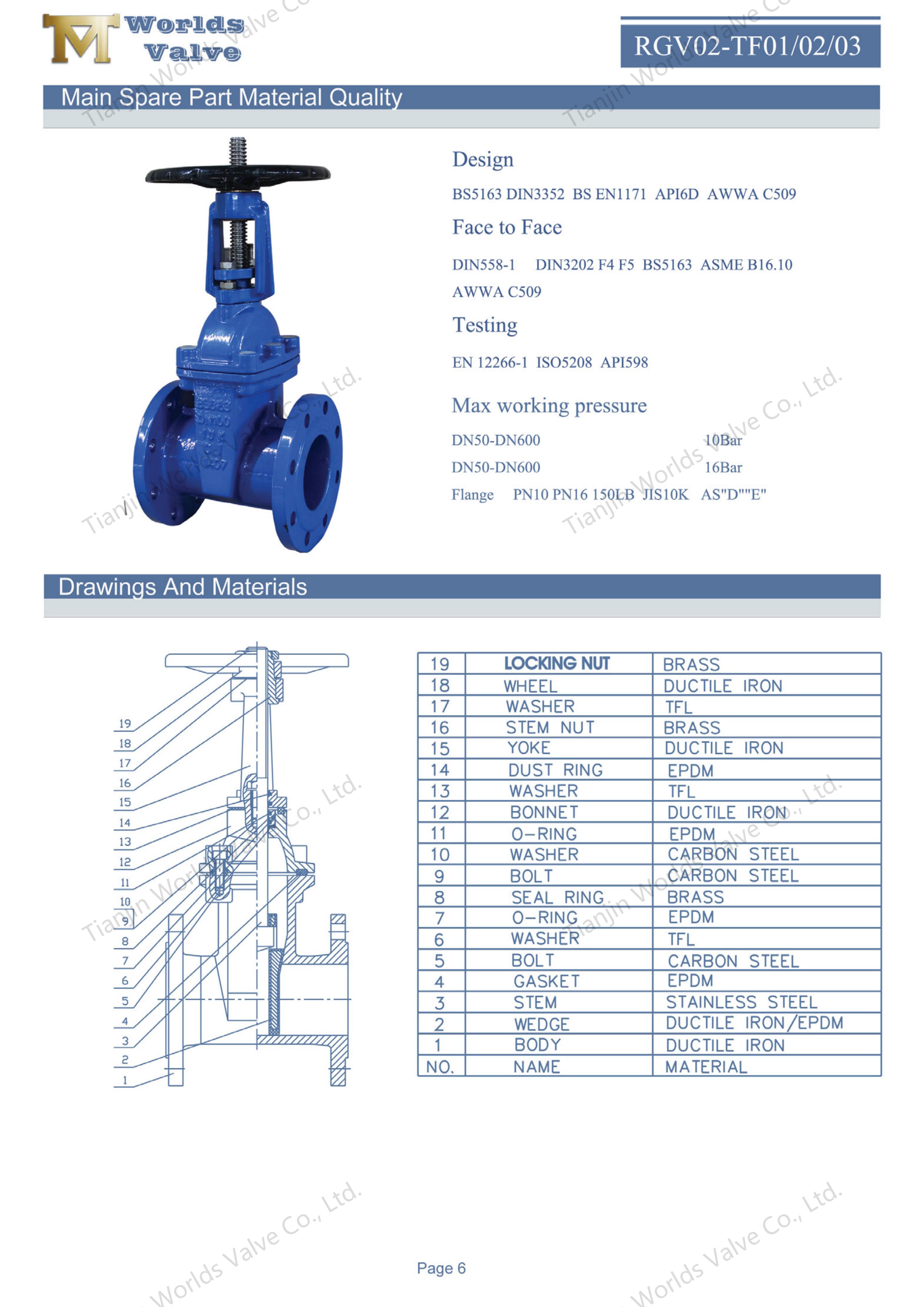

Detailed Description: | |
Series | BS5163 Flanged Resilient-Seated Gate Valve with Rising Stem |
Size | DN40-DN600 |
Design Standard: | BS5163 DIN3352 BS EN 1171 API6D AWWA C509 |
Testing: | EN12266-1 ISO5208 API598 |
Face To Face: | DIN558-1 DIN3202 F4 F5 BS5163 ASME B16.10 AWWA C509 |
Flange: | PN10 PN16 150LB JIS10K AS”D””E” |
Body: | CI/DI/WCB/ALB/CF8/CF8M |
Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
Stem: | SS416/SS304/SS431/17-4PH |
Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Silicon/Heat-Resistant EPDM/White EPDM |
Suitable Temperature: | -20℃~120℃ |
Medium: | Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
1. BS5163 Expertise
Valves rigorously tested to meet BS5163 torque and hydrostatic requirements.
2. Visual Operation
Rising stem design provides clear valve status for safe and efficient use.
3. Global Certifications
CE, UKCA, and WRAS approvals ensure compliance in key markets.
4. Customization
Modify stem extensions, coating colors, or flange drills for OEM/ODM projects.
Municipal Water Supply: Mainline isolation, pumping stations, and reservoir control.
Fire Protection Systems: Sprinkler and hydrant supply lines (FM/UL certified options).
Industrial Water Systems: Cooling towers, filtration units, and chemical dosing.
Wastewater Treatment: Effluent control and sludge handling.
As a CE-certified, ACS-approved, and WRAS-compliant manufacturer, we ensure global regulatory adherence while offering customized OEM/ODM solutions tailored to your project requirements. Upgrade your fluid systems with the industry’s most reliable BS5163 Flanged Resilient-Seated Gate Valve with Rising Stem. Contact us today for a free engineering consultation.
