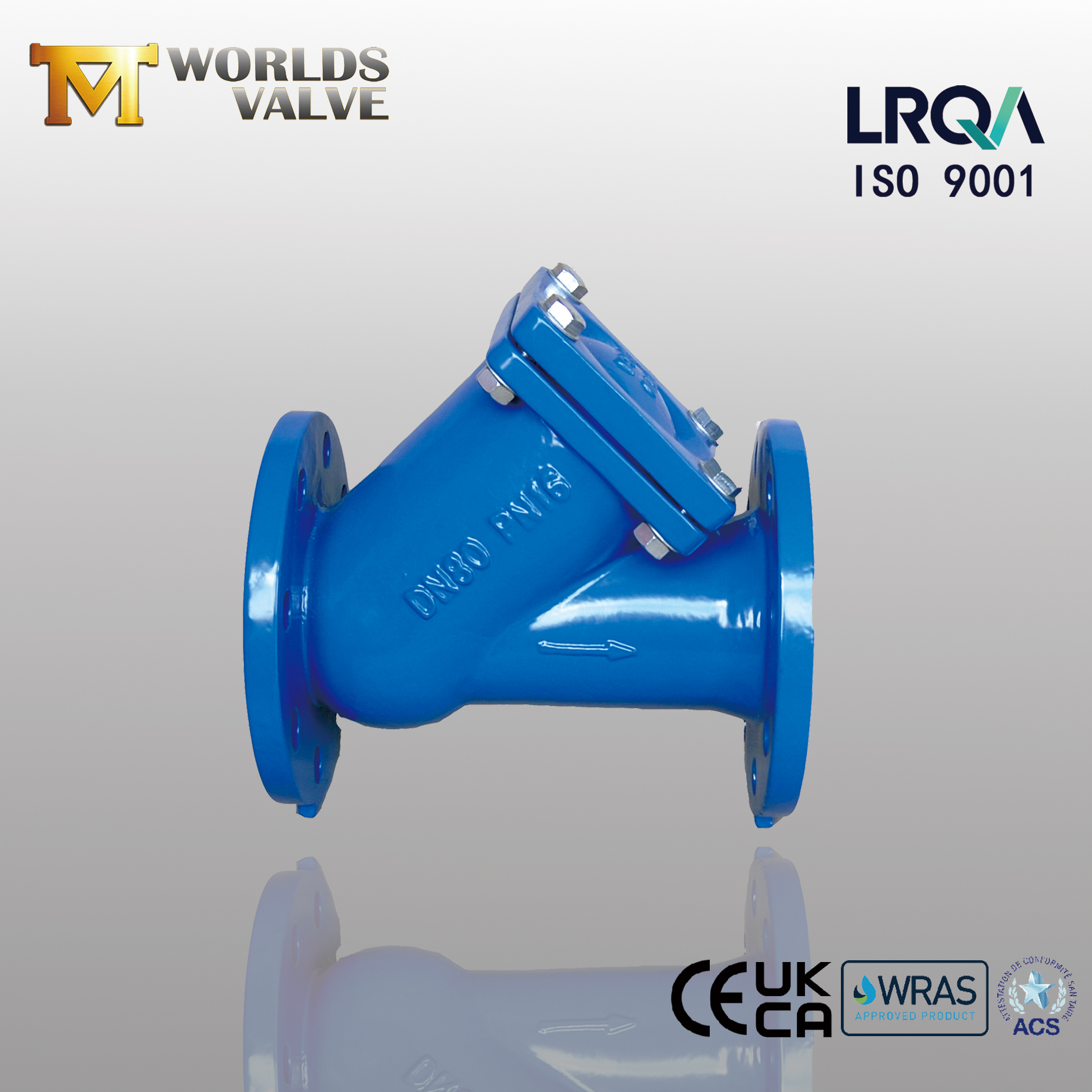

Ductile Iron Y Strainer Flanged Table E PN16 | Reliable Pipeline Protection

Tianjin Worlds Valve Co., Ltd. presents the Ductile Iron Y Strainer Flanged Table E PN16, engineered to provide superior pipeline protection by effectively removing debris, scale, and solid particles from water, oil, gas, and industrial fluids. Featuring heavy-duty ductile iron construction, Table E flanges per EN 1092-2 standard, and PN16 pressure rating, this strainer ensures reliable performance in demanding applications while preventing damage to pumps, valves, and downstream equipment. Manufactured under ISO 9001 quality management with CE, UKCA, and WRAS certifications, it delivers exceptional durability and filtration efficiency for various industrial and municipal systems.

Model:
GL01-TF01
Brand:
OEM|ODM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction:

Ductile Iron Y Strainer Flanged Table E PN16 | Reliable Pipeline Protection

Tianjin Worlds Valve Co., Ltd. – ISO 9001 Certified Manufacturer & Supplier

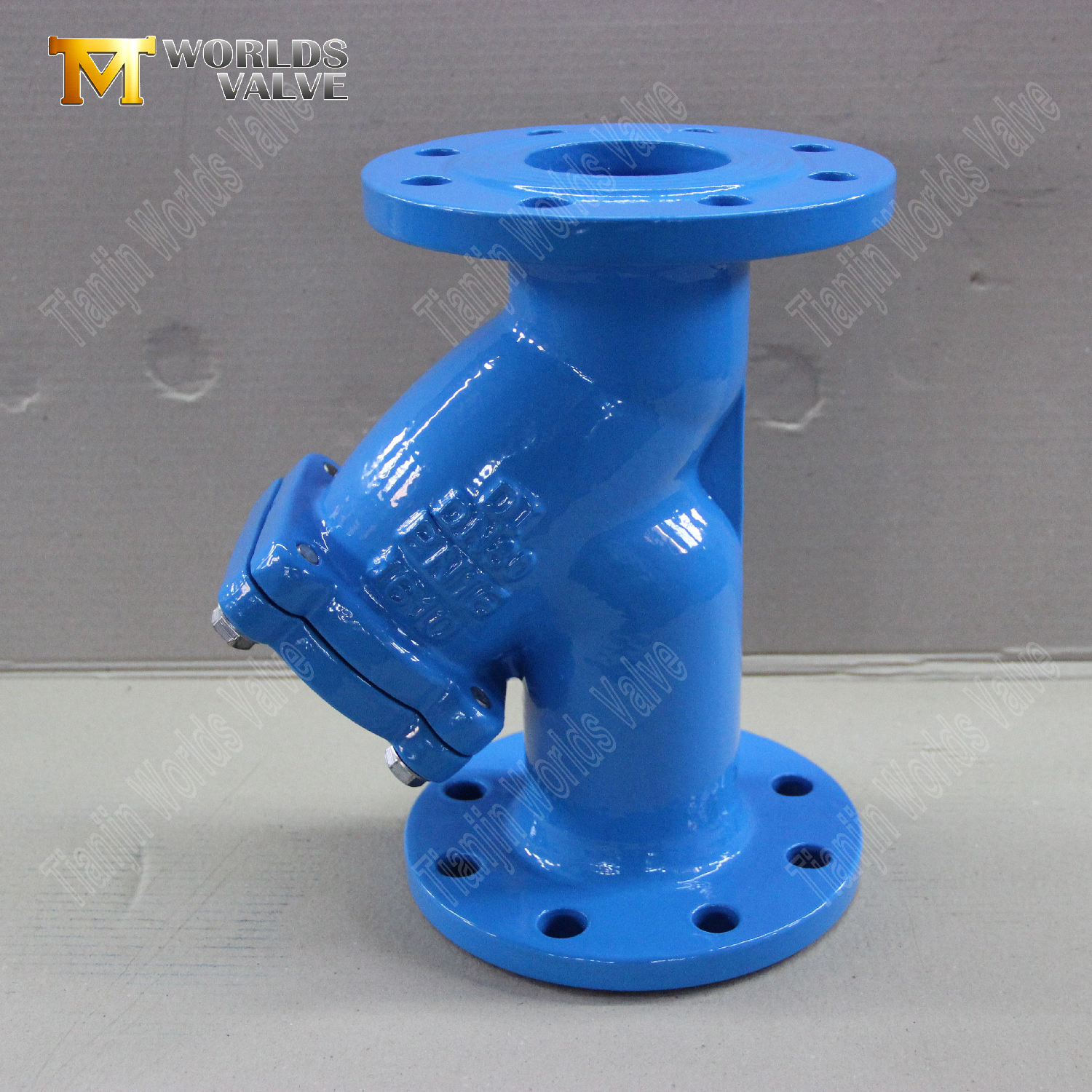

Ductile Iron Y Strainer Flanged Table E PN16-1

Technical Features & Design Advantages:

1. Robust Ductile Iron Construction

High Strength Material: EN-GJS-500-7 ductile iron provides excellent impact and pressure resistance
Corrosion Protection: Standard 250μm epoxy coating with optional 300μm for aggressive environments
Temperature Resilience: Suitable for continuous operation from -10°C to 120°C

2. Table E Flange Design

EN 1092-2 Compliance: Ensures perfect compatibility with European piping systems
Leak-Free Connection: Precision-machined flange faces with serrated finish
Easy Installation: Standard drilling pattern simplifies alignment and bolting

3. Efficient Filtration Performance

Full-Bore Design: Minimizes pressure drop while maintaining optimal flow capacity
Basket Retention: Secure basket locking mechanism prevents bypass during operation
Multi-Size Openings: Available with perforated baskets from 1-6mm hole sizes

4. Maintenance-Friendly Features

Bottom Drain Connection: Standard 1" NPT drain plug for easy sediment removal
Quick Access Cover: Bolted cover with gasket allows simple basket inspection
Basket Retrieval: Designed for easy removal without special tools

5. Enhanced Durability

Reinforced Body Structure: Extra material at critical stress points extends service life
Corrosion-Resistant Internals: Stainless steel basket and hardware standard
Pressure Resilience: Reliable PN16 performance

Ductile Iron Y Strainer Flanged Table E PN16-2

Competitive Advantages

1. Premium Material Quality: High-grade ductile iron ensures long-term reliability in demanding services

2. Precision Engineering: Table E flange dimensions guarantee perfect fit in European standard piping systems

3. Optimized Flow Design: Full-bore construction minimizes pressure loss and energy consumption

4. Easy Maintenance: Quick-access design reduces downtime during cleaning and inspection

5. International Compliance: CE, UKCA, and WRAS certifications facilitate global project specifications

6. Customization Available: Special coatings, basket materials, and connection types for specific requirements

Ductile Iron Y Strainer Flanged Table E PN16-3

Industry Applications

1. Water Treatment: Pump intake protection, filtration pre-screening, and distribution systems

2. HVAC Systems: Chiller protection, cooling tower water, and heat exchanger circuits

3. Industrial Processes: Process water, cooling circuits, and equipment protection

4. Irrigation Systems: Mainline protection, pump safety, and emitter clog prevention

5. General Industry: Plant utility water, compressed air lines, and steam systems

Conclusion:

Engineered for durability and performance, this ductile iron Y strainer with Table E flanges and PN16 rating provides essential pipeline protection for water, industrial, and HVAC applications worldwide.

ductile iron Y strainer Table E flanged strainer PN16 Y strainer Pipeline strainer manufacturer EN 1092-2 strainer Industrial Y strainer Ductile iron pipeline strainer PN16 pressure strainer Water treatment strainer OEM strainer manufacturer
