CBF01-TF01
OEM|ODM
| Quantity: | |
|---|---|

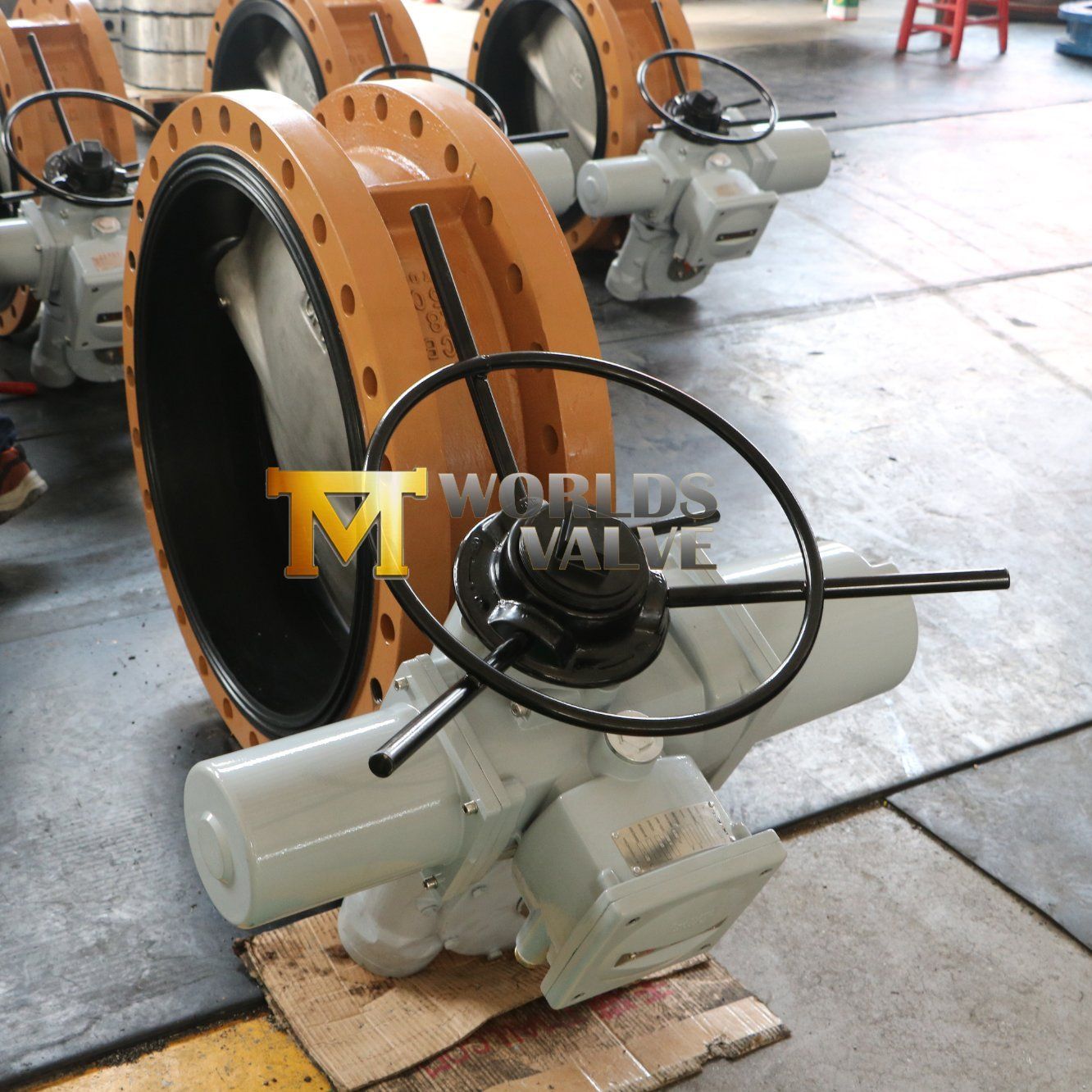

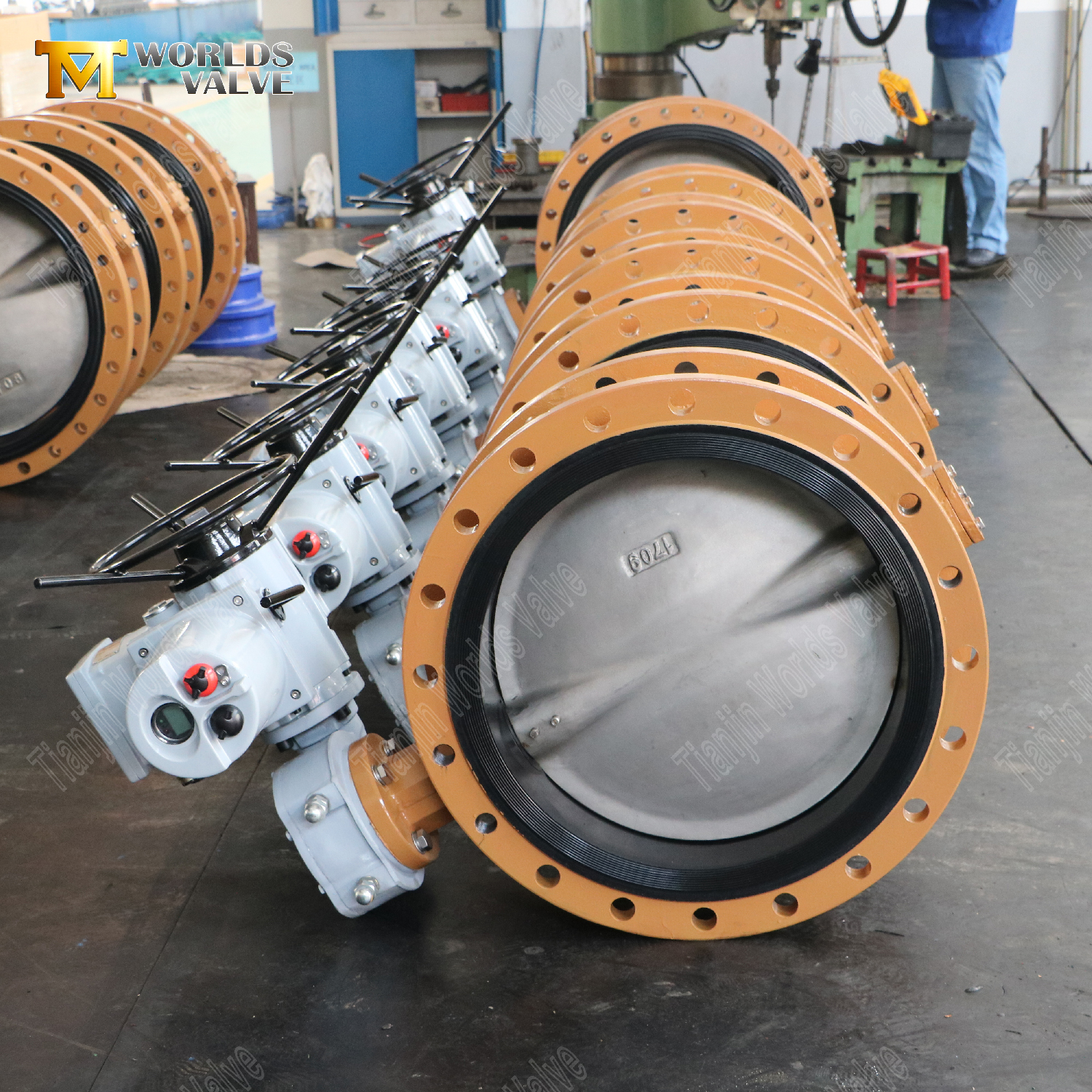

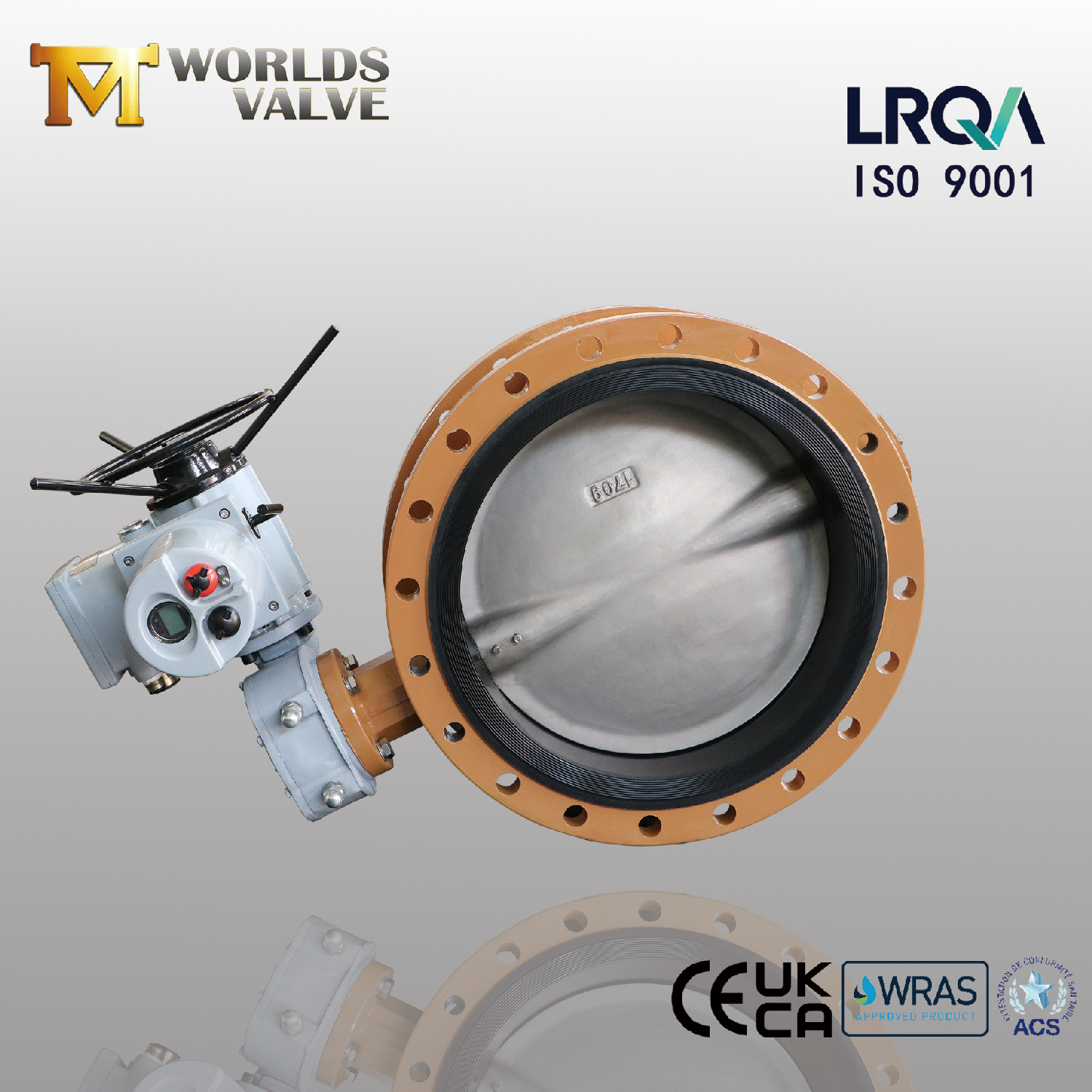

1. Intelligent Electric Actuation
Electric actuated butterfly valves offer many advantages over manual valves, including greater accuracy, reliability, convenience, and ease of maintenance.
2. High-Performance Actuation Compatibility
Pre-machined ISO 5211 mounting pad supports electric, pneumatic, or hydraulic actuators for automated control.
3. custom OEM/ODM production
Specializing in custom OEM/ODM production, we tailor valve specifications—including coatings, flange types, and actuation—to meet your exact project requirements.

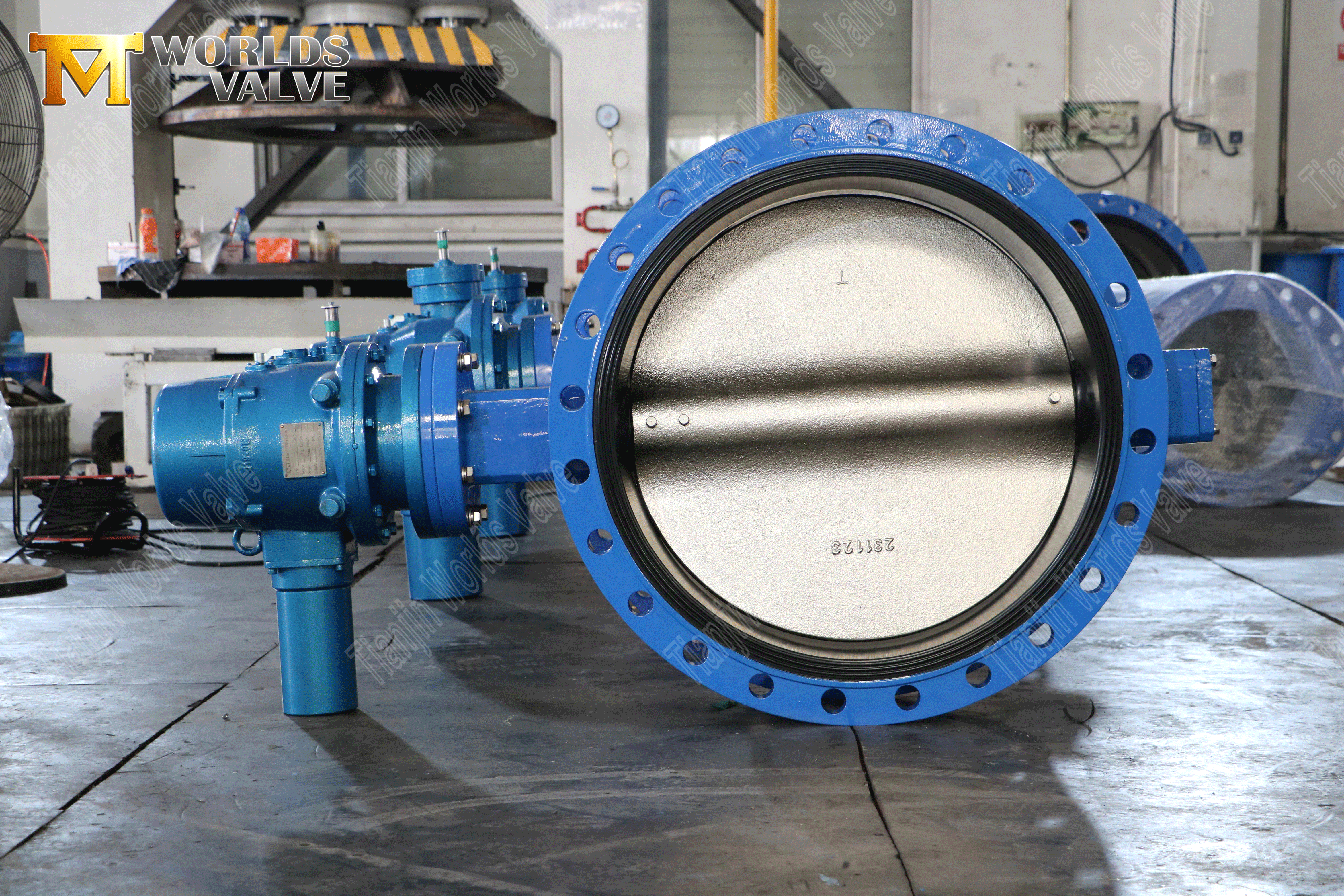

4. Flange-Type Durability
flange design (ANSI B16.5/DIN EN 1092-2) ensures leak-free performance up to Class 150 under thermal cycling conditions.
3D-machined flange faces with serrated finish prevent gasket blowout.
1. Expertise in OEM/ODM Services
As a trusted ISO 9001-certified manufacturer, we specialize in custom OEM/ODM designs, ensuring valves meet your exact specifications while adhering to global certifications.
2. High Performance
Vulcanized valve seat has very high corrosion resistance and is generally used to control some corrosive fluids with strong acidity and alkalinity.
3. Global Compliance
- Pre-certified for EU, UK, and Asian markets.
4. Customization
- Optional gearbox position indicators, locking devices, or extended stems.

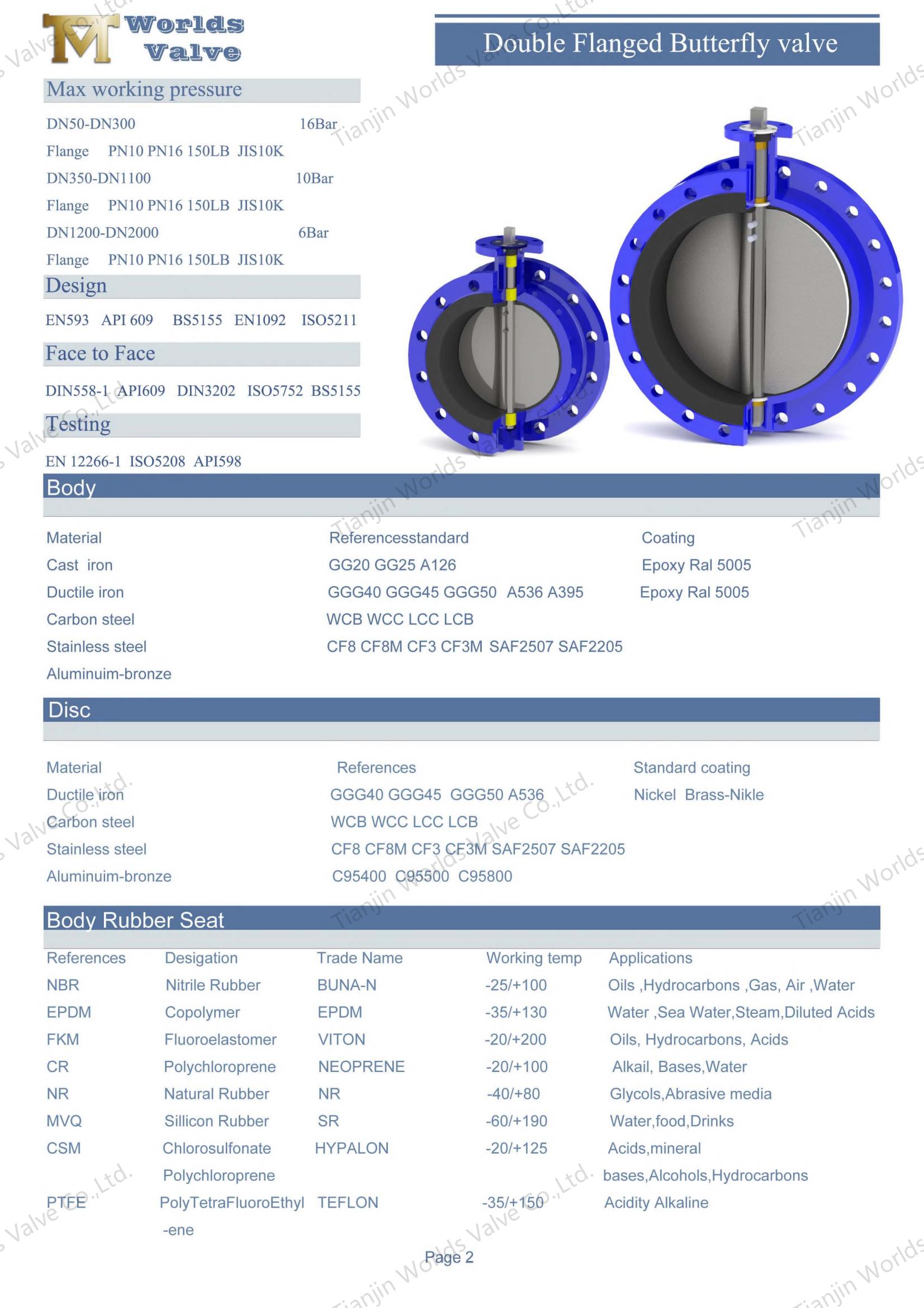

Size | DN32-DN600 | DN650-DN2000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal | 18Bar | 11Bar |
Operating Temperature | -20℃~+120℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic | |

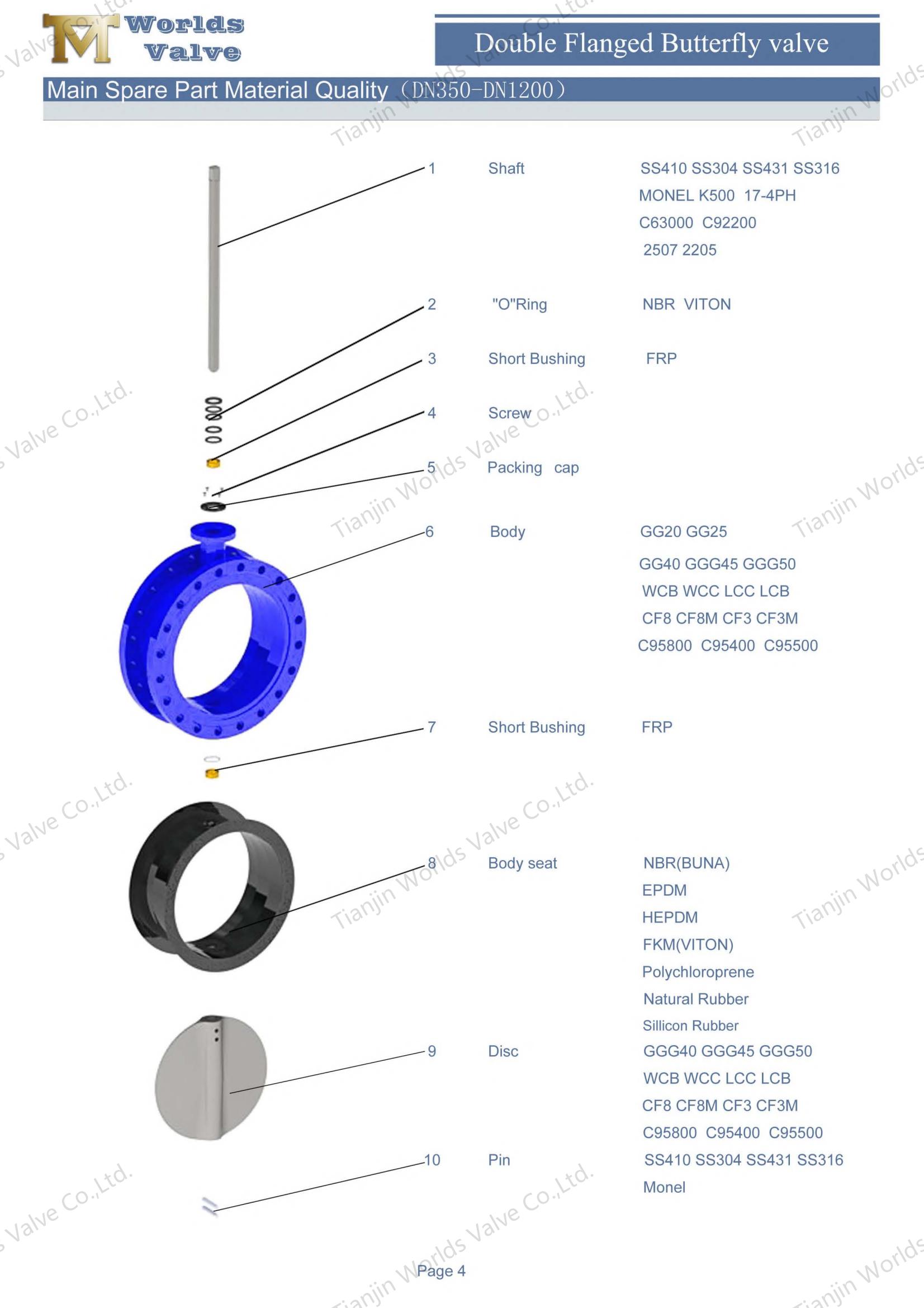

Name | Material |
Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON PTFE TEFLON HEPDM Neoprene Hypalon Natural rubber |
Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test | API 598 ISO 5208 EN 12266 |
End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange | ISO 5211(according customer’s needs) |
Elevate your industrial systems with Tianjin Worlds Valve’s advanced Electric Actuator Flange Type Butterfly Valves. Source CE, and ISO 9001 certified，Competitive pricing, fast delivery—request a quote today!
