Are you struggling to choose between a wafer and a lug butterfly valve? Both valves are widely used, but they serve different needs in various piping systems. This article will guide you through their key differences, advantages, and the best scenarios to use each.
In this article, you’ll discover how the lug butterfly valve stands apart from the wafer version. We’ll explore their installation methods, pressure handling capabilities, and key design features.
A lug butterfly valve is a critical component in industrial piping systems, commonly used for regulating or controlling the flow of liquids, gases, or other fluids through pipes or ducts. This valve type operates by using a rotating disc to control flow, typically installed on pipelines in situations where frequent maintenance, installation flexibility, and durability are essential.
What distinguishes a lug butterfly valve from other types of butterfly valves is its unique design. Unlike wafer butterfly valves, which are mounted between two flanges in a fixed position, lugged butterfly valves come with lugs or threaded holes located along the body of the valve. These threaded holes enable bolts to pass through the valve and into the flanges, securing the valve directly to both sides of the pipeline without the need for additional external support or fixtures.
This threaded design not only simplifies the installation process but also allows for easier removal and maintenance of the valve without disturbing the entire pipeline system. The lug butterfly valve is known for its enhanced flexibility in design, enabling it to be easily removed or replaced without interrupting the operation of adjacent pipeline sections. This is especially advantageous in systems that require regular servicing or in applications where frequent valve replacements are necessary.
While both wafer and lugged butterfly valves share similar functionality—controlling fluid or gas flow—their design and method of installation vary significantly, impacting how each is used in various industrial applications. Let’s explore the primary differences:
The most significant difference between the two valve types lies in their attachment method to the pipeline. Wafer butterfly valves are designed to be inserted between two flanges, and bolts pass through the valve body to hold it in place. This design typically requires the pipeline to be disassembled for installation, making it less flexible for maintenance or replacement.
In contrast, lugged butterfly valves feature lugs (threaded holes) on both sides of the valve body. These lugs allow bolts to secure the valve directly to both the valve and the flanges, providing a more versatile and robust connection. This design eliminates the need for complete disassembly of the pipeline, allowing for easy removal and replacement of the valve when necessary.
The wafer butterfly valve is typically fixed in place between two flanges and cannot be easily removed without disrupting the entire pipeline. This design can make installation and maintenance more time-consuming, especially when the pipeline is in an inaccessible location or needs frequent servicing.
On the other hand, the lug butterfly valve offers more flexibility during installation and maintenance. Its lugs enable it to be bolted directly to the pipeline without the need to remove or disassemble the adjacent flanges, making the lug butterfly valve an ideal choice for systems requiring ease of maintenance, flexibility, and minimal downtime.
Lug butterfly valves are designed to handle higher pressures more effectively than wafer butterfly valves. The secure bolting of the valve to the pipeline provides a more stable connection, allowing lugged butterfly valves to perform better in high-pressure applications. Their robust design ensures that they can handle more demanding environments, such as oil and gas pipelines, where fluid flow can be pressurized or volatile.
In contrast, wafer butterfly valves typically have lower pressure ratings due to the way they are mounted between two flanges. While they may be sufficient for low to medium-pressure applications, they are not as efficient at handling high-pressure situations compared to lugged butterfly valves.
Maintenance and removal ease are crucial factors when selecting the right valve for your system. Wafer butterfly valves require complete disassembly of the pipeline when being removed or replaced, which can lead to increased downtime and added costs. The entire pipeline must be detached to access the valve, which can be a complex and time-consuming process.
However, lugged butterfly valves are designed with maintenance efficiency in mind. Because the valve is bolted directly to both the valve and the flanges, it can be removed and replaced independently of the pipeline, without disturbing the adjacent sections. This means that maintenance can be performed quickly, with minimal disruption to the system, making the lug butterfly valve the preferred choice for many industries that prioritize operational continuity.
Feature | Wafer Butterfly Valve | Lugged Butterfly Valve |
Attachment Method | Inserted between two flanges | Bolted directly to both valve and flange |
Installation Flexibility | Fixed, requires disassembly of pipeline | Flexible, can be installed and removed independently |
Pressure Handling | Generally lower pressure ratings | Handles higher pressures more efficiently |
Removal & Maintenance | Requires complete disassembly of the pipeline | Can be removed without disturbing the pipeline |
Applications | Ideal for low-pressure and less demanding systems | Ideal for high-pressure and critical systems |
Material Options | Commonly cast iron, stainless steel | Cast iron, stainless steel, and other durable materials |
When selecting a valve for your industrial application, the decision often depends on several factors, such as installation requirements, pressure ratings, maintenance ease, and durability. For these reasons, lug butterfly valves are a preferred option for many industries. Below are the primary reasons why you might choose a lug butterfly valve over a wafer butterfly valve:
One of the primary advantages of the lug butterfly valve is the flexibility it offers during installation. The lugs allow the valve to be installed or removed without affecting the entire pipeline, making it easier to service, replace, or maintain the valve independently. This is particularly useful for applications that require periodic valve replacement or maintenance without interrupting the operation of the entire system.
Lug butterfly valves are designed to handle higher pressure systems better than wafer valves. The threaded lugs provide a more secure connection to the pipeline, making the valve more stable and less prone to failure under high-pressure conditions. This makes them ideal for use in systems that deal with volatile or aggressive fluids, such as in chemical or oil and gas industries.
Lug butterfly valves are typically made from stronger materials such as cast iron, stainless steel, or bronze. These durable materials can withstand the corrosive nature of various fluids and gases, making them more reliable and longer-lasting. Additionally, the construction of lug butterfly valves often allows them to handle more extreme conditions, including higher temperatures and pressures, than wafer valves.
Understanding the key features of lug butterfly valves is essential when considering them for your pipeline system. Below, we’ll explore some of the most significant features that set these valves apart from wafer valves and make them a reliable choice for many industrial applications.

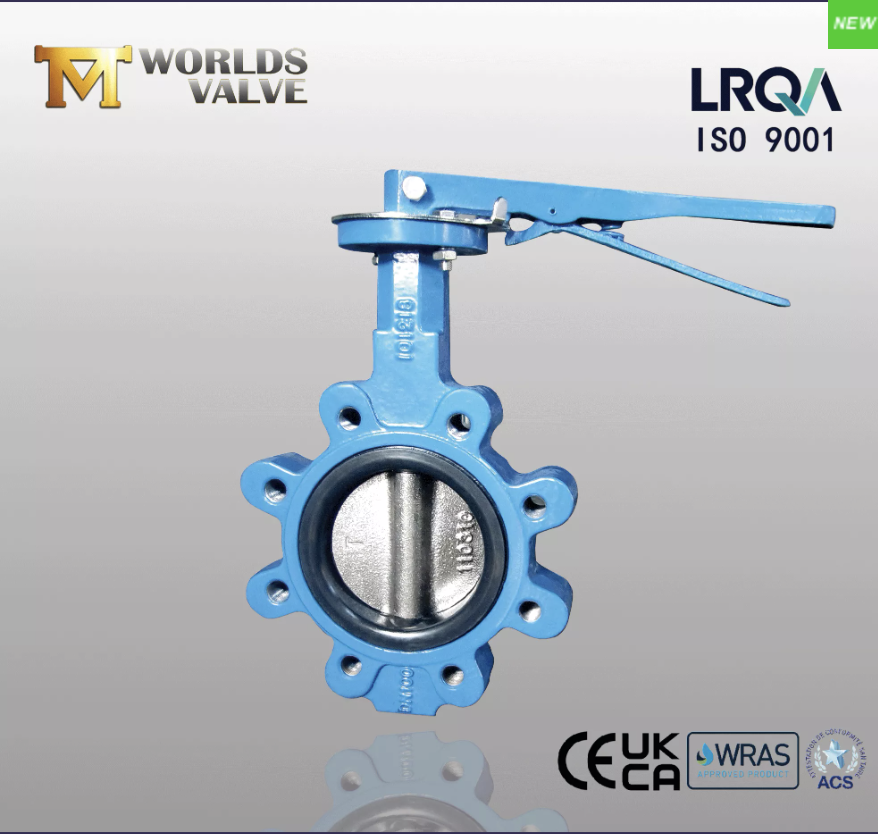

As the name suggests, the most distinguishing feature of the lug butterfly valve is its lugged design. The valve has threaded holes or lugs on its body, allowing it to be bolted directly to the flanges. This feature ensures a strong and stable connection, making it more reliable than wafer valves, which are mounted between flanges.
The lug design also simplifies the installation process because the valve does not need to be inserted into the pipeline. Instead, it can be easily bolted onto the flanges, reducing installation time and labor.
Another significant advantage of lug butterfly valves is their ability to handle bidirectional flow. This means that the valve can regulate the flow of fluids in both directions, which is especially important in systems where flow direction may change frequently. Wafer butterfly valves, in contrast, are typically designed for unidirectional flow only.
Bidirectional flow capability increases the flexibility of lug butterfly valves in applications such as water treatment, chemical processing, and oil and gas pipelines, where the flow direction can vary based on the system’s operational needs.
Lug butterfly valves are designed to operate with low torque, making them easier to open and close compared to other types of valves. This feature is especially important in systems where frequent valve adjustments are necessary. The low-torque design reduces wear and tear on the valve components, extending the life of the valve and improving overall system efficiency.
Lug butterfly valves are versatile and can be used across a wide range of industries. Their flexibility, ease of maintenance, and durability make them suitable for many demanding applications. Below are some key industries where lug butterfly valves are commonly used.
In water and wastewater treatment plants, controlling the flow of water through pipelines and filtration systems is critical. Lug butterfly valves are often used in these systems due to their ability to handle large volumes of water, as well as their resistance to corrosion. The lug butterfly valve’s ability to handle both unidirectional and bidirectional flow makes it ideal for use in systems where the flow direction may change.
Additionally, the valve’s easy removal and maintenance allow for efficient operation in environments where regular servicing is required.
The chemical and petrochemical industries often require valves that can withstand aggressive chemicals and extreme conditions. Lug butterfly valves are made from materials such as stainless steel and bronze, which are resistant to corrosion and capable of handling high-pressure fluids. These valves are used to regulate the flow of chemicals in processing plants, ensuring that materials are transported safely and efficiently.
In the oil and gas industry, pipeline systems are exposed to extreme pressures and corrosive substances. Lug butterfly valves are frequently used in upstream, midstream, and downstream applications to control the flow of oil, gas, and other fluids. Their durability and resistance to high pressures make them an excellent choice for oil and gas pipelines, where reliability is essential.
In heating, ventilation, and air conditioning (HVAC) systems, lug butterfly valves are used to regulate the flow of air and fluids through ducts and pipes. Their ability to provide precise control over air or fluid flow is essential for maintaining efficient operation in HVAC systems, ensuring proper temperature regulation and air quality.
Selecting the right lug butterfly valve for your application requires considering several key factors. Below are the primary elements to keep in mind when choosing the best valve for your system.
The size of the lug butterfly valve and its pressure rating are critical factors that affect its performance. You need to ensure that the valve is sized correctly to fit the pipeline and can handle the system’s pressure requirements. If the valve is too small, it may not be able to handle the flow, while a valve that’s too large could lead to inefficient operation and unnecessary costs.
The pressure rating, which is often specified by the manufacturer, is essential for determining whether the valve can withstand the internal pressure in your system without failing.
The material of the valve plays a significant role in its performance and longevity. For applications where the fluid is corrosive or abrasive, selecting a lug butterfly valve made from corrosion-resistant materials like stainless steel or brass is crucial. On the other hand, if the valve will be used in less harsh environments, materials such as cast iron may be sufficient.
Depending on your application, you may need to choose a valve that can handle either unidirectional or bidirectional flow. Lug butterfly valves are versatile in this regard, as they can manage both types of flow. This makes them ideal for systems where flow direction may change or where precise control over the flow is needed.
Temperature and pressure conditions can significantly impact the valve’s performance. Lug butterfly valves are designed to handle a wide range of temperatures and pressures, but it is essential to verify that the valve’s specifications match the conditions of your system. For instance, valves designed for high-temperature applications require materials that can withstand thermal expansion and contraction without compromising performance.
In conclusion, the lug butterfly valve offers a robust, versatile, and reliable solution for various industrial applications. While wafer butterfly valves are suitable for specific situations, the lug butterfly valve provides distinct advantages in terms of flexibility, stability, and ease of maintenance, especially in high-pressure or demanding systems.
The article provides a detailed comparison between the wafer vs lugged butterfly valve, highlighting key design differences and applications. The lug butterfly valve offers more flexibility and is ideal for high-pressure systems and easier maintenance. Understanding these differences helps businesses choose the right valve for their specific needs.

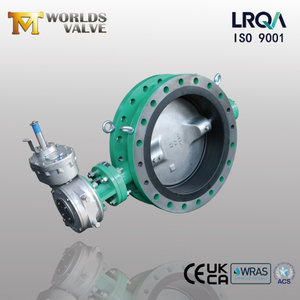

For high-quality butterfly valves, Tianjin Worlds Valve Co., Ltd. offers a range of products designed to meet diverse industrial requirements. Their products provide reliable solutions, ensuring optimal performance and long-term value in various systems.
A: The main difference between a wafer butterfly valve and a lug butterfly valve is the attachment method. Wafer valves are inserted between flanges, while lugged valves have threaded holes allowing for independent installation and removal without disturbing the pipeline.
A: Lug butterfly valves offer more flexibility, particularly in systems that require frequent maintenance. Their design allows for easy installation and removal without affecting the entire pipeline, unlike wafer valves that are fixed between two flanges.
A: Installing a lug butterfly valve involves bolting the valve directly to the pipeline flanges using the threaded holes in the valve body. This is easier and more flexible than the installation of a wafer valve, which requires complete disassembly of the pipeline.
A: Lug butterfly valves are ideal for systems with higher pressure ratings and those that require easier maintenance. Their unique design allows independent removal without disturbing other parts of the system.
A: Yes, lug butterfly valves can generally handle higher pressure ratings more efficiently compared to wafer butterfly valves, making them more suitable for demanding applications.
A: Lug butterfly valves tend to be more expensive than wafer valves because of their more complex design, which provides greater flexibility in installation and maintenance. However, the investment may be worth it for systems requiring regular servicing.
A: Consider a lug butterfly valve if you need flexibility in installation or plan on performing regular maintenance. If the system requires simple, fixed installation and you don't need frequent removal, a wafer butterfly valve may be more cost-effective.
