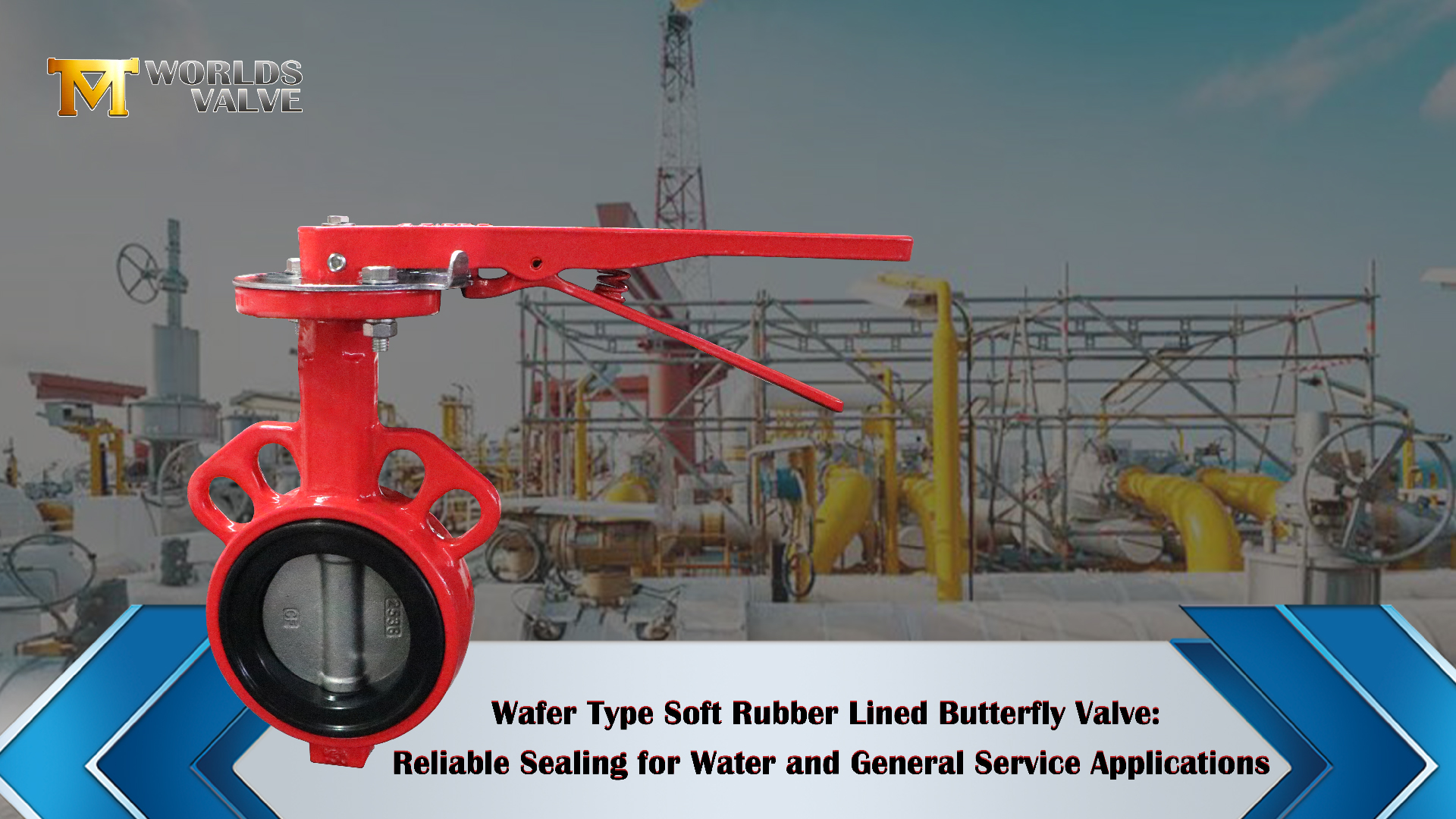

Design:Wafer Type Soft Rubber Lined Butterfly Valve
Type: CBF02-TA04 OPERATION AND MAINTENANCE DOWNLOAD
Size: DN80

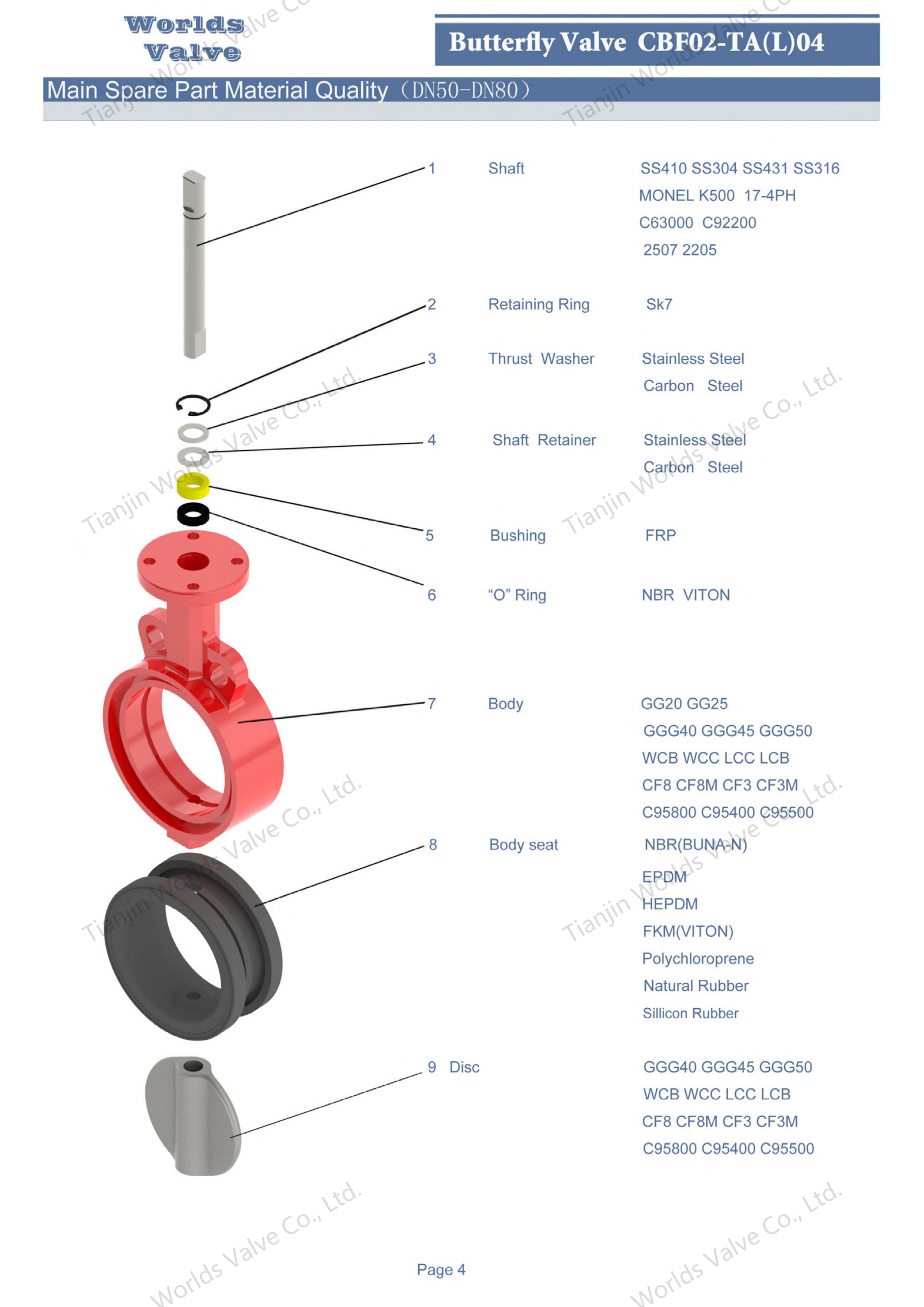

Body material: DI (Ductile Iron)
Seat: EPDM
Disc: CF8M
Stem: SS431
Pressure: 150LB
Operating temperatures: -25℃—120℃(depending on pressure, medium and material)
Structure: Wafer Type Design
Operated: Hand Lever
The Wafer Type Soft Rubber Lined Butterfly Valve provides an economical and efficient solution for water treatment, irrigation systems, and general industrial services where reliable bubble-tight sealing and minimal maintenance are essential. This valve features a resilient rubber-lined design that ensures excellent sealing performance while maintaining a compact and lightweight profile for easy installation between pipeline flanges.
1. Excellent Bubble-Tight Sealing
- Soft rubber lining provides superior sealing even at low pressures
- Ensures zero leakage in both flow directions
- Maintains sealing integrity over thousands of operating cycles
2. Cost-Effective Design
- Competitive pricing compared to metal-seated valves
- Reduced maintenance requirements and long service life
- Ideal for budget-conscious projects without compromising performance
3. Easy Installation & Maintenance
- Wafer design installs quickly between ANSI/DIN standard flanges
- Lightweight construction requires minimal support structures
- Simple quarter-turn operation for quick open/close control
4. Corrosion-Resistant Construction
- Rubber lining protects valve body from water and mild chemicals
- Suitable for potable water applications with appropriate material certifications
- External epoxy coating available for enhanced durability
5. Versatile Application Range
- Works effectively with water, air, and non-aggressive media
- Compatible with manual handles, gear operators, or actuators
- Available in various rubber materials including EPDM, NBR, and Viton
- Water Treatment and Distribution Systems
- Irrigation and Agricultural Water Networks
- HVAC and Building Services
- Industrial Water Cooling Circuits
- Fire Protection Systems
- General Purpose Fluid Handling
Customizable seat and lining materials
Full compliance with international standards
OEM/ODM support with third-party certification support
Global supply capability with after-sales technical service
Manufactured under ISO 9001 quality standards with comprehensive testing of each valve. Available with WRAS, DVGW, and other international certifications for potable water applications.
