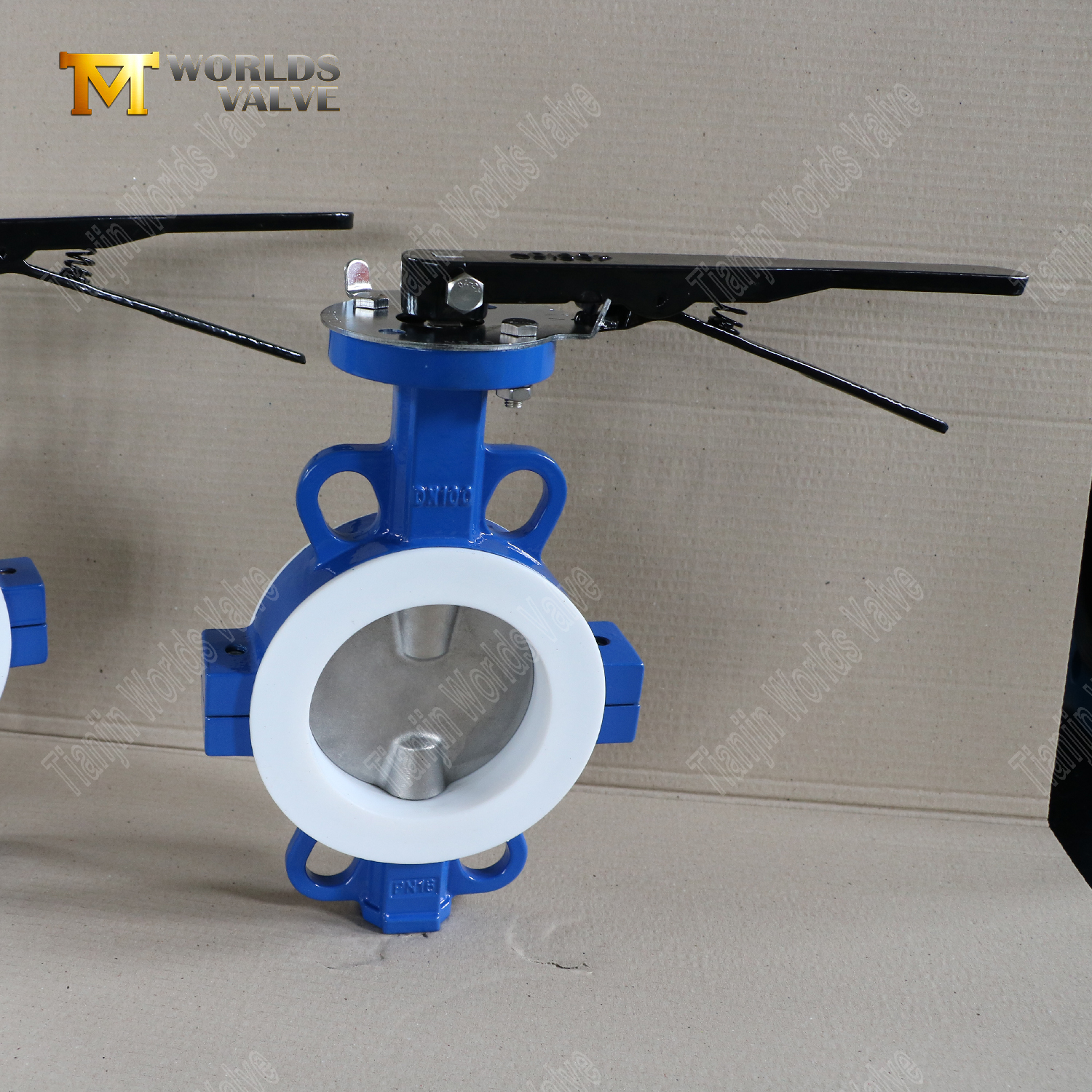

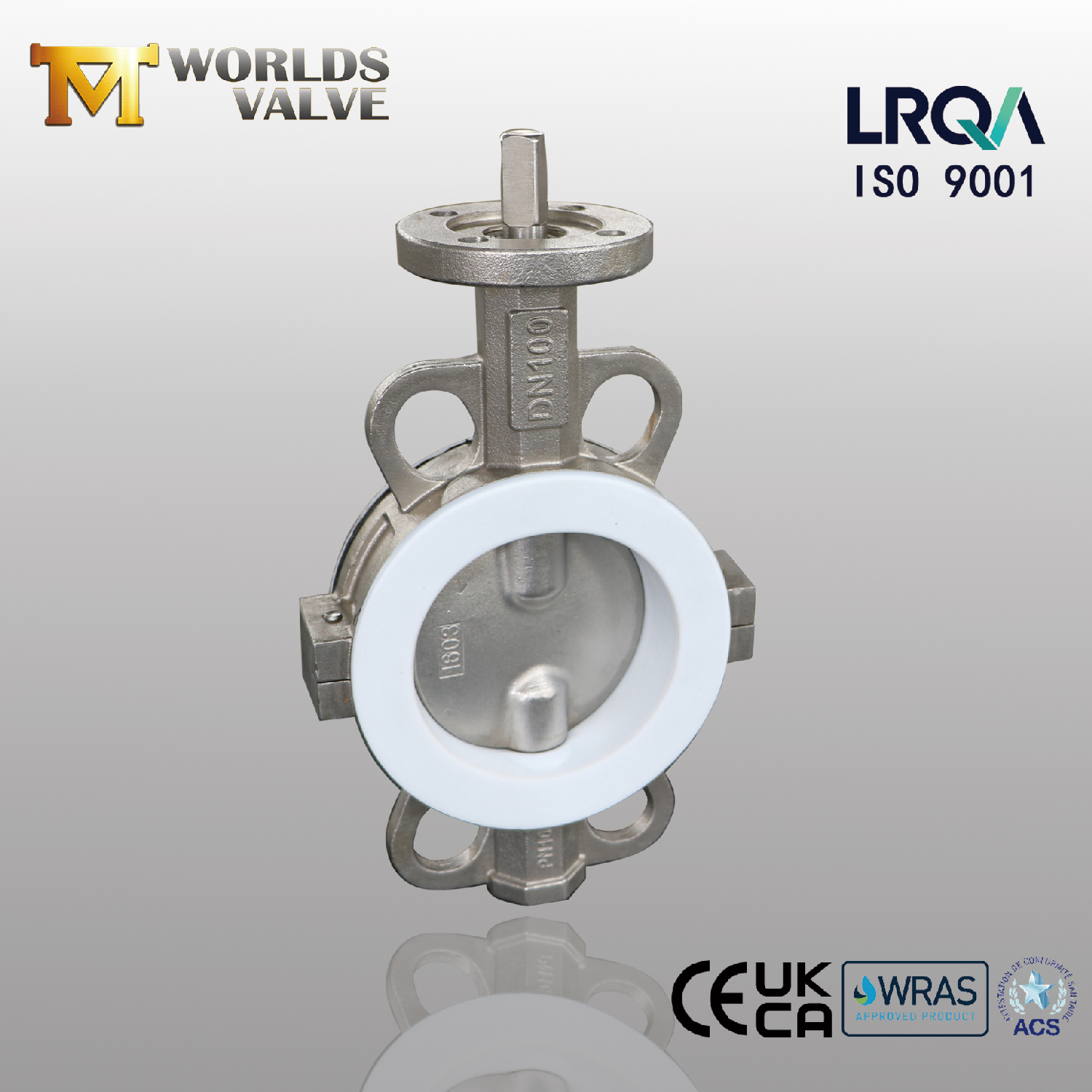

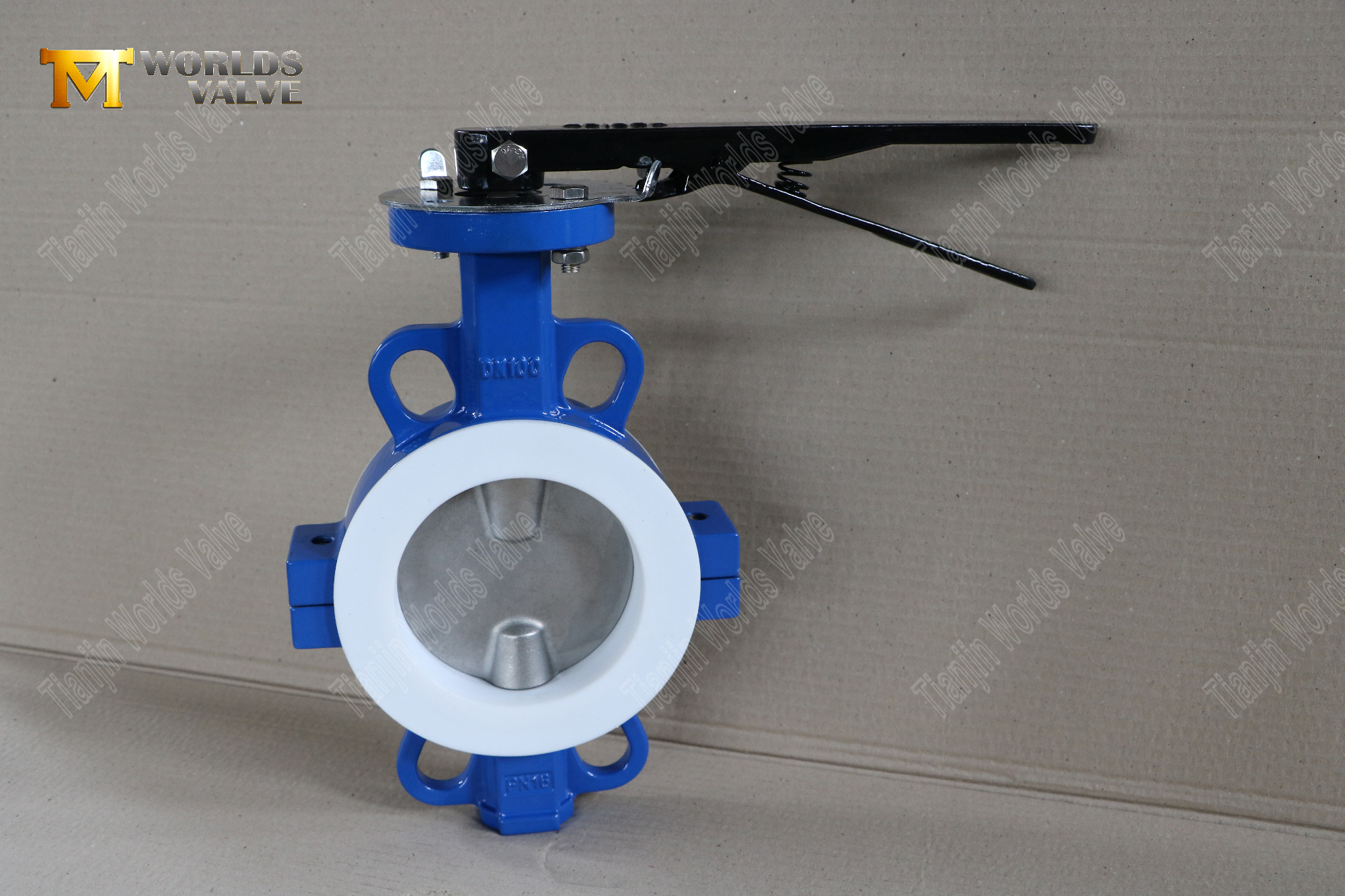

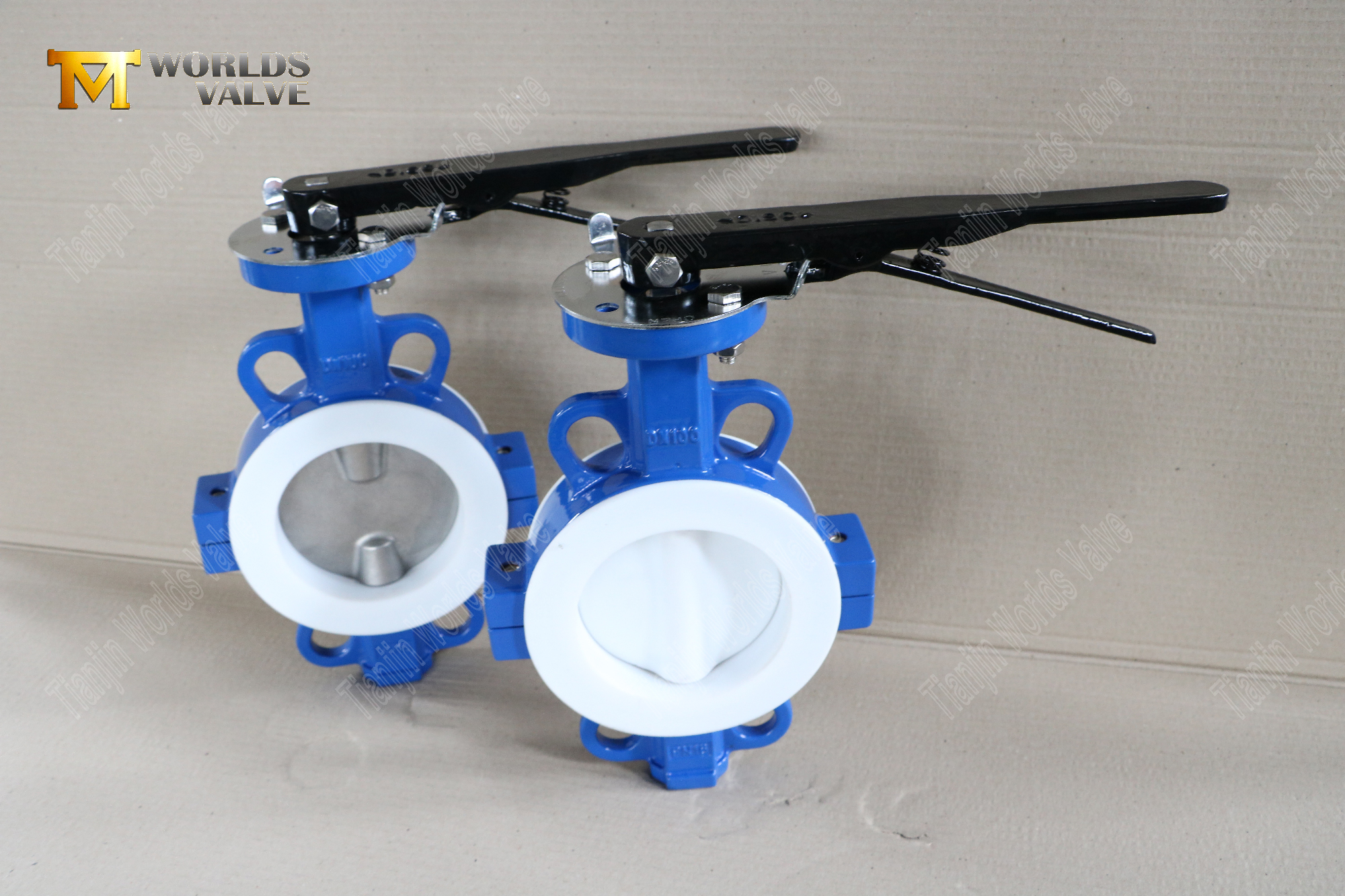

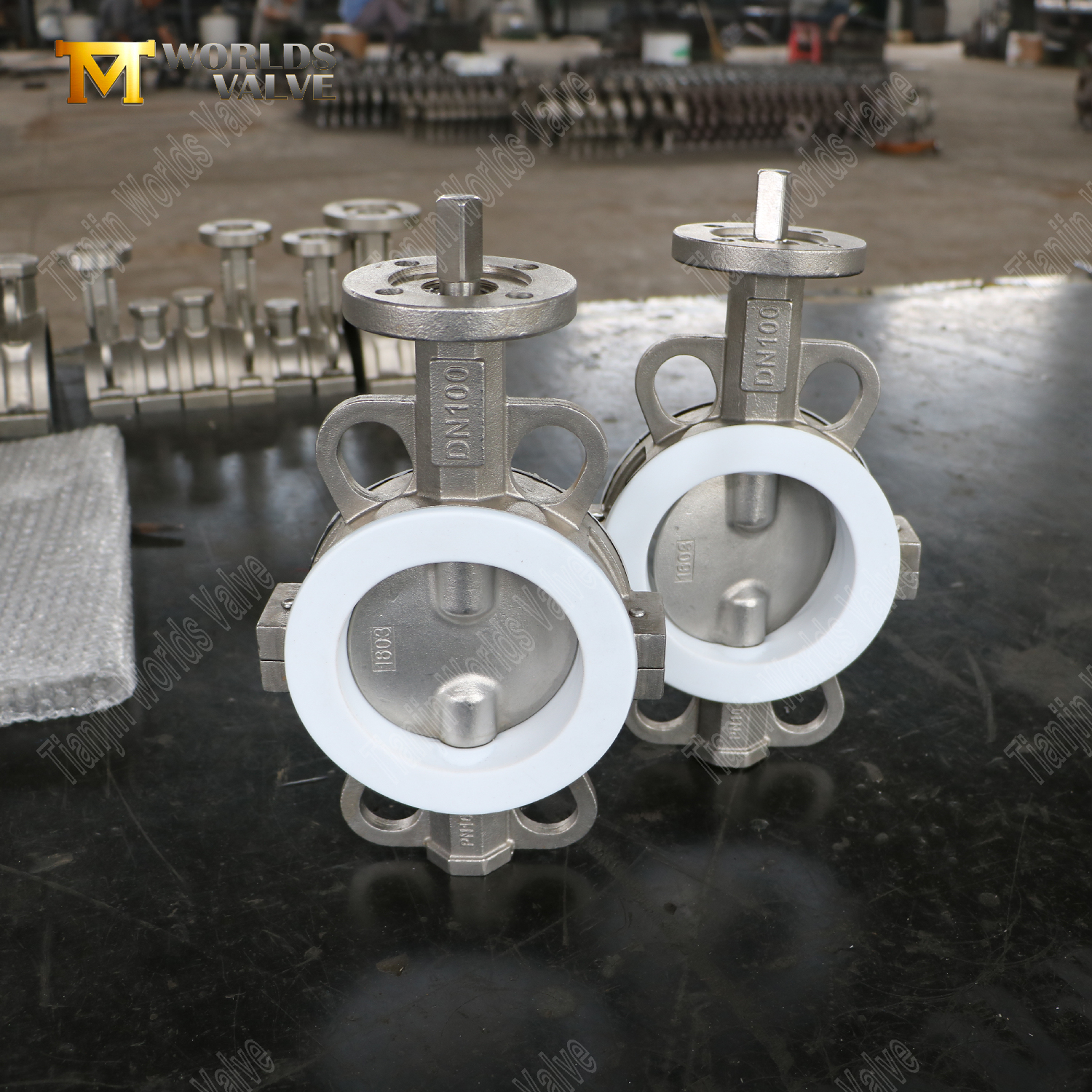

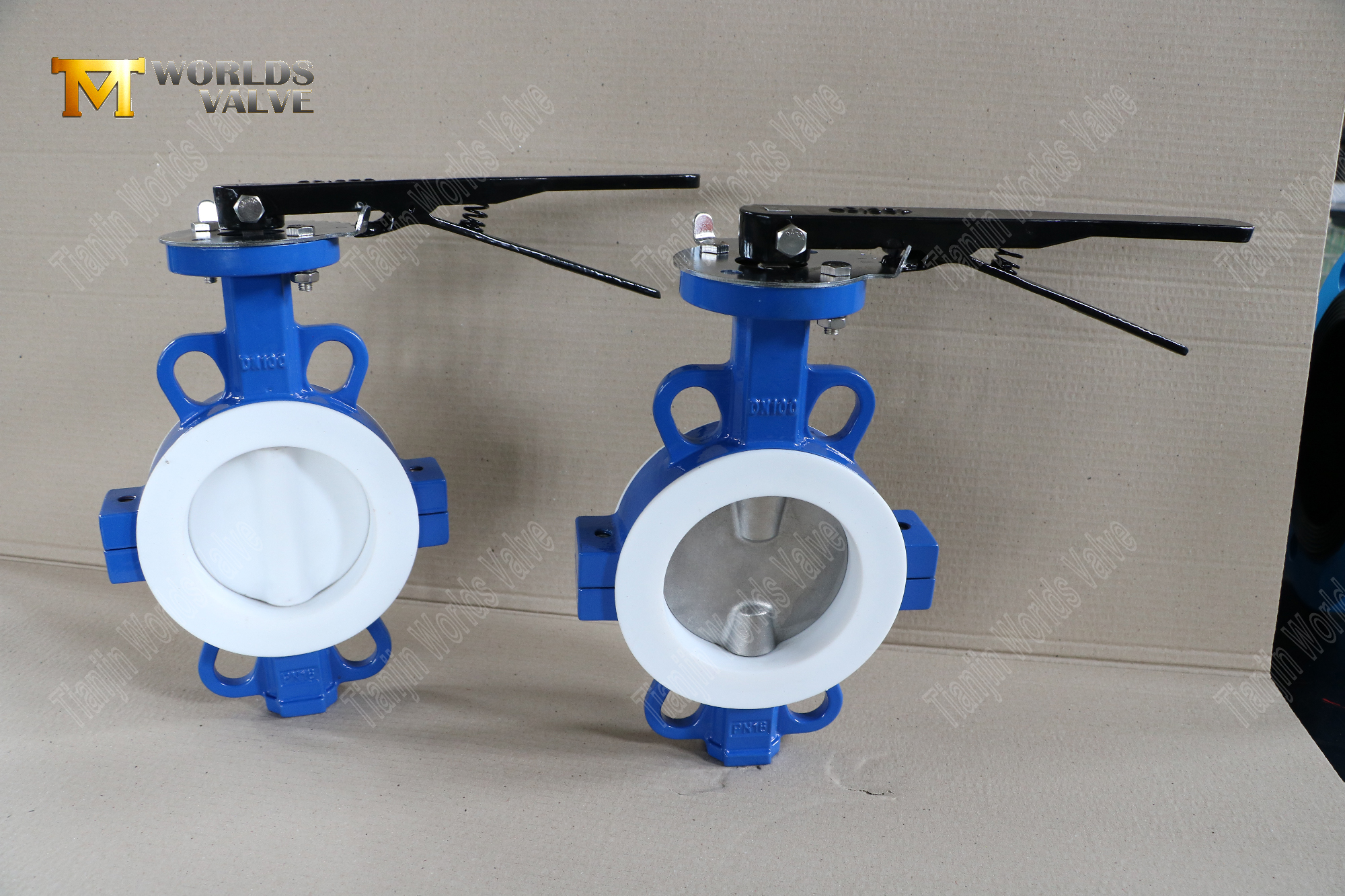

DN100 Teflon Lined Wafer Split Body Butterfly Valves | Corrosion-Resistant Flow Control

Tianjin Worlds Valve Co., Ltd. presents DN100 Teflon Lined Wafer Split Body Butterfly Valves, engineered for aggressive chemical and high-purity applications. Featuring a unique split-body design with PTFE seat, these valves ensure zero leakage, making them ideal for corrosive fluids, pharmaceuticals, and food processing. They combine leak-proof performance with easy maintenance.

Model:
CBF05E-TA01
Brand:
OEM|ODM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction:

1. PTFE Lining for Exceptional Chemical Resistance

The PTFE lining provides excellent resistance to corrosive chemicals, acids, and solvents, making it suitable for harsh environments.

Ensures leak-proof performance and extends the valve's service life.

2. Wafer Type Design for Compact Installation

The wafer type design allows for easy installation between flanges, saving space and reducing installation costs.

Compatible with ANSI, DIN, JIS, and other international flange standards.

3.Split Body Design for Easy Maintenance

Two-piece body allows quick disc replacement without pipeline disassembly, reducing downtime by 50%.

Wafer-style installation fits between ANSI/DIN flanges (ISO 5211 compatibility).

4. Low Torque & Long Service Life

PTFE-lined bearings reduce operating torque by 30% vs. metal-seated valves.

10,000+ cycle lifespan in abrasive media (per ISO 5208 testing).

5. Certified Quality

Compliant with ISO 9001, API 609, and CE, WRAS, UKCA, ACS standards, ensuring global acceptance.

Rigorous quality control processes, including pressure testing and material inspection.

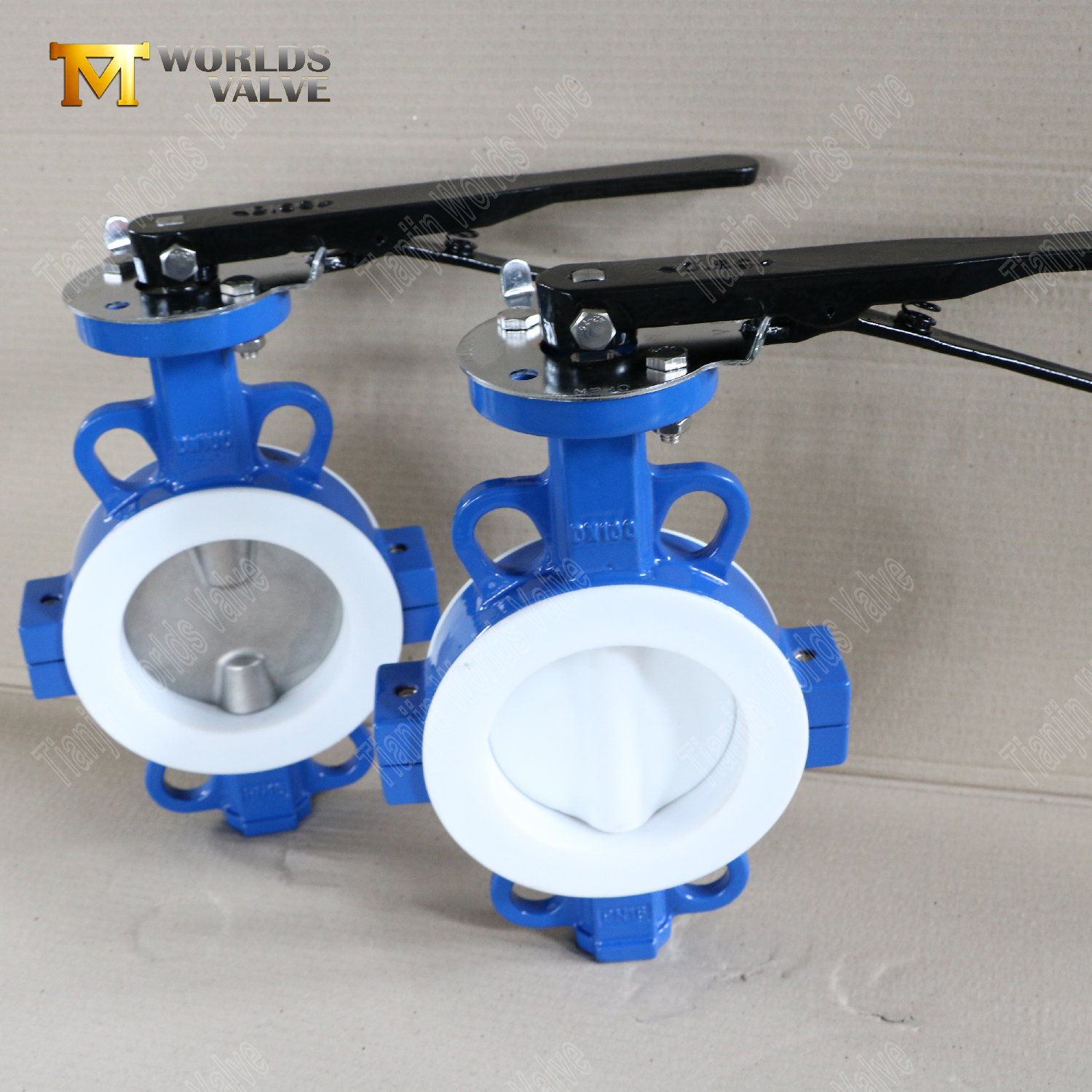

DN100 Teflon Lined Wafer Split Body Butterfly Valves Corrosion-Resistant Flow Control (10)

Why Choose Us?

1. Expertise in OEM/ODM Services

As a trusted Teflon Lined Butterfly Valve Factory, we offer customized solutions tailored to your specific requirements. From design to delivery, we ensure seamless execution.

2. Global Reach with Local Support

We provide timely delivery and dedicated customer support worldwide.

3. Competitive Pricing

Our efficient manufacturing processes and economies of scale enable us to offer high-quality valves at competitive prices.

4. Comprehensive After-Sales Service

We have a professional technical team that provides technical support, installation guidance, and maintenance services.

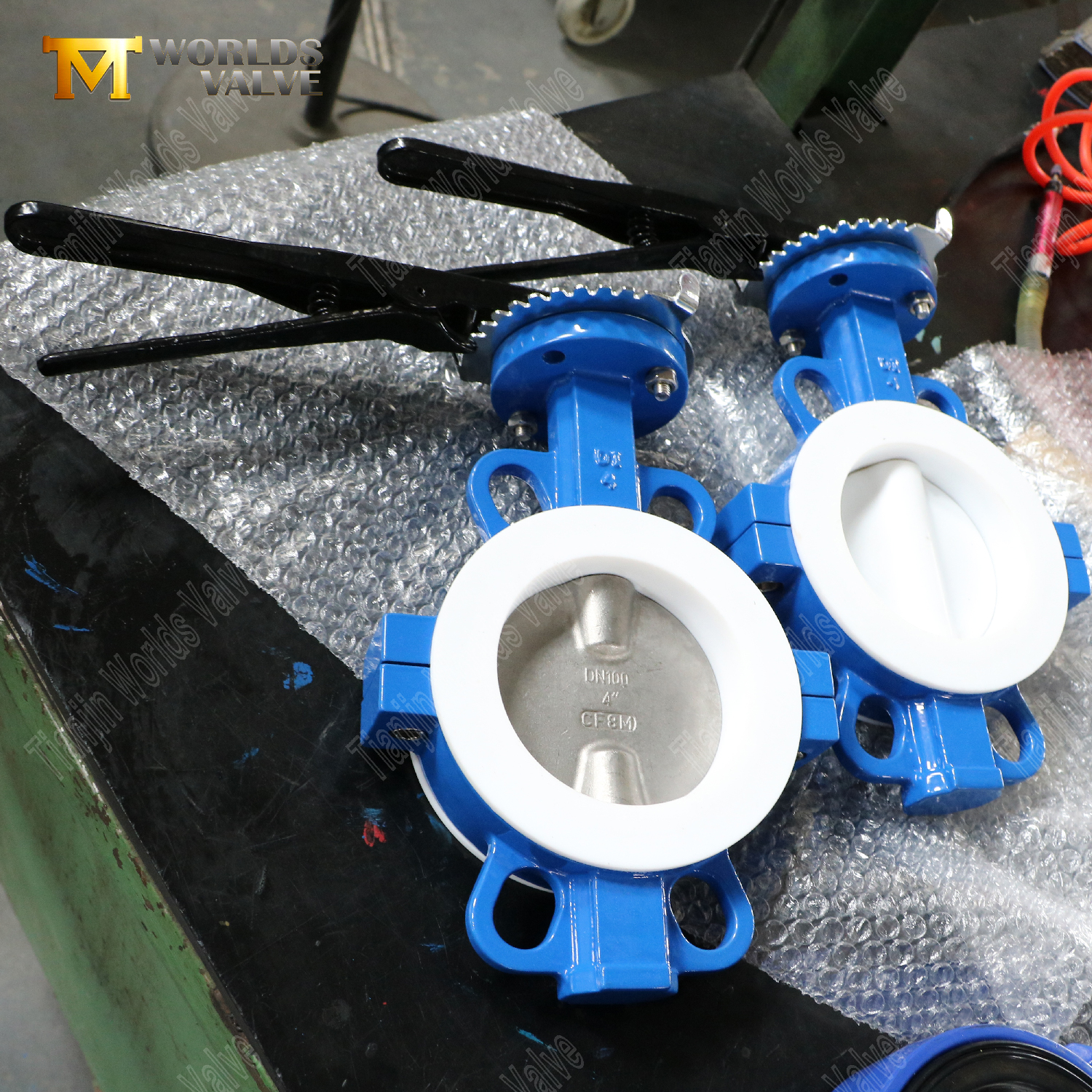

DN100 Teflon Lined Wafer Split Body Butterfly Valves Corrosion-Resistant Flow Control (11)

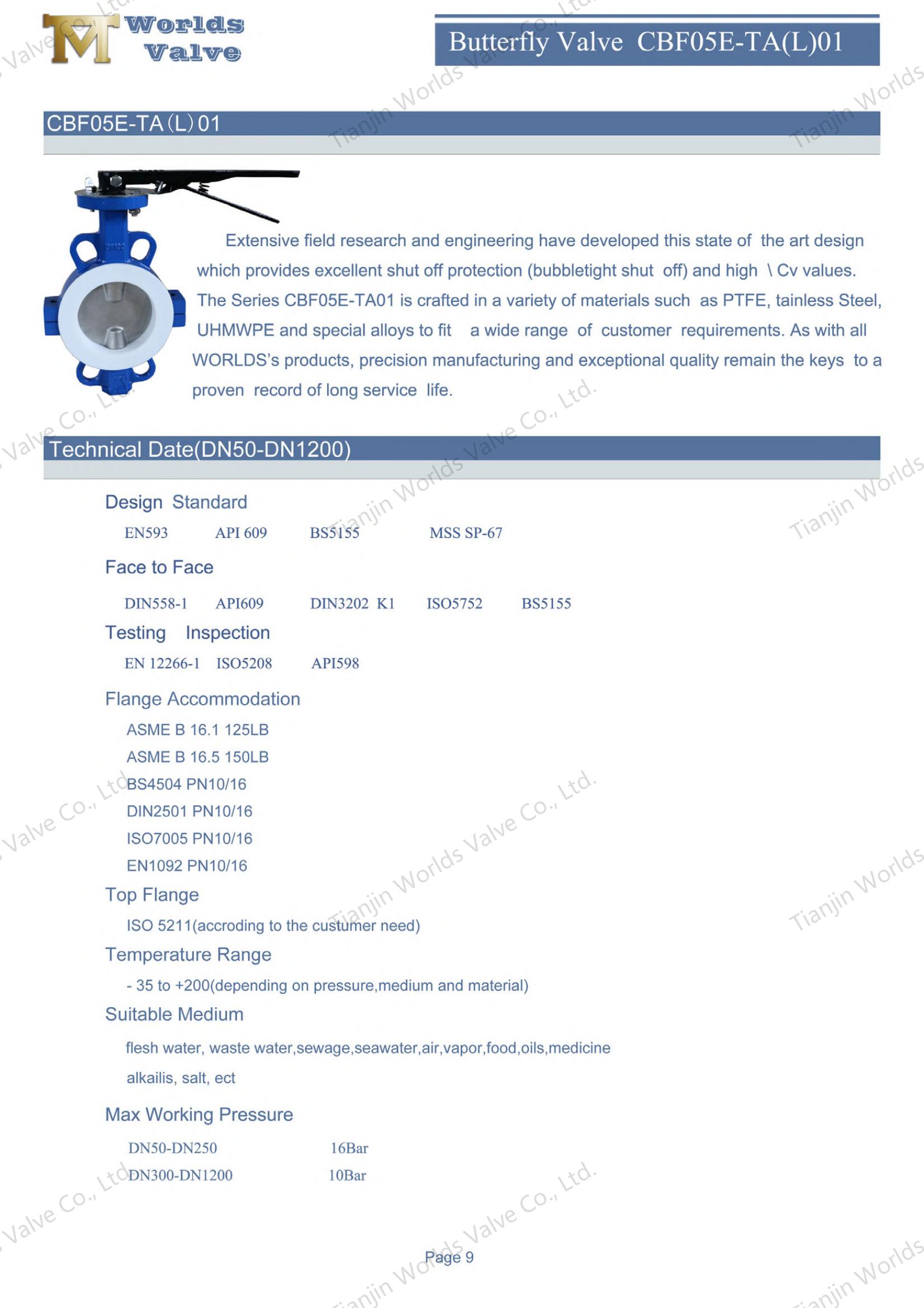

Technical Parameters：

Size	DN50-DN150	DN50-DN900
Working pressure	16Bar	10Bar
Shell	24Bar	15Bar
Seal	18Bar	11Bar
Operating Temperature	-20℃~+180℃
Operating Environment	Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water
Driving method	Hand Lever Worm Gear Electric Pneumatic

DN100-Teflon-Lined-Wafer-Split-Body-Butterfly-Valves--Corrosion-Resistant-Flow-Control-(1)

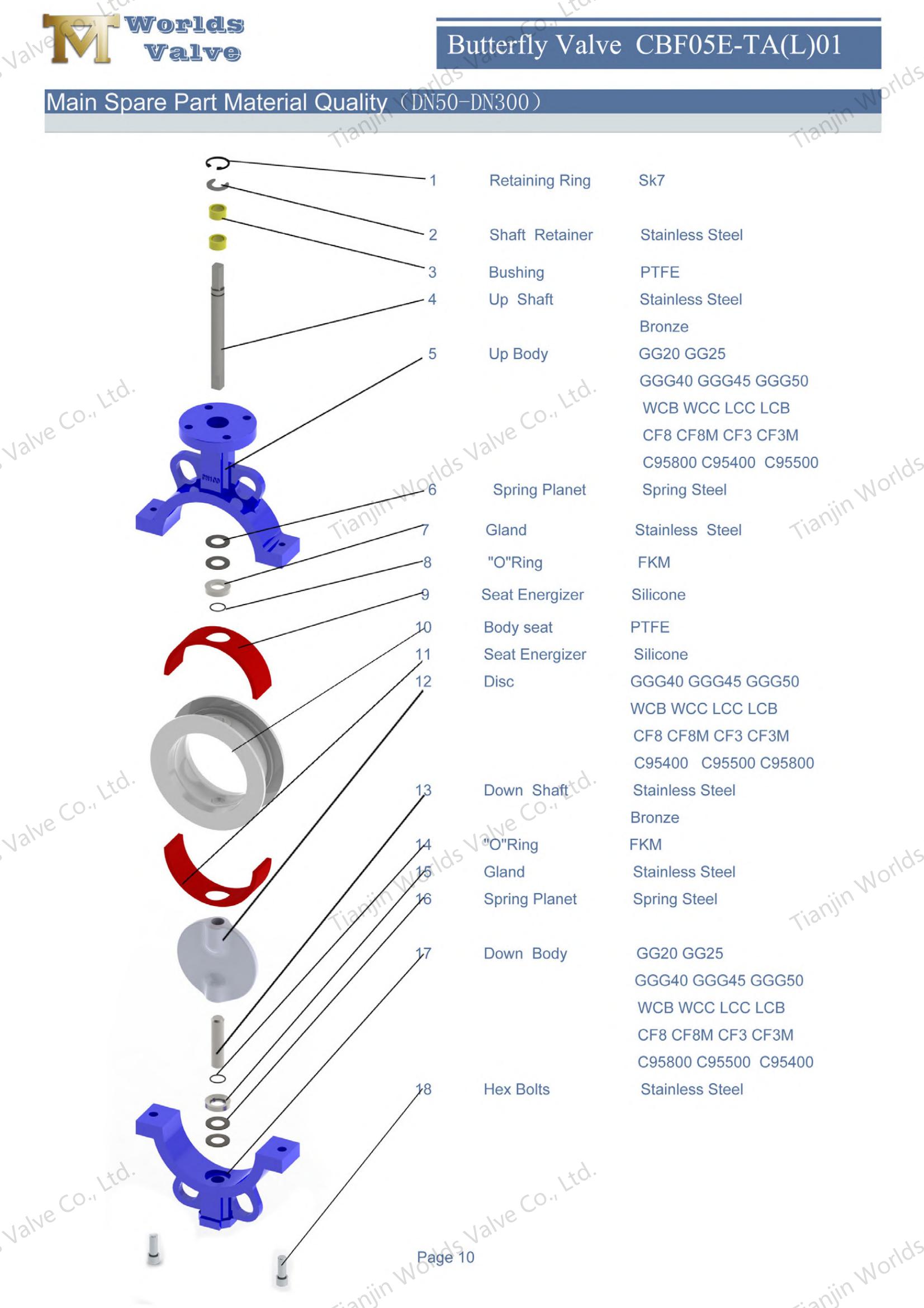

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	PTFE Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Shaft	Stainless Steel Monel K500
Seat	PTFE (Teflon)

DN100-Teflon-Lined-Wafer-Split-Body-Butterfly-Valves--Corrosion-Resistant-Flow-Control-(2)

Executive Standard:

Design Standard	EN 593 , MSS SP67 API 609 BS5155
Inspection & Test	API 598 ISO 5208 EN 12266
End Standard	ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3
Face to Face	ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202
Top Flange	ISO 5211

DN100-Teflon-Lined-Wafer-Split-Body-Butterfly-Valves--Corrosion-Resistant-Flow-Control-(9)

Conclusion:

Upgrade your fluid systems with the industry’s most reliable DN100 Teflon Lined Wafer Split Body Butterfly Valves. Contact us today for a free engineering consultation.

DN100 PTFE lined split body butterfly valve Teflon wafer butterfly valve for chemicals FDA compliant PTFE encapsulated valve WAFER TYPE BUTTERFLY VALVE Corrosion proof split body valve DN100 PTFE lined butterfly valve ANSI B16.5 Teflon butterfly valve OEM chemical process butterfly valves Abrasion resistant PTFE lined valve ISO 9001 certified valve manufacturer
