Have you ever wondered how industries manage precise flow in tight spaces? Wafer Butterfly Valve offers a compact, durable solution for water, HVAC, and chemical systems. In this article, you will learn about its unique design, efficiency, and industrial applications. We will explore how Butterfly Valve technology improves performance, saves costs, and supports modern industrial needs.

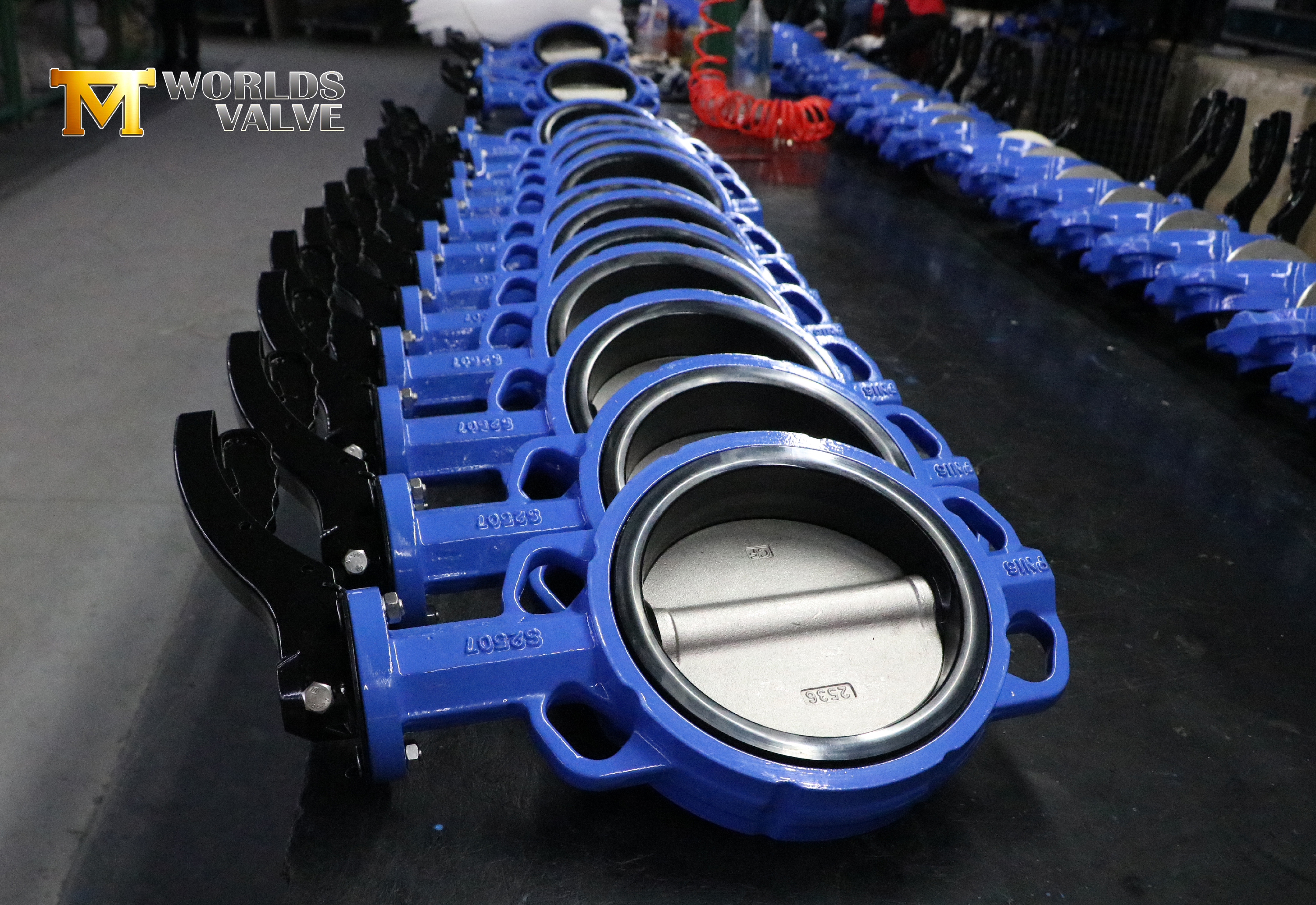

A wafer butterfly valve is a compact quarter-turn valve designed to regulate or isolate fluid flow efficiently. It consists of a disc, seat, stem, and an actuator, all working together to control liquid or gas passage. The disc rotates 90 degrees to either allow flow or stop it completely. Unlike other valves, wafer butterfly valves fit snugly between pipe flanges, which saves space and reduces installation costs. They are widely used across modern industries, including water treatment, HVAC, and chemical processing.
Key Differences Between Butterfly Valve Types:
Valve Type | Installation | Advantages | Typical Use |
Wafer | Sandwiched between flanges | Compact, lightweight, easy to install | Water lines, HVAC |
Lug | Bolted to one flange | Can isolate downstream piping | Wastewater, industrial pipelines |
Flanged | Bolted on both sides | Handles higher pressures, robust | Heavy industrial applications |
The wafer style is particularly popular in modern industry because it balances efficiency, cost, and reliability. They also minimize weight and footprint, which makes retrofitting older systems simpler.
These valves operate on a quarter-turn mechanism. Turning the actuator rotates the disc, which either blocks or allows flow. Flow control is smooth, and pressure regulation is consistent because the disc’s position directly correlates with flow rate. We often see resilient seat or PTFE-lined valves, ensuring tight sealing even under high pressure or corrosive fluids.
Flow Operation Points:
0°fully closed, preventing fluid passage.
45°partially open, allows controlled flow for throttling.
90°fully open, minimal resistance, high flow efficiency.
The wafer design keeps installation simple—they fit between existing pipes without requiring extra support. Materials vary, including stainless steel, cast iron, or engineered plastics, making them adaptable across industries handling acids, bases, and clean water.
In modern applications, the actuator type can vary. Manual handles, gear-operated actuators, or electric actuators provide flexibility depending on system needs. Each choice influences control speed and precision, but all maintain consistent sealing and minimal leakage.
Wafer butterfly valves are widely used in municipal water systems and industrial water treatment plants. They help manage flow precisely, which is critical for maintaining consistent water pressure across networks. Their resistant materials, such as PTFE or stainless steel, make them suitable for demineralized water or lightly corrosive chemicals often found in treatment processes. Installation is simple because the wafer design fits neatly between flanges, reducing downtime and labor costs. They also allow quick shutoff in emergencies, preventing contamination or system damage.
Applications in Water Systems:
Flow Control for Pumping Stations: Regulates water movement to maintain consistent pressure.
Backflow Prevention: Protects clean water lines from contamination during system failures.
Chemical Dosing Regulation: Ensures precise control of treatment chemicals.
In heating, ventilation, and air conditioning (HVAC) systems, wafer butterfly valves are essential for controlling chilled water and hot water pipelines. They provide space-saving advantages compared to traditional valves, which is crucial in modern buildings where pipe space is limited. These valves also support automation, allowing remote control of temperature zones.
HVAC Benefits:
Compact Installation: Fits easily in tight building pipe spaces.
Efficient Flow Regulation: Maintains stable temperature distribution.
Automation-Friendly: Compatible with actuators for remote control.
Industries handling strong acids, bases, and corrosive fluids benefit from wafer butterfly valves due to their durability and high resistance to chemical wear. They operate reliably under high-pressure and high-temperature conditions, making them suitable for process lines in chemical plants and refineries. Selecting the right disc and seat material is key for maintaining valve life and preventing leaks.
Chemical Industry Advantages:
Stainless Steel Disc: Provides corrosion and temperature resistance.
PTFE Lining: Ensures compatibility with aggressive chemicals.
Gear Actuators: Enable precise automated flow control.
Hygiene and safety are crucial in the food and beverage industry, and wafer butterfly valves support these needs with smooth internal surfaces and easy-clean designs. They also play a vital role in wastewater management, providing reliable flow control and preventing backflow. In both sectors, the combination of compact design, material versatility, and tight sealing ensures operational efficiency.
Applications in Food and Wastewater:
Sanitary Beverage Production: Maintains hygienic liquid handling.
Liquid Food Pipelines: Reduces contamination risks.
Sewage and Wastewater Control: Provides reliable flow management and prevents backflow.
Wafer butterfly valves stand out because of their slim profile and lightweight construction, making them easier to install than bulky gate or globe valves. They fit neatly between pipe flanges, requiring no additional support, which saves both time and labor. This design reduces stress on pipelines, particularly in retrofit projects where space is tight. Engineers often choose wafer valves because they simplify system layouts and minimize disruption during maintenance.
Comparison with Other Valve Types:
Valve Type | Size | Installation Complexity | Space Requirement | Typical Use |
Gate | Large | High | Needs extra support | High-pressure pipelines |
Globe | Medium | Medium | Moderate | Flow throttling applications |
Wafer Butterfly | Compact | Low | Fits between flanges | Water, HVAC, chemical lines |
These valves excel at rapid flow modulation due to their quarter-turn operation. A simple 90-degree rotation either fully opens or closes the valve, allowing precise control over the liquid or gas. They also produce a low-pressure drop, which keeps systems energy-efficient. Wafer butterfly valves can handle varying flow rates reliably, and their streamlined disc design ensures minimal turbulence, making them ideal for industrial pipelines and automated systems.
Key Efficiency Features:
Low-Pressure Drop: Reduces energy loss in long pipelines.
Rapid 90°Operation: Quick response to changing flow demands.
Throttling Capability: Partial opening allows smooth flow control.
Durability is a major reason modern industries favor wafer butterfly valves. They resist corrosion, abrasion, and chemical attack through materials like stainless steel, cast iron, and PTFE lining. Their disc and seat combination ensures reliable sealing over years, minimizing maintenance. Engineers appreciate how these valves can survive harsh chemical, high-temperature, or high-pressure environments without frequent replacement.
Choosing wafer butterfly valves reduces total lifecycle costs. They are cheaper to install, require less maintenance, and their energy-saving design reduces operational expenses. Compact design and fewer parts lead to less downtime during replacements. Industries often find them more economical compared to other valves, especially in large-scale water, HVAC, or chemical systems where thousands of valves may be installed.
Cost-Saving Advantages:
Lower Installation Costs: Simple flange mounting reduces labor.
Reduced Maintenance: Durable materials extend operational life.
Energy Efficiency: Minimal flow resistance saves pumping energy.
Long-Term Reliability: Less frequent replacements reduce operational downtime.
Selecting the proper wafer butterfly valve is crucial for long-term system reliability. You need to consider fluid type, operating pressure, and temperature, because they directly affect material performance. For example, corrosive chemicals require PTFE-lined discs, while high-temperature steam systems may need stainless steel or carbon steel components. The seat and disc material determine sealing efficiency, durability, and chemical compatibility. Engineers often create a material selection chart to simplify valve choice based on application.
Material Selection Guidelines:
Stainless Steel Disc & EPDM Seat: Suitable for water and mildly corrosive fluids.
PTFE-Lined Disc & PTFE Seat: Ideal for acids, bases, and aggressive chemicals.
Cast Iron Disc & Rubber Seat: Works well for HVAC and chilled water pipelines.
Application | Recommended Disc | Recommended Seat | Notes |
Water Treatment | Stainless steel | EPDM | Standard durability |
Chemical Processing | PTFE-lined | PTFE | High chemical resistance |
HVAC Systems | Cast iron | Rubber | Cost-effective, reliable |
Wafer butterfly valves can be manually or automatically operated, depending on the system’s complexity. Manual handles work for small pipelines or low-frequency operations. For automated systems, pneumatic or electric actuators provide fast, precise flow control. These actuators can be integrated into SCADA or building management systems, allowing remote monitoring and operation. Proper actuation improves efficiency and reduces operator intervention in modern industrial setups.
Actuation Features:
Manual: Simple, low-cost, suitable for small-scale pipelines.
Pneumatic: Quick response, ideal for high-speed industrial systems.
Electric: Precise control, compatible with automated systems.
Even though wafer butterfly valves are durable and low-maintenance, regular upkeep ensures optimal performance. Inspect the disc, seat, and stem for wear, debris, or leaks. Cleaning periodically prevents accumulation of corrosive or scaling substances. Checking the actuator and lubrication helps maintain smooth operation. Establishing a routine maintenance schedule can extend valve life and prevent costly downtime.
Maintenance Checklist:
Visual Inspection: Check for cracks, corrosion, or seat wear.
Operational Test: Rotate valve through full range to detect stiffness.
Cleaning: Remove debris and deposits from internal surfaces.
Lubrication: Apply appropriate lubricants to stem and actuator mechanisms.
Leak Testing: Ensure tight sealing under operational pressure.
Worlds Valve wafer butterfly valves offer compact design, easy installation, and precise flow control. They resist corrosion and handle varied industrial fluids reliably. Their durability and low maintenance save cost, making them ideal for water treatment, HVAC, chemical, and food industries. Worlds Valve ensures efficient, high-quality valves that enhance system performance and operational efficiency.
