A PTFE lined butterfly valve uses a rotating disc inside the pipe to control the flow of liquids or gases. The PTFE (Polytetrafluoroethylene) lining fully encapsulates the metal surfaces, protecting the valve from aggressive chemicals and ensuring fluid purity. These valves are especially valuable in applications that demand high cleanliness or involve corrosive media, and their tight sealing effectively prevents leakage. Many industries–including chemical, pharmaceutical, food processing, water treatment, and petrochemical–rely on them for safe, reliable flow control.
1. PTFE lined butterfly valves regulate flow via a quarter-turn rotating disc mechanism.
2. The PTFE lining provides outstanding resistance to chemicals and corrosion.
3. Made from 100% virgin PTFE micropowder (never recycled), our lining delivers maximum purity, chemical resistance, and mechanical strength.
4. Lining thickness of 3–4 mm in high-wear areas–over 50% thicker than the industry standard (typically 1.5–2 mm)–offers superior protection against abrasion and permeation.
5. Every valve undergoes 30KV electric spark testing to verify lining integrity with zero penetration.
6. The smooth, non-stick surface minimises friction, enabling easy operation and low maintenance.
7. Suitable for a wide temperature range (-40℃to 200℃) and used across chemical, pharmaceutical, food, water treatment, and oil & gas industries.
8. Regular inspection helps maintain leak-tight performance over a long service life.

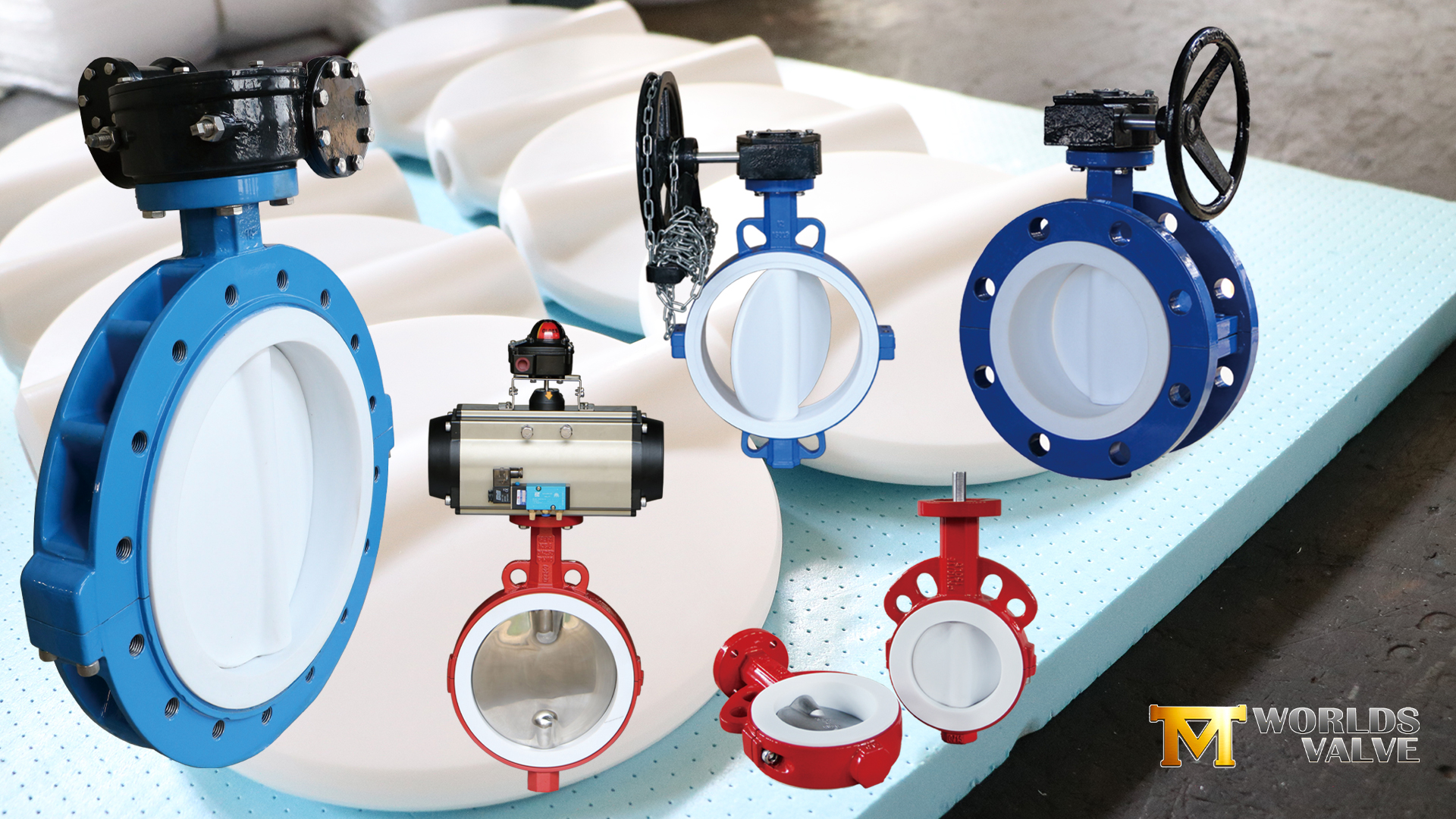

A PTFE lined butterfly valve is a flow-control device that incorporates a disc mounted on a rotating shaft. The disc turns 90 degrees (quarter-turn) to open or close the passage. What sets this valve apart is its internal lining–a layer of PTFE that coats all wetted metal parts.
This lining serves two essential purposes: it prevents corrosive fluids from attacking the metal body, and it creates a smooth, non-stick surface that keeps the media pure. Engineers choose PTFE lined butterfly valves when handling strong acids, alkalis, solvents, or high-purity fluids, because the inert PTFE surface does not react with the process medium.
PTFE (Polytetrafluoroethylene) is a high-performance fluoropolymer with a pH resistance range of 0–14, making it compatible with virtually all industrial chemicals except molten alkali metals and elemental fluorine. Its coefficient of friction is among the lowest of any solid material (0.05–0.10), which contributes to the valve's smooth operation and long service life.
Component | Function |
Valve Body | Provides structural support and contains the internal parts; available in ductile iron, cast iron, or stainless steel. |
Internal Disc | Rotates to control flow; seals against the PTFE liner for bubble-tight shutoff. |
Stem | Transfers torque from the actuator to the disc; available in stainless steel or alloy materials. |
PTFE Liner | Forms a corrosion-resistant barrier, ensures tight sealing, and reduces friction for smooth disc movement. |
At Tianjin Worlds Valve Co., Ltd., we produce our PTFE lined butterfly valves using 100% virgin PTFE micropowder–never recycled materials. Recycled PTFE often contains impurities that weaken chemical resistance (reducing tensile strength from 25–30 MPa to below 15 MPa) and compromise mechanical properties. Virgin PTFE guarantees consistent purity, superior tensile strength, and reliable performance in demanding environments.
Additionally, we apply a lining thickness of 3–4 mm in high-wear zones–over 50% thicker than the industry standard (typically 1.5–2 mm). This extra thickness provides:
Enhanced abrasion resistance–suitable for media containing solid particles up to 40% concentration.
Reduced gas permeation–critical for handling hazardous or volatile fluids.
Greater safety margin under vacuum conditions–preventing liner collapse or deformation.
Extended service life–reducing replacement frequency and maintenance costs.
Every valve undergoes 30KV electric spark testing to verify lining integrity with zero penetration, ensuring absolute reliability before shipment.
The valve operates by rotating the disc a quarter turn (90 degrees). When the disc is parallel to the flow direction, the valve is fully open; when turned perpendicular, it blocks the flow completely. This simple mechanism allows for fast, precise control–the valve can be fully opened or closed in approximately 1–3 seconds, depending on actuator speed.
The low friction coefficient of PTFE (0.05–0.10) significantly reduces operating torque, meaning:
Less actuation force is required.
Smaller, more economical actuators can be specified.
Manual operation is easier and safer.
Actuator lifespan is extended due to reduced mechanical stress.
The ISO 5211 top flange mounting allows seamless integration with hand levers, gear operators, electric actuators, pneumatic actuators, or chainwheel operators–giving you complete flexibility in control method.
The PTFE liner acts as both a corrosion barrier and a sealing surface. When the disc closes, it presses firmly against the liner, creating a bubble-tight seal that prevents any leakage–even under high pressure. The flexibility and chemical inertness of PTFE ensure that the seal remains reliable over a wide temperature range.
Sealing performance is certified to:
Standard | Leakage Rate |
EN 12266-1 Class A | Zero visible leakage (bubble-tight) |
API 598 | Zero visible leakage for resilient-seated valves |
Temperature and pressure relationship:
Temperature Range | Maximum Working Pressure |
-40℃ to +100℃ | Full rated pressure (PN16 / Class 150) |
+100℃ to +150℃ | Reduced to approximately 70% of rated pressure |
+150℃ to +200℃ | Reduced to approximately 50% of rated pressure |
The non-stick surface resists buildup and scaling, making the valve easy to clean and maintain–particularly important in food, pharmaceutical, and high-purity applications.
PTFE lined butterfly valves are used wherever chemical resistance and product purity are paramount:
Industry | Typical Application | Key Requirement |
Chemical Processing | Handling acids, alkalis, solvents, and reactive chemicals | Chemical resistance & leak prevention |
Pharmaceutical Manufacturing | Maintaining sterility and preventing cross-contamination | Fluid purity & cleanability |
Food and Beverage Production | Processing sanitary fluids and cleaning agents (CIP/SIP) | Non-toxicity & easy cleaning |
Water and Wastewater Treatment | Dosing chlorine, ozone, and other treatment chemicals | Corrosion resistance & precise dosing |
Oil and Gas Refining | Controlling corrosive hydrocarbons and process fluids | High temperature & chemical resistance |
Mining and Metallurgy | Handling corrosive slurries and leaching solutions | Abrasion resistance (with thick lining) |
Semiconductor Manufacturing | Ultra-pure water and chemical distribution | Extreme purity & contamination control |
Pulp and Paper | Handling bleaching chemicals and corrosive liquors | Chemical resistance & durability |
Key safety benefits:
Zero metal contact with the process media–eliminates corrosion and contamination risks.
Bubble-tight sealing prevents dangerous leaks of hazardous or valuable fluids.
Virgin PTFE purity ensures no extractables or contaminants enter your process.
30KV spark testing guarantees lining integrity with zero penetration.
Blow-out proof stem design prevents stem ejection under pressure surges.
Benefit | Description |
Corrosion Resistance | PTFE lining withstands strong acids, alkalis, solvents, and oxidizers – outperforming rubber or metal valves. |
Low Maintenance & Long Life | Smooth PTFE surface resists wear, fouling, and chemical attack, reducing downtime and replacement costs. |
Energy-Efficient Operation | Low friction requires less actuation force (up to 50% less torque than unlined valves), enabling smaller actuators and lower energy consumption. |
Versatile Media Compatibility | Handles a wide range of aggressive chemicals, including sulfuric acid (up to 98%), hydrochloric acid, sodium hydroxide, and organic solvents. |
Easy Cleaning | Non-stick surface prevents product adherence and allows for quick CIP/SIP cleaning cycles. |
Lightweight Construction | Compared to all-metal corrosion-resistant valves (such as alloy or titanium valves), PTFE lined butterfly valves offer significant weight and cost savings. |
Understanding the differences between lining materials is essential for proper valve selection:
Feature | PTFE Lined | Rubber Lined | Metal Lined |
Chemical Resistance | Excellent (pH 0–14) | Moderate (media-specific) | Low to Moderate |
Abrasion Resistance | Good (3–4 mm reinforced) | Excellent | Excellent |
Non-stick Surface | Yes | No | No |
Temperature Range | -40℃ to 200℃ | -10℃ to 80℃ (typically) | Up to 400℃+ |
Maintenance Needs | Low | Moderate | High |
Relative Cost | Moderate | Low | High |
Typical Applications | Chemical, pharmaceutical, high-purity | Wastewater, mining, abrasive slurries | High-temperature steam, high-pressure gas |
Vacuum Suitability | Good (with 3–4 mm thick lining) | Good | Excellent |
Our reinforced 3–4 mm lining provides significantly better abrasion resistance than standard PTFE linings, making it suitable for applications with up to 40% solid content–a capability typically associated only with rubber or metal linings.
Choosing the correct valve for your application requires careful consideration of several factors. Follow this step-by-step selection guide:
Is it acidic, alkaline, or neutral?
Does it contain solid particles or abrasives?
Is it a hazardous or valuable fluid requiring zero leakage?
PTFE is compatible with virtually all chemicals except molten alkali metals and elemental fluorine. For abrasive media, select a valve with 3–4 mm thick lining (such as ours).
Temperature: PTFE lined valves typically operate from -40℃ to 200℃. Confirm your maximum and minimum temperatures.
Pressure: Ensure the valve's pressure rating (PN16/Class 150) meets your system requirements.
Vacuum: If vacuum conditions exist, a thicker lining (3–4 mm) is essential to prevent liner deformation.
Media Type | Recommended Liner Thickness |
Clean liquids/gases | 1.5–2 mm (standard) |
Mildly abrasive media | 2–3 mm |
Highly abrasive media (up to 40% solids) | 3–4 mm (recommended) |
Our standard 3–4 mm lining is recommended for any application involving solids, slurries, or vacuum service.
Connection Type | Best Suited For |
Wafer Type | General service, compact installations, cost-effective |
Lug Type | Dead-end service, easy removal from pipeline |
Flanged Type | High-pressure applications, permanent installations |
Actuator Type | Best Suited For |
Hand Lever | Small sizes (DN50-DN200), infrequent operation, budget-conscious projects |
Gear Operator | Medium to large sizes, precise manual control, self-locking |
Electric Actuator | Automated control, remote operation, integration with PLC/SCADA |
Pneumatic Actuator | Fast operation, hazardous areas, fail-safe requirements |
Hydraulic Actuator | High-torque applications, subsea or underwater installations, precise speed control, explosive environments where electrical actuation is unsafe, and remote locations without pneumatic or electrical power supply |
Chainwheel | Overhead or inaccessible installations |
All our valves feature ISO 5211 top flange mounting, ensuring compatibility with a wide range of actuators.
At Tianjin Worlds Valve Co., Ltd., we operate under a DNV-audited ISO 9001:2015 quality management system. Every PTFE lined butterfly valve undergoes:
Test | Standard | Acceptance Criteria |
Shell Hydrostatic Test | EN 12266-1 / API 598 | No visible leakage |
Seat Leakage Test | EN 12266-1 Class A / API 598 | Zero visible leakage (bubble-tight) |
High-Voltage Spark Test | In-house standard | 30KV, zero penetration |
Dimensional Inspection | Customer approved drawing | ± tolerance |
Material Verification | Mill test certificates | Full traceability |
Certification | Scope |
ISO 9001:2015 | Quality management system (DNV audited) |
CE | EU safety compliance |
UKCA | UK conformity assessment |
WRAS | UK drinking water approval |
ACS | French health certification |
DNV / ABS | Marine approval (available on request) |
Q: What makes PTFE lined butterfly valves different from standard butterfly valves?
A: They have a PTFE liner that protects the metal body from corrosion and keeps the fluid pure. Standard valves lack this protective layer, making them unsuitable for aggressive or high-purity media.
Q: Can they handle both hot and cold fluids?
A: Yes, they typically operate from -40°C to 200°C. However, maximum working pressure must be reduced at higher temperatures (see temperature‑pressure table above).
Q: Where are they most commonly used?
A: In chemical plants, pharmaceutical factories, food processing lines, water treatment facilities, semiconductor manufacturing, and oil refineries.
Q: How often should they be inspected?
A: During routine maintenance schedules–typically every 6–12 months. Check for signs of leakage, liner wear, or disc/seal damage, and replace seals as needed to maintain optimal performance.
Q: Can PTFE lined butterfly valves be used with abrasive slurries?
A: Yes, but liner thickness is critical. Our valves feature a 3–4 mm thick virgin PTFE lining in high-wear zones–over 50% thicker than industry standard. This provides significantly enhanced abrasion resistance compared to standard thin linings (typically 1.5–2 mm). For slurries with solid content exceeding 40%, we recommend consulting our engineering team for a tailored solution.
Q: How long does a PTFE lined butterfly valve typically last?
A: Service life varies based on operating conditions. Under normal chemical service with proper maintenance, our virgin PTFE lined valves typically last 8–12 years. The use of virgin PTFE (rather than recycled material) and our 3–4 mm thick lining significantly extends lifespan compared to valves using thin or recycled linings.
Q: Do you use recycled PTFE?
A: No. We use 100% virgin PTFE micropowder exclusively, ensuring the highest quality, purity, and consistency. Recycled PTFE can contain impurities that compromise chemical resistance and mechanical strength.
Q: What testing is performed on each valve?
A: Each valve undergoes hydrostatic shell testing, bubble-tight seat leakage testing (to EN 12266-1 Class A), 30KV electric spark testing for lining integrity, and dimensional inspection. Full documentation is provided with every shipment.
Tianjin Worlds Valve Co., Ltd. is a direct factory with over 19 years of experience in OEM/ODM production of PTFE lined butterfly valves and other industrial valves. We are not a trading company–we own and operate our ISO 9001-certified manufacturing facility, giving us full control over quality, lead times, and customisation.
Virgin PTFE, never recycled–guaranteed purity and mechanical integrity.
3–4 mm thick lining–over 50% thicker than industry standard.
30KV spark testing–zero-penetration verification on every valve.
Full international certifications–ISO 9001, CE, UKCA, WRAS, ACS, and DNV/ABS on request.
Complete customisation–materials, sizes, pressure ratings, flange standards, coatings, actuators, and packaging.
Export to 50+ countries–proven logistics and trade expertise.
Comprehensive documentation–material certificates, test reports, and inspection records with every order.
Factory visits welcome–see our quality control processes firsthand.
We invite you to contact us with your specific application requirements. Our engineering team will provide free consultation and a tailored valve solution–including material recommendations, CAD drawings for approval, and a competitive quotation–typically within 24 hours.
