CBF02-TU01
OEM | ODM | WDS
| Quantity: | |
|---|---|
Tianjin Worlds Valve Co., Ltd. operates under an ISO 9001 certified quality management system and can supply products with CE, UKCA, WRAS, and ACS certifications upon request. We are a direct China-based OEM/ODM manufacturer, producing valves strictly to customer specifications. All materials–body, disc, seat, stem, pressure rating, flange standard, actuation, and coating–are fully customizable to meet your specific application requirements. Full documentation (material certificates with mill test reports and pressure test reports) is provided with every order.
U-Type Butterfly Valve | PTFE Seat | corrosion resistance | ISO 5211
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control

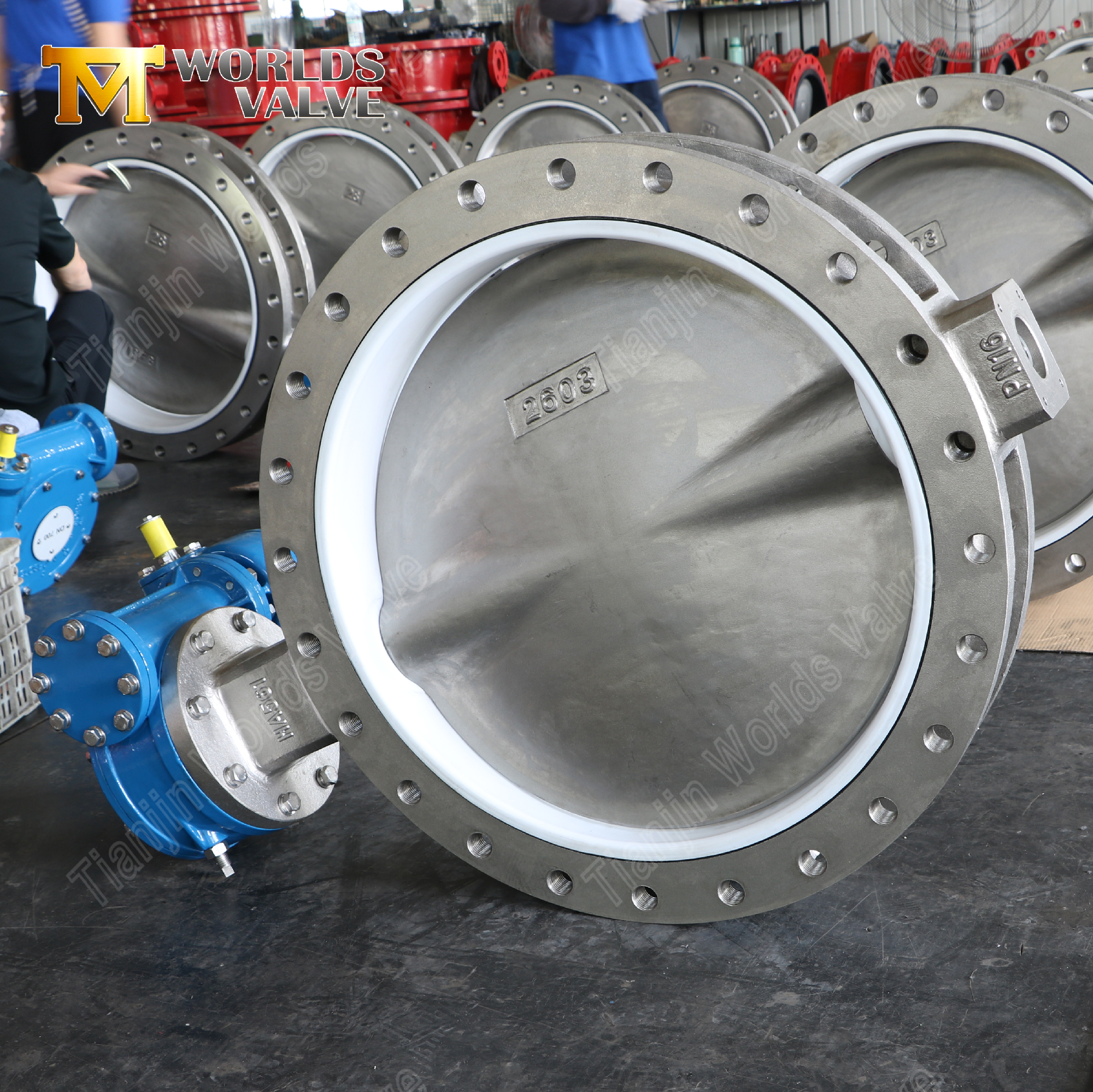

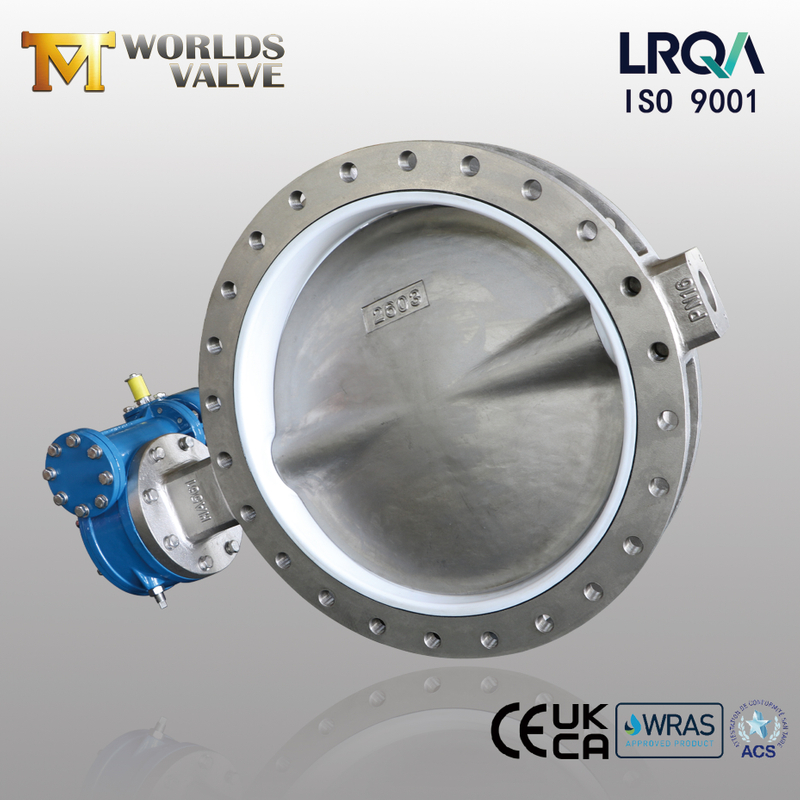

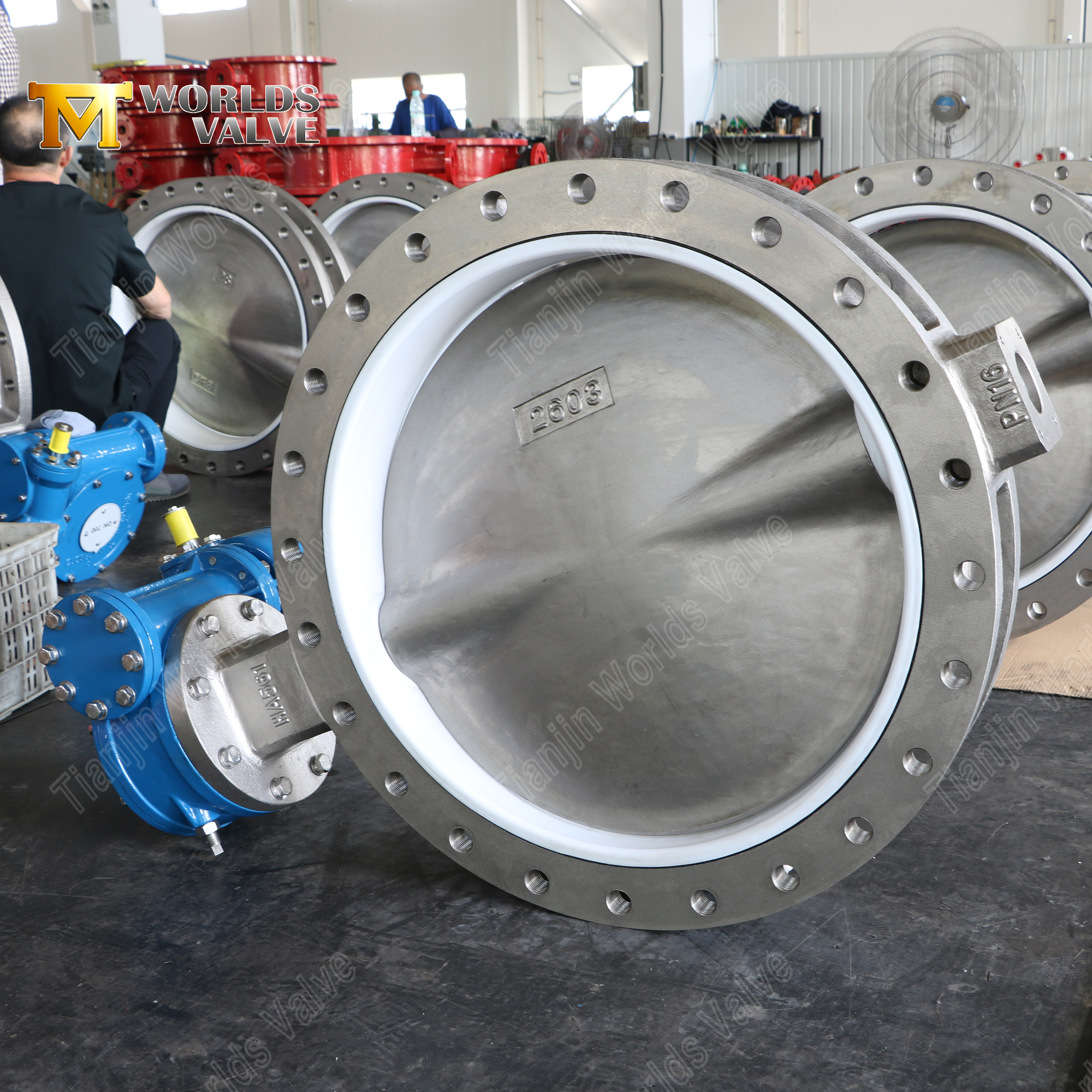

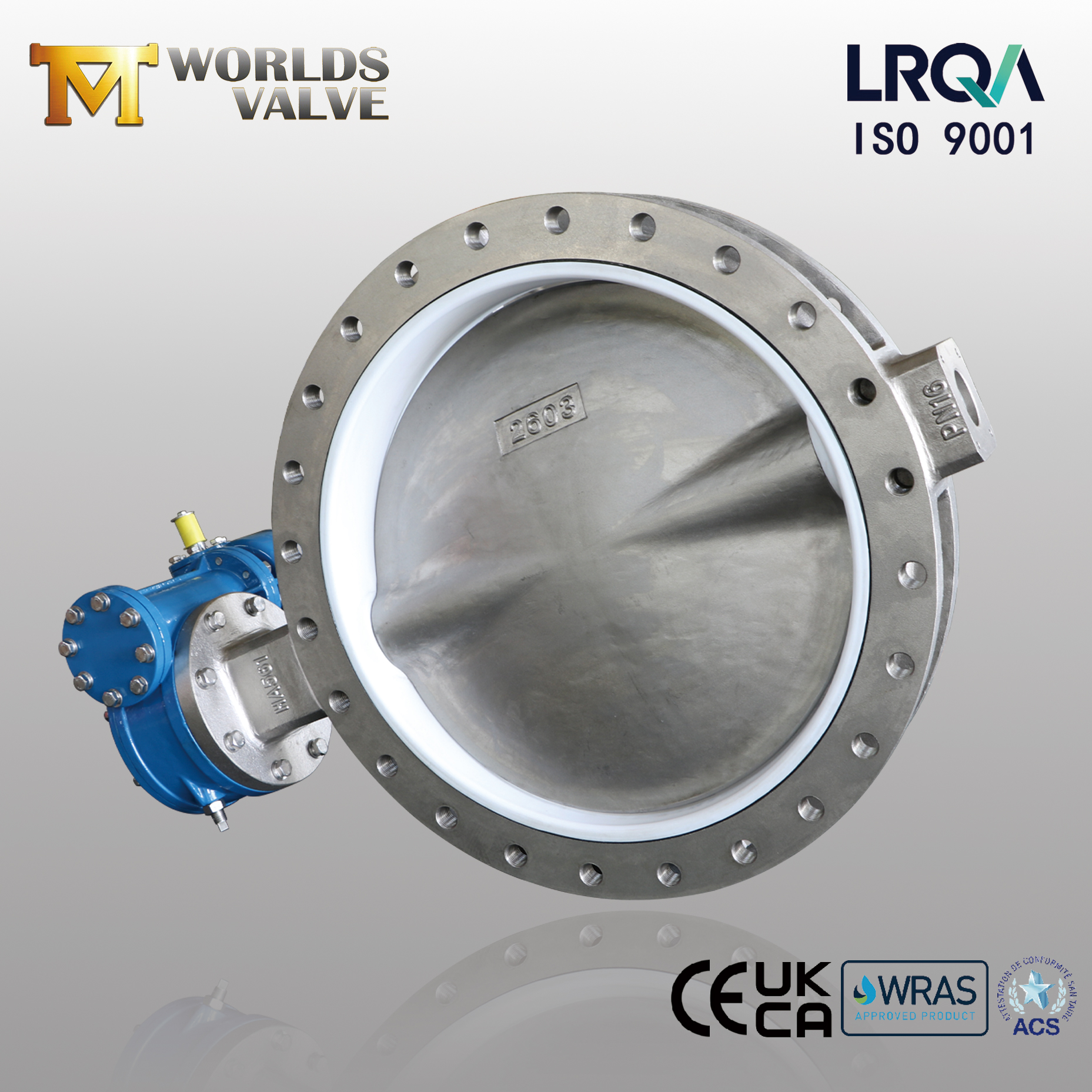

1. CF8 Stainless Steel Body and Disc–Corrosion Resistant & Durable
Both body and disc cast from CF8 (ASTM A351 Grade CF8 / AISI 304), the cast equivalent of wrought 304 stainless steel.
Offers good corrosion resistance for water, mild chemicals, acids, alkalis, and neutral salt solutions.
Provides high strength and durability for long-term industrial service.
2. PTFE Seat–Chemical Inertness & Low Friction
PTFE is resistant to almost all acids, alkalis, solvents, and oxidizing agents.
Self-lubricating surface reduces operating torque and prevents media buildup.
Temperature range: approximately -35℃ to +200℃.
3. U-Type Body Design–Optimized Flow & Superior Sealing
U-shaped flow channel optimizes the fluid path, reducing pressure loss.
Enables tighter seal when closed, suitable for applications requiring a high degree of sealing performance.
Ideal for large flow and low energy consumption scenarios.
4. Worm Gear Operator with ISO 5211 Top Flange–Easy Actuation
Worm gear provides smooth, high-torque manual control with self-locking mechanism.
ISO 5211 top flange enables direct mounting of electric or pneumatic actuators without custom brackets.
Supports future automation upgrades with minimal modification.
5. Wide Size Range–DN50 to DN1200
Covers everything from small branch lines to large-diameter industrial systems.

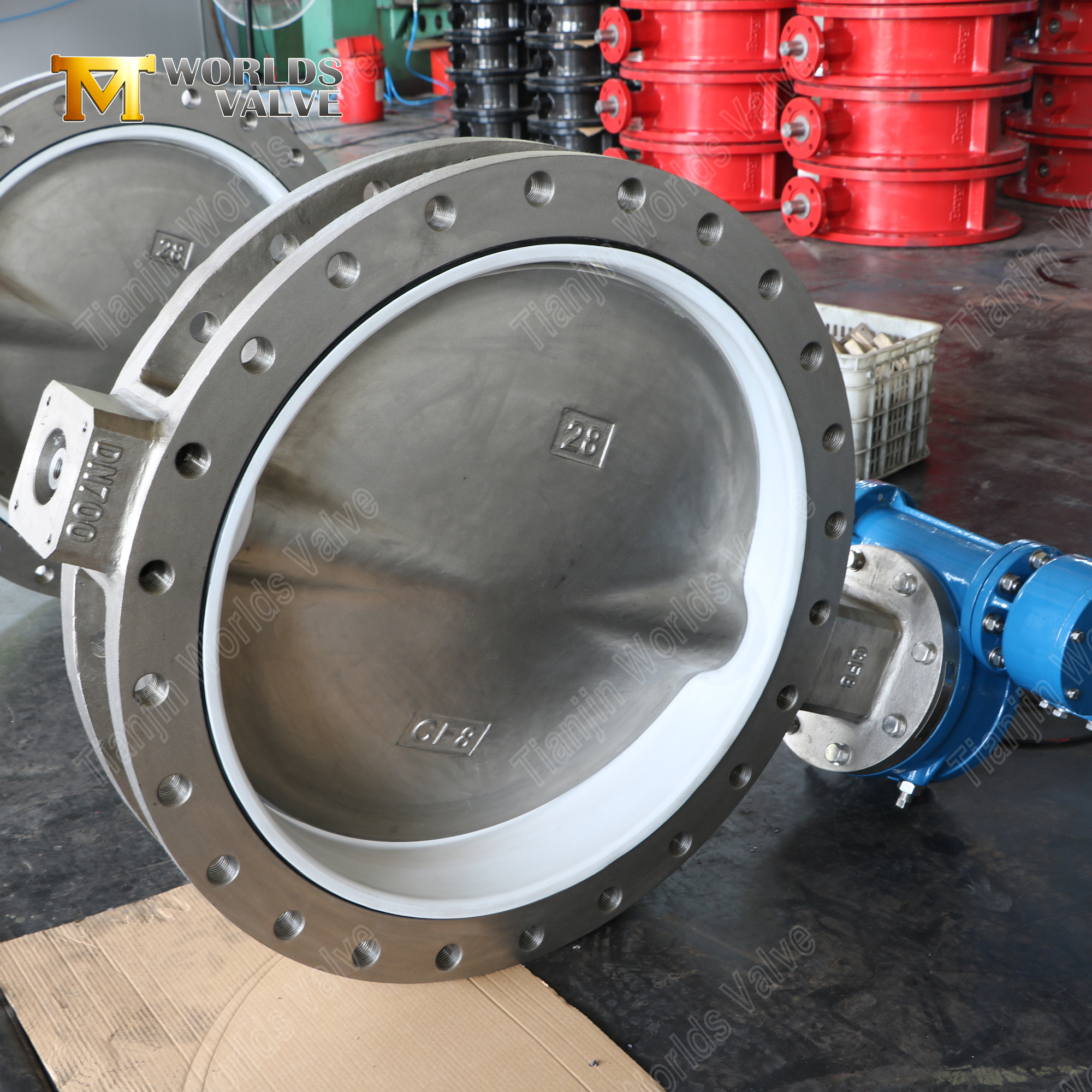

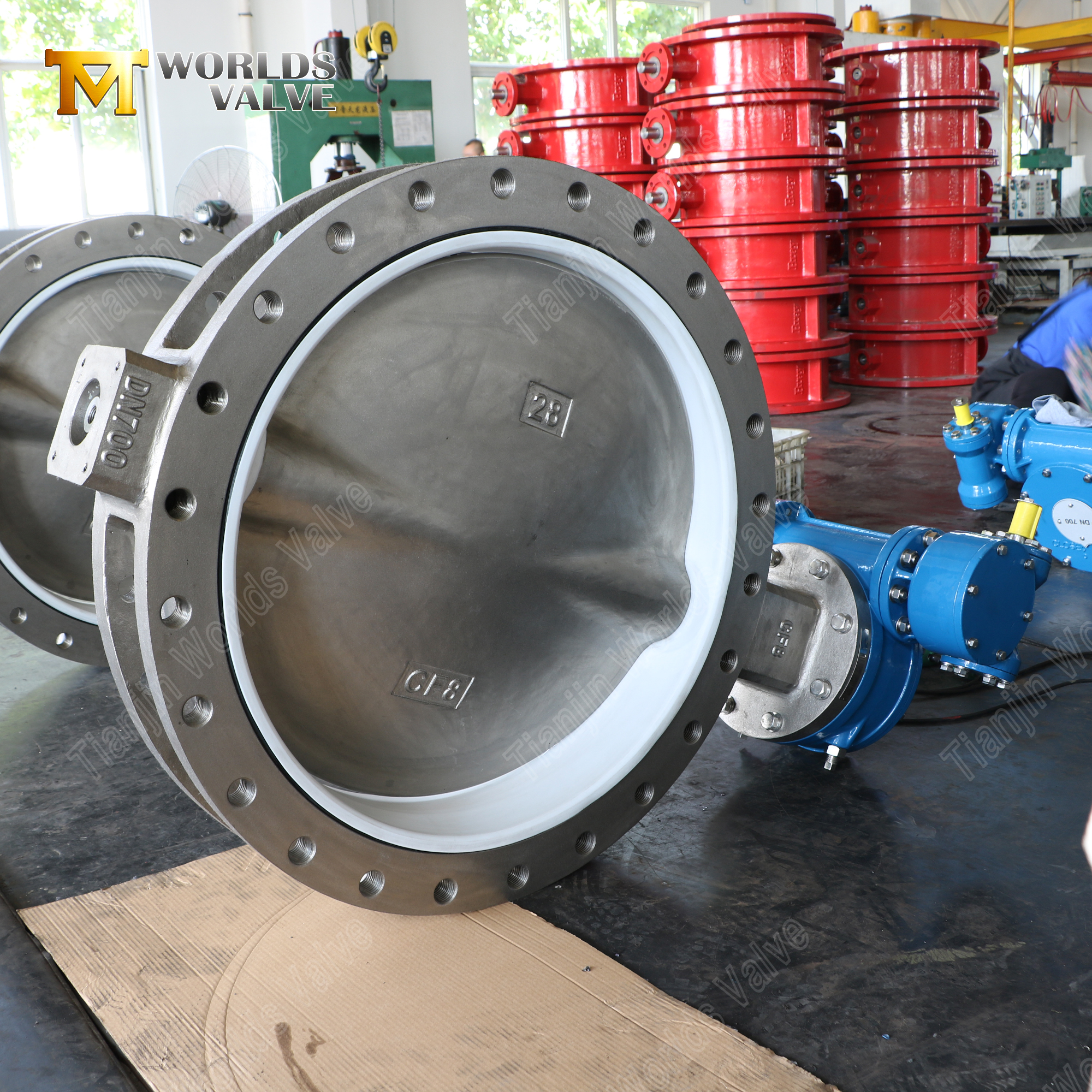

28 inches (DN700) described; other sizes available upon request.
Suitable for chemical processing, water treatment, petrochemical, and general industrial applications.
6. Fully Customizable OEM/ODM Solution
Body materials: CF8 (standard), CF8M, WCB, ductile iron.
Disc materials: CF8 (standard), CF8M, duplex, super duplex, aluminum bronze.
Seat materials: PTFE (standard), EPDM, NBR, Viton.
Pressure ratings: PN10, PN16, PN25, Class 150.
Flange standards: EN 1092, ANSI B16.5, AS2129, JIS.
Operation: Worm gear (standard), hand lever, electric actuator, pneumatic actuator.
Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.
Parameter | Available Options |
Valve type | U-Section Butterfly Valve（CBF02-TU01） |
Nominal size | Sizes Available(DN50-DN1200) |
Disc material | CF8(ASTM A351 Grade CF8 / AISI 304) |
Seat material | PTFE |
Body material | CF8(ASTM A351 Grade CF8 / AISI 304) |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | PN16 (customizable) |
Top flange | ISO 5211 optional for actuator mounting |
Applicable Media | Acids, alkalis, solvents, seawater, brine, high-purity water, chemicals |
1. Direct OEM/ODM Manufacturer–e produce in our own ISO 9001 certified factory, not a trading company. Every U-type butterfly valve is manufactured to your exact specifications.
2. Material Expertise–Our CF8 body and disc combined with PTFE seat delivers excellent corrosion resistance and chemical compatibility for demanding applications.
3. U-Type Design Advantage–Optimized flow path reduces pressure loss and energy consumption.
4. ISO 5211 Ready–Standardized top flange enables direct actuator mounting for easy automation.
5. Wide Size Range–From DN50 to DN1200, covering small branch lines to large-diameter industrial systems.
6. Certified Quality–ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request.
7. Full Documentation–Material certificates (mill test reports) and pressure test reports provided with every order.
8. Global Export Experience–Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific size, material, pressure, and temperature requirements–whether you need a standard 28-inch U-type butterfly valve or a fully customized solution up to DN1200 with special materials or actuation.
