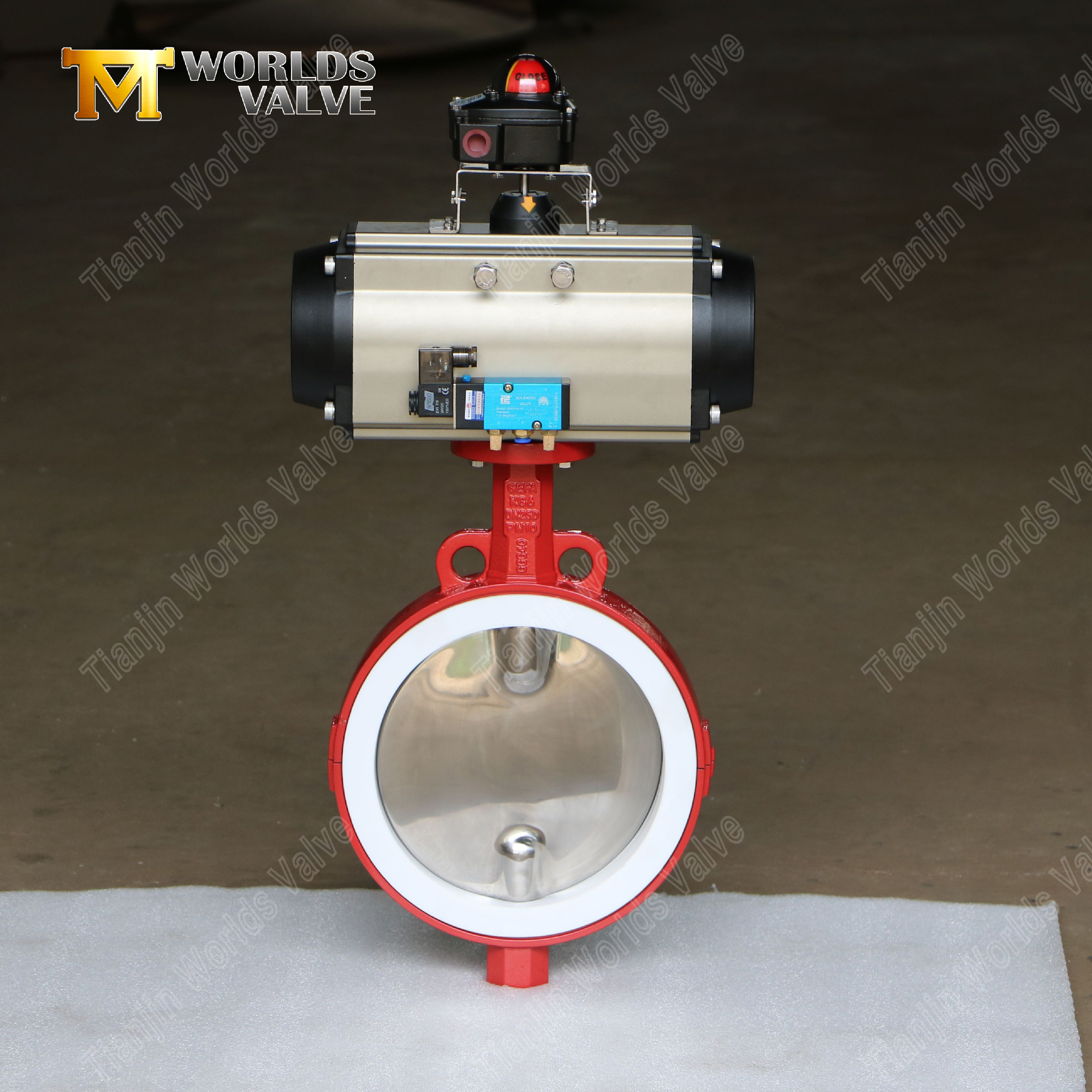

Split Body PTFE Seat Wafer Butterfly Valve with CF8M Disc
Tianjin Worlds Valve Co., Ltd. – Your OEM Partner for Easy-Maintenance Corrosion-Resistant Valves
CBF05E-TA04--Operation and Maintenance Manual DOWNLOAD

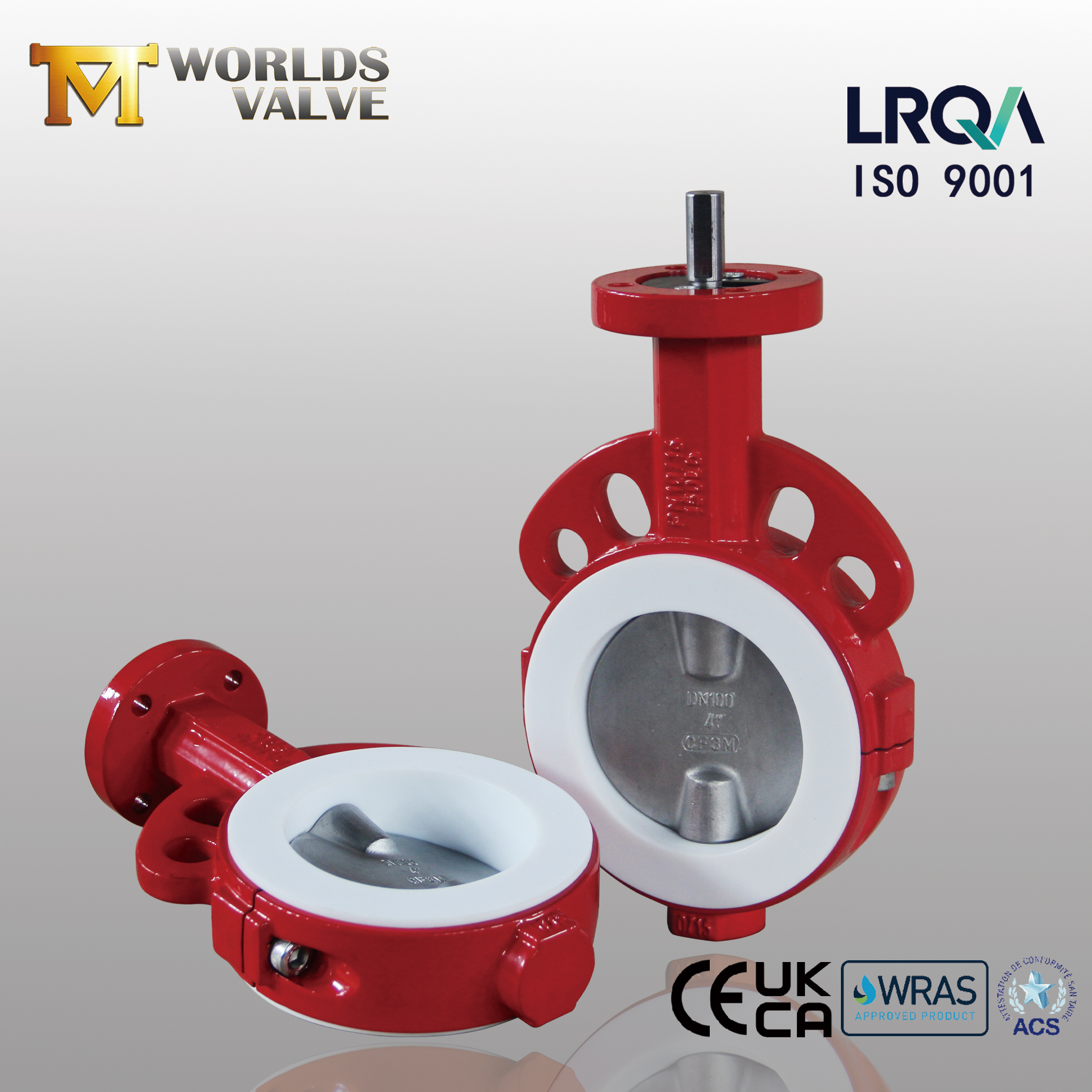

1. Innovative Split Body for Effortless Maintenance

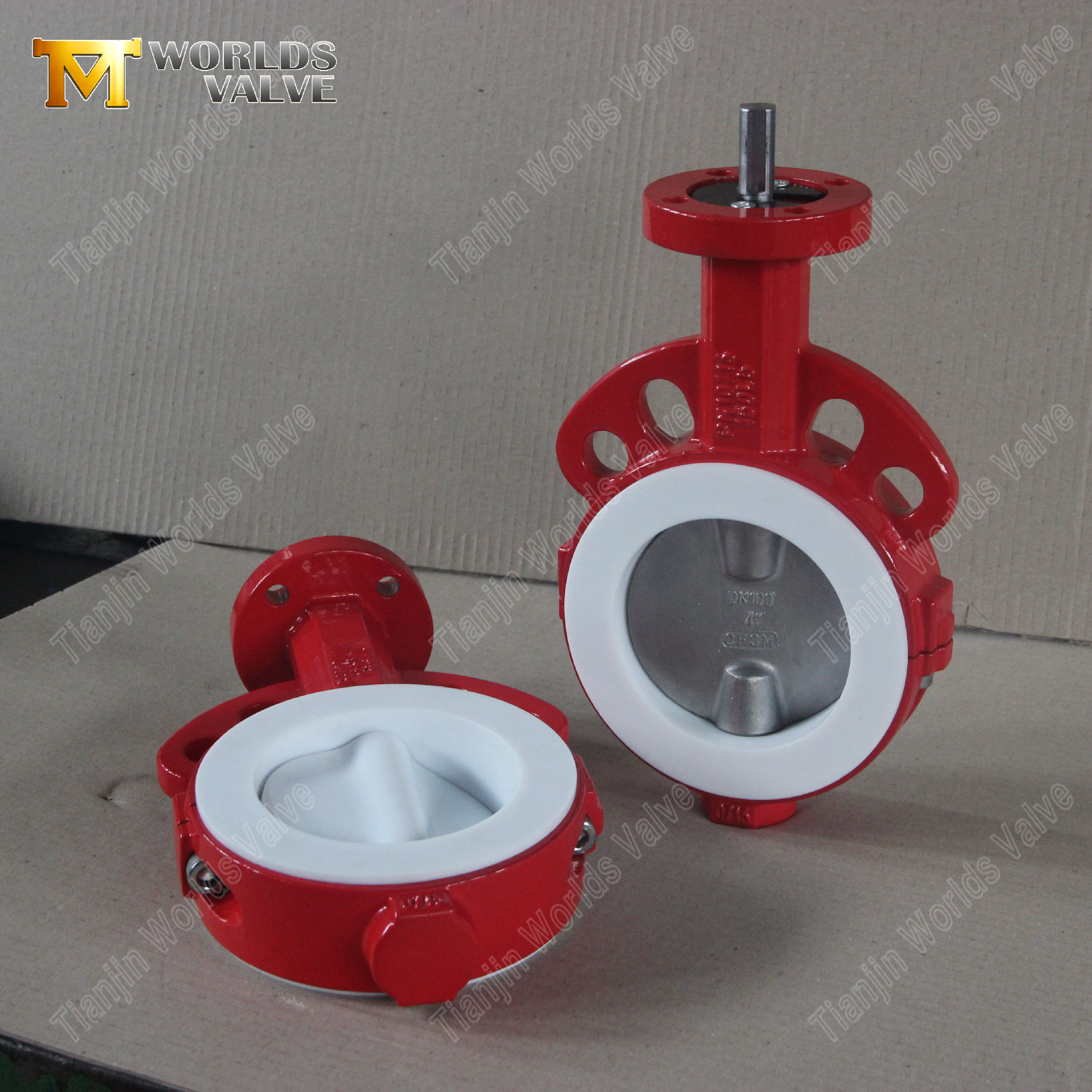

Quick Internal Access: The unique two-piece body, secured by perimeter bolts, can be opened directly on the line. This allows for inspection, seat replacement, or disc service in minutes, without cutting the pipeline or disturbing adjacent flanges.
Minimized Operational Disruption: Eliminates costly and time-consuming full valve removal, significantly reducing maintenance windows and total cost of ownership.
Superior Cleanability: Ideal for sanitary or CIP (Clean-in-Place) processes, as the body can be opened for thorough cleaning and validation.

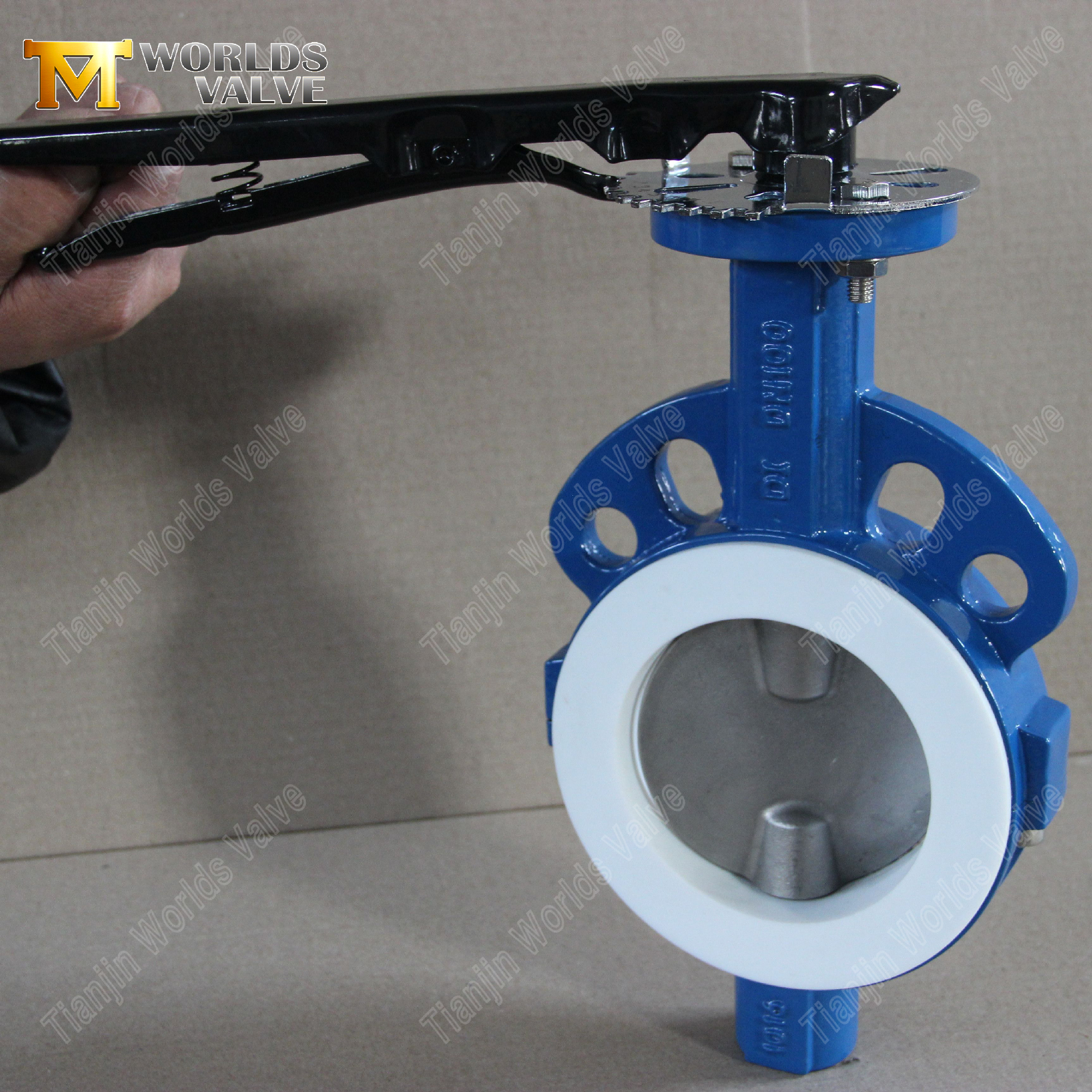

2. Full PTFE Seat for Universal Chemical Compatibility
100% Corrosion Resistance: The virgin PTFE seat provides inert, non-contaminating sealing against virtually all aggressive media, including strong acids, alkalis, and solvents across the full pH 0-14 spectrum.
Bubble-Tight Shutoff: Ensures ANSI Class VI (Zero Leakage) sealing performance, tested to EN 12266-1 Class A standards.
Wide Temperature Range: The PTFE seat maintains integrity in services from -35°C to 200°C .

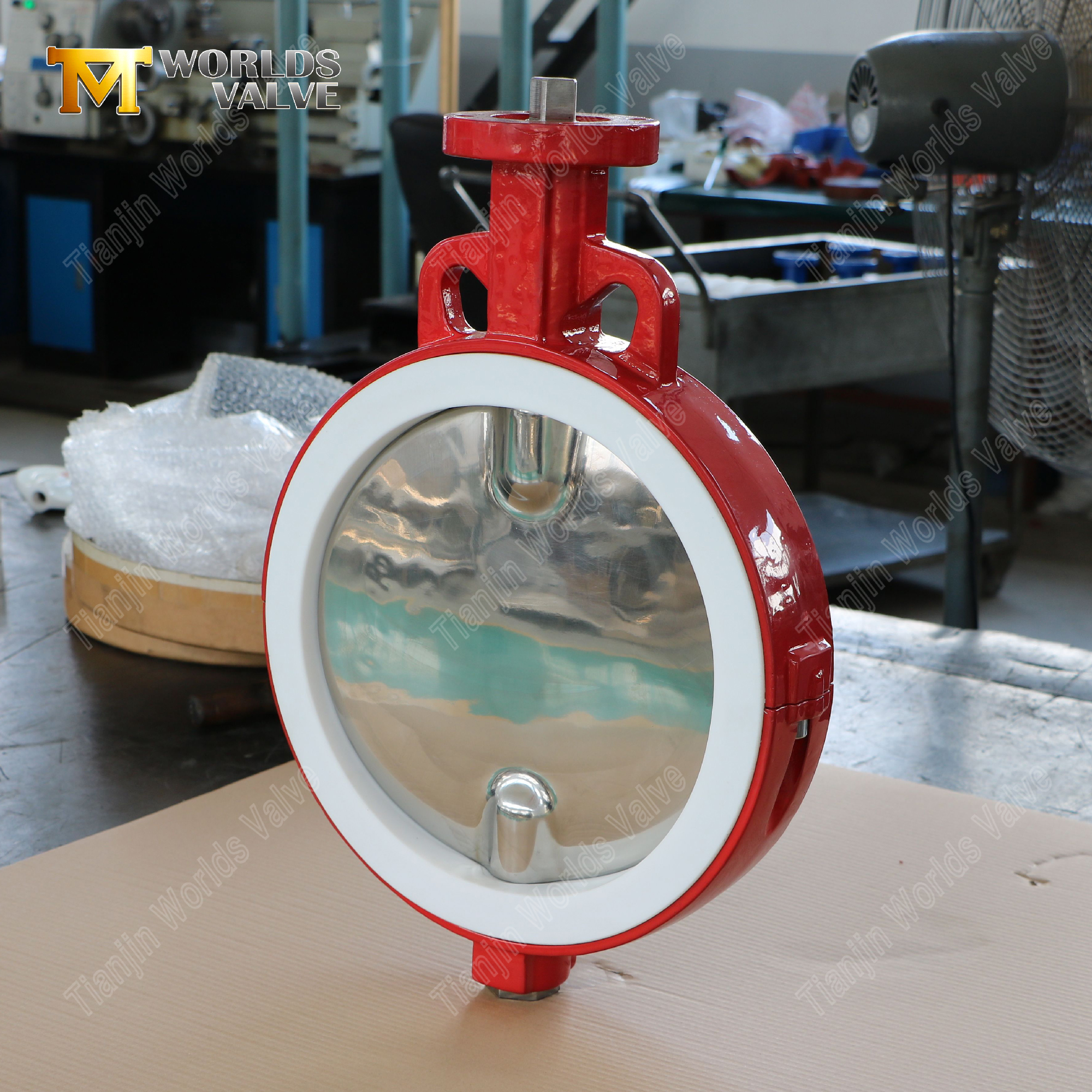

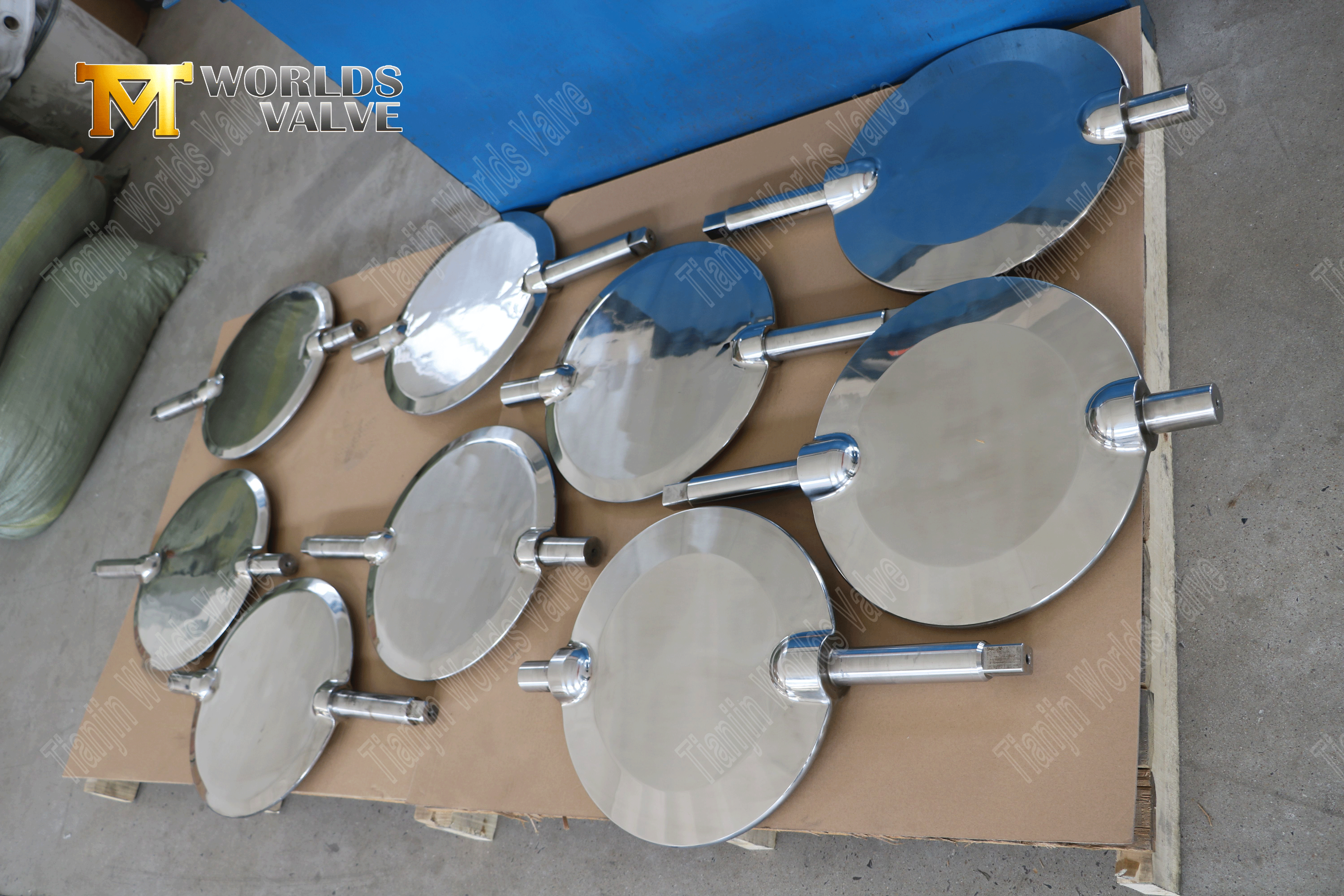

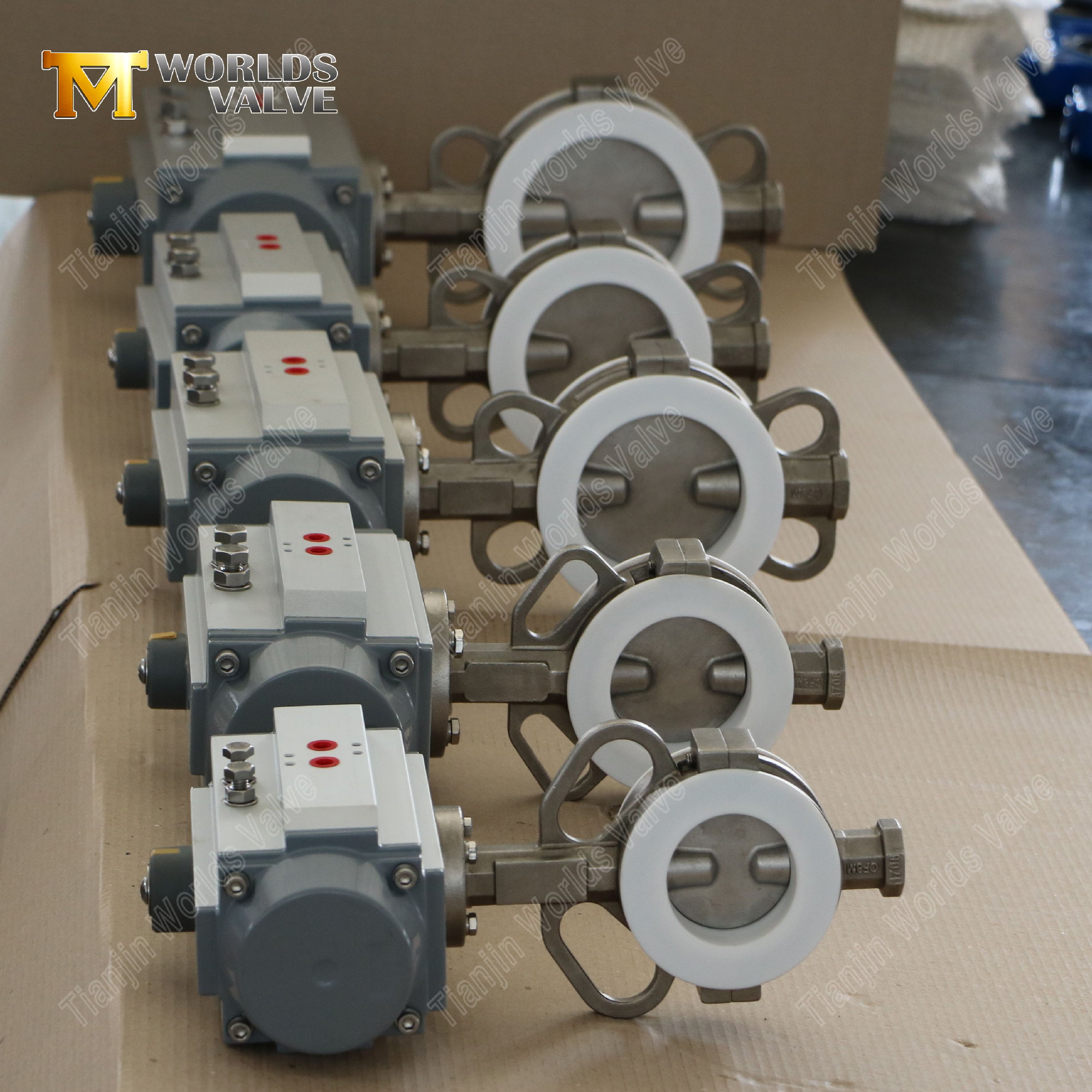

3. CF8M Stainless Steel Disc for Durability
Enhanced Corrosion & Erosion Resistance: The CF8M (AISI 316) stainless steel disc offers excellent protection against pitting and chloride stress corrosion, ensuring long-term structural integrity in harsh environments.
Precision-Machined Surface: Optimized for perfect, low-friction contact with the PTFE seat, ensuring smooth operation and extended cycle life.
4. Compact and Efficient Wafer Design
Space and Weight Savings: The wafer-style body installs directly between ANSI or DIN flanges using through-bolts, offering a lighter and more compact solution compared to lug-type or flanged body valves.
Cost-Effective Installation: Reduces overall installation time and hardware requirements.

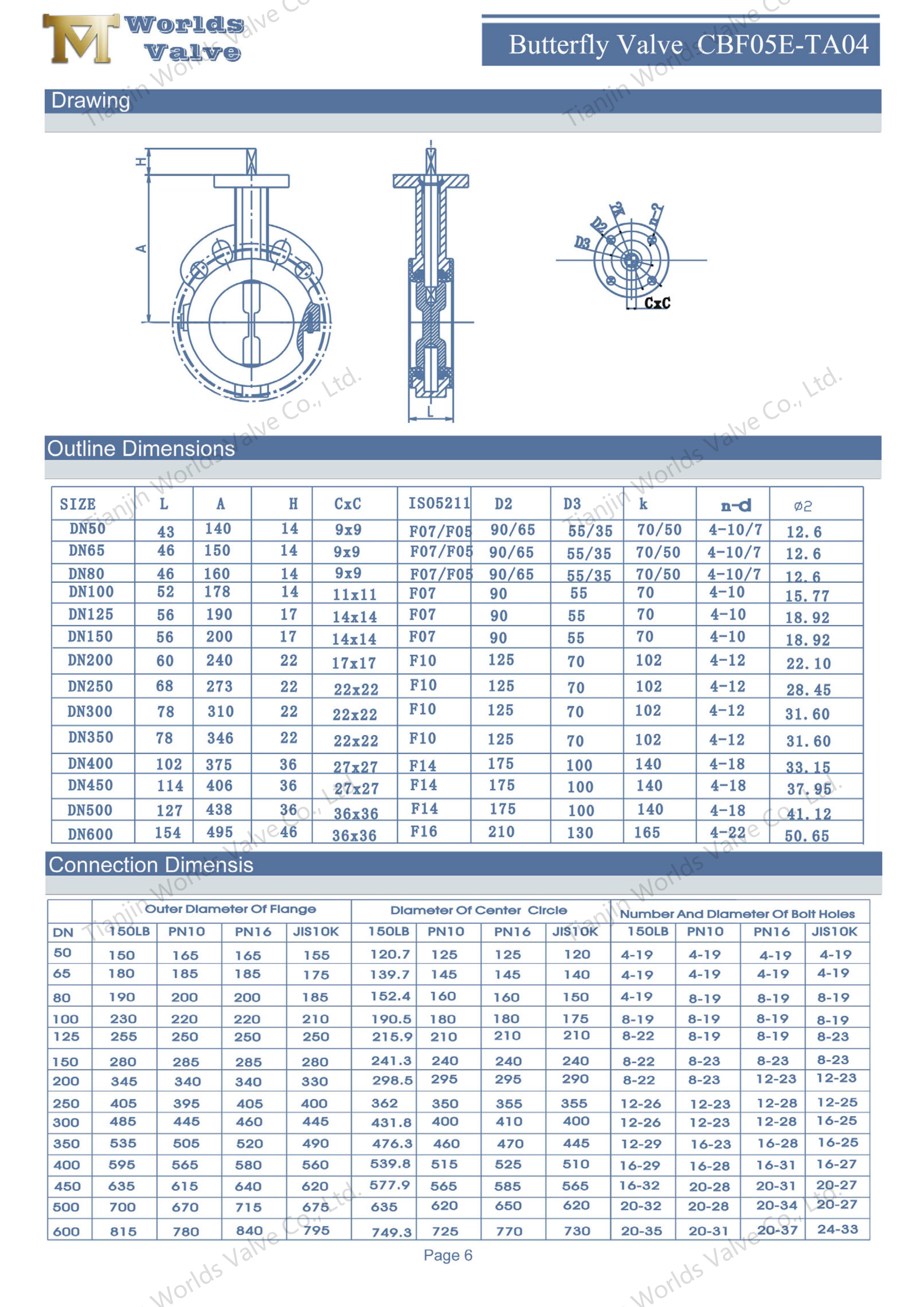

Parameter | Specification |
Model | CBF05-TA04 |
Sizes | DN50-DN600 |
Pressure Class | PN1.0/1.6MPa |
Design | EN593 BS5155 MSS SP-67 |
Testing | EN12266-1 ISO5208 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | DIN558-1 DIN3202 KI ISO5752 BS5155 |
This valve is specifically designed for services where chemical resistance and maintenance access are paramount:
Chemical Processing: Handling of acids, caustics, and solvents where frequent inspection is needed.
Pharmaceutical & Biotechnology: CIP/SIP systems, high-purity water, and processes requiring strict hygiene and validation.
Food & Beverage: Product lines and cleaning systems requiring easy disassembly for sanitation.
Industrial Water Treatment: Aggressive chemical dosing (e.g., HCl, NaClO).
General Industry: Any corrosive application where minimizing valve service downtime is a priority.
Unmatched Maintenance Advantage: The split-body design revolutionizes serviceability, cutting downtime by up to 70% for internal work.
Total Corrosion Defense: The combination of a PTFE-wetted seat and a CF8M disc provides defense against the most aggressive chemicals.
Proven Reliability & Seal: Achieves and maintains a bubble-tight shutoff, ensuring process integrity and safety.
OEM Customization Ready: We offer tailored solutions for specific needs, including special dimensions, materials, and actuation packages.
Global Compliance Supplied: Valves are manufactured under ISO 9001 and can be supplied to meet CE, UKCA, and other international standards.
Tianjin Worlds Valve offers the innovative Split Body PTFE Seat Wafer Butterfly Valve with a CF8M disc. This easy-maintenance valve features a unique two-piece body for quick internal access without pipeline removal, ideal for corrosive chemical and sanitary applications. Discover its corrosion resistance and downtime-saving design.
