Tianjin Worlds Valve Co., Ltd. presents a chainwheel operated wafer butterfly valve featuring PTFE lining on both the seat and disc. This valve is specifically designed for applications where the valve is installed at high elevations — such as on overhead pipelines, elevated platforms, or pit installations — making direct manual operation impractical. The chainwheel operator allows the valve to be opened or closed from ground level by pulling an endless chain, eliminating the need for ladders, scaffolding, or working at heights.
The PTFE lined seat and disc provide a complete fluoropolymer barrier that isolates all wetted metal components from the process media. This construction delivers exceptional corrosion resistance for handling aggressive chemicals, strong acids, strong bases, and other corrosive fluids. The valve is manufactured using primary PTFE micropowder — never recycled materials — and passes 30KV electric spark testing with zero penetration at 16 bar water pressure.
The compact wafer body design installs directly between standard pipeline flanges using through-bolts, saving space, weight, and installation time. The split body PTFE/PFA lining construction is particularly suitable for the chemical industry, offering good resistance to corrosion, self-cleaning properties, easy disinfection for potable water systems, and reduced weight with low pressure loss.
Available in sizes from DN50 to DN600 with pressure ratings up to PN16 (for sizes up to DN150) and PN10 (for larger sizes) . and also fully conforms to ANSI Class 150LB standard, ensuring compatibility with international pipeline systems.Operating temperature ranges from -35℃to +200℃. Dual PTFE lining on both seat and disc ensures complete media isolation, zero contamination, and bidirectional bubble-tight shutoff.
All materials — body, disc, seat, lining thickness, actuation — are fully customizable to specific customer requirements. Tianjin Worlds Valve Co., Ltd. is a direct China-based OEM manufacturer and the original source of the product line showcased on www.worldsvalve.net, offering factory-direct pricing, consistent quality, and professional export support.
Product Structure: Chainwheel PTFE Wafer Butterfly Valve
Body Material: Ductile Iron, Carbon Steel, Stainless Steel, Aluminum-bronze
Disc Material: Stainless Steel with PTFE Coated
Seat Material: PTFE, EPDM, NBR,FKM, VITON, CR, NR, MVQ, HYPALON...
Connection Type: Wafer type connection
Size Range: DN50–DN600
MAX Working Pressure:
PN6/ PN10 / PN16 / 150LB/ 5K/ 10K / “D” / “E”...
Top Flange: ISO 5211 (according to customer’s need)
Face to Face : DIN558-1 / DIN3202 / ISO5752 / BS5155...
Operating Temperature Range: -35℃to 200℃ (eg: PTFE)
Operation: Manual Lever, Worm Gear, Electric Actuator, Pneumatic Operated... (as specified)
Customization: All materials, dimensions, and pressure ratings can be modified according to customer requirements

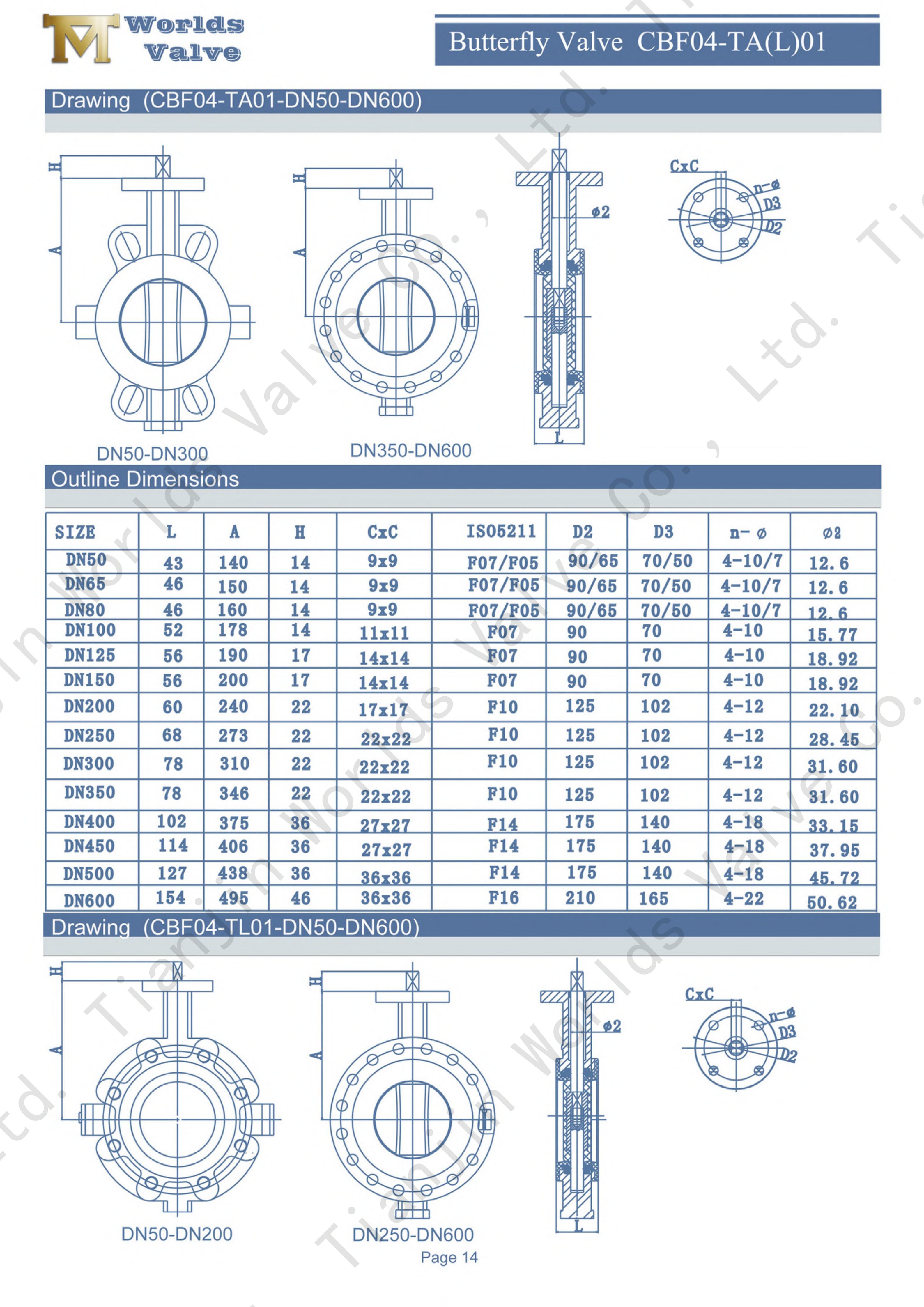

Type: CBF04-TA01--Product Catalog
1. Chainwheel Operator — Safe, Remote Manual Operation from Ground Level
Allows valve operation from ground level, eliminating the need for ladders, scaffolding, or working at heights — ideal for elevated pipelines and hard-to-reach installations.
Torque is amplified through the gear reduction ratio (eg: 36:1), meaning very little hand force on the chain can generate significant closing/opening force — particularly suitable for large-diameter valves.
Accessories such as chain box/collector (stores excess chain, prevents tangling), limit switch box (provides open/closed position feedback), and chain lock (prevents accidental operation) can be incorporated for enhanced safety and signal transmission.
2. PTFE Lined Seat & Disc — Superior Corrosion Resistance for Aggressive Media
Dual PTFE lining on both the seat and disc ensures total media isolation from metal components.
PTFE offers excellent chemical stability, resisting strong acids (sulfuric, hydrochloric, nitric, hydrofluoric, aqua regia), strong bases, and strong oxidizers across pH 0–14.
PTFE material prevents product contamination in sensitive applications such as food and beverage, pharmaceutical, and high-purity water systems.
3. Primary PTFE Micropowder with Electric Spark Testing
Uses primary PTFE micropowder only — never recycled materials — ensuring purity, consistency, and reliability.
30KV electric spark test qualified with zero penetration at 16 bar water pressure, guaranteeing lining integrity.
4. Wafer Body Design with Bidirectional Bubble-Tight Shutoff
Compact wafer-style body installs directly between standard pipeline flanges (EN 1092, ANSI B16.5, etc.) using through-bolts — saves space, weight, and installation cost.
PTFE seat provides bidirectional bubble-tight shutoff (Class VI).
Reduced pressure loss and high Kv/Cv values contribute to lower energy costs.
5. Wide Operating Temperature & Pressure Coverage
Temperature range: -35°C to +200°C, covering most industrial process requirements.
Working pressure: 16 bar for DN50-DN150; 10 bar for DN200-DN600. The valve is also fully compliant with ANSI Class 150LB (approximately PN20) across the entire size range, providing a reliable solution for American standard pipeline systems.
6. Fully Customizable — No Unnecessary Defaults
Body materials: Ductile iron, cast iron, carbon steel, stainless steel, aluminum bronze.
Disc materials: PTFE lined stainless steel, ductile iron, carbon steel, aluminum bronze.
Shaft materials: Stainless steel, Monel K500.
Seat: PTFE (standard), reinforced PTFE, conductive PTFE available.
Operation: Chainwheel (standard), hand lever, worm gear, electric actuator, pneumatic actuator.
End standards: ANSI B16.1 Class 125LB, ANSI B16.5 Class 150LB, EN 1092 PN6/PN10/PN16, DIN 2501, JIS 10K, etc.
We are a China OEM butterfly valve manufacturer and supplier, and the original source of the PTFE lined butterfly valve product line.
All PTFE lined valves use primary PTFE micropowder only — never recycled materials — and undergo 30KV electric spark testing to ensure lining integrity.
Full documentation — material certificates (mill test reports), pressure test reports, and electric spark test reports — provided with every order.
CE, UKCA, WRAS, ACS certifications available upon request.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our technical team is ready to discuss your specific application — whether you need a standard PTFE lined chainwheel operated valve or a fully customized solution with special materials, flange standards, or actuation options.
