In industrial pipeline design, selecting the optimal valve is a critical decision that directly impacts system efficiency, operational cost, and long-term reliability. Among the various options, the butterfly valve is renowned for its versatility, compact design, and cost-effectiveness. This article provides a clear comparison between butterfly valves and other common types—gate valves, globe valves, and ball valves—to guide engineers and specifiers in making an informed choice tailored to their specific application needs.
The correct valve choice is foundational to a high-performing pipeline system. Each valve type possesses distinct characteristics—shaped by its design, operation, and sealing mechanism—making it uniquely suited for specific duties. A thorough understanding of how butterfly valves compare to gate valves and globe valves allows for decisions based on a balance of key factors: flow control requirements, pressure ratings, installation space, maintenance accessibility, and total lifecycle cost. Proper selection mitigates the risk of premature failure, inefficient operation, and unnecessary expense.
Gate valves are traditionally used for reliable on/off isolation in fully open or closed positions, with minimal pressure drop. Here’s how they stack up against butterfly valves:
Feature | Butterfly Valve | Gate Valve | Key Takeaway |
Installation Footprint & Weight | Extremely compact, lightweight wafer or lug design. | Larger, heavier, requires more linear space and support. | Butterfly valves save space and simplify installation. |
Cost | Generally more economical due to simpler design and less material. | Typically higher cost for valve body, actuator, and installation. | Butterfly valves offer significant cost savings, especially in larger diameters. |
Actuation Speed | Quarter-turn operation enables rapid opening/closing. | Multi-turn operation results in slower actuation. | Butterfly valves are superior for applications requiring quick response. |
Flow Regulation | Suitable for on/off and some throttling (with specific disc designs). | Designed for isolation only; throttling causes seat and disc damage. | Use gate valves strictly for isolation; butterfly valves offer more flexibility. |
Large-Diameter Suitability | Excellent choice; maintains a compact, cost-effective profile. | Becomes very large, heavy, and expensive. | Butterfly valves are the preferred and practical choice for large bore applications. |
Conclusion: For isolation duties where space, weight, speed, and budget are concerns, the butterfly valve holds a clear advantage. The gate valve remains the standard where a perfectly straight, unrestricted flow path or a tight metal seal is paramount in a fully open system.
This comparison focuses on applications requiring flow modulation and tight sealing.
Feature | Butterfly Valve | Globe Valve | Ball Valve | Key Takeaway |
Primary Function | On/Off & Limited Throttling | Precision Throttling & Regulation | On/Off & Reliable Shut-Off | Choose based on need: throttling (globe) vs. shut-off (ball/butterfly) |
Throttling Ability | Good for coarse control; not for fine adjustment. | Excellent. Designed for precise flow rate control | Poor; not recommended for throttling. | For precise control, a globe valve is technically superior. |
Sealing Integrity | Very good bubble-tight seal with **resilient seats** (e.g., EPDM) | Excellent shut-off with metal or composition discs. | Excellent with pressurized seal between ball and seats. | For absolute zero-leakage in high-pressure systems, ball valves often lead. |
Pressure Drop | Low (when fully open) | Inherently high** due to flow path. | Very low (full port) | Butterfly valves are highly efficient for minimal system pressure loss. |
Maintenance | Simple design; seats are often replaceable in-line. | Complex internal parts; typically requires removal for service. | Generally reliable; full repair may require removal. | Butterfly valves often offer the easiest and most cost-effective maintenance. |
Conclusion: For precise flow control, choose a globe valve. For absolute sealing in high-frequency on/off service, a ball valve may be best. For a balance of efficient on/off control, moderate throttling, low cost, and easy maintenance, the butterfly valve is an outstanding all-rounder.
Understanding the ideal use cases ensures optimal performance and longevity.
When a Butterfly Valve Wins:
Large-Diameter, Low-Pressure Systems: HVAC, water distribution, and treatment plants.
Space- and Weight-Constrained Installations: Compact wafer design is ideal.
Cost-Sensitive Projects: Offers superior value without sacrificing performance.
Applications Needing Quick Operation: Quarter-turn actuation is ideal for emergency shutoffs or frequent cycling.
When Another Valve Might Be Better:
High-Precision Throttling: A globe valve is the correct technical choice.
Extremely High-Pressure/Temperature Services: Forged steel gate, globe, or ball valves are typically specified.
Abrasive Slurries in Throttling Service: The disc/seat of a butterfly valve can erode quickly.

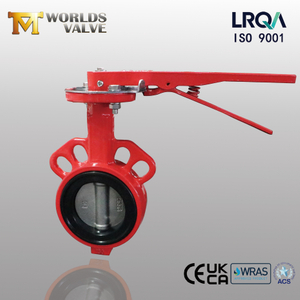

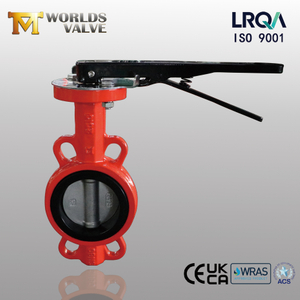

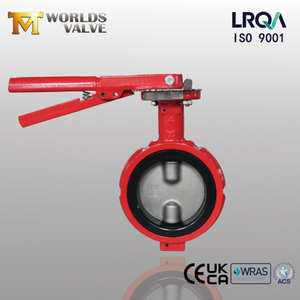

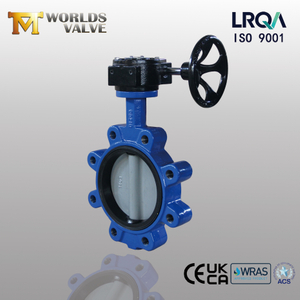

At Tianjin Worlds Valve Co., Ltd., we engineer our resilient seated butterfly valves to deliver maximum reliability and value. Our valves, available in wafer, lug, and double-flanged designs, feature:

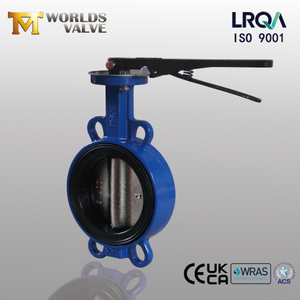

Replaceable Seats: EPDM, NBR, or PTFE seats can be swapped out quickly, extending valve life and minimizing downtime.
Robust Construction: Combination of a ductile iron or stainless steel body with a corrosion-resistant disc (CF8M, DI coated).
International Compliance: Manufactured under ISO 9001 and compliant with CE, UKCA, and other major standards for global acceptance.

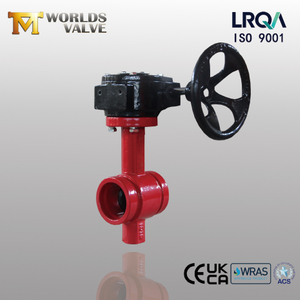

OEM & Customization Expertise: We tailor dimensions, materials, and actuation (manual lever, gear, pneumatic, electric) to your system's exact needs.
Ideal for water treatment, chemical processing, HVAC, and general industrial services, our valves provide the perfect blend of performance, durability, and ease of maintenance.
There is no universal "best" valve—only the **best valve for your specific application**. Butterfly valves offer compelling advantages in compactness, actuation speed, and cost-effectiveness for a vast range of moderate-pressure services. By carefully weighing the factors of flow control, pressure, maintenance, and total cost, you can specify with confidence.
Explore our range of high-performance butterfly valves or contact our engineering team for a customized solution: dekai@worldsvalve.com
