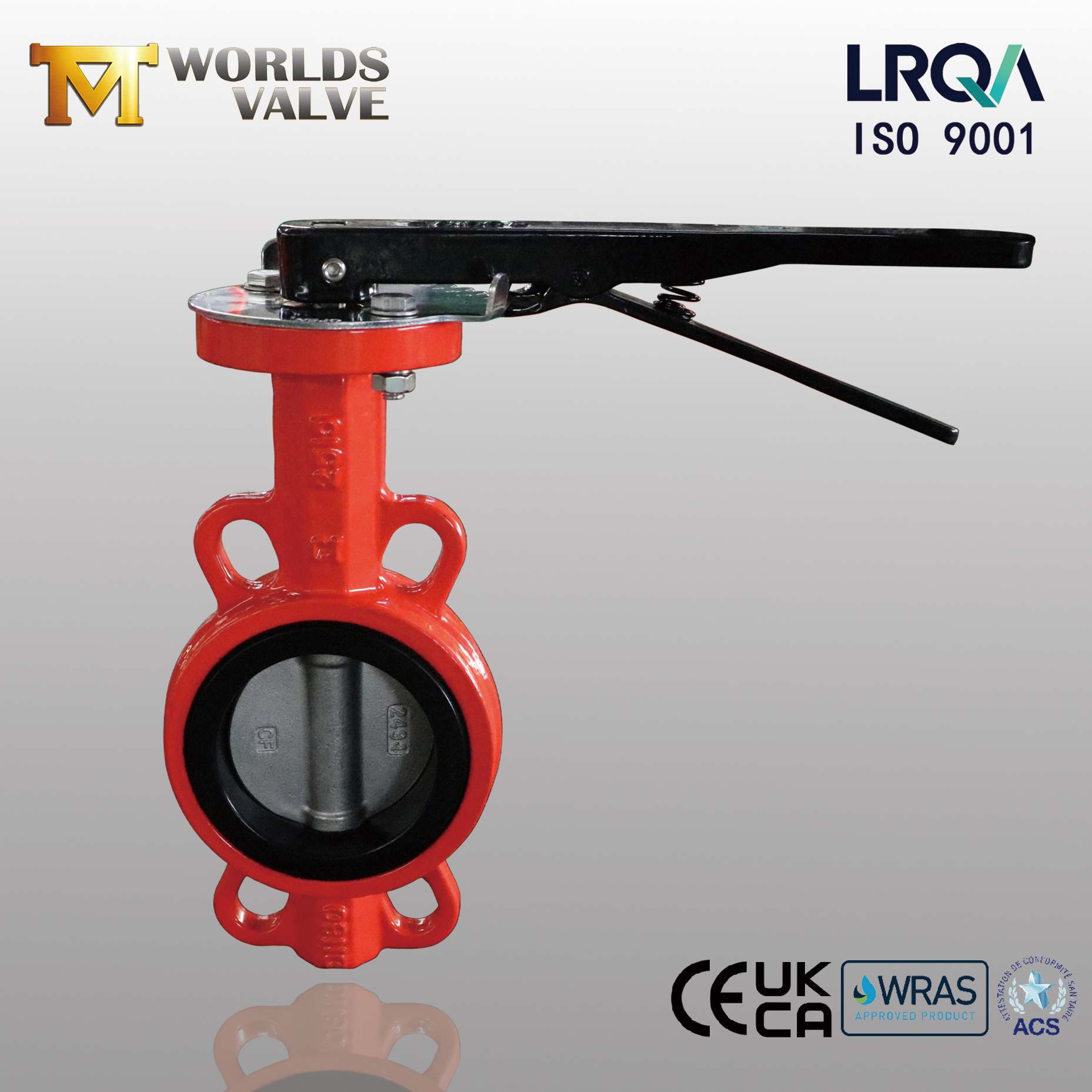

Tianjin Worlds Valve Co., Ltd., as your professional wafer butterfly valve supplier, introduces the Hard Back Rubber Seat & SS Disc Butterfly Valve. This valve is designed to deliver both resilient sealing and long-term durability. It features a reinforced hard-back EPDM seat for reliable bubble-tight shut-off and a stainless steel (CF8M) disc for excellent corrosion resistance. Encased in a compact wafer-style body, it is an efficient and cost-effective solution for PN16 water, HVAC, and mild chemical applications where a balance of sealing performance and durability is required.

Model:
CBF02-TA01
Brand:
OEM | ODM | WDS

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction：

Hard Back Rubber Seat & SS Disc Butterfly Valve | Wafer Butterfly Valve Supplier

Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE & UKCA Certified Manufacturer

CBF02-TA01 Operation and Maintenance Manual DOWNLOAD

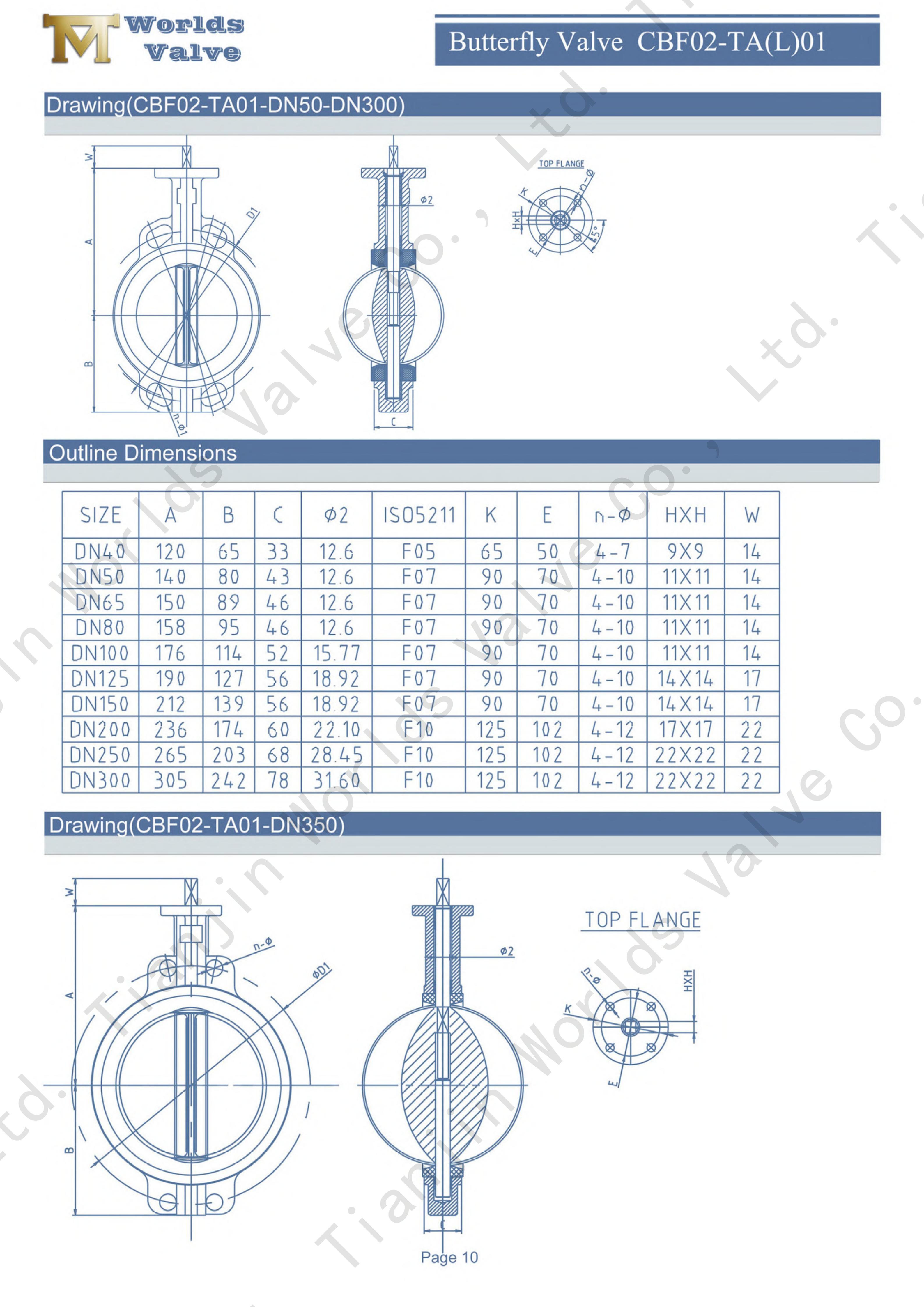

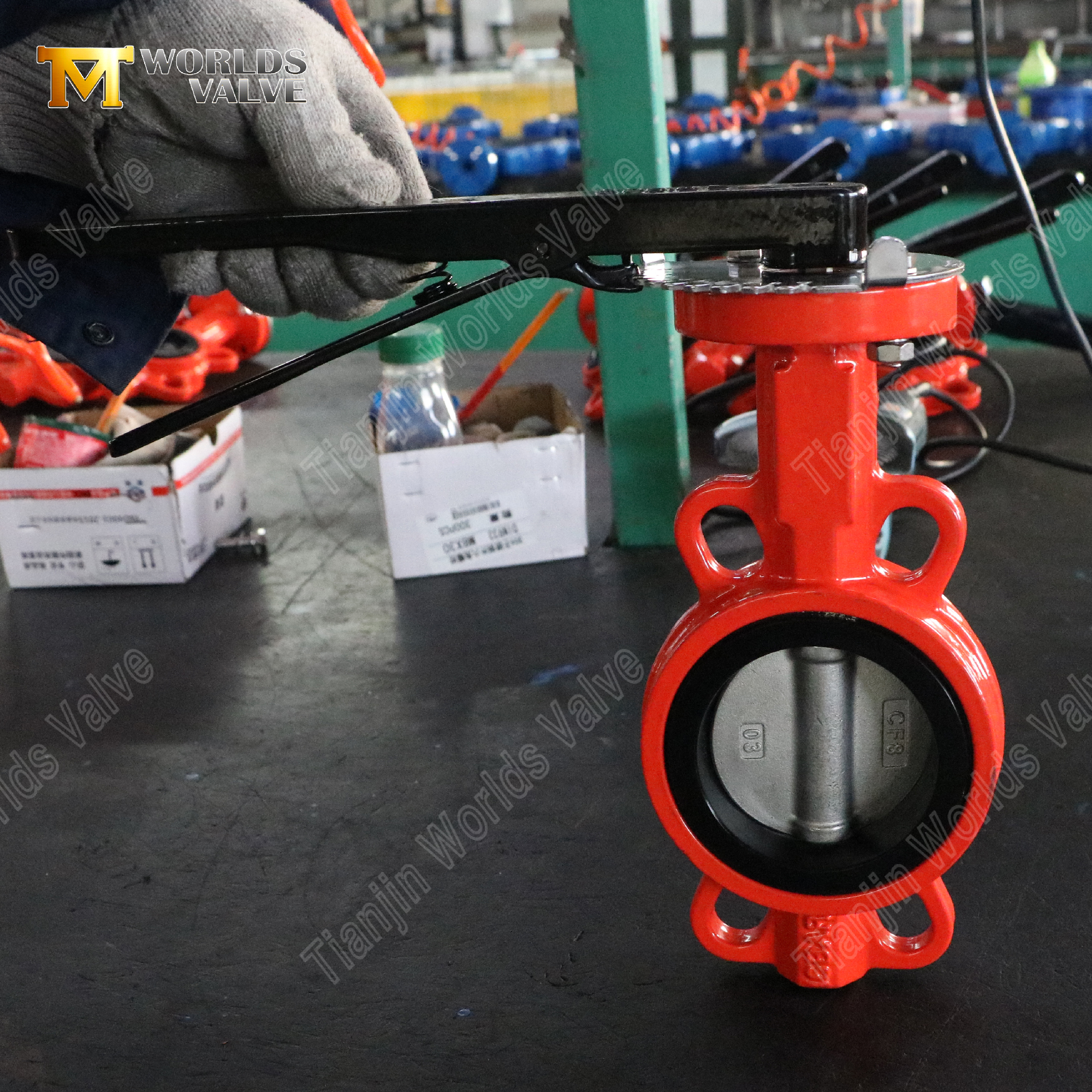

Hard Back Rubber Seat & SS Disc Butterfly Valve-1

Technical Features and Design Advantages:

1. Reinforced Hard-Back EPDM Seat

Enhanced Seat Integrity: The seat features a robust, hard-backing layer that prevents deformation under pressure, ensuring consistent bubble-tight sealing (EN 12266-1 Class A) and extending service life.
Excellent Sealing Resilience: The EPDM sealing surface provides superior elasticity for reliable shut-off against water, air, and many mild chemicals.

2. Stainless Steel (SS) Disc for Longevity

Corrosion-Resistant Core: The CF8M (316 Stainless Steel) disc provides strong resistance to rust and corrosion, making it suitable for humid, water-based, and mildly corrosive environments.
Durable and Lightweight: Offers a strong, long-lasting flow control element without the excessive weight of cast iron.

3. Compact and Efficient Wafer Design

Space-Saving Installation: The wafer body installs quickly between two pipeline flanges, saving significant space and weight compared to lug-style valves.
Cost-Effective Solution: Simplifies installation and reduces total project costs for general industrial and building service applications.

4. Reliable and Simple Operation

Smooth Manual Actuation: Designed for easy operation with a standard hand lever, providing clear visual indication of open/closed positions.
Low Maintenance: The combination of a durable SS disc and a robust rubber seat minimizes wear and maintenance needs in standard service.

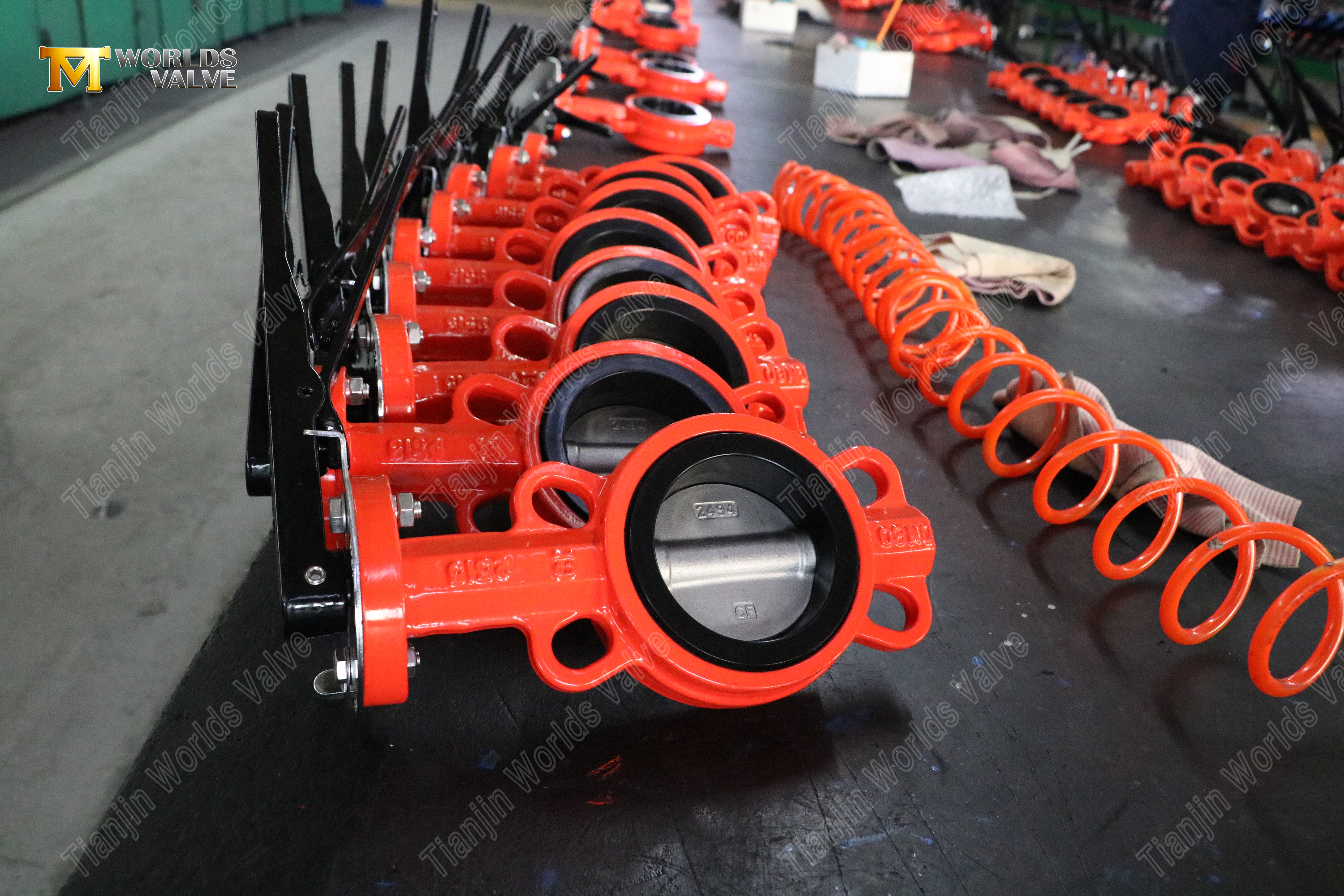

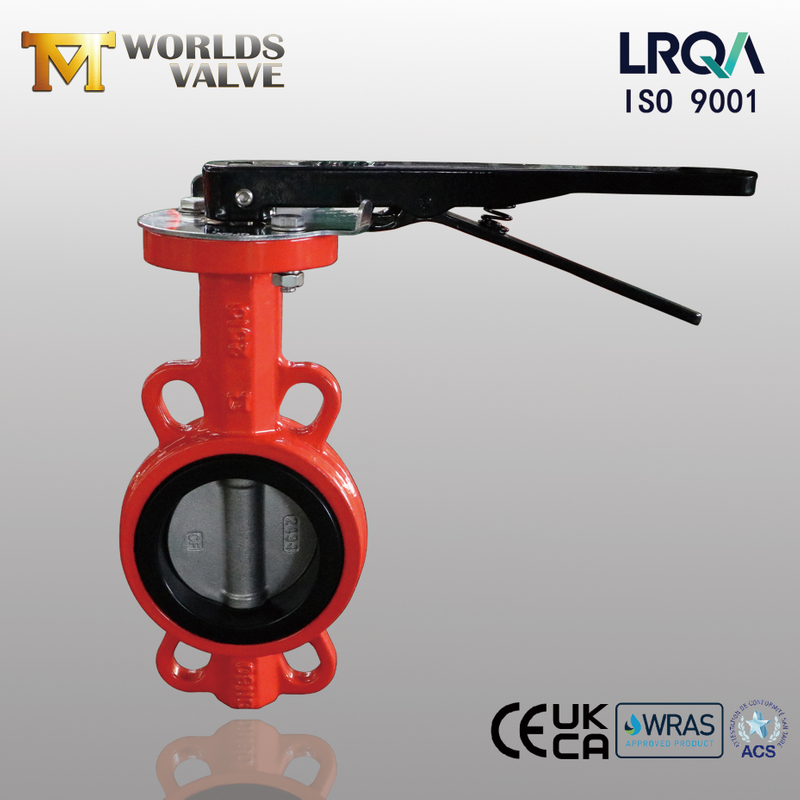

Hard Back Rubber Seat & SS Disc Butterfly Valve-1 (1)

Standard:

Parameter	Specification
Model	CBF02-TA01
Sizes	DN50-DN1200
Pressure Class	PN1.0/1.6MPa
Design	EN593 BS5155 EN1092 ISO5211
Testing	EN12266-1 ISO5208
TOP Flange	ISO5211 (according to customer’s needs)
Face to Face	DIN558-1 DIN3202 ISO5752 BS5155

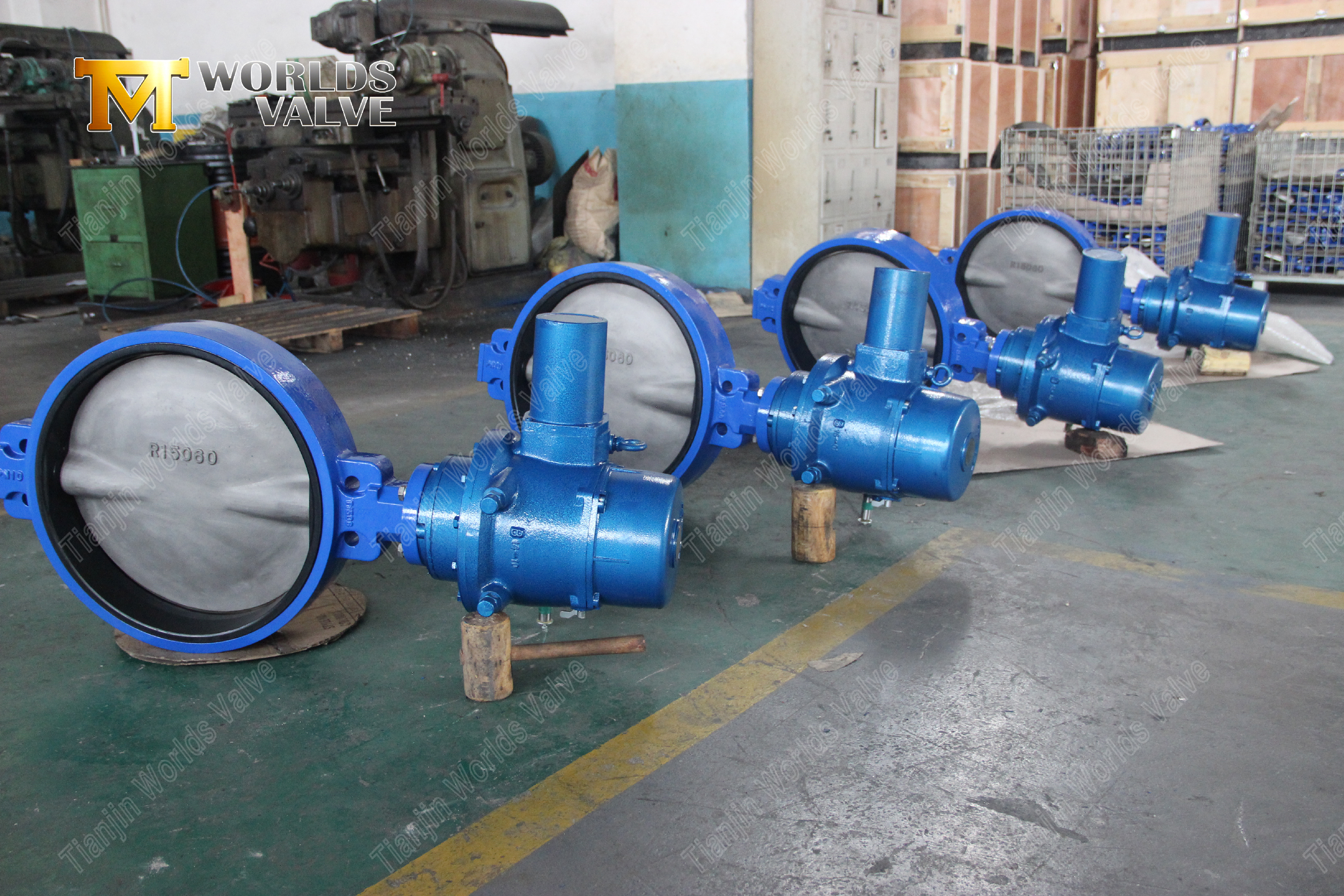

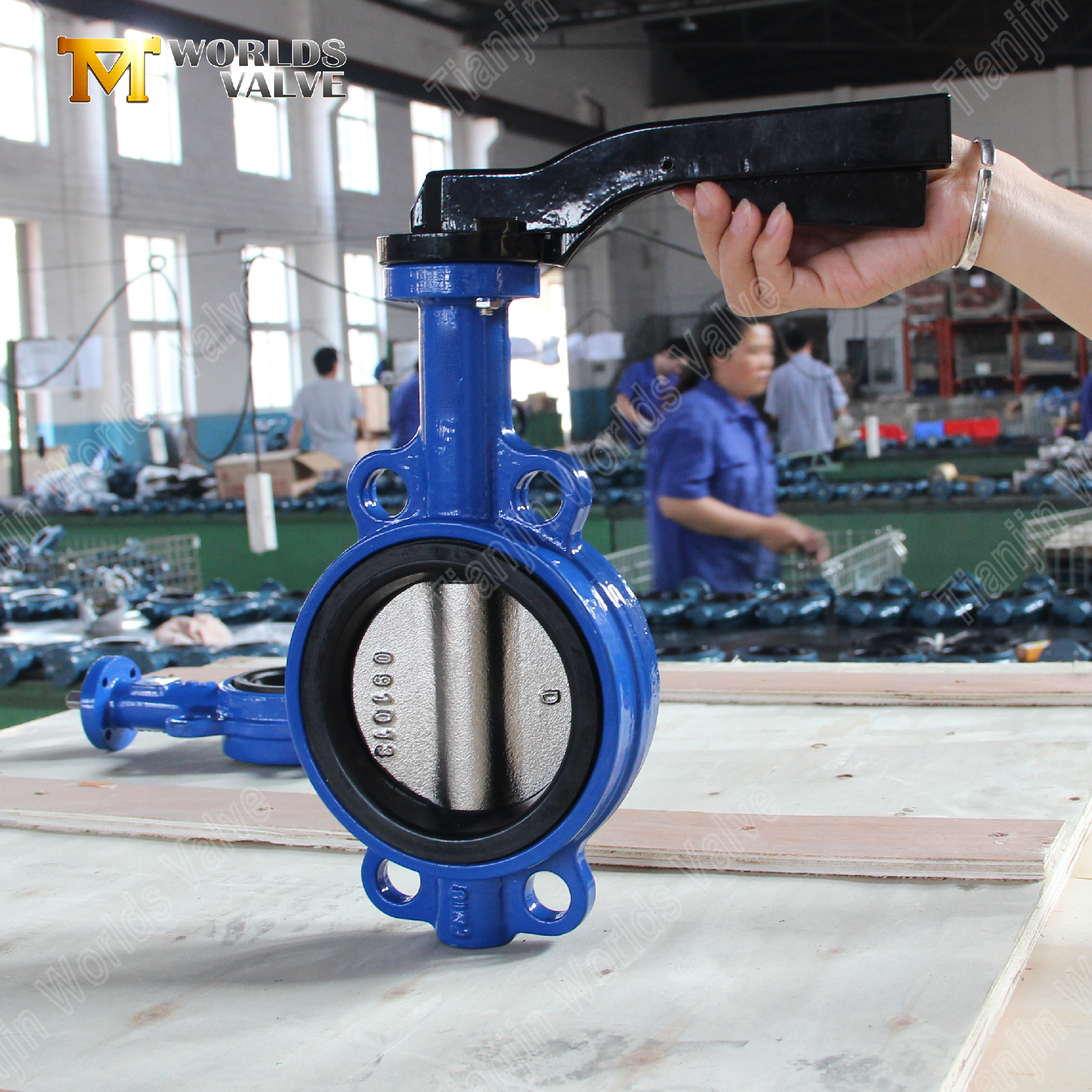

Hard Back Rubber Seat & SS Disc Butterfly Valve-1 (2)

Typical Applications:

Water Supply & Distribution: Potable water lines, pumping stations.
HVAC Systems: Chilled and cooling water circuits.
General Industrial Services: Cooling water, process water, compressed air.
Building Services: Plumbing, fire protection (where specification allows).

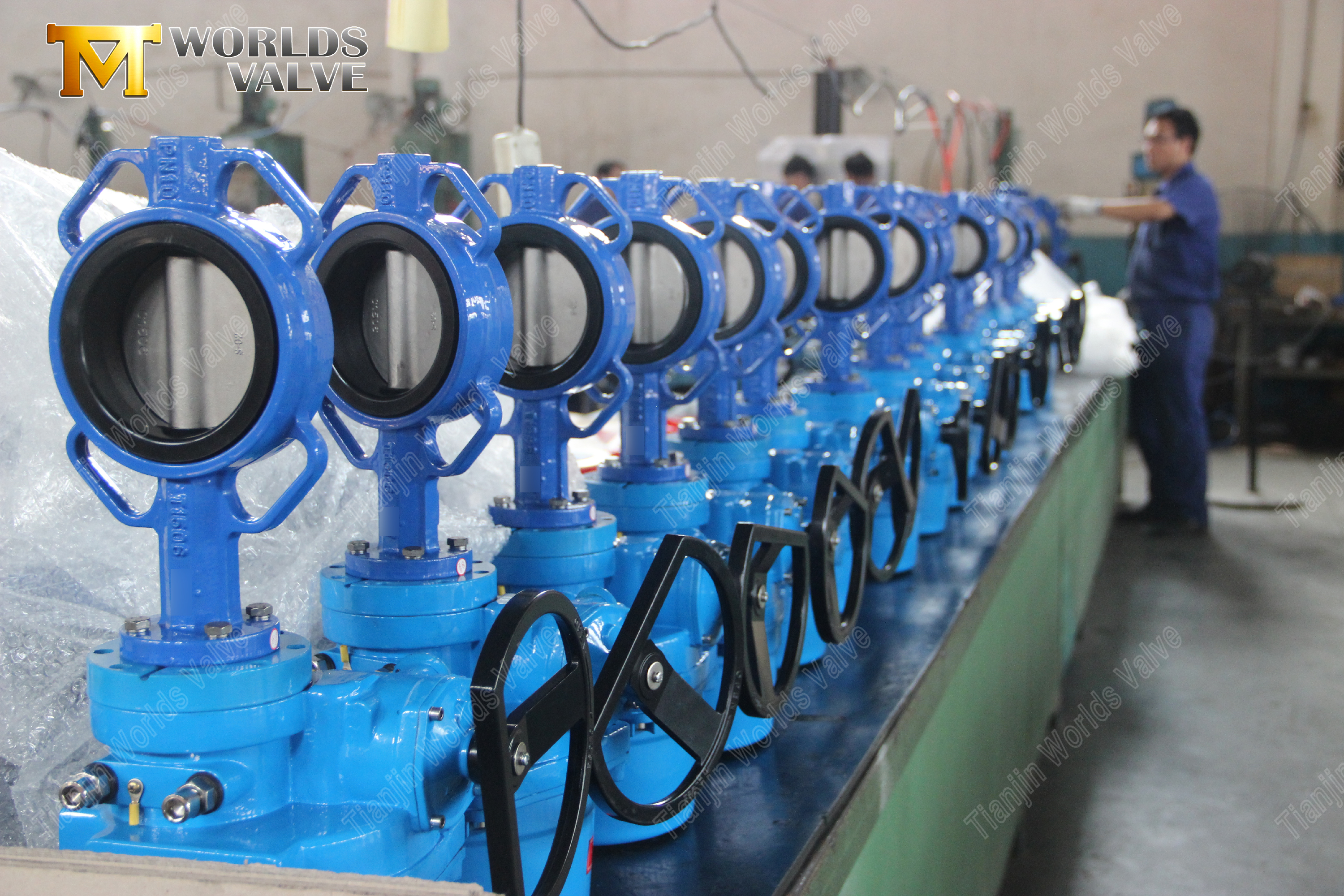

Hard Back Rubber Seat & SS Disc Butterfly Valve-1 (3)

Why Choose This Valve?:

Optimized Seal Design: The hard-back EPDM seat offers superior sealing reliability and lifespan compared to standard rubber seats.
Corrosion-Resistant Disc: The stainless steel disc ensures the valve's core component withstands demanding environments.
Supplier Reliability: We provide consistent quality and support as your dedicated wafer butterfly valve supplier.
Certified Quality: Manufacturing under ISO 9001 with CE and UKCA marks guarantees compliance and performance.

Conclusion：

Designed for quick manual operation and space-efficient installation, this wafer type butterfly valve delivers reliable performance for water treatment, HVAC, and industrial applications requiring efficient flow control.

Meeting your specific needs: dekai@worldsvalve.com
