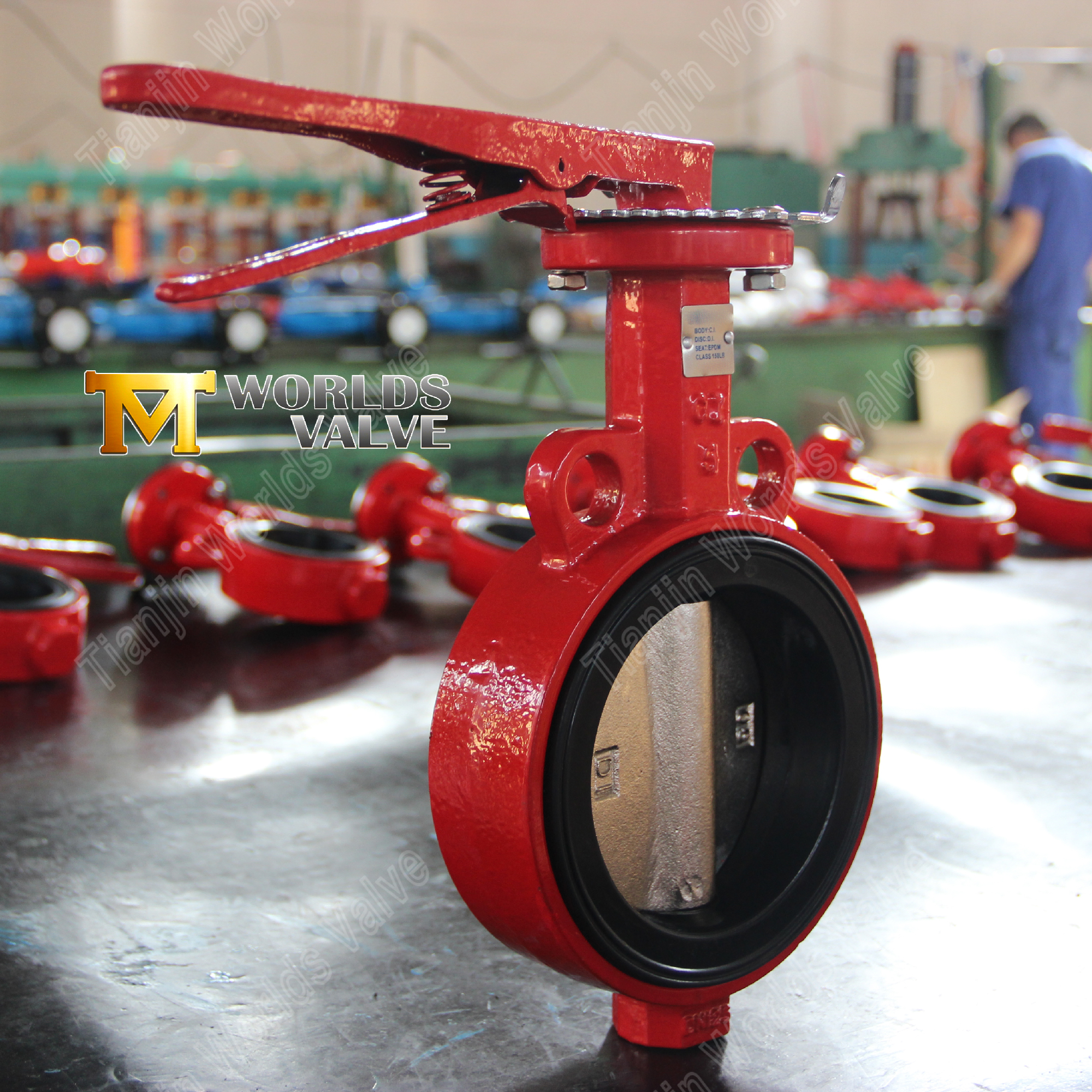

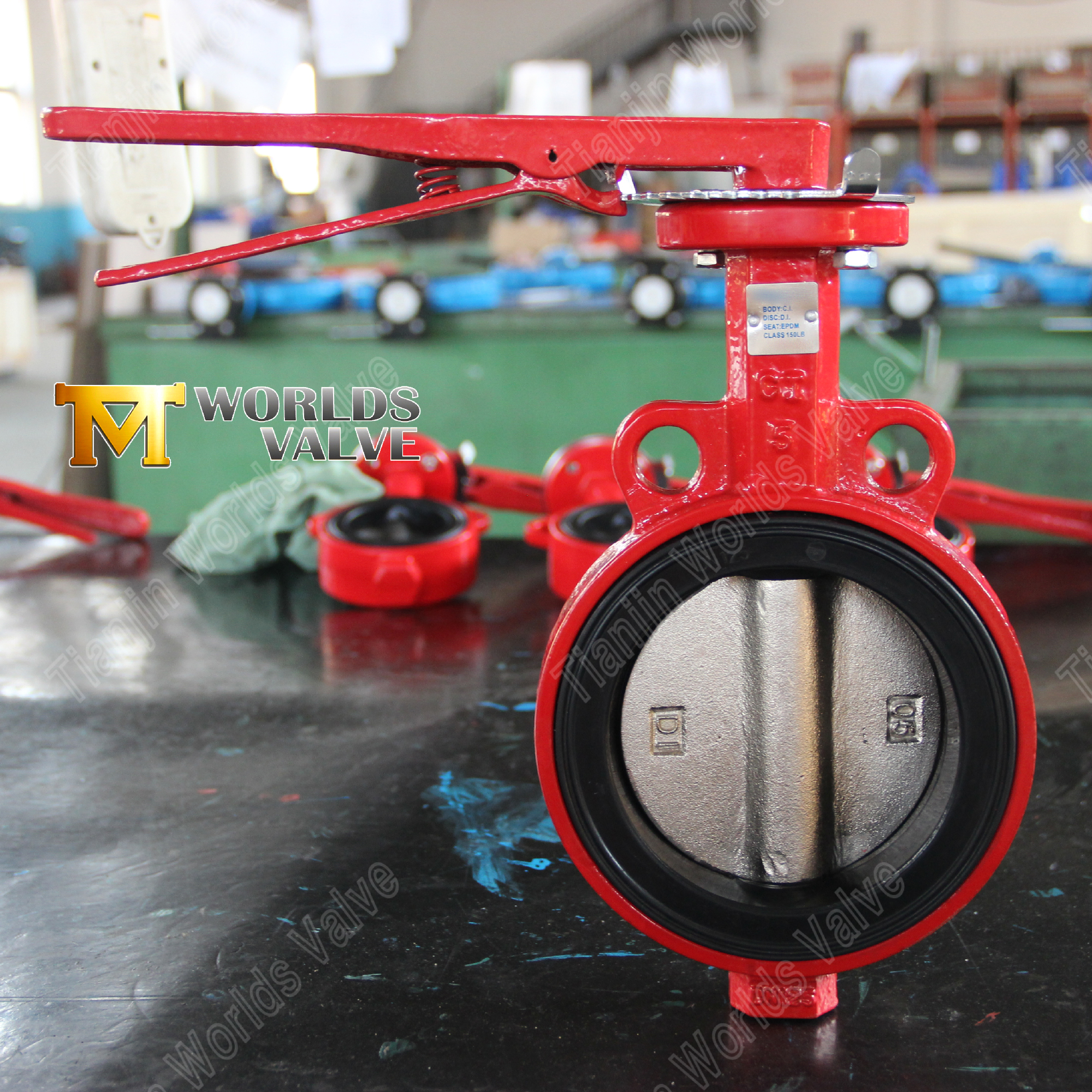

Hand Lever Wafer Type Butterfly Valve | Manual Quick Operation Solution
Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
CBF02-TA04-Operation and Maintenance Manual DOWNLOAD
90-Degree Quick Operation: Lever enables rapid open/close control with a simple quarter-turn
Position Locking Mechanism: Integrated locking holes secure valve in fully open or closed positions
Low Operating Torque: Optimized disc design reduces required operating force by 30%
Compact Design: 40% lighter and more space-efficient than lug-type valves
Easy Installation: Simple insertion between ANSI/DIN flanges without additional nuts or bolts
Cost Efficiency: Reduced material and installation costs without compromising performance
Bubble-Tight Shutoff: EPDM/NBR seats ensure zero leakage per EN 12266-1 Class A standards
Material Flexibility: Multiple seat options available for different media and temperature requirements
Durable Sealing: Resilient seating maintains integrity through 50,000+ operating cycles
Body Material: Ductile iron with epoxy coating for corrosion protection
Disc Options: Ductile iron, 304SS, or 316SS based on application needs
Stem Design: Stainless steel stem with anti-blowout protection
Parameter | Specification |
Model | CBF02-TA04 |
Sizes | DN50-DN1200 |
Pressure Class | PN6/10/16/150LB/JIS10K/AS “D”/ “E” |
Design | EN593 BS5155 EN1092 ISO5211 |
Testing | ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 DIN3202 ISO5752 BS5155 |
Standard | ASME B16.34 |
Body | Ductile Iron |
Disc | CF8M |
Seat | EPDM |
Stem | SS431 |
Quick Operation: 90-degree lever action enables instant flow control
Space Saving: Compact wafer design optimizes installation in tight spaces
Cost Effective: Provides reliable performance at competitive pricing
Low Maintenance: Robust construction and quality materials minimize service needs
Global Compliance: CE, UKCA, and WRAS certifications ensure international acceptance
Visual Indication: Clear position display for operational safety and convenience
Water Treatment Plants: Pump control, filtration systems, and chemical dosing
HVAC Systems: Chilled water circuits, cooling towers, and air handling units
Industrial Processing: Cooling water lines, process fluid control, and utility services
Building Services: Plumbing systems, mechanical rooms, and facility maintenance
Irrigation Systems: Zone control and mainline management in agricultural applications
Designed for quick manual operation and space-efficient installation, this hand lever wafer type butterfly valve delivers reliable performance for water treatment, HVAC, and industrial applications requiring efficient flow control.
