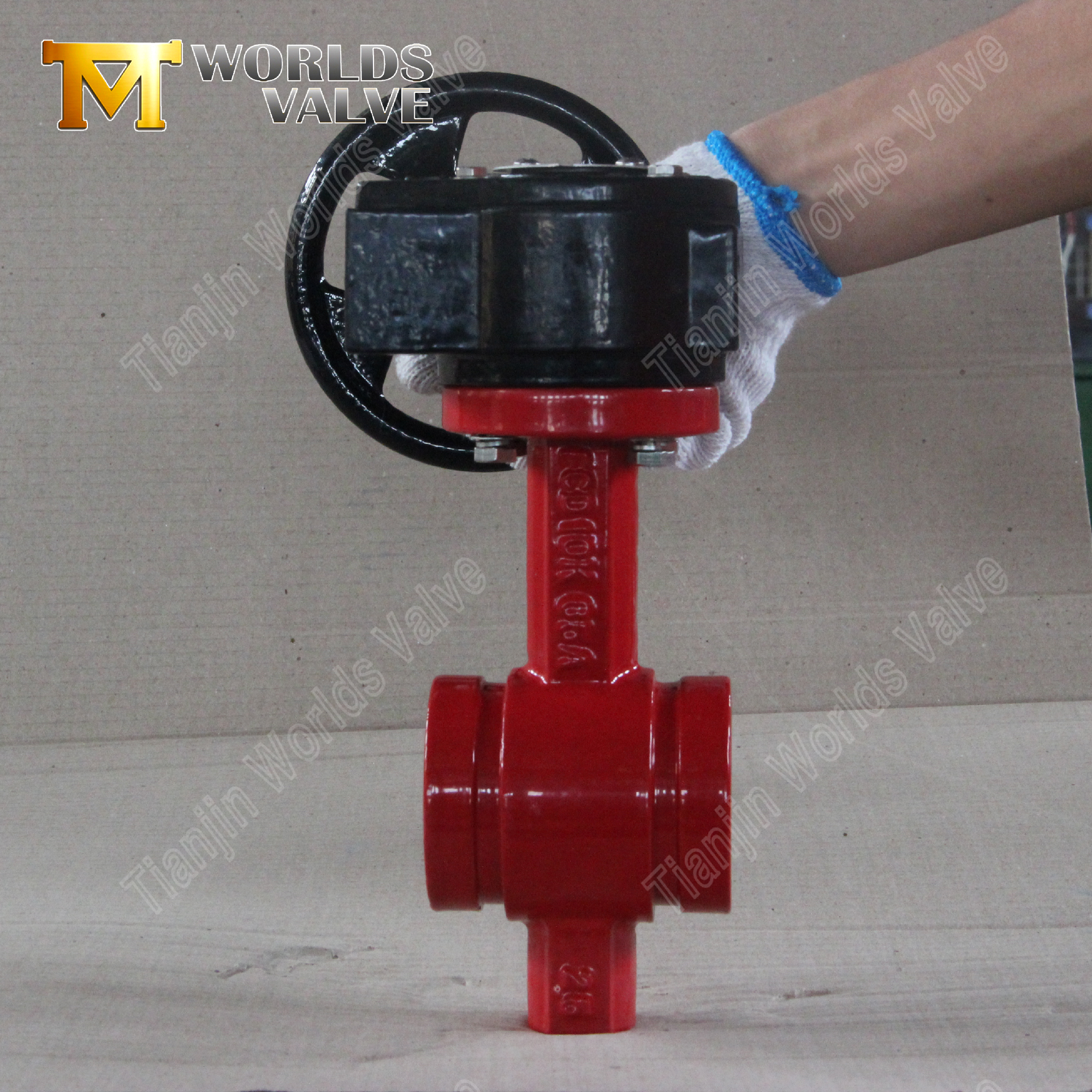

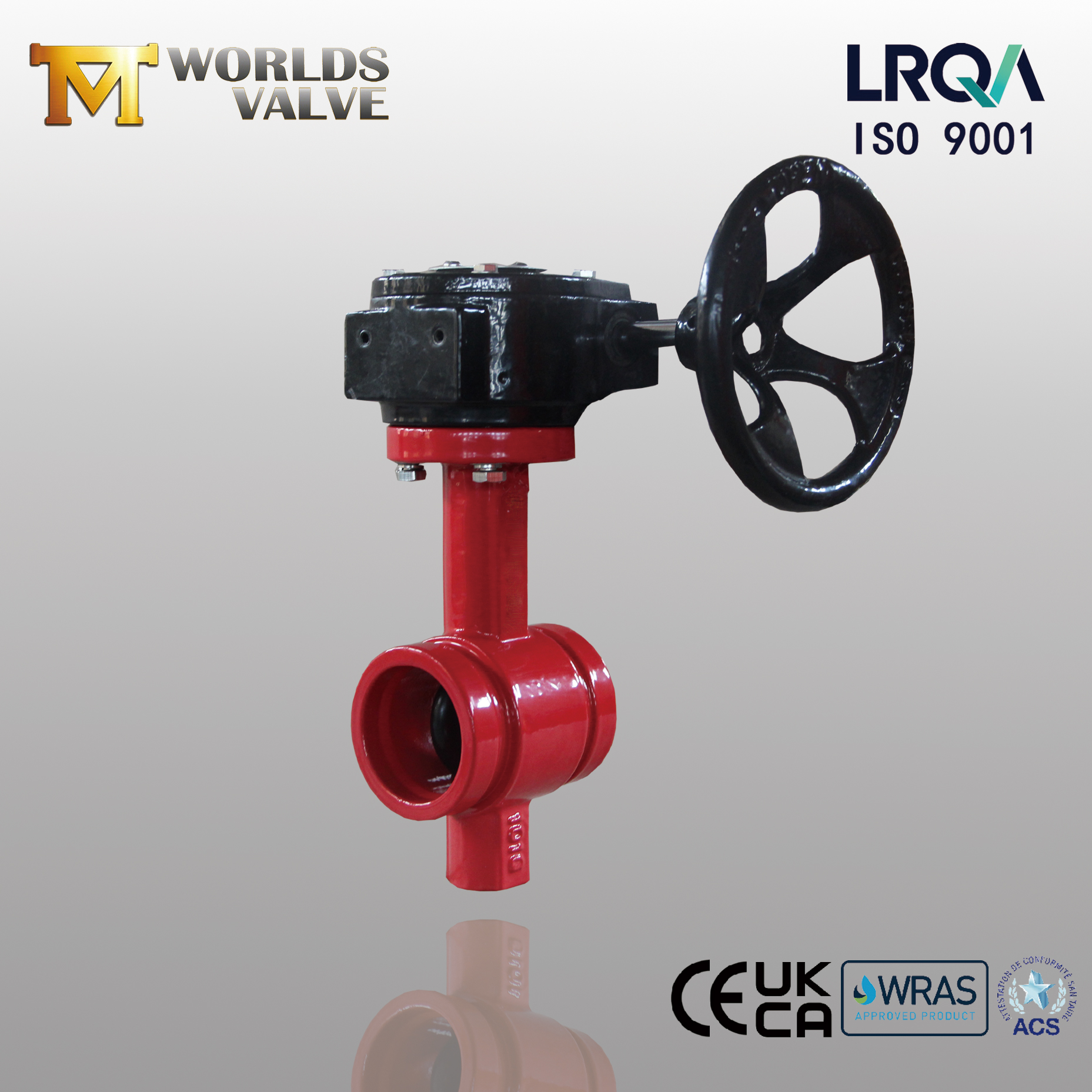

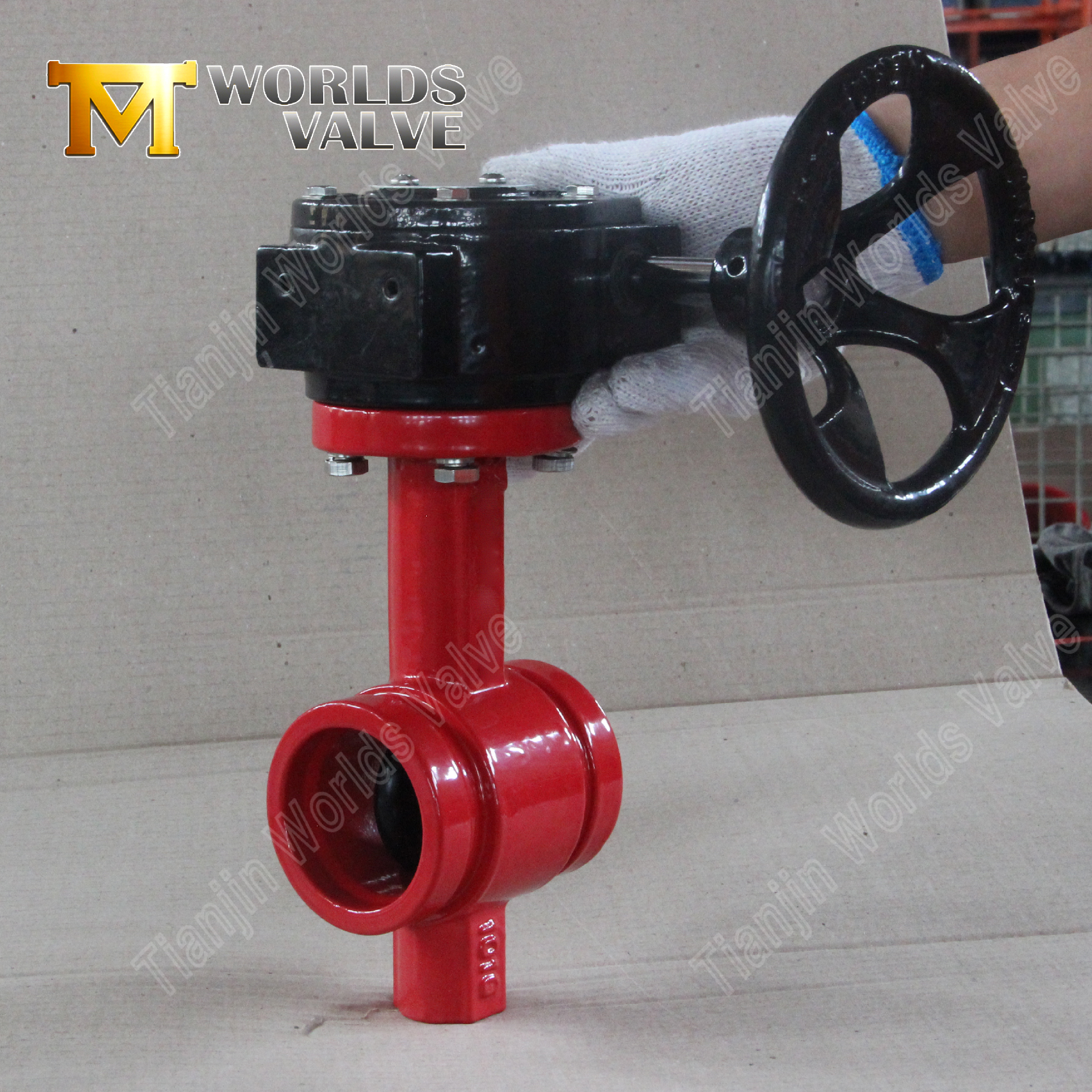

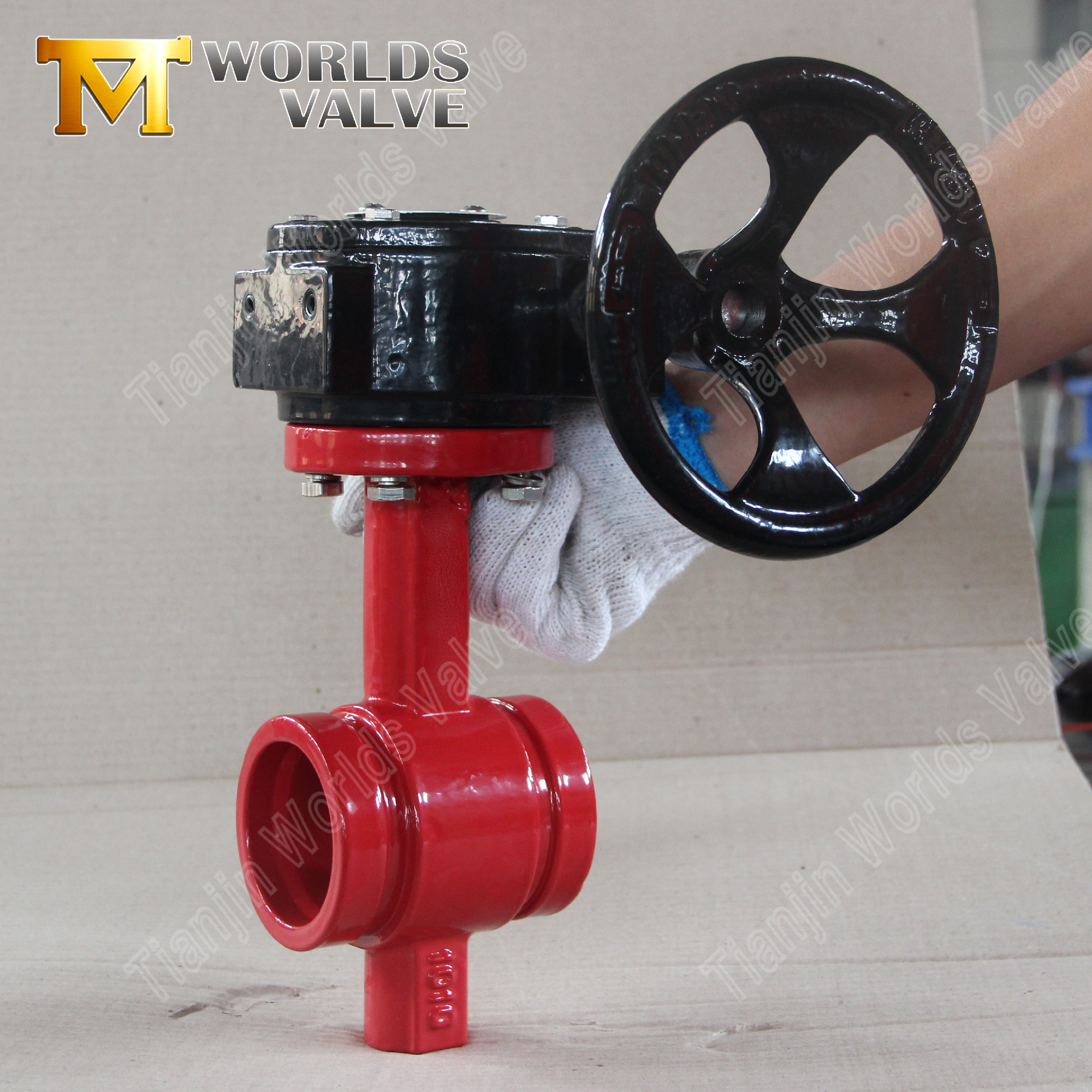

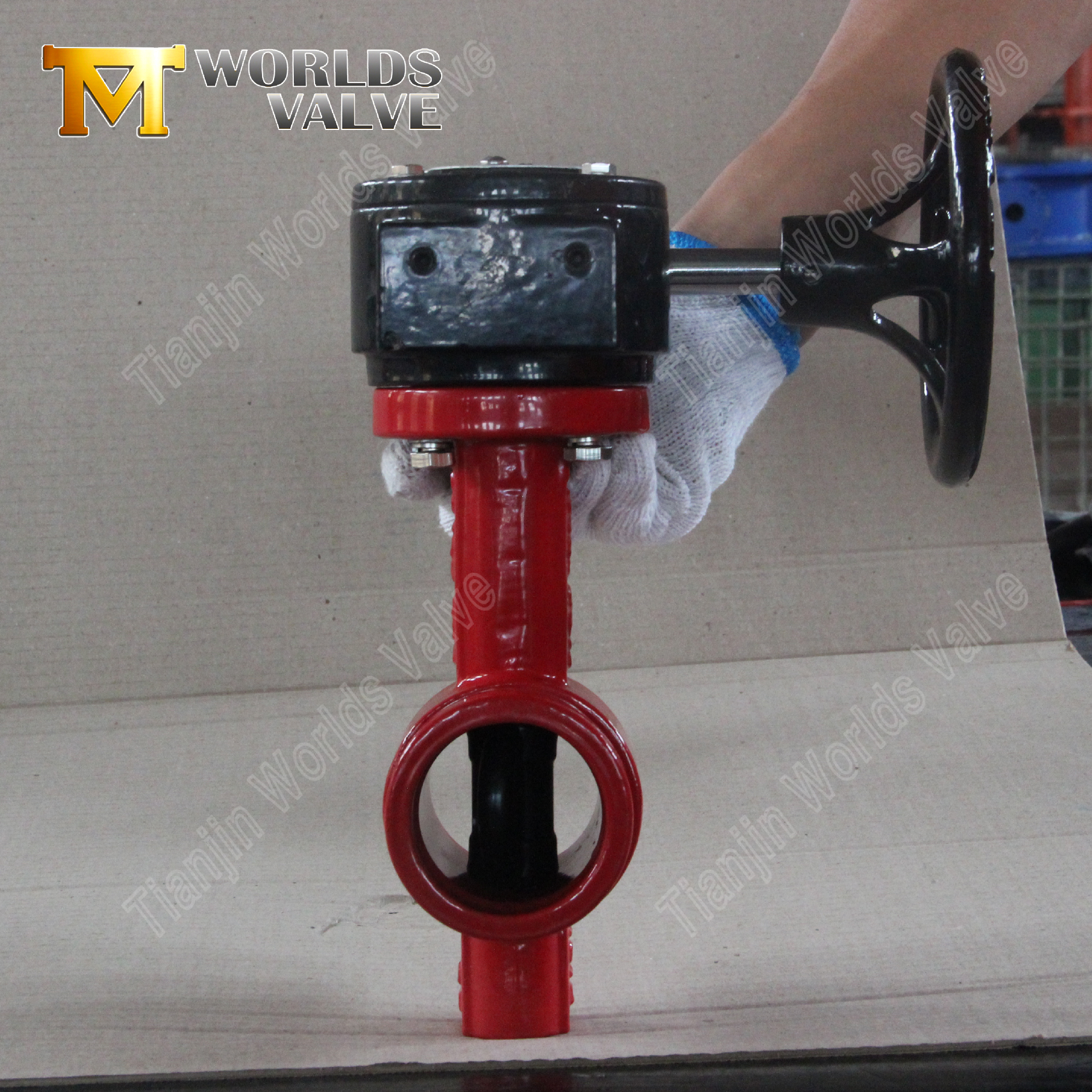

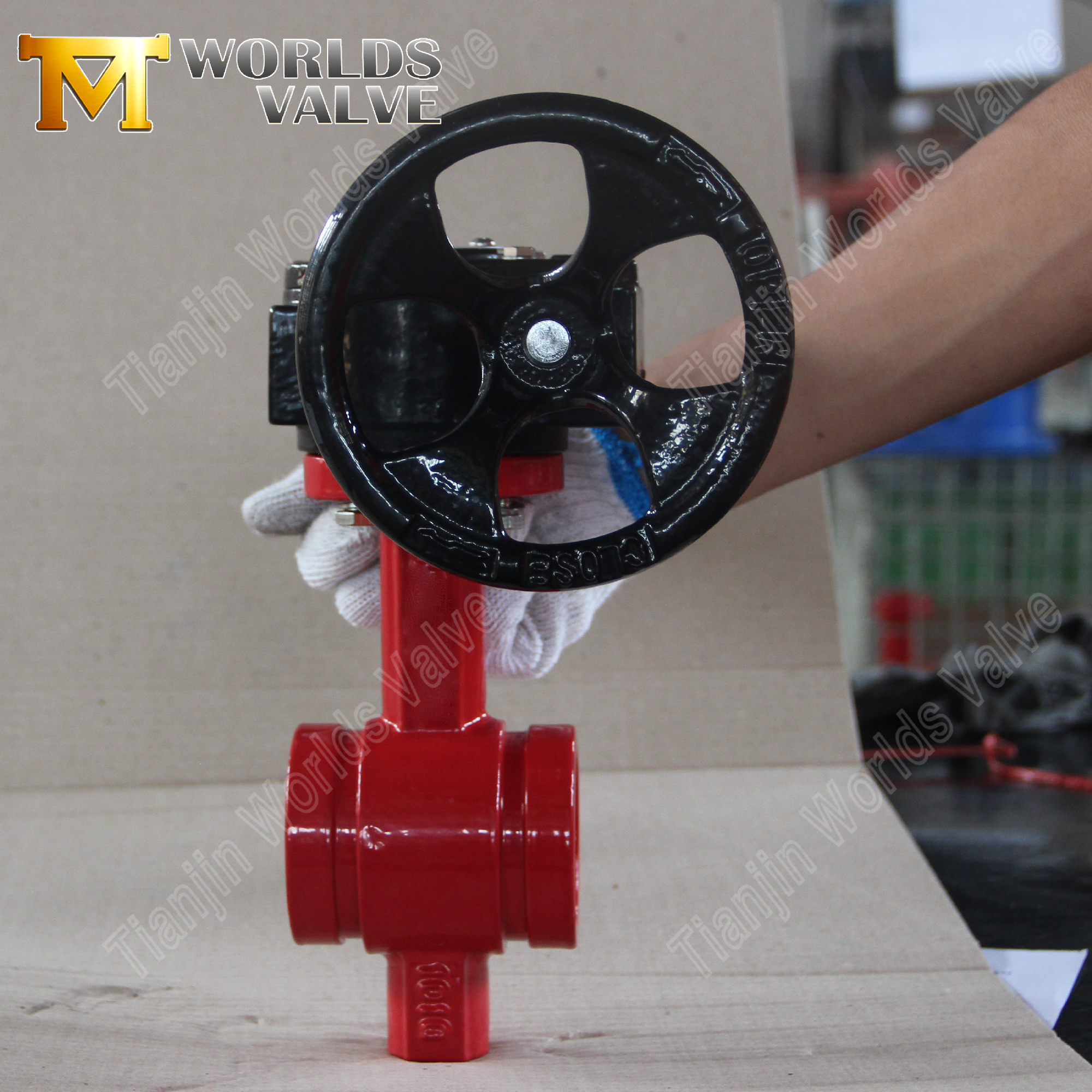

Certified Grooved Butterfly Valve with Gearbox | Worlds Valve OEM Manufacturer
Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
CBF02-TG01--Operation and Maintenance Manual DOWNLOAD
1. Turbine Drive for Effortless and Precise Operation
The worm gear mechanism provides exceptional mechanical advantage for effortless operation of large-diameter valves. Handwheel torque is amplified by the gearbox, enabling smooth operation even under high differential pressure. Worlds Valve's precise manufacturing ensures smooth gear meshing for long-term, stable, and jam-free performance.
2. Grooved Ends for Quick and Secure Installation
The valve ends feature precisely machined grooves, guaranteeing a perfect fit and rapid installation with standard grooved couplings. Our stringent production controls ensure every groove meets international specifications (e.g., AWWA C606), delivering a robust, leak-free connection that saves valuable field installation time and costs.
3. Reliable Body & Guaranteed Quality Excellence
The valve body is crafted from high-grade ductile iron or cast steel, protected by a long-lasting anti-corrosion coating that meets the highest industry standards. The resilient seat, made from premium materials like EPDM or NBR, ensures excellent sealing and wide media compatibility. Every valve undergoes rigorous pressure testing and performance inspection prior to shipment, fulfilling our commitment to "Quality First".

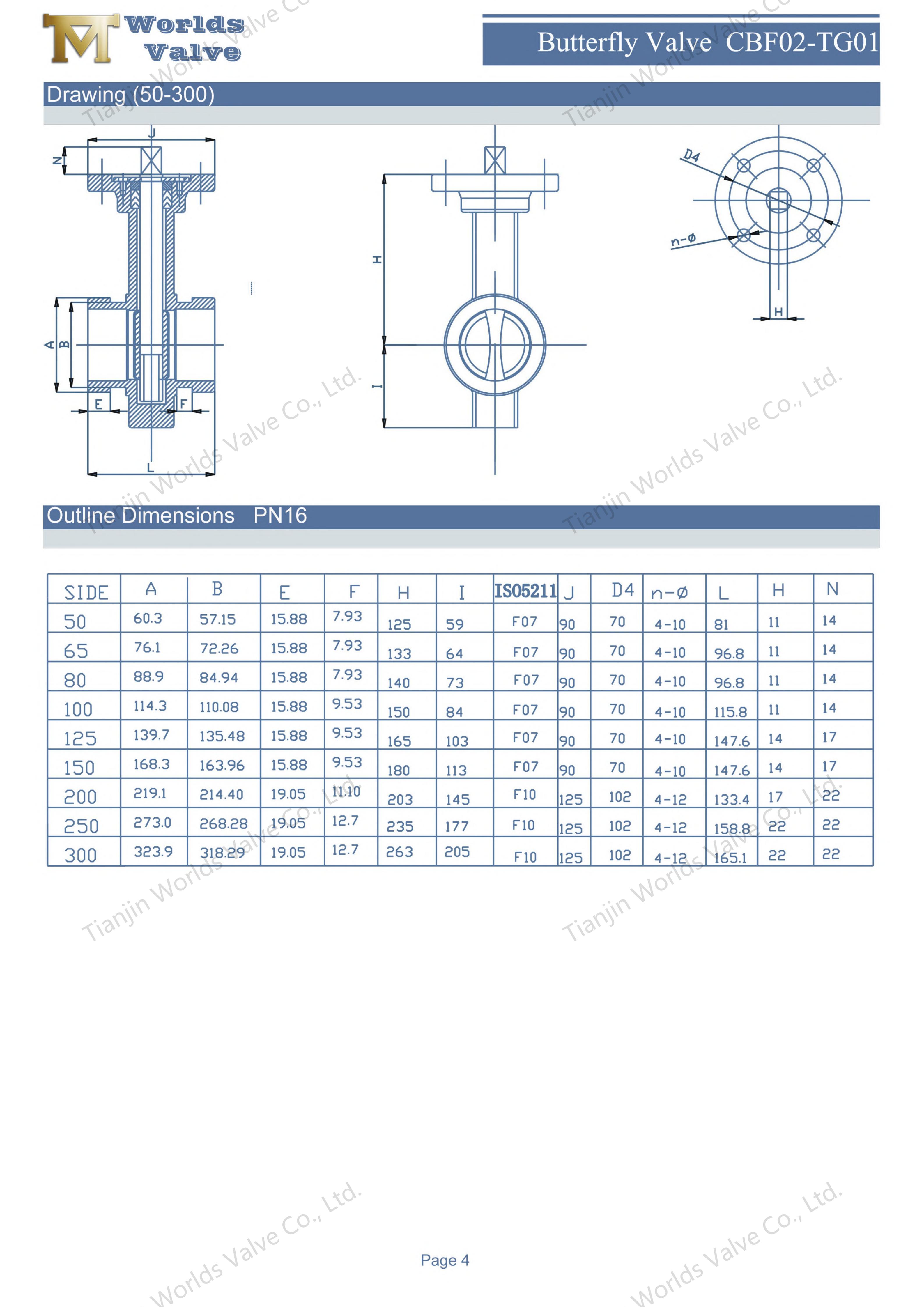

Parameter | Specification |
Model | CBF02-TG01 |
Sizes | DN50-DN300 |
Pressure Class | PN1.0/1.6MPa |
Design | AWWA C606 KS B2822 GB5135.11 |
Testing | EN12266-1 ISO5208 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | KS B2822 MSS SP67 |
End Standard | AWWA C606 KS B2822 GB5135.11 |
As experienced valve specialists, Worlds Valve understands the unique needs of diverse applications. We offer strong OEM and ODM support, customizing valves to your exact specifications, including:
Material Selection: Special materials like stainless steel bodies.
Pressure & Size: Non-standard pressure ratings or special dimensions.
Coating & Marking: Specified paint colors, laser engraving, or branding.
Certification Needs: Assistance in meeting specific project or regional certification requirements.
Fire sprinkler and pump systems, complying with stringent safety codes.
Water supply, drainage, and HVAC systems in commercial and industrial buildings.
Municipal water supply, irrigation, and industrial process water lines.
Tianjin Worlds Valve Co., Ltd. is more than a supplier; we are a partner in your project's success. Adhering to our "Customer First" philosophy, we provide a comprehensive, one-stop service experience—from professional consultation and solution design to flexible manufacturing, timely delivery, and after-sales support. We invite you to contact us to discuss how our reliable products and expertise can add value to your next project.
