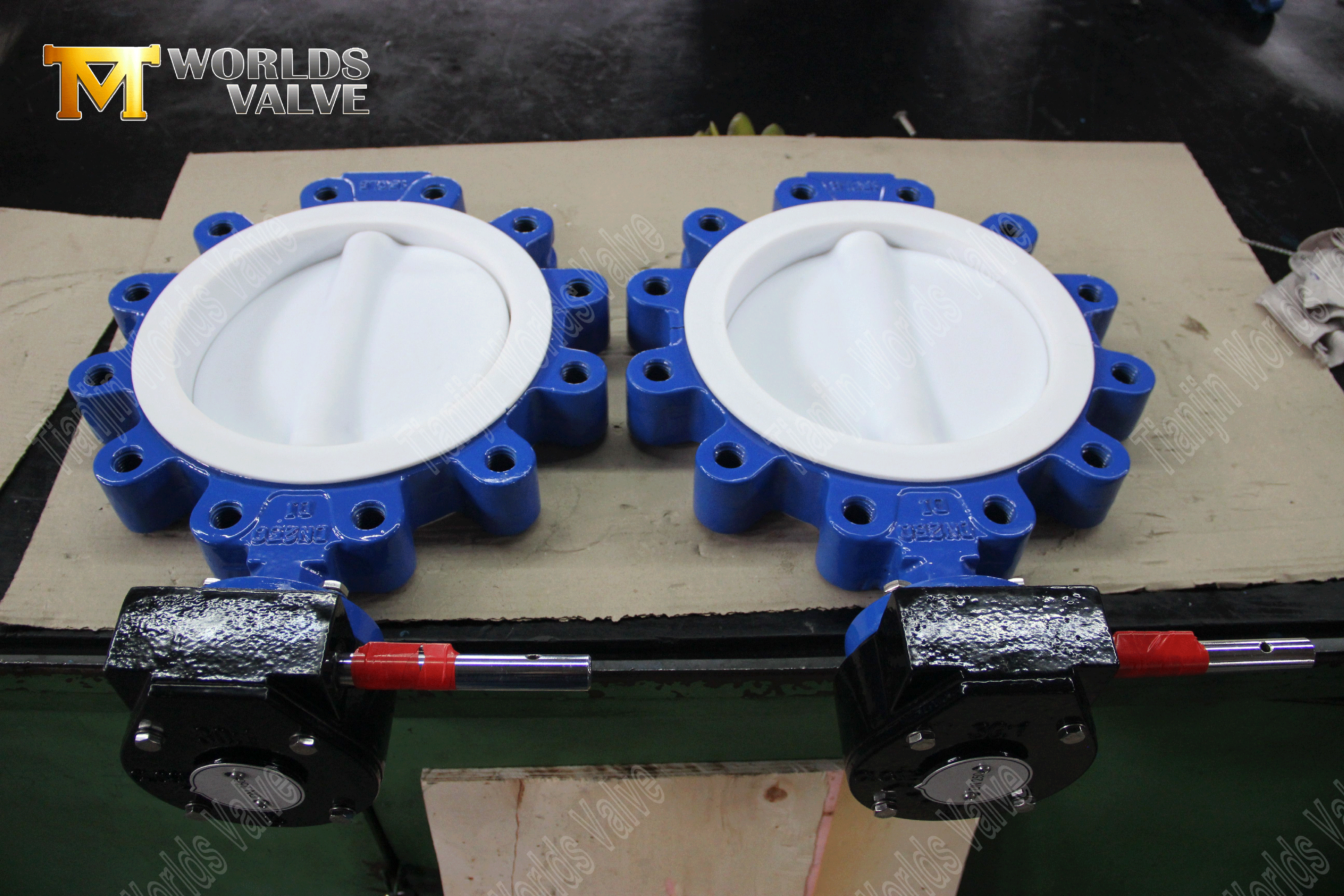

Product Name: Lug Butterfly Valve
Body Material: Ductile Iron, LCB, WCB, CF8, CF8M, Aluminum Bronze...optional
Disc Material: PTFE coated Stainless Steel
Seat Material: EPDM, NBR, FKM(VITON), PTFE...(Seat material options vary depending on the media or customer preference.)
Connection Type: Lug
Size Range: DN50–DN900
Pressure Rating:
PN10 / PN16 / PN25...
Top Flange: Available in ISO 5211 standard for direct actuator mounting
Operating Temperature Range: -35℃ to 200℃ (PTFE)
Customization: All materials, dimensions, and pressure ratings can be modified according to customer requirements

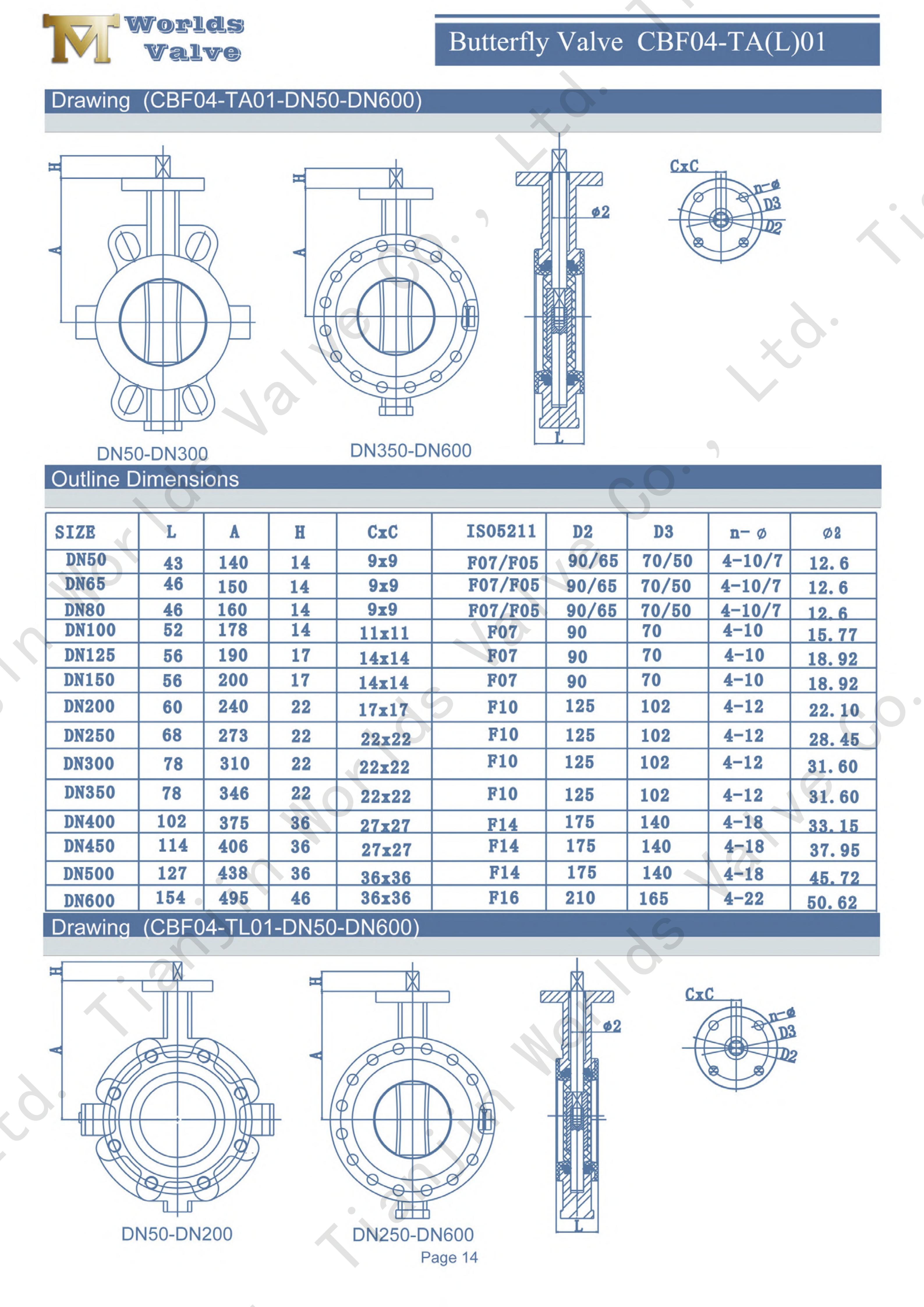

Type: CBF04-TL01--Product Catalog
1. Full PTFE Encapsulation – Zero Metal Contact & Maximum Chemical Resistance
SS Disc is 100% encapsulated in virgin PTFE, eliminating any metal contact with the process media.
Resists 98% sulfuric acid, chlorine, hydrochloric acid, solvents, and caustic soda across pH 0–14.
PTFE is inert to most organic and inorganic acids and alkalis, with only molten alkali metals posing a threat.
PTFE seat provides exceptionally tight shutoff with 0 leakage.
2. PTFE-Encapsulated Stainless Steel Disc – Strength Meets Corrosion Immunity
Stainless steel core provides mechanical strength, while the PTFE encapsulation protects against chemical attack.
All wetted surfaces are PTFE – no metal exposure to the line media.
Low coefficient of friction (0.02–0.10) reduces operating torque and wear.
3. Pneumatic Actuator – Fast, Reliable Automated Control
Double-acting or spring-return configurations available.
Rapid on/off or modulating control for automated systems.
Integrates with PLC, DCS, or SCADA via solenoid valves, limit switches, and positioners.
Spring-return models provide fail-safe operation upon air supply failure.
4. Lug Body – Dead-End Service & Easy Installation
Threaded lug inserts enable direct bolting to a single flange – ideal for end-of-line isolation.
Bi-directional dead-end service at full rated pressure.
Compatible with EN 1092, ANSI B16.5, and AS2129 flanges.
5. ISO 5211 Direct Actuator Mounting
Standardized mounting interface enables direct attachment of pneumatic actuators without custom brackets.
Allows quick field swapping between manual, electric, or pneumatic actuation.
6. Wide Temperature & Pressure Range
Operating temperature: -35°C to +200°C.
Pressure ratings: PN10/PN16/Class 150/Class 125/JIS5K/JIS10K...
Size range: DN50 to DN900 (2″ to 36″) .
7. Fully Customizable OEM/ODM Solution
Body materials: Ductile iron, WCB, carbon steel, CF8, CF8M.
Disc: PTFE-encapsulated stainless steel (standard); other core materials available.
Actuator: Double-acting, spring-return, electric, or manual gear.
Flange standards: EN 1092, ANSI B16.5, AS2129, JIS.
Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.
1. Direct OEM/ODM Manufacturer – We produce in our own ISO 9001 certified factory, not a trading company.
2. PTFE Encapsulation Expertise – Our PTFE-encapsulated seat and disc technology ensures zero metal contact and maximum chemical resistance.
3. Fully Customizable – Body materials, actuator type, flange standards, and certifications can all be tailored to your project.
4. Certified Quality – ISO 9001, CE, UKCA, WRAS, ACS available upon request.
5. Full Documentation – Material certificates (mill test reports) and pressure test reports provided with every order.
6. Global Export Experience – Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific media, temperature, and pressure requirements – whether you need a standard PTFE-encapsulated lug butterfly valve or a fully customized solution with special materials or actuation.
