If you've ever had to shut down an entire pipeline just to replace a single valve, you already know why lug butterfly valves exist.
Unlike their lighter, cheaper cousin—the wafer type—lug butterfly valves let you remove one side of the valve without draining or depressurizing the whole system. That alone makes them a favorite in industries where downtime is expensive: chemical plants, water treatment facilities, oil and gas pipelines, and power stations.
At their core, they're simple devices—a disc turns a quarter-turn, flow starts or stops. But the details matter. This guide walks you through the key differences, materials, applications, and selection pitfalls—so you can pick the right valve without second-guessing.

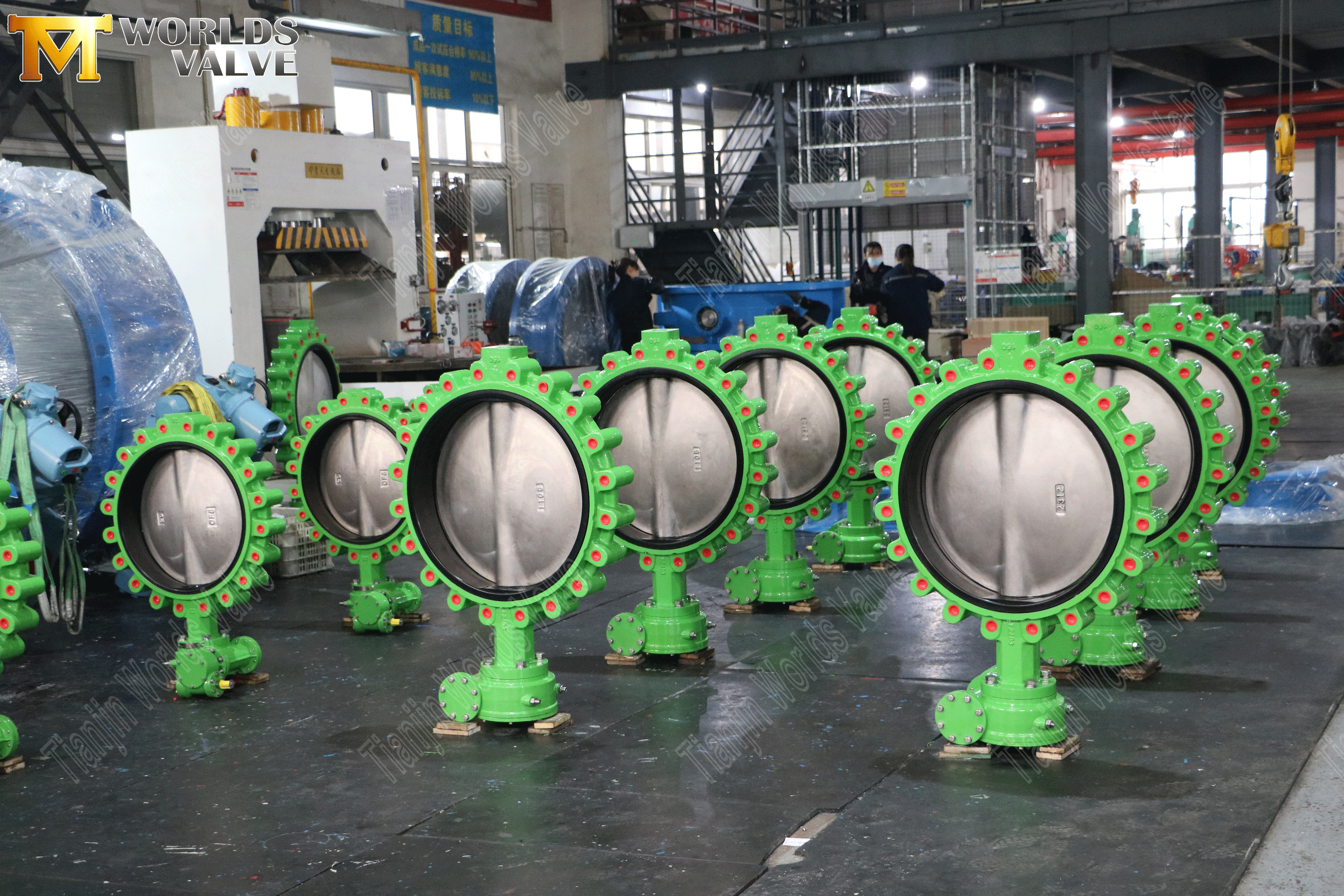

A lug butterfly valve looks similar to any other butterfly valve from the outside. But look closer at the body, and you'll notice the threaded lugs—protruding bosses with internal threads that let you bolt each side of the valve to its own pipe flange.
That's not a minor detail. Here's what it means in practice:
You can install or remove the valve from one side while the other side stays pressurized. No full-system shutdown.
The valve can be used at the end of a pipeline—dead-end service, it's called.
The bolted connection is more rigid, so the valve holds up better against pipe vibration and stress.
In short: it's the more rugged, more flexible option. It costs a bit more and weighs a bit more. But for critical systems, the trade-off is almost always worth it.
Before we dive deeper, here's the short version:
Lug valves support dead-end service—you can remove them from one side without shutting down the whole line.
They handle higher pressures than wafer valves—up to Class 300 (PN40) depending on design.
Material selection is everything—ductile iron for general service, stainless steel for corrosive media, exotic alloys for severe conditions.
ISO 5211 mounting is standard, so you can bolt on hand levers, gear operators, electric, pneumatic, or hydraulic actuators.
Regular maintenance—visual checks, cycle tests, bolt tightness—keeps them running for 100,000+ cycles.
Avoid common mistakes—mismatching materials, underestimating pressure, and ignoring dead-end requirements are the big three.
Inside the valve, there's a disc mounted on a shaft. Turn the handle or actuator, and the disc rotates 90 degrees—from fully open (aligned with the flow) to fully closed (across the flow). You can also set it to any angle in between for throttling.
When closed, the disc presses against a seat—usually rubber, PTFE, or a metal-backed design—to create a seal. In a properly selected lug valve, that seal is bubble-tight, which is exactly what you need for hazardous or valuable fluids.
One thing to watch: if you're using an automated actuator, speed matters. Slam the disc shut too fast, and you'll create water hammer—pressure spikes that can damage pipes, gaskets, and the valve itself. The right actuator sizing is just as important as the valve size.
Installing a lug butterfly valve is straightforward: position it between two pipe flanges, bolt each flange to the lugs on the valve body, and tighten in a cross-pattern.
The beauty of this design shows up later—when you need to do maintenance.
With a wafer valve, you have to disconnect both sides of the pipe to pull it out. With a lug valve, you can unbolt one side, slide the valve out, and leave the other side intact. The system stays running. Production doesn't stop. That's a huge advantage in plants where every hour of downtime costs thousands (or tens of thousands) of dollars.
Practical maintenance tips:
Do a visual inspection monthly—look for leaks, rust, or any signs of wear.
Cycle the valve open and closed every quarter to make sure it moves smoothly.
Check bolt torque annually—temperature cycles can loosen them over time.
Keep a log. It sounds basic, but traceability matters, especially for compliance audits.
The body material of your lug valve needs to stand up to the fluid, the temperature, and the pressure. There's no universal "best" material—only the right one for your specific conditions.
Here's a quick rundown of common options:
Ductile Iron (GGG40)–The workhorse. Affordable, tough, impact-resistant. Great for water, wastewater, and general industrial service. If you don't have special requirements, this is where you start.
Carbon Steel (WCB)–Handles moderate temperatures better than iron. Common in oil and gas, steam lines, and industrial fluids. Good strength-to-cost ratio.
Stainless Steel (CF8/CF8M/316L)–Resists corrosion. Hygienic. Non-toxic. If you're handling food, pharmaceuticals, seawater, or chemicals, this is your choice. It costs more, but it lasts much longer in aggressive environments.
Exotic Alloys (Hastelloy, Titanium, Nickel Aluminum Bronze)–For severe service: high-temperature acids, seawater, offshore platforms. Pricey, but when nothing else works, these do.
Plastics (PVC/PP)–Lightweight and corrosion-resistant, but temperature-limited. Good for low-pressure chemical dosing and irrigation.
The golden rule: match the material to the media. Don't guess. Check a compatibility chart or ask the manufacturer. And if you're an OEM, make sure you ask for virgin materials, not recycled—recycled alloys often have unpredictable corrosion performance. That's a corner you don't want to cut.
This is the question we hear most often:
"Should I choose lug or wafer?"
Here's a straightforward comparison:
Wafer Butterfly Valve:
Sandwiched between flanges, held by long bolts that pass through both flanges and the valve body.
Lighter, cheaper, quicker to install.
Can't do dead-end service. If you remove the downstream pipe, the valve won't seal.
Requires full system shutdown for removal.
Lug Butterfly Valve:
Bolted independently to each flange via threaded lugs on the valve body.
Heavier, more expensive, takes slightly longer to install.
Supports dead-end service. Remove one side without affecting the other.
Enables isolated maintenance—no full shutdown.
If your system is simple, low-pressure, and maintenance shutdowns aren't a big deal—wafer is fine.
If you need dead-end capability, isolation for maintenance, or higher pressure handling—go with lug.
Chemical plants, refineries, power stations, and pharmaceutical facilities almost always prefer lug for critical service. Water treatment plants often use both—lug for dead-end lines, wafer for general distribution.
And if you're still not sure, that's exactly why we have engineers. Send us your specs, and we'll make the call for you.
Here's a quick industry rundown:
Water and Wastewater–Sealing and corrosion resistance matter. Lug valves are common in pump stations, treatment plants, and distribution networks.
Chemical Processing–Aggressive fluids require the right materials. Lug valves with PTFE seats or stainless bodies handle acids, alkalis, and solvents.
Oil and Gas–High pressure, high stakes. Lug valves provide strong shut-off and dead-end isolation for maintenance.
Power Generation–Steam lines and cooling water loops. Robust construction handles medium pressure and temperature.
Pharmaceutical–Hygienic designs with stainless steel bodies and easy cleanability. Tight shut-off is critical.
HVAC–Space-saving, easy to maintain. Lug valves are common in chilled water and cooling tower systems.
Over the years, we've seen a handful of mistakes repeated again and again:
This is the big one. Put a carbon steel valve in a chloride environment, and you'll see pitting in months. Put a standard rubber seat in a solvent line, and it'll swell and leak. Always check compatibility before you buy.
The valve you choose needs to handle surge pressure—not just normal operating pressure. If there's a pump start or a sudden valve closure, pressure can spike 30-40% above normal. Factor that in.
If you might ever need to isolate a section of pipe or maintain the downstream side, a wafer valve won't work. You need a lug valve. Don't discover this after installation.
A valve rated for PN16 at 50℃ may only handle 70% of that pressure at 150℃. Check the temperature-pressure curve. It's usually in the data sheet.
The cheapest valve isn't always the cheapest to own. A lug valve costs more than a wafer valve upfront—but if it saves one weekend shutdown over its lifetime, it's already paid for itself. Look at total cost of ownership.
Before you order, run through this:
Maximum system pressure (including surges) ______
Fluid type and temperature ______
Required size (DN range) ______
Dead-end service needed? Yes / No
Actuator type: manual / electric / pneumatic / hydraulic
Flange standard: ANSI / DIN / JIS / BS
Material preference: ductile iron / carbon steel / stainless / other
Industry certifications required: ISO / CE / WRAS / DNV / etc.
Fill this out, send it to your supplier, and you'll get a recommendation you can trust—not a guess.
If you're buying valves for regulated industries, certifications matter. Here's what to look for:
ISO 9001–Basic quality management. Non-negotiable for serious manufacturers.
CE / UKCA–Required for Europe and UK markets.
WRAS–Drinking water approval in the UK.
ACS–French health certification.
DNV / ABS–Marine and offshore use.
PED–Pressure equipment safety for Europe.
ATEX–Explosive atmosphere compliance.
We hold most of these as standard and can provide the rest on request.
If you're sourcing from an OEM/ODM supplier—like us—here's what you should expect:
Material traceability. Every valve should come with mill test certificates (MTC) that let you track the raw materials back to the source.
Customization options. Materials, sizes, pressure ratings, flange standards, coatings, actuators, packaging—all tailored to your spec.
Technical support. Engineers who can answer questions, recommend materials, and review your drawings.
Test reports. Pressure tests, dimensional checks, and spark testing (for lined valves) should be documented and shipped with the order.
Clear communication. A dedicated project manager who keeps you updated on lead times, shipping, and any issues.
We've been doing this for 19+ years. That's what we deliver. And we're happy to show you around our factory in Tianjin—you're welcome anytime.
Q: Can a lug butterfly valve handle dead-end service?
A: Yes. That's one of its main advantages. The valve can seal against pressure from one direction when the downstream side is removed.
Q: What's the typical lifespan?
A: With proper material selection and maintenance, 100,000+ cycles—roughly 8-12 years in normal service.
Q: Do lug valves cost more than wafer valves?
A: Yes, typically 20-30% more due to the more complex body casting and machining. But they offer greater flexibility, isolation capability, and often lower lifetime cost.
Q: How often should I inspect them?
A: Visual checks monthly, cycle tests quarterly, bolt torque annually. More frequently in severe service.
Q: Can I get custom materials and actuators?
A: Yes. Any body material, any disc material, any actuator—we build to your spec.
Q: What about automation?
A: All our valves come with ISO 5211 top flanges. You can mount electric, pneumatic, or hydraulic actuators from any manufacturer. We also supply complete actuator assemblies if you prefer a single-source solution.
Q: How long is your lead time?
A: Standard configurations ship in 20-30 days. Custom materials or large diameters may take longer—we'll confirm when you order.
Q: Do you offer pre-production samples?
A: Yes. For large or complex orders, we can provide samples for approval before mass production.
Choosing a lug butterfly valve doesn't have to be complicated. Get the material right, double-check your pressure and temperature requirements, and decide whether you need dead-end service. The rest—size, actuator, coating, flange standard—is just dialing in the details.
If you're still unsure, that's what our engineering team is for.
Send us your specification—media, temperature, pressure, size, and any special requirements—and we'll come back to you with a recommendation and a quote within 24 hours.
And if you're ever in Tianjin, stop by. We'll show you how we make them. No appointment necessary—just give us a heads-up.
