CBF02-TL01
OEM | ODM | WDS
| Availability: | |
|---|---|
| Quantity: | |

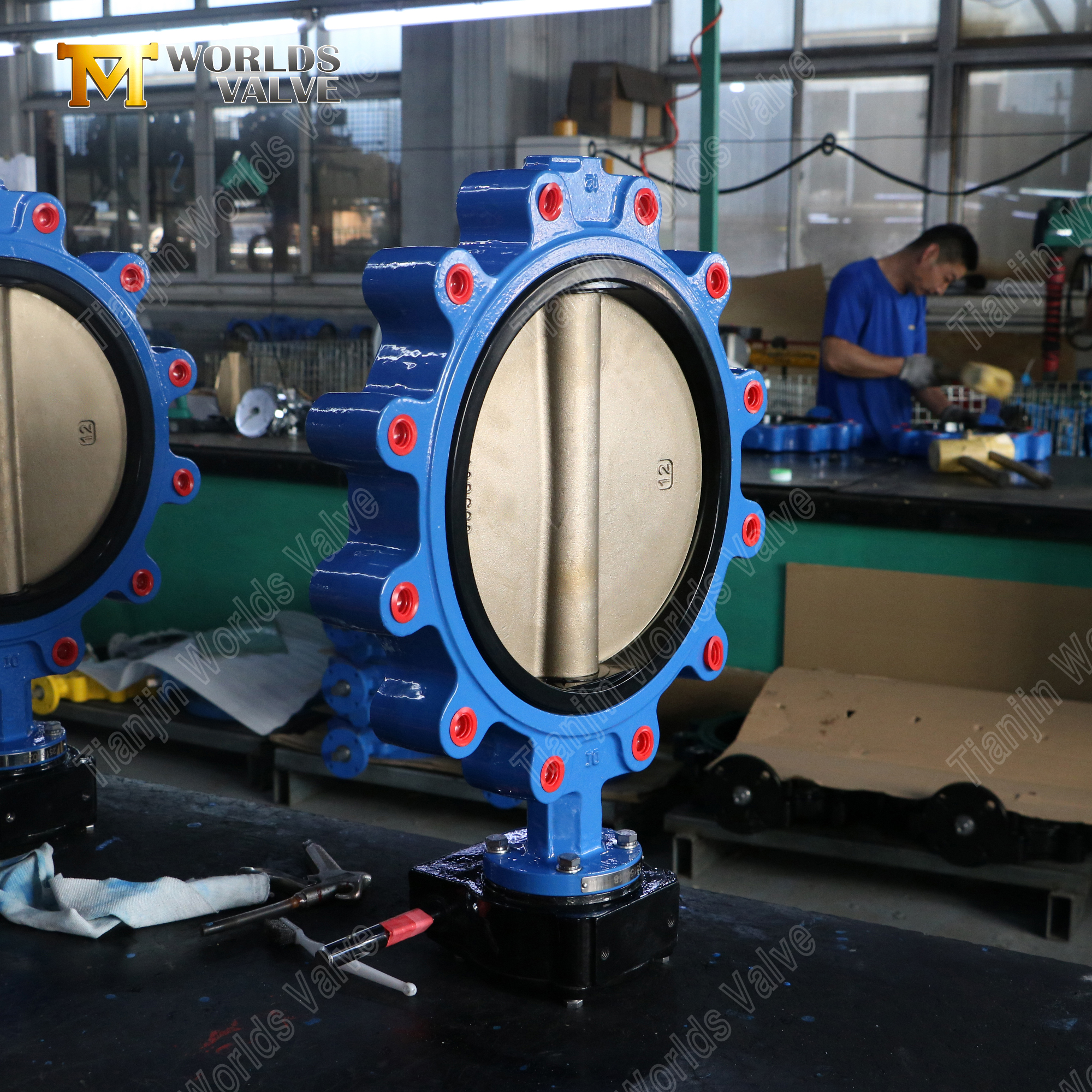

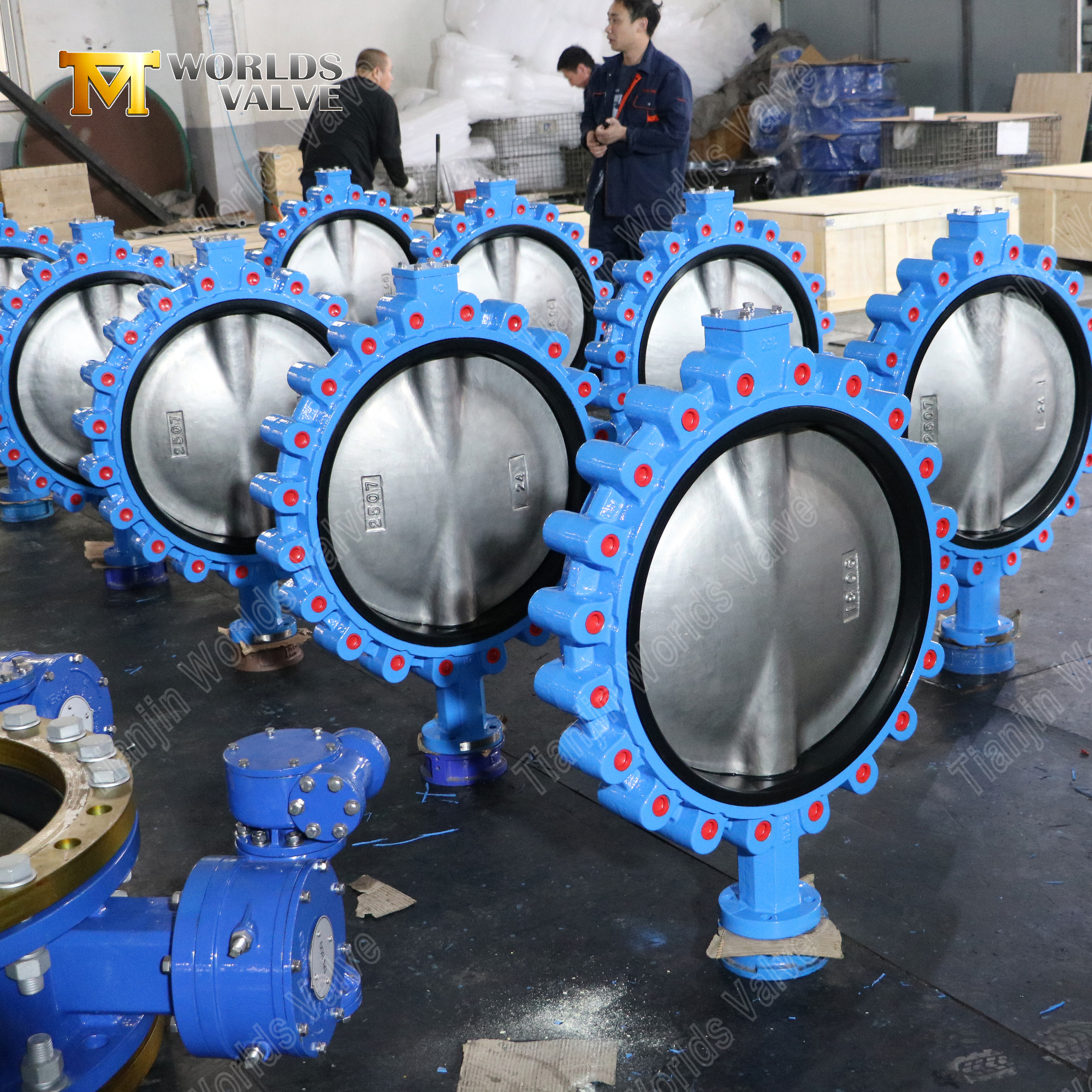

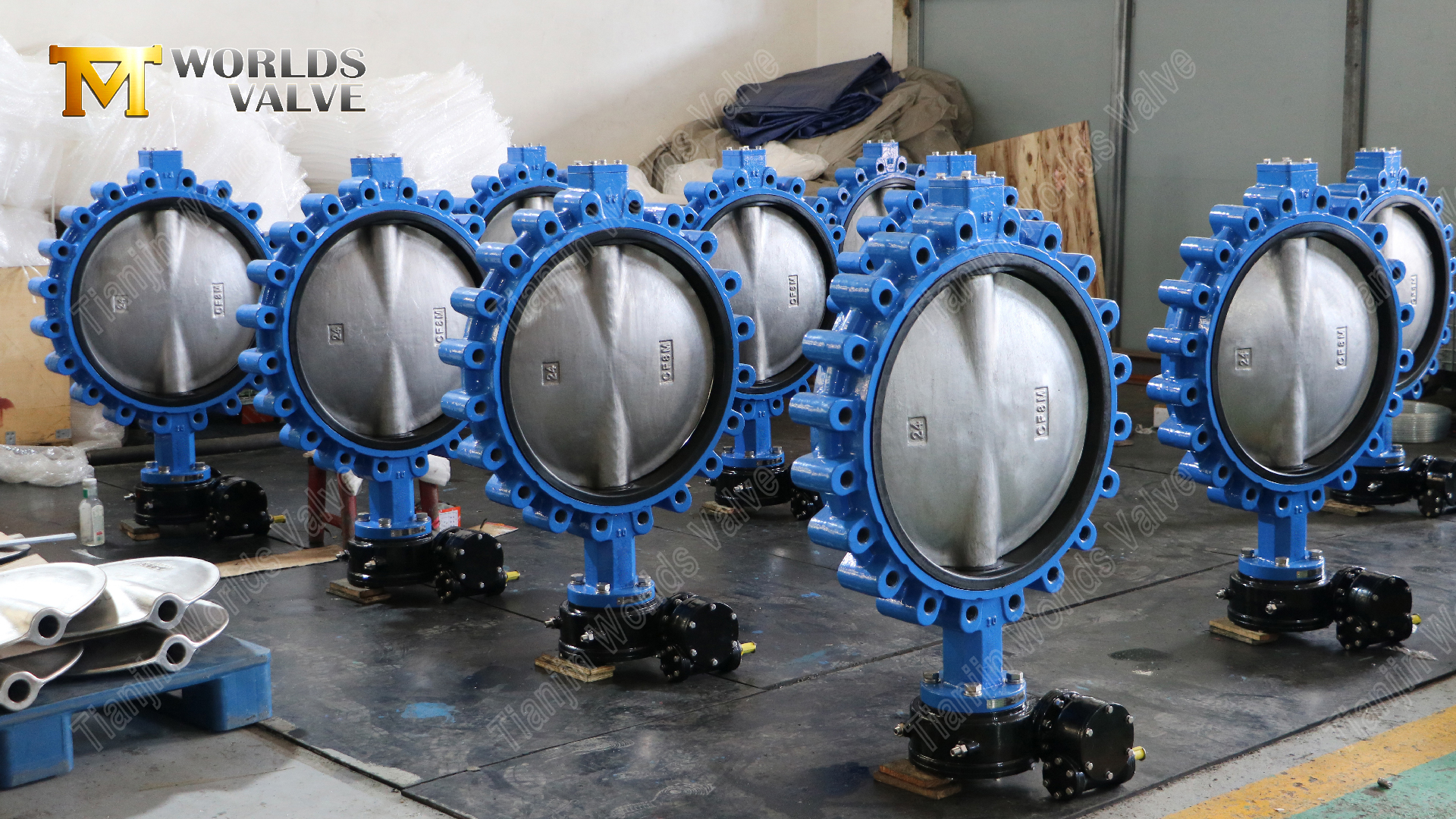

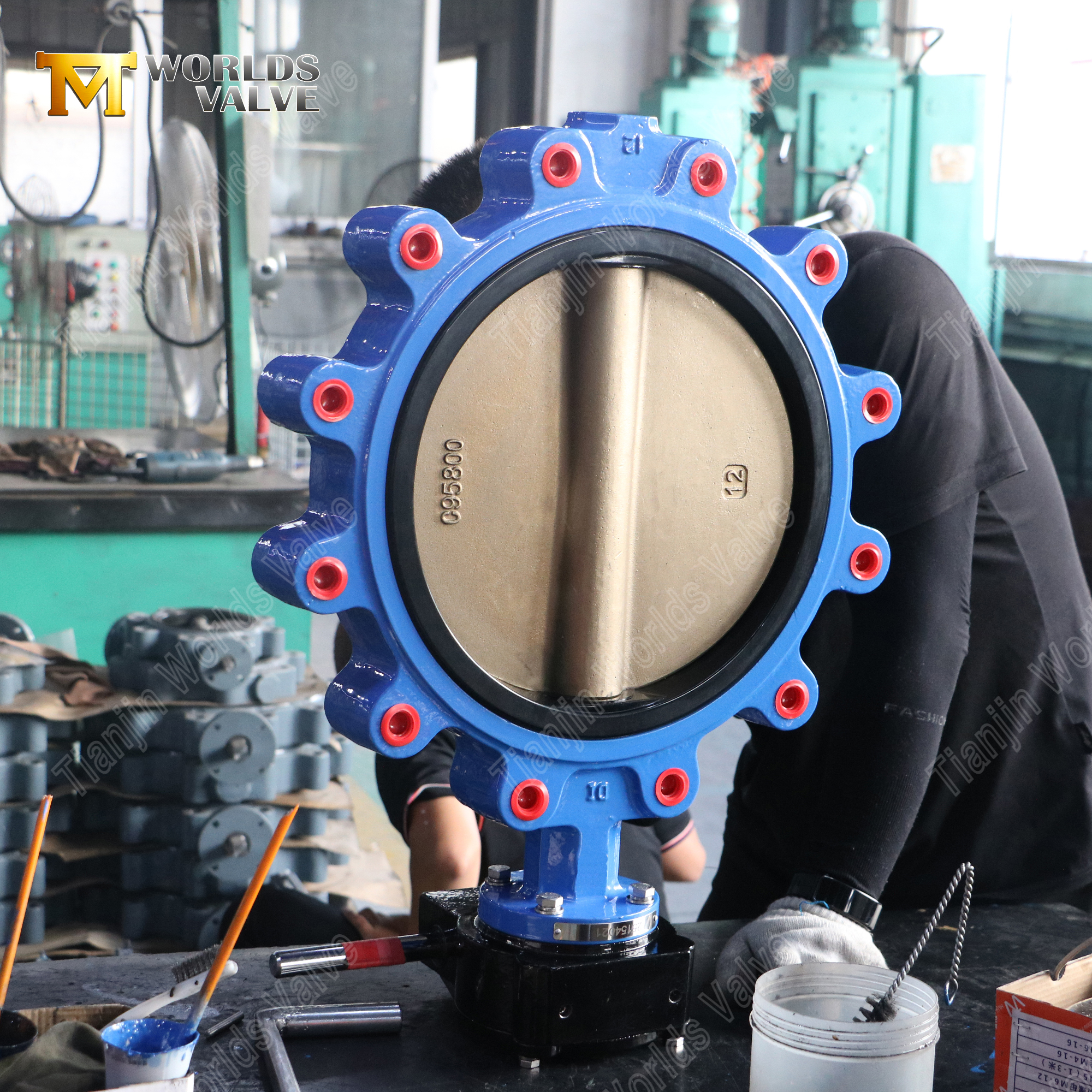

Key to its performance is the premium material combination: a corrosion-resistant **CF8M (AISI 316 Stainless Steel) disc** paired with a resilient **EPDM seat**, ensuring a long-lasting, bubble-tight seal. The distinctive **LUG-style body** design allows for easy installation and removal from one side of a pipeline, making it ideal for system end-of-line applications or where downstream flange removal is not possible. We offer this valve in a comprehensive size range from **DN50 to DN1200**, accommodating a wide array of project requirements.
Tianjin Worlds Valve Co., Ltd. – Your Reliable Source for Durable, Cost-Effective Flow Control
CBF02-TL01-Operation and Maintenance Manual DOWNLOAD

1. Robust LUG Design for Flexible Installation & End-of-Line Service
The valve body is manufactured with integrated threaded inserts (lugs), providing exceptional flexibility. This design allows the valve to be bolted directly to a single flange, enabling easy maintenance without disassembling the entire pipeline section. It is particularly advantageous for end-of-line service or dead-end applications, offering a secure and reliable connection.

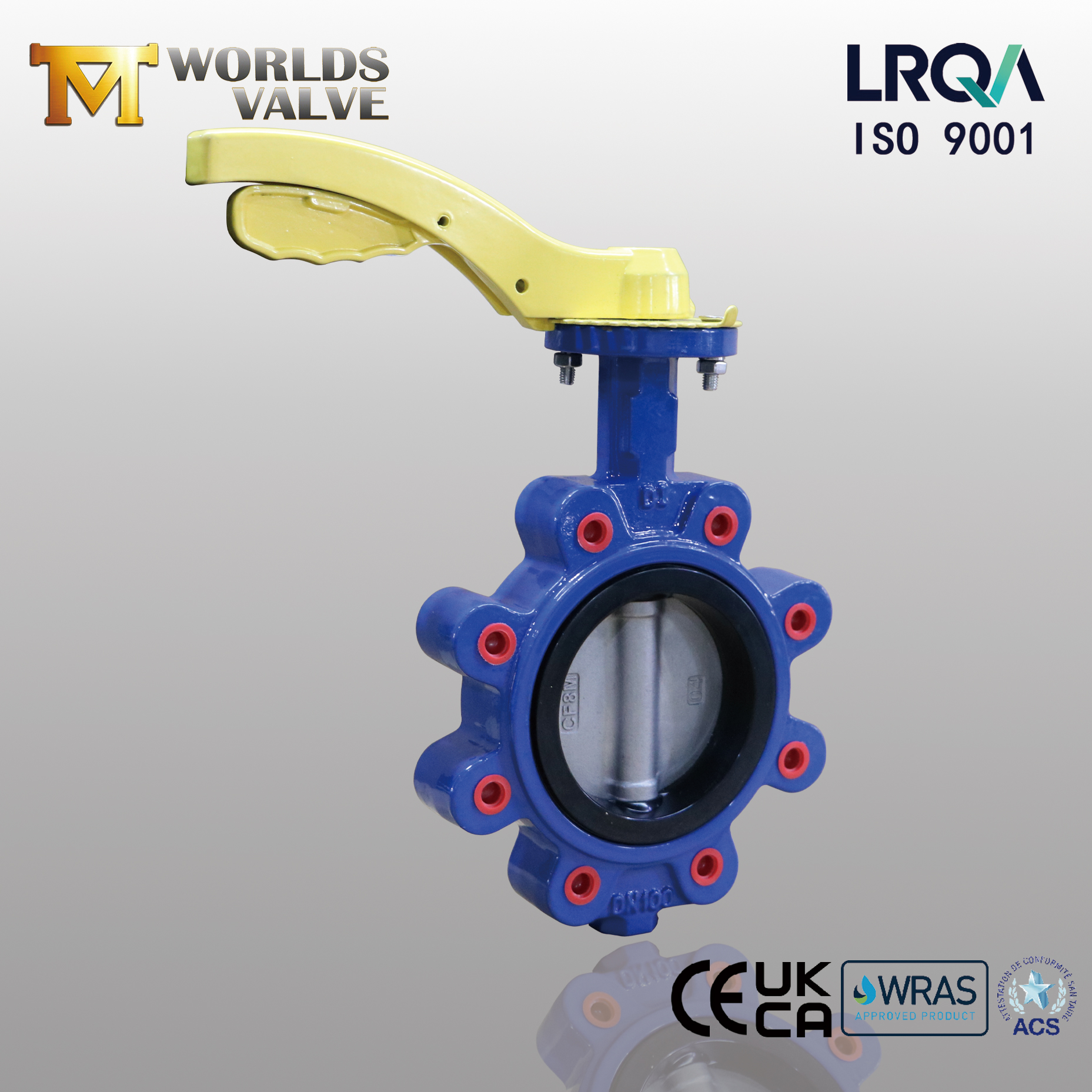

2. Manual Handle Operation for Direct & Reliable Control
Equipped with a sturdy manual handle, this valve provides immediate and intuitive control over fluid flow. The visual position indicator (parallel or perpendicular to the pipe) offers clear at-a-glance status confirmation. This simple, gear-free design ensures reliable operation without the need for external power sources, making it perfect for standard on/off duties.
3. Superior Material Combination for Durability & Tight Sealing
The **CF8M (AISI 316) stainless steel disc** delivers outstanding resistance to corrosion and pitting, especially from chlorides, ensuring longevity in water and mildly aggressive media. The **EPDM elastomer seat** provides excellent sealing elasticity, strong resistance to water and weathering, and reliable performance across a wide temperature range. This pairing guarantees a long service life with minimal maintenance.
4. Wide Size Range (DN50-DN1200) & High-Pressure Capacity (PN16)

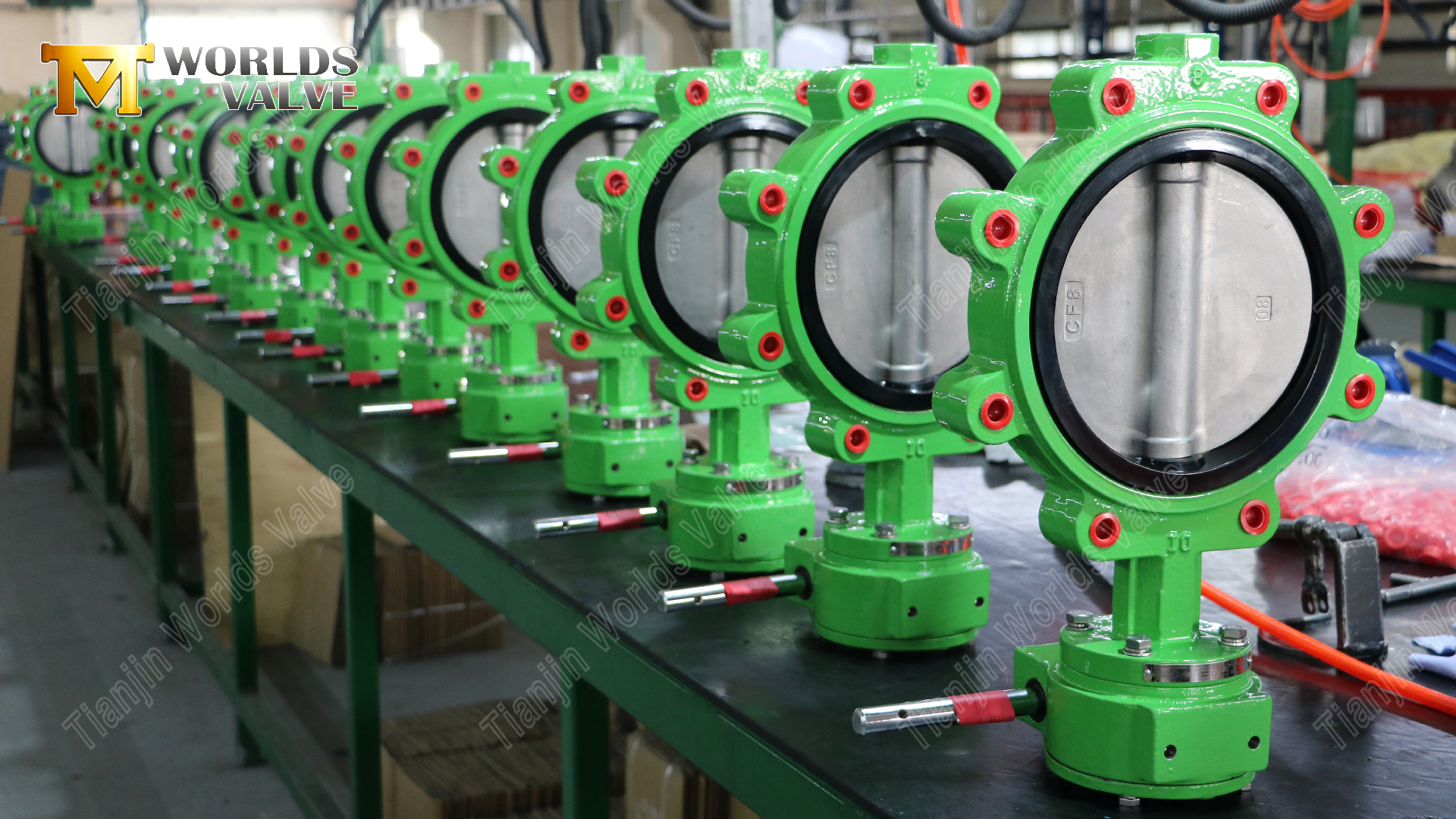

Our production capability covers a broad spectrum from DN50 to large-diameter DN1200, meeting the needs of both standard and large-scale pipeline projects. Rated for **PN16** pressure, this valve is engineered to handle higher system pressures with confidence, ensuring secure shut-off and system integrity in more demanding applications.

Parameter | Specification |
Model | Lug Butterfly Valve(CBF02-TL01) |
Sizes | DN50-DN1200 |
Pressure Rating | PN6/10/16/150LB/JIS10K/AS “D”/ “E” |
Design | EN593 BS5155 EN1092 ISO5211 |
Testing | ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 DIN3202 ISO5752 BS5155 |
Standard | ASME B16.34 |
Body | Ductile Iron |
Disc | CF8M (AISI 316 Stainless Steel) |
Seat | EPDM |
Stem | SS431 |

Certified Quality & Global Compliance: We are an **ISO 9001 certified** manufacturer. Our valves are designed to meet international standards and can be supplied to comply with **WRAS, ACS, UKCA, CE** and other certifications upon request, ensuring acceptance in markets worldwide.
Expert OEM/ODM Manufacturer: As a specialized OEM/ODM partner, we offer extensive customization. Beyond the standard specifications, we can adjust materials (e.g., different seat elastomers, coated bodies), pressure ratings, and actuation methods (gear, electric, pneumatic) to fit your exact project blueprint.
Proven Global Supplier: With extensive experience exporting to dozens of countries, we understand the requirements of international projects. Our team ensures professional support, clear communication, and reliable logistics from inquiry to delivery.

Water Treatment & Distribution Plants
HVAC Systems (Heating, Ventilation, Air Conditioning)
Fire Protection Sprinkler Systems
Industrial Process Water & Cooling Circuits
Irrigation and Water Supply Networks
For detailed quotations, CAD drawings, or to discuss customizing this PN16 LUG Butterfly Valve for your project, contact Tianjin Worlds Valve Co., Ltd. today.
