CBF01-TL01
OEM | ODM | WDS
| Availability: | |
|---|---|
| Quantity: | |
The Tianjin Worlds lug butterfly valve features a ductile iron (GGG40) body with an epoxy coating, a CF8M (AISI 316) stainless steel disc, an SS416 stainless steel stem, and an NBR (nitrile rubber) seat, rated for PN16 (16 bar) service. Its lug‑style body with threaded inserts enables dead‑end service, allowing the valve to be bolted directly to a pipeline flange and withstand full rated pressure from one side – ideal for isolation, maintenance shut‑offs, and future line extensions. The CF8M disc offers excellent resistance to pitting and chloride corrosion, while the hardened SS416 stem provides high strength and wear resistance for reliable torque transmission. The NBR seat ensures bubble‑tight sealing with good oil, fuel, and grease resistance within –20℃ to +100℃, though it is not suited for outdoor UV/ozone exposure or strong acids/bases. Available from DN50 to DN2000, the valve complies with ISO 5211 for direct mounting of actuators, and is widely used in water treatment, oil and gas, fuel handling, and general industrial applications requiring dependable on/off and throttling control with oil resistance.
Tianjin Worlds Valve Co., Ltd. operates under an ISO 9001 certified quality management system and can supply products with CE, UKCA, WRAS, and ACS certifications upon request. We are a direct China-based OEM/ODM manufacturer, producing valves strictly to customer specifications. All materials–body, disc, stem, seat, pressure rating, flange standard, actuation, and coating are fully customizable to meet your specific application requirements. Full documentation (material certificates with mill test reports and pressure test reports) is provided with every order.

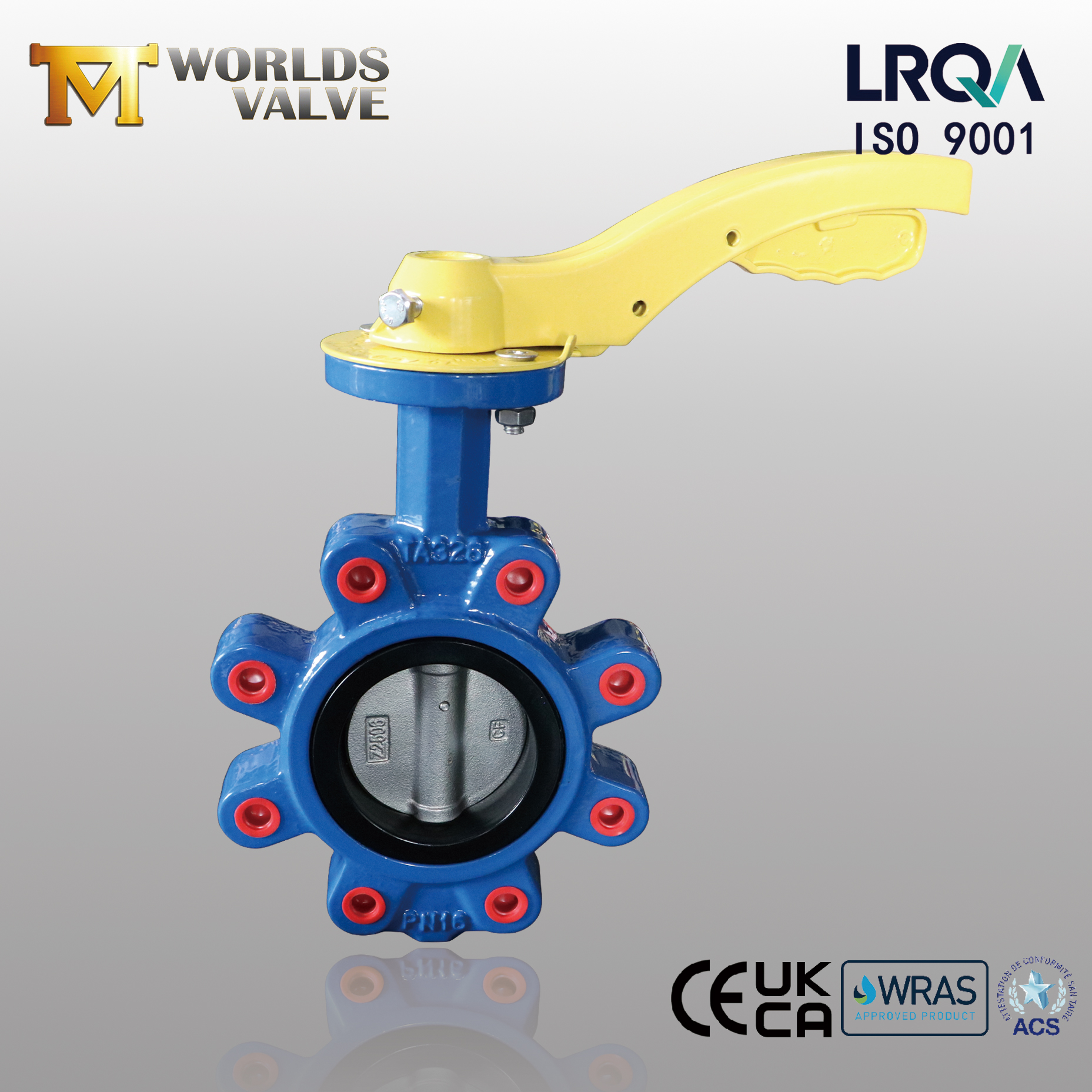

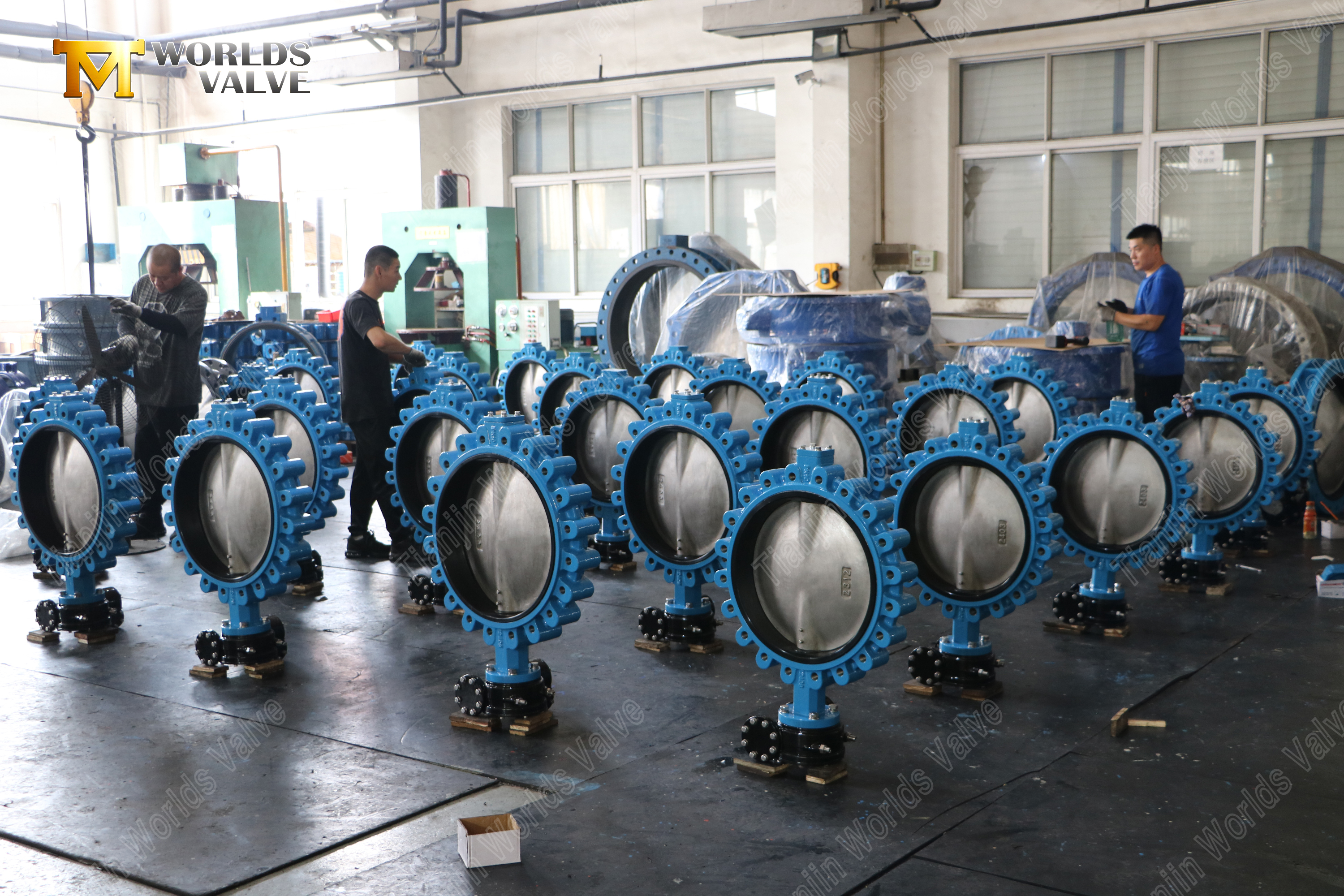

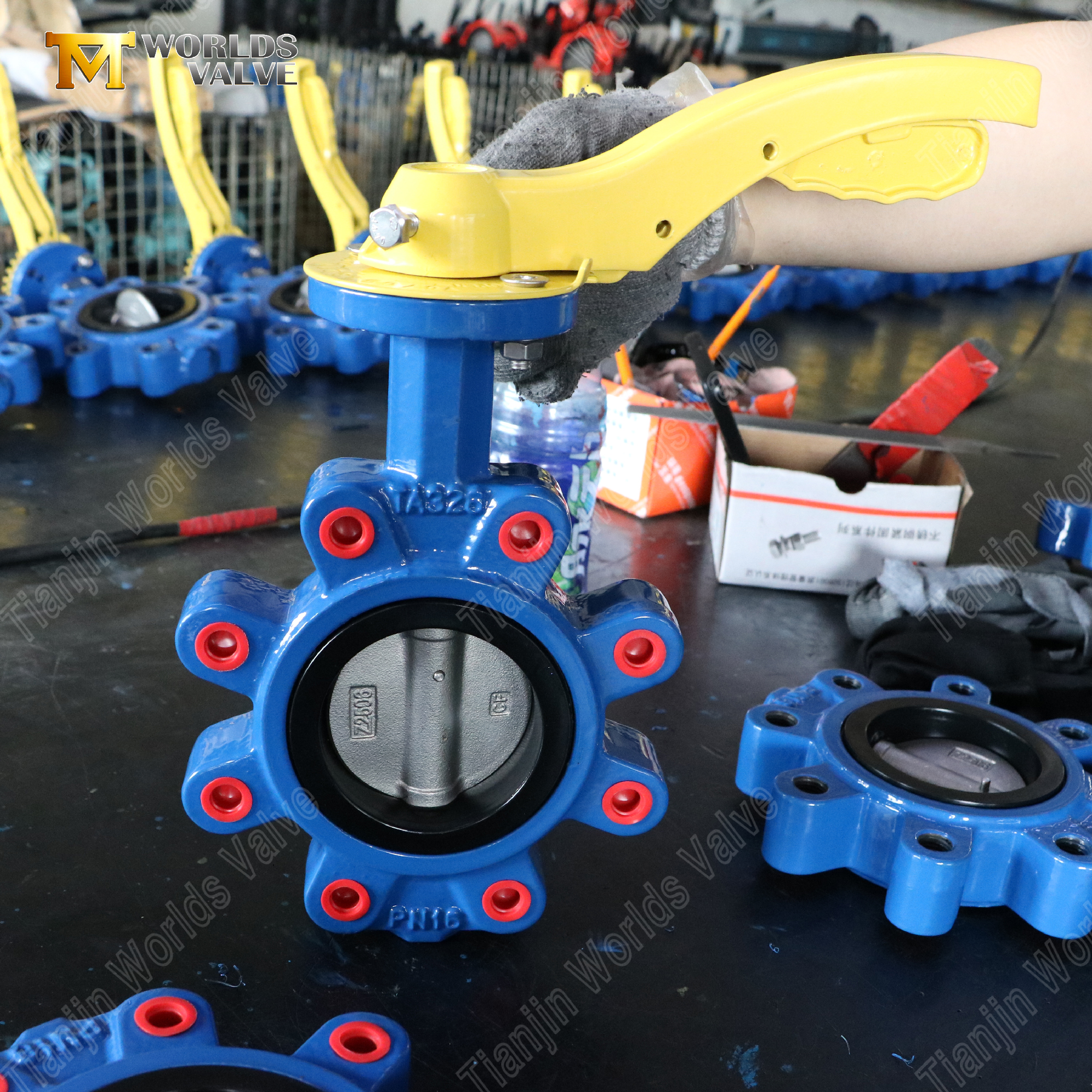

Lug Butterfly Valve with DI Valve Body & CF8M Disc | Manual Operated
Tianjin Worlds Valve Co., Ltd.–Your Reliable Source for Durable, Cost-Effective Flow Control
CBF01-TL01 - Detailed Product Info
1. Lug Body–Dead-End Service Capability
Threaded lug inserts allow direct bolting to a single flange for end-of-line isolation.
Enables downstream pipeline removal without affecting the upstream side.
Compatible with EN 1092, ANSI B16.5, and AS2129 flanges.
2. CF8M Stainless Steel Disc–Superior Corrosion Resistance
CF8M (AISI 316) offers excellent resistance to pitting, crevice corrosion, and chloride attack.
Ideal for seawater, brackish water, chemical, and industrial applications.
Outperforms standard 304 grades in saline or acidic conditions.
3. SS416 Stem–High Strength & Wear Resistance
Martensitic stainless steel with yield strength nearly double that of 316SS.
Excellent machinability and non-galling characteristics.
Heat-treatable for higher strength and hardness.
4. NBR Seat–Oil & Fuel Resistance
Excellent resistance to oils, fuels, aliphatic hydrocarbons, and greases.
Good abrasion resistance and mechanical strength.
Temperature range: -20℃ to +100℃.
Upgrade options: EPDM (water/steam), Viton (aggressive chemicals/high temperature).
5. PN16 Pressure Rating–Reliable Performance
Rated for 16 bar maximum working pressure.
Shell test pressure: 24 bar.
Suitable for demanding industrial and utility applications.
6. ISO 5211 Direct Actuator Mounting
Standardized top flange enables direct mounting of worm gear, electric, or pneumatic actuators.
No custom brackets required–quick and secure installation.
7. Fully Customizable OEM/ODM Solution
Body materials: Ductile iron (standard), WCB, CF8, CF8M.
Disc materials: CF8M (standard), CF8, duplex, super duplex, aluminum bronze.
Seat materials: NBR (standard), EPDM, Viton, PTFE.
Stem materials: SS416 (standard), SS304, SS316, SS431.
Pressure ratings: PN10, PN16, PN25, Class 150.
Flange standards: EN 1092, ANSI B16.5, AS2129, JIS.
Operation: Hand lever, worm gear, electric actuator, pneumatic actuator.
Certifications: ISO 9001, CE, UKCA, WRAS, ACS available upon request.
Parameter | Available Options |
Valve type | Lug Butterfly Valve(CBF01-TL01) |
Nominal size | Sizes Available(DN50-DN2000) |
Disc material | Stainless Steel (CF8M) |
Seat material | NBR |
Body material | WCB, Ductile iron (with epoxy coating); CF8, CF8M, AL-B... |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | PN10 / PN16 / Class 150LB/ JIS5K/10K (customizable) |
Top flange | ISO 5211 optional for actuator mounting |
Applicable Media | Acids, alkalis, solvents, seawater, brine, high-purity water, chemicals |
Direct OEM/ODM Manufacturer – We produce in our own ISO 9001 certified factory, not a trading company. Every lug butterfly valve is manufactured to your exact specifications.
Material Expertise – Our CF8M disc and NBR seat combination delivers excellent corrosion resistance and oil/fuel compatibility for demanding applications.
Dead-End Service Capability – The lug design enables end-of-line isolation at full rated pressure.
Certified Quality – ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request.
Full Documentation – Material certificates (mill test reports) and pressure test reports provided with every order.
Global Export Experience – Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific media, temperature, and pressure requirements–whether you need a standard PN16 lug butterfly valve or a fully customized solution with special materials or actuation.
