CBF03-TL01
OEM | ODM | WDS
| Quantity: | |
|---|---|
Tianjin Worlds Valve Co., Ltd. — your trusted China‑based OEM manufacturer — supplies extended stem lug butterfly valves with customizable stem lengths, materials, and actuation options to meet your project needs. Contact us for a competitive quote or to arrange a factory visit.
CBF03-TL01 - Detailed Product Info

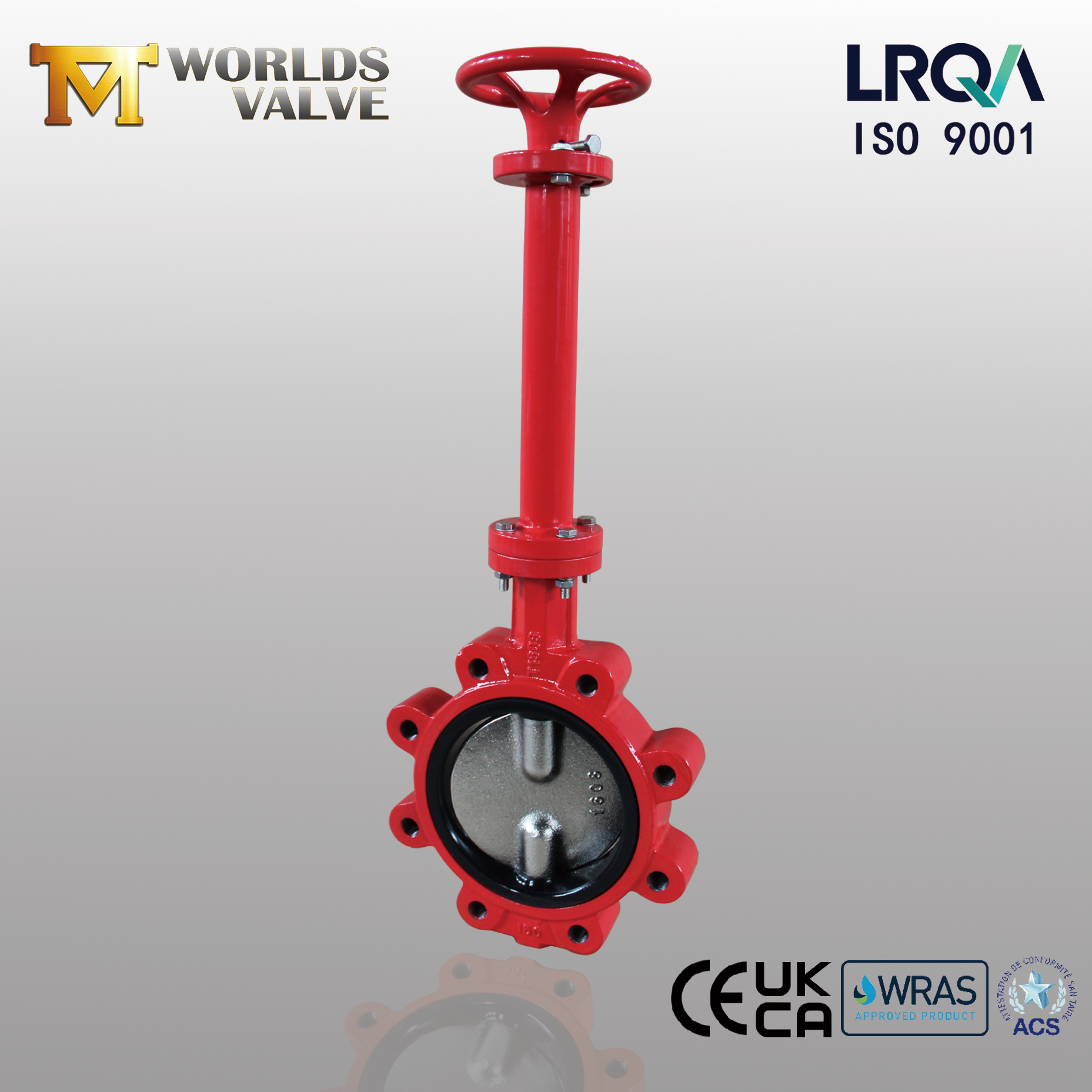

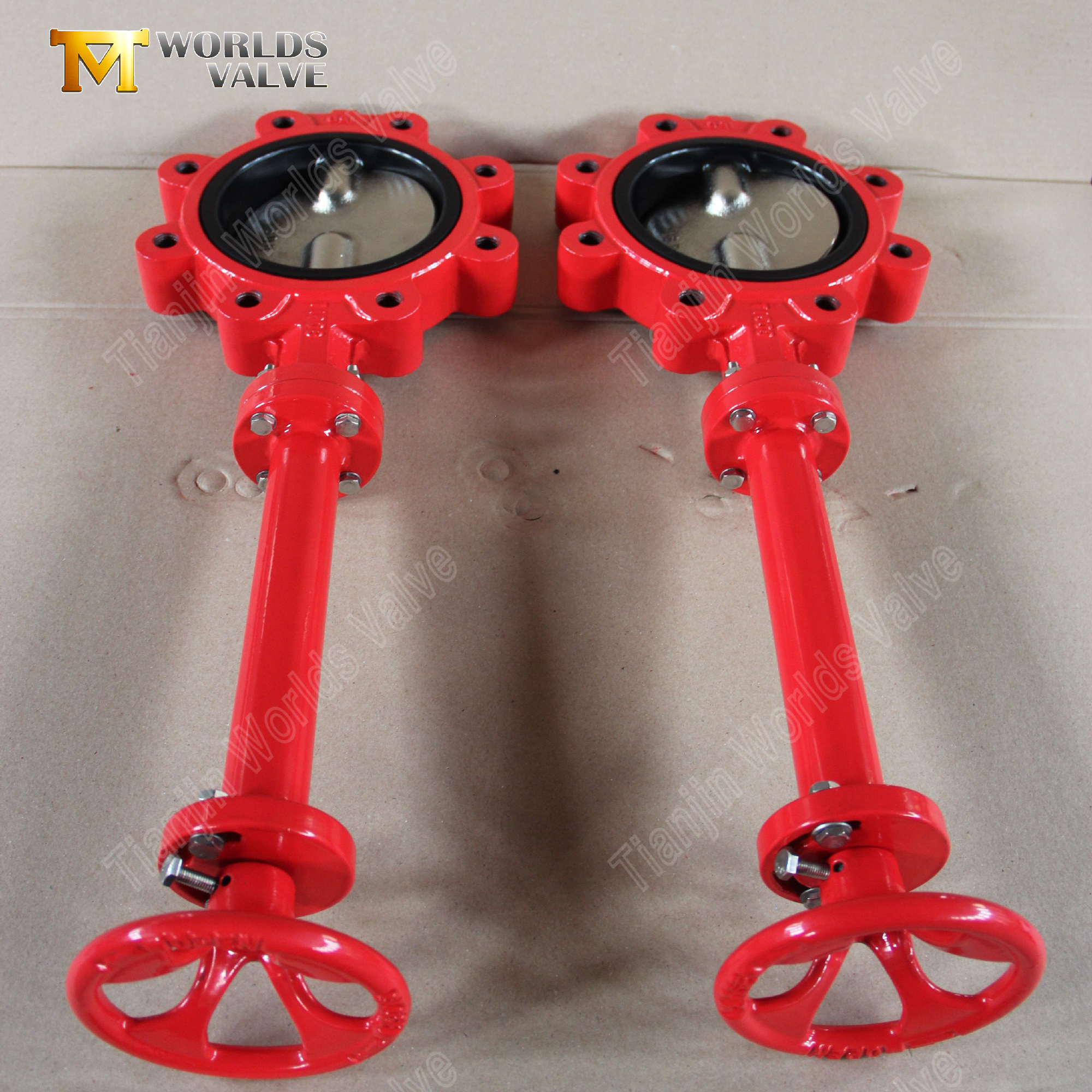

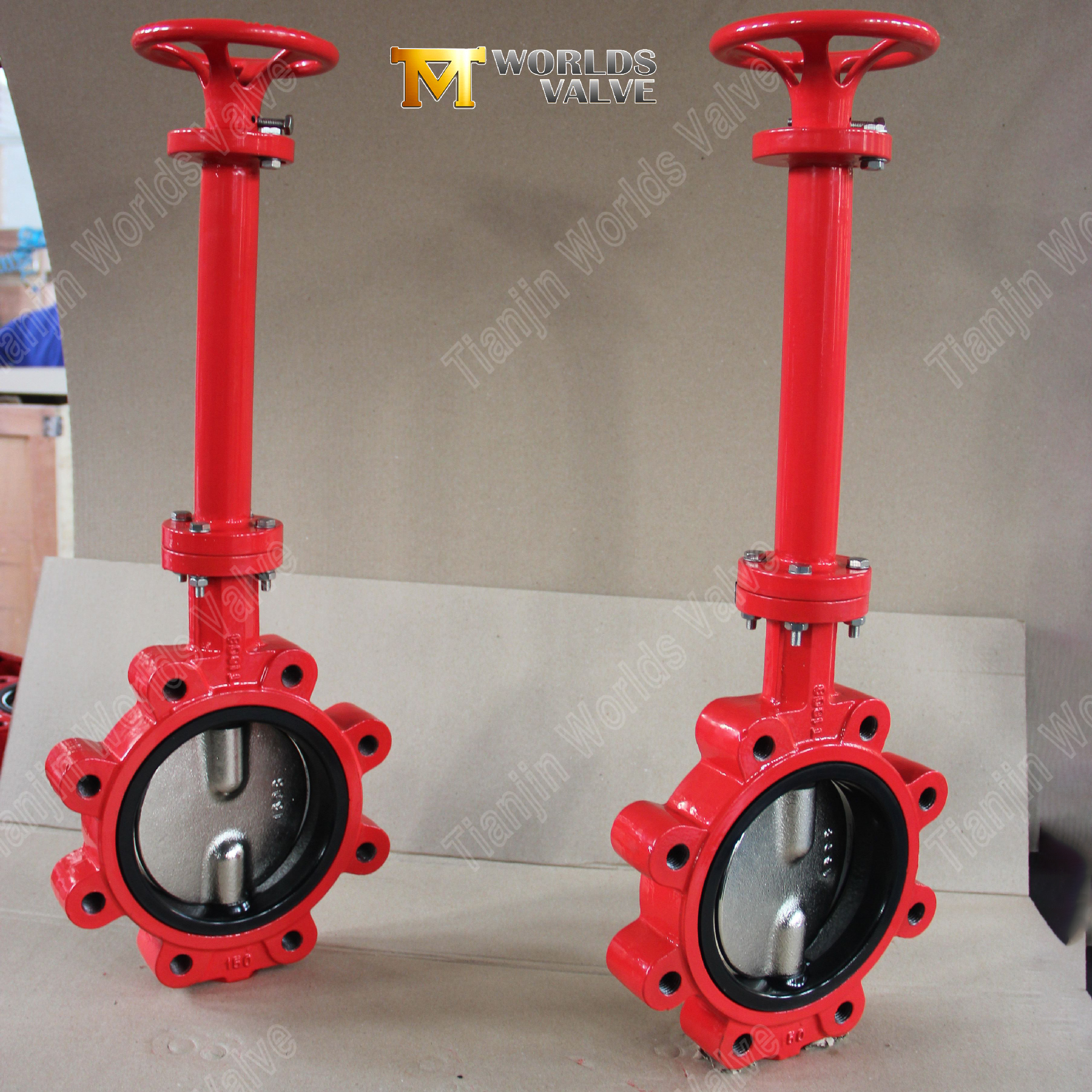

1. Extended Stem for Insulation Clearance
Positions the hand lever or actuator above insulation layers, protective barriers, or underground chambers, eliminating the need to remove insulation for valve access.
Customizable stem length, typically extending 20%–50% longer than standard, enabling above-ground operation for valves buried at depth.

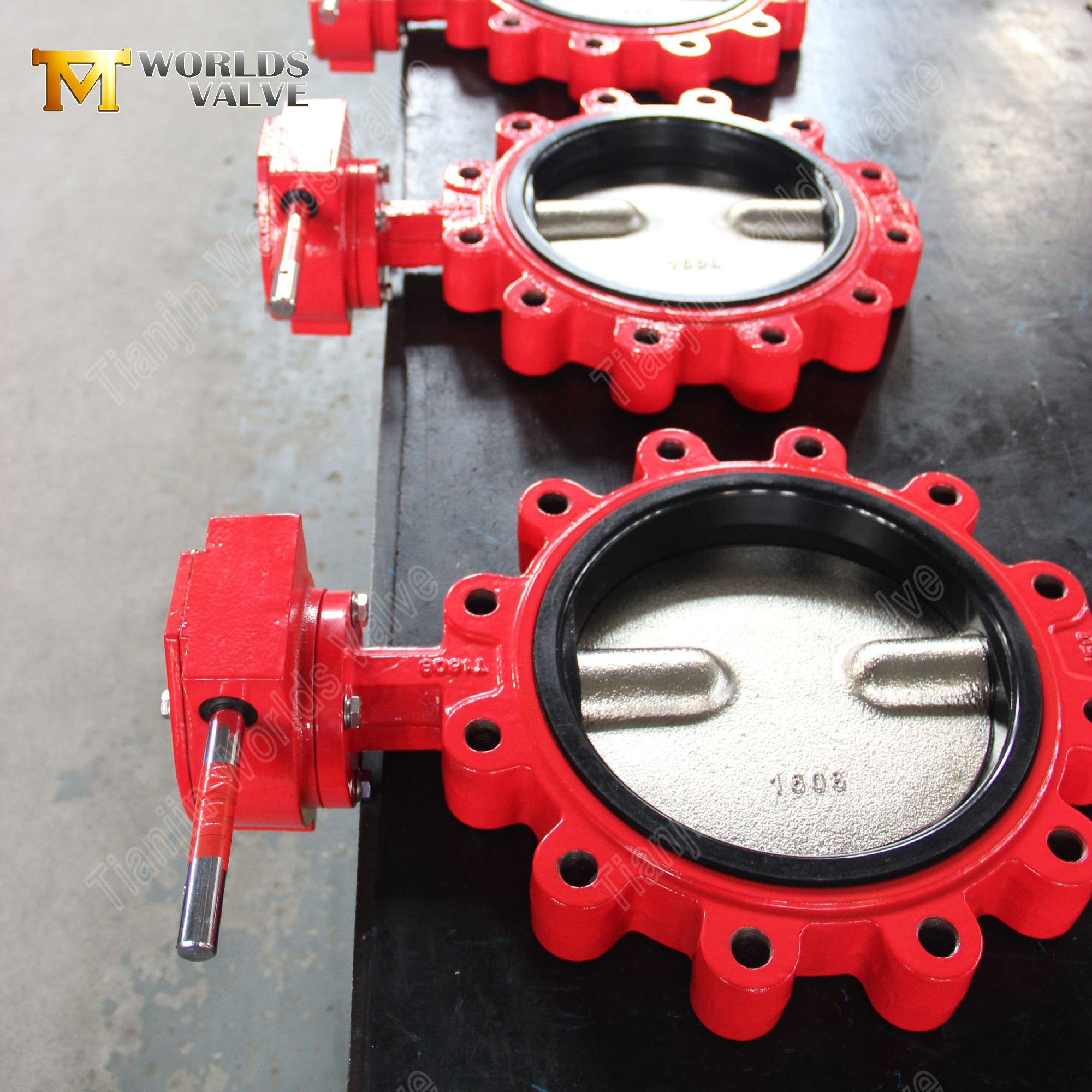

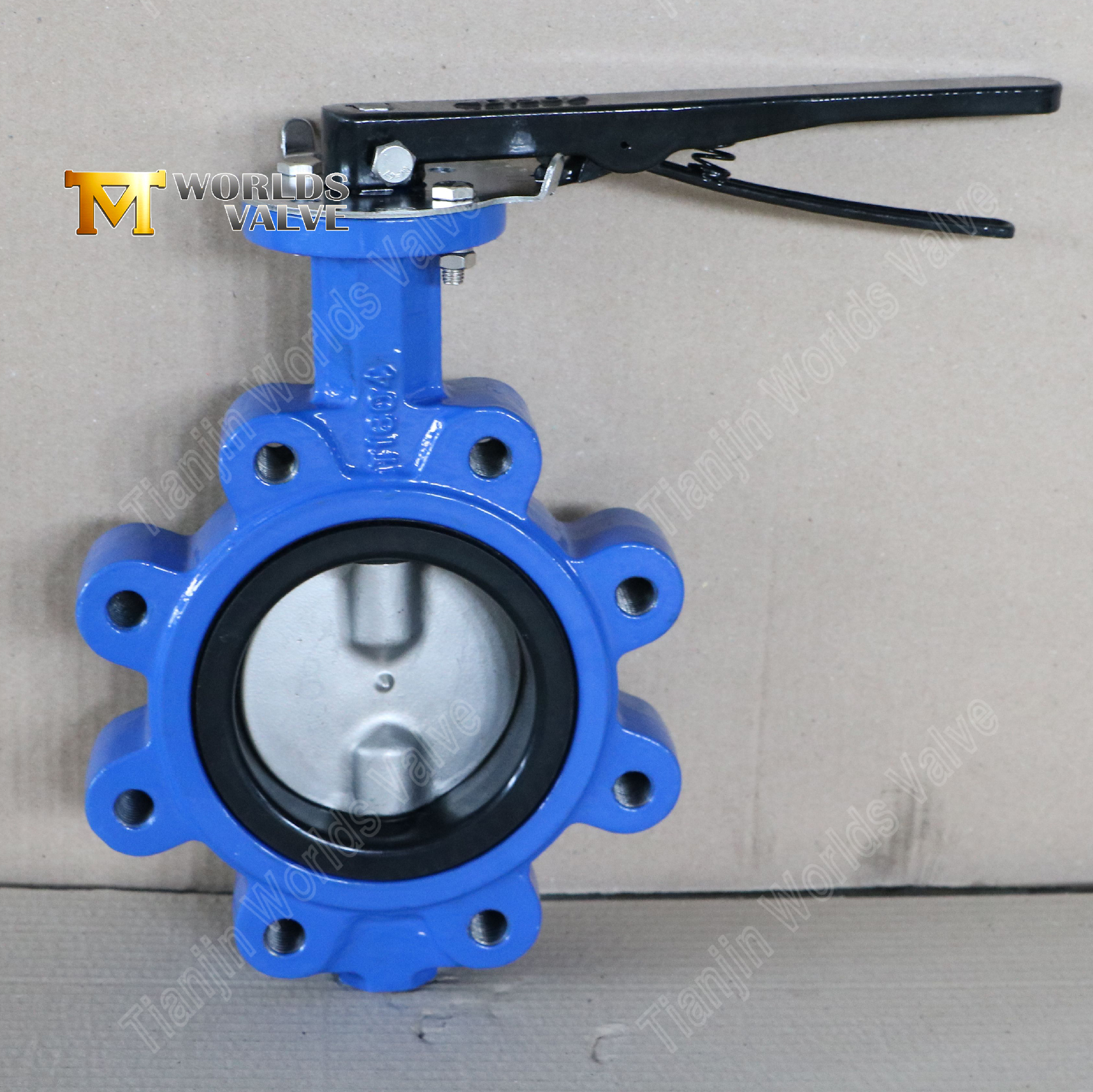

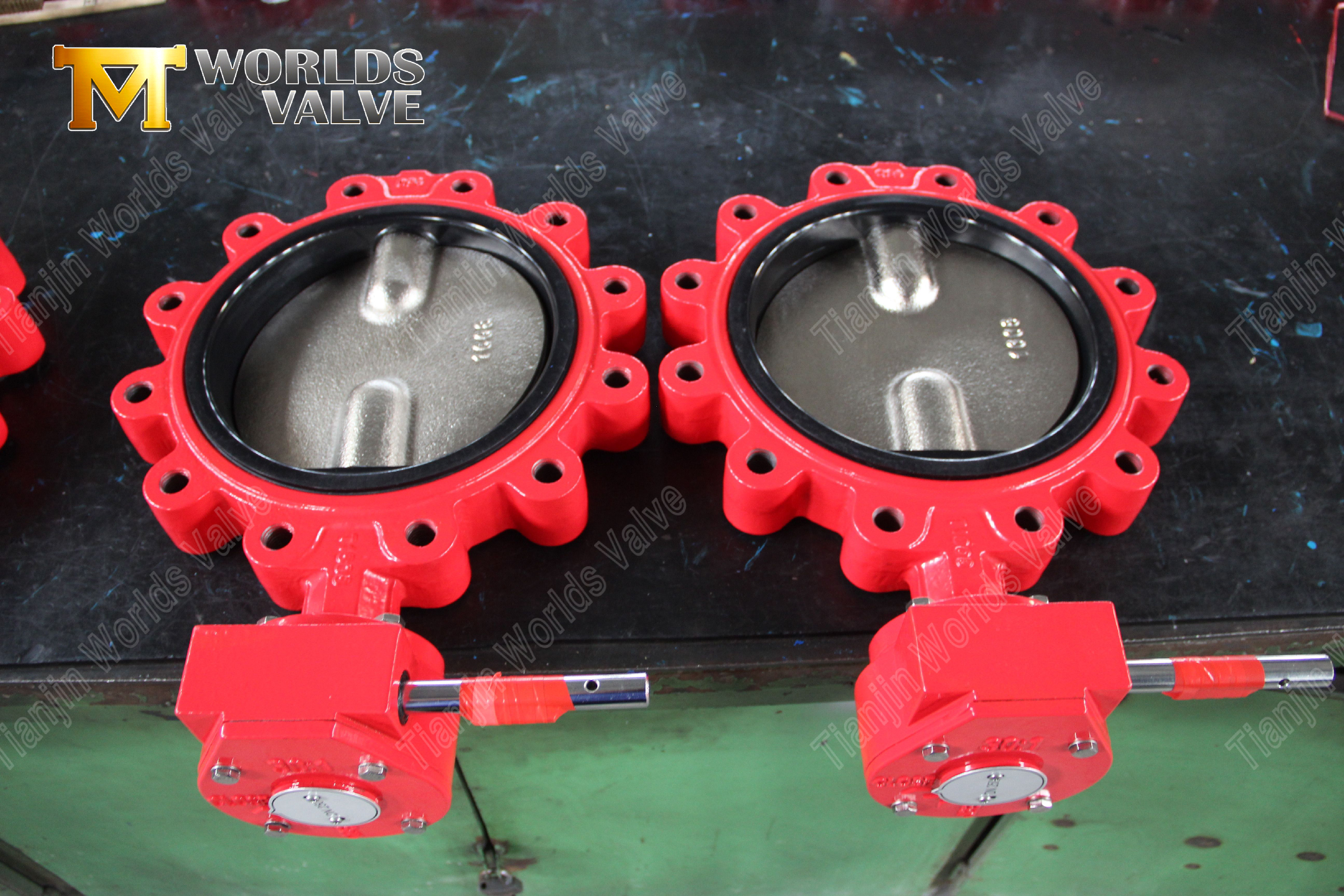

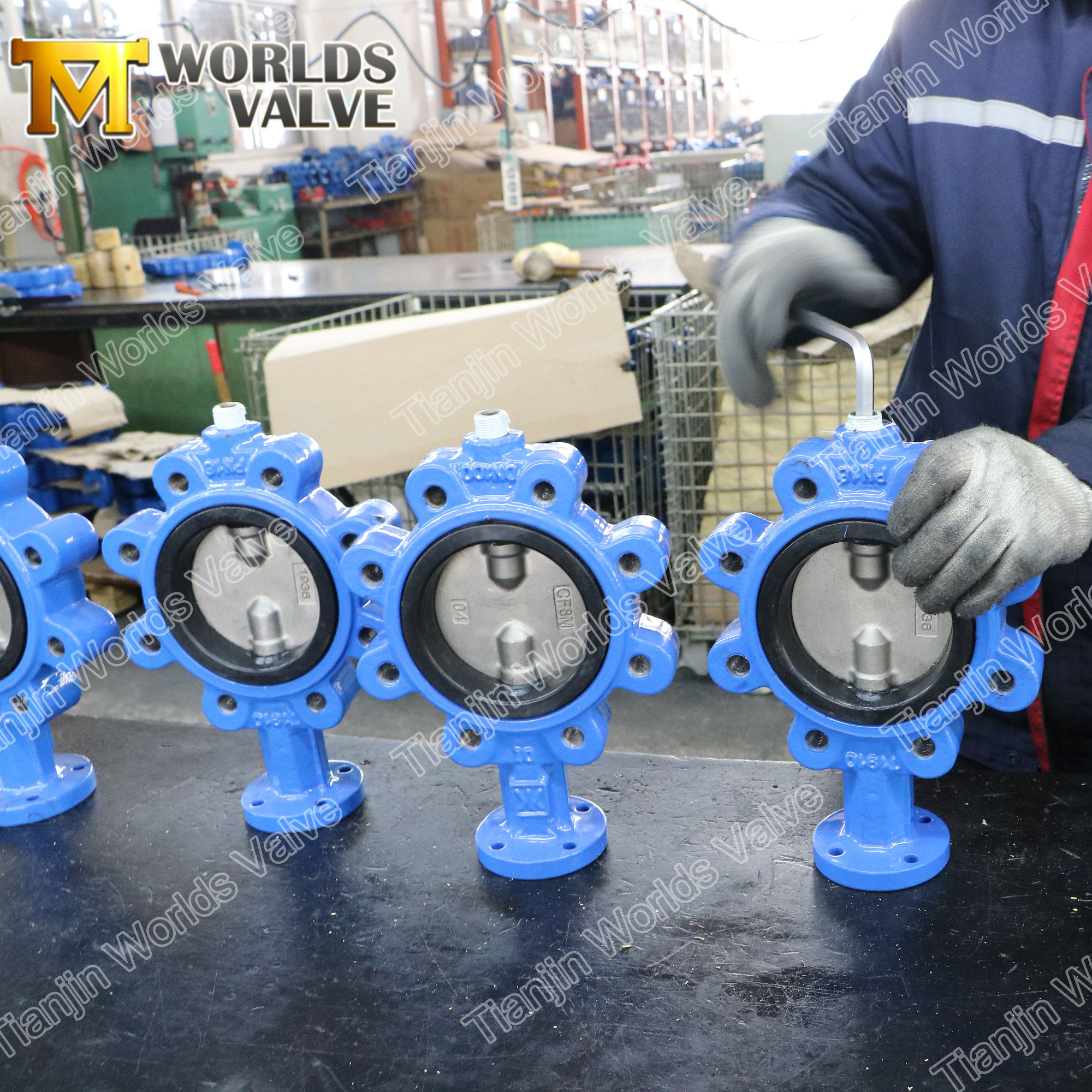

2. Lug Body with Bi-Directional Dead-End Service
Threaded lug inserts allow direct bolting to a single flange, enabling end-of-line installation at full rated pressure.
Rated for bi-directional dead-end service, making it ideal for isolation points and maintenance shut-offs where downstream piping may be removed.
3. Bubble-Tight Resilient Sealing
EPDM seat (standard) delivers zero leakage (Class A) for water, HVAC, and mild chemical services (-20℃ to +120℃).
Viton (FKM) or PTFE seat options for high-temperature or aggressive chemical applications (-35℃ to +200℃).
4. ISO 5211 Direct Actuator Mounting
Standardized mounting interface enables direct attachment of electric, pneumatic, or gear operators without custom brackets.
The ISO 5211 flange allows quick field swapping between manual, electric, or pneumatic actuation without removing the valve from the pipeline.
5. Ductile Iron Body with Epoxy Coating
High-strength GGG40 ductile iron delivers tensile strength >400 MPa for pressure surges and pipeline stress.
Epoxy coating (any RAL color) provides external corrosion protection for underground, marine, and outdoor installations.
6. Wide Range of Disc Materials (OEM Flexible)
Ductile iron with nylon/PTFE coating (cost-effective for water service)
CF8 / CF8M stainless steel (chemical, high-purity, mild corrosive media)
Aluminum Bronze C95400 (seawater, marine, desalination)

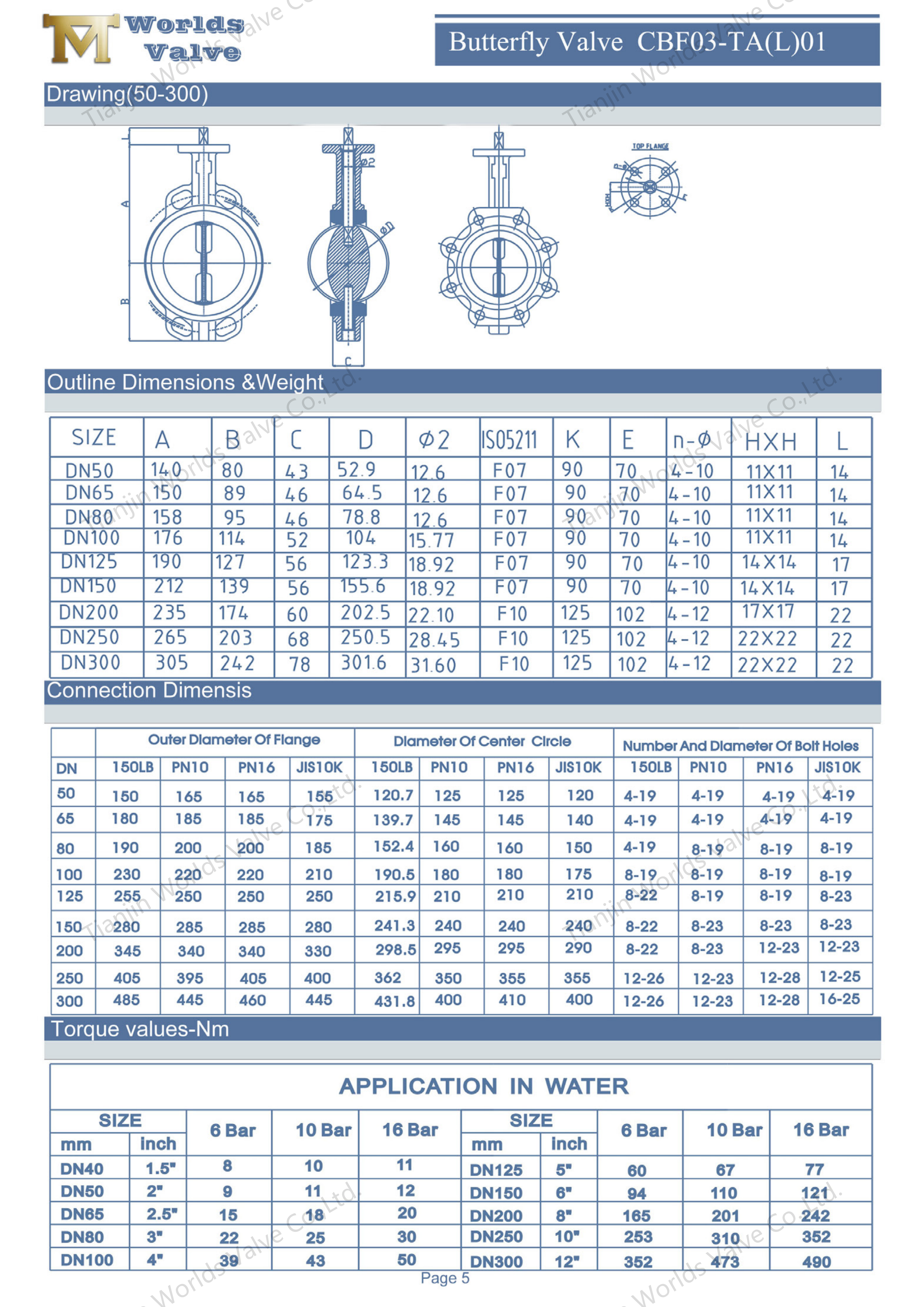

Parameter | Available Options |
Valve type | Lug Butterfly Valve/Extended Stem（CBF03-TL01） |
Nominal size | Sizes Available(DN50-DN600) |
Body material | Ductile Iron (GGG40 / ASTM A536) with Epoxy Coating |
Disc material | Ductile Iron, CF8, CF8M, Aluminum Bronze, Duplex (OEM customizable) |
Seat material | EPDM (standard), NBR, Viton (FKM), PTFE |
Stem Material | Stainless Steel (SS416 / SS431 / SS304) – extended length customizable |
Epoxy coating color | Customer-selectable (any RAL or custom color) |
Pressure rating | PN10 / PN16 / Class 150/ JIS5K/10K (customizable) |
Top flange | ISO 5211 optional for actuator mounting |
Applicable Media | Acids, alkalis, solvents, seawater, brine, high-purity water, chemicals |

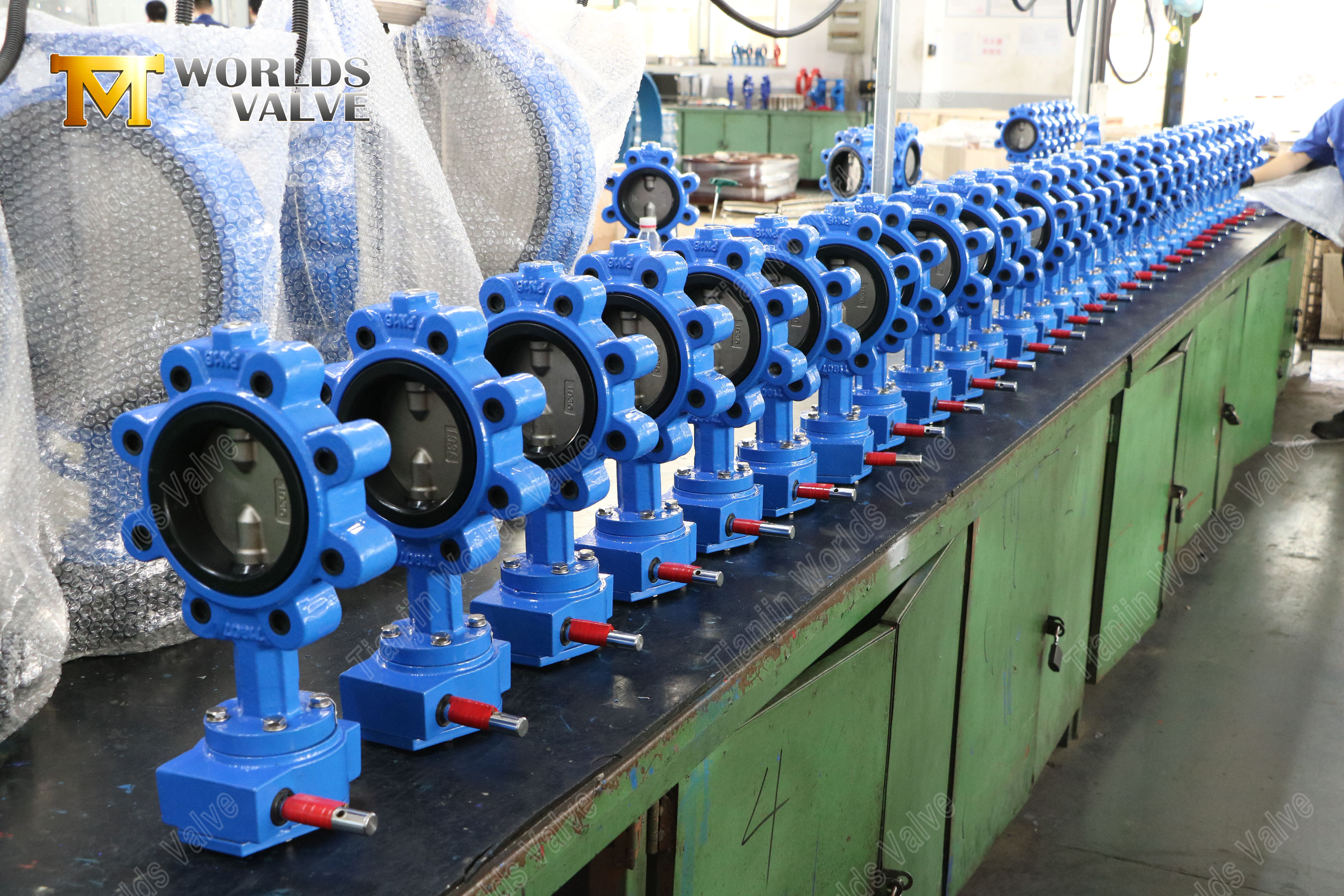

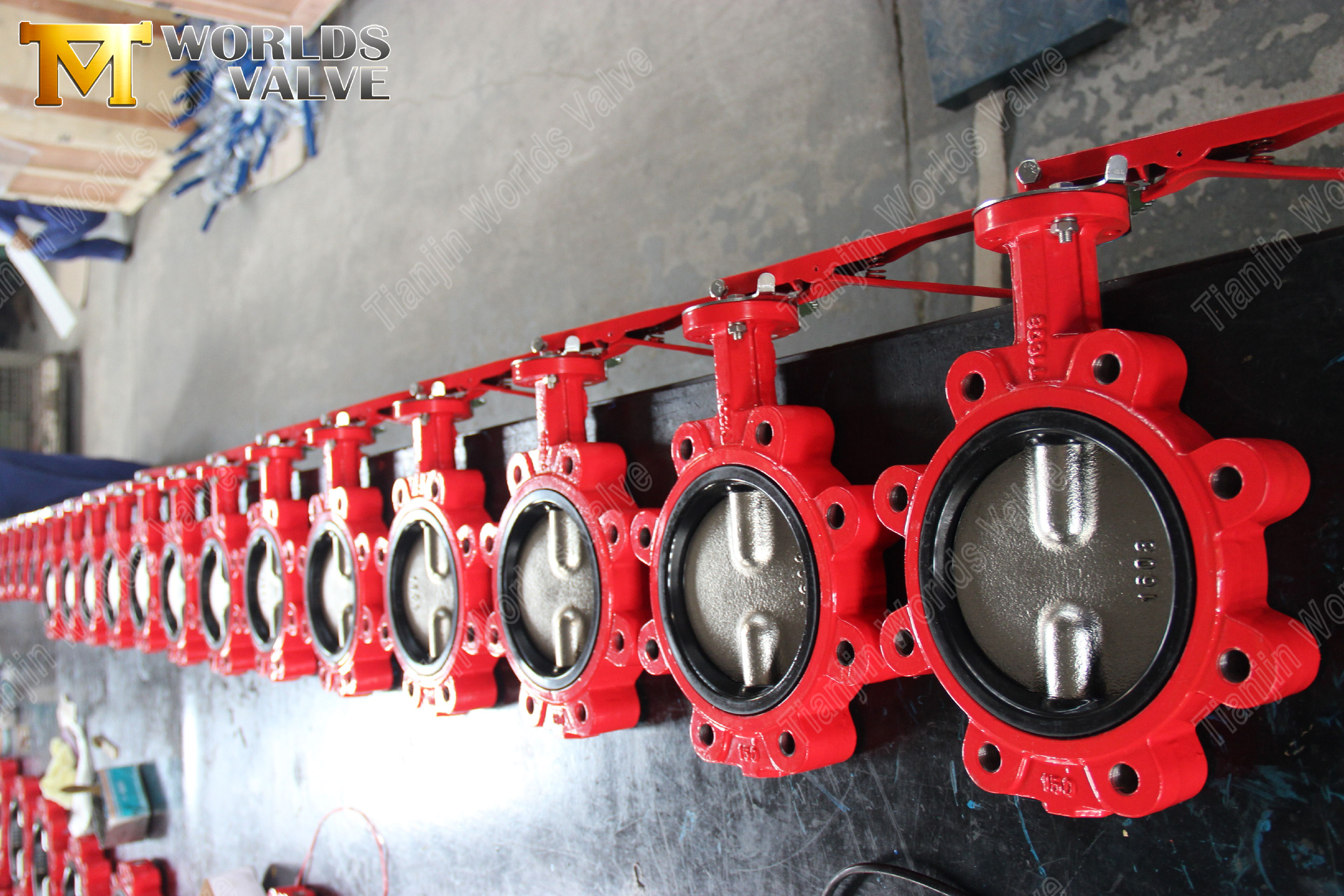

Direct OEM/ODM Manufacturer–We produce in our own ISO 9001 certified factory, not only a trading company. Every butterfly valve is manufactured to your exact specifications.
Material & Design Flexibility–all can be tailored to your specific media, temperature, and pressure requirements.
Certified Quality–ISO 9001 certified with CE, UKCA, WRAS, and ACS certifications available upon request to meet global market requirements.
Full Documentation–Material certificates (mill test reports) and pressure test reports provided with every order.
Global Export Experience–Supplying valves to over 50 countries with reliable logistics and technical support.
The extended stem lug butterfly valve delivers reliable, accessible flow control for insulated and buried pipelines. Fully customizable — stem length, materials, actuation. ISO 9001 certified OEM. Contact Tianjin Worlds Valve for a quote or factory visit.
