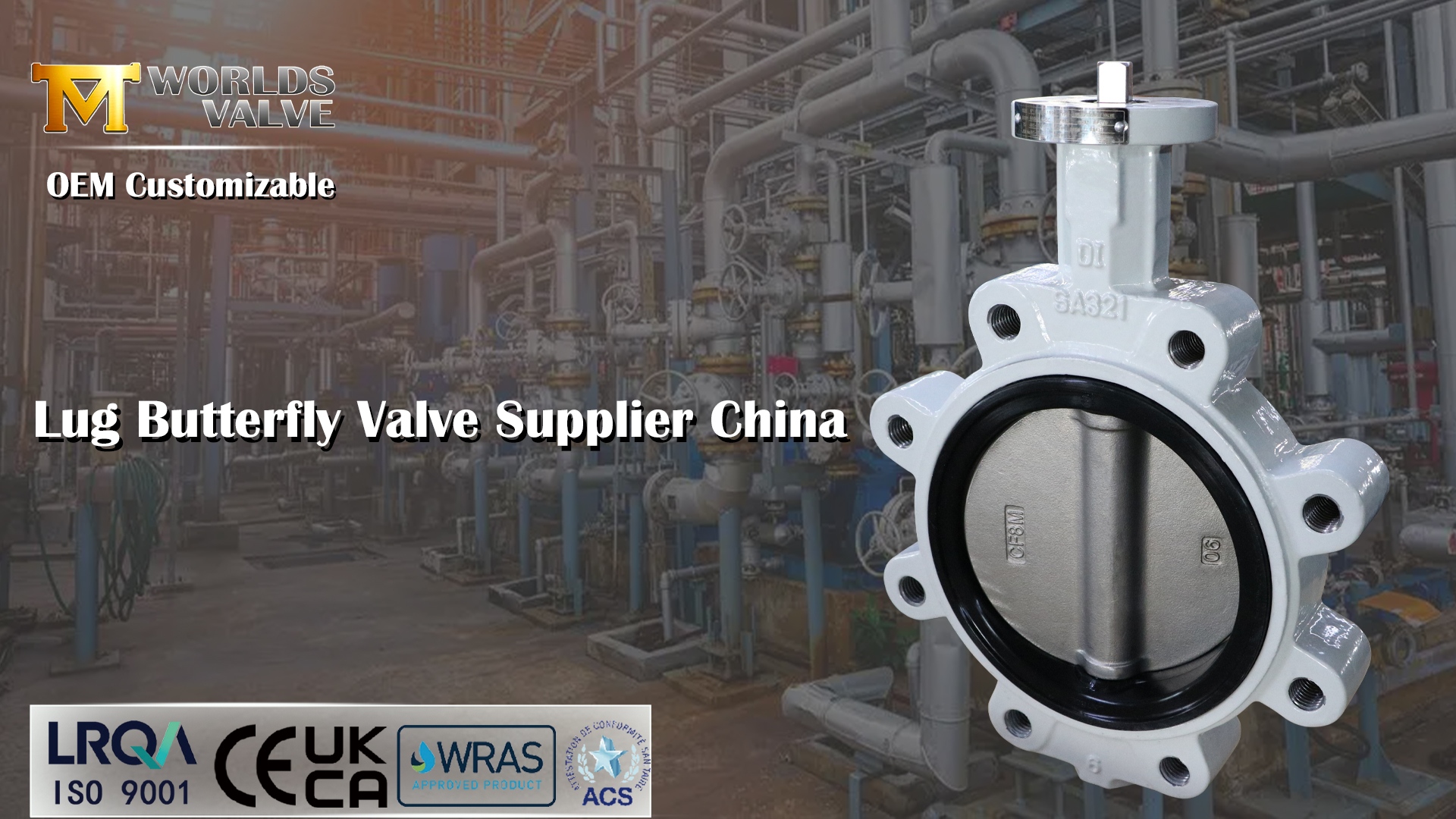

Product Name: Lug Butterfly Valve
Body Material: Ductile Iron (DI)
Disc Material: Stainless Steel (316SS)
Seat Material: EPDM, NBR, VITON, PTFE...(Seat material options vary depending on the media or customer preference.)
Connection Type: Lug
Size Range: DN50–DN2000
Pressure Rating:
PN10 / PN16 / PN25...
Top Flange: Available in ISO 5211 standard for direct actuator mounting
Operating Temperature Range: -20°C to 120°C (EPDM)
Customization: All materials, dimensions, and pressure ratings can be modified according to customer requirements

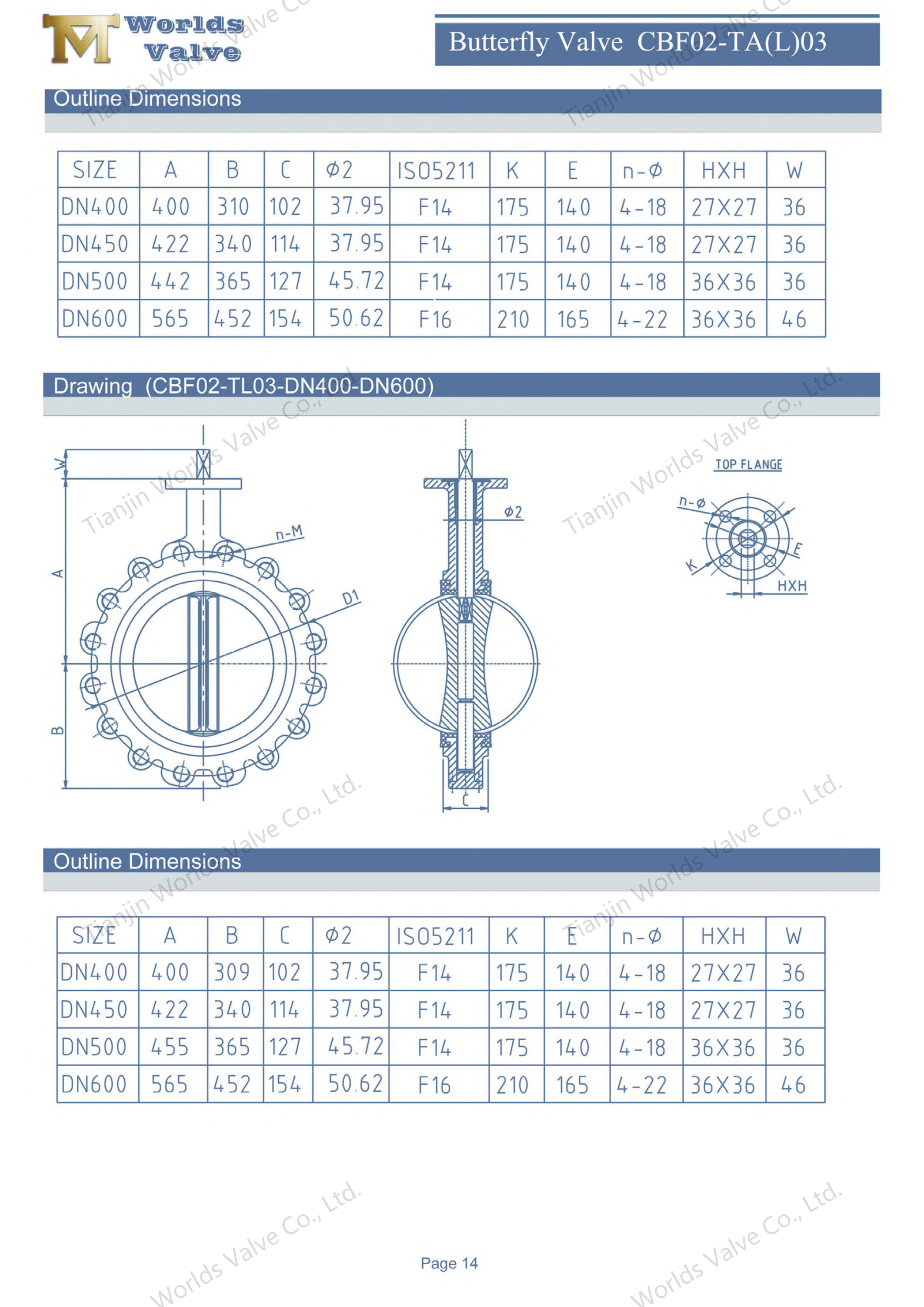

Type: CBF02-TL03--Product Catalog
1. Lug Body – Dead-End Service Capability
Threaded lug inserts allow direct bolting to a single flange.
Enables end-of-line installation without downstream flange support.
Ideal for isolation points, maintenance shut-offs, and future pipeline extensions.
2. CF8M Stainless Steel Disc – Superior Corrosion Resistance
CF8M (AISI 316) offers excellent pitting and crevice corrosion resistance.
Suitable for seawater, brine, treated water, and mild chemicals.
Provides long service life with minimal maintenance.
3. Replaceable Soft EPDM Seat – Easy Maintenance
The EPDM seat can be replaced in the field without removing the valve from the pipeline.
Reduces downtime and lowers long-term ownership costs.
EPDM offers excellent resistance to water, steam, ozone, and mild chemicals (-20°C to +120°C).
4. Reliable Sealing & Low Torque
Bubble-tight shut-off (Class VI) with resilient soft seat.
Low friction between polished disc and seat reduces operating torque.
Suitable for manual lever, gear, or automated actuation.
5. Compact, Space-Saving Design
Lug-style body fits between standard flanges (EN 1092, ANSI B16.5, etc.).
Lighter and more compact than full flanged valves.
Saves installation space and reduces structural support requirements.
6. Fully Customizable OEM/ODM Solution
Disc materials: CF8M (standard), CF8, duplex, super duplex, aluminum bronze...
Seat materials: EPDM (standard), NBR, Viton, PTFE...– replaceable or vulcanized.
Body materials: Ductile iron, WCB, CF8, CF8M...
Operation: Hand lever, worm gear, electric actuator, pneumatic actuator (ISO 5211 top flange available).
Coating: Epoxy (any RAL color), nylon, PTFE lining...
1. Direct OEM/ODM Manufacturer – We produce in our own ISO 9001 certified factory, not a trading company.
2. Material Flexibility – Disc, seat, body, and stem materials are fully customizable to your media and temperature requirements.
3. Replaceable Seat Advantage – Field-serviceable EPDM seat reduces downtime and maintenance costs.
4. Global Certifications – CE, UKCA, WRAS, ACS available upon request.
5. Full Documentation – Material certificates (mill test reports) and pressure test reports provided with every order.
6. Export Expertise – Supplying valves to over 50 countries with reliable logistics and technical support.
We invite you to contact us for a competitive quotation or to arrange a visit to our factory. Our engineering team is ready to discuss your specific project requirements – from standard lug butterfly valves to fully customized solutions with special materials and actuation.
