Selecting the right butterfly valve is a critical decision that impacts the long-term performance, safety, and total cost of ownership of your piping system. With numerous options on the market, distinguishing a genuinely high-quality valve from a standard one requires a keen understanding of its fundamental design and construction. This guide breaks down the 5 essential design features that define a superior butterfly valve, empowering you to make an informed investment that ensures reliability, efficiency, and durability for years to come.
The initial price of a valve is only a fraction of its lifetime cost. A high-quality butterfly valve pays for itself through:
Extended Lifespan: Engineered with premium materials and robust construction to withstand demanding cycles, pressure fluctuations, and corrosive environments, drastically reducing replacement frequency.
Uncompromised Reliability: Precision machining and superior sealing ensure consistent, leak-free operation. This is paramount in critical applications such as water treatment, chemical processing, or HVAC systems, where valve failure can lead to costly downtime, safety hazards, or product contamination.
Reduced Total Cost of Ownership: Quality valves require minimal maintenance, fewer repairs, and cause less system disruption. Investing in a well-designed valve upfront translates to significant savings in operational and maintenance expenses over its service life.
Pillar 1: Disc Design & Material – The Heart of Flow Control
The disc is the primary component regulating flow. Its quality dictates performance.
Material Integrity: High-quality valves use stainless steel (SS304, SS316), ductile iron with corrosion-resistant coatings, or specialized alloys. These materials provide the necessary strength to prevent bending under pressure and offer excellent resistance to corrosion, erosion, and cavitation.
Geometric Precision: The disc profile (often a laminated or solid design) is aerodynamically optimized to minimize turbulence, pressure drop, and water hammer, ensuring efficient flow with minimal energy loss.
Pillar 2: Seat Material & Sealing Performance – Ensuring Bubble-Tight Integrity
The seat creates the seal against the disc. The choice depends on application demands.
Resilient Seats (Elastomeric): Made from EPDM, NBR, Viton®, or PTFE, these provide excellent bubble-tight shut-off in general service (water, air) and mild chemicals. They offer flexibility, low torque, and good scalability.
Metal Seats: Utilized in high-performance (double/triple offset) butterfly valves for extreme conditions—very high temperatures, abrasive slurries, or corrosive media where elastomers would fail. They offer durability but require higher sealing torque.
Key Quality Indicator: Look for seats that are molded or bonded securely to prevent dislocation and ensure the seal integrity is maintained throughout the valve's life.
Pillar 3: Body Construction & Connection Type – The Foundation of Strength
The valve body must endure pipeline stresses and provide a secure interface.
Material & Casting Quality: High-grade cast iron, ductile iron, carbon steel, or stainless steel bodies are standard. Superior valves come from precision-machined castings with consistent wall thickness, free of defects, ensuring pressure containment and longevity.
Connection Design:
1. Wafer Type: Lightweight, cost-effective, installed between flanges. Ideal for space-constrained systems.

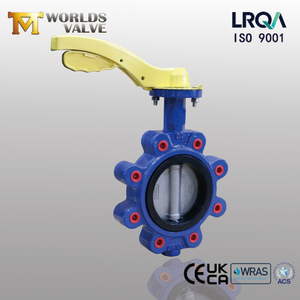

2. Lug Type: Threaded lugs allow for end-of-line service or easy removal without dismantling the entire pipeline.

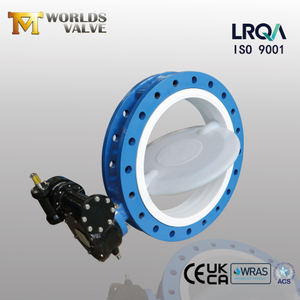

3. Double-Flanged Type: Provides the strongest connection, ideal for higher pressure classes, dead-end service, and applications with significant pipeline stress. At Worlds Valve, our resilient-seated double-flanged design is a flagship solution for demanding, reliable service.
Pillar 4: Stem Design & Sealing – The Link to Smooth Operation
The stem transmits torque from the actuator to the disc.
One-Piece Stem Design: High-quality valves often feature a one-piece stem/disc connection (e.g., square or keyed) or a securely welded/pinned design. This eliminates potential failure points and ensures positive disc movement without slippage.
Stem Seals: Multiple, adjustable stem seals (O-rings, packing) are crucial to prevent external leakage. Quality valves use durable seal materials and allow for easy in-line adjustment or replacement.
Pillar 5: Actuation Readiness & Bearing System – Enabling Control & Durability
Bearing System: Self-lubricating bushings or bearings at the top and bottom of the stem reduce friction, ensure smooth 90-degree rotation, and prevent galling, which is critical for low operating torque and long-term, maintenance-free service.
Actuation Compatibility: A quality valve is designed for seamless integration with manual levers, gear operators, or automated actuators (electric, pneumatic, hydraulic). The drive interface (ISO 5211 mounting pad is the industry standard) should be robust and precisely machined for direct actuator mounting.
At Tianjin Worlds Valve Co., Ltd., our design philosophy embeds these five pillars into every butterfly valve we manufacture. Our resilient-seated double-flanged butterfly valves exemplify this commitment:
Premium Material Selection: We use certified materials suitable for specific media and environments, ensuring corrosion resistance and structural integrity.
International Compliance: Our valves are designed and tested to meet ISO, AWWA, API, and other international standards, and carry relevant certifications (CE, UKCA, ACS), guaranteeing global applicability and safety.
Optimized Design: Features like minimized parts exposed to line media reduce wear points, while our precise machining ensures perfect disc/seat alignment for a reliable, long-lasting seal.
Proven Global Service: With products operating successfully in over 50 countries, our designs are field-tested across water, HVAC, chemical, and industrial applications.
Arm yourself with these key questions to validate quality before you buy:
1. Pressure/Temperature Rating: Is the valve rated for my *maximum* operating and test pressures at the system temperature?
2. Flow Characteristic (Cv/Kv Value): Does the valve provide sufficient flow capacity with acceptable pressure drop for my process?
3. Full Material Breakdown: Can you provide a detailed list of materials for the body, disc, stem, seat, and seals? Are they compatible with my media?
4. Certifications & Testing: What international standards does the valve comply with? Are test reports (e.g., for shell strength and seat leakage) available?
5. Design Details: Is the stem one-piece with the disc? What type of bearings are used? Is the seat securely bonded?
6. After-Sales Support: Are spare parts (seats, seals) readily available? What is the warranty, and what technical support do you offer?
A high-quality butterfly valve is a symphony of thoughtful design, premium materials, and precision manufacturing—not a commodity. By focusing on the five pillars of disc, seat, body, stem, and bearings, you can spec a valve that delivers decades of reliable, low-maintenance service.
As a manufacturer dedicated to these principles, Tianjin Worlds Valve provides robust, certified butterfly valve solutions engineered for real-world performance. We combine our ISO9001-certified quality management with the flexibility for customization (OEM/ODM) to meet your exact requirements.
