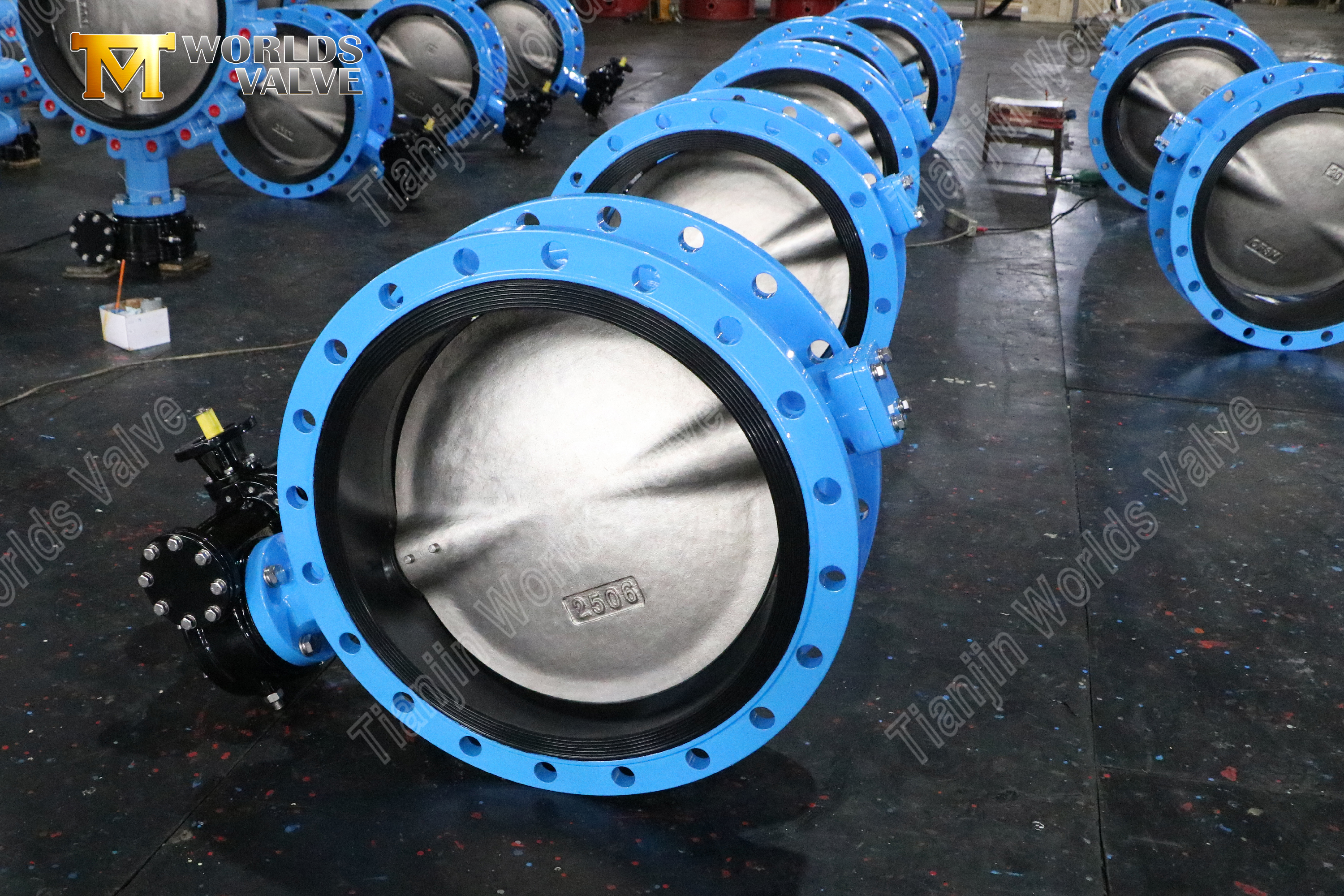

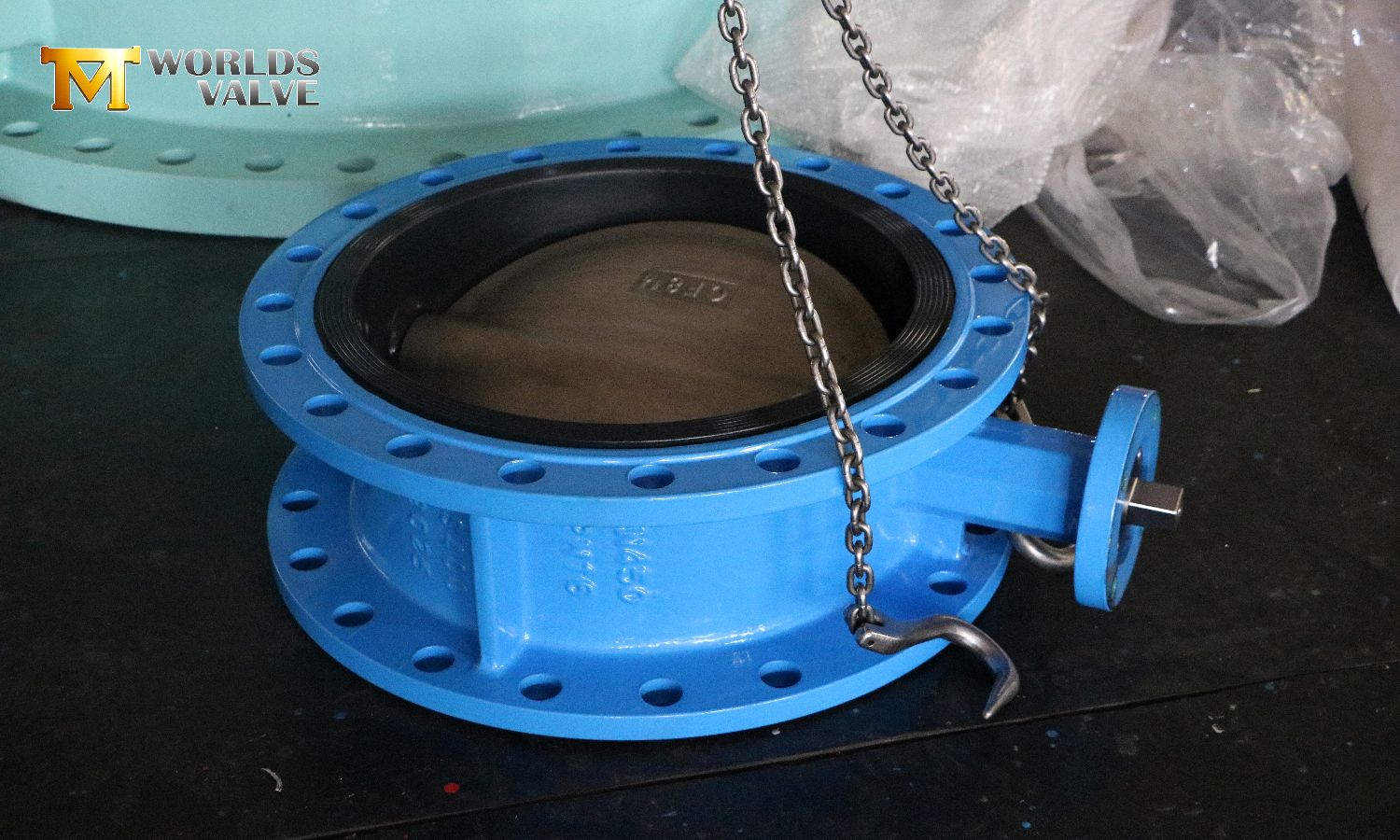

Design:CF8M Disc Double Flanged Butterfly Valve
Type: CBF01-TF01 OPERATION AND MAINTENANCE DOWNLOAD
Size: DN450
Body material: DI (Ductile Iron)
Seat: EPDM (Soft Seal)
Disc: CF8M
Stem: SS431
Pressure rating: PN16
Operating temperatures: -20℃—120℃(depending on pressure, medium and material)
Structure: Flange Type
The CF8M Disc Double Flanged Butterfly Valve delivers reliable performance in corrosive and demanding environments through its strategic material selection and robust design. This valve combines the structural strength of a double-flanged body with the superior corrosion resistance of a CF8M (equivalent to SS316) stainless steel disc, making it an ideal choice for chemical processing, marine systems, and water treatment applications.
1. Superior CF8M Stainless Steel Disc
Manufactured from CF8M (ASTM A351), offering excellent resistance to chlorides, acids, and corrosive chemicals, ensuring long-term durability in aggressive media.
2. Robust Double Flanged Design
Provides secure connection to pipeline flanges at both ends, eliminating the need for additional coupling components and ensuring leak-free performance in high-pressure systems.
3. Bubble-Tight Sealing Performance
Paired with compatible resilient seats (EPDM, Viton, or PTFE) to achieve zero-leakage shut-off in both flow directions, suitable for vacuum and pressure applications.
4. Excellent Corrosion & Abrasion Resistance
Ideal for handling seawater, chemicals, wastewater, and other abrasive fluids where standard materials would degrade quickly.
5. Easy Maintenance & Installation
The flanged ends simplify alignment and bolting, while the compact design reduces overall weight and space requirements compared to gate valves.
Chemical and Petrochemical Plants
Marine & Offshore Systems
Water and Wastewater Treatment
Power Generation Cooling Circuits
Pharmaceutical and Food Processing Industries
Customizable seat and lining materials
Full compliance with international standards
OEM/ODM support with third-party certification support
Global supply capability with after-sales technical service
As an ISO 9001-certified manufacturer, we provide full material traceability and performance testing. Custom configurations are available to meet specific pressure, temperature, and media requirements.
