Heating, ventilation, and air conditioning (HVAC) systems are the lifeblood of modern buildings, responsible for maintaining comfortable indoor environments while consuming a significant portion of a building's energy—up to 50% in commercial structures . Within these complex systems, valves play a critical role in regulating the flow of hot water, chilled water, and steam that deliver heating and cooling throughout facilities.
Among the various valve types available, the butterfly valve has become a preferred solution for HVAC applications—particularly in chilled water systems, condenser water loops, and large-diameter distribution lines where space efficiency, low pressure drop, and reliable isolation are paramount .
This article provides an engineering-focused overview of butterfly valve applications, design considerations, and selection criteria within commercial and industrial HVAC systems.
HVAC systems rely on precise control of water and steam to deliver heating and cooling effectively. The primary media controlled by valves in these systems include:
Chilled Water: Circulated through cooling coils to remove heat from building air
Hot Water: Circulated through heating coils to warm building air
Condenser Water: Transfers heat from the refrigeration system to cooling towers
Steam: Used for heating in certain systems, particularly in industrial applications
Valves in HVAC systems serve three primary functions:
1. Isolation: Allowing sections of the system to be shut down for maintenance
2. Regulation: Modulating flow to match varying load conditions
3. Directional Control: Directing flow between different paths (mixing or diverting)
Butterfly valves excel in all three functions when properly selected and applied .
Chilled water systems distribute cooling throughout buildings, typically operating at temperatures between 4°C and 12°C. Butterfly valves are extensively used in:
Chiller plant isolation: Main isolation valves at chiller inlets and outlets
Air handler connections: Isolation and control for cooling coils
Distribution mains: Sectionalizing valves for large-diameter piping networks
Why butterfly valves?
Their compact design (wafer or lug style) saves valuable mechanical room space, while their low pressure drop reduces pumping energy requirements—a significant factor given HVAC systems' substantial energy consumption .
Condenser water systems reject heat from chillers to cooling towers. These systems typically operate at higher temperatures (up to 35°C) and are often open to the atmosphere at the cooling tower, introducing potential for corrosion and fouling.
Butterfly valves are ideal for:
Cooling tower isolation: Valves at tower inlets and outlets
Pump isolation: Suction and discharge valves for condenser water pumps
Bypass applications: Three-way butterfly valve arrangements for temperature control
The three-way butterfly valve configuration—consisting of two butterfly valves mounted on a flanged cast-iron tee and linked to a common actuator—is particularly useful for mixing or diverting applications in condenser water loops. The actuator opens one valve as it closes the other, proportioning flow between tower water and return water to maintain desired supply temperatures .
Hot water heating systems operate at elevated temperatures (typically 60°C to 90°C, sometimes higher). Butterfly valves with appropriate seat materials handle these temperatures reliably.
Applications include:
Boiler plant isolation: Main isolation at boiler connections
Heat exchanger control: Modulating flow through heating coils
Zone isolation: Sectionalizing valves for building zones
A classic HVAC application involves two butterfly valves piped to control water temperature returning to condensers. The valves proportion the amount of tower water and condenser water return flowing in the supply line, maintaining optimal entering condenser temperature regardless of outdoor conditions .
In central plants and campus distribution systems, pipe diameters frequently exceed 300mm (12 inches). Butterfly valves are often the most economical and space-efficient choice for these large sizes, where gate valves would be prohibitively heavy and expensive .
Modern butterfly valves for HVAC incorporate design features that optimize their performance in building systems:
Feature | Description | HVAC Benefit |
Concentric or Double-Eccentric Design | Disc rotates from center or slightly offset | Low operating torque, suitable for frequent cycling |
Resilient Seat | EPDM or similar elastomer bonded to body | Bubble-tight shut-off essential for energy efficiency |
Wafer or Lug Body | Compact, lightweight construction | Saves mechanical room space, reduces installation cost |
Low Torque Operation | Optimized disc profile | Allows smaller, more economical actuators |
Bi-Directional Sealing | Seals effectively in both flow directions | Flexible installation, reliable isolation |
HVAC systems increasingly rely on automation for energy efficiency. Butterfly valves can be equipped with various actuators:
Actuator Type | Typical Applications | Advantages |
Manual Lever | Small valves, infrequently operated, isolation only | Lowest cost, simple |
Manual Gear Operator | Large valves, high torque requirements | Reduces operating effort, precise positioning |
Electric Actuator | Automated systems, BMS integration, remote locations | Easy integration with building controls, precise positioning, suitable for modulating service |
Pneumatic Actuator | Industrial HVAC, areas with compressed air available | Fast response, fail-safe options, durable |
Building Management System (BMS) integration allows centralized control, scheduling, and optimization of valve operations—contributing significantly to energy efficiency goals .
HVAC applications typically involve water or steam at moderate temperatures and pressures, allowing cost-effective material choices:
Component | Standard Material | Alternative |
Body | Cast Iron / Ductile Iron | Cast Steel (for higher pressure/temperature) |
Disc | Ductile Iron with Nylon/Epoxy Coating | Stainless Steel (CF8/CF8M) for corrosion resistance |
Stem | Stainless Steel | 17-4 PH Stainless (high strength) 17-4 PH |
Seat | EPDM (Water up to 110°C) | FKM/Viton® (Higher temperature, oils) |
For closed-loop hydronic systems with treated water, epoxy-coated ductile iron discs provide excellent corrosion resistance at economical cost. For open cooling tower loops with continuous oxygen exposure, stainless steel discs may be justified .
At Tianjin Worlds Valve Co., Ltd. , we understand that HVAC systems demand reliability, efficiency, and cost-effectiveness. Our butterfly valves are engineered specifically for the demands of heating, cooling, and water distribution in commercial and industrial buildings.
Certified Quality Management: Our facilities operate under ISO 9001 certified quality systems, ensuring consistency and traceability from raw material through final testing.
HVAC-Optimized Materials: We offer butterfly valves with materials selected for HVAC service:
Ductile iron bodies with corrosion-resistant epoxy coating
EPDM seats for bubble-tight sealing in water service up to 110°C
Stainless steel discs (CF8/CF8M) for open cooling tower loops

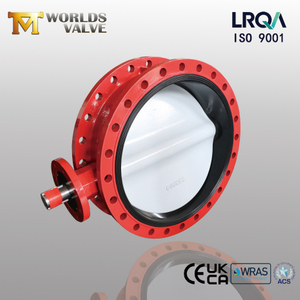

Nylon-coated discs for enhanced corrosion protection
Complete Size Range: From DN50 to DN1200 and larger, covering all HVAC piping requirements from branch lines to central plant mains.

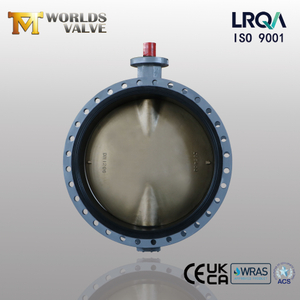

Flexible End Connections: Wafer style for space-saving installation between flanges; lug style for end-of-line service and isolation; flanged for heavy-duty applications.
Actuation Options: We provide manual lever, manual gear, electric, and pneumatic actuation packages—all configured for seamless integration with Building Management Systems (BMS).
International Compliance: Our valves carry CE-PED, UKCA, and other relevant certifications, meeting global project requirements.
Global Track Record: With successful deliveries to over 50 countries, including major commercial building projects, we have the experience and logistics capability to support HVAC projects worldwide.
Competitive Value: We offer superior quality at competitive prices, backed by responsive technical support and comprehensive after-sales service.
Butterfly valves play an essential role in modern HVAC systems, providing reliable isolation and efficient flow control for chilled water, hot water, and condenser water applications. Their compact design, low pressure drop, and cost-effectiveness make them the preferred choice for building services—from small branch lines to central plant mains .
When properly specified—with correct materials, appropriate actuation, and attention to pressure drop criteria—a butterfly valve delivers decades of reliable service, contributing to the energy efficiency and operational reliability that modern buildings demand .
