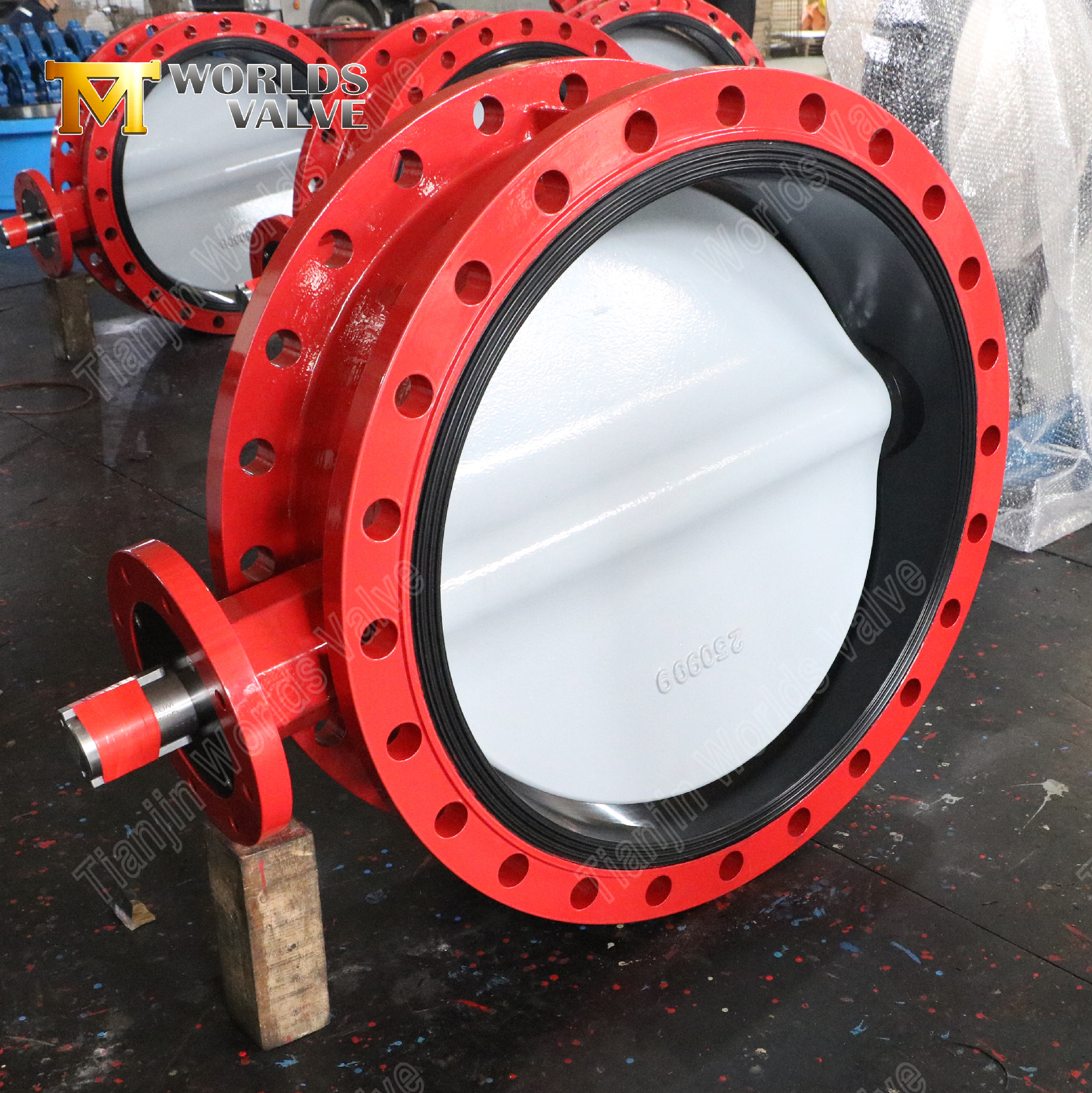

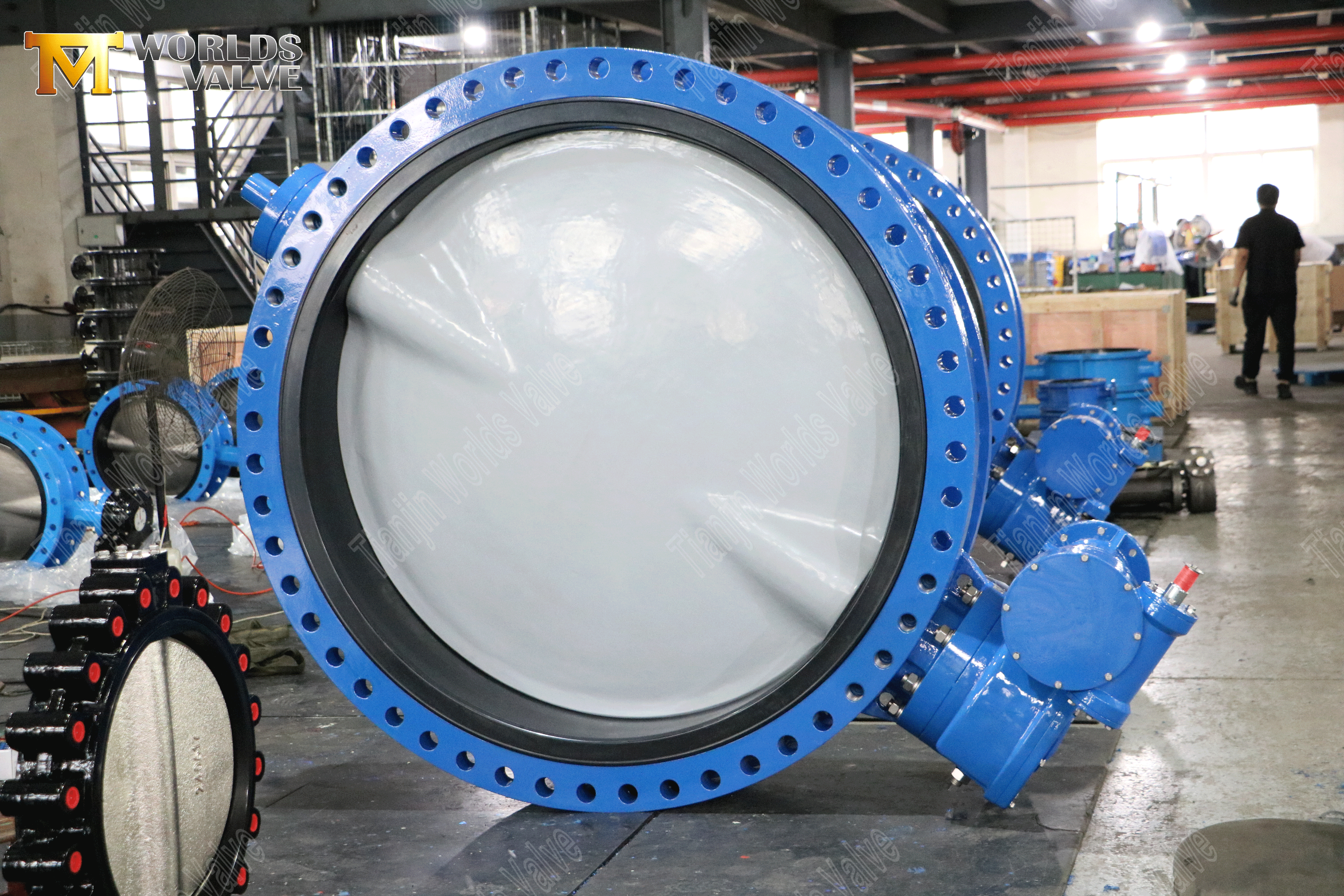

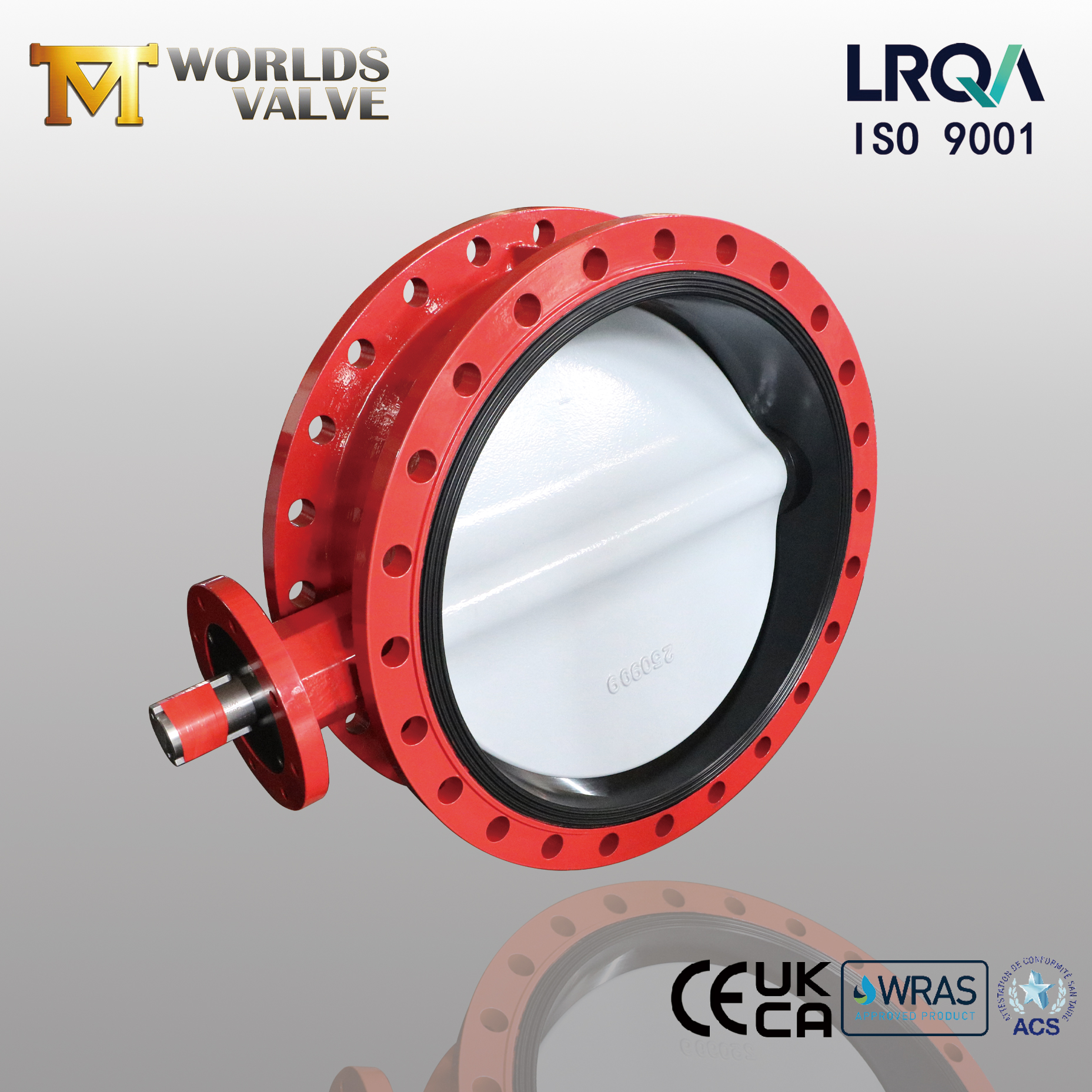

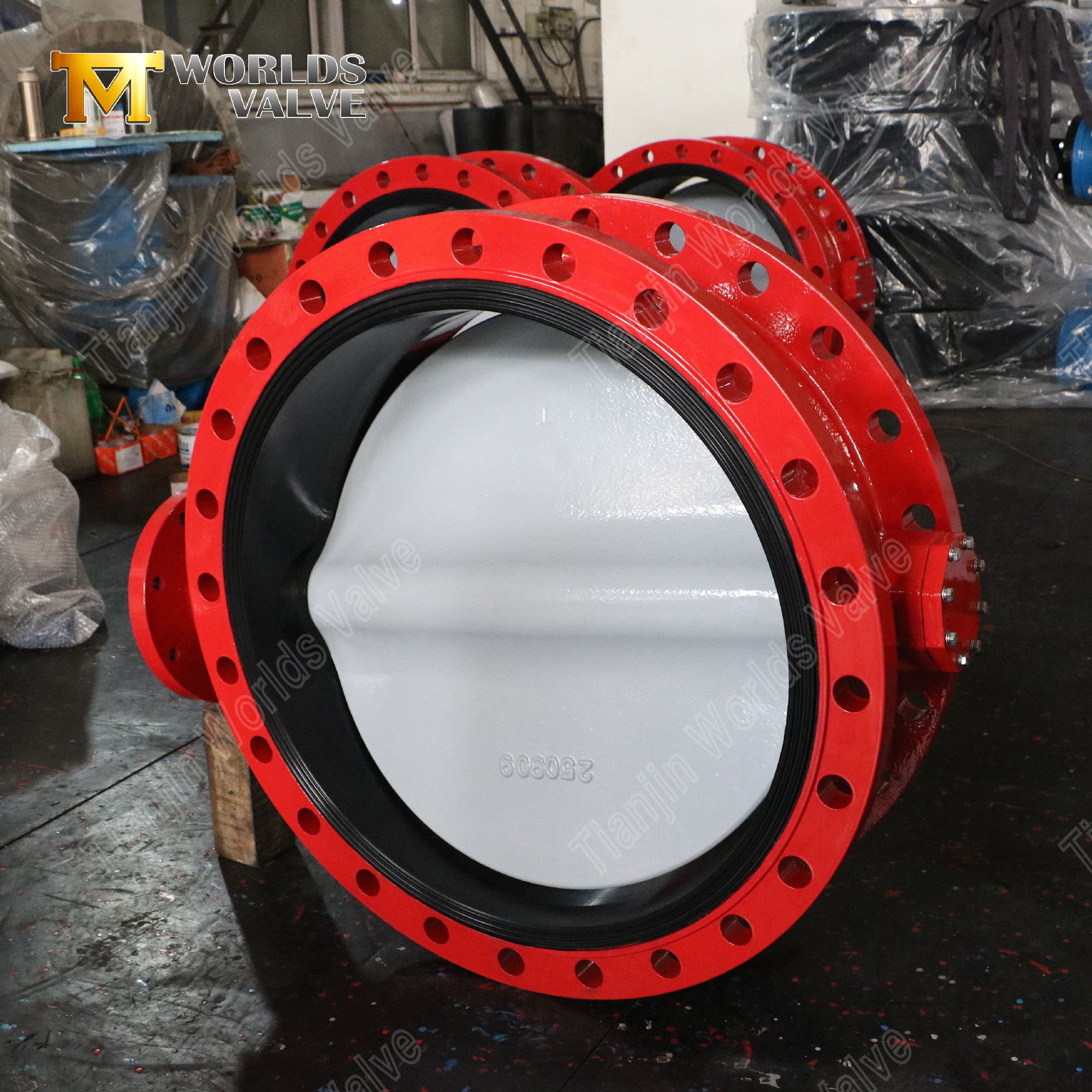

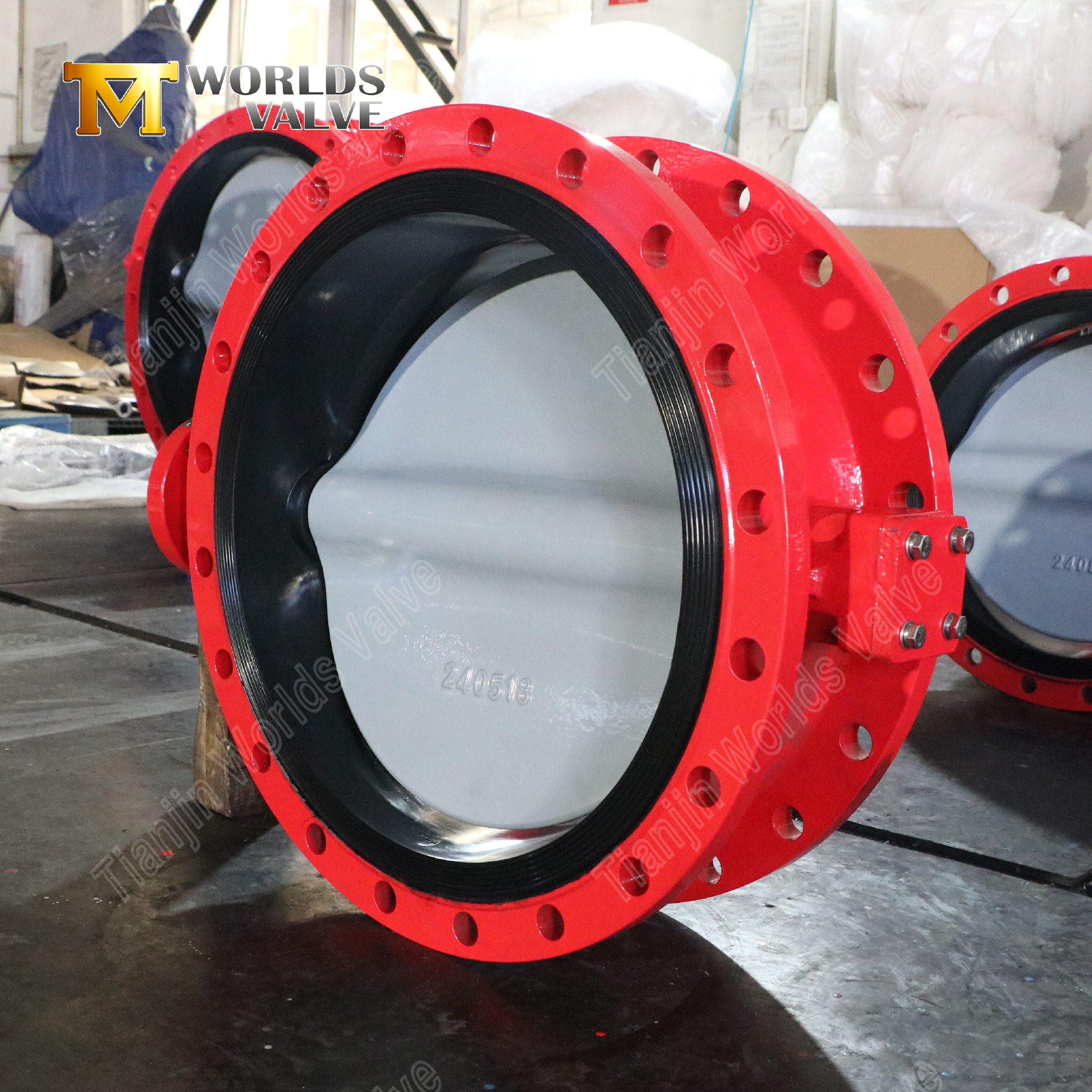

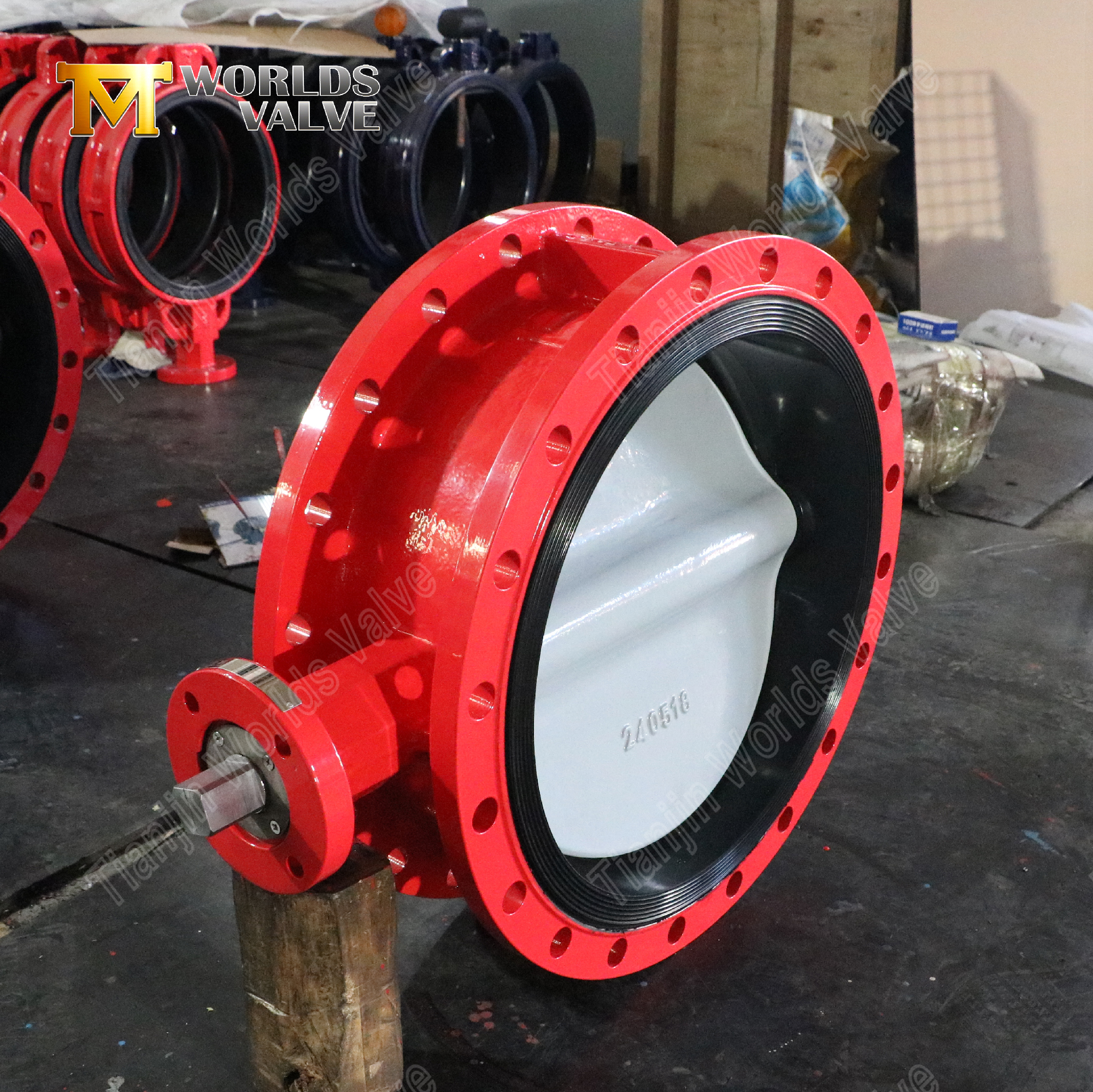

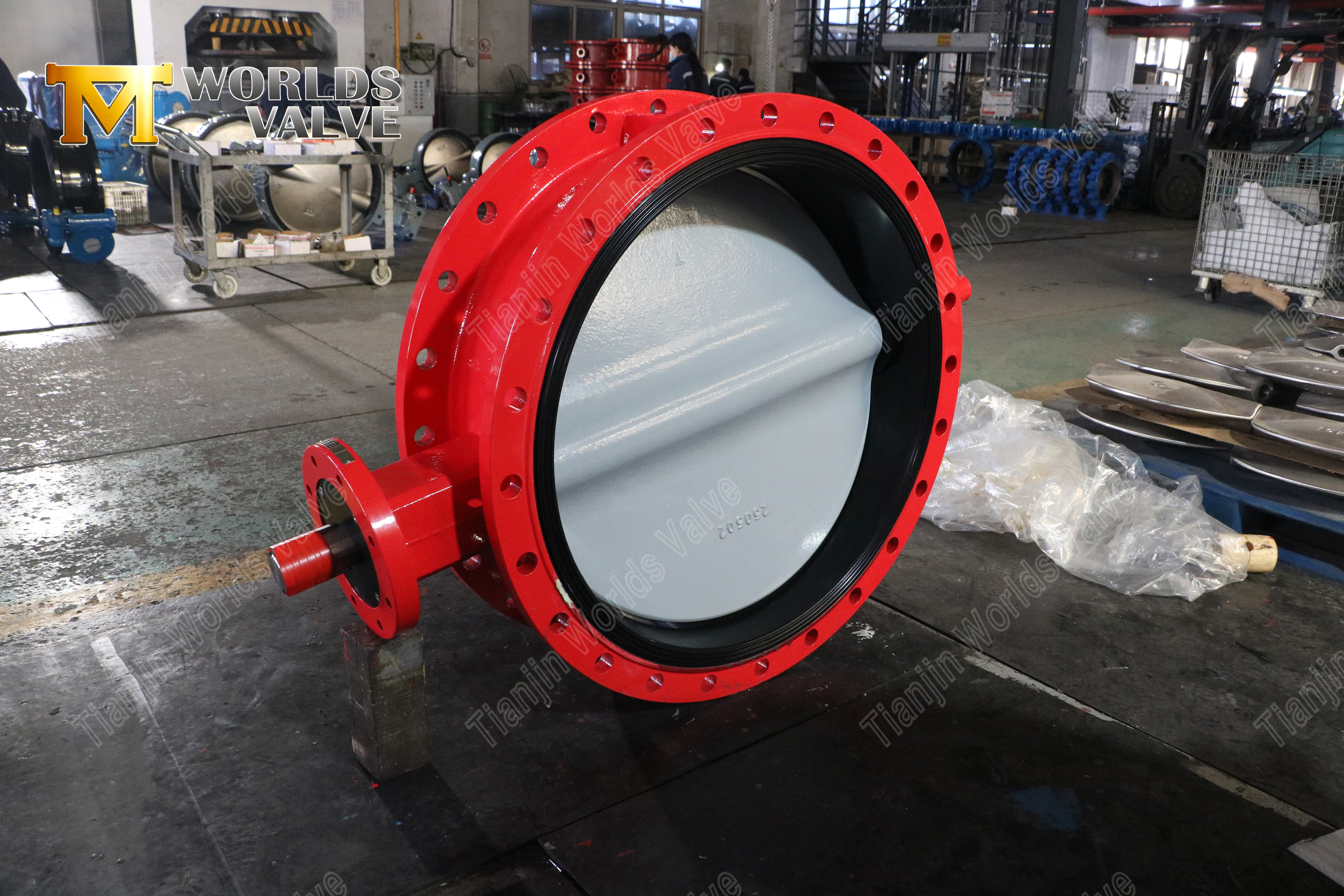

It features a high-strength GGG40 Ductile Iron body and a Ductile Iron (DI) disc coated with a durable Nylon (PA) layer. This material combination ensures excellent structural integrity, corrosion protection, and smooth, low-friction operation against the seat. As your trusted China-based OEM partner, we offer this reliable workhorse valve with consistent quality and the flexibility to meet your specific project requirements.

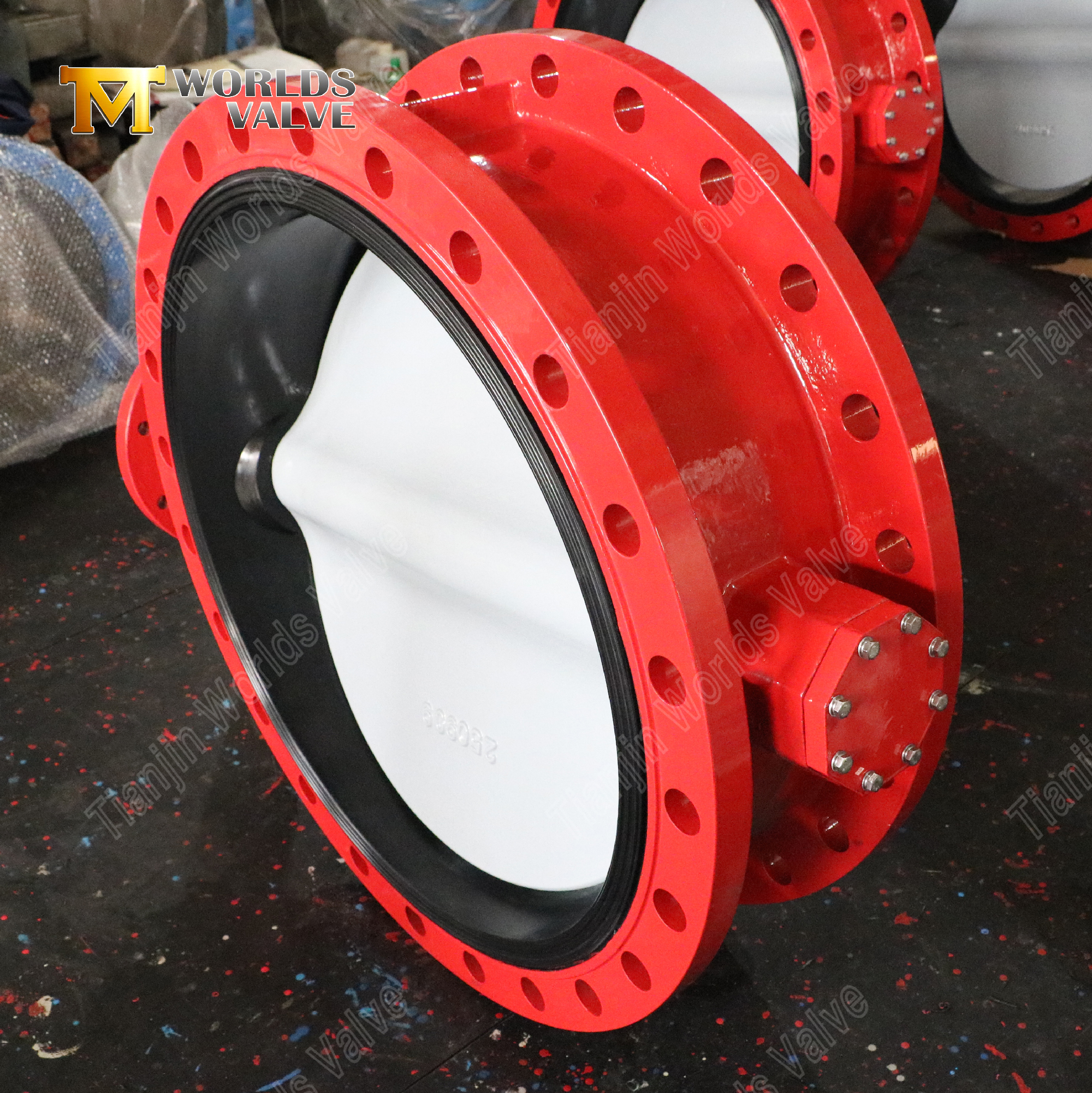

Double Flanged Butterfly Valve with Nylon-Coated DI Disc | OEM Manufacturer
Tianjin Worlds Valve Co., Ltd. – ISO 9001, CE, UKCA & WRAS Certified Manufacturer
CBF02-TF01-Operation and Maintenance Manual DOWNLOAD
1. Superior Stability with a Double Flanged Connection
Engineered for maximum reliability in critical pipeline sections, our valve features a double flanged (flanged ends) design. This robust construction provides distinct advantages over wafer-type valves:
Secure, Bolted Joints: The integral flanges on both sides enable a solid, gasketed connection directly to the pipeline flanges using through-bolts, eliminating dependency on line bolts.
Ideal for Dead-End Service: This design withstands unilateral pipeline pressure, making it the perfect choice for isolation points, system terminals, or future line extensions.
Enhanced Mechanical Integrity: It offers superior resistance to pipeline stress, vibration, and bending moments, ensuring a leak-proof seal and long-term system stability.
2. Extended Service Life with a Nylon-Coated Disc
The valve disc is engineered for durability and optimal performance through advanced surface treatment.
Corrosion & Abrasion Resistance: The ductile iron disc is protected by a high-quality Nylon (Polyamide) coating. This layer significantly enhances resistance to chemical corrosion and abrasive particles in the media.
Improved Sealing & Efficiency: The coating creates an exceptionally smooth, low-friction surface. This improves sealing contact with the seat, ensures bubble-tight shut-off, and reduces operational torque.
Reduced Maintenance: By minimizing wear on both the disc and the seat, this feature directly extends the valve's service life and lowers the total cost of ownership.
3. Uncompromising Strength from GGG40 Ductile Iron Body
The foundation of this valve is built for resilience, using premium material for critical structural components.
High-Strength Material: The valve body is cast from GGG40/500-7 Ductile Iron, known for its excellent tensile strength and good elongation (toughness).
Impact & Pressure Resistance: This material provides exceptional resistance to mechanical shock and hydraulic pressure surges, ensuring reliable performance under demanding conditions.
Durable Foundation: The robust body securely houses the internal components and provides a stable platform for the flanged connections, guaranteeing overall valve integrity.
4. Reliable, Value-Driven OEM Manufacturing
As a dedicated OEM valve manufacturer in China, we deliver consistent quality and strategic value for partners.
Cost-Effective Standard Solution: This model offers outstanding reliability for general water, HVAC, and industrial services, representing an optimal balance of performance and investment.
Guaranteed Consistency & Delivery: Our focused manufacturing and ISO 9001-aligned processes ensure product uniformity and reliable on-time delivery for your supply chain.
Flexible Customization: We provide adaptable OEM services, including options for seal materials (EPDM, NBR, etc.), exterior coatings, actuator prep, and packaging to meet your specific specifications and branding requirements.
Parameter | Specification |
Model | Flanged Butterfly Valve(CBF02-TF01) |
Sizes | DN50-DN2000 |
Pressure Rating | PN10/16/150LB/JIS10K |
Design | EN593 BS5155 EN1092 ISO5211 |
Testing | ISO5208 EN12266-1 |
TOP Flange | ISO5211 (according to customer’s needs) |
Face to Face | EN558-1 DIN3202 ISO5752 BS5155 |

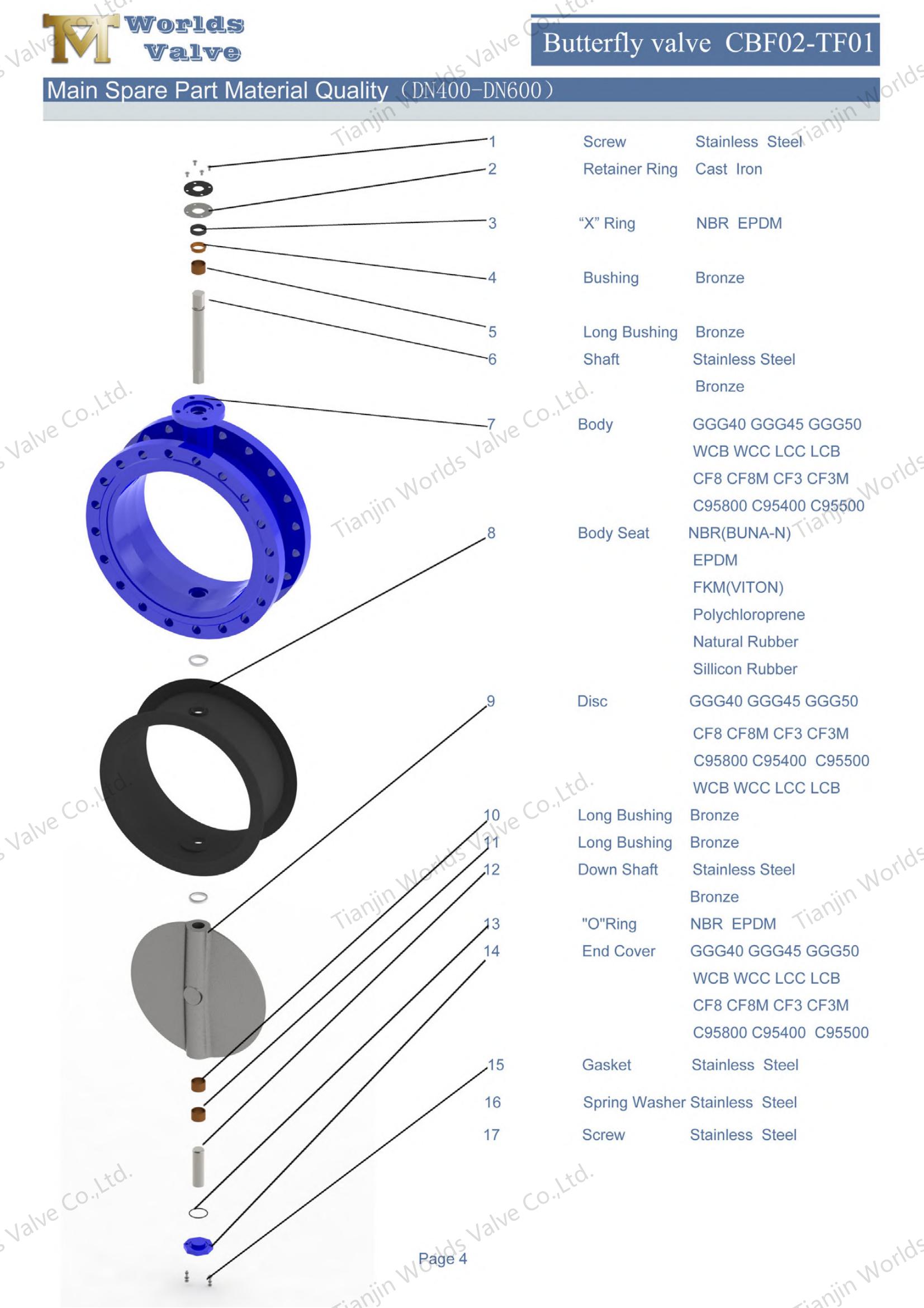

Body | GGG40 |
Disc | DI Disc with Nylon Coated |
Seat | EPDM |
Stem | SS410/420... |
Focused Manufacturing, Guaranteed Consistency: As a specialist valve factory, we control the production process from casting to assembly. Our **ISO 9001 certified** quality system ensures every valve meets strict performance and dimensional standards, batch after batch.
Built for OEM & Export: We understand the needs of global partners. Our valves are designed for compatibility with international flange standards and can be prepared for specific certifications. We offer reliable documentation and export logistics support.
Practical Customization & Flexibility: While this is a standard, high-value product, we can adjust details to suit your needs, such as alternative seal materials, specific paint colors, actuator mounting, or tagging/packaging requirements.
Water Supply and Distribution Mains
Building Services & HVAC Systems
Industrial Cooling Water Circuits
Fire Protection Systems
General Service in Utility and Infrastructure Projects
Contact us for pricing, detailed specifications, or to discuss how we can configure this double flanged butterfly valve for your next project or product line.
